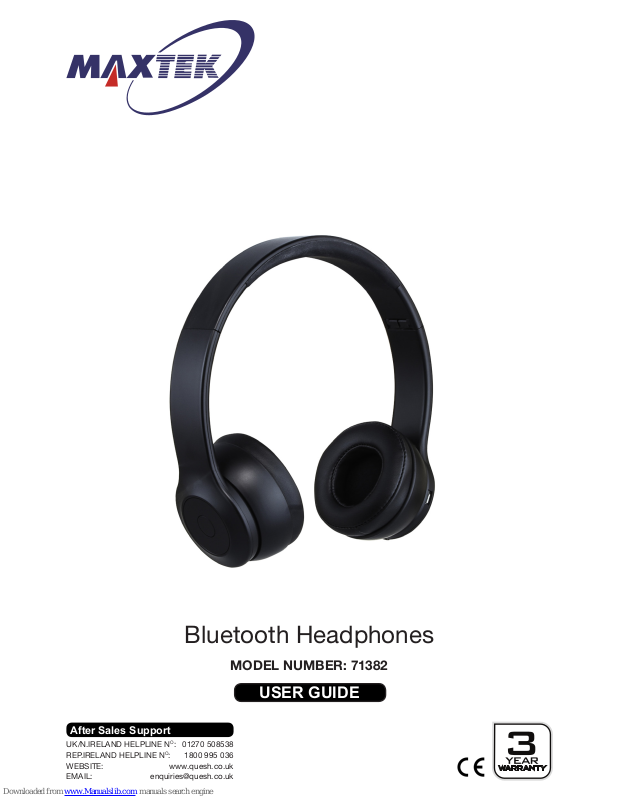

Page 1
USER GUIDE
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Bluetooth Headphones
MODEL NUMBER: 71382
Page 2
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
1.
2.
3.
4.
5.
6.
7.
Welcome Section
General Information & Safety Instructions
Contents & Features
Layout & Controls
Charging
Power On/Off
Standby/Power Off
Pairing
Basic Controls
AUX
Specications
Contents
Page 3
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK
®
product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.
We want you to be completely satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Page 4
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
2
General Information &
Safety Instructions
These Bluetooth headphones are powered by a 500mAh lithium battery.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek immediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Battery Care
To get the best out of the battery, fully charge and use until at for the rst 5-6
times. Then use until at and fully charge at least once a month.
Prolonged storage without charge may cause damage to the battery and result in
poor to no charge. It is recommended you fully charge the battery every 6 months
for long term storage to keep the battery in good condition.
The EU Declaration of Conformity
can be downloaded from www.quesh.co.uk.
Page 5
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Contents & Features
Contents
1 x Bluetooth Headphones
1 x Charge cable
Features
• Bluetooth version 4.1
• Bluetooth protocol AD2P, AVRCP, HSP, HFP
• Upto 10m bluetooth range
• Upto 10 Hours active use
• 48 days Standby mode
• 3-4 Hours charge Time
• AUX port
Page 6
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
4
Layout & Controls
Vol+
Skip Forward
Micro USB
Charge Port
Power
LED
AUX Port
Vol -
Skip Back
On/Off
Play/Pause
Answer & End Call
Page 7
5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Before using the bluetooth headphones for the rst time please
make sure they are fully charged.
Connect the supplied charge cable to the headphones and a
suitable 5V/300mAh power supply. A PC or Laptop USB port is
preferable.
When the headphones are charging a red LED will light up and then
go out once fully charged.
If the LED is ashing red the headphones are low on power.
Charging
If the headphones are left inactive for 3 minutes the headphones
will change to standby mode. Press any button to bring the
headphones out of standby mode.
If the headphones are left inactive for 30 minutes they will turn
themselves off.
Standby/Power Off
Press and hold the center button for 3 seconds to turn on the
the headphones. An audio alert ‘power on’ will conrm they are on.
Press and hold the center button until the audio alert states
‘power off’, then the headphones will turn off.
Turning On/Off
Page 8
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
6
To pair the headphones rstly make sure they are turned off and
your phone has it’s bluetooth active. Press and hold the on button
until you hear the audio alert ‘Ready to Pair’ and the LED is ashing
blue and red. Search for the device named ‘MAXTEK AUDIO’ then
select it to pair the device. If you are successful the LED will turn
blue.
Pairing
You can use these headphones as standard wired headphones.
Connect a double ended 3.5mm audio cable (not supplied)
to the device’s headphone/audio out and the headphones AUX
port. The headphone in-built controls will not work if the unit is
used in this manner.
AUX
The centre button:
Power On/Off
Play/Pause (Music Mode)
Answer/End Call (Call Mode)
Left button:
Volume Skip Back (Music Mode)
Right button:
Volume +
Skip Forward (Music Mode)
Basic Controls
Page 9
7
Specification
Bluetooth Headphones
Bluetooth:
Bluetooth Protocol:
Bluetooth Range:
Standby Time:
Active Use:
Charge Time:
Battery:
Charge Requirement:
Weight:
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Ver. 4.1
AD2P, AVRCP, HSP, HFP
Approx. 10m
Up to 48 Days
Up to 10 Hours
3-4 Hours
500mAh rechargeable lithium
5V / 300mAh
175g
Page 10
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Warranty
This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets covered by this warranty are in addition to all rights and remedies in respect of the
product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack of reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K. and Ireland
• Any damage caused by improper power input or improper cable connection.
This warranty does not affect your statutory rights.
Warranty Certificate
Page 11
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Warranty Card
Bluetooth Headphone
Please keep your purchase receipt together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.
Model Number: 71382
Service Helpline
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG
