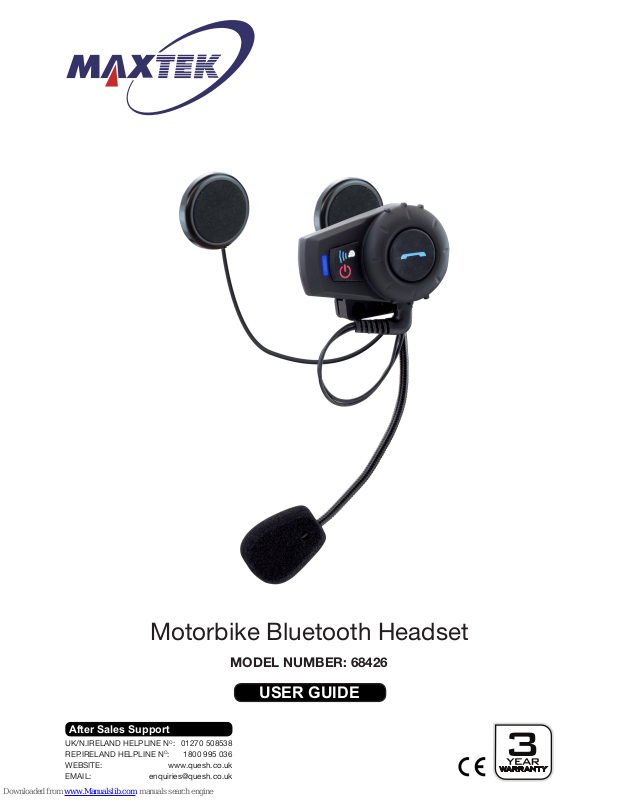

MAXTEK 68426 User Manual

USER GUIDE

Motorbike Bluetooth Headset

MODEL NUMBER: 68426

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Welcome Section

General Information & Safety Instructions

Contents & Features

Layout & Controls

Fitting The Headset

• Fitting the Mount

• Fitting the Ear Pieces

Charging Instructions

• Charging the Bluetooth Module

Turning On/Off

• Turning On

• Turning Off

Bluetooth

• Pairing to a Smart Phone

• Pairing to another Module

• Resetting Pairing Memory

Intercom

• Intercom Controls

Handsfree

• Handsfree Controls

Music

• Music Controls

Specications

FAQ

1.

2.

3.

4.

5-6.

7.

8.

9.

10.

11.

Contents

Welcome Section

Congratulations!

You have made an excellent choice with the purchase of this quality
MAXTEK

®

product.

By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.

We want you to be completely satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.

We hope you enjoy using this product for many years to come.

If you require technical support or in the unlikely event that your
purchase is faulty, please telephone or email our helpline for
immediate assistance. Faulty product claims made within the 3 year
warranty period will be repaired or replaced free of charge provided
that you have a satisfactory proof of purchase (keep your receipt
safe). This does not affect your statutory rights. However be aware
that the warranty will become null and void if the product is found
to have been deliberately damaged, misused and/or disassembled.

1

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

General information &
Safety Instructions

Rechargeable Polymer Li-ion battery inside headphones.

Do not dispose of batteries in your household waste.

Please contact your local authority for details on safe disposal.

• Never throw batteries into a re or expose to excessive heat sources.

• If batteries are swallowed, please seek immediate medical attention.

• Always ensure correct +/- battery polarity when installing batteries.

• Do not recharge non-rechargeable batteries.

Batteries, should not be thrown away with your household waste. Contact
your local authority waste disposal department, as they will be able to provide
details of the recycling options available in your area.

Electrical and electronic equipment (EEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health. Therefore waste electrical and electronic equipment (WEEE)
must be disposed of correctly.

Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

2

3

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Contents & Features

Contents

1 x Bluetooth module
1 x Helmet mount clamp
1 x Headset
1 x USB charge cable
1 x Screwdriver
2 x Adhesive velcro pads

Features

• Bluetooth: V2.1 +EDR

• Frequency Range: 2.4GHz

• Bluetooth Mode: A2DP & AVRCP

• Operation Smart Phone Range: Up to approximately 10 metres

• Operation Intercom Range: Up to approximately 500 metres

• Talk Time: Up to 10 hours

• Intercom Time: Up to 5 hours

• Standby Time: Up to 300 hours

• Charging Time: 4 hours

• Water Resistant

• DSP echo cancellation upto 120kph

Layout & Controls

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

4

1. Multi-function Button

2. Power/Intercom

3. Charger & Headset Micro USB Port

4. Headset Plug

5. Microphone

6. Ear Speaker

7. Jog Wheel

7.

5

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Fitting The Headset

Fitting the Mount

Undo the screws in the mount till the tips of the
screws are still intact with the mount.

Slip the mount over the bottom edge of the
helmet on the left side (as you wear it). Take care
to make sure the mount ts under the padding.
Adjust the mount till its in a preferred location
and that the clip mounts are facing outwards.
DO NOT over tighten the screw as you may
damage the mount.

Insert the bluetooth module to test that it ts
securely in place and that it doesn’t obstruct the
visor.

To remove the module, push back the clip on
the top of the mount and slid the module up.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

6

Fitting The Headset

Fitting the Ear Pieces

Find a comfortable spot close to your ears then
attach the adhesive velcro pads. This may take
several attempts to locate the best spot. Only
attach the pads once you are certain you have
the optimal position.

Once the pads are stuck in position attach the
two ear pieces, again making sure the
microphone is tted on the left of the helmet
(as you wear it).

The microphone must run along the wall of the
helmet and that the microphone end falls just
below the mouth and to the side.

Connect the bluetooth module to the mount and
then the micro USB connector to the module.

Secure any loose wiring by tucking it inside the
helmet padding.

Charging Instructions

Charging the Bluetooth Module

Before using the device you will need to fully charge it.

Insert the USB charge cable into the nano USB port on the
module and the other end into a standard USB port or USB adaptor.
When charging you will see a red LED. Once the charge is complete
the red LED will turn off. A full charge normally takes about 4 hours.

Please Note:

To maintain your battery please use it till at and fully charge it for about 6 cycles,
then drain and fully charge it once a month after that.

7

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Turning On/Off

Turning On

To turn on the module, press the Power/Intercom button for 3
seconds until you hear a beep.

Turning Off

To turn the module off, press the Power/Intercom button for 5
seconds until you hear a beep. The module lights will turn off.

Please Note:

To maintain your battery please use it till at and fully charge it for about 6 cycles,
then drain and fully charge it once a month after that.

Bluetooth

Pairing to a Smart Phone

Make sure the module is off and you have bluetooth enabled on your
smart phone. Press and hold down the Power/Intercom button for 8
seconds until you see a red and blue LED ashing.
Search for ‘MAXTEK BT’ from available device list on your smart
phone and select it. If your smart phone asks for a password please
use ‘0000’. The module will beep twice when the pairing is
successful.

Pairing to another Module

Make sure both receivers are turned off. Press and hold the
Power/Intercom for 8 seconds on both modules at the same time till
the LED’s are ashing blue and red. Quickly press one of the
modules Power/Intercom buttons to search for the other module.
When successfully paired together you will hear a beep and the LED
will ash blue.

It is possible to be paired to both a smart phone and another module
at the same time. The intercom function will be ended in favour of
answering an incoming call.

Reset the Pairing Memory

If you have problems pairing, try resetting the pairing memory.
Turn on the relevant unit into standby mode.
Press the Power/Intercom button for 3-5 seconds till a beep is heard.
This should be before the module switches off.
Let go of the button when the beep is heard.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

8

9

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Handsfree

Handsfree Controls

• You can start or end a call by pressing the Multi-function button.

Music will be paused for the call and will automatically resume
once the call has ended.

• To reject an incoming call, press and hold the Multi-function button

until you hear a beep.

• To redial the last number, press an hold the Multi-function button

for 2 seconds or until it beeps.

• You can use the jog wheel to increase or decrease the volume level.

Intercom

Intercom Controls

• You can start or end a conversation over the intercom by pressing

the Power/Intercom button.

• You can use the jog wheel to increase or decrease the volume level.

Specification

Bluetooth Headphones

• Bluetooth: V2.1 +EDR

• Frequency Range: 2.4GHz

• Bluetooth Mode: A2DP & AVRCP

• Operation Smart Phone Range: Up to approx. 10 metres

• Operation Intercom Range: Up to approx. 500 metres

• Talk Time: Up to 10 hours

• Intercom Time: Up to 5 hours

• Standby Time: Up to 300 hours

• Charging Time: 4 hours

• Water Resistant

• DSP echo cancellation

• Weight: 95g

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

10

Music Controls

• Preselect the music (or GPS/SatNav App) you want to play from

your smart phone or bluetooth MP3 player.

• Press the Multi-function button to Play/Pause the music.

• Skip tracks forward or backwards by using the jog wheel.

• Increase or decrease the volume by twisting and holding the jog

wheel till the level is right. You will hear a beep for the highest and
lowest level limits.

Please Note:

Best audio results are when the smart phone or bluetooth MP3 player’s volume is
on maximum.

Music

FAQ

Problem Cause Solution

Bluetooth dropping out after
a few minutes.

Full device cache.

Low Power.

Manually clear the device’s cache &
restart the device.

Turn the module off and
recharge them.

Stuttering/delay music. Too many processes running

on device.

Corrupt bluetooth prole.

Interference.

Close unused apps.

Unpair & delete bluetooth prole,
then re-pair device.

Use away from high powered
devices or strong RF signals.

No music No compatible music app.

A2DP is not available on your
device.

Headphones not paired.

No power.

Volume low.

Use a compatible music app.

None.

Check bluetooth is on & the device
is connected.

Turn on or recharge headphones.

Turn the volume up to maximum.

Microphone is not working
on my headphones when I’m
paired to an iPhone.

Incorrect audio source. Change the audio source in the

iPhone call menu to the
headphones.

11

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Unable to hear incoming
calls.

Volume to low. Set the smart phone to maximum

volume.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty

This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.

Proof of Purchase

This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.

Service during the Warranty Period

Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.

Extent of the Warranty

This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.

Normal Wear and Tear

This warranty does not cover normal wear and tear of the product or parts.

Exclusions

This warranty does not cover the following:

• Any defect caused by accident, misuse, abuse, improper installation or operation, lack or reasonable

care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.

• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s

or vehicle outlet power surge or liquid ingress.

• Any product that has not been installed, operated or maintained in accordance with the

manufacturer’s operating instructions provided with the product.

• Any product that has been used for purposes other than domestic use.

• The product if it is located outside of the U.K. and Ireland

• Any damage caused by improper power input or improper cable connection.

Your statutory rights are not affected.

Warranty Certificate

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty Card

Motorbike Bluetooth Headset

Please keep your purchase receipt together with your warranty card

Fault Description:

Name:
Address:

Date of purchase:

Location of purchase:

We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.

Model Number: 68426

Service Helpline

QUESH LTD,
B7, FIRST BUSINESS PARK

FIRST AVENUE, CREWE, CHESHIRE.

CW1 6BG
