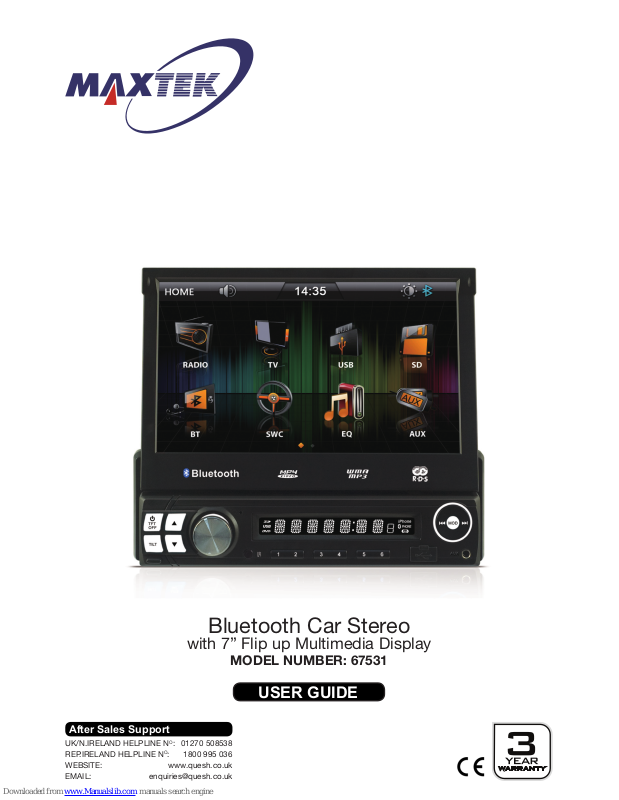

USER GUIDE
Bluetooth Car Stereo
with 7” Flip up Multimedia Display
MODEL NUMBER: 67531
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Welcome Section
General Information & Safety Instructions
Contents & Features
Installation
Wiring Connection
Fascia Controls
Remote Control
Radio Operation
• Operating the Remote
• Choose Radio Band
• Radio Tune / Seek Function
• Mono / Stereo Reception Control
• Save Your Presets
• Automatic Scan & Store
• Scan Saved Station
• Local / DX
• TA - (Trafc Announcements)
• PTY - (Program Type)
• RDS Operation
Main Menu
Bluetooth Operation
• Pairing
• Bluetooth Call Function
• Bluetooth Phone History
• Bluetooth Music
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
1.
2.
3.
4-5.
6.
7.
8.
9-10.
11.
12-13.
Contents
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
USB/SD Operation
• Playing Media
• Navigate Files
AUX Operation
• AUX Inputs
SWC (Steering Wheel Control)
• SWC Inputs
EQ
• EQ Inputs
Settings
• Audio Settings
• Date Settings
• Default Settings
• General Settings
• System Settings
Movie Options
• Movie Controls
RCA Setup
• RCA, AUX IN
• RCA, AUX OUT
Screen Function
• Deployment & Stowing
• Angle Adjustment
FAQ
Specication
14-15.
16.
17.
18.
19-21.
22.
23.
24.
25.
26.
Contents
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
1
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK
®
product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.
We want you to be completely satised with your purchase, so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
2
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
General Information &
Safety Instructions
This remote control is powered by 1 x ‘CR-2025’ lithium battery.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek immediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (EEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health. Therefore waste electrical and electronic equipment (WEEE)
must be disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
To ensure safety while driving and to comply with UK laws,
drivers should not watch video or operate the video device while driving.
It is illegal to drive while operating a hand-held phone or a similar device.
This applies even if you’re stopped at traffic lights or queuing in traffic.
The EU Declaration of Conformity
can be downloaded from www.quesh.co.uk.
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Contents & Features
Contents
1 x Deckless Multimedia Player
1 x Mounting Cradle
1 x Remote Control
1 x Media Connection Cable
2 x Installation Keys
1 x ISO Cable
Features
• 7” TFT touch screen display (800x480pxl)
• Bluetooth (Hands Free & Audio)
• PAL
• MP3, MP4, AVI, DIVX & JPEG Media Formats
• Optional Steering Wheel Control Interface
• Optional Reverse Camera Output
• FM & AM Radio Receiver
• RCA IN
• RCA OUT
• SD Port
• USB Port
• 3.5mm AUX Port
• Sub Woofer Connection
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Please Note:
Mark the polarity of the existing speaker wires before disconnecting battery.
1. After removing the old radio and mounting
sleeve, insert supplied mounting sleeve
into opening.
2. Bend the tabs on the mounting sleeve
with a screw driver to keep the mounting
sleeve firmly in place.
3. Attach the wires from the unit to the
existing wires. See wiring connections
diagram. Insert radio into dashboard
then apply the trim frame to the
outside of radio.
DIN Front Mount
Installation
WARNING!
Disconnect the negative terminal from the battery before starting installation.
Consult the vehicle owner’s manual for detailed instructions.
Supplied Parts
2 Keys
1 Faceplate Case (not shown)
1 1/8” Stereo Cable
1 Remote control
5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Installation
Parking wire from player (Green)
Reverse Light
Reverse Light
Reverse wire from player (Purple/White)
Reverse
Light
Parking Wire (Green)
Once connected correctly you will be able to view video media on the screen when the parking brake has
been engaged and the vehicle has power.
WARNING!
Disconnect the negative terminal from the battery before starting installation.
Consult the vehicle owner’s manual for detailed instructions.
Reverse Wire (Purple/White)
Once connected correctly you will be able to view the connected reversing camera when the reverse gear is
engaged. Refer to the manufactures installation guide of the camera for details.
Please Note:
If you are unsure about any part of installing this unit please get it tted by a
qualied automotive technician.
6
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Make sure that you have a good earth connection. A good earth connection will eliminate most electrical
noise problems. A good earth connection requires a tight connection to the vehicle's metal chassis.
The area around the earth connection should be clean, bare metal without rust, paint, plastic, dust, or dirt
for a good electrical connection.
Please Note:
Follow the above wiring diagram to install the head unit with new or existing speakers.
• This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape
to tape the ends of the un-used speaker outputs to prevent a short circuit.
• Never connect the negative speaker terminals to
earth connection
.
• Never connect to a power source greater than 12V.
Wiring Connection
Media Connection Pins
A
B
Steering Wheel Controls
You will require an after
market adaptor in order
to use this feature.
Steering 1:
Voltage Detection
Steering 2a:
GND/Earth
Steering 2b:
Voltage Detection
7
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Fascia Controls
1. TFT Display
2. Power/TFT Off
3. Up
4. Microphone
5. LCD Screen
6. Skip Back
7. MOD
8. Skip Forward
9. TILT
10. Open
11. Down
12. Volume/Select Dial
13. IR sensor
14. 1-6 Presets
15. USB Port
16. AUX Port
17. SD/MMC port
18. Reset
Remote Control
8
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Operating the Remote Control
Aim the remote at the IR sensor on the fascia. The maximum distance at which
signals can be received is approximately 6m.
Vol +
Power On/Off
Navigation Up
Stop/Playback
Enter
Navigation Left
Navigation Down
Mute
Tuning/Preset
Source Select
Vol -
Play/Pause
Next
Navigation Right
Skip Back
Menu
Mode
Band/Select
Auto Preset Scan/Repeat
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Replacing the Batteries
Follow the 3 steps below:
• Remove the cover from the back of the remote.
• Insert a CR-2025 Lithium Battery observing the polarity marking.
• Replace the cover on the back of the remote.
9
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Radio Operation
Operating the Radio
When turning on the unit it will automatically go into radio mode unless a USB
stick or SD card has been inserted.
By pressing the PAGE button you will be able to cycle between the two available
option screens for the radio functions.
Functions that use RSS/RDS signal will be limited to FM band only.
To return to the main menu press the return arrow in the top right of the screen.
10
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Radio Operation
Choose Radio Band
Press the BND Button anytime to access the radio
function. The unit comes with five bands, three FM
Bands (FM1, FM2, and FM3) and two AM Bands
(AM1, and AM2). Each of the five bands can store
up to six preset stations, for a total of 30 preset
memory stations.
Radio Tune / Seek Function
In radio mode, press the “|<<” or “>>|” button for 2
seconds to automatically seek the next strong and
clear radio station. Press and hold the “|<<” or “>>|”
button until the screen shows MANUAL. At this time,
you can manually fine tune your desired frequency
by pressing “|<<” or “>>|”. Wait until the MANUAL
disappears in order to perform auto seek again.
Mono / Stereo Reception Control
In FM radio mode, Press “ST” button on the display
“ST ON” will show on the screen . This will allow
you to change between Mono and Stereo reception.
Save Your Preset Stations
There are six numbered preset buttons which
can store and recall stations for each band. While
listening to a radio station you would like to save
as a pre-set, press and hold one of the buttons
numbered 1-6 on the fascia until the preset station
number is shown. The button you pressed is now
the pre-set button for that station.
Automatic Scan & Store
While listening to the FM or AM Radio, press and
hold the F/PS Button for 4 seconds. The receiver
will automatically scan and save to the presets the
strongest radio station signals available to you in
your area.
Scan Saved Stations
Press the F/PS button once to perform the preset
scanning function. In FM or AM mode, press the F/
PS button and the stations stored in the FM band
preset will be scanned. The scan will pause on each
preset for 6 seconds before moving on to the next.
To stop and listen to a preset of your choice press
the SEL dial.
Local / DX
Press LOC Button on the display. When “LOC ON”
is shown on the display, this means local reception
is turned on. When “LOC OFF” is shown on the
display, this means distant reception is turned on.
Local and distance reception settings can facilitate
the radio reception, depending on the location in
which the radio is being used.
TA - (Traffic Announcement)
Press and hold the TA button so that the unit will
receive traffic announcement from local radio
stations.
To choose the TA mode, press the VOL dial for
2 seconds, the display will show “TA SEEK”.
Rotate the encoder volume to choose between
the TA SEEK and TA ALARM, after choosing,
please leave the unit idle for the mode to activate.
In TA SEEK mode, the unit will seek for traffic
announcement program when TA is pressed.
When in TA ALARM mode, no TA/TP is displayed
and the alarm is set off.
PTY - (Program Type)
This radio will allow you to select the type of
program required, and will search for a station
broadcasting that type of program. Press and
hold the PTY button once to show the music
type. Then press 1-6 button to choose the
different music types available.
Press the PTY button twice to show the speech
type program. Then press 1-6 button to choose
the different speech type program. Each number
key will show 3 different speech programs for you
to choose.
RDS Operation
This unit is equipped with the latest technology
of EON control, so that when you are listening
to Radio or other function, if there is any travel
announcement from a nearby local station, the
radio will already know the frequency of that radio
station. Then it will receive the station, turn up the
volume, or interrupt the playback of the music for
the duration of the announcement. At the end
of the announcement the radio will return to its
previous state ready for the next announcement.
11
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Main Menu
Home Screen
On the home screen you can select any of the 8 options listed.
The sun icon near the top right corner controls the brightness of the screen.
Press this to dim it in night mode. Press it again to turn the screen off. Press it a
third time to return it to day mode.
The time is displayed at the top in the middle.
The speaker Icon on the top left after the page description is the current volume
level.
12
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Bluetooth Operation
Pairing
The bluetooth function of this radio is always in standby mode ready for pairing
and connection, signalled by a flashing bluetooth icon on the screen.
Run the bluetooth search and connect function on your mobile phone. Find and
select “BT car stereo” on your mobile phone. If you are asked for a connection
password, please input “0000” on your mobile phone to finish the pairing. The
bluetooth icon on the display will be on indicating that the connection is established.
The bluetooth functions are ready to use.
Bluetooth Call Function
When you press the Bluetooth option on the main screen you will see the call
dialing screen. If your phone is compatible you will be able to dial numbers straight
on to this screen. You can start/answer a call with the green phone icon or end/
reject a call with the red phone icon.
Any outgoing on incoming numbers will be displayed in the box above the numbers.
To return to the main menu press the return arrow in the top right of the screen.
13
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Bluetooth Phone History
Press the middle button on the screen at the bottom of the page to access the call
history. You can see Dialed, Received and Missed calls.
You can select a number from the list a call back by pressing the green phone icon.
To return to the main menu press the return arrow in the top right of the screen.
Bluetooth Music
Once a device is connected you can start to play music from making the selection
from you phone. The bluetooth music screen will automatically show.
You can skip back, play/pause and skip forward from the touch screen or your
phone. No track information will be displayed.
To return to the previous menu press the return arrow in the top right of the screen.
Bluetooth Operation
14
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
USB/SD Operation
Playing Media
Insert either the SD card or USB stick into the relevant port the unit will start to
automatically play the first readable file.
If the media is music you will see the screen above.
If the media is a video you will see this warning if the vehicle is in motion or if the
parking cable has not been fitted correctly.
If the vehicle is not moving and the parking break has been engaged then you will
be able to view a video file on full screen mode.
15
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
USB/SD Operation
Navigate Files
To navigate all files on either SD Card or USB stick, press the Return button in the
top right corner on the screen on either the video screen or music screen.
You will see the ‘explorer’ screen.
The first of the three icons on the left is for filtering music files only.
The middle icon on the left is for filtering video files only.
The bottom icon on the left is for filtering photo files only.
Press on the Icons to either select a file or navigate through the folders. Pressing
the folder at the top of the list will allow you to view the previous folder unless you
are in the root directory.
Use the return button in the top right corner to go back to the main menu.
AUX Operations
16
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
AUX Inputs
You can either connect a device through the 3.5mm port in the fascia for audio or
a device through the RCA connectors are the back for video and/or audio.
The screen will be blank if there is no video to display. To view the AUX options
press the screen anywhere and the screen above will appear.
Here you can turn on or off the Loudness, mute the audio or go back to the main
screen.
The screen with return to the video mode after a few seconds once the screen has
been pressed.
Please Note:
The RCA connectors are marked ‘AUX in’ please see ‘Wiring Connection’.
If you have a reverse camera set up this is where the camera will show if it doesn’t
automatically show when the reverse gear is engaged.
17
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
SWC (Steering Wheel Control)
SWC Inputs
If the three steering wheel cable have been correctly wired to an adaptor you will
be able to configure your controls through the SWC option on the main screen.
Select an option to program. Press the corresponding button on your steering
wheel control and press ‘Enter’ on the screen to confirm.
Press ‘Reset’ to reprogram the controls.
Please Note:
You will require an after market steering wheel control adaptor to use this function.
18
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
EQ
EQ Inputs
You can customise your personal preferences to audio output where the option is
available. In most cases EQ options will be Pop, Rock, Classical and Off.
On this screen you can activate the Sub and Loudness option as well as control
the volume (VOL), treble (TRE) and bass (BASS).
You are able to set the balance between left and right as well as front and rear
speakers on this grid. Press the arrow keys to balance the sound to your personal
preference.
BAL is left or right audio bias where as the FAD is the front or back speaker bias.
It is also possible to change the setting from the fascia.
Press the volume dial to cycle through the options. Turn the dial to change the
values and press the volume dial to confirm your selection.
19
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Settings
Audio Settings
Press settings on the main screen and you will go directly to the audio options.
Here you can change Volume level, the default volume level and to turn on or off
the loudness option by pressing the option.
Use the arrow keys where presented to change the values.
Press any where on the screen to confirm.
Date Settings
Press settings on the main screen and you will go directly to the audio options.
Press ‘DATE’ to access the date and time options. Here you can change date
format, the time and the date by pressing the option.
Use the arrow keys where presented to change the values.
Press any where on the screen to confirm.
Settings
20
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Default Settings
Press settings on the main screen and you will go directly to the audio options.
Press ‘DEFAULT’ to access the reset option.
Please enter the code to reset the unit and press enter on the screen to confirm.
The Default code is: 888888
General Settings
Press settings on the main screen and you will go directly to the audio options.
Press ‘GENERAL’ to access the general options. Here you can turn the beep on/
off, disable the video function, change the camera function, set the Picture quality
and change the aspect ratio by pressing the option.
Use the arrow keys where presented to change the values.
Press any where on the screen to confirm.
21
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Settings
System Settings
Press settings on the main screen and you will go directly to the audio options.
Press ‘SYSTEM’ to access the system options.
Use the arrow keys where presented to change the values.
Press any where on the screen to confirm.
Follow the on screen instructions after selecting ‘Touch Calibrate’.
All updates are done via USB. A set of installation instructions will be provided with
any firmware updates.
Movie Options
22
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Movie Controls
There are 2 sets of control available. To change between the two use the button on
the bottom right of the screen.
Buttons from the bottom left:
Skip back, Play/Pause, Skip Forward, EQ, Aspect Ratio, Next Page
Buttons from the bottom left:
Loud, Random, Repeat, Subtitles, Audio Channel, Next Page.
IMPORTANT:
To ensure safety while driving and to comply with UK laws,
drivers should not watch video or operate the video device while driving.
It is illegal to drive while operating a hand-held phone or a similar device.
This applies even if you’re stopped at traffic lights or queuing in traffic.
23
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
RCA Setup
RCA, AUX IN
It is possible to connect a DVD player or device that uses RCA out. Connect the
corresponding colours of the RCA out from the device to the RCA plugs marked
AUX IN.
You will be able to view the input via the AUX option on the main menu.
RCA, AUX OUT
It is possible to connect slave screen or device that can receive an RCA input
to this unit. The video will only show if there is an external player connected.
Connect the corresponding colours of connectors marked VIDEO OUT (Yellow),
then either the front or back red and white AUDIO OUT from the unit to the RCA
plugs to the device’s RCA/AUX in.
Please Note:
You cannot play a video through the unit’s SD or USB ports and display it on
attached screens.
RCA
Output
AUX
Input
24
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Screen Function
Deployment & Stowing
After you press the power button you will need to press the ‘TFT’ button to deploy
the screen.
Press the ‘TFT’ button again to stow the screen.
If you press the power button while the screen is deployed the screen will turn off
but be left in position.
Angle Adjustment
Use the arrow up and down button next to the power and TFT button to tilt the
angle of the screen downwards or upwards.
Please Note:
The screen will not tilt any further than the vertical position.
25
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
FAQ
Problem Cause Solution
No power. The car ignition is switched
off.
The fuse is blown.
If the power supply is properly con-
nected, switch the ignition key to
ON or ACC.
Replace the fuse according to the
wiring diagram.
Error on LCD display or no
function when buttons are
pressed.
Inbuilt processor is not
operating due to noise.
Fascia is not mounted
correctly.
Press the RESET button.
(See page 6.)
Reattach fascia correctly.
Poor or no radio
reception.
Loose connection /
Not connected.
Poor reception area.
Bad earth connection.
Internal vehicle aerial.
Check aerial connection on the
back of the unit.
Manually tune in station.
Check the cradle has a rust free,
tight connection to the vehicle’s
chassis.
3rd party signal booster maybe
required.
Auto scan does not stop at a
station.
Transmission signal are too
weak.
Manually tune in station.
No sound. Volume control set too low.
The device has not been con-
nected properly.
Turn up volume properly.
Check wiring according to the
wiring diagram.
MP3/WMA les on USB or
SD/MMC do not play.
Storage greater than 8Gb.
Incorrect le format. (NTFS)
The music les are DRM
protected.
Use a USB, SD/MMC storage
device with no greater storage
capasity than 8Gb
Format the storage device into
either FAT or FAT32 le format.
This unit is not DRM
compatible.
Bluetooth not working. Bluetooth module locked up. Disconnect and reconnect ISO
cable.
Device connecting via
bluetooth but not functioning.
Bad pairing prole on device.
Bluetooth version not com-
patible
Delete the pairing prole off of your
device, press RESET on fascia (see
page 6.) and re-pair device.
No solution.
Please Note:
AM band services are being reduced and this will affect certain areas.
26
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Specification
General
Power supply requirement DC 12V
Current Consumption 10A max
Maximum power output 4 x 25W (measured at 14.4V)
Number of channels 2 x Stereo
Impedance load 4 Ohms - 8 Ohms
Dimensions 178mm x 170mm x 58mm
Weight 2Kg
TFT
Resolution 800 x 480 pixel
Brightness/Contrast 300cd/m
2
/600
Viewing Angle 70
o
Response Times Tr-2s/Tf-6s
Screen Size 7”
Aspect Ratio 16:9
FM
Frequency range 87.5MHz - 108MHz
I.F. Frequency 10.7MHz
AM
Frequency range 522KHz - 1620KHz
I.F. Frequency 450KHz
LINE-OUT
Output 1200mV Maximum
SD or USB
Frequency response 20-100Hz <=5dB
10-20KHz <=5dB
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Warranty
This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack or reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K. and Ireland
• Any damage caused by improper power input or improper cable connection.
Your statutory rights are not affected.
Warranty Certificate
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Warranty Card
Bluetooth Car Stereo
with 7” Flip Up Multimedia Display
Please keep your purchase receipt together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.
Model Number: 67531
Service Helpline
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG
Loading...
