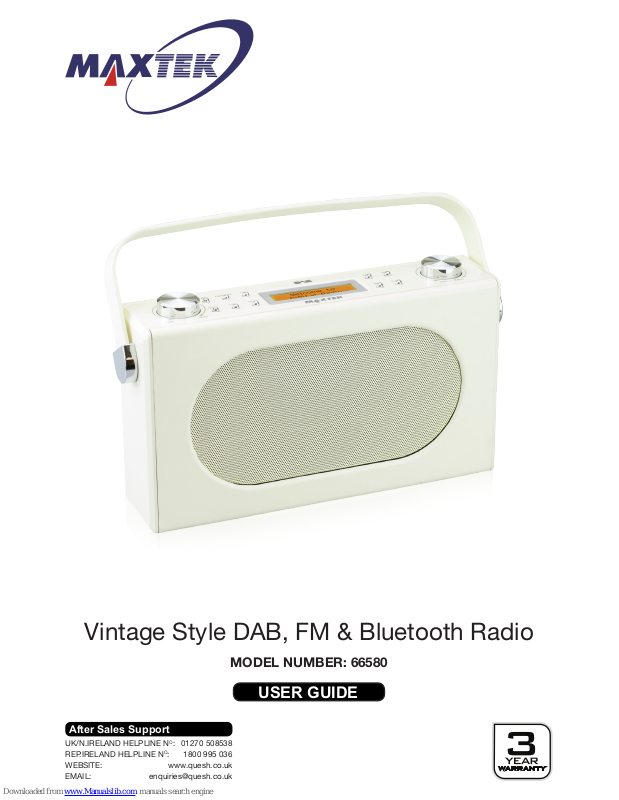

USER GUIDE
Vintage Style DAB, FM & Bluetooth Radio
MODEL NUMBER: 66580
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Contents
Welcome Section
General Information & Safety Instructions
Contents & Features
Controls
Setup
Selecting a DAB station / Saving a DAB/FM station
Selecting a preset
Auto tuning DAB / Manually tuning DAB
Auto tuning FM / Manually tuning FM
DAB / FM Information
Reset
Bluetooth
FAQ
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
1.
2.
3.
4.
5.
6.
7.
7.
8.
9.
9.
10.
11.
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK
®
product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and saftey, supported by the
high quality standards of Quesh Ltd.
We want you to be completly satised with your purchase, so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
General information &
Safety Instructions
This radio is powered by 4 x ‘D’ size alkaline batteries (not included).
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek mmediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
2
Contents & Features
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Contents
1 x DAB / FM radio
1 x 5V mains adaptor
Features
• DAB reciever (174MHz - 240MHz)
• FM reciever (87.5MHz - 108.00MHz)
• Stores 10 FM presets
• Stores 10 DAB presets
• Bluetooth V4.0
• Bluetooth range 10m
• Powered by 4 x D alkaline batteries (not included)
• 5v mains adapter (included)
• Auto adjusting clock
• Orange LED backlight display
• Stereo sound (2 x 2W speakers)
• Telescopic aerial
• 3.5mm headphone port
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Controls
On/Off
DAB/FM/Bluetooth
mode select
Preset 1/6
Preset 2/7
Skip Back
Preset 3/8
Skip Forward
Volume Dial
Auto Scan
Channel
Information
Shift preset
selection
Preset 4/9 Preset 5/10
Play/Pause
Tune/Enter
Dial
Headphone
Socket
DC in
Socket
Setup
5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
First time use
After removing the radio from the packaging, either insert the 4 ‘D’
size batteries into the rear compartment located on the bottom of the
radio or connect the mains adaptor to the mains outlet and connect
the power lead to the ‘DC in’ socket located on the back of the radio.
Fully extend the telescopic aerial, press the button to turn the
radio on and you will see the welcome screen displayed on the front.
The date and time will automatically be set by the DAB signal the
radio is receiving. If your radio is in a poor signal area, the date and
time will not be set and you will see a message on the display.
You cannot set the time manually as this is a fully automatic feature.
This will also mean you can only use the radio in FM mode as the
DAB signal is not strong enough for the radio to receive stations.
After the date and time has been set the radio will perform a full scan
the DAB frequencies available. The scan progress and the number of
DAB stations found will be shown on the display.
Once the full scan has been completed the radio is ready to use.
6
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Instructions
Selecting a DAB station
Turn the ‘Tuning/Enter’ dial either clockwise or anti clockwise to
cycle through the available stations. All the stations are displayed in
alphabetical order.
Once you have found the required DAB/FM station to listen to, press
the ‘Tuning/Enter’ dial to select it. The station will only change once it
has been selected, so you can browse the available stations without
disturbing the current selected station.
Saving a DAB/FM station
Press and hold one of the buttons marked 1 to 5 when you have tuned
the radio on to a required station in DAB or FM mode. The display will
ash with a save message.
To save a station in the available preset slots 6-10, rst press the
‘Shift’ button and you will see the display showing the preset slots 1
to 5 or 6 to 10.
Make sure the display is showing 6-10, then press and hold a number.
7
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Selecting a preset DAB/FM station
Press a number on the top of the radio corresponding to the station
you have previously saved. As before when saving in the 6-10 preset
slots, press the shift button and make sure the 6-10 is displayed and
then press the desired number button.
Auto Tune DAB
To fully retune all of the available stations on DAB press the ‘Scan’
button.This will scan through all the available channels the radio can
receive.
Manually tune DAB
To manually tune the radio, press and hold the ‘Tune/Enter’ dial till you
see ‘Manual Tune’ appear on the screen.
Rotate the ‘Tune/Enter’ dial in either direction to tune the radio in. This
helps in poor signal areas to get a clear signal. Repeat the storing a
preset procedure to save the current tuning.
Instructions
8
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Instructions
Auto Tune FM
Pressing ‘Scan’ will change the FM channel to the next station
available. Depending on the scan setting the radio will either nd the
next station or the next strongest station.
To change the type of scan used, press and hold the ‘Tune/Enter’ dial
till Scan Setting appears on the display.
Rotate the ‘Tune/Enter’ dial to select either ‘Strong Stations’ or
‘All Stations’ and press the ‘Tune/Enter’ to conrm selection.
Manually tune FM
Rotate the ‘Tune/Enter’ dial in either direction to tune the radio in FM
mode. This helps in poor signal areas to get a clear signal. Repeat the
storing preset procedure to save the current tuning.
9
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Instructions
Reset
To reset the unit make sure you are in DAB mode, then press and
hold the ‘Mode’ button till the reset message appears on the screen.
Quickly let go of the ‘DAB/FM’ button and press the ‘Tune/Enter’ dial
and you should see the conrmation message.
The radio has been reset and will auto scan.
DAB/FM information
When listening in DAB or FM mode you can cycle through the
available information from the broadcasting service by pressing the
‘Info’button.
The information cycle:
DAB
• Current title screen
• Signal Strength
• Music genre
• National/Local designation
• MHz Frequency
• Signal Errors
• Kbps data transfer rate
• Time
• Date
FM
• Current title screen
• Music genre
• MHz Frequency
• Mono/Stereo
• Time
• Date
10
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Instructions
Bluetooth
Press the ‘Mode’ button till ‘Bluetooth’ appears on the screen.
The radio will automatically go into paring mode.
A voice will conrm that the unit is in pairing mode.
Make sure your bluetooth device is active and in pairing mode.
Search for “MAXTEK AUDIO” in your available bluetooth device list
and select it. There is no security so the unit will pair automatically.
If successful ‘Bluetooth Connected’ will appear on the screen for the
duration of the connection.
A voice will conrm that the bluetooth device is connected.
You can play, pause and skip tracks with the buttons on top marked:
Skip Back Play/Pause Skip Forward
Once paired, as long as the unit remains in your list of paired devices,
the unit will automatically pair next time you come to use this feature.
FAQ
I can’t set the time and date...
• The time and date are set automatically via the DAB signal.
I can’t get the radio to play stereo...
• The radio automatically changes between mono and stereo
depending on the strength and quality of signal.
No DAB signal...
• Make sure the aerial is fully extended.
• Make sure the radio is not near high powered electrical devices.
• Check online to see if you are in a good reception area.
The radio is not changing DAB station...
• Make sure you have pressed the ‘Tune/Enter’ dial to conrm
selection.
• If the ‘Tune/Enter’ dial is not working please reset the radio as per
instructions.
The radio display is not showing properly...
• Please reset the radio as per instructions.
Radio not turning on...
• If you are using the mains adaptor, try using batteries to eliminate
whether the mains adaptor is at fault.
Bluetooth drops out with my phone...
• Clear the ‘cache’ on your mobile phone and re-pair the the unit.
11
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Warranty
This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack or reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K. and Ireland
• Any damage caused by improper power input or improper cable connection.
Your statutory rights are not affected.
Warranty Certificate
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N
O
:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
enquiries@quesh.co.uk
Warranty Card
Vintage Style DAB, FM & Bluetooth Radio
Please keep your purchase receipt together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.
Model Number: 66580
Service Helpline
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG
Loading...
