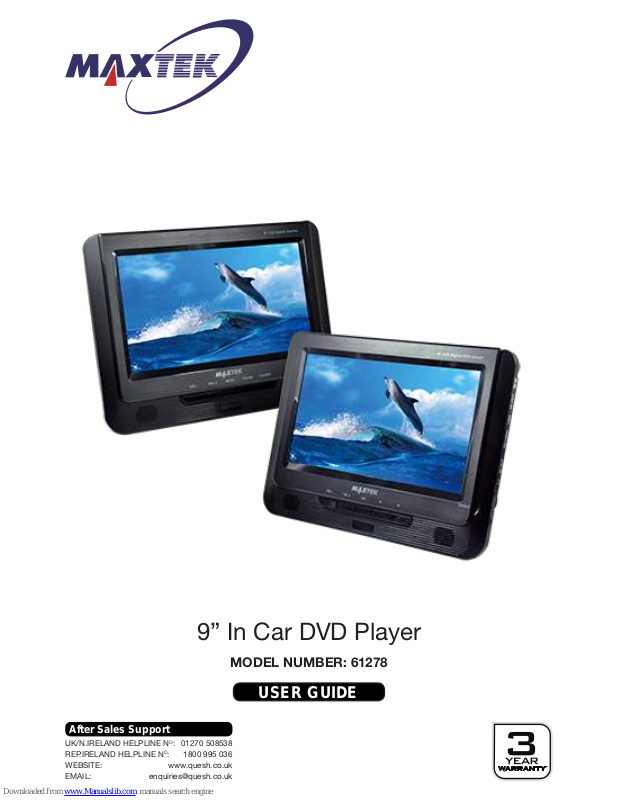

MAXTEK 61278 User Manual

USER GUIDE

9” In Car DVD Player

MODEL NUMBER: 61278

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Contents

1. Welcome Section

2. General Information & Safety Instructions

4. Contents & Features

5. Controls

7. Setup

9. Key Functions

10. Getting Started

11. Using USB, SD/MMC

12. Connecting an External Device

12. Headrest Mounting

13. System Setup

15. Specications

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Welcome Section

Congratulations!

You have made an excellent choice with the purchase of this quality
MAXTEK® product.

By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and saftey, supported by the
high quality standards of Quesh Ltd.

We want you to be compeletly satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.

We hope you enjoy using this product for many years to come.

If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.

1

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

General information &
Safety Instructions

This remote control is powered by 1 x ‘CR2025’ battery.

Do not dispose of batteries in your household waste.

Please contact your local authority for details on safe disposal.

• Never throw batteries into a re or expose to excessive heat sources.

• If batteries are swallowed, please seek mmediate medical attention.

• Always ensure correct +/- battery polarity when installing batteries.

• Do not recharge non-rechargeable batteries.

Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not
disposed of correctly.

Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

2

General information &
Safety Instructions

This remote control is powered by 1 x ‘CR2025’ battery.

Do not dispose of batteries in your household waste.

Please contact your local authority for details on safe disposal.

3

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

General information &
Safety Instructions

Please read the following safety information before use.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

C A U T I O N

• To avoid risk of electric shock do not attempt to open this appliance.

• Keep away from re.

• Do not expose the appliance to water, rain or dampness.

• Keep this appliance away from direct sunlight and other heat sources.

• Keep this appliance away from strong magnets.

• Never cover the ventilation slots on the underside or back of the appliance.

• Avoid placing heavy objects on top of the appliance.

• Always disconnect the appliance from mains power before cleaning.

• Clean the exterior of the appliance with a soft cloth only.

• The instructions for use shall state that the appliance shall not be exposed to

dripping or splashing and that no objects lled with liquids such as vases,
cups, etc, shall be placed on the appliance.

• CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace

only with the same equivalent type.

• Where the MAINS plug or appliance coupler is used as the disconect device,

the disconected device shall remain readily operable.

• Where an all-pole MAINS SWITCH is used as the disconnect device, the

location on the apparatus and the function of the switch shall be described,

and the switch shall remain readily operable.

NEVER LEAVE CHILDREN UNATTENDED WITH

ELECTRICAL EQUIPMENT

4

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Contents & Features

Contents

1 x 9” Master DVD monitor
1 x 9” Secondary DVD monitor
1 x Remote Control
1 x 9.5V Mains adaptor
1 x 12V In-car adaptor
1 x Combi AV/power lead
2 x Headrest mounting straps

1 x AV cable

Features

• 9” digital screens

• PAL/NTSC/Auto

• USB port

• SD/MMC port

• JPEG picture format supported

• DVD, AVI, MPEG4 & DIVX video formats supported

• CD audio format supported

• 9.5v mains adaptor (included)

• 12v in-car adaptor (included)

• Remote control (included)

• Headphone output

• AV output

• AV input

Region Encoding

In compliance with DVD patent requirements, the region code
for this DVD player it is region 2.

Controls

5

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

MAIN CONTROLS MASTER MONITOR

MAIN CONTROLS SECONDARY MONITOR

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

ON/OFF SWITCH

LCD TFT MONITOR

VOLUME -

VOLUME +

PLAY/PAUSE

POWER INDICATOR

INFRARED RECIEVER

CHARGE

REWIND

FAST FORWARD

OPEN

DC IN (9-12v)

DC OUT

USB PORT

MEMORY CARD SLOT

AV OUT

HEADPHONE JACK

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

LCD TFT MONITOR

VOLUME -

VOLUME +

MUTE

POWER INDICATOR

LCD ON

LCD OFF

ON/OFF SWITCH

HEADPHONE JACK

AV IN

DC IN (9-12v)

Remote Control

Battery Installation/removal

Please Note:

Battery type required is ‘CR2025’

6

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Setup

Setting up one screen

Connect the chosen adaptor to the mains outlet and the other end
in to the ‘DC in’ socket on the DVD player. The master monitor will
work off both the mains and/or the internal battery, providing it is
fully charged.

Charging the Battery

The DVD player uses a built in lithium-polymer rechargeable battery.

To charge the DVD player connect the adaptor as shown in the
diagram above. It takes 6 hours to fully charge the battery. The LED
indicator will change from red to green when it is fully charged.
After a full charge the battery can be used for up to 3 hours.

Please Note:

Keep away from heat sources when the unit is charging as the unit will become
hot during charging.

Or

Mains Adaptor

In-Car

Adaptor

DC in

Master Monitor

7

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Setup

DC in

DC out

DC in

AV out

AV in

Combi AV/Power Lead

Or

Mains Adaptor

In-Car

Adaptor

Master Monitor

Secondary Monitor

Setting up both screens

Please follow the diagram on this page to set up the secondary
monitor to the master monitor.

Please Note:

The secondary monitor will only work if the adaptor is connected to the master
monitor and the connecting leads are attached between both units.

8

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

9

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

The functions of each key are detailed below. The main function keys
appear both on the the remote control (RC) and the DVD player.

Zoom To enlarge the picture
Mode DVD and external audio and video input conversion
Number Key For inputting number digits
Prev/Up To skip Backward/ To Move up in the Menus
Angle Switch between multiple camera angles
Rev/Left Reverse/moving left In menus
Enter Enter is used for selecting
Setup To Enter the Setup menu
Next/Down To skip forward / to move down in the menus
Repeat To repeat the selection
Prog To play contents of disc in the order you want by,
programming the track to be played
Slow To slow the DVD down
Mute To mute the DVD player
Audio To change the audio setting.
Subtitle To switch subtitles and turn on or off
Play/Pause To play or pause
Stop To Stop the DVD
FWD/Right Forward/moving right In menus
Volume To adjust the volume level
Title To Show the DVD title
DVD/USB/Card To select between DVD, USB and card input
Menu To access the DVD player menu

Play / Pause Stop

Skip Back Chapter Skip Next Chapter

Rewind Fast Forward
(x2, x4, x8, x16, x32) (x2, x4, x8, x16, x32)

Key Functions

10

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Basic DVD Operation

discard the white cardboard dust cover from inside the deck marked
“Warning: Please take out this card before playing”.

• Connect the mains power adaptor to the mains outlet and the
DC in socket.

• Turn the power switch on the right-hand side panel to ‘ON’ .

• Insert a DVD and press the play button.

Connecting to a TV (AV Cable included)

You can connect the DVD player to a TV so that your movies,
pictures and music can be played on your larger screen.

• Insert the 3.5mm jack end of the 3.5mm to RCA cable into the
AV out port on the master screen.

• Connect the three RCA plugs to the corresponding coloured ports
on your TV, normally located on the back.

• Choose the correct AV channel on your TV to view the content of
the DVD player.

Please note:

If your TV does not have a ‘RCA in’ port, you may need a RCA to SCART adaptor
to use this function, if a SCART port is available.

Getting Started

(Master Screen)

11

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Memory Cards

• Connect the SD/MMC card into the named port on the side.

• Press and hold the ‘DVD/USB/CARD’ button to enter the

DVD/USB/CARD mode.

• Use the up/down arrow keys to highlight ‘Card Mode’ and press the
‘Enter’ button to select it.

• Press the ‘Play’ button to play selected media from the memory
card.

USB Memory Stick

• Connect the USB memory stick into the named port on the side.

• Press and hold the ‘DVD/USB/CARD’ button to enter the

DVD/USB/CARD mode.

• Use the up/down arrow keys to select ‘USB Mode’ and press
‘Enter’.

• Press the ‘Play’ button to play selected media from the USB
memory stick.

Please note:

Make sure the memory card or USB stick storage is no bigger then 8Gb and
formatted to FAT32. You can do this through a computer/laptop. Video le formats

must be in DVD, AVI, MPEG4 or DIVX.

Using the USB,
SD/MMC Slot

12

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Connecting a Device (AV Cable included)

You can connect the output of a device that uses RCA out to this
DVD player and show the image or video feed.

• Insert the 3.5mm jack end of the 3.5mm to RCA cable into the

‘AV in’ port on the slave screen.

• Connect the three RCA plugs to the corresponding coloured ‘RCA

out’ ports on your chosen device.

won lliw sihT .’ni VA‘ ot ti hctiws dna reyalp DVD eht no ’edom‘ sserP •

show the connected live feed on the DVD player.

Connecting external devices

(Secondary Monitor)

Headrest Mounting

To attach the DVD screens to the headrest, thread the velcro strap
through the loops on the back of the screens.

Then wrap the strap tight around the headrest and fasten securely
with the velco straps.

13

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System Setup

System Setup

Press SETUP on the remote control or DVD player to enter the Setup
Menu. Here you will nd the following options:

General Setup, Audio Setup, Dolby Digital Setup, Video Setup and
Preference Page.

You can navigate through the menus with the arrow buttons and
select an option with enter button on both the remote control and
DVD player.

General Setup Page

FUNCTION

TV Display
Angle Mark
OSD Language

Captions
Screen Saver
Last Memory

OPTION

Normal/PS, Normal/LB, Wide.
On / Off.
English, French, German, Italian,
Spanish, Portuguese.
On / Off.
On / Off.
On / Off.

Audio Setup Page

FUNCTION

Speaker Setup

OPTION

Downmix, LT/RT, Stereo.

14

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Video Setup Page

FUNCTION

Panel Quality
Sharpness
Brightness
Contrast
Hue
Saturation

OPTION

Quality Panel Setup.
High, Medium, Low.
Range select -18 to +18.
Range select -12 to +12.
Range select -9 to +9.
Range select -9 to +9.

Preference Page

FUNCTION

TV Type
Audio
Subtitle
Disc Menu
Parental

Password
Default

OPTION

PAL, NTSC, Auto.
Language selection list.
Language selection list.
Language selection list.
KID SAF, G, PG, PG13, PGR, R,
NC17, ADULT.
On / Off, Change / Set Password.
Reset

15

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Specifications

Compatible Disc Formats DVD, DVD-R, DVD+R/RW, CD, CD-RW

Compatible Video Formats DVD, AVI, DIVX, MP4

Compatible Image Formats JPEG, JPG

Panel Size 9 Inches
Frequency Response 20Hz to 20KHz

Video Output 1Vp-p75 0Hm unbalanced

Audio Output 1.8Vrms/10K 0Hm
Dynamic Range Greater than 85Db
Laser Semiconductor laser,
Wave length: 650Nm/795Nm

Power Source DC-9.5V - 1.5A

Power Consumption 14.3W

Operation Temperature 5-40oC
Battery Type Lithium-Polymer

Car Adaptor Fuse 3A

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty

This product is guaranteed to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.

Proof of Purchase

This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.

Service during the Warranty Period

Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.

Extent of the Warranty

This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.

Normal Wear and Tear

This warranty does not cover normal wear and tear of the product or parts.

Exclusions

This warranty does not cover the following:

• Any defect caused by accident, misuse, abuse, improper installation or operation, lack or reasonable

care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.

• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s

or vehicle outlet power surge or liquid ingress.

• Any product that has not been installed, operated or maintained in accordance with the

manufacturer’s operating instructions provided with the product.

• Any product that has been used for purposes other than domestic use.

• The product if it is located outside of the U.K. and Ireland

• Any damage caused by improper power input or improper cable connection.

Warranty Certificate

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty Card

9” In-Car DVD Player

Please keep your purchase receipt together with your warranty card

Fault Description:

Name:
Address:

Date of purchase:

Location of purchase:

Service Helpline

QUESH LTD,
1 SOLWAY COURT,
CREWE BUSINESS PARK,
CW1 6LD

We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this
warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.

Model Number: 61278
