Now you have purchased a MAXTEK® product you can
rest assured in the knowledge that as well as your 3 year
parts and labour warranty, you also have the peace of
mind of a dedicated helpline and online support

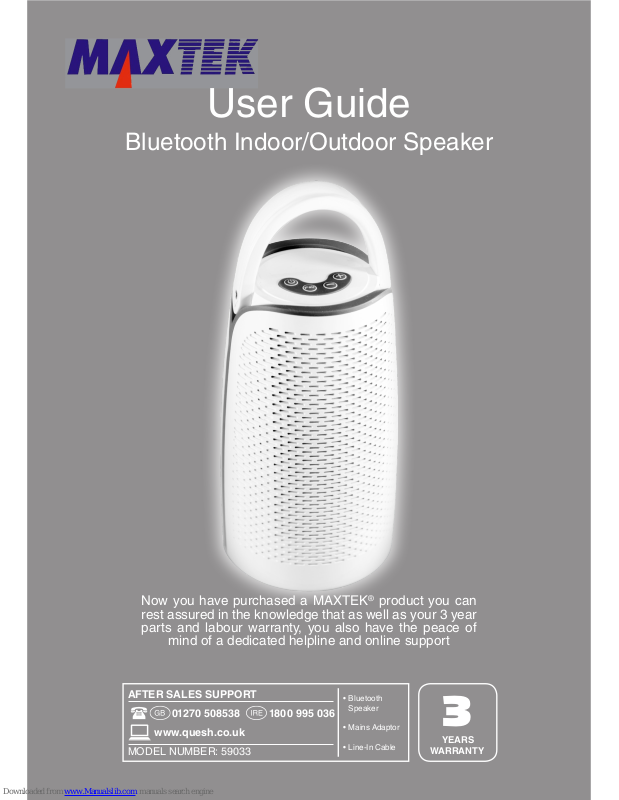

User Guide
Bluetooth Indoor/Outdoor Speaker
3
YEARS
WARRANTY
AFTER SALES SUPPORT
01270 508538 1800 995 036
www.quesh.co.uk
MODEL NUMBER: 59033
• Bluetooth
Speaker
• Mains Adaptor
• Line-In Cable
Contents
1. Welcome Section
2. General Information & Safety Instructions
3. Contents & Features
4. Controls
4. Instructions
5. AUX Mode
5. Battery Installation
6. Technical Specications
7. Trouble Shooting
1
3
YEARS
WARRANTY
AFTER SALES SUPPORT
01270 508538 1800 995 036
www.quesh.co.uk
MODEL NUMBER: 59033
• Bluetooth
Speaker
• Mains Adaptor
• Line-In Cable
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK® product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to the
highest standards of performance and saftey, supported by the high
quality standards of Quesh.
We want you to be completly satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep you receipt safe).
This does not affect your statutory rights. How ever be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
3
YEARS
WARRANTY
AFTER SALES SUPPORT
01270 508538 1800 995 036
www.quesh.co.uk
MODEL NUMBER: 59033
• Bluetooth
Speaker
• Mains Adaptor
• Line-In Cable
2
General information & Safety Instructions
This Wireless Speaker is powered by 6 x ‘C’ batteries.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to
• excessive heat sources.
• If batteries are swallowed, please seek
• immediate medical attention.
• Always ensure correct +/- battery polarity when
• installing batteries.
• Do not recharge non-rechargeable batteries.
Electrical and electronic equipment (WEEE)
contains materials, parts and substances, which can
be dangerous to the environment and harmful to
human health if the waste of electrical and electronic
equipment (WEEE) is not disposed fo correctly.
Equipment, which is marked with the WEEE logo (as
shown on the left), should not be thrown away with
your household waste. Contact your Local Authority
Waste Disposal Department, as they will be able to
provide details of the recycling options available in
your area.
3
Contents & Features
Contents
1 x Bluetooth speaker
1 x 3.5 to 3.5mm Line-In cable
1 x 9v Mains Adaptor
1 x User manual
Features
• Bluetooth 3.0 Platform
• Operating distance up to 10 metres / 33 feet (open area)
• Powered by 6 x C alkaline batteries (not included)
• 1.5m, 9v, two core, mains adaptor (included)
• IPX 3 showerproof feature
• 3.5mm line-In cable
• 3.5mm line-In port
• Keyhole wall mount slots
Please note:
If the product is to be used with the mains adaptor outdoors, the mains
adaptor must be plugged into the mains supply indoors, not outdoors
or in damp or wet conditions.
Controls
On/Off
Pair
Volume Up
Volume Down
Mains Input
3.5mm Jack Input
Battery Cover
(6 x C size alkaline batteries)
4
Instructions
Pairing the speaker
1. Connect the mains power using the adaptor supplied or
insert 6 x C batteries (not included).
2. Press the power button for 3 seconds to turn the speaker
1. on, the Blue LED light will ash slowly.
3. Enable your Bluetooth device such as cell phones, tablets
2. or other Bluetooth media, and make sure it is in searching
2. mode.
4. The Bluetooth speaker will automatically search and pair
2. your Bluetooth device.
5. If no auto pairing connection is made, press and hold the 4.
2. ‘Pair’ button for 5 seconds until the blue LED ash quickly.
6. Select “MAXTEK AUDIO” in the list shown in the Bluetooth
device.
7. Enter “0000” if password is required.
8. When Bluetooth connection is made, the blue LED will
2. become solid.
5
Battery Installation
1. Turn the speaker over; on the bottom of the speaker you will
1. see the battery door.
2. Open the battery door by pinching the two tabs and pulling
1. towards you.
3. Install 6 (six) C size batteries following the battery markings
1. (+/-) inside the compartment.
4. Close the battery door until the door snaps shut.
Battery Cover
Release Tabs
AUX Mode
1. To use the auxiliary line in, rst connect the AUX cable to the
1. speaker and device you want to play audio from.
2. Press the ‘ON/OFF’ to change the speaker from bluetooth mode
2. (indicated by a blue LED), to AUX mode (indicated by a green LED).
3. Enjoy your music.
6
Technical Specications
Carrier Frequency : Bluetooth 3.0
Power Requirements : By 6x C size alkaline batteries (not : included)
Or power adaptor (supplied)
Frequency Response : 30Hz – 18KHz
Distortion : <0.5%
S/N Ratio : 65dB (typical)
Channel Separation : 50dB (typical)
Operation Distance : Up to 10 metres / 33 feet (open area)
Output Power : 5W (Max)
NOTES: This speaker is in compliance with the specied Bluetooth
version. It does not guarantee compatibility of all functions on every
Bluetooth enabled device. Please check with your mobile phone’s
user manual for compatibility and functionality.
Trouble Shooting
NO SOUND
• The speaker’s battery charge is too low. Replace with new/recharged
- batteries.
• Ensure the speaker is ON.
• Ensure Bluetooth device is ON.
• The volume of speaker is too low; adjust the volume to an
• appropriate level.
• Unable to connect with Bluetooth device, restart the pairing process.
• The speaker may be too far away from the Bluetooth device,
• move closer to it.
WARNING: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Note: Clean the speaker with a soft, lint free, dry cloth. Never use detergents or
abrasive cleaners to clean.
Should you experiance any technical difficulties, in the rst instance
please call our customer support team on the following number:
U.K. - 01270 508538
IRE. - 1800 955 036
visit our webiste or email us at:
www.quesh.co.uk - enquiries@quesh.co.uk
7
INTENTIONALLY BLANK
INTENTIONALLY BLANK
3
YEARS
WARRANTY
AFTER SALES SUPPORT
01270 508538 1800 995 036
www.quesh.co.uk
MODEL NUMBER: 59033
• Bluetooth
Speaker
• Mains Adaptor
• Line-In Cable
Warranty Card
Bluetooth Indoor/Outdoor Speaker 59033
Please keep your purchase receipt together with your warranty card
Detailed description of malfunctions:
SERVICE HELPLINE
Quesh Ltd, 1 Solway Court, Crewe Business Park, CW1 6LD
UK/N.Ireland 01270 508538, Rep. Ireland 1800 995 036
web: www.quesh.co.uk - email: enquiries@quesh.co.uk
Name:
Address:
Date of purchase:
Location of purchase:
