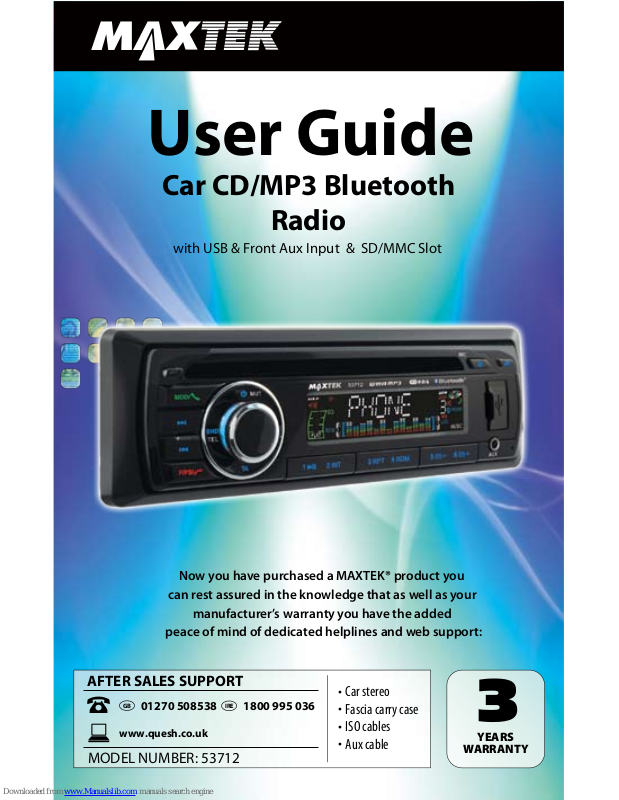

MAXTEK 53712 User Manual

User Guide

Car CD/MP3 Bluetooth

Radio

Now you have purchased a MAXTEK® product you

can rest assured in the knowledge that as well as your

manufacturer’s warranty you have the added

peace of mind of dedicated helplines and web support:

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

with USB & Front Aux Input & SD/MMC Slot

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

2

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Contents

03 Welcome Section
04 Precautions
05 Before You Install
07 Installation
09 Wiring Connection
10 Location of the Controls
11 Bluetooth Operation
12 Basic Operation
13 Radio Operation
16 CD/MP3/WMA/USB/SD Operation
17 ID3 TAG
18 RCA, AUX
18 FAQ
19 Warranty

3

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Welcome!

You have made an excellent choice with the purchase of this quality
MAXTEK brand product.

By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh.

We want you to be completely satisfied with your purchase so this
MAXTEK product is backed by a comprehensive manufacturer’s 3
year warranty and an outstanding after sales service through our
dedicated Helpline.

We hope you will enjoy using your purchase for many years to
come.

If you require technical support or in the unlikely event that your
purchase is faulty please telephone our Helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have satisfactory proof of purchase (keep your till receipt safe!). This
does not affect your statutory rights. However, be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused or disassembled.

4

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Care of Discs

Handle the disc by its edge to keep
the disc clean. Do not touch the disc’s
surface.

Do not use a CD with paste or ink residue
on it.

Do not use CDs with labels or stickers
attached. The label may leave a sticky
residue when it begins to peel.

Clean the discs with an optional cleaning
cloth. Wipe each disc from the centre
out.

This unit will only play the following discs.
This unit does not play files that have Digital Rights Management (DRM).
If you have files that have Digital Rights Management (DRM) you should consult with
the vendor that you purchased files from for instructions on proper use.

Type of disc

CD, MP3, WMA

Label on the disc Recorded material

Audio only

Size of disc

12 cm

Precautions

Never allow children to play with electrical equipment

5

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Notes on Installation

Disconnect negative battery terminal before starting installation. Consult the vehicle owner’s
manual for proper instruction.
The unit is designed for a 12Volt DC negative ground operation system only. Before installing
the unit, make sure your vehicle is a 12Volt DC negative ground system.
Be sure to connect the colour coded leads according to the diagram. Incorrect connections may
cause the unit to malfunction or damage the vehicle's electrical system.
Be sure to connect the negative (-) speaker leads to the negative (-) speaker terminal.
Never connect negative (-) speaker leads to chassis ground.
The unit is only designed for use with 4 speakers. Do not combine output for use with 2 speakers.
Do not ground negative speaker leads to the chassis ground.
Make sure all the connections are completely correct before turning on your unit.
When replacing the fuse(s), the replacement must be of the same amperage as shown on the
fuse holder.
Do not block vents or heater panels. Blocking them will cause heat to build up inside and
may result in fire.
After completing the installation and before operating the unit, reconnect the battery. Then
press the (RES) button with a pointed object, such as a ball-point pen to set the unit to its
initial status.
If you have difficulty installing this unit in your vehicle. Please contact your dealer.

Before You Install

Remove the
half sleeve

IMPORTANT:

Remove the two transport screws from the

top of the unit before installing.

Please remove the screws before installing the radio; Failure to do so will result in the CD deck
rejecting the disc. Please refer to the illustration below:

6

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Car audio equipment installations can be troublesome at times, even to the most
experienced of installation technicians. If you are not confident working with
electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or
other components of your vehicle, please call your dealer in order to have the unit
professionally installed.

Remove the Old Unit from the Dashboard

DIN Front Mount

DO NOT DISCONNECT WIRES
AT THIS TIME!

2. Insert the keys supplied with the
old unit into both sides of the unit
as shown in figure below until they
click. Pull to remove the old unit
from the dashboard.

1. Remove the outer trim frame.

a.

While the old unit is playing,
disconnect the wires from one
speaker.
b. Take a length of masking tape and
fold it around the wire so it forms a
flag.
c. On the masking tape mark the
polarity of the speaker wires (+ & - ),
as well as left or right, and front or
rear.

d. Double check that you marked the
first speaker correctly by checking
that the speaker wires are the same
at the head unit.
e. Repeat this procedure for all of the
speakers.
f. Mark the power, ground, and any
other wires also

.

2. Mark Polarity of the Speaker Wires
Marking the polarity of the speaker wires will make it easier to connect the existing
speakers to your car radio. Consult wiring diagram of existing head unit before
disconnecting any wires.

If you are not positive of the polarity of the existing wires

from the speakers to the head unit, install new wires.

Before You Install

7

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

NOTE 1:
Mark the polarity of the existing speaker wires before disconnecting battery.
NOTE 2:
Remove the two transport screws from the top of the unit before installing.

1. After removing the old radio and

mounting sleeve, insert supplied

mounting sleeve into opening.

2. Bend the tabs on the mounting
sleeve to keep the mounting sleeve
firmly in place.

3. Attach wires from the unit to

existing wires. See wiring connections

diagram. Insert radio into dashboard.

Then apply the trim frame to outside

of radio.

4. Support radio using supplied rear
mounting bolt and steel bar. See parts
list.

DIN Front Mount

Installation

WARNING!
Disconnect negative battery terminal from battery before
starting installation. Consult the vehicle owner’s manual for
proper instructions.

8

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Installation

Supplied Parts

Din Rear-Mount

Installation using the screw holes on both sides of the unit.

1. Screw holes on the side of the
unit.

2. Screws. Use either truss screws
(5x8mm) or flush surface screws
(4x8mm), depending on the shape of
the screw holes in the bracket.

3. Vehicle factory mounting bracket.

4. Dashboard or console.

5. Hook (remove this part)

Note: The mounting sleeve, outer
trim ring and the mounting strap
are not used for this method of
installation.

2 Keys
1 Hex Nut
2 Lock Washers
1 Sheet Metal Screw
1 Metal Support Strap
2 Flat Washers
1 Mounting Bolt
1 Faceplate Case (not
shown)
1 1/8” Stereo Cable

9

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Make sure that you have a good chassis ground. Good ground connections will eliminate
most electrical noise problems. A good chassis ground requires a tight connection to the
vehicle's metal chassis. The area around the ground connection should be clean, bare
metal without rust, paint, plastic, dust, or dirt for a good electrical connection.

Speaker Wiring Notes

Follow the above wiring diagram to
install the head unit with new or existing
speakers.

This unit is designed for use with four (4)
speakers with an impedance between 4
Ohms to 8 Ohms.

An impedance load of less than 4 Ohms
could damage the unit.

Never bridge or combine the speaker
wire outputs. When not using four
speakers, use electrical tape to tape
the ends of the un-used speaker outputs to
prevent a short circuit.

Never ground the negative speaker
terminals to chassis ground.

Wiring Connection

Connector A

1. Rear right speaker(+)/Blue

3. Front right speaker(+)/Grey

5. Front left speaker(+)/Green

2. Rear right speaker(-)/Blue-White

4. Front right speaker(-)/Grey-White

6. Front left speaker(-)/Green-White

7. Rear left speaker(+)/Brown

8. Rear left speaker(-)/Brown-White

Connector B

1. -

2. -

3. -

4. Battery 12V (+)/Yellow

5. Antenna power/Orange

6. Panel light/White

7. ACC+/Red

8. Ground/Black

ISO-connector

A

B

RCA OUT
left=white
right=red

Antenna
socket

10

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Location of the Controls

25

1. Next Track / Fast Forward Button

2. Release Button

3. Mode Select / Answer Button

4. Band Switch / Phone

5. Power on / off / Mute

6. PTY / Clock

7. LCD Screen

8. Disc slot

9. MIC Receiver

10. Eject Disc Button

11. AF

12. Previous Track / Backward Button

13. Auto Preset Scan / Reject Button

14. Sound Select / Volume +/-

15. TA

16. Number 1 / Play / Pause

17. Number 2 / Introduction

18. Number 3 / Repeat

19. Number 4 / Random

20. Number 5 / Folder Down

21. Number 6 / Folder Up

22. Aux input Jack

23. USB Slot

24. Reset Button

25. SD Card Slot

11

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Bluetooth Operation

1. Pairing
Press and hold the BND/ID3/TEL button
until the word “PAIRING” appears on the
display waiting for the bluetooth device
to connect.

At this blinking time, please run the
bluetooth search and connect function
in your cellphone. The car radio model
no “BT car stereo” will be shown on
the cellphone. Select this car radio
and connect. When you are asked for
a connection password, please input
“0000” in your cellphone to finish the
pairing. The bluetooth icon on the
display will be on indicating that the
connection is established. Bluetooth
function is ready to use.

2. Calling
In any play mode, dial the desired
number on your cellphone. The unit will
switch to bluetooth handsfree mode
automatically. “DIALING” will be shown
on the display indicating the dialling is
in progress.

3. Accepting Calls
When there is incoming call, “INCOMING”
will be shown on the display indicating
there is phone call to answer. “TALKING”

will be shown after the “ANSWER” button
is pressed. Rotate the volume knob
during ringing or conversation to adjust
the respective volume level.

4. Rejecting Calls
During ringing or conversation, press
the “EJECT” button to end the call or
reject the call. “CALL END” will be shown
on the display and the unit will resume
to the original play mode.

5. BT Audio (A2DP)
Press MOD/(with green phone logo)
button until the unit entered BT MUSIC.
BT audio will play automatically when
you play the song in the cellphone. You
could pause by “1 ” button, to choose
previous or next song by pressing |<<
and >>| button.

6. Disconnecting
Disconnect the paired phone by
operating on the cellphone. You can also
disconnect/reconnect the cellphone
connection by holding the “ANSWER”
button.

12

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

1. Tuning the unit On / Off
Press any Button to turn the unit on, the
display will show a message Welcome to
Car Audio to indicate it is ready for use.
Press the PWR button once to turn the
unit off. The display will show a message
“GOODBYE”.

2. Mode Selection
Press the MOD Button to cycle the Play
Mode amoung AUX, RADIO and CD PLAY.
Note: USB mode will only show on the
display when a USB flash memory is
inserted into the USB port.

3. Loudness Control
Press the SEL button until “LOUD OFF”
is shown on the display indicates that
the loudness function is OFF. Turn the
volume knob to select between ON or
OFF.

4. Mute Control
Press POWER/MUTE Button on the panel
or MUTE Button on the RC to swith off
the sound. Press it again or rotate VOL
knob or press VOL+/- buttons on the RC
to resume the sound.

5. Volume
Use the VOL knob to adjust the volume
level. The larger the number, the higher
the volume level.

6. Bass
Press the SEL Button repeatedly until the
display shows “BAS”. Use the VOL knob
to adjust. When EQ is ON, bass control is
not available.

7. Treble
Press SEL Button repeatedly until the
display shows “TRE”. Use the VOL knob
to adjust. When EQ is ON, treble control
is not available.

8. Balance
Press SEL Button repeatedly until the
display shows “BAL”, then use the VOL
knob to adjust the balance between the
left & right speakers.

9. Fader
Press SEL Button repeatedly until the
display shows “FAD”, then use the VOL
knob to adjust the balance between the
front & rear speakers.

10. Clock
The time clock can be set anytime
when the power is on. Press the PTY/
CLK Button on the faceplate or remote
control once (press and hold for more
than 2 seconds during radio mode), the
time will show on the display.
Then press and hold the button until the
hour blinks on the display. Rotate the
VOL knob to set hours, then press the
VOL knob for the minutes to blink and
rotate the VOL knob to set.
Press the CLK button again or leave the
unit idle for new setting to effect. Press
the CLK button anytime to view the time
clock display.

11. Preset Beep Sound Off
Press the SEL button repeatedly until
“BEEP ON” is displayed. Turn the VOL
knob to select “BEEP OFF” or “BEEP ON”,
then leave the unit idle for setting to
take effect.

12. Preset Equalizer Function
Press the SEL Button repeatedly until
“EQ” indication is displayed then rotate
the Volume knob to choose between
the EQ sound effects. The Sequence of
equalizer setting will be as follows:

Basic Operation

FL AT

OF F

PO P RO CK

CL ASSI C

13

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Radio Operation

1. Choose Radio Band
Press the MOD Button to access the radio
function.
The unit comes with five bands- three FM
Bands (FM1, FM2, and FM3) and two AM
Bands (AM1, and AM2) selects. Each of
the five bands can store up to six preset
stations, for a total of 30 preset memory
stations.

2. Radio Tune / Seek Function
In Radio Mode, press Seek +/- Button to
manually adjust the radio frequency.

3. Tuning

• Manual tuning: Press and hold |<< or >>|
button on the panel until the screen shows
MANUAL. Press these buttons repeatedly
to manually adjust the radio frequency. Or
press repeatedly shortly |<< or >>| button
on the RC to manually adjust the radio
frequency.

• Auto tuning: Press shortly |<< or >>|
button on the panel or press and hold
|<< or >>| button on the RC the radio will
seek to the next up or down strong and
clear frequency station automatically.
Repeat this action to seek for other desired
stations. To stop automatic search, press
one of these buttons.

4. Mono / Stereo Reception Control
In FM radio mode, Press the SEL Button
repeatedly until the display shows
“STEREO”, then use the VOL knob to
select between “STEREO” or “MONO”.

5. Save Your Preset Stations
There are six numbered preset buttons
which can store and recall stations for each
band. While listening to a radio station
you would like to save as a pre-set, press
and hold one of the buttons numbered
1-6 until you hear a beep. The button you
pressed is now the pre-set button for that
station.

6. Automatic Store / Preset Scan
There are six numbered preset stations
which can store and recall stations for each
band. While listening to a radio station you
would like to save as a preset, press and
hold one of the buttons numbered 1-6
until the number of the radio change to
the number you selected. The button you
pressed is now the pre-set button for that
station.

A. Automatic Scan & Store
While listening to the FM Radio, press and
hold the F/PS Button. The receiver will
automatically scan and save stations of the
3 FM Bands.
While listening to the MW Radio, press
and hold the F/PS Button. The receiver will
automatically scan and save stations of the
2 MW Bands.

B. Scan & Preview Saved Stations
Press the F/PS button once and the receiver
will scan the radio stations in the current
band.

14

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

Radio Operation

RDS (Radio Data System) service availability
varies with areas. Please understand if RDS
service is not available in you area, the
following service is not available, either.

1. AF (Alternative Frequencies)
Press AF button on the panel to turn
the AF function on or off. When the
radio signal strength is poor, enabling
the AF function will allow the unit to
automatically search another station
with the same PI (Program Identification)
as the current station but with a stronger
signal. When AF symbol is on, it means
RDS information is received; when
AF symbol is flashing, it means RDS
information is not yet received.

2. TA (Traffic Alarm)
Press TA button to turn TA function
on or off. In TA mode traffic program
will be automatically searched, until
the program is received. When traffic
announcement is received the unit will
temporarily switch to the tuner mode
(regardless of the current mode) and
begin broadcasting the announcement.
After the traffic announcement is over,
it will return to the previous mode
and volume level. To interrupt traffic
announcement press TAbutton shortly;
it will not switch off the TA mode.

3. PTY (Program Type)
This radio will allow you to select the
type of program required, and will
search for a station broadcasting that
type of program. Press CLK/PTY button
to show the music type. Then press 1 ­6 number buttons to choose different
music programs available. Press CLK/
PTY button twice to show the speech
type program. Then press 1 - 6 number
buttons to choose different speech
programs. Each number button will

show 3 different speech programs for
you to choose.
(see table below).

Button

Music
group

Speech
group

1

Pop, Rock News, Affairs,

Info

2

Easy, Light Sport,

Educate,
Drama

3

Classics,
Other

Culture,
Science,
Varied

4

Jazz,
Country

Weather,
Finance,
Children

5

Nation,
Oldies

Social,
Religion,
Phone IN

6

Folk Travel,

Leisure,
Document

When PTY is selected, the radio starts to
search corresponding PTY information,
and stops if the corresponding PTY
information is detected. If no buttons
are pressed within several seconds,
previously selected PTY is searched.
During 1 loop, if desired PTY is not
found, the unit will return to previous
mode. Press CLK/PTY button for the 3rd
time to switch the PTY function off.

4. Other parameter setting
To choose the corresponding parameter,
press and hold SEL button for 2 seconds,
then press it repeatedly until the display

15

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

shows the needed parameter. Turn
VOLUME knob to choose the needed
value. After choosing, please leave the
unit idle to activate.

TA SEEK/TA ALARM: In TA SEEK mode, the
unit will seek for traffic announcement
program when TA button is pressed; in
TA ALARM the unit does not retune to TA
information.

MASK DPI/MASK ALL: During MASK DPI
mode, the unit will mask only the AF
which has different PI, this is the default
mode; during MASK ALL mode, the unit
will mask the AF which has different
PI and no RDS signal with high field
strength.

RETUNE S/L - SHORT/LONG: “RETUNE”
refers to the time period the unit
allows for radio scan when reception is
interrupted. “S” represents a long time
period, and “L” represents a short time
period.

TA VOL: The default volume level for
TA (Traffic Announcement) mode is 25.
You can set it at any desired level. When
the volume of your current playmode
is below your saved level, the unit will
boost to your saved level once TA signal
is receieved. When the volume of your
current playmode is above your saved
level, the unit will keep the same level
even when TA signal is received.

Radio Operation

16

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

CD/MP3/WMA/USB/SD Operation

1. Insert / Eject CD
Insert a disc into CD slot with label
side up. The disc will be automatically
loaded into the unit, even when it is
off or at radio mode. The word “DISC”
will on the display and the CD will play
automatically. Press the EJECT Button to
eject the disc from the slot. If the disc
is not removed from the slot within 5
seconds, it will automatically be loaded
into the slot again. When the disc is
ejected and removed, the unit will
automatically switch to radio mode.

To play MP3/WMA files from a USB flash
memory, insert a USB flash memory
into the USB port on the left side of the
unit. The unit will start playing MP3/
WMA files on the USB flash memory
automatically.
If the MP3/WMA files are stored in
folders on the USB drive, the unit will
start by playing the first song in the
first folder. After playing all the files
sequentially in the first folder, the unit
will play sequentially all of the files in
the next folder. The unit will continue
playing through all of the folders on the
USB drive in this manner.
If the USB drive has loose files and
folders containing files, it will play the
loose files sequentially, then it will play
the files in the folders sequentially.

2. Multi-Session CD Reading
This unit can read multi-session CDs. The
multi-session reading will be activated
automatically if the player detects a file
that is written in multi-session format.

3. Selecting Tracks
Press the SEEK >>| Button to advance
CD to the next track. Track numbers will
be shown on the display. Press and hold
SEEK >>| to fast forward.
Press the SEEK |<< Button to go to a

previous track. Track numbers will be
shown on the display. Press and hold
the SEEK |<< Button to fast reverse. Disc
will play normally when the No. 1(play/
pause) Button is pressed.

4. Play / Pause CD
Press the No.1/PAU Button to pause the
CD. PAUSE will show on the screen.Press
this button again to resume playback.

5. Introduction
Press the No.2/INT Button to play the
first 10 seconds of each track, “INT ON”
will be shown on the display. Press this
button again to resume playback.“INT
OFF” will be shown on the display.

6. Repeat
Press the No.3/RPT Button to repeat the
current track. “RPT ONE” will appear on
the display. Press it again to repeat folder
play. “FOLD” will appear on the display.
Press the button again to cancel.

7. Random
Press the No.4/RDM Button to play all
the tracks in random order. “RDM ON”
will appear on the display. Press this
button again to stop random play.
RDM OFF will appear on the display.

8. FOLDER +(for MP3/WMA only)
Press the No 6/FOLDER+ Button to
choose upper folder from current folder.

9. FOLDER - (for MP3/WMA only)
Press the No 5/FOLDER- Button to
choose next folder from current folder.

10. Search Modes
There are 3 search modes to help find
your favorite MP3 & WMA tracks. The
search modes only works with MP3/
WMA CDs, and USB flash memory with
MP3/WMA files.

17

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

CD/MP3/WMA/USB/SD Operation

A. Simple Track Search
Press the SEEK |<< or >>| Button to go to
the next track or previous track.

B. Track Search
Press the F/PS Button, TRK-SCH will
appear on the display. Use the VOL knob
to select the track number.
Press and hold the SEL button for 2
seconds,the number of the track is
assigned according to you added the file
into the media. The file wich are written
later will be assigned a larger number.

C. Folder Search
Press the F/PS Button and NAVIGATE will
be shown on the display.Use the VOL
knob to select the folder name. Then
press the SEL Button to play the chosen
folder.

11. Electronic Shock Protection
Electronic Shock Protection is for driving
on rough roads. The CD will play for
10 seconds on rough roads without
skipping. if driving on a rough road for
more than 10 seconds the CD may skip.
For MP3 or WMA files will play for 60
seconds. If the road is rough for more
than 60 seconds the CD with MP3 or
WMA files may skip.

ID3 Tag

If an MP3 file has ID3 Tag information,
it will be displayed on the LCD. If there
is no ID3 Tag information, nothing will
shown on LCD.

MAINTENANCE

Cleaning the Unit
Do not use any liquids to clean this unit.
Do not use petroleum distillates to clean
this unit.
Use a clean, dry cloth to clean this unit.

Replacing the Fuse
Make sure the amperage matches the
specified value when replacing the
fuse(s). If the fuse is bad, check the
power connection and replace the fuse
with a new one. If the same problem
occurs, this might indicate a malfunction
within the unit.

Warning
When replacing a fuse, do not use a fuse
with a higher amperage rating than the
fuse originally supplied to your unit,
otherwise damage will result to your
unit.

18

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

1. Auxiliary Input
The Auxiliary Input Jack is on the
front panel. Insert the AUX IN cable's
stereo plug into the AUX IN jack on the
panel of the unit. Route the other end
of the stereo plug to the headphone
jack of any external audio device such
as walkman and discman. Press the
Mode button to choose AUX. Connect
any portable audio device such as a
DVD player or VCD player to the AUX
IN cable. Use the volume control to
adjust volume.

2. RCA Output
The RCA Output Jack is on the back
of the unit. (Refer to Wiring) This
output is for connecting amplifier,
equalizer, or other audio component
that requires a pre-amp out connec­tion. (Red = Right, White = Left) Follow
the manufacturers instructions for the
audio component that you are
connecting.

RCA, AUX

FAQ

CD’s cannot be loaded

PROBLEM

No Power

Some errors occur in the LCD or no
functions when buttons are pressed.

Unable to receive stations

Poor radio reception

CAUSE/SOLUTION

Check wiring connections.
Check and make sure the fuse is not blown.
Replace with the proper rating/size fuse.

Press the RESET Button (21).

Check and make sure the antenna is connected properly.

Check and make sure the antenna is the correct length. Make
sure the antenna is not broken. If the antenna is broken,
replace it. The antenna is poorly grounded. Check and make
sure the antenna is grounded at mounting location.

A CD is already loaded in the player. Eject CD.

The CD is dirty or damaged.Songs keep skipping

File information shows in LCD but will
not play.

If you have files with Digital Rights Management(DRM). Contact
the vendor for proper use.

MP3/WMA files on the USB/SD flash
memory do not play.

Flash memory is formatted as NTSC. Format the flash memory
as FAT or FAT32. The files have Digital Rights Management
(DRM). If the files you are attempting to play were purchased
online, they may have Digital Rights Management, this unit is
not DRM compatible.

Car CD/MP3 Bluetooth Radio

Please keep your purchase receipt together with your warranty card

Warranty Card

Name

Address

Date of purchase

Location of purchase

Detailed description of malfunction:

Quesh Ltd
1 Solway Court, Crewe Business Park,
Crewe, Cheshire, CW1 6LD.
Email: [e-mail]
Web: www.quesh.co.uk

YEARS

WARRANTY

AFTER SALES SUPPORT

MODEL NUMBER: 53712

www.quesh.co.uk

1800 995 036

IRE

01270 508538

GB

r

r

r

r

$BSTUFSFP
'BTDJBDBSSZDBTF
*40DBCMFT
"VYDBCMF

53712
