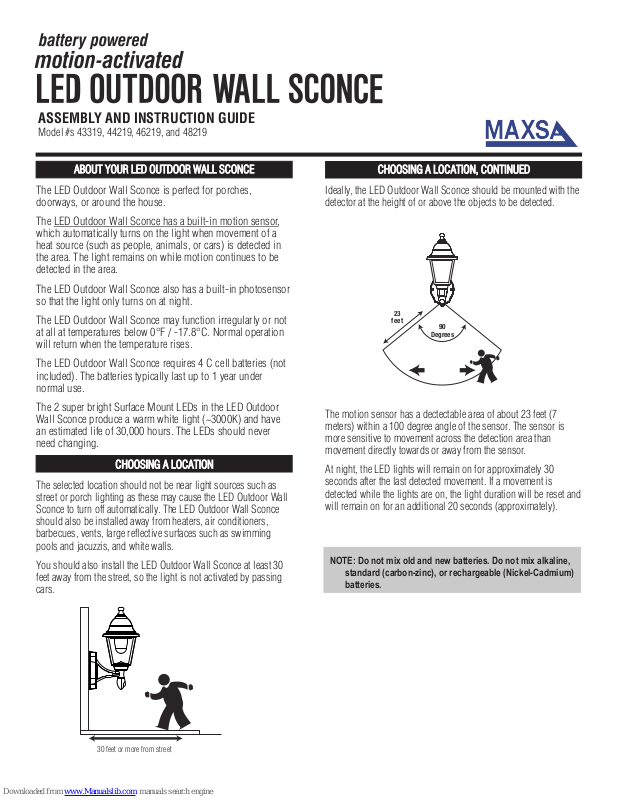

ASSEMBLY AND INSTRUCTION GUIDE
Model #s 43319, 44219, 46219, and 48219
ABOUT YOUR LED OUTDOOR WALL SCONCE
The LED Outdoor Wall Sconce is perfect for porches,
doorways, or around the house.
The LED Outdoor Wall Sconce has a built-in motion sensor,
which automatically turns on the light when movement of a
heat source (such as people, animals, or cars) is detected in
the area. The light remains on while motion continues to be
detected in the area.
The LED Outdoor Wall Sconce also has a built-in photosensor
so that the light only turns on at night.
The LED Outdoor Wall Sconce may function irregularly or not
at all at temperatures below 0°F / -17.8°C. Normal operation
will return when the temperature rises.
The LED Outdoor Wall Sconce requires 4 C cell batteries (not
included). The batteries typically last up to 1 year under
normal use.
The 2 super bright Surface Mount LEDs in the LED Outdoor
Wall Sconce produce a warm white light (~3000K) and have
an estimated life of 30,000 hours. The LEDs should never
need changing.
CHOOSING A LOCATION
The selected location should not be near light sources such as
street or porch lighting as these may cause the LED Outdoor Wall
Sconce to turn off automatically. The LED Outdoor Wall Sconce
should also be installed away from heaters, air conditioners,
barbecues, vents, large reflective surfaces such as swimming
pools and jacuzzis, and white walls.
You should also install the LED Outdoor Wall Sconce at least 30
feet away from the street, so the light is not activated by passing
cars.
CHOOSING A LOCATION, CONTINUED
Ideally, the LED Outdoor Wall Sconce should be mounted with the
detector at the height of or above the objects to be detected.
23
feet
90
Degrees
The motion sensor has a dectectable area of about 23 feet (7
meters) within a 100 degree angle of the sensor. The sensor is
more sensitive to movement across the detection area than
movement directly towards or away from the sensor.
At night, the LED lights will remain on for approximately 30
seconds after the last detected movement. If a movement is
detected while the lights are on, the light duration will be reset and
will remain on for an additional 20 seconds (approximately).
NOTE: Do not mix old and new batteries. Do not mix alkaline,
standard (carbon-zinc), or rechargeable (Nickel-Cadmium)
batteries.
30 feet or more from street
Page 2

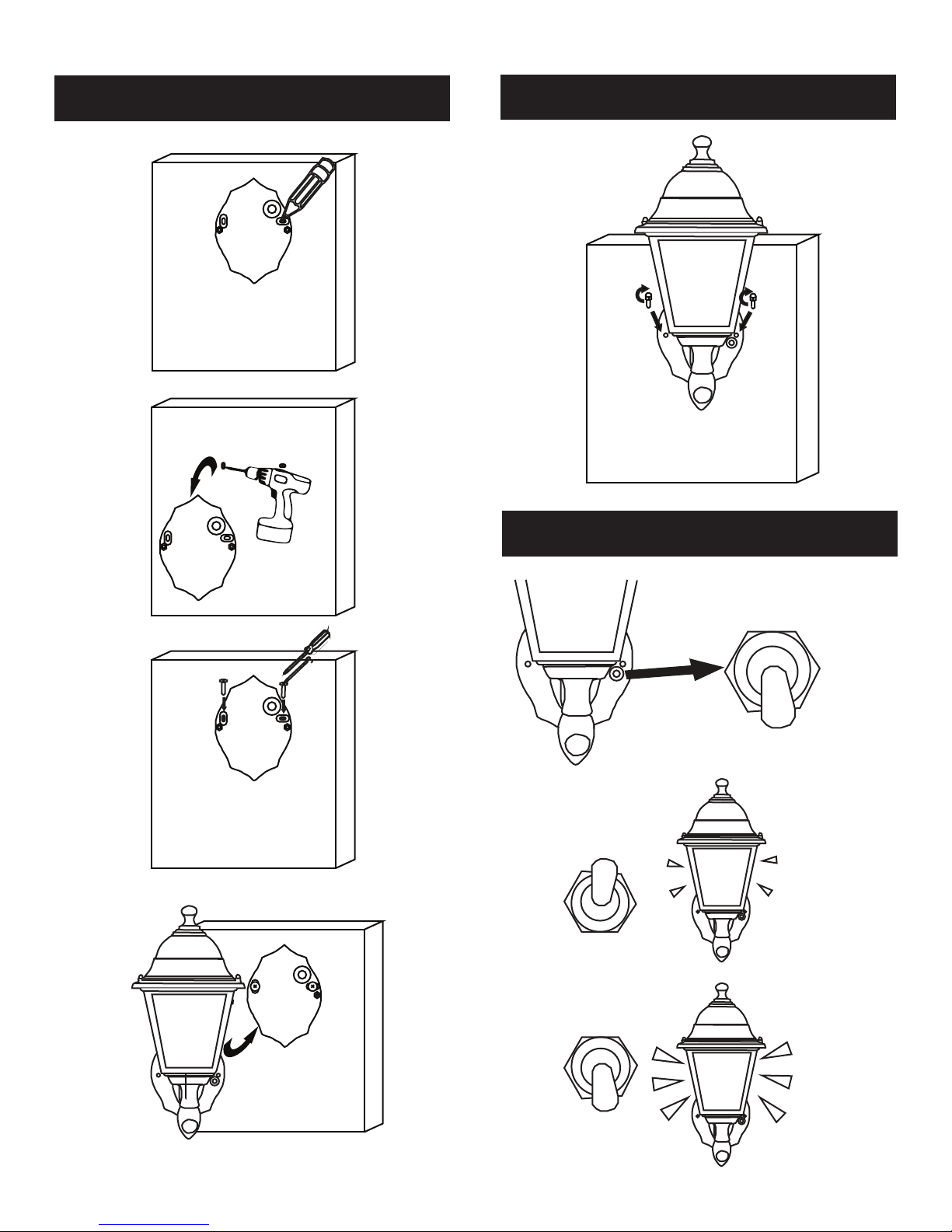

INSTALLATION AND MOUNTING
Click!
INSTALLATION AND MOUNTING, CONTINUED
You will need:
Pencil
1.
4.
Phillips screwdriver Drill 4 C-cell batteries
5.
2.
3.
6.
Page 3
INSTALLATION AND MOUNTING, CONTINUED
7.
8.
INSTALLATION AND MOUNTING, CONTINUED
11.
USING THE ENERGY SAVING SWITCH
9.
10.
50%
100%
50%
100%
50%
100%
Page 4
TROUBLESHOOTING
page 3
POSSIBLE SOLUTIONPOSSIBLE CAUSEPROBLEM
Light does not turn on
when there is movement
in the detecton area.
Light turns on for no
apparent reason (false
trigger).
Light turns on during
daylight hours.
1. Batteries are old.
2. Nearby lighting is too bright.
3. The light is facing the wrong direction.
1. Heat sources such as air conditioners, vents,
barbecues, other outside lighting, or moving
cars are false triggering the motion sensor.
2. Pets or other animals are false triggering the
motion sensor.
3. Reflections from swimming pools, jacuzzis,
white walls, or other large reflective surfaces
are false triggering the motion sensor.
1. A roof, wall, tree, or other object is casting a
a shadow on the sensor.
1. Replace the batteries.
2. Install the
LED Outdoor Wall Sconce
different location or facing a different
direction, away from other lighting.
3. Install the
LED Outdoor Wall Sconce
the desired detection area.
1. Install the
LED Outdoor Wall Sconce
from the sources of interference.
2. Mounting the
LED Outdoor Wall Sconce
higher or facing the light in a different
direction may help.
3. Install the
LED Outdoor Wall Sconce
from the sources of reflections.
1. Install the
LED Outdoor Wall Sconce
non-shaded location or facing a direction
away from sources of shadows.
in a
facing
away
away
in a
1 YEAR WARRANTY
1 YEAR LIMITED WARRANTY: MAXSA Innovations, LLC warrants to the original
consumer/purchaser that this product shall be free of defects in material and
workmanship under normal use and circumstances for a period of one (1) year
from the date of original purchase for use. This warranty shall constitute the
sole liability of MAXSA Innovations, LLC concerning the product. MAXSA
Innovations, LLC expressly disclaims all other warranties INCLUDING,
WITHOUT LIMITATION, THE WARRANTIES OF MERCHANT ABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. NO PERSON, FIRM, OR
COPORATION IS AUTHORIZED TO ASSUME FOR MAXSA Innovations, LLC ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE AND USE OF THE
PRODUCT. MAXSA Innovations, LLC and agents and distributors will bear no
liability whatsoever for incidental or consequential damages or charges of any kind.
Some states do not allow the reclusion or limitation of incidental or consequential
damages, so the above disclaimer regarding incidental or consequential
damages may not apply to you. This warranty is void if the product has been
damaged or tampered with or if the product or any such parts have been opened.
In all cases of damage during shipment, a claim must be filed with the shipping
carrier and not with MAXSA Innovations, LLC. This warranty gives you specific legal
rights; you may also have other rights which vary from state to state.
SPECIFICATIONS Batteries
Required:
LEDs: 2 x 0.5 Watt
Lumens
Four (4) 1.5V C batteries (not included)
Surface Mount
LEDs
Brightness: 85
(43319 is 70 lumens) Voltage: 6V DC
Light Duration: approximately 20 seconds Detection
Angle: 90˚ (cone)
Maximum Detection Distance: 23 feet (7 meters)
