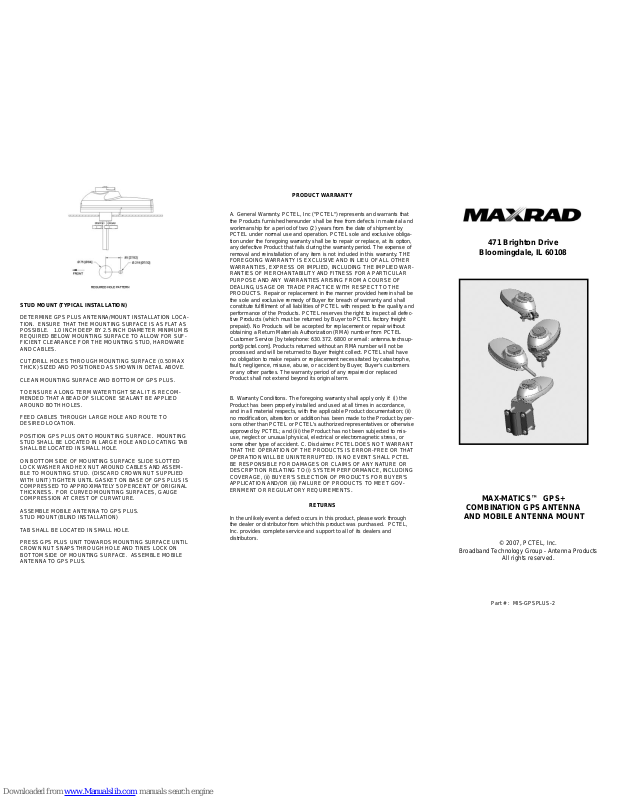

STUD MOUNT (TYPICAL INSTALLATION)
DETERMINE GPS PLUS ANTENNA/MOUNT INSTALLATION LOCATION. ENSURE THATTHE MOUNTING SURFACE IS AS FLAT AS
POSSIBLE. 1.0 INCH DEEP BY 2.5 INCH DIAMETER MINIMUM IS
REQUIRED BELOW MOUNTING SURFACE TO ALLOW FOR SUFFICIENT CLEARANCE FOR THE MOUNTING STUD, HARDWARE
AND CABLES.
CUT/DRILL HOLES THROUGH MOUNTING SURFACE (0.50 MAX
THICK) SIZED AND POSITIONED AS SHOWN IN DETAILABOVE.
CLEAN MOUNTING SURFACE AND BOTTOM OF GPS PLUS.
TO ENSURE ALONG TERM WATERTIGHTSEALIT IS RECOM-
MENDED THAT A BEAD OF SILICONE SEALANT BE APPLIED
AROUND BOTH HOLES.
FEED CABLES THROUGH LARGE HOLE AND ROUTE TO
DESIRED LOCATION.
POSITION GPS PLUS ONTO MOUNTING SURFACE. MOUNTING
STUD SHALL BE LOCATED IN LARGE HOLE AND LOCATING TAB
SHALL BE LOCATED IN SMALL HOLE.
ON BOTTOM SIDE OF MOUNTING SURFACE SLIDE SLOTTED
LOCK WASHER AND HEX NUT AROUND CABLES AND ASSEMBLE TO MOUNTING STUD. (DISCARD CROWN NUT SUPPLIED
WITH UNIT) TIGHTEN UNTIL GASKET ON BASE OF GPS PLUS IS
COMPRESSED TO APPROXIMATELY50 PERCENT OF ORIGINAL
THICKNESS. FOR CURVED MOUNTING SURFACES, GAUGE
COMPRESSION AT CREST OF CURVATURE.
ASSEMBLE MOBILE ANTENNATO GPS PLUS.
STUD MOUNT (BLIND INSTALLATION)
TAB SHALLBE LOCATED IN SMALL HOLE.
PRESS GPS PLUS UNIT TOWARDS MOUNTING SURFACE UNTIL
CROWN NUT SNAPS THROUGH HOLE AND TINES LOCK ON
BOTTOM SIDE OF MOUNTING SURFACE. ASSEMBLE MOBILE
ANTENNA TO GPS PLUS.
PRODUCT WARRANTY
A. General Warranty. PCTEL, Inc ("PCTEL") represents and warrants that
the Products furnished hereunder shall be free from defects in material and
workmanship for a period of two (2) years from the date of shipment by
PCTEL under normal use and operation. PCTEL sole and exclusive obligation under the foregoing warranty shall be to repair or replace, at its option,
any defective Product that fails during the warranty period. The expense of
removal and reinstallation of any item is not included in this warranty. THE
FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITYAND FITNESS FOR APARTICULAR
PURPOSE AND ANY WARRANTIES ARISING FROM A COURSE OF
DEALING, USAGE OR TRADE PRACTICE WITH RESPECT TO THE
PRODUCTS. Repair or replacement in the manner provided herein shall be
the sole and exclusive remedy of Buyer for breach of warranty and shall
constitute fulfillment of all liabilities of PCTEL with respect to the quality and
performance of the Products. PCTEL reserves the right to inspect all defective Products (which must be returned by Buyer to PCTEL factory freight
prepaid). No Products will be accepted for replacement or repair without
obtaining a Return Materials Authorization (RMA) number from PCTEL
Customer Service [by telephone: 630.372. 6800 or email: antenna.techsupport@pctel.com]. Products returned without an RMA number will not be
processed and will be returned to Buyer freight collect. PCTEL shall have
no obligation to make repairs or replacement necessitated by catastrophe,
fault, negligence, misuse, abuse, or accident by Buyer, Buyer's customers
or any other parties. The warranty period of any repaired or replaced
Product shall not extend beyond its original term.
B. Warranty Conditions. The foregoing warranty shall apply only if: (i) the
Product has been properly installed and used at all times in accordance,
and in all material respects, with the applicable Product documentation; (ii)
no modification, alteration or addition has been made to the Product by persons other than PCTEL or PCTEL's authorized representatives or otherwise
approved by PCTEL; and (iii) the Product has not been subjected to misuse, neglect or unusual physical, electrical or electromagnetic stress, or
some other type of accident. C. Disclaimer. PCTEL DOES NOT WARRANT
THATTHE OPERATION OF THE PRODUCTS IS ERROR-FREE OR THAT
OPERATION WILLBE UNINTERRUPTED. IN NO EVENT SHALL PCTEL
BE RESPONSIBLE FOR DAMAGES OR CLAIMS OF ANY NATURE OR
DESCRIPTION RELATING TO (i) SYSTEM PERFORMANCE, INCLUDING
COVERAGE, (ii) BUYER'S SELECTION OF PRODUCTS FOR BUYER'S
APPLICATION AND/OR (iii) FAILURE OF PRODUCTS TO MEET GOVERNMENT OR REGULATORYREQUIREMENTS
.
RETURNS
In the unlikely event a defect occurs in this product, please work through
the dealer or distributor from which this product was purchased. PCTEL,
Inc. provides complete service and support to all of its dealers and
distributors.
471 Brighton Drive
Bloomingdale, IL 60108
MAX-MATICS™ GPS+
COMBINATION GPS ANTENNA
AND MOBILE ANTENNA MOUNT
Part # : MIS-GPSPLUS-2
© 2007, PCTEL, Inc.
Broadband Technology Group - Antenna Products
All rights reserved.
GPS PLUS COMBINATION ANTENNA/MOUNT
RECOMMENDED INSTALLATION INSTRUCTIONS
GENERAL:
THE GPS PLUS COMBINATION ANTENNA/MOUNT INCLUDES AN
ACTIVE GPS ANTENNA AND A MOBILE ANTENNA MOUNT IN A
SINGLE INSTALLATION.
THE GPS PLUS IS AVAILABLE IN FOUR MOUNTING CONFIGURATIONS; TRUNK LID, MIRROR BRACKET, THROUGH HOLE STUD
AND MAGNET. FOLLOW APPLICABLE INSTRUCTIONS FOR
EACH CONFIGURATION.
THE MOBILE ANTENNAINTERFACE IS ASTANDARD M-TYPE
INTERFACE (1 1/8-18 THREAD) THAT HAS BEEN DESIGNED TO
PROVIDE PERFORMANCE AT LOW AND HIGH FREQUENCIES.
INSTALLATION GUIDELINES FOR THE SPECIFIC MOBILE ANTENNA USED WITH THIS MOUNT APPLYAS IF USED WITH A STANDARD PERMANENT ANTENNA MOUNT, I.E. IF THE ANTENNA
REQUIRES AGROUND PLANE ON A STANDARD MOUNT IT WILL
REQUIRE AGROUND PLANE UNDER THE GPS PLUS ANTENNA/MOUNT.
THE OPTIMUM LOCATION FOR MOUNTING THE GPS PLUS IS A
FLAT LEVEL SURFACE, FREE OF OBSTRUCTION, OFFERING A
CLEAR VIEW OF THE HORIZON AND ABOVE IN ALL DIRECTIONS.
MAGNET MOUNT
CLEAN ANTENNA MOUNTING SURFACE AND AREAWHERE GPS
PLUS ANTENNA/MOUNT WILL BE PLACED TO PREVENT
SCRATCHING OF MOUNTING SURFACE.
ASSEMBLE MOBILE ANTENNATO GPS PLUS.
SET GPS PLUS ON FERROUS SURFACE IN DESIRED LOCATION.
TO REMOVE GPS PLUS, TIP THE UNIT TO THE SIDE AND LIFT.
TRUNK LID MOUNT
CLEAN GPS PLUS MOUNTING SURFACE AND AREA ON TRUNK LID
WHERE GPS PLUS WILL BE ASSEMBLED.
OPEN TRUNK LID AND FEED CABLES INTO TRUNK BETWEEN
TRUNK LID AND BODY OF VEHICLE.
SLIDE TRUNK LID BRACKET OVER TRUNK LID LIP. MAKE SURE
THERE IS A SMALL LOOP IN THE TWO CABLE ASSEMBLIES
AROUND THE TRUNK LIP.
ASSEMBLE TWO SET SCREWS THROUGH BOTTOM SIDE OF TRUNK
LID BRACKET AND TIGHTEN AGAINST TRUNK LID, USING PROVIDED ALLEN WRENCH, UNTIL BOTH SCREWS ARE SNUG AND GPS
PLUS IS SECURE.
ASSEMBLE MOBILE ANTENNATO GPS PLUS.
MIRROR MOUNT
HOLD GPS PLUS MIRROR MOUNT BRACKET AGAINST VEHICLE
MIRROR BRACKET TUBE/PIPE WITH ANTENNA BODY AWAY FROM
TUBE/PIPE. GPS PLUS SHOULD BE POSITIONED AS CLOSE TO THE
TOP OF THE VEHICLE MIRROR BRACKET AS POSSIBLE.
GPS PLUS CAN BE MOUNTED TO EITHER VERTICAL OR HORIZONTALMIRROR BRACKET TUBE/PIPE UP TO 1.25 INCH DIAMETER.
POSITION CLAMP BRACKET AROUND TUBE/PIPE ON OPPOSITE
SIDE AS GPS PLUS.
ASSEMBLE HARDWARE THROUGH THE TWO BRACKET HALVES
AND SECURE WITH LOCK WASHERS AND HEX NUTS. TIGHTEN
UNTIL SNUG AND GPS PLUS ANTENNA/MOUNT IS SECURE.
ASSEMBLE MOBILE ANTENNATO GPS PLUS.
ROUTE CABLES INTO VEHICLE.
MATERIAL
THICKNESS
TURN CROWN NUT, FROM
FLUSH POSITION, FOR
MATERIALTHICKNESS
RESULTING “GAP”
SEE FIGURE ABOVE
.032 INCH 1 FULL TURN CLOCKWISE -.062 INCH (BELOW
.063 INCH 1/2 TURN CLOCKWISE -.032 INCH (BELOW
.094 INCH NO ADJUSTMENT 0.0 INCH (FLUSH)
.125 INCH 1/2 TURN COUNTER- +.032 INCH (GAP)
STUD MOUNT (BLIND INSTALLATION)
DETERMINE GPS PLUS ANTENNA/MOUNT INSTALLATION
LOCATION. ENSURE THAT THE MOUNTING SURFACE IS AS
FLATAS POSSIBLE. 1.0 INCH MINIMUM IS REQUIRED
BELOW MOUNTING SURFACE TO ALLOW FOR SUFFICIENT
CLEARANCE FOR THE MOUNTING STUD AND CABLES.
CUT/DRILL HOLES THROUGH MOUNTING SURFACE (0.13
MAX THICK) SIZED AND POSITIONED AS SHOWN IN DETAIL
ABOVE.
ASSEMBLE CROWN NUT TO MOUNTING STUD SO THAT
TINES ARE FLUSH WITH BOTTOM SURFACE OF GASKET.
ADJUST THE POSITION OF THE CROWN NUT AS DESCRIBED
IN TABLE BELOW FOR VARIOUS MATERIALTHICKNESS.
CAUTION: THIS STEP IS CRITICAL. CROWN NUT MUST BE
ADJUSTED ON MOUNTING STUD FOR APPLICABLE MOUNTING SURFACE MATERIAL THICKNESS. ONCE ANTENNA IS
ASSEMBLED THROUGH MOUNTING SURFACE IT CAN NOT
BE REMOVED UNLESS ACCESS TO THE CROWN NUT IS
POSSIBLE. TO REMOVE, PRESS GPS PLUS UNIT TOWARDS
MOUNTING SURFACE TO COMPRESS GASKET THEN
LOOSEN CROWN NUT.
CLEAN MOUNTING SURFACE AND BOTTOM OF GPS PLUS.
TO ENSURE ALONG TERM WATERTIGHT SEAL IT IS RECOMMENDED THAT A BEAD OF SILICONE SEALANT BE APPLIED
AROUND BOTH HOLES.
FEED CABLES THROUGH LARGE HOLE AND ROUTE TO
DESIRED LOCATION.
POSITION GPS PLUS OVER MOUNTING SURFACE. MOUNTING STUD SHALL BE LOCATED IN LARGE HOLE AND LOCATING TAB SHALLBE LOCATED IN SMALLHOLE.
PRESS GPS PLUS UNIT TOWARDS MOUNTING SURFACE
UNTIL CROWN NUT SNAPS THROUGH HOLE AND TINES
LOCK ON BOTTOM SIDE OF MOUNTING SURFACE.
ASSEMBLE MOBILE ANTENNATO GPS PLUS.
