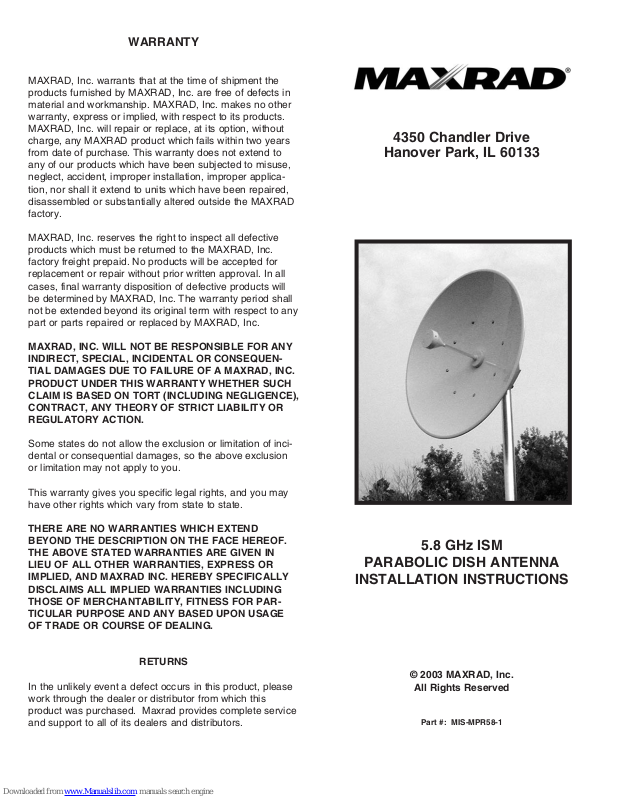

Maxrad 5.8 GHz ISM Instructions Manual
WARRANTY
MAXRAD, Inc. warrants that at the time of shipment the
products furnished by MAXRAD, Inc. are free of defects in
material and workmanship. MAXRAD, Inc. makes no other
warranty, express or implied, with respect to its products.
MAXRAD, Inc. will repair or replace, at its option, without
charge, any MAXRAD product which fails within two years
from date of purchase. This warranty does not extend to
any of our products which have been subjected to misuse,
neglect, accident, improper installation, improper application, nor shall it extend to units which have been repaired,
disassembled or substantially altered outside the MAXRAD
factory.
MAXRAD, Inc. reserves the right to inspect all defective
products which must be returned to the MAXRAD, Inc.
factory freight prepaid. No products will be accepted for
replacement or repair without prior written approval. In all
cases, final warranty disposition of defective products will
be determined by MAXRAD, Inc. The warranty period shall
not be extended beyond its original term with respect to any
part or parts repaired or replaced by MAXRAD, Inc.
MAXRAD, INC. WILL NOT BE RESPONSIBLE FOR ANY
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES DUE TO FAILURE OF A MAXRAD, INC.
PRODUCT UNDER THIS WARRANTY WHETHER SUCH
CLAIM IS BASED ON TORT (INCLUDING NEGLIGENCE),
CONTRACT, ANY THEORY OF STRICT LIABILITY OR
REGULATORY ACTION.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion
or limitation may not apply to you.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
THERE ARE NO WARRANTIES WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF.
THE ABOVE STATED WARRANTIES ARE GIVEN IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, AND MAXRAD INC. HEREBY SPECIFICALLY
DISCLAIMS ALL IMPLIED WARRANTIES INCLUDING
THOSE OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND ANY BASED UPON USAGE
OF TRADE OR COURSE OF DEALING.
RETURNS
In the unlikely event a defect occurs in this product, please
work through the dealer or distributor from which this
product was purchased. Maxrad provides complete service
and support to all of its dealers and distributors.
4350 Chandler Drive
Hanover Park, IL 60133
© 2003 MAXRAD, Inc.
All Rights Reserved
Part #: MIS-MPR58-1
5.8 GHz ISM
PARABOLIC DISH ANTENNA
INSTALLATION INSTRUCTIONS
ASSEMBLY PROCEDURE:
1. Remove the four (4) #10 cap screws, and
lock and the flat washers from the hardware
bag. Position the feed tube as shown in the
illustration, aligning the polarization pin with
the hole in the dish. Insert the cable through
the hole and install the screws with the 5/32
hex key and tighten.
2. Remove the two (2) "U" bolts 3/8-16 x 2 ½"
pipe and "V" blocks, four (4) 3/8" hex nuts
and flat washers from the hardware bag.
Position the dish assembly to the mast as
shown in the side view. Install the upper "U"
bolt first, then install the lower "U" bolt and
tighten.
3. Connect a coax to the "N" bulkhead and
wrap the joint with weather seal Butyl rubber.
4. Adjust the angle, loosen six (6) 7/16" hex
head machine screws at each pivot point,
(shown in side view) and screw turnbuckles
in or out until the desired position is obtained.
5. After the dish is aligned, make sure that the
7/16" hex head machine screws are securely
tightened.
6. The dish is shipped set up for vertical
polarization. A decal indicating vertical
polarization is provided on the rear of the star
mounting plate.
7. Horizontal polarization is obtained by
removing the "U" bolts and rotating 90°
clockwise (viewed from the rear of the dish).
The plugged drain holes will now be on the
bottom. Remove the plugs and place them in
the drain holes that are now on the side.
Note: it is important to keep the drain
holes on the bottom open.
ASSEMBLY INSTRUCTIONS FOR MPR 5.8 GHz
PARABOLIC REFLECTOR ANTENNAS
