Series
6 kVA
Rack/Universal Mount
On-line, Single-phase
Parallel Redundant
UPS System
■
Power range and run time scalability
■
Full-time Digital Signal Processor Control
■
LCD/LED mimic panel
■
Easy-to-set user personalization
■
Up to 98% energy effi ciency
Full Three
Warranty
■
Continuous power conditioning, even when not running on battery
■
Smooth, uninterrupted switching from utility power to battery mode, and back again
■
Wide fl uctuations in utility power are handled without going to battery
■
Parallel up to four units for added capacity or redundancy, using a simple
connection on the rear panel without additional cabinets
■
Unlike most UPSs in this size range, the UniStar
refl ected harmonics, which protects the integrity of your entire electrical system
®
P has a very low rate of added and
Year
www.stacoenergy.com
Your tailored power solutions provider
TM
Parallelable
UPS

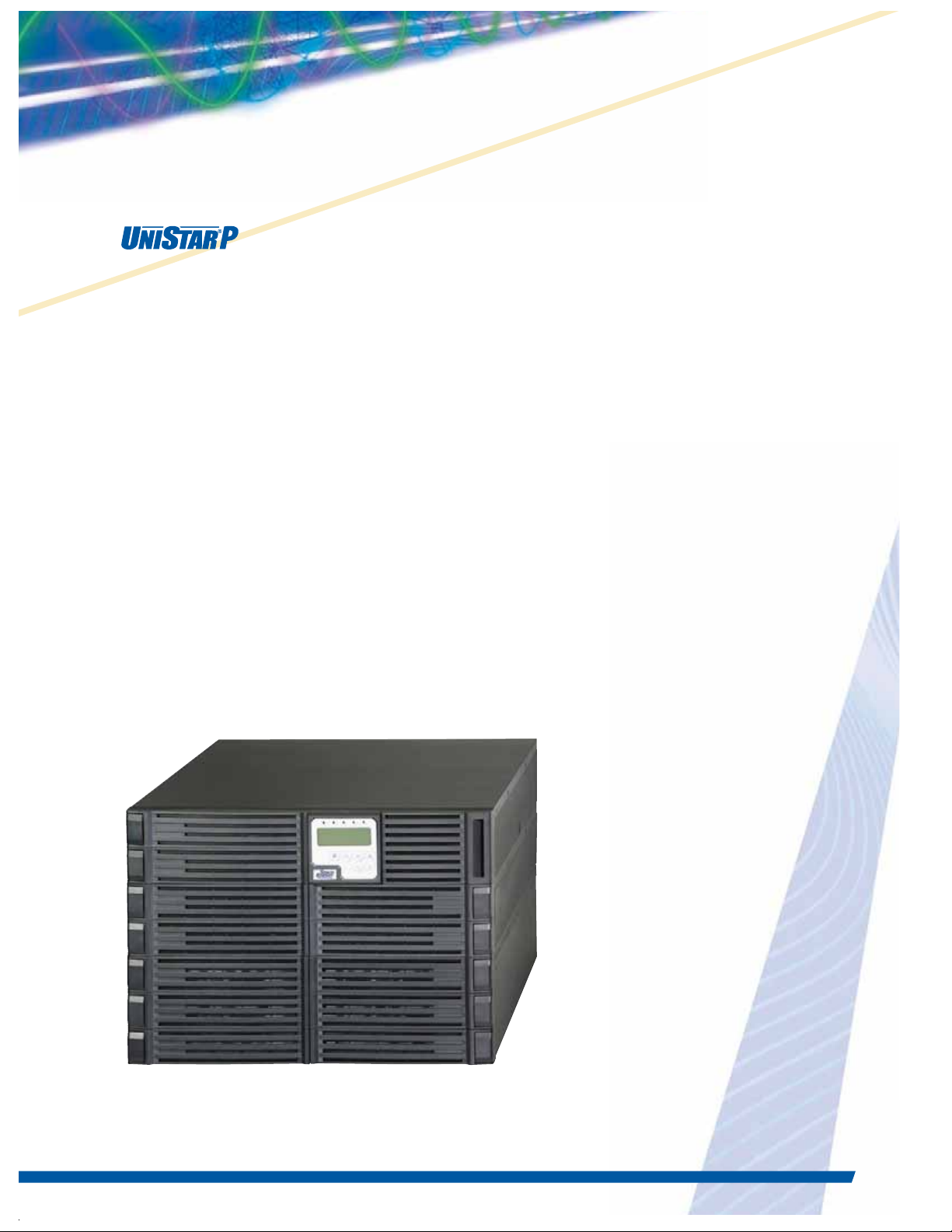

UniStar® P Series
Rack Mount
shown paralleled
and with
battery
cabinet
Proven Technology
Higher reliability and greater immunity
from power anomalies is achieved
through our fi eld-proven Digital
Signal Processor architecture. The front
panel controls are intuitive and user
friendly. The system display clearly
communicates all major system
parameters, system status, and system
diagnostics, and includes access to
system information and unit personalization via the front panel.
Simple Parallel Installation
For increasing power capacity, or making
redundant systems, the UniStar
can be installed in parallel. By simply
connecting the parallel control lines
through an RJ-45 connector on the
rear panel and CAN-bus, communication is established to all units. Up to
four units can be paralleled together
without a paralleling cabinet.
®
P
Power Range and Runtime
Scalability
The UniStar
®
P provides an excellent
return on investment. The system is
fully modular, allowing you to increase
the overall power output and battery
runtime as your system grows. It is
important however, that you plan your
electrical installation to fi t your needs.
Our worldwide network of sales representatives and distributors can assist
you with a tailored solution that meets
your needs.
Full Time Digital Signal
Processor Control
The full-time DSP controI system
inside the UniStar
®
P provides a pure
sine wave using our patented inverter
control technology. The UniStar
®
P
provides N+1 scalability without
additional components.
Three Year Warranty
Electronics:
A full Three Year parts with depot repair
or replacement warranty is standard.
Battery:
A full One Year Warranty, 4-year pro-
rated, on the Battery System ensures
that your batteries are protected
from system failure now and in
the future. (Warranty provided by
battery manufacturer.)
Extended warranties, customized
service plans and preventative
maintenance are also available.
Please refer to our warranty
statement for complete details.
www.stacoenergy.com

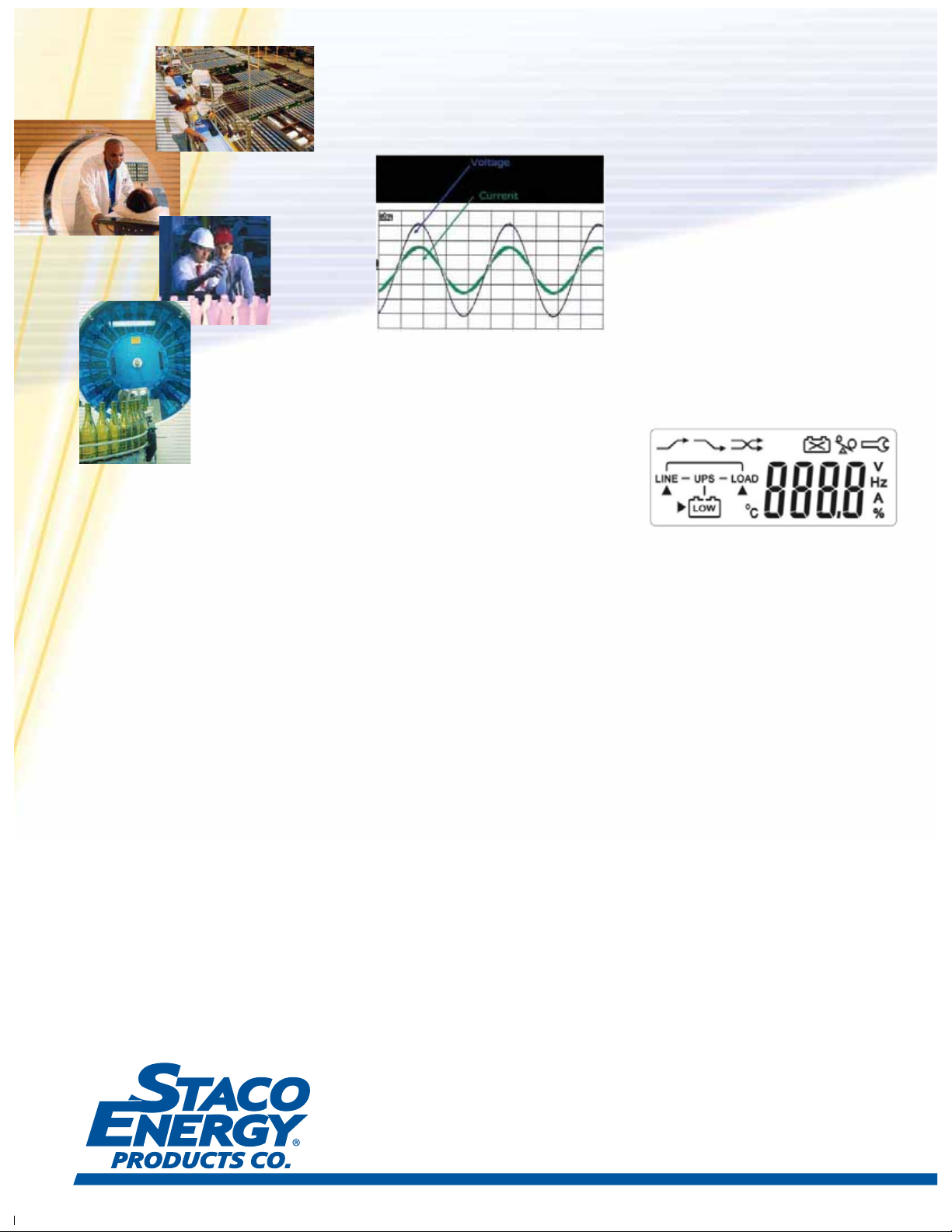

Applications
■
Broadcast
■
Computer Networks
■
Retail
■
Robotics
■
Printing
■
Medical/Pharmaceuticals
■
Paper Productlon
■
Food Processing
On-line, Single-phase
Parallel Redundant UPS System
EPO Function
The Emergency Power Off Function
enables user shutdown of the UPS in
an emergency situation.
Manual Maintenance Bypass
The internal manual bypass ensures
a continuous supply of power to the
critical load during service or periodic
maintenance of the UPS system. The
High Input Power Factor
and Low Current THD
The UniStar
®
P meets today’s industry
standard for energy savings and low
refl ected harmonics, and achieves
up to 0.99 Power Factor as well as
<5% THD.
Energy E cient UPS
The AC to AC effi ciency of the UPS
may reach up to 91% at 25% load, and
better with larger loads and normal
VFI operation. Using the ECO mode,
up to 98% effi ciency can be achieved.
Smart ECO Mode
In ECO operation mode, the UniStar
®
P normally supplies power to load
via bypass utility. It will automatically
transfer to inverter supply with
SmartECO Mode if the bypass utility
becomes out of tolerance.
Programmable Frequency
Converter
Using the front panel keypad, you
may reprogram the UniStar
act as a frequency converter for
either 50 Hz or 60 Hz. (Consult factory
for further information)
®
P to
bypass switch is electrically interlocked
with the inverter to provide safe
operation.
LCD/LED Mimic Panel
A concise LCD/LED display provides
real-time status and readings such
as operation modes, AC voltage,
frequency, battery voltage, load level,
inner temperature, and more. A fullsize microprocessor-based graphical
LCD display provides advanced
monitoring functions.
Intelligent Self-Diagnostics
The DSP self-diagnostics assists the
service engineer in pinpointing system
fauIts rapidly, making repairs fast
and easy.
Silent Fan Control
The UniStar
cooling by internally mounted fans
with speed control that is based on
load percentage. This means low
audible noise levels, suitable for most
environments.
®
P employs forced air
Your tailored power solutions provider
TM
Advanced Battery Management
The UniStar
the end of discharge voltage according
to load. This function prevents deepdischarge of the built-in battery during
a power failure and saves battery life.
®
P automatically manages
Hot-Swappable Battery
The UniStar
replace batteries without
electric shock hazard, while
the UPS supplies continuous
power to your application.
®
P allows users to
Galvanic Isolation Transformer
The galvanic isolation transformer
provides not only complete isolation
between the input and the output, but
also various secondary voltages, such
as 220/230/240 Vac, 208/120 Vac and
240/120 Vac.
User Personalization
Through the LCD front panel, you may
easily change the parameters and settings
built in to the DSP controllers, such as UPS
operation modes, voltage confi gurations,
synchronization frequency windows
(for use with generators), bypass voltage
tolerances and audible alarm.

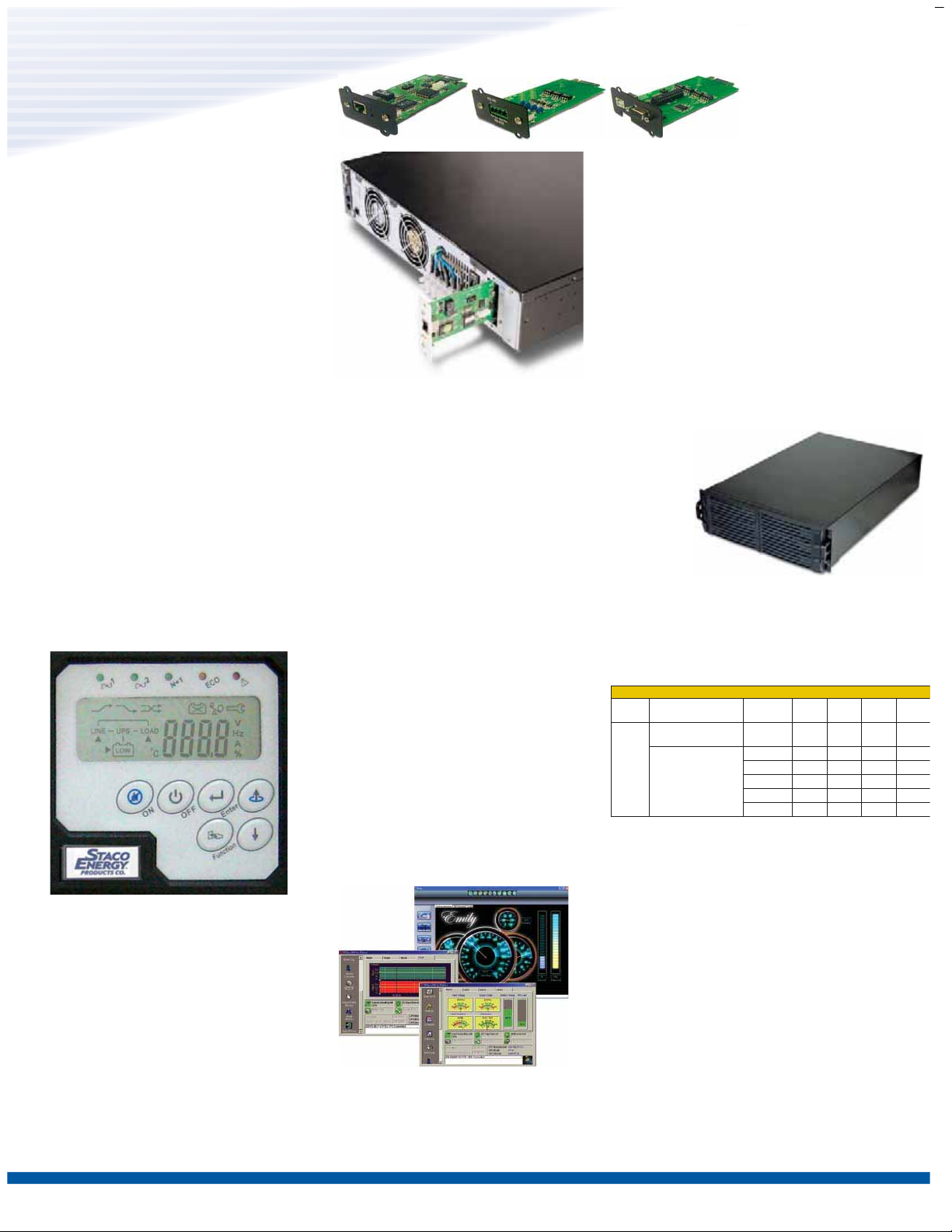

Variety of Customer
Options Slots
This UPS also provides two customer
option communication slots in
addition to the standard RS232 port.
All communications cards are designed
for simple installation; electrical
connections are made through a
26-pin edge card connector. The
fi rst RS232 port on the rear panel will
remain active, even though optional
communication cards are installed.
Communications Capability
The UniStar® P is shipped with standard
monitoring/shutdown software. The
software allows control of the UPS and
graceful shutdown when the utility
power fails, but also allows the user to:
■
Remotely test the major operating
functions of the UPS
■
Communicate via SNMP/WEB card
■
Access UPS functions via the WEB
Optional External Battery
Charger
The optional charger can be installed
for fast recharge of the extended
battery pack.
■
Power Output: 1000W
■
Mounting: UPS or
wall mount
Matching
Extended
Battery Pack
Optional matching battery
packs are available to easily extend
the UPS runtime to several hours.
6kVA Single Phase UPS Rack Mount
Extended Battery Run Times (minutes)
20 X Cabinet (1 string)
UPS
Size
6 kVA
Note: Battery times are based on new batteries
Part
Number
No Internal
Batteries
SC-BP6000RM-1
Qty. of
Cabinets
25%
Load
0 0000
15622128
2 137 56 33 22
3 226 95 56 38
4 321 137 82 56
5 420 180 109 75
+
5%
/
-
50%
Load
75%
Load
100%
Load
Cold Start Function
Users can turn on the UPS without utility
power available.
www.stacoenergy.com
Rack/Universal Mount Models
Rack/Universal Mount Models SC60021RM SC60022RM
INPUT
Connection Hardwire / Optional 6ft. Line Cord with L6 30P Plug
6kVA
Voltage Range 160 -280Vac
Frequency 45 ~ 65 Hz
Phase/Wire Single, Line + Common + Ground
Power Factor Up to 0.99 at 100% Linear Load
Current THD <5% at 100% Linear Load
OUTPUT
Connection Hardwire Hardwire
Voltage 208/120Vac or 240/120Vac 208/220/230/240Vac, Selectable 240/120, 208/120Vac
Voltage Adjustment +/- 0%; +/- 1%; +/- 2%; +/- 3% For All Voltages
Voltage Regulation +/- 2%
Capacity 6000VA/4200W
Parallel Capability Redundancy or Capacity – 4 Units Maximum
Rated Power Factor 0.7 Lagging
Wave Form Sine Wave, THD < 3% (no load to full load)
Frequency Stability +/- 0.2% (Free Running)
Frequency Regulation +/- 1 Hz
Transfer Time 0ms/instantaneous
Crest Factor 3:1
Effi ciency (AC to AC Nominal) 91%
Effi ciency (AC to AC ECO Mode) Up to 9 7%
Leakage Current < 3mA @ Full Load
DC Start Yes
Cooling Load Dependant Variable Speed Fans
DISPLAY, ALARMS, DIAGNOSTICS, COMMUNICATIONS & EMERGENCY FUNCTION
Status On LED + LCD
Readings On LED + LCD
Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low,
Battery Bad/Disconnected, Overload, Transferring with interruption & UPS Fault
Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage,
Battery Voltage & Unit’s Inner Temperature
Self-Diagnostics Upon Power-on, Front Panel Setting & Software Control, 24 Hour self check
Audible Alarms and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Communications RS232 Serial Port ( 2 slots available for optional SNMP/WEB, USB or Dry Contact Card)
Emergency Power Off (EPO)
Connection
PHYSICAL
Dimensions (H x W x D) inches 3.5 x 17.3 x 26 (2U)
Weight (lbs.) 53
Safety and Performance
EXTERNAL BATTERY PACK – Module 2, Plug Connected to UPS Module (Note 1)
*Model SC-BP6000RM-1 (same battery used for extended run times)
Emergency Power Off shuts down UPS when activated by customer supplied EPO Circuit
UL1778, c-UL; CE – FCC Class A, EN 50091-2, EN 62040-2, EN61000-3,
IEC 61000 (various), IEC 62040, CISPR 22
Battery Run Time @ Full Load 8 minutes
Type Sealed Lead Acid Maintenance Free, 20 each 12V/7AH, 240Vdc
Hot – Swap Batteries Yes
Recharge Time 4 hours to 90%
Battery Connection Plug Connector
Extended Run Time Battery Packs Yes
Dimensions (H x W x D) 5.25" x 17.3" x 26" (3U)
Weight (lbs.) 119
OUTPUT TRANSFORMER / MANUAL BYPASS SWITCH - Module 3, (Hardwired to UPS Module (Note 1)
Output Voltage 208/120Vac or 240/120Vac 208/120Vac or 240/120Vac
Manual Bypass Switch Make – Before - Break
Dimensions (H x W x D) 3.5" x 17.3" x 26.0" (2U)
Weight (lbs.) 93
OPTIONAL
POWER DISTRIBUTION UNIT (PDU) for Model SC60021RM ONLY!
Model
Input Voltage of UPS Module 208 or 240Vac 208 or 240Vac
Output Voltage through
Receptacles
Output Receptacles
(1)
208/120Vac or 240/120Vac 208Vac or 240Vac
L6-30R, (1) L5-30R, (1) L5-20R, & (2) 5-15/2020R
–
Module 4 Optional (Hardwired to Transformer Module)
SC-6RMPDU1
SC-6RMPDU2
(1)
L6-30R, (1) L6-20R & (4) 6-20R
Dimensions (H x W x D) 3.5" x 12.8" x 2.8" (2U)
Weight (lbs.) 7
OPTIONAL COMMUNICATION Cards with Shutdown Software
SC-SNMP1 SNMP/WEB Network Card and Shutdown Software
SC-Contact/EPO Dry Contact & EPO Card
SC-PK Parallel Cable kit contains two RJ45 cables and miscellaneous hardware for paralleling
Note: (2) slots available; both cards can be used simultaneously; RS232 Port is disabled when communication cards are installed.
OPTIONAL EXTENDED BATTERY PACK CHARGER
SC-CHG-1000
OPTIONAL PARALLEL DISTRIBUTION / BYPASS MODULE (Note 2)
SC-PKIT-2 Parallel Distribution Bypass 60Amp for (2) UPS Modules 10.5"W x 9.5"D x 3.7"H 11 lbs.
SC-PKIT-4 Parallel Distribution Bypass 120Amp for (4) UPS Modules 10.5"W x 16.4"D x 3.7"H 20 lbs.
Notes:
Modules 1, 2 & 3 make up a complete hardwired 208/120Vac or 240/120Vac output system.
Parallel for capacity confi gurations can use (1) battery system sized for the ultimate capacity.
Parallel for redundancy confi gurations require (1) battery system for each UPS.
1000W External Mount Battery Charger (1) charger
per every (2) External Battery Packs Required
6.6"W x 11.1"D x 3.4"H 7 lbs.
Service Options
With our ServiStar® program, a wide range of planned maintenance and extended
service options are off ered to maximize equipment life and reliability of your FirstLine
UPS. Through an extensive network of factory trained professionals you receive:
■
Start-Up and Training
■
Annual Service Plan
■
24/7 Emergency Service
■
Preventive Maintenance
■
Programs tailored to meet your needs
About Staco Energy Products Company
®
Since 1937, customers worldwide have been
relying on Staco Energy Products Company
to deliver voltage control and power quality
solutions tailored to their needs.
As a leading power quality resource, we off er
our customers world-class support; from our
thorough applications assessment, to our
ability to design and deliver a solution that is
tailored to the specifi c needs of our customers;
through delivery and commissioning.
Our professional, factory trained service
team is in place to ensure that our
customers’ revenues are protected, and
their investment provides them with
many years of trouble free operation.
Staco develops total power solutions
for OEM and end user applications.
Represented locally by:
In addition to the UniStar
®
P
we o er a wide array of power
quality products, including:
■
Uninterruptible Power Supplies
■
Power Conditioners
■
Voltage Regulators
■
Power Factor Correction and
Harmonic Mitigation
■
Active Harmonic Filters
■
Variable Transformers
■
Custom Engineered Test Sets
Your tailored power solutions provider
Contact Us:
US Toll Free: 866-261-1191
Phone: 937-253-1191
E-mail: sales@stacoenergy.com
TM
www.stacoenergy.com
Staco Energy published documents contain material that can be recycled. ©2011, Staco Energy Products Co. US-P-Univ_bro-0611
Loading...
