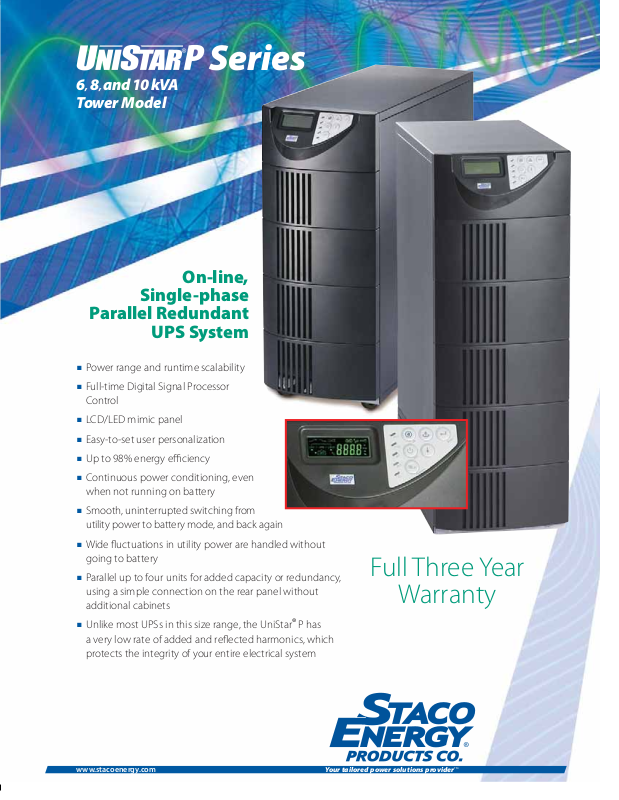

Series
6, 8, and 10 kVA
Tower Model
On-line,
Single-phase
Parallel Redundant
UPS System
■
Power range and runtime scalability
■
Full-time Digital Signal Processor
Control
■
LCD/LED mimic panel
■
Easy-to-set user personalization
■
Up to 98% energy effi ciency
■
Continuous power conditioning, even
when not running on battery
■
Smooth, uninterrupted switching from
utility power to battery mode, and back again
■
Wide fl uctuations in utility power are handled without
going to battery
■
Parallel up to four units for added capacity or redundancy,
using a simple connection on the rear panel without
additional cabinets
■
Unlike most UPSs in this size range, the UniStar
a very low rate of added and refl ected harmonics, which
protects the integrity of your entire electrical system
®
P has
Full Three Year
Warranty
www.stacoenergy.com
Your tailored power solutions provider
TM
Parallelable
UPS
Proven Technology
Higher reliability and greater immunity
from power anomalies is achieved
through our fi eld-proven Digital
Signal Processor architecture. The front
panel controls are intuitive and user
friendly. The system display clearly
communicates all major system
parameters, system status, and system
diagnostics, and includes access to
system information and unit personalization via the front panel.
Power Range and Runtime
Scalability
The UniStar®P provides an excellent
return on investment. The system is
fully modular, allowing you to increase
the overall power output and battery
runtime as your system grows. It is
important however, that you plan your
electrical installation to fi t your needs.
Our worldwide network of sales representatives and distributors can assist
you with a tailored solution that meets
your needs.
Full Time Digital Signal
Processor Control
The full-time DSP controI system
inside the UniStar®P provides a pure
sine wave using our patented inverter
control technology. The UniStar
provides N+1 scalability without
additional components.
®
P
UniStar® P Series Tower
shown paralleled and
with battery cabinet
Simple Parallel Installation
For increasing power capacity, or making
redundant systems, the UniStar
can be installed in parallel. By simply
connecting the parallel control lines
through an RJ-45 connector on the
rear panel and CAN-bus, communication is established to all units. Up to
four units can be paralleled together
without a paralleling cabinet.
www.stacoenergy.com
®
P
Three Year Warranty
Electronics:
A full Three Year parts with depot repair or
replacement warranty is standard.
Battery:
A full One Year Warranty, 4-year pro-rated,
on the Battery System ensures that your
batteries are protected from system
failure now and in the future. (Warranty
provided by battery manufacturer.)
Extended warranties, customized
service plans and preventative
maintenance are also available.
Please refer to our warranty statement
for complete details.
On-line, Single-phase
Parallel Redundant UPS System
EPO Function
The Emergency Power Off Function
enables user shutdown of the UPS in
an emergency situation.
Manual Maintenance Bypass
The internal manual bypass ensures
a continuous supply of power to the
critical load during service or periodic
High Input Power Factor
and Low Current THD
The UniStar
standard for energy savings and low
refl ected harmonics, and achieves
up to 0.99 Power Factor as well as
<5% THD.
®
P meets today’s industry
maintenance of the UPS system. The
bypass switch is electrically interlocked
with the inverter to provide safe
operation.
Applications
■
Broadcast
■
Computer Networks
■
Retail
■
Robotics
■
Printing
■
Medical/Pharmaceuticals
■
Paper Productlon
■
Food Processing
Energy E cient UPS
The AC to AC effi ciency of the UPS
may reach up to 91% at 25% load, and
better with larger loads and normal
VFI operation. Using the ECO mode,
up to 98% effi ciency can be achieved.
Smart ECO Mode
In ECO operation mode, the UniStar
®
P normally supplies power to load
via bypass utility. It will automatically
transfer to inverter supply with
SmartECO Mode if the bypass utility
becomes out of tolerance.
Programmable Frequency
Converter
Using the front panel keypad, you
may reprogram the UniStar
act as a frequency converter for
either 50 Hz or 60 Hz. (Consult factory
for further information)
®
P to
LCD/LED Mimic Panel
A concise LCD/LED display provides
real-time status and readings such
as operation modes, AC voltage,
frequency, battery voltage, load level,
inner temperature, and more. A fullsize microprocessor-based graphical
LCD display provides advanced
monitoring functions.
Intelligent Self-Diagnostics
The DSP self-diagnostics assists the
service engineer in pinpointing system
fauIts rapidly, making repairs fast and
easy .
Silent Fan Control
The UniStar
cooling by internally mounted fans
with speed control that is based on
load percentage. This means low
audible noise levels, suitable for most
environments.
®
P employs forced air
Your tailored power solutions provider
TM
User Personalization
Through the LCD front panel, you may
easily change the parameters and
settings built in to the DSP controllers,
such as UPS operation modes, voltage
confi gurations, synchronization
frequency windows (for use with
generators), bypass voltage tolerances
and audible alarm.
Advanced Battery Management
The UniStar
®
P automatically manages
the end of discharge voltage according
to load. This function prevents deepdischarge of the built-in battery during
a power failure and saves battery life.
Galvanic Isolation Transformer
The galvanic isolation transformer
provides not only complete isolation
between the input and the output, but
also various secondary voltages, such
as 220/230/240 Vac, 208/120 Vac and
240/120 Vac.
Cold Start Function
Users can turn on the UPS without
utility power available.
Variety of Customer
Options Slots
This UPS also provides two customer
option communication slots in addition
to the standard RS232 port. All
com-munications cards are designed
for simple installation; electrical
connections are made through a
26-pin edge card connector. The
fi rst RS232 port on the rear panel will
remain active, even though optional
communication cards are installed.
Communications Capability
The UniStar
®
P is shipped with standard
monitoring/shutdown software. The
software allows control of the UPS and
graceful shutdown when the utility
power fails, but also allows the user to:
■
Remotely test the major operating
functions of the UPS
■
Communicate via SNMP/WEB card
■
Access UPS functions via the WEB
Hot-Swappable Battery
The UniStar
batteries without electric shock hazard,
while the UPS supplies continuous
power to your application.
®
P allows users to replace
Optional External
Battery Charger
The optional charger can be
installed for fast recharge of
the extended battery pack.
■
Power Output: 1000W
■
Mounting: UPS or wall mount
Matching Extended
Battery Pack
Optional matching battery packs
are available to easily extend the
UPS runtime to several hours.
6, 8 & 10kVA Single Phase UPS Tower
Extended Battery Run Times (minutes)
40 X Cabinet (2 strings)
UPS
Size
6kVA
8kVA
10kVA
60 X Cabinet (3 strings)
UPS
Size
6kVA
8kVA
10kVA
Note: External 1000W Battery Charger (P/N SC-CHG-1000) required
every (2) External Battery Cabinets
Part
Number
Internal 0 56 22 12 8
SC-BP6000T-2
Internal 0 64 21 12 7
SC-BP1100T-2
Internal 0 40 15 8 5
SC-BP1100T-2
Part
Number
Internal 0 56 22 12 8
SC-BP6000T-3
Internal 0 64 21 12 7
SC-BP1100T-3
Internal 0 40 15 8 5
SC-BP1100T-3
Qty. of
Cabinets
Qty. of
Cabinets
25%
50%
Load
50%
Load
75%
Load
75%
Load
Load
1 226 95 56 38
2 420 180 109 75
3 629 273 166 116
4 847 370 226 158
5 1073 471 289 203
1 216 91 54 37
2 402 172 104 72
3 602 261 158 110
4 812 354 216 151
5 1028 451 276 194
1 164 68 40 27
2 307 131 78 54
3 461 198 120 83
4 623 270 154 114
5 790 345 210 147
25%
Load
1 321 137 82 56
2 629 273 106 116
3 959 420 257 180
4 1305 576 354 249
5 1660 737 454 321
1 307 131 78 54
2 602 261 158 110
3 919 402 246 172
4 1251 551 338 238
5 1594 706 435 307
1 234 98 58 40
2 461 198 120 83
3 706 307 187 130
4 963 422 258 181
5 1229 541 332 234
100%
Load
100%
Load
www.stacoenergy.com
Tower Models
Tower Models SC60021T SC60022T SC80021T SC80022T SC11021T SC11022T
INPUT
Connection
Voltage Range 160 -280Vac
Frequency 45 ~ 65 Hz
Phase/Wire Single, Line + Common + Ground
Power Factor Up to 0.99 at 100% Linear Load
Current THD <5% at 100% Linear Load
OUTPUT
Connection Hardwire
Voltage
Voltage Adjustment +/- 0%; +/- 1%; +/- 2%; +/- 3% For All Voltages
Voltage Regulation +/- 2%
Capacity 6000VA/4200W 8000VA/5600W 10000VA/7000W
Parallel Capability Redundancy or Capacity – 4 Units
Rated Power Factor 0.7 Lagging
Wave Form Sine Wave, THD < 3% (no load to full load)
Frequency Stability +/- 0.2% (Free Running)
Frequency Regulation +/- 1 Hz
Transfer Time 0ms/instantaneous
Crest Factor 3:1
Effi ciency
(AC to AC Nominal)
Effi ciency
(AC to AC ECO Mode)
Leakage Current < 3mA @ Full Load
Manual Bypass Switch Make – Before - Break
DC Start Yes
Cooling Load Dependant Variable Speed Fans
DISPLAY, ALARMS, DIAGNOSTICS, COMMUNICATIONS & EMERGENCY FUNCTION
Status On LED + LCD
Readings On LED + LCD
Self-Diagnostics Upon Power-on, Front Panel Setting & Software Control, 24 Hour self check
Audible Alarms and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Communications RS232 Serial Port ( 2 slots available for optional SNMP/WEB, USB or Dry Contact Card)
Emergency Power Off
(EPO) Connection
PHYSICAL
Dimensions (H x W x D) 29.5" x 11.4" x 25.4" 34.7" (21T), 29.5" (22T) x 11.4" x 25.4" 34.7" (21T), 29.5" (22T) x 11.4" x 25.4"
Weight (lbs.) 265 (21
Safety and Performance
INTERNAL BATTERY
Battery Run Time@Full
Load
Type
Hot – Swap Batteries Yes
Recharge Time 4 hours to 90%
*Extended Run Time
Battery Cabinets
OPTIONAL COMMUNICATION Cards and Shutdown Software
SC-SNMP1 SNMP/WEB Network Card & Shutdown Software
SC-Contact/EPO Dry Contact & EPO Card
SC-PK Parallel Cable kit contains two RJ45 cables and miscellaneous hardware for paralleling
Note: (2) slots available; both cards can be used simultaneously; RS232 Port is disabled when communication cards are installed.
OPTIONAL EXTERNAL EXTENDED BATTERY CABINETS
Model SC-BP6000T-2 & -3 SC-BP1100T-2 & -3
Type
Hot – Swap Cabinets Yes
Battery Connection Connector
Dimensions (H x W x D) 29.5" x 11.4" x 25.4"
Weight (lbs.) 326
OPTIONAL EXTENDED BATTERY PACK CHARGER
SC-CHG-1000
OPTIONAL PARALLEL DISTRIBUTION / BYPASS MODULE (Note 1)
SC-PKIT-2 Parallel Distribution Bypass 60Amp for (2) UPS Modules 3.7"H x 10.5"W x 9.5"D 11 lbs.
SC-PKIT-4 Parallel Distribution Bypass 120Amp for (4) UPS Modules 3.7"H x 10.5"W x 16.4"D 20 lbs.
Notes:
Parallel for capacity confi gurations can use (1) battery system sized for the ultimate capacity.
Parallel for redundancy confi gurations require (1) battery system for each UPS.
Hardwire / Optional 6ft. Line
Cord with L6-30P Plug
208/120 or
240/120Vac
208/220/230/
240Vac
208/120Vac or
240/120Vac
208/220/230/
240Vac
Hardwire
208/120 or
240/120Vac
208/220/230/
240Vac
91%
Up to 97% Up to 93%
Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnected,
Overload, Transferring with interruption & UPS Fault
Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage,
Battery Voltage & Unit’s Inner Temperature
Emergency Power Off shuts down UPS when activated by customer supplied EPO Circuit
T), 190 (22T) 320 (21T), 203 (22T) 340 (21T), 223 (22T)
UL1778, c-UL; CE – FCC Class A, N 50091-2, EN 61000 (various),
87
Sealed Lead Acid Maintenance
Free, 20 each 12V/7AH, 240Vdc
SC-BP6000T-2, SC-BP6000T-3, SC-BP1100T-2, SC-BP1100T-3
Sealed Lead Acid Maintenance Free,
-2: 40 each & -3: 60 each 12V/9AH, 240Vdc
1000W External Mount Battery Charger (1) charger per
every (2) External Battery Packs Required
IEC 61000 (various), IEC 62040-2, CISPR 22
Sealed Lead Acid Maintenance
Free, 20 each 12V/9AH, 240Vdc
Sealed Lead Acid Maintenance
Free, 20 each 12V/9AH, 240Vdc
5 hours to 80%
(Refer To Run Time Chart)
Sealed Lead Acid Maintenance Free,
-2: 40 each & -3: 60 each 12V/9AH, 240Vdc
3.4"H x 6.6"W x 11.1"D 7 lbs.
5
Service Options
With our ServiStar® program, a wide range of planned maintenance and extended
service options are off ered to maximize equipment life and reliability of your FirstLine
UPS. Through an extensive network of factory trained professionals you receive:
■
Start-Up and Training
■
Annual Service Plan
■
24/7 Emergency Service
■
Preventative Maintenance
■
Programs tailored to meet your needs
About Staco Energy Products Company
®
Since 1937, customers worldwide have been
relying on Staco Energy Products Company
to deliver voltage control and power quality
solutions tailored to their needs.
As a leading power quality resource, we off er
our customers world-class support; from our
thorough applications assessment, to our
ability to design and deliver a solution that is
tailored to the specifi c needs of our customers;
through delivery and commissioning.
In addition to the UniStar
we o er a wide array of power
quality products, including:
■
Uninterruptible Power Supplies
■
Power Conditioners
■
Voltage Regulators
■
Power Factor Correction and
Harmonic Mitigation
■
Active Harmonic Filters
■
Variable Transformers
■
Custom Engineered Test Sets
P
®
Our professional, factory trained service
team is in place to ensure that our
customers’ revenues are protected, and
their investment provides them with
many years of trouble free operation.
Staco develops total power solutions
for OEM and end user applications.
Represented locally by:
Your tailored power solutions provider
Contact Us:
US Toll Free: 866-261-1191
Phone: 937-253-1191
E-mail: sales@stacoenergy.com
TM
Staco Energy published documents contain material that can be recycled.
www.stacoenergy.com
©2011, Staco Energy Products Co.
US-P-twr_bro-0611
Loading...
