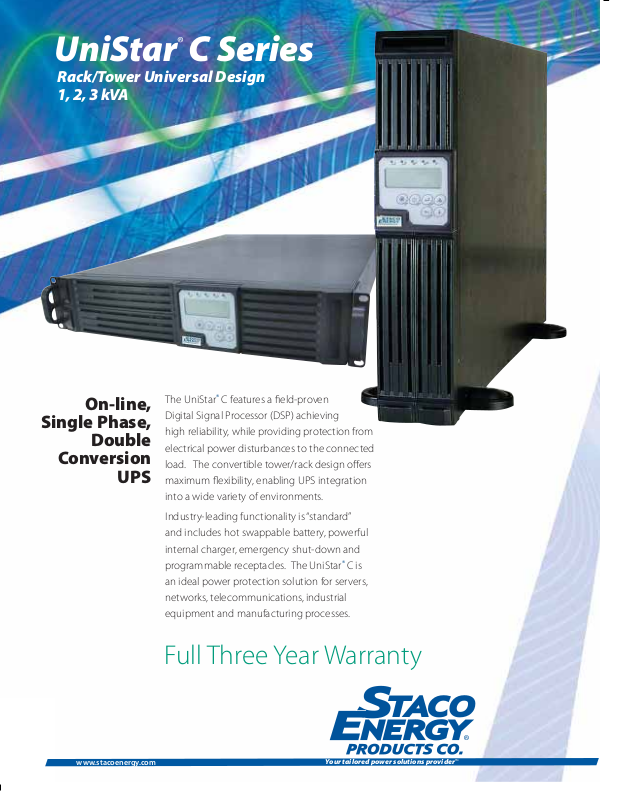

UniStar® C Series
Rack/Tower Universal Design
1, 2, 3 kVA
On-line,
Single Phase,
Double
Conversion
UPS
The UniStar® C features a fi eld-proven
Digital Signal Processor (DSP) achieving
high reliability, while providing protection from
electrical power disturbances to the connected
load. The convertible tower/rack design off ers
maximum fl exibility, enabling UPS integration
into a wide variety of environments.
Industry-leading functionality is “standard”
and includes hot swappable battery, powerful
internal charger, emergency shut-down and
programmable receptacles. The UniStar
an ideal power protection solution for servers,
networks, telecommunications, industrial
equipment and manufacturing processes.
®
C is
Full Three Year Warranty
www.stacoenergy.com
Your tailored power solutions provider
TM
The UniStar® C Series
Double Conversion UPS
■
Tower/Rack Mount Convertible Design
■
Compact and Lightweight
■
Advanced Digital Control Technology
The UniStar® C represents the
latest in single-phase technology
at an aff ordable price. Its true
■
Wide Input Voltage and Frequency Ranges
■
Near Unity Power Factor
■
Hot Swappable Battery,
Built-in Charger
■
Extended Run Time Capability
■
Optional Make-Before-Break
Maintenance Bypass
on-line performance continually
provides a constant clean, steady
sine wave safeguarding the most
sensitive equipment.
Three Year Warranty
Electronics:
A full Three Year parts with depot repair or
replacement warranty is standard.
Battery:
A full One Year Warranty, 4-year pro-
rated, on the Battery System ensures that
your batteries are protected from system
failure now and in the future. (Warranty
provided by battery manufacturer.)
Extended warranties, customized service
plans and preventative maintenance
are also available. Please refer to our
warranty statement for complete details.
UniStar® C Rack/Tower Universal Design
www.StacoEnergy.com
On-line, Single-phase
UPS System
Applications
■
Broadcast
■
Processing Manufacturing
(food/beverage,
pharmaceutical, plastics,
packaging)
■
Water and
Waste Water Treatment
■
Hospitals/Medical
■
Education/Research
Laboratories
Double Conversion
The UPS provides clean AC power with
voltage and frequency independent
from the utility. On-line technology
completely regenerates utility power
to correct electrical disturbances in
the mains.
High-e ciency and protection
PWM sine-wave topology yields
excellent overall performance. The high
crest factor of the inverter handles all
high in-rush current loads without the
need to upgrade the power rating.
Wide frequency and voltage windows
of 45Hz - 65Hz and 60-144Vac (for
120Vac input), or 120-288Vac (for
230Vac input), are provided, which
help to extend the life of the battery.
Near unity input power factor meets
today’s industry standard for energy
savings and effi ciency with low current
harmonic pollution to the utility.
It will automatically switch back
t
o inverter mode once overload
condition ceases. Selectable bypass
input voltage tolerance (low/high
sensitivity) prevents under or over
voltage being supplied to the loads,
while in bypass mode.
User Controls
An easy-to-read user friendly LCD
display provides real-time indication
of all major system parameters and
status, including load level, battery
remaining and fault signals, for easy
service.
Digital signal processing (DSP) also
provides the UPS with powerful communication capability, which enhances
the fl exibility for easy remote control
and monitoring.
Your tailored power solutions provider
To protect the unit from overloading,
the UPS will automatically switch to
bypass mode in 30 seconds if loading
is at 105%~120% of rated capacity.
Features
DC-start function ensures the start-
up of UPS even during power outages.
Programmable receptacles off er
the capability to load shed during any
power interruption, while in battery
power mode or during overload
condition, via the use of special
communication software provided,
thus reserving backup power for
priority loads.
TM
Emergency shutdown control
through EPO allows users to shut
down the UPS completely in an
emergency to ensure a safe operating
environment.
Communication software allows
not only the control of the UPS and its
smooth shutdown when Utility fails,
but also allows the user to
■
Completely test the major operating
functions of the UPS
■
Communicate via SNMP/Web/
Network adapter
■
Access UPS functions via the Web
and also
■
Alert users via SMS messages
against specifi c events
Custom options slot allows further
fl exibility in network confi guration.
An internal WEB/SNMP card, AS/400
card, USB card and True Relay card
provide isolated contacts for industrial
and remote alarm panel application.
User-friendly Plug-and-Play design
allows hassle-free installation. All units
up to 3kVA are supplied with input
cables and output receptacles as
standard.
Innovative battery management
circuit analyzes battery discharging
status to adjust battery cut-off point
and extend the batteries’ life span.
Internal maintenance-free sealedtype battery minimizes the need for
frequent after-sales service. The hot
swappable battery feature can enable
users to replace the batteries without
the hazard of electric shock, while
the UPS supplies power continuously
to critical load applications.
Built-in Charger provides ability
to re-charge internal battery to
approximately 90% in four hours.
Matching battery cabinets are available
to extend the UPS runtime easily to
several hours.
Optional extended runtime
capability by simply connecting
additional battery packs. Just plug in
the battery connectors between the
UPS and battery packs without the
requirement for additional chargers.
Extended run time battery packs
are available for all models. Size,
capacity and estimated run times
are shown in the table below. Back
up time is for the battery pack used
with the UPS internal batteries.
Battery packs are external and hot
swappable.
Optional Make-Before-Break
Bypass Switch—manually operated,
external—ensures continuous supply
of power to the critical load in the
event of unexpected or scheduled
maintenance.
Optional Maintenance Bypass
Model Number Rating/Voltage Input Connection Output Receptacles
USC-MBPDU-11RT 1kVA / 120V Attached 6' Cord with 5-15P (8) 5-15R
USC-MBPDU-21RT 2kVA / 120V Attached 6' Cord with 5-20P (6) 5-15R & (2) 5-20R
USC-MBPDU-31RT 3kVA / 120V Attached 6' Cord with L5-30P (4) 5-15R & (1) 5-30R
USC-MBPDU-12RT 1kVA & 2kVA / 230V Attached 6' Cord with IEC C14 (8) IEC C13
USC-MBPDU-32RT 3kVA / 230V Attached 6' Cord with IEC C20 (6) IEC C13 & (1) IEC C18
Dimensions: 3.5" H (2U) x 17.3"W x 3.0"D
Battery Run Time Chart (shown in minutes)
UPS
Part
Size
Number
I kVA Internal 0 50 20 10 7 N/A N/A
USC-BP1K 1 380 160 95 66 3.5" x 17.3" x 25.6" 83
2kVA Internal 0 45 18 10 7 N/A N/A
USC-BP3K 1 195 80 45 33 3.5" x 17.3" x 25.6" 87
3kVA Internal 0 40 15 8 5 N/A N/A
USC-BP3K 1 163 65 40 25 3.5" x 17.3" x 25.6" 87
Notes: Battery rated at 12V; 1/2k
Quantity 25%
Load
2 740 320 195 130 3.5" x 17.3" x 25.6" 83
3 1150 505 310 215 3.5" x 17.3" x 25.6" 83
4 1575 695 430 300 3.5" x 17.3" x 25.6" 83
2 320 155 95 66 3.5" x 17.3" x 25.6" 87
3 550 240 145 100 3.5" x 17.3" x 25.6" 87
4 745 325 195 135 3.5" x 17.3" x 25.6" 87
2 305 130 75 53 3.5" x 17.3" x 25.6" 87
3 460 195 120 80 3.5" x 17.3" x 25.6" 87
4 650 280 170 120 3.5" x 17.3" x 25.6" 87
VA 7A/hour, 3kVA 9A/hour, 1kVA 36V, 2/3kVA, 72V
50%
Load
75%
Load
100%
Load
H x W x D (inches)
Weight
(lbs. each)
www.stacoenergy.com
UniStar® C 1kVA, 2kVA & 3kVA
Model USCH-10001 USCH-20001 USCH-30001 USCH-10002 USCH-20002 USCH-30002
INPUT
Voltage Range 60Vac – 144Vac Software Selectable 120Vac – 288Vac Software Selectable
Frequency 50/60 Hz Auto-Select, +/- 5Hz
Phase/Wire Line + Ground
Power Factor >0.99 at Rated Full Linear Load
Transfer Time 0 ms
AC Leakage Current 5mA <3.5mA
Surge Protection 400 joules 300 joules
OUTPUT
Capacity 1kVA/800 Watts 2kVA/1600 Watts 3kVA/2400 Watts 1kVA/800 Watts 2kVA/1600 Watts 3kVA/2400 Watts
Voltage 100/110/115/120/127Vac Software Selectable 200/208/220/230/240Vac Software Selectable
Voltage Regulation +/- 1%
Frequency
(Sync Range)
Frequency
Battery Mode
Crest Factor 3:1
Harmonic Distortion
Transient Response < = 60ms/5%
Waveform Pure Sine Wave
Effi
ciency AC Mode 85% 85% 88% 85% 85% 88%
Effi ciency Bat. Mode 83% 83% 85% 83% 83% 85%
DC Start Yes
Cooling Load Dependent Variable Speed Fans
Over temperature Normal Mode -Transfer to bypass; Battery Mode – UPS shuts down immediately
Overload
DISPLAY, ALARMS, DIAGNOSTICS, COMMUNICATIONS & EMERGENCY FUNCTION
Status On LCD
Readings On LCD
Power Up ON/OFF Button, Test Alarm & Reset Button
Self-Diagnostics Upon Power –On, Front Panel Setting & Software Control, 24 Hour self check
Audible Alarms and Visual Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions
Communications RS232 Serial Port and USB, optional SNMP/WEB, USB or Dry Contact Cards
Emergency Power Off
(EPO) Connection
CONNECTIONS
Input 6' Cord w/ 5-15P
Output (6) 5-15R
Output Control (2) ON/OFF Software controlled receptacle banks for load shedding
PHYSICAL
Dimensions
H" x W" x D"
Weight (lbs.) 34.5 64.7 65.3 34.5 64.7 65.3
Safety and Performance
ENVIRONMENTAL
Operating Temp. 0° C – 40° C
Noise Level <50dBA @ 1 Meter
Relative Humidity 0 to 90% non-condensing
INTERNAL BATTERY
Battery Run Time
@ Full Load
Type
Charging Current 1.1Amps 2.16Amps 2.7Amps 1.1 Amps 2.16 Amps 2.7 Amps
Charging Voltage 41.0Vdc +/-0.5V 82.0Vdc +/-0.5V 82.0Vdc +/-0.5V 41.0Vdc +/-0.5V 82.0Vdc +/-0.5V 82.0Vdc +/-0.5V
Hot – Swappable Yes
Recharge Time 4 hours to 90%
Extended Battery Yes – Hot Swappable (Refer To Run Time Chart)
Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage & Units Inner Temperature
UL1778, c-UL, CE, IEC/EN 62040-1-1, IEC 60950-1, IEC/EN 62040-2 Class A, IEC/EN55011, CISPR11, IEC61000-4-2/-3/-4/-5,
3 each, 12V/7AH
Sealed Lead Acid
Maintenance Free
Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnected, Overload,
Emergency Power Off shuts down UPS when activated by customer supplied EPO Circuit
6' Cord w/ 5-20P 6' Cord w/ L5-30P
(2) 5-15R &
(2) 5-20R
Rack Confi
Tower Confi guration 1kVA 17.3 x 3.5 x 16 2/3kVA 17.3 x 3.5 x 25.6
7 Minutes 5 Minutes 7 Minutes 5 Minutes
6 each, 12V/7AH
Sealed Lead Acid
Maintenance Free
< 3% THD (Linear Loads), < 7% THD (Non-Linear Loads)
<105% continuous, >120% for 30 seconds, >150% for 10 seconds
guration 1kVA 3.5 x 17.3 x 16
IEC61000-2-2, IEC61000-3-2/-3,FCC Part 15 Subpart B Class A
3Hz or 1Hz Software Selectable
+/- 0.1% (0.05 ~0.06Hz)
Transferring with interruption & UPS Fault
6' Cord with 10A,
IEC 320-C14
(4) 5-15R &
(1) L5-30R
6 each, 12V/9AH
Sealed Lead Acid
Maintenance Free
(6) 10A,
IEC 320-C13
2/3kVA 3.5 x 17.3 x 25.6
3 each, 12V/7AH
Sealed Lead Acid
Maintenance Free
6' Cord with 10A,
IEC 320-C146’
(6) 10A,
IEC 320-C13
6 each, 12V/7AH
Sealed Lead Acid
Maintenance Free
6' Cord with 16A,
IEC 320-C20
(4) 10A,IEC 320-C13
& (1) 16A,
IEC 320-C19
6 each, 12V/9AH
Sealed Lead Acid
Maintenance Free
UniStar® C Rack/Tower Universal Design
UniStar® C 1kVA, 2kVA & 3kVA
Rack/Tower Universal Design
About Staco Energy Products Company
Since 1937, customers worldwide have been
relying on Staco Energy Products Company
to deliver voltage control and power quality
solutions tailored to their needs.
As a leading power quality resource, we off er
our customers world-class support; from our
thorough applications assessment, to our
ability to design and deliver a solution that is
tailored to the specifi c needs of our customers;
through delivery and commissioning.
Our professional, factory trained service
team is in place to ensure that our
customers’ revenues are protected,
and their investment provides
them with many years of trouble
free operation.
In addition to the UniStar
wide array of power quality products,
including:
■
Uninterruptible Power Supplies
■
Power Conditioners
■
Voltage Regulators
■
Power Factor Correction
and Harmonic Mitigation
■
Active Harmonic Filters
■
Variable Transformers
■
Custom Engineered Test Sets
®
C we o er a
Staco develops total power
solutions for OEM and end user
applications.
Your tailored power solutions provider
Contact Us:
US Toll Free: 866-261-1191
Phone: 937-253-1191
E-mail: sales@stacoenergy.com
TM
www.stacoenergy.com
Loading...
