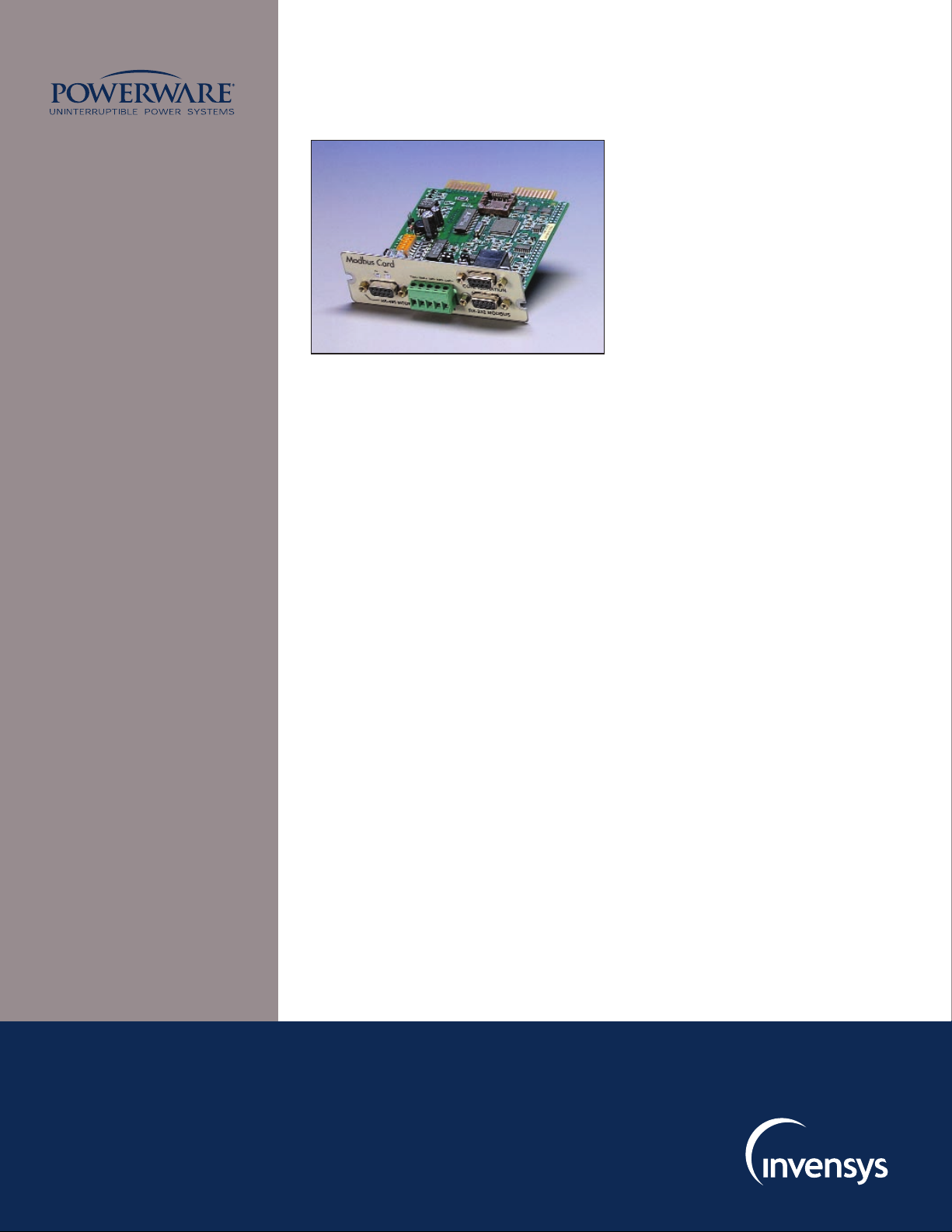

Powerware®Modbus®Card
Features and Benefits
쑺 Real-time monitoring of power
conditions through Building
Management Systems (BMS)
쑺 Supports Modbus RTU/Jbus
protocol
쑺 Seamless data integration via
included Profiler software package
쑺 Flexible network connections
쑺 User-selectable communication
topologies
쑺 Supports wide-range of UPSs
Via native X-slot:
-Powerware 5125
-Powerware 9125
-Powerware 9330
-Powerware 9340
Via Expansion Chassis
-Powerware Prestige 9
-Powerware Plus 12, 18, 36
-Powerware 5115
-Powerware 9120
-Powerware 9170+
-Powerware 9315 Reverse
Transfer Module
-Powerware 9315 Hot Sync
Parallel Redundant Module
-Powerware 9315 Hot Sync
Parallel Capacity UPM
-Powerware 9315 Hot Sync
Parallel Capacity SBM
Whether you’re in IT, manufacturing, process
control, facilities management or another key
position in an organization, attaining the highest
availability for critical equipment is a top
priority. Realizing that goal takes thorough
planning, careful design, superior equipment,
proper installation and reliable power. To attain
the highest availability of power, implementing a
backup system including an Uninterruptible
Power System (UPS) and a seamlessly integrated
monitoring system is crucial.
Full Integration with Building
Management Systems
The Powerware Modbus Card is an X-slot™
connectivity device that provides continuous,
reliable and accurate monitoring of a UPS
through a Building Management System (BMS).
The card uses the Modicon®‚ Modbus RTU
Protocol to integrate data from the UPS into
many, widely used BMS packages such as
Wonderware®, Johnson Controls’ Metasys®‚ and
Siemens’ Apogee™. Key power information may
be monitored in real-time to aid in the diagnosis
of problems.
Included with the Modbus Card is the Profiler
utility. Profiler creates a custom Modbus register
map specifically tailored to the key parameters
of the particular UPS. This makes it easy to
integrate into a BMS. The output of Profiler is a
.csv file that can be viewed with Microsoft®Excel,
if desired, then imported into a BMS.
Flexible Network Connections
The Modbus Card connects to the network via
RS-485 through either an isolated DB-9 port or
terminal block. The terminal block allows
conventional twisted pair cabling for daisy
chaining. Alternatively, RS-232 Modbus communication via a DB-9 port may be used.
Selectable Communication Topologies
The Modbus Card supports both two-wire and
four-wire communication making it suitable for
either topology. Also, because of its built-in,
user-selectable termination feature, the Modbus
Card may be placed at the end of the network.
Support for a Wide Range of UPSs
The Modbus Card conforms to the Powerware Xslot standard. This means that it supports a variety
of UPSs that feature a native X-slot. It also
supports other UPSs through the Powerware
Expansion Chassis.
Customer User
Interface Panel
Powerware 9315 UPS with Modbus
Support via Expansion Chassis
Modbus Card installs in Powerware
9330 UPS in Native X-slot.
RS-232
Power
Invensys Powerware Division
8609 Six Forks Road
Raleigh, NC 27615 U.S.A.
Toll Free: 1.800.356.5794
or 919.872.3020
Fax: 1.800.753.9433
www.powerware.com
Europe
Finland: 358 94 52 661
France: 33 1 6012 7400
Germany: 49 721 961790
Italy: 39 02 6600661 2
UK: 44 (0) 1753 608700
Southeast Asia
Singapore: 65 6861 0377
China and North Asia
Hong Kong: 852 2745 6682
Japan
Shinagawa, Tokyo: 81 3 3447 4441
Australia and South Pacific
Sydney, Australia: 61 29878 5000
Canada
Toronto, Ontario: 416.798.0112
Brazil
Sao Paulo, Brazil: 55 11 3845
4369/ 55 11 3704 3632
Mexico
Col. Napoles, Mexico:
525.488.3333
SFT25FXA
Revision 3/02
Reprint 3/02
Typical Configurations
Part Number 103002510-5501
Description X-slot card providing integration with Modbus network and monitoring of associated UPS
through Building Management System (BMS)
Modbus Command Support Read Input Status (Alarms and Status Points, Function 02)
Read Input Register (Meters, Function 04)
Profiler Automatically generates Modbus Register Map for each
UPS (Windows®32 application)
Configuration Via VT-100 terminal emulation through DB-9 port
Baud Rate Selectable 1200 to 19.2k
Slave Address Selectable 1 to 247
Network Connections RS-485 through isolated terminal block or DB-9 port
RS-232 through DB-9 port
Communications Topology Selectable two-wire or four-wire
Additional Hardware Features Selectable termination resistance
Selectable polarity resistance
UPS Compatibility via Native X-slot Powerware 5125, 9125, 9170+, 9330, 9340
UPS Compatibility via Expansion Chassis Powerware Prestige 9 Powerware
5115
PW 9315 Hot Sync Parallel Redundant Module
Powerware Plus 12, 18, 36 Powerware
9120
Powerware 9315 Hot Sync Parallel Capacity UPM
PW 9315 Reverse Transfer Module Powerware 9170+ Powerware 9315 Hot Sync Parallel Capacity SBM
Operating Temperature 10ºC to 40ºC
Operating Humidity 20 to 80% relative humidity (non-condensing)
Power Input 9VDC unregulated
Power Consumption 1.5 Watts
Dimensions LxWxH (inches) 4.7x4.5x1.5
(mm) 120x114x39
Weight 7oz.
Regulatory FCC Class B
Modbus, Modicon, Metasys, Microsoft and Windows are trademarks of their respective companies. Wonderware is a registered trademark of Wonderware Corporation.
Powerware and X-slot are trademarks of Powerware Corporation.
Technical Specifications
