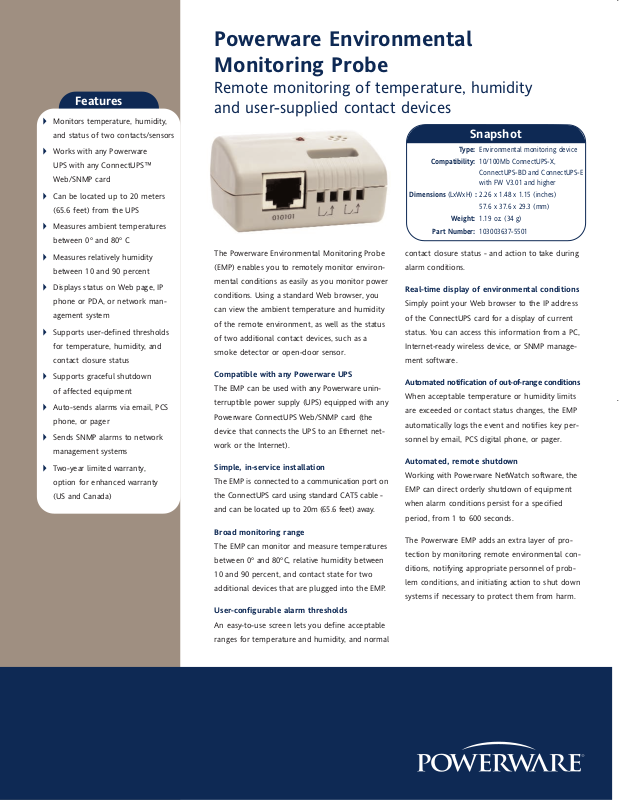

The Powerware Environmental Monitoring Probe
(EMP) enables you to remotely monitor environmental conditions as easily as you monitor power
conditions. Using a standard Web browser, you
can view the ambient temperature and humidity
of the remote environment, as well as the status
of two additional contact devices, such as a
smoke detector or open-door sensor.
Compatible with any Powerware UPS
The EMP can be used with any Powerware uninterruptible power supply (UPS) equipped with any
Powerware ConnectUPS Web/SNMP card (the
device that connects the UPS to an Ethernet network or the Internet).
Simple, in-service installation
The EMP is connected to a communication port on
the ConnectUPS card using standard CAT5 cable and can be located up to 20m (65.6 feet) away.
Broad monitoring range
The EMP can monitor and measure temperatures
between 0º and 80ºC, relative humidity between
10 and 90 percent, and contact state for two
additional devices that are plugged into the EMP.
User-configurable alarm thresholds
An easy-to-use screen lets you define acceptable
ranges for temperature and humidity, and normal
contact closure status - and action to take during
alarm conditions.
Real-time display of environmental conditions
Simply point your Web browser to the IP address
of the ConnectUPS card for a display of current
status. You can access this information from a PC,
Internet-ready wireless device, or SNMP management software.
Automated notification of out-of-range conditions
When acceptable temperature or humidity limits
are exceeded or contact status changes, the EMP
automatically logs the event and notifies key personnel by email, PCS digital phone, or pager.
Automated, remote shutdown
Working with Powerware NetWatch software, the
EMP can direct orderly shutdown of equipment
when alarm conditions persist for a specified
period, from 1 to 600 seconds.
The Powerware EMP adds an extra layer of protection by monitoring remote environmental conditions, notifying appropriate personnel of problem conditions, and initiating action to shut down
systems if necessary to protect them from harm.
Powerware Environmental
Monitoring Probe
Remote monitoring of temperature, humidity
and user-supplied contact devices
Features
Monitors temperature, humidity,
and status of two contacts/sensors
Works with any Powerware
UPS with any ConnectUPS™
Web/SNMP card
Can be located up to 20 meters
(65.6 feet) from the UPS
Measures ambient temperatures
between 0º and 80º C
Measures relatively humidity
between 10 and 90 percent
Displays status on Web page, IP
phone or PDA, or network management system
Supports user-defined thresholds
for temperature, humidity, and
contact closure status
Supports graceful shutdown
of affected equipment
Auto-sends alarms via email, PCS
phone, or pager
Sends SNMP alarms to network
management systems
Two-year limited warranty,
option for enhanced warranty
(US and Canada)
Type: Environmental monitoring device
Compatibility: 10/100Mb ConnectUPS-X,
ConnectUPS-BD and ConnectUPS-E
with FW V3.01 and higher
Dimensions (LxWxH) : 2.26 x 1.48 x 1.15 (inches)
57.6 x 37.6 x 29.3 (mm)
Weight: 1.19 oz. (34 g)
Part Number: 103003637-5501
Snapshot
WORLDWIDE HEADQUARTERS
8609 Six Forks Road
Raleigh, NC 27615 U.S.A.
Toll Free: 1.800.356.5794
or 919.872.3020
www.powerware.com
CANADA
Ontario: 416.798.0112
EUROPE/MIDDLE EAST/AFRICA
Denmark: 45.3677.7910
Finland: 358.9.452.661
France: 33.1.60.12.74.00
Germany: 49.7841.6660
Italy: 39.02.66.04.05.40
Norway: 47.23.03.65.50
Sweden: 46.8.598.940.00
United Kingdom: 44.1753.608.700
ASIA PACIFIC
Australia/NZ: 612.9878.5000
China: 86.21.6350.0606
HK/Korea/Taiwan: 852.2745.6682
India: 91.11.2649.9414 to 18
Singapore/SEA: 65.6829.8888
LATIN AMERICA
Argentina: 5411.4343.6323
Brazil: 55.11.3616.8500
México: 5255.9171.7777
UPS ID
View UPS
model,
firmware,
location,
etc. details
Current
Status
Metering
Details
SFT30FXA
Revision 10/03
Reprint 10/03
Ambient temperature
and humidity sensor
Provides contacts for two
additional devices/sensors
RJ45 Connector
connects to
Web/SNMP card
Measures humidity, temperature and two
additional user-supplied contact devices
(rear door entry, smoke detection etc.)
Technical Specifications
Model Environmental Monitoring Probe
Description UPS accessory providing remote monitoring of temperature, humidity and two
contact closure devices in combination with ConnectUPS Web Cards
Part Number 103003637-5501
Protocol support HTTP, SNMP, DHCP, bootp, ARP, RARP, Telnet, SMTP, TFTP, WAP
Web card compatibility 10/100Mb ConnectUPS-X, ConnectUPS-BD and ConnectUPS-E with FW V3.01 and higher
Network support Ethernet 10/100 BaseT
Supported MIB Powerware MIB, RFC1628 MIB
Netwatch Client Windows 9x, Windows XP, Windows 2000/NT, Novell, NetWare 4.x, 5.x and 6.0,
O/S supported for shutdown UNIX, Compaq Tru64 4.x, 5.x, HP-UX 10.10, 10.20, 10.30, 11.00, IBM AIX 4.x
(PowerPC), Linux with kernel 2.0 and higher (x86) and (AXP), SGI IRIX 6.x w/MIPS,
Solaris 2.x, 8 (SPARC), Solaris 2.x, 8 with SunOS 5,6,7,8(x86), UnixWare 7.1 (x86),
MacOS X (Darwin). For latest OS compatibility, visit powerware.com
Temperature Monitoring Measures temperatures between 0 and 80ºC with an accuracy of +/-1ºC
Humidity Monitoring Measures relative humidity between 10 and 90% RH with an accuracy of +/-5%
Power input Derives 12VDC from the Powerware Web/SNMP Card
Dimensions (inches)
2.26 x 1.48 x 1.15
LxWxH (mm)
57.6 x 37.6 x 29.3
Weight
1.19 oz. (34 g)
Regulatory FCC Class B, UL, CUL, CE
For more information, visit our Web site at www.powerware.com, or contact us at 1-800-356-5794.
Hot-pluggable and seamless integration with the Powerware Web Cards
