MaxPower Corp MSP User Manual

Download
Circuit Metering-MSP

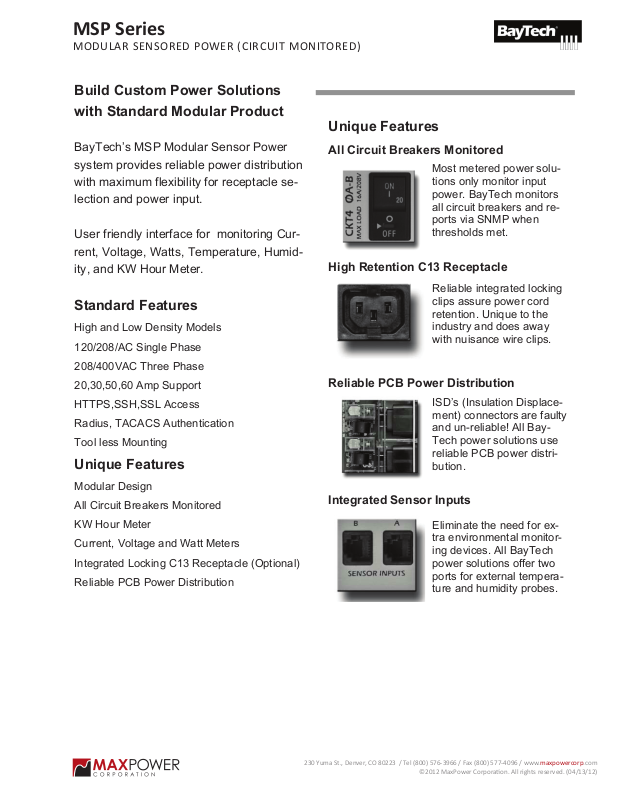

MSP Series
MODULAR SENSORED POWER (CIRCUIT MONITORED)
Build Custom Power Solutions with Standard Modular Product
Unique Features
BayTech’s MSP Modular Sensor Power system provides reliable power distribution with maximum flexibility for receptacle se­lection and power input.
User friendly interface for monitoring Cur­rent, Voltage, Watts, Temperature, Humid­ity, and KW Hour Meter.
Standard Features
High and Low Density Models
120/208/AC Single Phase
208/400VAC Three Phase
20,30,50,60 Amp Support
HTTPS,SSH,SSL Access
Radius, TACACS Authentication
Tool less Mounting

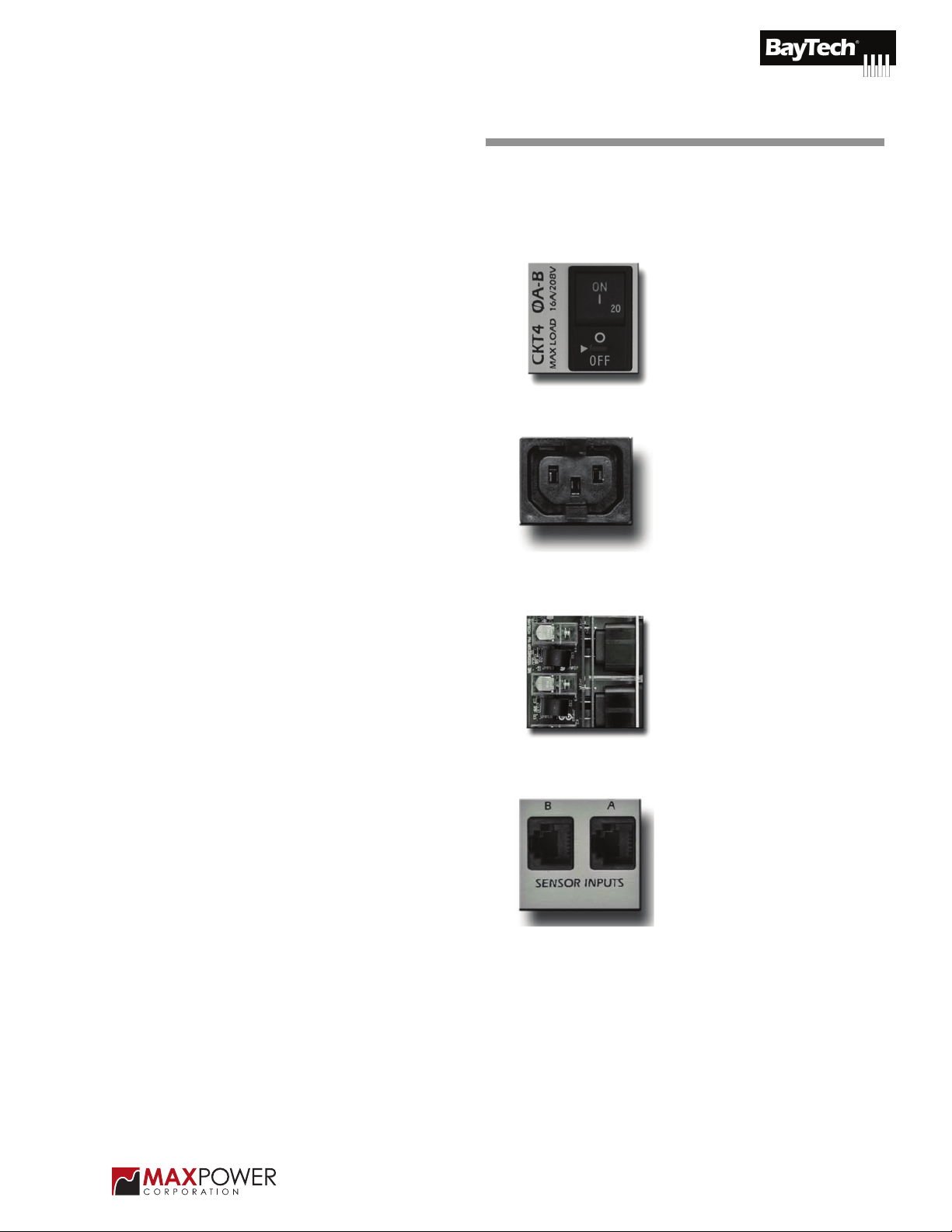

Unique Features
All Circuit Breakers Monitored
Most metered power solu­tions only monitor input power. BayTech monitors all circuit breakers and re­ports via SNMP when thresholds met.
High Retention C13 Receptacle
Reliable integrated locking clips assure power cord retention. Unique to the industry and does away with nuisance wire clips.
Reliable PCB Power Distribution
ISD’s (Insulation Displace­ment) connectors are faulty and un-reliable! All Bay­Tech power solutions use reliable PCB power distri­bution.
Modular Design
All Circuit Breakers Monitored
KW Hour Meter
Current, Voltage and Watt Meters
Integrated Locking C13 Receptacle (Optional)
Reliable PCB Power Distribution
Integrated Sensor Inputs
Eliminate the need for ex­tra environmental monitor­ing devices. All BayTech power solutions offer two ports for external tempera­ture and humidity probes.
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
MSP
(Modular Sensored Power)
MSP Series
MODULAR SENSORED POWER (CIRCUIT MONITORED)
Suggested MSP Configurations for No Outlet Control and Circuit Metering. Please note that many other configura­tions can be made with the modular design
No Outlet Control; Metered Input; LED
120V (Single Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
20A NEMA L5-20P 10 10 - - MSP26.03B.236-04 $420.00 MSP26.04B.236-04 $561.00 29.5
12 12 - - MSP16.03B.244-04 $430.00 MSP16.04B.244-04 $571.00 31.0
20 20 - - MSP24.03B.436-04 $508.00 MSP24.04B.436-04 $649.00 40.5
24 24 - - MSP14.03B.444-04 $525.00 MSP14.04B.444-04 $666.00 45.75
30A NEMA L5-30P 10 10 - - MSP26.03B.236-05 $449.00 MSP26.04B.236-05 $590.00 29.5
12 12 - - MSP16.03B.244-05 $459.00 MSP16.04B.244-05 $600.00 31.0
20 20 - - MSP24.03B.436-05 $537.00 MSP24.04B.436-05 $678.00 40.5
24 24 - - MSP14.03B.444-05 $554.00 MSP14.04B.444-05 $695.00 45.75
30 30 - - MSP27.03B.636-05 $627.00 MSP27.04B.636-05 $768.00 52.5
36 36 - - MSP17.03B.644-05 $641.00 MSP17.04B.644-05 61.25
Dimension
W-1.97” D-2.15”
208V (Single Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
20A NEMA L6-20P 8 6 2 MSP26.03B.238A-07 $437.00 MSP26.04B.238A-07 $578.00 29.5
10 8 2 MSP16.03B.247A-07 $450.00 MSP16.04B.247A-07 $591.00 31.0
10 10 - MSP26.03B.237-07 $432.00 MSP26.04B.237-07 $573.00 29.5
12 10 2 MSP16A.03B.246A-07 $460.00 MSP16A.04B.246A-07 $601.00 31.0
12 12 - MSP16.03B.245-07 $447.00 MSP16.04B.245-07 $588.00 31.0
20 16 4 MSP14.03B.447A-07 $550.00 MSP14.04B.447A-07 $691.00 45.75
20 20 - MSP24.03B.437-07 $518.00 MSP24.04B.437-07 $659.00 40.5
24 20 4 MSP14A.03B.446A-07 $564.00 MSP14A.04B.446A-07 $705.00 45.75
24 24 - MSP14.03B.445-07 $544.00 MSP14.04B.445-07 $685.00 45.75
30 30 MSP27.03B.637-07 $606.00 MSP27.04B.637-07 $747.00 52.5
30A NEMA L6-30P 8 6 2 MSP26.03B.238A-08 $452.00 MSP26.04B.238A-08 $593.00 29.5
10 8 2 MSP16.03B.247A-08 $465.00 MSP16.04B.247A-08 $606.00 31.0
10 10 - MSP26.03B.237-08 $447.00 MSP26.04B.237-08 $588.00 29.5
12 10 2 MSP16A.03B.246A-08 $475.00 MSP16A.04B.246A-08 $616.00 31.0
12 12 - MSP16.03B.245-08 $462.00 MSP16.04B.245-08 $603.00 31.0
20 16 4 MSP14.03B.447A-08 $564.00 MSP14.04B.447A-08 $705.00 45.75
20 20 - MSP24.03B.437-08 $533.00 MSP24.04B.437-08 $674.00 40.5
24 20 4 MSP14A.03B.446A-08 $579.00 MSP14A.04B.446A-08 $720.00 45.75
Dimension
W-1.97” D-2.15”
Length
Length
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
MSP
(Modular Sensored Power)
MSP Series
MODULAR SENSORED POWER (CIRCUIT MONITORED)
Suggested MSP Configurations for No Outlet Control and Circuit Metering. Please note that many other configura­tions can be made with the modular design
No Outlet Control; Metered Input; LED
208V (Single Phase) continued
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
30A NEMA L6-30P 24 - 24 MSP14.03B.445-08 $553.00 MSP14.04B.445-08 $694.00 45.75
30 30 MSP27.03B.637-08 $616.00 MSP27.04B.637-08 $757.00 52.5
Dimension
W-1.97” D-2.15”
Length
120/208VAC (2 Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
20A NEMA L14-20P 24 6 18 - MSP14.03B.144.345-29 $592.00 MSP14.04B.144.345-29 $733.00 45.75
25 5 10 10 MSP27.03B.136.538B-29 $689.00 MSP27.04B.136.538B-29 $830.00 52.5
30 5 25 - MSP27.03B.136.537-29 $657.00 MSP27.04B.136.537-29 $798.00 52.5
31 6 10 15 MSP17.03B.144.547C-29 $730.00 MSP17.04B.144.547C-29 $871.00 61.25
31 6 15 10 MSP17.03B.144.547B-29 $710.00 MSP17.04B.144.547B-29 $851.00 61.25
36 6 30 - MSP17.03B.144.545-29 $682.00 MSP17.04B.144.545-29 $823.00 61.25
30A NEMA L14-30P 24 6 18 - MSP14.03B.144.345-29 $592.00 MSP14.04B.144.345-29 $733.00 45.75
25 5 10 10 MSP27.03B.136.538B-25 $698.00 MSP27.04B.136.538B-25 $839.00 52.5
30 5 25 - MSP27.03B.136.537-25 $666.00 MSP27.04B.136.537-25 $807.00 52.5
31 6 10 15 MSP17.03B.144.547C-25 $739.00 MSP17.04B.144.547C-25 $880.00 61.25
31 6 15 10 MSP17.03B.144.547B-25 $719.00 MSP17.04B.144.547B-25 $860.00 61.25
36 6 30 - MSP17.03B.144.545-25 $692.00 MSP17.04B.144.545-25 $833.00 61.25
Dimension
W-1.97” D-2.15”
Length
120V 3ØY (3 Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
20A NEMA L21-20P 30 30 - - MSP21.03A.636-13 $730.00 MSP21.04.636-13 $871.00 54.75
36 36 - - MSP11.03A.644-13 $725.00 MSP11.04.644-13 $866.00 62.5
30A NEMA L21-30P 30 30 - - MSP21.03A.636-14 $746.00 MSP21.04.636-14 $887.00 54.75
36 36 - - MSP11.03A.644-14 $741.00 MSP11.04.644-14 $882.00 62.5
Dimension
W-1.97” D-2.15”
Length
208V 3ØY (3 Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
20A NEMA L21-20P 24 - 18 6 MSP21.03A.638A-13 $738.00 MSP21.04.638A-13 $879.00 61.25
24 - 12 12 MSP21.03A.638B-13 $763.00 MSP21.04.638B-13 $904.00 61.25
30 - 24 6 MSP11.03A.647A-13 $741.00 MSP11.04.647A-13 $882.00 69.0
30 - 18 12 MSP11.03A.647B-13 $766.00 MSP11.04.647B-13 $907.00 69.0
30 - 30 - MSP21.03A.637-13 $723.00 MSP21.04.637-13 $864.00 54.75
30A NEMA L21-30P 24 - 18 6 MSP21.03A.638A-14 $754.00 MSP21.04.638A-14 $895.00 61.25
24 - 12 12 MSP21.03A.638B-14 $778.00 MSP21.04.638B-14 $919.00 61.25
Dimension
W-1.97” D-2.15”
Length
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
MSP
(Modular Sensored Power)
MSP Series
MODULAR SENSORED POWER (CIRCUIT MONITORED)
Suggested MSP Configurations for No Outlet Control and Circuit Metering. Please note that many other configura­tions can be made with the modular design
No Outlet Control; Metered Input; LED
208V 3ØY (3 Phase) continued
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
30A NEMA L21-30P 30 - 24 6 MSP11.03A.647A-14 $757.00 MSP11.04.647A-14 $898.00 69.0
30 - 18 12 MSP11.03A.647B-14 $782.00 MSP11.04.647B-14 $923.00 69.0
30 - 30 - MSP21.03A.637-14 $739.00 MSP21.04.637-14 $880.00 61.25
36 - 30 6 MSP11A.03A.646A-14 $773.00 MSP11A.04.646A-14 $914.00 64.5
50A CS8365CP 24 - 18 6 MSP20.03.638A-18 $997.00 MSP20.04.638A-18 $1,130.00 54.75
24 - 12 12 MSP20.03.638B-18 $1,020.00 MSP10.04.638B-18 $1,170.00 62.5
30 - 24 6 MSP10.03.647A-18 $1,030.00 MSP10.04.647A-18 $1,170.00 69.0
30 - 18 12 MSP10.03.647B-18 $1,050.00 MSP10.04.647B-18 $1,190.00 69.0
30 - 12 18 MSP10.03.647C-18 $1,070.00 MSP10.04.647C-18 $1,210.00 62.5
30 - 30 - MSP20.03.637-18 $982.00 MSP20.04.637-18 $1,120.00 61.25
36 - 30 6 MSP10A.03.646A-18 $1,040.00 MSP10A.04.646A-18 $1,180.00 64.5
36 - 24 12 MSP10A.03.646B-18 $1,070.00 MSP10A.04.646B-18 $1,210.00 64.5
60A IEC60309 24 - 18 6 MSP20.03.638A-12 $1,110.00 MSP20.04.638A-12 $1,250.00 54.75
24 - 12 12 MSP20.03.638B-12 $1,130.00 MSP10.04.638B-12 $1,290.00 62.5
30 - 24 6 MSP10.03.647A-12 $1,140.00 MSP10.04.647A-12 $1,280.00 69.0
30 - 18 12 MSP10.03.647B-12 $1,170.00 MSP10.04.647B-12 $1,310.00 69.0
30 - 12 18 MSP10.03.647C-12 $1,190.00 MSP10.04.647C-12 $1,330.00 62.5
30 - 30 - MSP20.03.637-12 $1,090.00 MSP20.04.637-12 $1,240.00 61.25
36 - 30 6 MSP10A.03.646A-12 $1,160.00 MSP10A.04.646A-12 $1,300.00 64.5
36 - 24 12 MSP10A.03.646B-12 $1,180.00 MSP10A.04.646B-12 $1,320.00 64.5
36 - 36 - MSP10.03.645-12 $1,130.00 MSP10.04.645-12 $1,270.00 62.5
Dimension
W-1.97” D-2.15”
Length
230/400V 3ØY (3 Phase)
RECEPTACLES COMMUNICATIONS INTERFACE
AMPS Input Power Total N20 C13 C19 RS-232 DIRECT IP
30A NEMA L22-30P 24 - 18 6 MSP21.03A.638A-20 $889.00 MSP20.04A.638A-20 $1,030.00 61.25
24 - 12 12 MSP21.03A.638B-20 $913.00 MSP20.04A.638B-20 $1,050.00 61.25
30 - 24 6 MSP11.03A.647A-20 $922.00 MSP10.04A.647A-20 $1,060.00 62.5
30 - 18 12 MSP11.03A.647B-20 $946.00 MSP10.04A.647B-20 $1,080.00 69
30 - 30 - MSP21.03A.637-20 $874.00 MSP20.04A.637-20 $1,010.00 61.25
36 - 30 6 MSP11A.03A.646A-20 $938.00 MSP10A.04A.646A-20 $1,070.00 64.5
36 - 24 12 MSP11A.03A.646B-20 $962.00 MSP10A.04A.646B-20 $1,100.00 64.5
36 - 36 - MSP11.03A.645-20 $914.00 MSP10.04A.645-20 $1,050.00 69
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
Dimension
W-1.97” D-2.15”
Length
