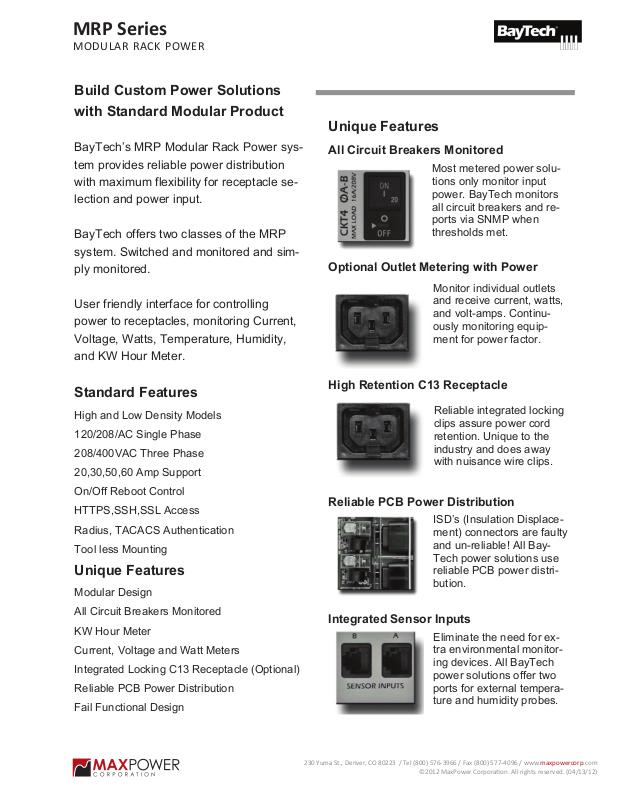

MRP Series
MODULAR RACK POWER
Build Custom Power Solutions with Standard Modular Product
BayTech’s MRP Modular Rack Power sys­tem provides reliable power distribution with maximum flexibility for receptacle se­lection and power input.
BayTech offers two classes of the MRP system. Switched and monitored and sim­ply monitored.
User friendly interface for controlling power to receptacles, monitoring Current, Voltage, Watts, Temperature, Humidity,
Unique Features
All Circuit Breakers Monitored
Most metered power solu­tions only monitor input power. BayTech monitors all circuit breakers and re­ports via SNMP when thresholds met.
Optional Outlet Metering with Power
Monitor individual outlets and receive current, watts, and volt-amps. Continu­ously monitoring equip­ment for power factor.
and KW Hour Meter.
Standard Features
High and Low Density Models
120/208/AC Single Phase
208/400VAC Three Phase
20,30,50,60 Amp Support
On/Off Reboot Control
HTTPS,SSH,SSL Access
Radius, TACACS Authentication
Tool less Mounting
Unique Features
Modular Design
All Circuit Breakers Monitored
KW Hour Meter
Current, Voltage and Watt Meters
Integrated Locking C13 Receptacle (Optional)
Reliable PCB Power Distribution
Fail Functional Design
High Retention C13 Receptacle
Reliable integrated locking clips assure power cord retention. Unique to the industry and does away with nuisance wire clips.
Reliable PCB Power Distribution
ISD’s (Insulation Displace­ment) connectors are faulty and un-reliable! All Bay­Tech power solutions use reliable PCB power distri­bution.
Integrated Sensor Inputs
Eliminate the need for ex­tra environmental monitor­ing devices. All BayTech power solutions offer two ports for external tempera­ture and humidity probes.
