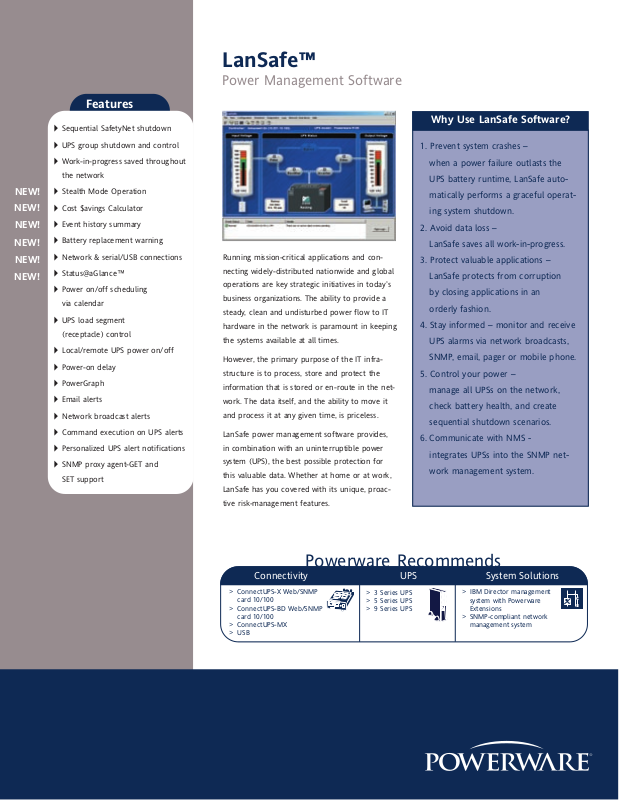

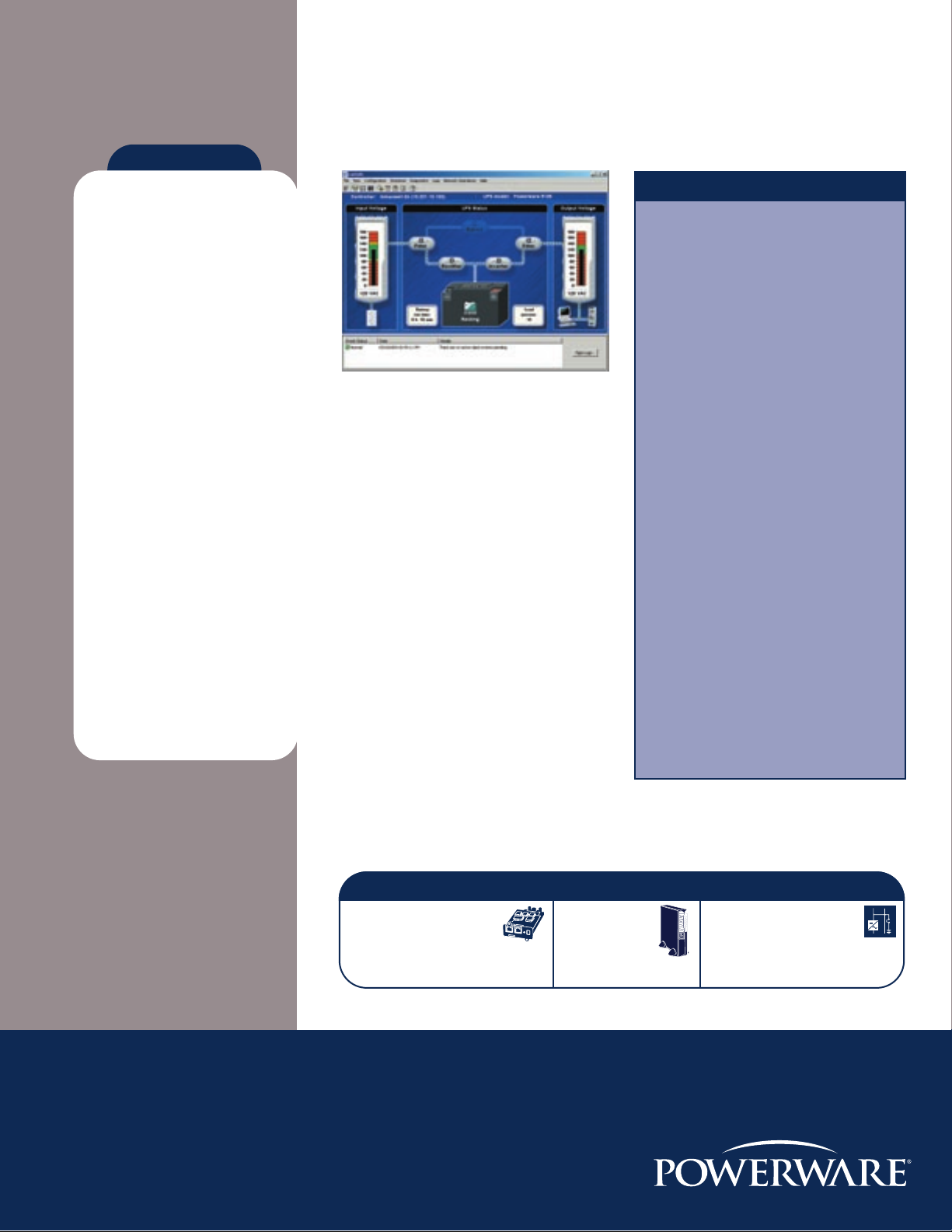

Running mission-critical applications and connecting widely-distributed nationwide and global
operations are key strategic initiatives in today’s
business organizations. The ability to provide a
steady, clean and undisturbed power flow to IT
hardware in the network is paramount in keeping
the systems available at all times.
However, the primary purpose of the IT infrastructure is to process, store and protect the
information that is stored or en-route in the network. The data itself, and the ability to move it
and process it at any given time, is priceless.
LanSafe power management software provides,
in combination with an uninterruptible power
system (UPS), the best possible protection for
this valuable data. Whether at home or at work,
LanSafe has you covered with its unique, proactive risk-management features.
1. Prevent system crashes –
when a power failure outlasts the
UPS battery runtime, LanSafe automatically performs a graceful operating system shutdown.
2. Avoid data loss –
LanSafe saves all work-in-progress.
3. Protect valuable applications –
LanSafe protects from corruption
by closing applications in an
orderly fashion.
4. Stay informed – monitor and receive
UPS alarms via network broadcasts,
SNMP, email, pager or mobile phone.
5. Control your power –
manage all UPSs on the network,
check battery health, and create
sequential shutdown scenarios.
6. Communicate with NMS integrates UPSs into the SNMP network management system.
Why Use LanSafe Software?
LanSafe™
Power Management Software
Features
Sequential SafetyNet shutdown
UPS group shutdown and control
Work-in-progress saved throughout
the network
Stealth Mode Operation
Cost $avings Calculator
Event history summary
Battery replacement warning
Network & serial/USB connections
Status@aGlance™
Power on/off scheduling
via calendar
UPS load segment
(receptacle) control
Local/remote UPS power on/off
Power-on delay
PowerGraph
Email alerts
Network broadcast alerts
Command execution on UPS alerts
Personalized UPS alert notifications
SNMP proxy agent-GET and
SET support
NEW!
NEW!
NEW!
NEW!
NEW!
NEW!
Connectivity
UPS
> ConnectUPS-X Web/SNMP
card 10/100
> ConnectUPS-BD Web/SNMP
card 10/100
> ConnectUPS-MX
> USB
Powerware Recommends
System Solutions
> 3 Series UPS
> 5 Series UPS
> 9 Series UPS
> IBM Director management
system with Powerware
Extensions
> SNMP-compliant network
management system
How would you like to View your UPS today?
ControlRoom View

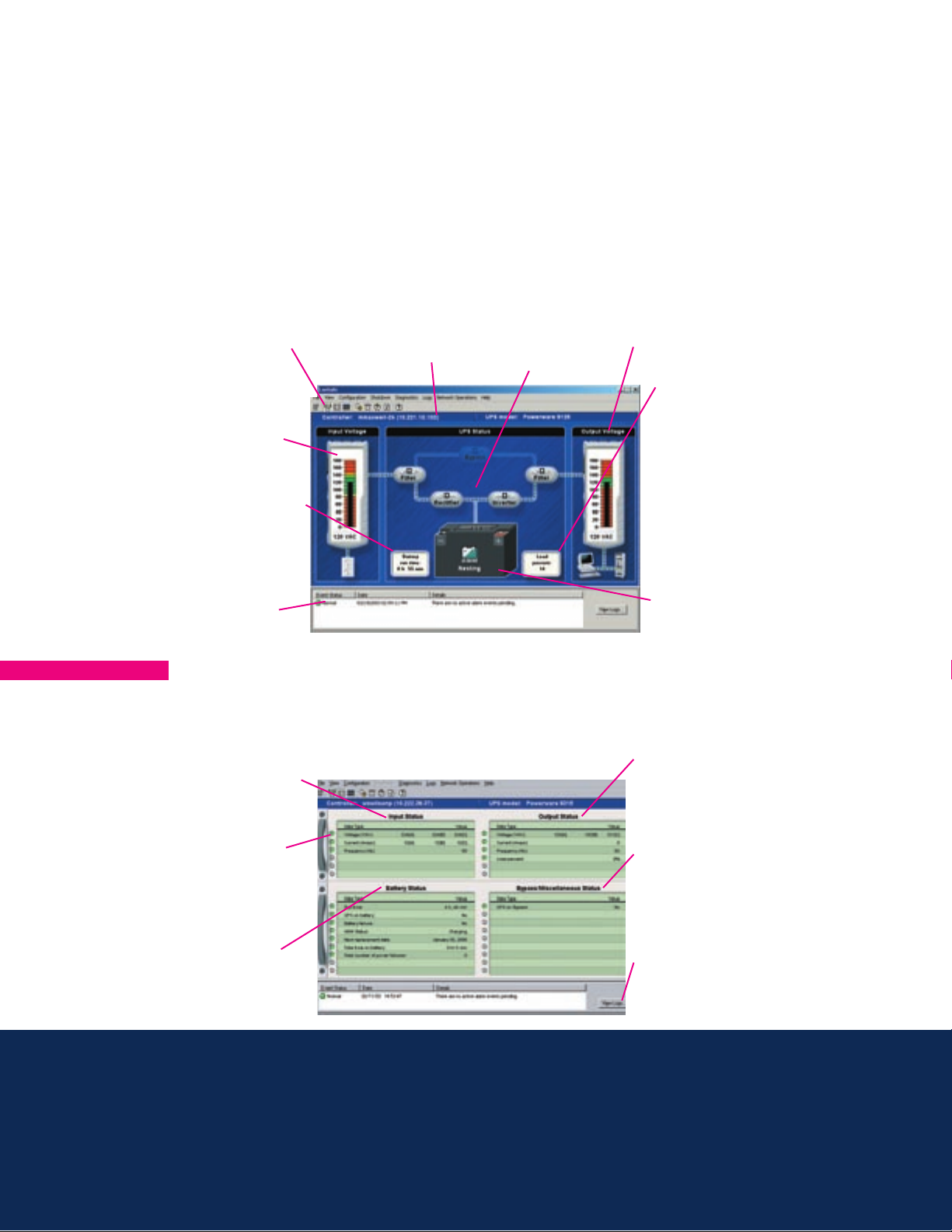

The ControlRoom View is the default view for 3
phase UPSs. It provides a comprehensive listing of
UPS metering data including inputs, outputs,
LED status indicators
Color-coded LEDs
draw attention
to UPS alarms
Input status panel
Incoming power
measurements from
utility provider
Battery status
panel
Keeps you informed
on vital UPS batteryrelated information
Bypass/misc. panel
Displays important
status information stay informed of UPS
temperature, fan and
bypass status, etc.
View Logs
Check previously
occurred alarms and
status changes
Output Status Panel
Outgoing power
measurements (what
your UPS is feeding
the protected devices)
NEW
battery and UPS status information. Color-coded
LED status indicators draw attention to UPS alarms.
LanSafe v. 5 offers three user-friendly, custom
views for monitoring status, metering information
and the internal workings of a UPS. Each view
provides a different level of available data, allowing various user groups to select the most compelling and useful view for their specific needs.
Toolbar buttons
Quick-launch most
common tasks
Input voltage
meter
Battery runtime
Amount of time the
UPS can operate on
battery power
Active events
log
Advanced
Battery
Management
(ABM
®
)
animated status
indicator Doubles
battery life by
charging only
when necessary
Load percent
Percent of maximum output load
the UPS supports
the number
increases when
new devices are
plugged into
the UPS
Output voltage
meter
LanSafe controller
name, location and
UPS model
Animated UPS
topology display
The default view for single phase UPSs is 3-D
PowerScope, which provides crisp, real-time animation of the power flow through the UPS components. Status and metering information is intu-
PowerScope View
itively available at-a-glance in a graphical format.
UPS component topology is automatically detected depending on the UPS model used.

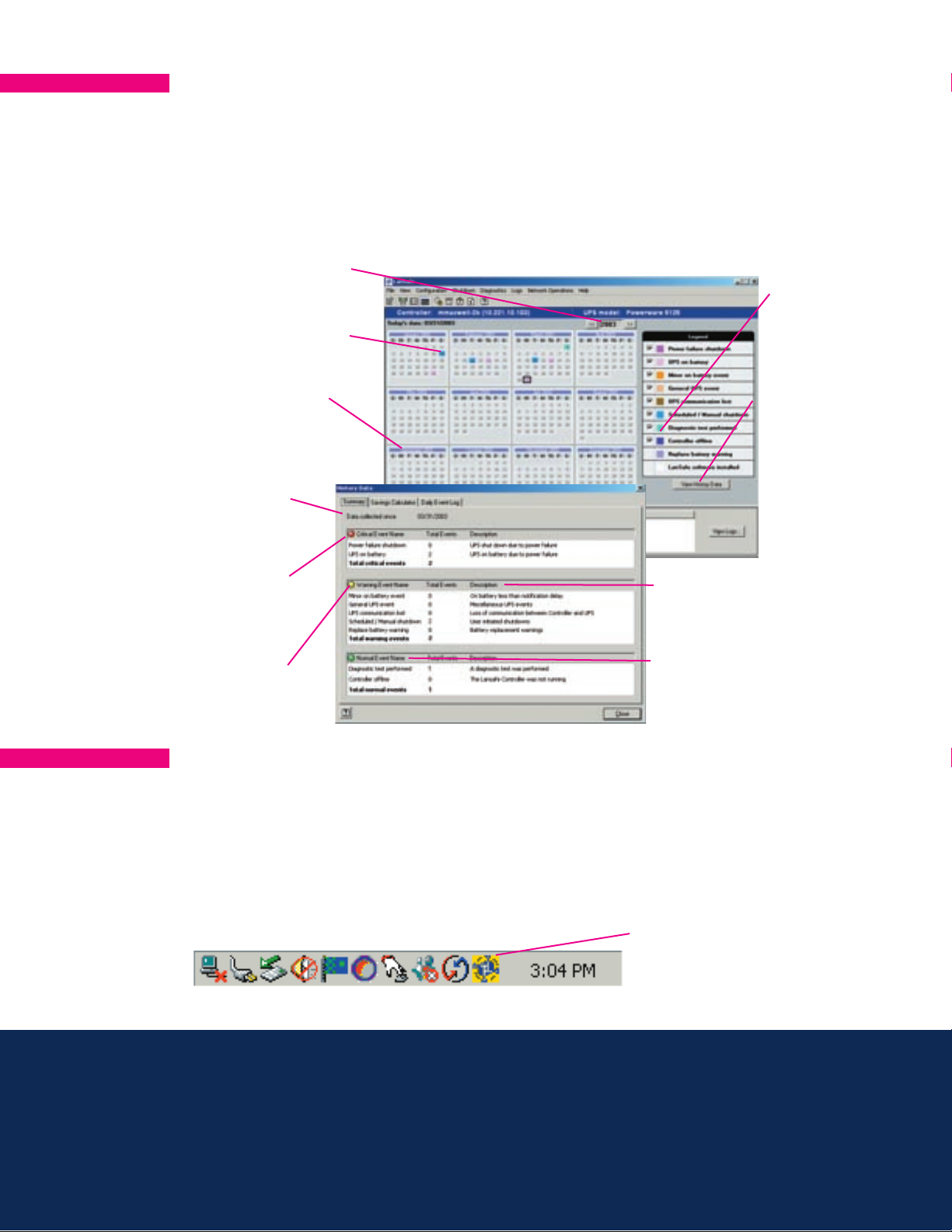

The LanSafe History View provides a 24x7x365
visual representation of the system event log
in a calendar format. UPS events can easily be
reviewed by year, at-a-glance. Color-coded
dates display power events that have occurred in
the system.
Double-click color-coded
event dates for more info
Get detailed info of occurred
power events
History View
24x7x365 Power Event
Calendar
Check a full year of power
events at-a-glance
Go back in time
Select previous years with a
calendar-format events summary
Select events
to review
Review only those
events that you are
interested in
View history data
summary
Actual number of
normal, warning and
critical power events
occurred
NEW
Stealth Mode Operation - The invisible sentinel
The Powerware-exclusive Stealth Mode Operation
feature enables LanSafe to run invisibly in the
background without visual traces. This is particularly useful when integrating LanSafe into a pointof-sale (POS) system, automatic teller machine
(ATM) or other environment in which user-awareness of LanSafe is not an option.
NEW
Date since data
collected
Data collection
begins when
LanSafe is installed
Critical events
Summary and number
of critical events
occurred
Warning events
Summary and number
of warning events
occurred
Normal events
Summary and
number of normal
events occurred
Event
descriptions
event
explanations
It has never been easier to review historical
power problems: what happened, when it happened, how severe the event was, as well as how
often it has annually reoccurred. The user may
focus on any calendar date to obtain information
on the event time, along with a description of
the problem.
When enabled, the user will not see any UPS
alarm popups on local ATM/POS computer monitors due to power problems. However, system
administrators monitoring the ATM/POS network
will still receive remote SNMP alarms to their network management systems.
Stealth Mode Operation
Removes visual traces, like the LanSafe system
tray icon and popup alarms, but still notifies
the system administrator “silently” via SNMP
Set Preferences – Selected according to regional settings

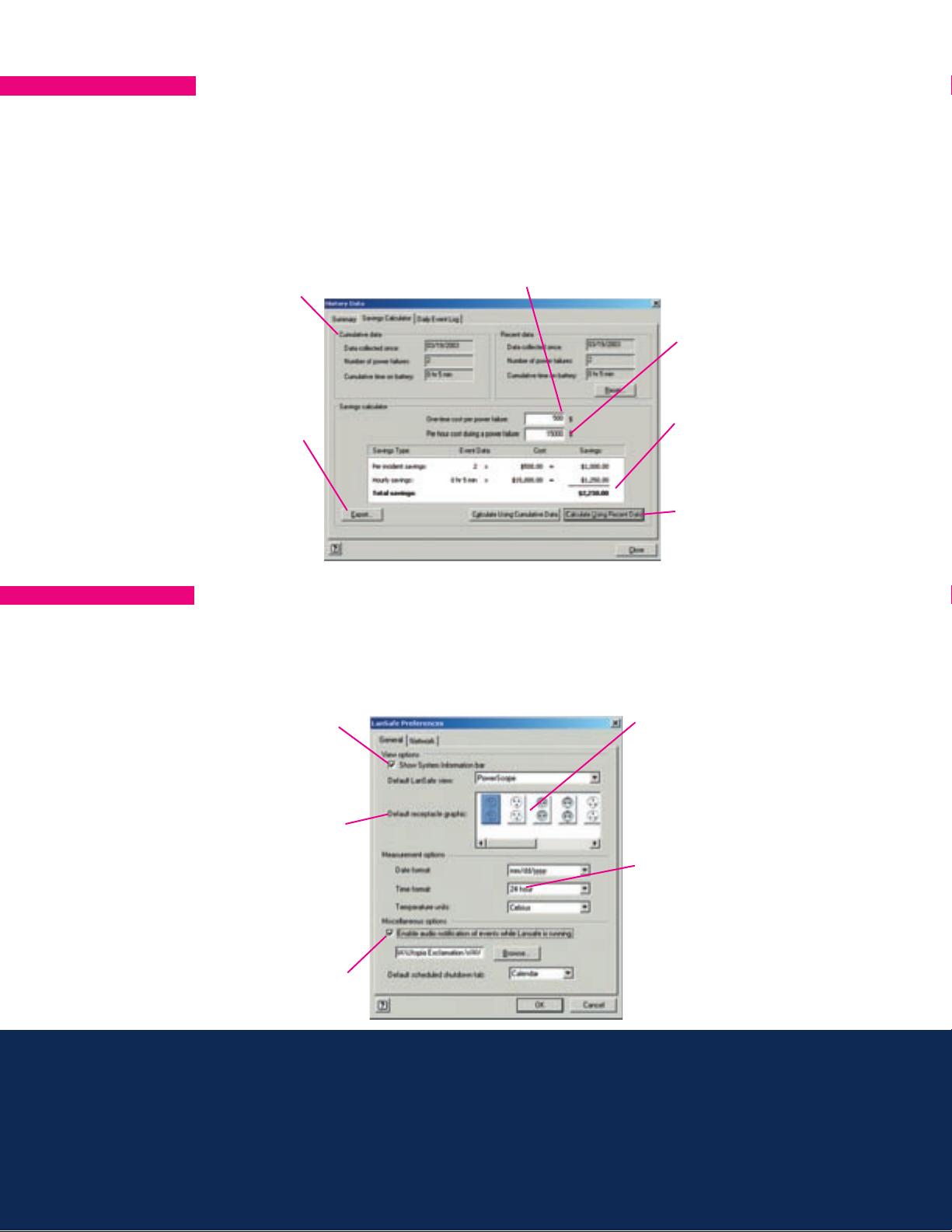

Cost $avings Calculator - Discover the bottom line
Cumulative
data
LanSafe keeps
track of the total
time the UPS has
been on battery
and the number
of power failures
Export
calculations
Paste cost savings
calculations into
your favorite
reporting
application
One-time cost
One-time cost per incident factors include data
loss, customer transaction failure, and hardware
and software infrastructure damage
Per hour cost
Per hour cost factors include hourly
rates for idle
employees and
missed transaction
opportunities
The bottom line
How much money
your UPS is saving
by preventing costly downtime
Calculate data
Calculate either
recent or cumulative savings
LanSafe v. 5 incorporates Automatic Regional
Settings Detection with local language support
capabilities. Date, time, temperature and UPS
receptacle graphics are automatically selected
Display system info
in main views
Enable/disable system
info bar in main views
Audible alarms
Enable/disable audio
notifications
NEW
Choose default view
Select a favorite
LanSafe view as the
default: PowerScope,
ControlRoom or
History
Select receptacles
per region
Choose the receptacle displayed in the PowerScope
View according to the
region (auto-selected
using system locale)
Change date, time, and
temperature formats
Farenheit/Celcius temperature, 24/12 hour time
and world date formats
(auto-selected using
system locale)
NEW
The Cost $avings Calculator (patent pending) feature is used to determine the amount of money
saved by the UPS due to prevented downtime.
With this innovative new tool, LanSafe will do the
math and generate reports using statistical data
gathered from that specific UPS system, based on
the number of power failures and blackout duration. Calculations can easily be exported to
spreadsheets, email and other applications. The
user, according to their environment, enters the
base costs for calculations.
according to the operating system’s regional settings. Measurements are displayed around the
globe in the formats users are familiar with. Any of
the detected settings can be overridden manually.

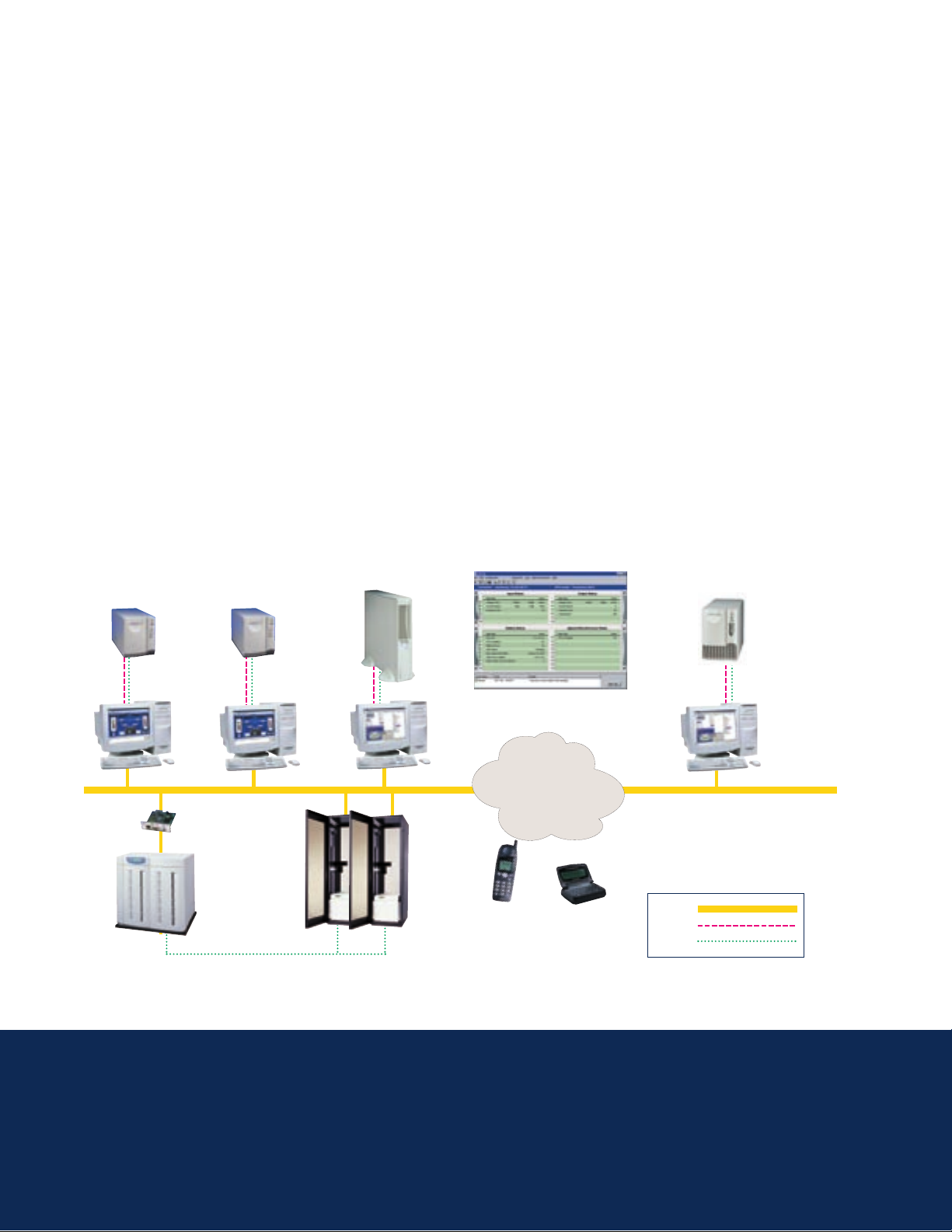

Internet/VPN
LanSafe
w/SNMP
agent
LanSafe
w/SNMP
agent
LanSafe v. 5 ControlRoom
for 3 phase UPS details
Network management system
(NMS) e.g. IBM Director, Tivoli,
CiscoWorks etc.
Control and manage all UPSs
from one focal point
Email alert
Pager alert
ConnectUPS
Web/SNMP
Card
Data center
Network
Serial/USB
Power
LanSafe
w/SNMP
agent
The new LanSafe v. 5 provides comprehensive support for both Powerware single phase and three
phase UPS products via serial, USB and network connectivity options.
LanSafe v. 5 - The revolution of power management
The next generation of LanSafe power management software, version 5, introduces a number
of revolutionary features to the power management arena.
Cost $avings Calculator
The patent pending Cost $avings Calculator
can be used to determine the amount of
money saved by the UPS solution due to
prevented downtime.
Stealth Mode Operation
The exclusive Stealth Mode Operation feature
enables LanSafe to run invisibly in the background without visual traces. This capability is
particularly useful when integrating the application into a POS, ATM, or other environment
where users should not be aware of LanSafe.
Three Optional Views
The 3-D PowerScope View, along with a new
innovation, the ControlRoom View, take the
guesswork out of understanding UPS metering
and status information. PowerScope is the
default for viewing single phase UPSs while
ControlRoom serves as the default for three
phase UPSs. The third display format available is
the History View, which allows users to review a
year of UPS events at-a-glance in a calendar format. The favorite default view can be changed at
any given time via the LanSafe preferences menu.
Automatic Regional Settings
LanSafe v. 5 incorporates Automatic Regional
Settings Detection with local language support
capabilities. Date, time, temperature and UPS
receptacle graphics are automatically selected
according to the operating system’s regional settings. Measurements are displayed around the
globe in formats users are familiar with.
With intuitive views and functions, a simplified
installation procedure, and an array of powerful
new features, comprehensive power management
has never been easier.
LanSafe III
Supported Powerware UPS
Single Serial Port Card (X-slot)
Expansion Chassis with compatible
option card
USB Card (X-slot)
Compatible operating system*
Windows
Windows 2000
Windows 95
Windows 98
Windows Me
Windows NT 4.0 (Intel)
Windows XP
UNIX
AT&T Unix SVR4
Data General DG-UX
Compaq Tru64
Digital Unix
HP-UX
IBM AIX (RISC & PowerPC)
Interactive Unix
Red Hat Linux
SuSE Linux
SCO UNIX
SGI IRIX
Solaris
UnixWare
Other
IBM OS/2
Novell NetWare
* Check www.powerware.com for most
recent software updates and version support
System Requirements
LanSafe v. 5
Supported Powerware UPS
Single Serial Port Card (X-slot)
Expansion Chassis with compatible
option card
USB Card (X-slot)
Web/SNMP 10/100 Card (X-slot,
Firmware v2.03 or higher required)
ConnectUPS-M (Firmware v4.01 or
higher required)
Compatible operating system (check
www.powerware.com software products
Web pages for most recent software
updates and versions)
SFT19FXA
Revision 06/03
Reprint 06/03
WORLDWIDE HEADQUARTERS
8609 Six Forks Road
Raleigh, NC 27615 U.S.A.
Toll Free: 1.800.356.5794
or 919.872.3020
www.powerware.com
CANADA
Ontario: 416.798.0112
EUROPE/MIDDLE EAST/AFRICA
Denmark: 45.3677.7910
Finland: 358.9.452.661
France: 33.1.60.12.74.00
Germany: 49.7841.6660
Italy: 39.02.66.04.05.40
Norway: 47.23.03.65.50
Sweden: 46.8.598.940.00
United Kingdom: 44.1753.608.700
ASIA PACIFIC
Australia: 612.9878.5000
China: 86.10.852.99.889
Hong Kong: 852.2745.6682
India: 91.11.2649.941418
Japan: 813.3447.5251
New Zealand: 64.9.576.6842
Singapore: 65.895.8330
LATIN AMERICA
Argentina: 5411.4343.6323
Brazil: 55.11.3616.8500
México: 5255.9171.7777
Powerware
Loading...
