Three-Phase
Double-Conversion, On-Line UPS
Up to 94% Ecient
n
Lower energy costs and carbon footprint
Compact & Reliable
n
10-40kVA internal batteries allow smaller footprint
n
Cooler operation extends internal component life
AC Input Performance
n
High input power factor of 0.99
n
Low input current distortion of <1 % (THDi) @ full load
n
Soft Start Power walk-in function that ensures
progressive rectier start-up
IGBT and Digital Signal Processor (DSP)
n
Reduces the impact of the UPS on the local supply
n
Simplies installation where there is limited power capacity
Dual Input
n
Main power and secondary emergency standby power
increase resilience of single or parallel system conguration
Adaptive Feed Cancellation
n
Advanced control with AFC forward cancellation
technology for low harmonic distortion.
Full
Two Year
Warranty
www.stacoenergy.com
Full Two Year
Warranty
Menu Select Display
n
User friendly display is easy to see and intuitive to use
Parallel up to 4 Units
n
Provides redundancy for mission critical applications
with no additional hardware
n
Parallel Kit, Communication through CANBUS Parallel Card
Operates as a precision Power Conditioner
n
-0 models can operate as a Power Conditioner
upgradeable to a UPS in the future.
Frequency Conversion
n
All units can be set as a 50/60hZ Frequency Converter.
Nationwide Service Program
n
Factory trained service personnel maximize equipment life
n
Full start-up service & preventive maintenance lowers
cost of ownership
Your Tailored Power Solutions Provider
TM
2
1

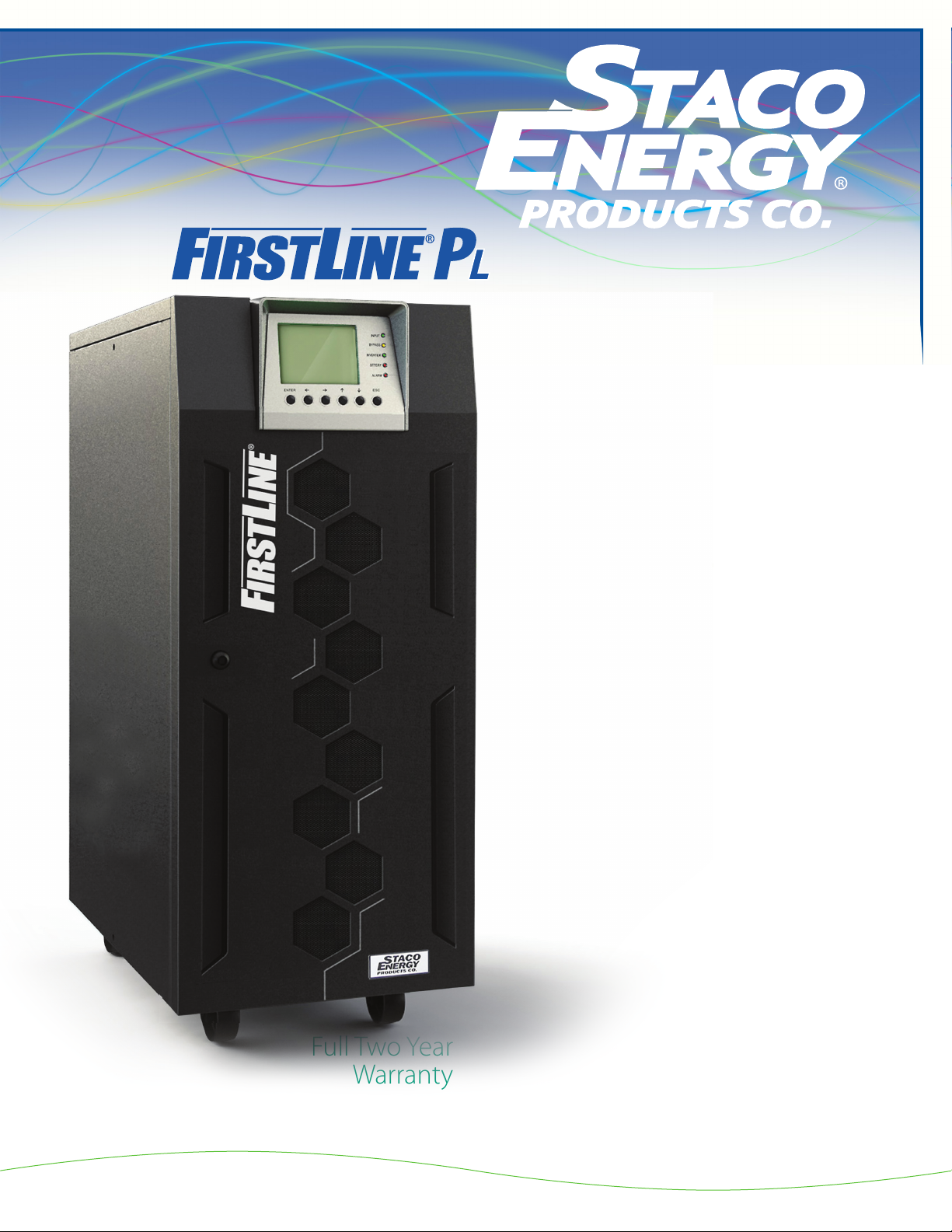

FirstLine
®
PL UPS
In the event of an AC power
failure, the FirstLine® PL UPS will
automatically transfer to battery
power and continue to provide
power without any interruption
for the full amount of time you
select. When power returns,
the FirstLine
®
PL UPS will
automatically recharge the
batteries for the next unexpected
power outage or disturbance.
AC Input Performance
FirstLine® PL is a further evolution of
the FirstLine® series with the added
advantages oered by an IGBT-based
rectier/inverter assembly. This feature
reduces the impact of the UPS on the
local supply and simplies installation
where there is limited power capacity
in the form of available electrical supply
rating or generator size. FirstLine® PL is
classed as a “Zero Impact Source” and
provides:
n
Low input current distortion—
<1 % (THDi) @ full load
n
High input power factor 0.99
n
Power walk-in function that ensures
progressive rectier start up
n
Delayed start up phased with the
return of mains power supply, when
several UPS are connected in the
system.
FirstLine® PL also performs the role of a
high performance lter, protecting its
upstream power supply sources from
any harmonics and reactive power
generated by the loads powered.
Flexibility
FirstLine® PL models feature an output
transformer with galvanic isolation
(between the load and the battery
supply) to provide greater versatility
and installation options. The UPS can
be supplied from two separate power
sources (main power and a second
emergency standby source) which
helps increase the resilience of parallel
system congurations.
Mimic Panel
1
3
Main Characteristics
n
Eciency up to 94%
n
Reduced weight
n
Double electronic and
galvanic protection of
the load from the battery
The entire FirstLine® PL
range is suitable for a
wide range of applications
thanks to the exibility of
congurations, accessories,
options, and choice of
performance levels. The
UPS is compatible with
capacitive loads, such as
blade servers, without
any reduction in active
power, ranging from 0.9
lead to 0.8 lag and up to
0.8 capacitive power with a
low derating equal to 15% of the active
power (kW). Ecient and reliable power
supply for mission critical applications is
guaranteed by operating in redundancy
and power parallel mode with up to
4 units (N+1), and by the Dual Bus
System and Dynamic Dual Bus system
congurations.
Battery Care System
FirstLine® PL uses the Battery Care System
which optimizes battery performance
while extending battery life.
(
) Graphic LCD
LCD
<
>
ENT Key
ESC Key <ESC
a
( ) Key move up
b
2 ( ) Key move down
c
( ) Key move to right
d
( ) Key move to left
e
(a) Rectier Input Voltage OK led (green)
(b) Output Volltage Unit from the Bypass led (orange)
3 (c) Inverter is Working led (green)
(d) Unit Working from Batteries--mains failure led (red)
(e) General Alarm--in case of any alarm of the unit led (green)
ENTER
>
www.stacoenergy.comFirstLine® PL
Staco FirstLine PL UPS Technical Specications
UPS Rating kVA/kW 10/9 15/13.5 20/18 30/27
Input
Topology On-Line Double Conversion
Voltage 208Y/120 VAC, Three Phase, 4 wire plus ground or 220Y/127 VAC configurable from the Front Panel
Range +15% / -20% Battery Discharge@-15% with full load
Frequency 60/50Hz +/- 5.0 Hz
Power Factor 0.99 at 100% load, 0.98 minimum at 50% load
Current Distortion (THD) <1% @100% Load, <2% @ 50% Load, <5% @ 10% Load
Input Current (A)
Nominal: 28
Maximum: 33
Nominal: 42
Maximum: 49
Nominal: 55
Maximum: 65
Nominal: 83
Maximum: 97
Input Current Inrush Walk-In from 25% maximum to 100% full load rating in 5 seconds
Output
Voltage 208Y/120 VAC, Three Phase, 4 wire plus ground or 220Y/127 VAC configurable from the Front Panel
Static Voltage Regulation +/- 2%
Voltage Transient Response
Frequency
(inverter synchronous)
Frequency Slew Rate (inverter
synchronized to static bypass)
Free Running Frequency
(on battery or asynchronous)
Voltage transient response shall not exceed the following, and shall recover to 95% within 10 milliseconds:
a) +/- 15% at the first cycle for a 100% step load b) +/- 1% (loss or return of AC input)
60/50Hz (tracks frequency of static bypass source) +/- 0.5, 1.0, 2.0, 5.0 Hz (user settable)
± 10 Hz per second
60/50Hz +/- 0.01Hz
Voltage Distortion THD Less than 1% (Linear load), less than 2% with crest factor 2.5 to 1
Inverter Overload 125% for 10 minutes, 150% for 60 seconds
Bypass Overload 400% for 10 seconds, 1000% for half line cycle
Bypass Input – Range
Synchronization Voltage
Bypass Input Frequency
Tracking Range
+12% / -15%
+/- 5Hz
Overall Efficiency Up to 94%
Output Current (A) 28 42 55 83
Heat Rejection (BTU/Hr) 3,412 5,118 6,824 10,237
Battery Run Time (minutes)
Internal Battery String
Model (-X)
Environmental
(-1) 37, (-2) 18, (-3) 9 (-1) 21, (-2) 10, (-3) 4 (-1) 14, (-2) 6 (-1) 8
Altitude De-rate load capability above 1000 meters, 1% per 100 meters
Operating Temperature 40 °C Maximum
Audible Noise
@ 3 feet "A" weighted scale
Dimensions and Weights
H x W x D inches (mm)
- (X) model, Lbs. (kg)
Standard Communications
41.7 (1059) x 20.3 (516) x 33 (838) 52 (1321) x 23.2 (589) x 33 (838)
-0, 410 (186) -1, 950 (431)
-2, 735 (334) -3, 630 (286)
61dBA 67dBA
-0, 585 (266)
-1, 1,125 (510)
SNMP/WEB SNMP Card & UPS PowerView Pro Shutdown and Monitoring Software for Windows/Novell
Modbus Monitoring & Control via RS-485/RTU Protocol/Read Holding and Write Registersl
Options
Input/Output 480/480V (D or Y), 480V/208V (D or Y) with Transformer option
Standards
208V Model
UL listed to 1778, CUL to CSA C22.2, NEMA PE-1, ASME, ASA-C-39.1-1984, FCC Part 15 Subpart J Class B,
NEC, OSHA, IEEE587, ANSI C 62.41-1980, ISO9000
40/36
Nominal: 111
Maximum: 130
111
13,649
(-1) 4
-0, 585 (266)
-1, 1,185 (538)
FirstLine PL 10-40kVA Models
PL Model kVA/kW Internal Battery Time (minutes)
FLP-010-0
FLP-010-1 37
FLP-010-2 18
FLP-010-3 9
FLP-015-0
FLP-015-1 21
FLP-015-2 10
FLP-015-3 3
FLP-020-0
FLP-020-1 14
FLP-020-2 6
FLP-030-0
FLP-030-1 8
FLP-040-0
FLP-040-1 4
Note: Longer battery run time available
For Frequency Converter add -FC to PL Model Number.
10kVA/9kW
15kVA/13.5kW
20kVA/18kW
30kVA/27kW
40kVA/36kW
0
0
0
0
0
Two Year Warranty
Electronics:
A full Two Year On-site Warranty (Continental U.S.)
Battery:
A full One Year Warranty, 10-year pro-rated,
on the Battery System ensures that your batteries
are protected from system failure now and in the
future. (Warranty provided by battery manufacturer.)
Extended warranties, customized service plans and
preventative maintenance are also available. Please
refer to our warranty statement for complete details.
