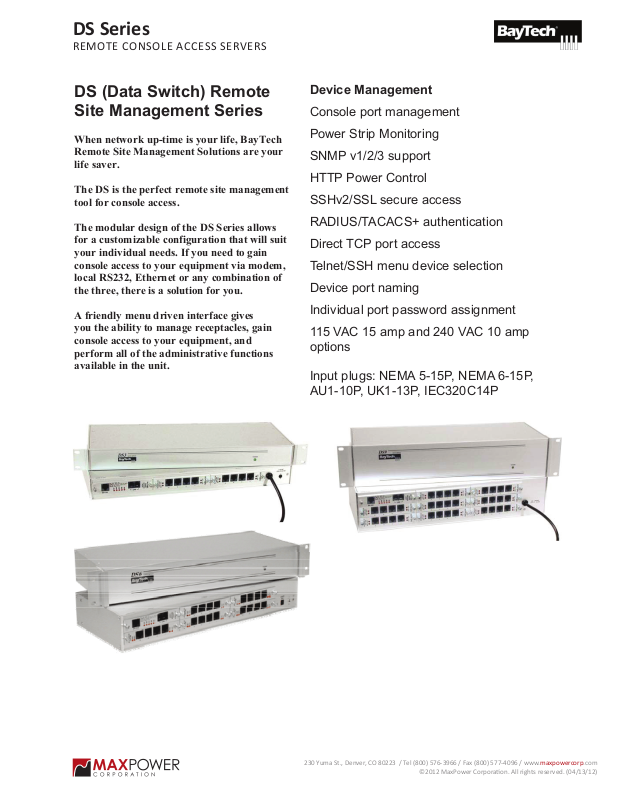

DS Series
REMOTE CONSOLE ACCESS SERVERS
DS (Data Switch) Remote
Site Management Series
When network up-time is your life, BayTech
Remote Site Management Solutions are your
life saver.
The DS is the perfect remote site management
tool for console access.
The modular design of the DS Series allows
for a customizable configuration that will suit
your individual needs. If you need to gain
console access to your equipment via modem,
local RS232, Ethernet or any combination of
the three, there is a solution for you.
A friendly menu driven interface gives
you the ability to manage receptacles, gain
console access to your equipment, and
perform all of the administrative functions
available in the unit.
Device Management
Console port management
Power Strip Monitoring
SNMP v1/2/3 support
HTTP Power Control
SSHv2/SSL secure access
RADIUS/TACACS+ authentication
Direct TCP port access
Telnet/SSH menu device selection
Device port naming
Individual port password assignment
115 VAC 15 amp and 240 VAC 10 amp
options
Input plugs: NEMA 5-15P, NEMA 6-15P,
AU1-10P, UK1-13P, IEC320C14P
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
Page 2
DS Series

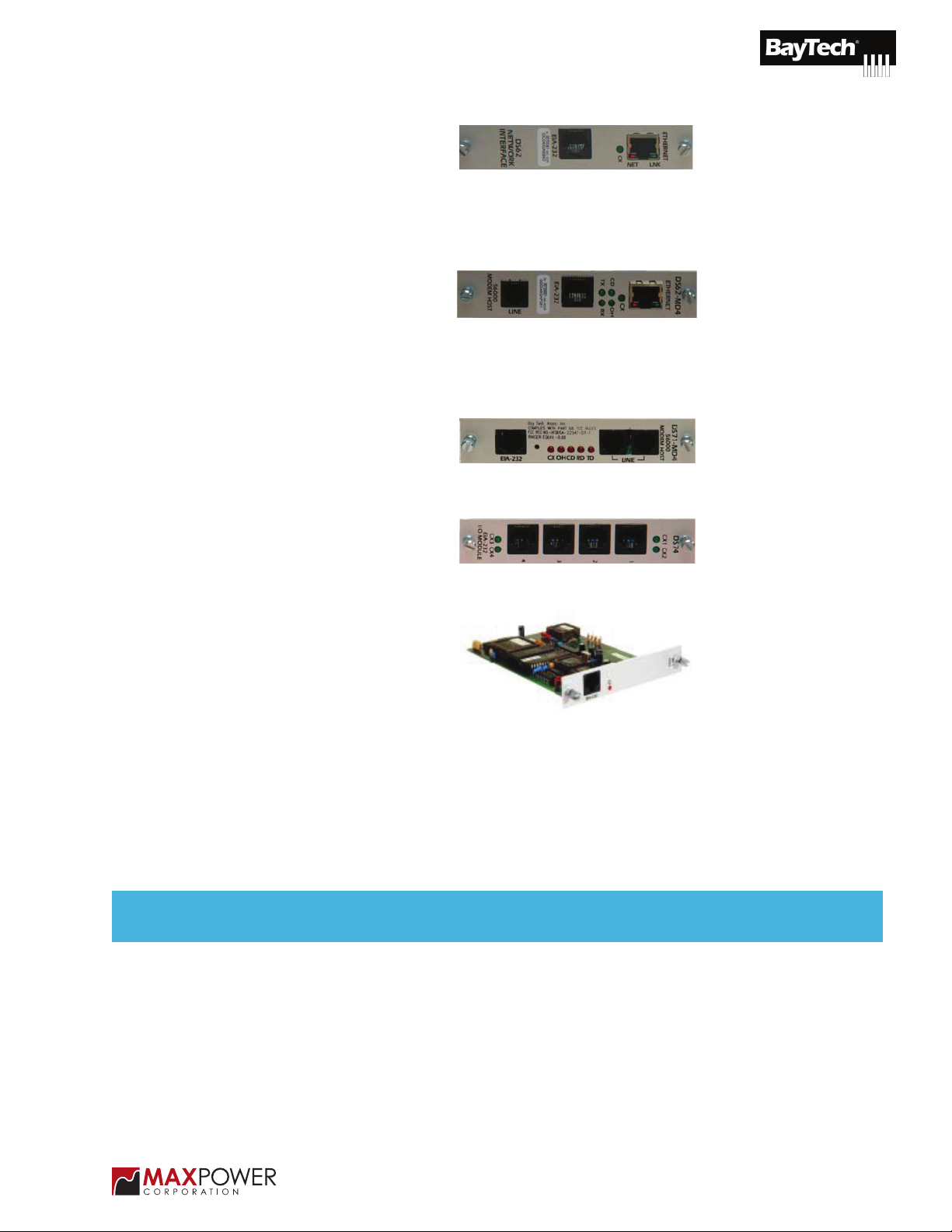

DS62 HOST Module
REMOTE CONSOLE ACCESS SERVERS
Specifications
Base Unit
DS3, DS6, DS9 supports one host module
plus two, five, eight peripheral communications modules
POWER REQUIREMENTS:
DS3, DS6, DS9: 115 VAC 50/60 Hz, 15
Amp; 220 VAC 50/60 Hz, 10 Amp
INDICATORS:
1 green power LED
LOGICAL RECEPTACLE NAMING:
Programmable up to 16 characters.
Default: Device A for port 1... Device D for
port 4
ENVIRONMENT:
0° to 70°C temperature; 5% to 95%
humidity
RS232 port for local serial access or
external modem. Ethernet connection: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets,
DS62-MD4 HOST Module
RS232 port for local serial access or
external modem. Ethernet connection: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets, and 56K internal
modem.
DS71-MD4 HOST Module
RS232 port for local serial access or
external modem and 56K Internal
Modem.
DS74 Peripheral Module
Four RS232 port for serial access to
multiple devices

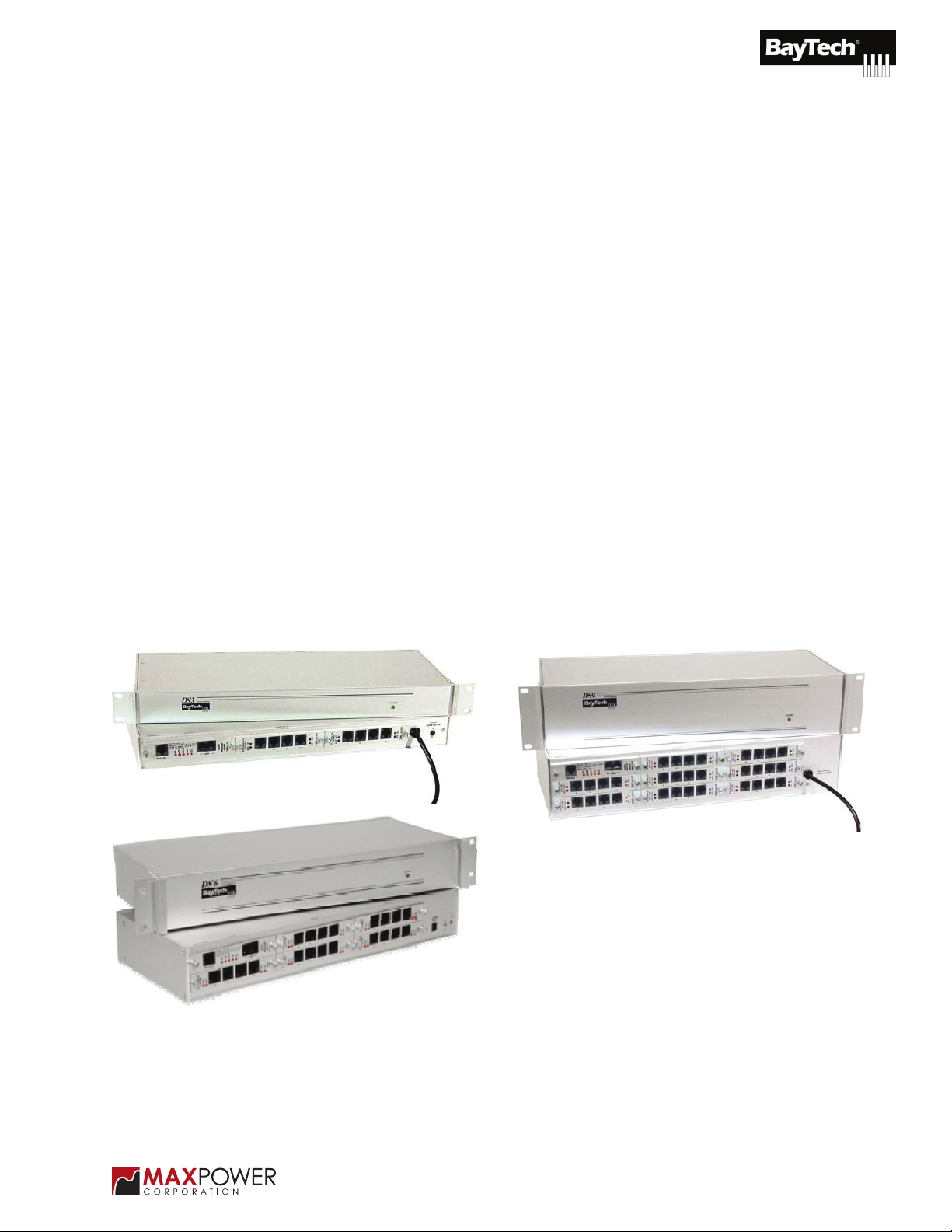

DIMENSIONS:
DS3: 16 3/4”w x 7 1/8”d x 1 3/4”h
DS6: 16 3/4”w x 7 1/8”d x 2 5/8”h
DS9: 16 3/4”w x 7 1/8”d x 3 1/2”h
MOUNTING:
19" or 23" Rack-mount or desktop.
Due to the amount of data transferred for each Baytech Modu-
WARRANTY:
Two year parts and labor
lar power strip, Baytech recommends the DS3 to control a
maximum of (6) Modular power strips. Baytech older units,
RPC and RPS series can control up to the Maximum Console
Ports of the chassis Model Number.
Model Number Number of
Built-in Modem In-Band, Telnet
Slots
DS3 3 DS71-MD4,
DS62-MD4
DS6 6 DS71-MD4,
DS62-MD4
DS9 9 DS71-MD4,
DS62-MD4
DS71 HOST Module
RS232 port for local serial access
Maximum Console
Support
Ports
DS71, DS62 8 with (2)DS74s
DS71, DS62 20 with (5) DS74s
DS71, DS62 32 with (8) DS74s
