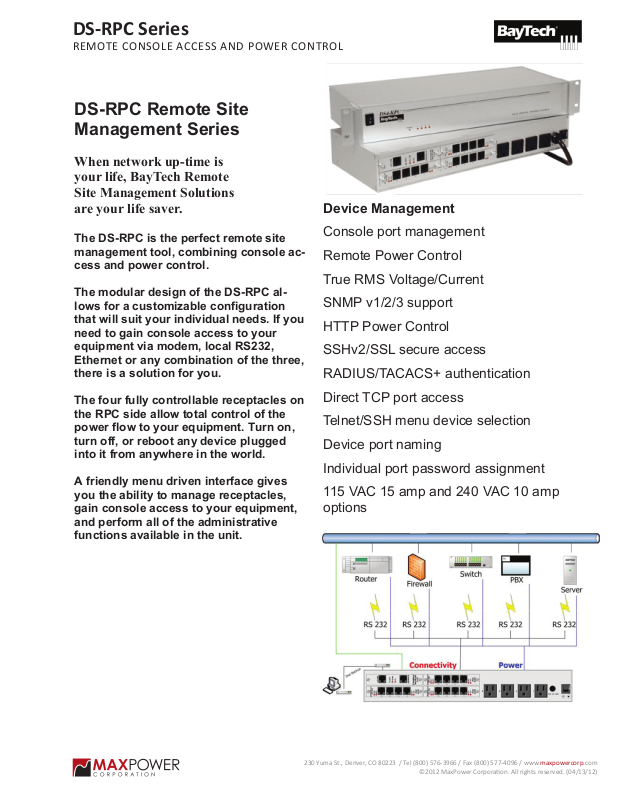

DS-RPC Series
Device Management
Console port management
Remote Power Control
True RMS Voltage/Current
SNMP v1/2/3 support
HTTP Power Control
SSHv2/SSL secure access
RADIUS/TACACS+ authentication
Direct TCP port access
Telnet/SSH menu device selection
Device port naming
Individual port password assignment
115 VAC 15 amp and 240 VAC 10 amp
options
DS-RPC Remote Site
Management Series
When network up-time is
your life, BayTech Remote
Site Management Solutions
are your life saver.
The DS-RPC is the perfect remote site
management tool, combining console access and power control.
The modular design of the DS-RPC allows for a customizable configuration
that will suit your individual needs. If you
need to gain console access to your
equipment via modem, local RS232,
Ethernet or any combination of the three,
there is a solution for you.
The four fully controllable receptacles on
the RPC side allow total control of the
power flow to your equipment. Turn on,
turn off, or reboot any device plugged
into it from anywhere in the world.
A friendly menu driven interface gives
you the ability to manage receptacles,
gain console access to your equipment,
and perform all of the administrative
functions available in the unit.
REMOTE CONSOLE ACCESS AND POWER CONTROL
230 Yuma St., Denver, CO 80223 / Tel (800) 576-3966 / Fax (800) 577-4096 / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
DS-RPC Series
DS62 HOST Module
REMOTE CONSOLE ACCESS AND POWER CONTROL
Specifications
Base Unit
DS2-RPC, DS4-RPC support one host
module plus one or three
peripheral communications modules
POWER REQUIREMENTS:
DS2-RPC, DS4-RPC: 115 VAC 50/60 Hz,
15 Amp; DS4A-RPC: 220 VAC 50/60 Hz,
10 Amp
Power Output:
DS2-RPC, DS4-RPC: Four 115 VAC
50/60 Hz 15 Amp NEMA 5-15 Receptacles
DS4A-RPC: Four 220 VAC 50/60 Hz 10
Amp IEC 320 Receptacles
INDICATORS:
1 green power LED, 4 receptacle activity
LEDs
RS232 port for local serial access or
external modem. Ethernet connection: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets,
DS62-MD4 HOST Module
RS232 port for local serial access or
external modem. Ethernet connection: 100Base-TX and 10Base-T;
SNMP, RADIUS?TACACS+, SSH/
SSL, Menu Password, Web control
of PDU outlets, and 56K internal
modem.
DS71-MD4 HOST Module
RS232 port for local serial access or
external modem and 56K Internal
Modem.
DS74 Peripheral Module
Four RS232 port for serial access to
multiple devices
LOGICAL RECEPTACLE NAMING:
Programmable up to 16 characters.
DS71 HOST Module
RS232 port for local serial access
Default: Device A for receptacle 1... Device D for receptacle 4
ENVIRONMENT:
0° to 70°C temperature; 5% to 95%
humidity
DIMENSIONS:
DS2-RPC: 16 3/4”w x 7 1/8”d x 1 3/4”h
DS4-RPC: 16 3/4”w x 7 1/8”d x 2 5/8”h
MOUNTING:
19" or 23" Rack-mount or desktop.
WARRANTY:
Two year parts and labor
Model Number Number of Slots Built-in Modem In-Band Telnet
Support
DS2-RPC 2 DS71-MD4,
D71/DS62 4 with (1)DS74
DS62-MD4
DS4-RPC 4 DS71-MD4,
DS71/DS62 4/8/12 with (1/2/3)
DS62-MD4
DS4A-RPC 4 DS71-MD4,
DS71/DS62 4/8/12 with (1/2/3)
DS62-MD4
Maximum Console Ports
DS74
DS74
