DiamondPlus™ 1100
UPS Series
1100A and 1100B
Superior UPS Technology for Mission Critical Applications
The DiamondPlus™ 1100A and 1100B
UPS Series are the newest generation
UPS systems offered by Mitsubishi
Electric. With efficiencies over 93%, a high
0.9 output power factor, and lightweight,
compact design, the DiamondPlus™ is
both green and smart. It gives energy
conscious users an alternative UPS
solution to meet their needs. Both the
1100A (10-50 kVA) and the 1100B (50-80
kVA) configurations are upgradeable in
10 kVA increments.
The Diamond Plus™ 1100 UPS Series
is an optimal solution for protecting
power equipment. As a true on-line
three phase double conversion UPS
system, customers can be assured that
their needs are met for back-up power.
With energy costs ever increasing in
the marketplace, the DiamondPlus™
1100 provides a reduced Total Cost of
Ownership with its compact footprint,
high energy efficiency and flexible
modular design, among other factors.
With reliable back-up power in place,
our customers can have complete
piece of mind.
Both have has fully-digital screens and
front access, which allows for easy
monitoring and faster repair times.
The DiamondPlus 1100’s power and
battery modules are “hot swappable”
for maximum flexibility and rapid meantime-to repair (MTTR).
The efciency of the compact DiamondPlus™ 1100 Series peaks at over 93% at a
nominal operating range.
MITSUBISHI ELECTRIC POWER PRODUCTS, INC.
n
THE DIAMONDPLUS™ 1100A AND 1100B UPS SERIES
Common Specifications:
Standard Features
n
Fully-digital IGBT converter and
inverter
n
Hot swappable modules
n
Pulse Width Modulation
(PWM) controls
n
On-line upgradable
n
Front access UPS
n
Small footprint and lightweight
n
UL 1778 listed
Operating Environment
n
Audible Noise:
58 dB @ 1 Meter
n
Temperature:
0-40º C
n
Relative Humidity:
5-95% (Non-condensing)
n
Altitude:
0-5,000 ft.
AC Output
n
Output Power:
208V/120V, 4W, 60 Hz
n
Power Factor: 0.9
n
Voltage Regulation:
+/-1% Balanced
+/-2% Unbalanced loads
n
Frequency Regulation:
60 Hz +/-0.01%
n
Step Load:
(100%) +/- 3% variation, recovery less
than one cycle
n
Voltage THD:
2% Maximum @ 100% Linear Load
5% @ Nonlinear Load
n
Overload:
105-125% -60 sec
126-150% -30 sec
n
EMI Compatibility:
FCC Article 47, Part 15 Subpart B,
Class A
AC Input
n
Input Power:
208V/120V, 3P, 4W, 60 Hz
(Other voltages available with external
transformers)
n
Voltage Range:
+15%, -30%
n
Reflected Current Harmonic
Distortion (THD):
4% @ 100% load
7% @ 50% load (Typical)
n
Power Factor:
0.98 at 50% and 100% load
n
Surge Withstand:
Meets IEEE 587, ANS/IEEE 62.41,
Category B

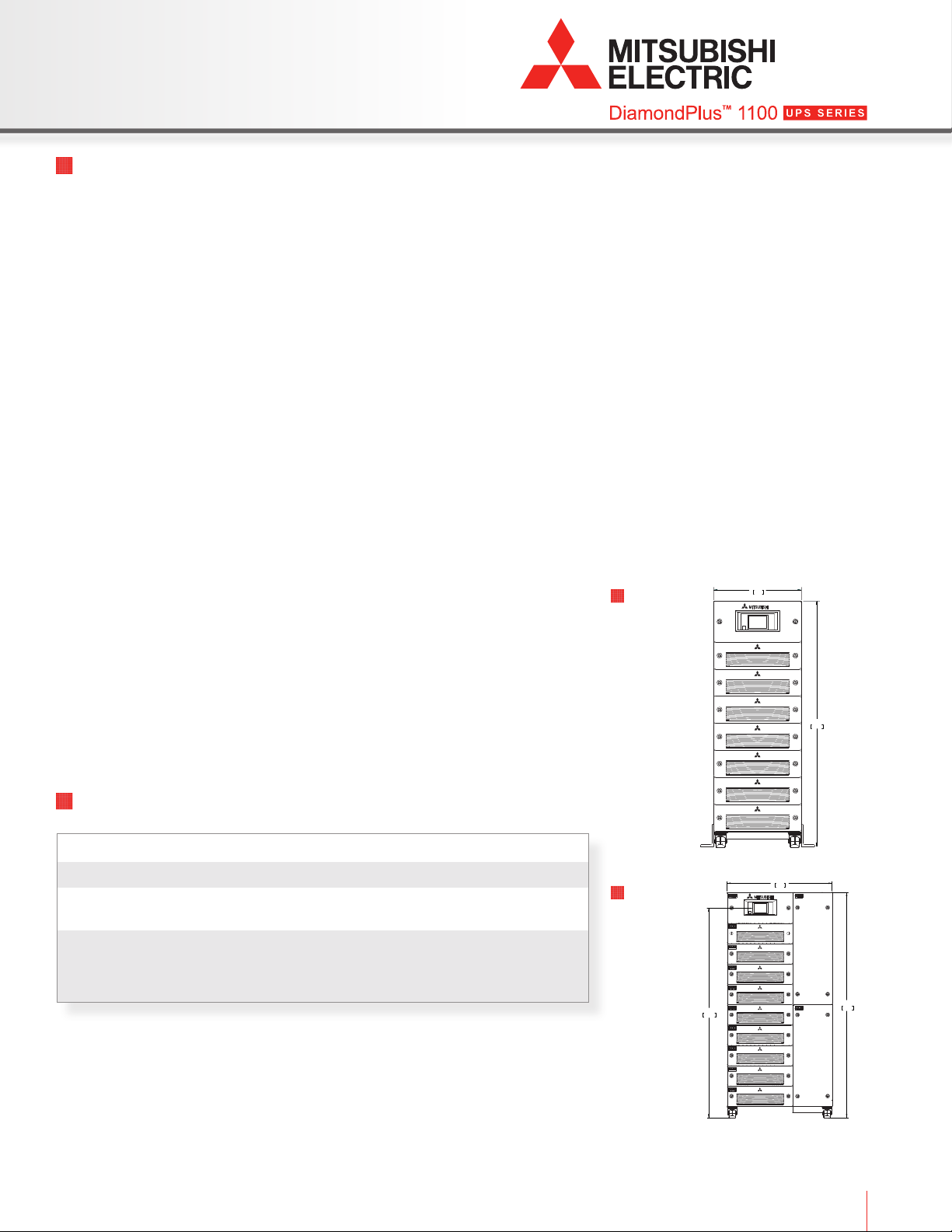

19.69
1100A:
500
MITSUBISHI
55.13
1400
Distinct Specifications:
1100A 1100B
kVA 10 - 50 10 - 80
Batteries 10 & 20 kVA: Interior 10-80 kVA: external cabinet
30-50 kVA: external cabinet required required
Dimensions 55.1" H x 19.7" W x 27.0" D 67.3"H x 31.5"W x 27.0"D
Weight 685 (10 kVA, with internal batteries) – 498 (10 kVA) – 807 (80 kVA)
(lbs) 465 (50 kVA, without internal batteries) (without internal batteries)
* Modules are not exchangeable between 1100A and 1100B
* Cable entry for 1100B is on right side, top, and bottom
n
THE DIAMONDPLUS™ 1100A AND 1100B UPS SERIES
MITSUBISHI ELECTRIC POWER PRODUCTS, INC. 3
1100B:
31.50
800
MITSUBISHI
67.32
62.64
1591
1710
World-Class Service
and Support
Mitsubishi Electric Power Products,
Inc. is dedicated to the post sales
support of our customers. To this end,
Mitsubishi Electric offers a wide array
of choices for service of the UPS
Systems products. These choices
range from on-site field services to
factory performance testing services
to 7 x 24 x 365 product technical
support. Working in partnership with
Mitsubishi Electric for the service
needs of your product will ensure that
you receive the best value for your
service dollar. In addition, you can be
assured that you are working with a
premier organization which has the
resources to provide the solutions
necessary to maximize your system
reliability.
Since 1986, Mitsubishi Electric Power
Products, Inc. has manufactured precisionengineered Uninterruptible Power
Supplies (UPS) to protect our customers’
investments in their mission-critical
equipment. Mitsubishi Electric’s UPS
systems are unsurpassed in reliability,
quality, and efficiency. We are dedicated
to developing the best UPS systems
on the market, and provide unrivaled
service for the lifetime of your UPS.
Mitsubishi Electric is dedicated to
providing the most efficient and
reliable UPS’s available today.
Contact us to discuss your specific
requirements at 724.772.2555, or
visit our web site at www.meppi.com.
MITSUBISHI ELECTRIC
POWER PRODUCTS, INC.
Uninterruptible Power
Supplies Division
Thorn Hill Industrial Park
547 Keystone Drive
Warrendale, PA 15086
Phone: (724) 772-2555
www.meppi.com
SA-ENL0004 (5/13)
