MAX Plus HTS 7300 User Manual

E109000206A

USER’S MANUAL

Digital Satellite Receiver

HTS 7300
HTS 7300

+

1

1. Introduction 2

1.1 Overview

1.2 Main Features

2. Safety/Precautions 3

2.1 Safety

2.2 Precautions

3. Check Point before Use 5

3.1 Accessories

4. Controls/Functions 6

4.1 Front Panel

4.2 Rear Panel

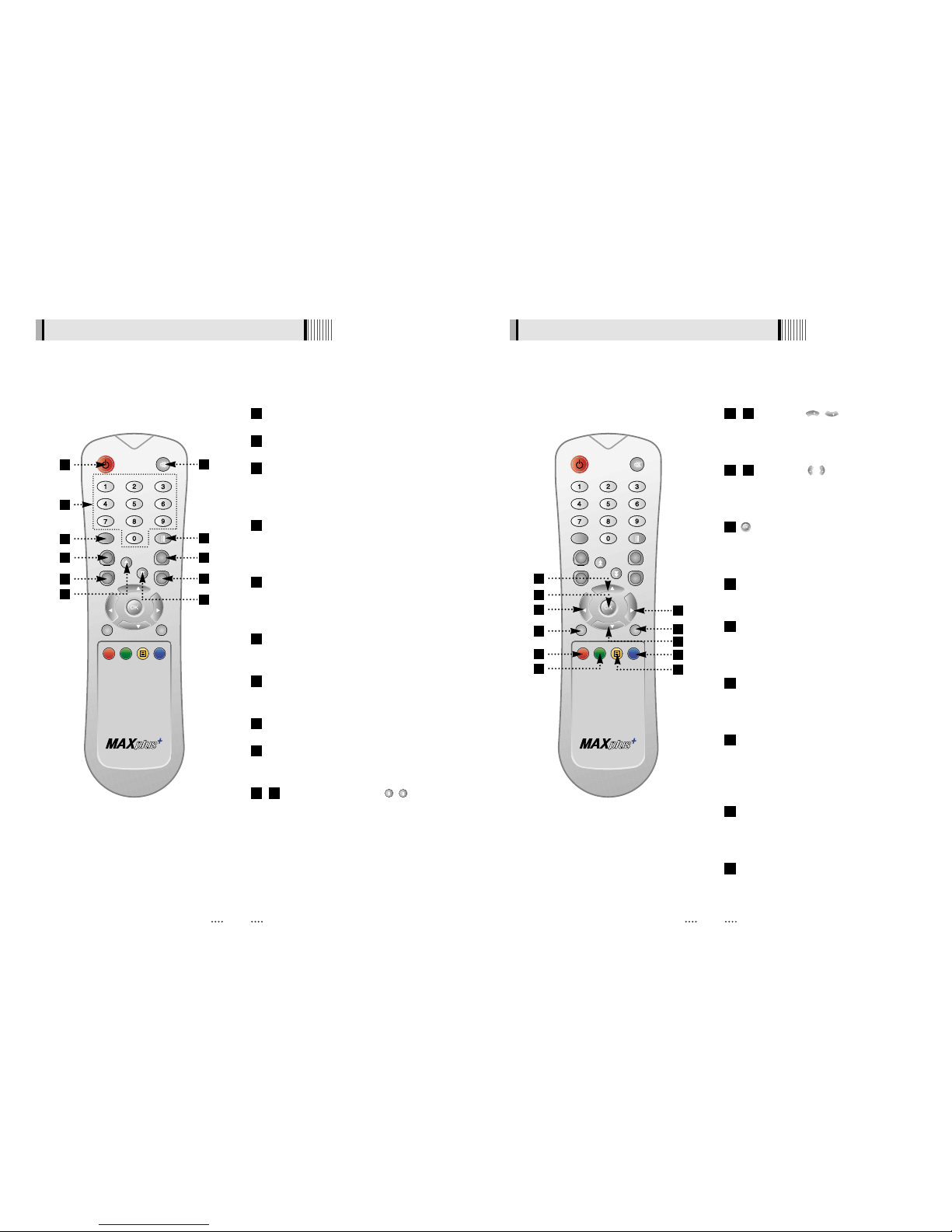

4.3 Remote controller

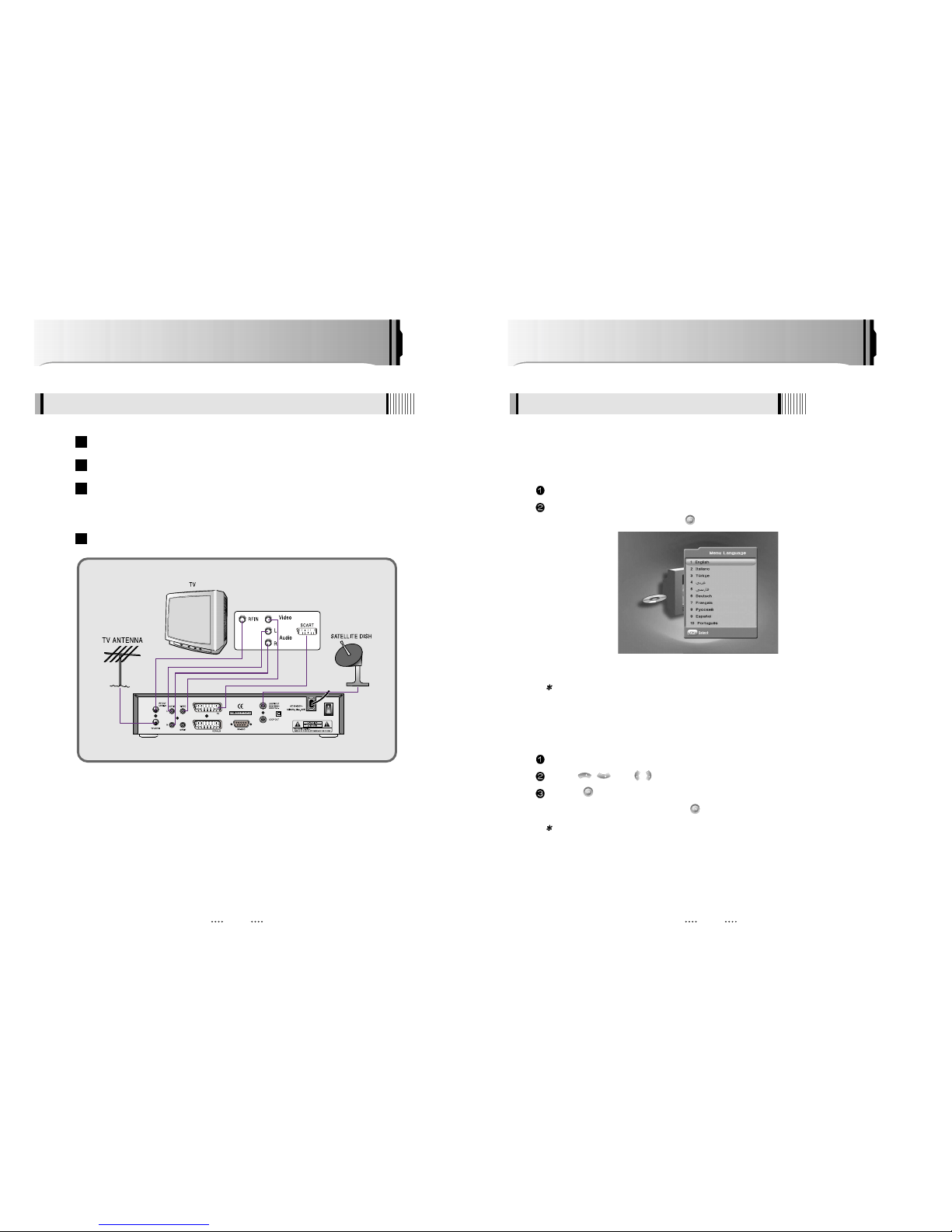

5. How to Connect 10

6. Operation 11

6.1 Getting Started

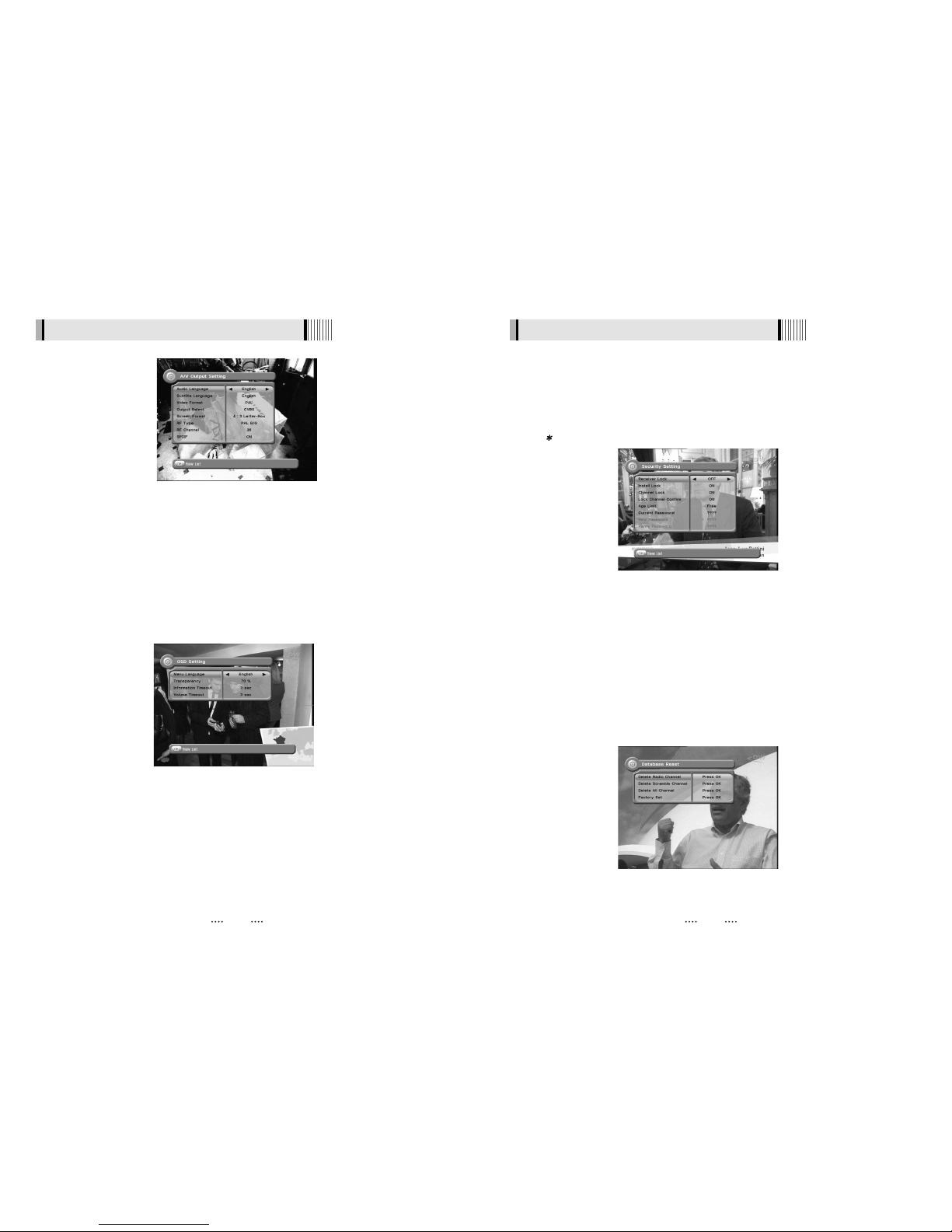

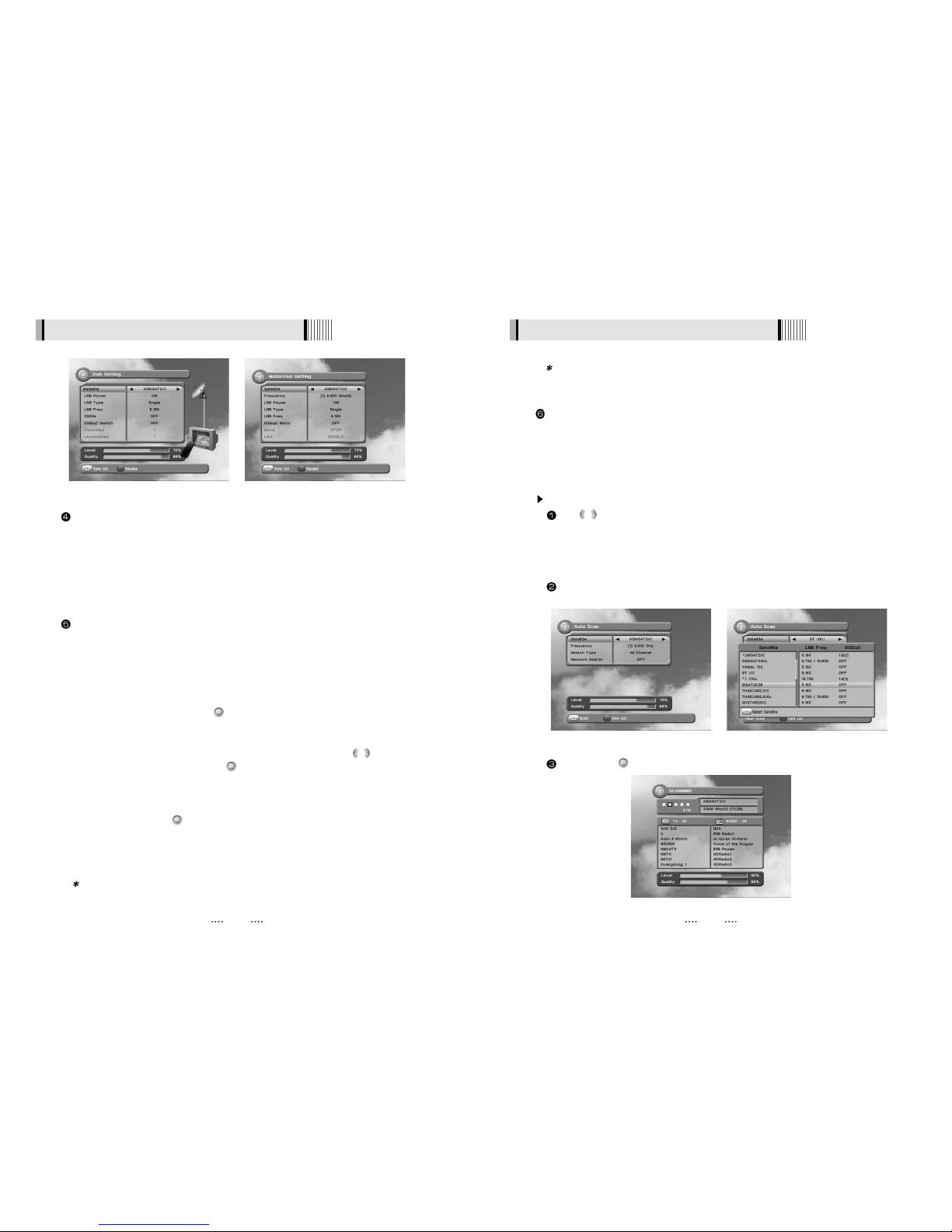

6.2 System Setting

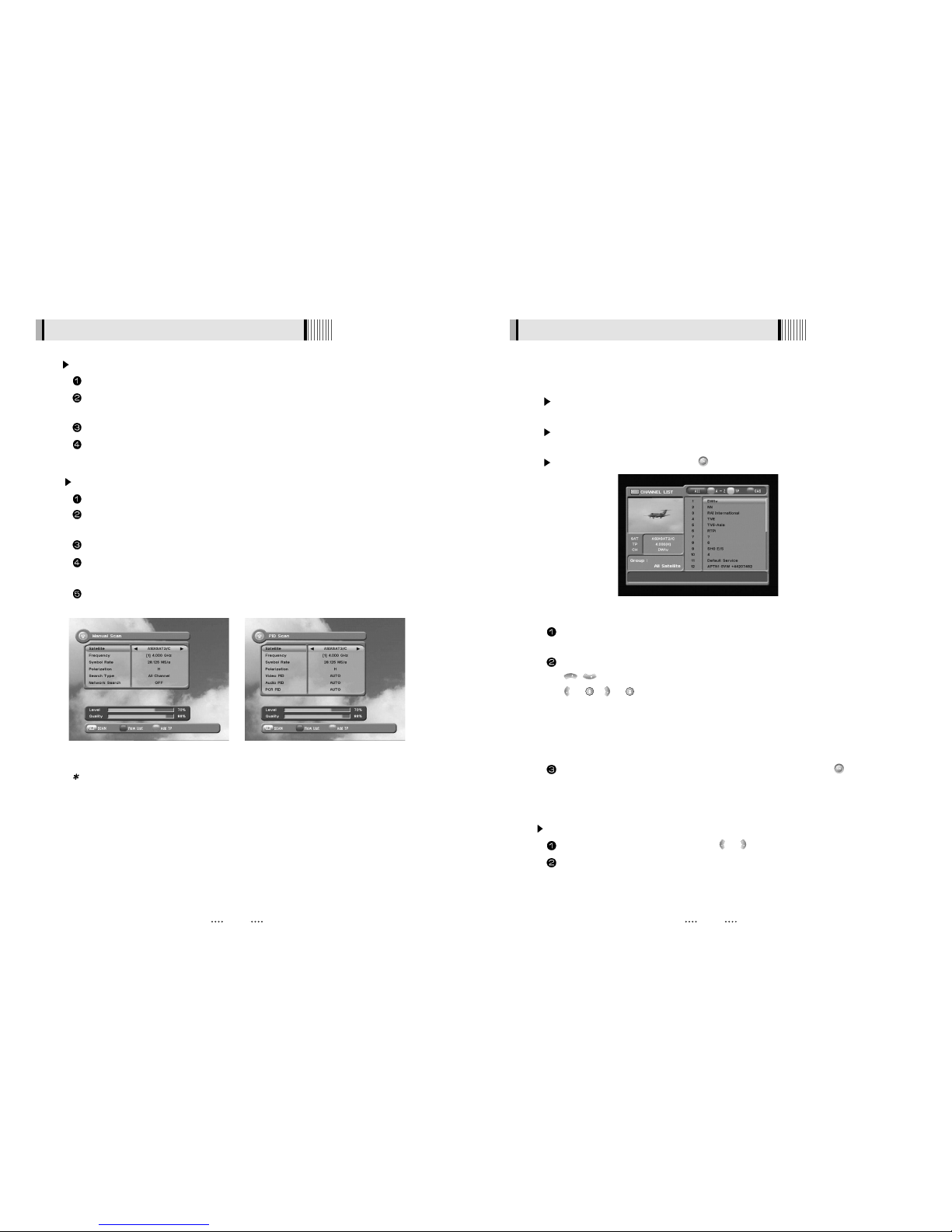

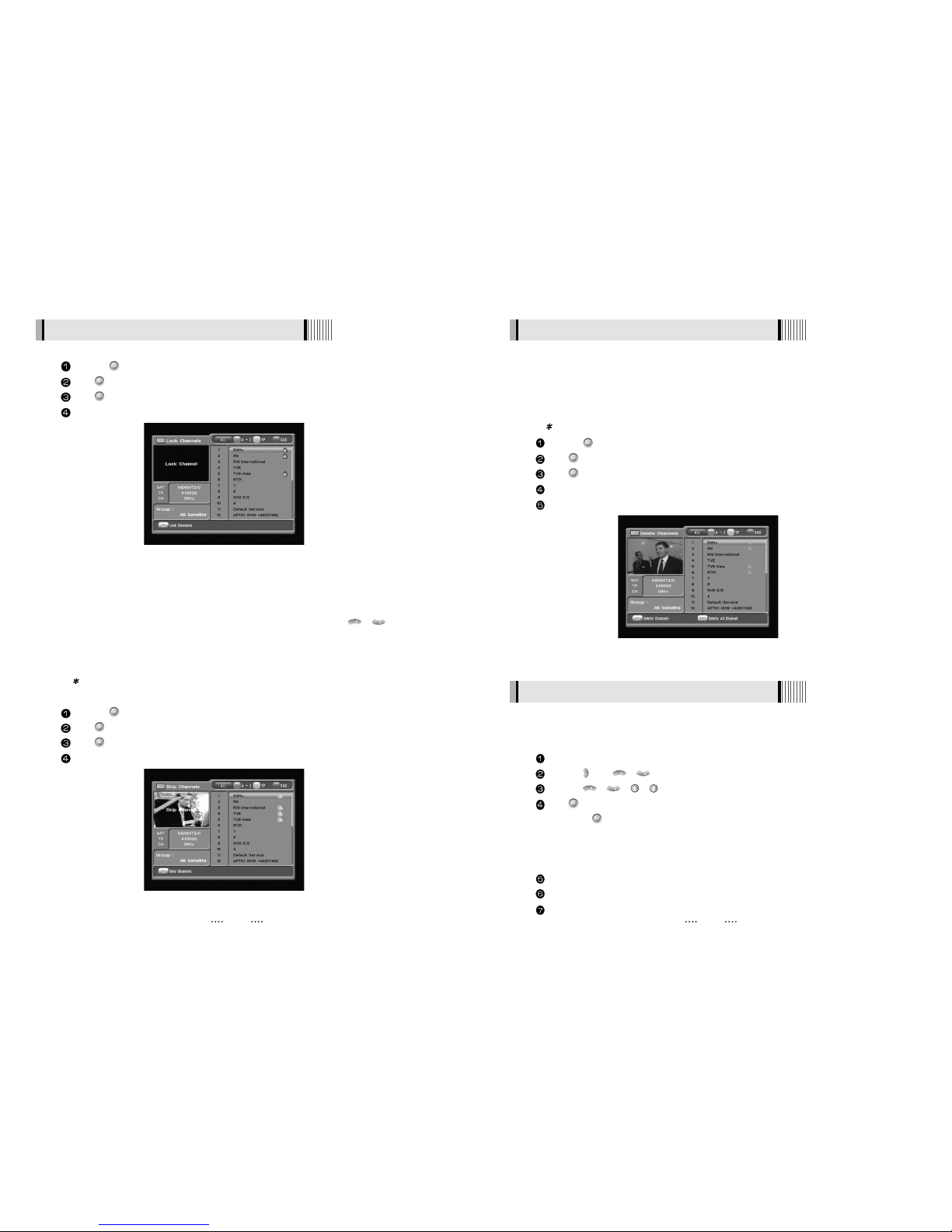

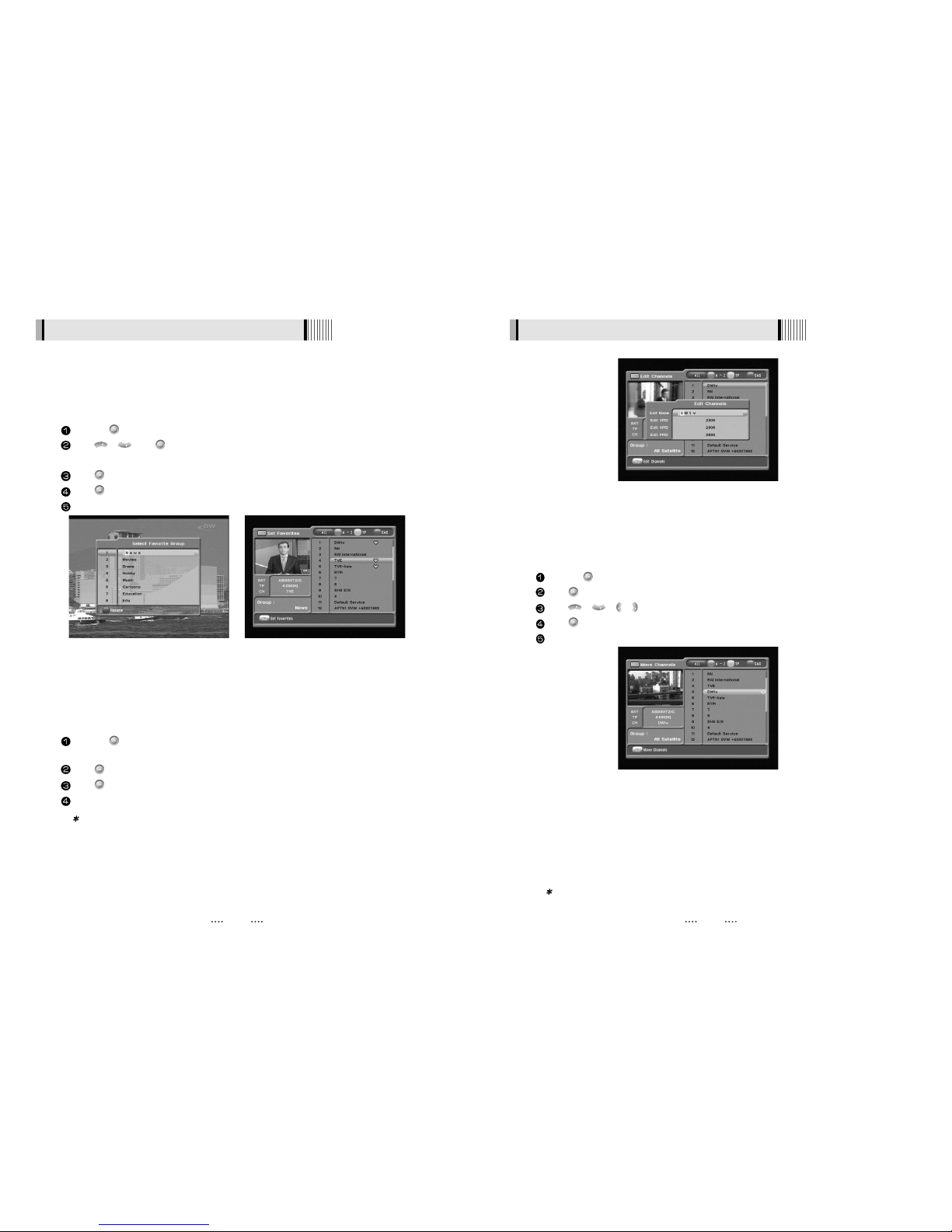

6.3 Channels

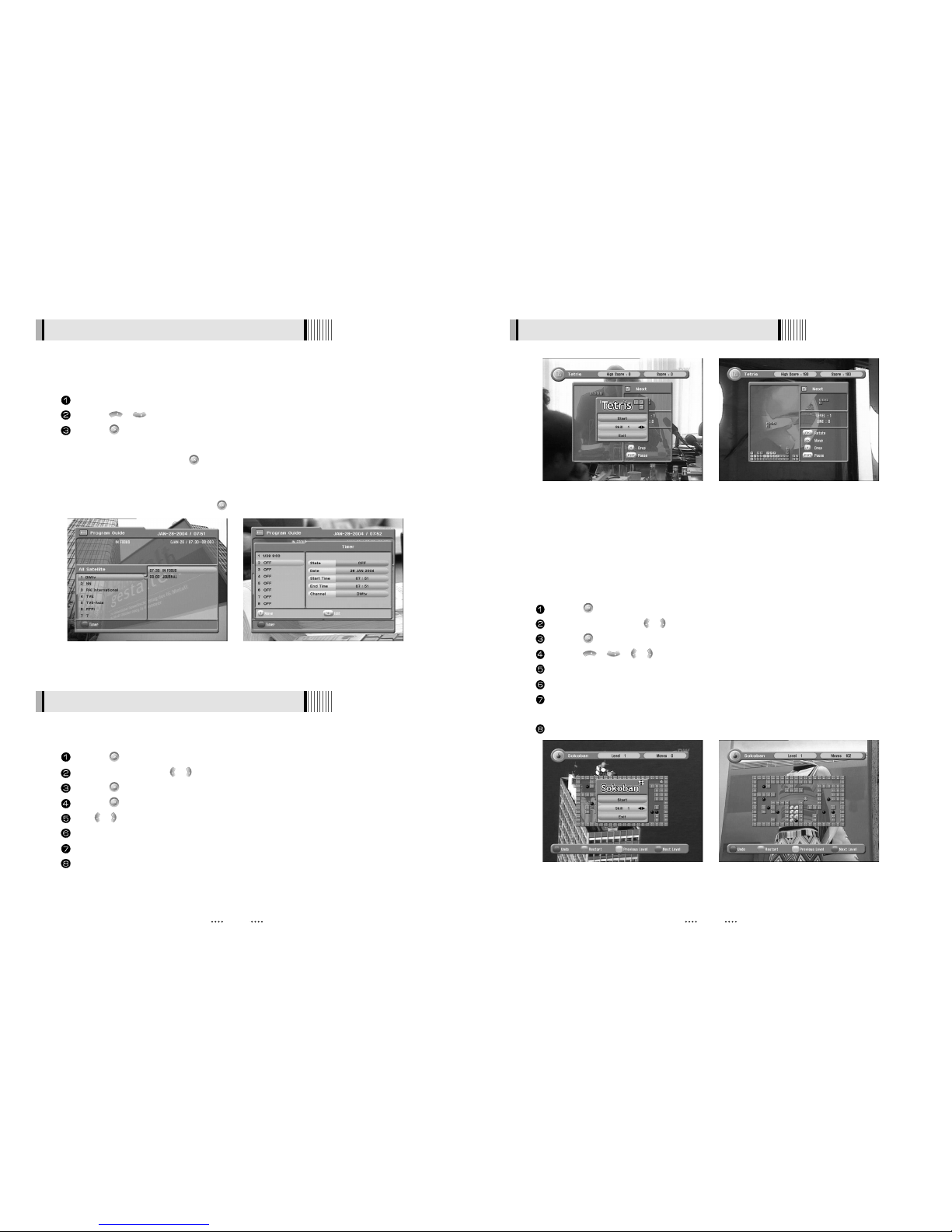

6.4 Guide

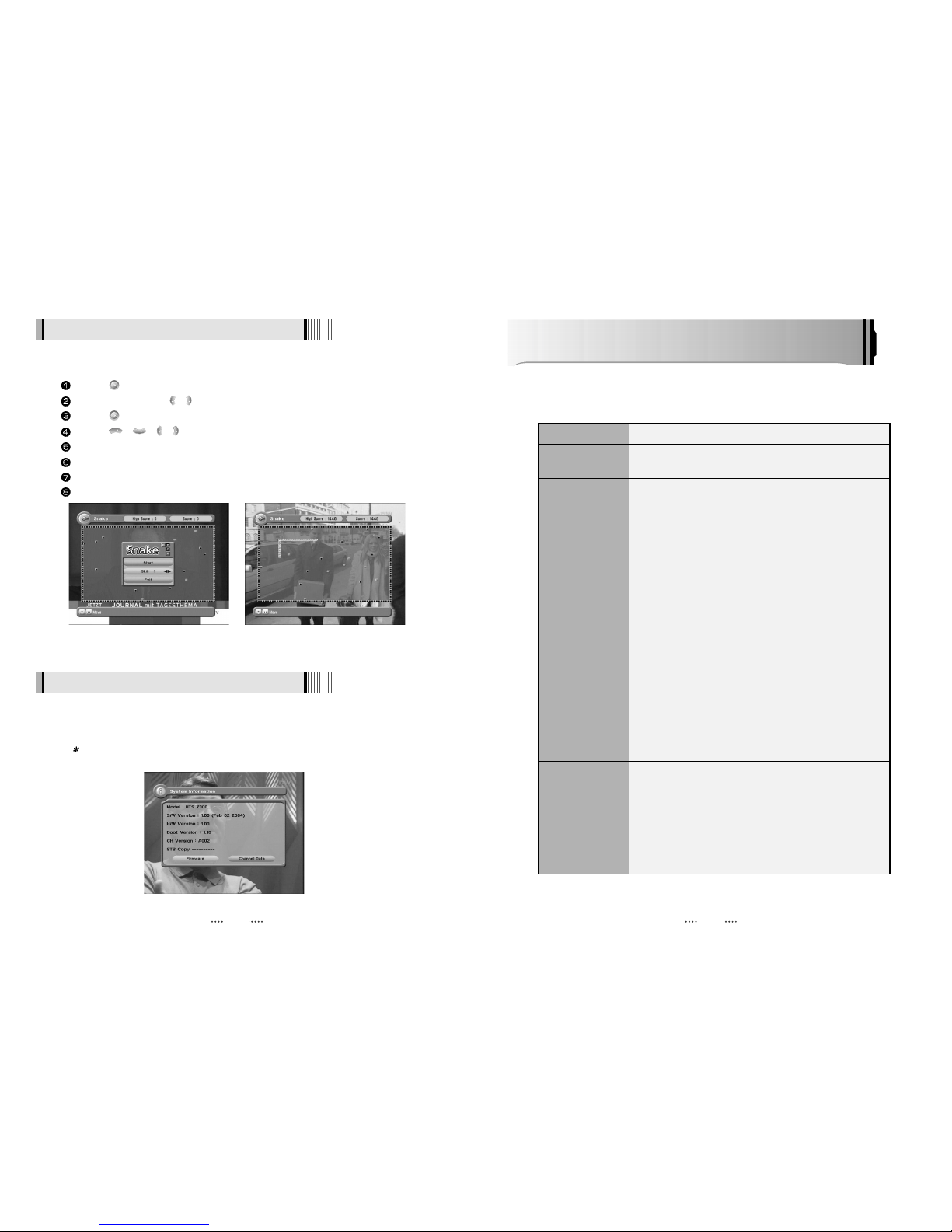

6.5 Games

6.6 System Information

7. Trouble Shooting 27

8. Specifications 28

Contents

DiSEqC is a trademark of EUTELSAT

2 3

This satellite receiver is designed for using digital free-to-air channel reception. Enjoy the
rich choice of more than 4,000 different channels, broadcasting a large range of culture,
sports, cinema, news, events, etc. This receiver is a technical masterpiece, assembled with
the highest qualified electronic parts.

Be sure to read the user's manual before
starting the operation of the unit.

Do not touch the power cord with wet
hands as it may cause electric shock.

Never open the cover. It is very
dangerous to touch the inside of the
unit due to possible electric shock.

Place the unit in a well ventilated and
no-heat environment.

When you do not use this unit for a
long time, make sure that power cord
is pulled out from the outlet. Also do
not use a damaged power cord as it
may cause fire or electric shock.

A professional installation is required.
If reception is interrupted, contact your
local service centre.

Introduction Safety/Precaution

1.1 Overview 2.1 Safety

MPEG-II Digital & fully DVB compliant.
On-screen display with 256 color resolution.
DiSEqC Control Version 1.0, 1.1, 1.2 and USALS compatible.
Renameable 8 Favorite channel groups.
Powerful Channel control by Favorites, Lock, Skip, Move and Delete.
Channel Sorting by Alphabet, Transponder and CAS.
10 languages(OSD & Menu): English, Italian, Turkish, Arabic, Parsi, German, French, Russian,

Spanish, Protuguese.
Extended EPG and Program Reservation through EPG.
Teletext support.(OSD and VBI Insertion

)
Last channel memory function.
Total 4,000 Channels programmable.
Multi-Satellite Search
Games Included.(Tetris, Sokoban, Snake

)

Software & Channel Database Upgrade via RS-232C from PC

(

PC-to-Set)or Set(Set-to-Set).
Parental lock/ Installation Lock / Receiver Lock / Channel Lock / Lock Channel confirm.
Zoom Function in Pause.

1.2 Main Features

4 5

User's manual : 1

User's manual

Remote control : 1

Batteries (AAA type) : 2

If any accessories listed above
are missing, contact the sales
representative where you
purchased this unit.

INFO

PAUSE

GUIDE

GROUP

TV/RADIO

TV/SAT

MENU

EXIT

CH

VOLVOL

CH

TEXTRECALL AUDIO

RCA Cable : 1

When installing the unit

2.2 Precautions

Accessories of this are as below

Check Points before Use

3.1 Accessories

Your dish should be properly installed and azimuth and elevation must be precisely set up.

This unit is working with DiSEqC 1.2 on a compatible antenna positioner.

Ask your dealer for information.

3.2 The Satellite dish

Install the unit horizontally. An uneven
installation may cause the unit to be
damaged.

Do not put heavy items such as a TV
on the unit. That may cause the unit to
be damaged.

Do not leave the unit where the water
drops or splashs.

Do not put water holding items shch as
vase on the unit.

Do not install the unit:

Where it is subject to vibrations
Where it is exposed to direct sunlight
Where there is humidity
Where the temperature is too high or too low.
Where there is no ventilation

Moving the unit to a hot area from a
cold one will cause condensation.
Do not operate the unit for one or two
hours or until it has dried completely.

6 7

Standby/Power on lndication Light : Flashing red on “Stand By” mode and no

light on “Power On” mode.

Indication Light : While pressing RCU key, this light will be flashing at the same

time.

Power : To switch the receiver in “standby” mode or in power on mode.

- CH.

/ : To change channel or cursor position on the application screen.

54

3

2

1

3

51 2 4

Controls/Functions

4.1 Front Panel

4.2 Rear Panel

10

1 3 5 7

9

11

2 4 6 8

No. Name Connector Function

1 RF OUT UHF 21-69 IEC 169-2 male Output to TV
2 TV ANT IN IEC 169-2 female Input from terrestrial antenna
3 AUDIO L RCA cinch Left audio output
4 AUDIO R RCA cinch Right audio output
5 VIDEO RCA cinch Composite video output
6 S/PDIF RCA cinch Digital audio output
7 TV SCART SCART CVBS, RGB Video Output

Audio Output

8 VCR/AUX SCART SCART CVBS Video Output

CVBS, RGB Video Input
Audio Output

9 RS-232C DB-9 Low speed serial port
10 LNB INPUT IEC 169-24 female IF input from LNB to digital tuner
11 LOOP OUT IEC 169-24 female IF loop-through output from digital tuner
