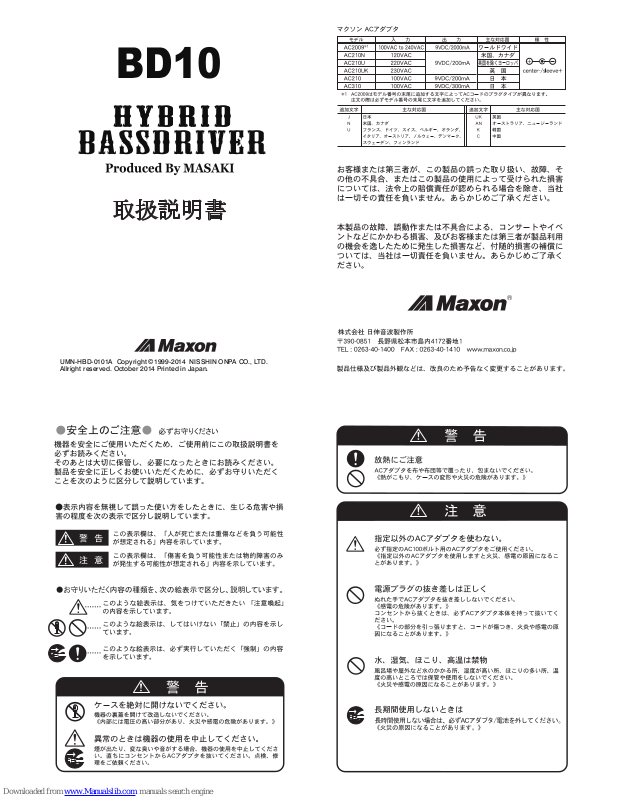

Maxon bd10 User Manual

UMN-HBD-0101A Copyright 1999-2014 NISSHIN ONPA CO., LTD.
Allright reserved. October 2014 Printed in Japan.

取扱説明書

BD10 Hybrid Bass Driver

●この製品は9V乾電池6F22を1本使用しています。

●乾電池の交換は図の手順に従ってください。

⑥ CLEAN LEVEL（クリーン・レベル）

原音の出力音量を調節します。右に回す
ほど原音の音量が大きくなります。

⑦ DRIVE LEVEL（ドライブ・レベル）

ひずみ音（エフェクト音）の音量を調節します。
右に回すほどひずみ音（エフェクト音）の
音量が大きくなります。

⑧ INDICATOR（LEDインジケータ）

エフェクトの状態でLED点灯、バイパスの
状態で消灯します。 バッテリ・コンディション
も兼ねています。

⑨ フット・スイッチ

⑩ DC INPUT（外部電源ジャック）

接続例

●

●

●

ベース、エフェクタ、アンプ等へのプラグ接続は、接続されるほかの機器への
ノイズによる損傷を防ぐためにエフェクタ、アンプ等のボリュームを絞り切って
から接続してください。
乾電池を長持ちさせるため、使用しない時は、インプット・ジャックからプラグ
を抜いてください。
長時間使用しない時は、乾電池を抜きとってください。
LEDが暗くなったり点灯しない時は乾電池の電圧低下を示します。このような
場合効果が弱くなったり音がひずんだりしますので早めに乾電池を交換して
ください。
ACアダプタは必ずマクソン製品をお使いください。指定外のものをご使用に
なるとトラブルの原因になります。
操作上必要なもの以外の止めネジ類には触れないでください。

取扱上の注意

■

■

■

■

■

■

ベーシストが理想とするひずみを得るために、MASAKI氏の使用機材
を徹底的に検証。MASAKI氏の圧倒的なスキルと、Maxonの長年の
知識を掛け合わせたハイブリッドなベース・ペダルです。

LEDの点灯によりエフェクト効果のON/OFFが一目で確認できます。
また、バッテリ・コンディションも兼ねています。

9Vバッテリ、または9Vのオプション・パワーサプライで動作します。

純日本製 / MADE IN JAPAN

日本屈指のテクニカル・ベーシストであるMASAKI氏が監修のベース・
オーバードライブ。マルチ・フィンガー・ピッキングを使った高速早弾き
やタッピング奏法でも、1音1音がクリアに表現出来る、芯のある適度な
ひずみ感が特長です。

クリーン・レベル（原音）とディストーション・レベル（エフェクト音）のコント
ローラーがそれぞれ独立しています。これによってベーシストが理想と
する「原音」と「ひずみ」のバランスを細かく調整

できます。

：500kΩ
：10kΩ以下
：38dB (120Hz)
：-118dB以下　(入力ショートIHF‐A)
：DRIVE, LOW, HIGH, DRIVE LEVEL, CLEAN LEVEL
：BYPASS／EFFECT
：BYPASS／EFFECT LED
：6F22 9V乾電池1本または専用ACアダプタ
：19mA/9VDC
：マンガン 25時間　25℃（FUJITSU 6F22）
：アルカリ 45時間　25℃（TOSHIBA 6LF22）
：70mm (幅）×113mm (奥行き）×56mm（高さ）
：330g（乾電池含む）
：テスト用乾電池×1
　製品保証書×1 　取扱説明書×1

入力インピーダンス
出力インピーダンス
最大増幅率
入力換算ノイズ
コントロール
スイッチ
表　示
電　源
消費電流
電池寿命

寸法（突起物含む）
重　量
同梱品

ACアダプタ

※ 0dB＝0.775Vrms

●

●

●

① INPUT（インプット・ジャック）

入力ジャックです。ベースや他の
エフェクタ等の楽器､機器類の出力と
接続します。プラグを差し込むと､
自動的に電源が入ります。
使用しない時はプラグをジャックから
抜いておいてください。

② OUTPUT（アウトプット・ジャック）

出力ジャックです。アンプまたは他の
エフェクタなどの入力と接続します。

③ DRIVE（ドライブ）

ひずみの量をコントロールします。
右に回すとひずみが増します。

④ LOW（ロー）

音質をコントロールします。
右に回すと低音域が強調されます。

暗い場合や点灯しない時は、電池が
入ってないか、電池が消耗（電圧が
低下）しています。新しい電池と交換
してください。

バイパス/エフェクト切り換えスイッチ
です｡踏む度にバイパスとエフェクト
交互に切り換わります。

専用ACアダプタを接続するジャックです。

ACアダプタやDCプラグを
抜き差しする前にアンプの
ボリュームを最小にしてください。

⑤ HIGH（ハイ）

音質をコントロールします。右に回すと
中・高音域が強調されます。

※乾電池の交換はバッテリ・スナップと乾電池の接続が確実であること、乾電池
　 の極性に注意してください。

※使用済み乾電池は、住んでいる市町村の指示に従って、廃棄してください。

-80

-70

-60

-50

-40

-30

-20

-10

10 20k 20 50 100 200 500 1k 2k 5k 10k

Frequency (Hz)

OUTPUT (dB)

LOW

① Max
② Center
③ Min

①

③

②

-60

-50

-40

-30

-20

-10

10 20k20 50 100 200 500 1k 2k 5k 10k

①
②

③

Frequency (Hz)

OUTPUT (dB)

HIGH

① Max
② Center
③ Min

UMN-HBD-0101A Copyright 1999-2014 NI

SSHIN ONPA CO., LTD.

Allright reserved. October 2014 Printed in Japan.

model name

suffix country

Optional accessories: Maxon AC adaptor

*1 Plug type of AC2009 varies with the suffix as shown below.

Please specify exact model (like AC2009AN, AC2009C) when ordering.

ytiraloptuptuotupni

AC2009*

1

AC210N
AC210U
AC210UK
AC210
AC310

AN

C
J
K
N

Australia, New Zealand
China
Japan
South Korea
USA, Canada

suffix country

U

UK

Austria, Belgium, Denmark,
Finland, France, Germany, Italy,
Netherlands, Norway, Sweden,
Switzerland, etc.
UK

country

worldwide

USA, Canada

Europe (except UK)

UK
Japan
Japan

120VAC
220VAC
230VAC
100VAC
100VAC

9VDC/200mA

9VDC/2000mA

9VDC/200mA
9VDC/300mA

center-/sleeve+

＋ －

Warning

NEVER OPEN THE CASE

・

STOP THE USE IN CASE OF A PROBLEM

・

・

NEVER OPEN

THE CASE

Immediately
unplug AC
adaptor from the
power source

Please be sure to observe.

A black circle an action that must be performed.

Warning

Caution

..........

..........

..........

Caution

USE SPECIFIED AC ADAPTOR ONLY

・

UNPLUGGING AC ADAPTOR

・

・

WATER, HUMIDITY, DUST AND HIGH
TEMPERATURES

・

LEAVING THE EQUIPMENT UNATTENDED

・

Warning

・

Immediately
unplug AC
adaptor from the
power source

◆

NISSHIN ONPA CO., LTD.

4172-1 Shimauchi, Matsumoto-City, Nagano, 390-0851 Japan
TEL:[phone] FAX:[phone]
www.maxon.co.jp [e-mail]
For North America
www.maxonfx.com [e-mail]

◆

SAFETY PRECAUTIONS

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE FOR IMPROVEMENT WITHOUT
NOTICE OR OBLIGATION.

100VAC to 240VAC

A triangle indicates something you should be careful
about.

A circle with a line through it indicates something
you should not do.

Be sure to use only the AC adaptor specified in this User's
Guide. Use of non-specified AC adaptors creates the danger of
fire and electrical shock.

Never try to unplug AC adaptor while your hands are wet. Doing
so creates the danger of electrical shock.
When unplugging AC adaptor from the power source, be sure to
grasp the adaptor. Never pull on the cord. Doing so can damage
the power cord and create the danger of fire and electrical shock.

Never leave or use the equipment in bathrooms, the outdoors or
other areas subject to water, high humidity, dust and high
temperature. Doing so creates the danger of fire and electrical
shock.

Whenever leaving the equipment unattended for long periods, be
sure to unplug AC adaptor from the power source. If not, there is a
danger of fire.

Never cover AC adaptor with cloth or other objects.
《Build up heat creates the danger of the equipment
deformation and fire.》

Stop using the equipment and unplug immediately if you
notice smoke and/or a strange odor emanating from it.
Contact your original dealer or nearest authorized service
provider for service.

Never try to remove the bottom cover and to modify the

equipment.《Internal components of the equipment use
high voltages, and exposing them creates the danger of fire
and electrical shock.》

Precaution text is generally accompanied by the following symbols to
alert you and others to the risk of personal and material injury that may
be caused if the precaution is ignored.

If you want to dispose this product, do not mix with general
household waste.
There is a separate collection system for used electronics products
in accordance with legislation under the WEEE Directive (Directive
2002/96/EC) and is effective only within European Union.

Maxon shall not be held liable to you or any third party for any losses caused by
incorrect operation of this equipment, malfunction or any other failure of this
equipment to operate as expected, or normal use of this equipment, except to
the extent stipulated by law.

Maxon shall not be held

liable to you or any third par ty for any losses related to
concerts, exhibitions, or any other type of event due to malfunction or incorrect
operation of this equipment.

The safety precautions listed below are intended to ensure your safety
whenever you use the equipment.

Precaution text is generally accompanied by the following icons to
alert you and others to things you should or should not do.

BEWARE OF HEAT BUILD-UP

This symbol indicates an item that can result in death
or serious personal injury if ignored.

This symbol indicates an item that can result in serious
personal injury or material damage if ignored.

To assure safe operation of the equipment, please make
sure to read these precautions prior to use.
Keep this User's Guide on hand for future reference
whenever you need it.

User's Guide

① INPUT (input jack)

③ DRIVE

④ LOW

CONNECTION DIAGRAM

FEATURES AND CONTROLS

BATTERY REPLACEMENT

ATTENTION:

SPECIFICATIONS

*

0dB=0.775Vrms.

② OUTPUT (output jack)

BD10 Hybrid Bass Driver

●

●

●

●

●

●

●

Input jack to connect to the output of
Bass, other effects or related equipment.
The product automatically turns on when
a plug is inserted into this jack.
When not in use, disconnect plug from
input jack to preserve battery life.

Output jack to connect to input of
amplifier or other effects.

The knob controls the amount of distorsion.
Rotate this knob clockwise for more
distortion. (Maximum gain: 38dB)

This knob controls the amount of lows
present in the Drive signal. Rotate this
knob clockwise to emphasize the low
frequencies in the Distortion.

present in the Drive signal. Rotate this
knob clockwise to emphasize the middle
and high frequencies in the Distortion.

The BD10 Hybrid Bass Driver was designed in cooperation with
prominent Japanese Bassist Masaki The BD10 features an expressive
tonality with strong yet articulate distortion that accentuates fast playing
techniques such as multi-finger picking and two-handed tapping.

The BD10 features independent Level controls for the Clean and Drive
signals. This allows the user to “fine tune” the balance between clean
and distorted signals to obtain the ideal mix that compliments their
individual playing technique.

Thorough research was conducted on Masaki’s equipment to find the
ideal distortion type for Bass Guitar. The BD10’s distortion provides

The word “Hybrid” in the pedal title refers to the joint development
effort which combined Masaki’s great skill and knowledge of the
Bass Guitar with Maxon’s proven and trusted reputation in the
field of Effects.

LED to indicate bypass/effect and battery condition for trouble-free
performance.

Operates with 9V battery or standard AC adaptor for 9V (not included).
Made in Japan.

harmonically-rich saturation with long sustain and retains note
clarity and expressiveness even at maximum settings.

The LED lights when effect is on.
The light is turned off at bypass status.
LED brightness synchronizes with
battery condition.

⑩ DC INPUT (power input jack)

Jack for connection of external
power supply to effect.

Turn down amplifier’s volume to
the minimum before connecting
AC adaptor to the product in
order not to damage other
connected equipment.

⑨ FOOTSWITCH
(bypass/effect switch)

No LED light indicates the battery
is low or not installed. In this case
replace the battery.

Switch for effect on/off. Stepping on
this switch alternately turns effects
on (LED on) and off (LED off).

⑥ CLEAN

LEVEL

⑦ DRIVE

LEVEL

This knob adjusts the output level of the
Clean signal from zero to 5.5dB above
unity Gain. Rotate this knob clockwise
for louder Clean signal.

This knob adjusts the output level of the
Drive signal from zero to 14dB above
unity Gain. Rotate this knob clockwise
for louder Distortion.

⑧ INDICATOR
(bypass/effect LED indicator)

⑤ HIGH

This knob controls the amount of highs

BD10 operates on one 9V battery (6F22 or 6LF22).

Follow the procedures below to replace a battery.

*

Be sure the battery is firmly connected to battery snap with the

correct polarities.

Turn down the volume of effect and amplifier to the minimum
before connecting Maxon effects to Bass guitar, amplifier or
other effects in order not to damage other connected equipment
by unintended noise.
When not in use, disconnect plug from input jack to preserve
battery.
Take out the battery if the product is not used for a long period
of time.
No or dark LED light indicates the battery is low or not installed.
In this case replace the battery to avoid poor effect or distorted
signal.
Be sure to use the correct Maxon AC adaptor. Use of any other
adaptor may cause trouble.
Do not try to remove screws.

Input Impedance

Output Imprdance

Maximum Gain

Input Noise

Controls

Switch

Indicator

Power Supply

Power Consumption

Battery Life

Dimensions

Weight

Accessory

: 500k ohms

: 10k ohms or less

: 38dB (120Hz)

: -118dB or less (Input shorted, IHF-A weighted)

: DRIVE, LOW, HIGH, CLEAN LEVEL, DRIVE LEVEL

: BYPASS / EFFECT

: BYPASS / EFFECT LED

: 6F22 / 6LF22 9V battery × 1 or Maxon AC adaptor

: 19mA / 9VDC

: 9VDC manganese battery 25 hours 25 deg C

(FUJITSU 6F22)

9VDC alkaline battery 45 hours 25 deg C

(TOSHIBA 6LF22)

: 70(W)×113(D)×56(H)mm (with protrusion)

: Approx. 330g (incl. battery)

: 6F22 9V battery × 1, operating manual

■

■

■

■

■

■

AC adaptor

-80

-70

-60

-50

-40

-30

-20

-10

10 20k 20 50 100 200 500 1k 2k 5k 10k

Frequency (Hz)

OUTPUT (dB)

LOW

① Max
② Center
③ Min

①

③

②

-60

-50

-40

-30

-20

-10

10 20k20 50 100 200 500 1k 2k 5k 10k

①
②

③

Frequency (Hz)

OUTPUT (dB)

HIGH

① Max
② Center
③ Min
