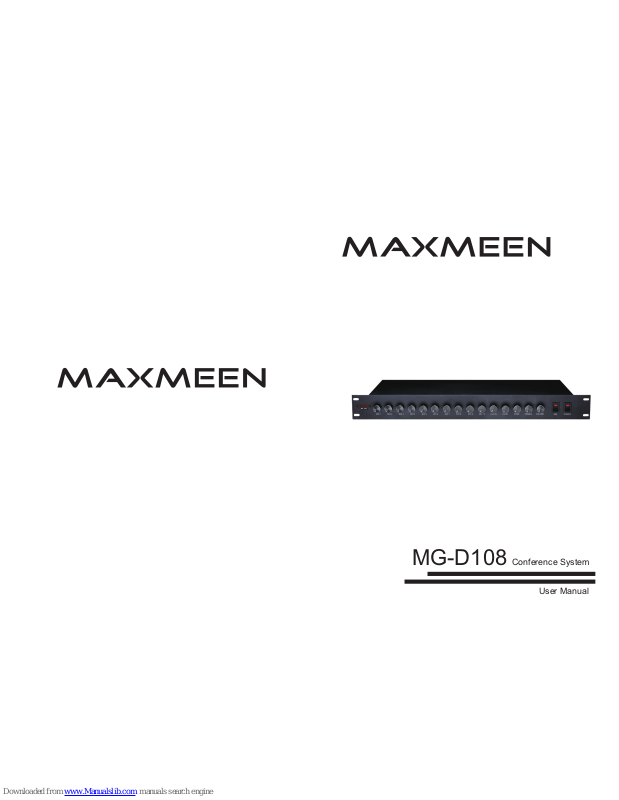

Maxmeen MG-D108 User Manual

Conference System

User Manual

MG-D108

MG-D108

MG-D108

MG-D108

Dear users:

Thank you for using MAXMEEN products, please read this manual before

using to make sure the correct operation and exert the best performance.

Features

• Supports 10 balanced or unbalanced microphone signal input.

• Independent microphone output volume control.

• Stereo line input for connecting the background sound source device.

• 48V phantom power supply meets the power supply demand of condenser

microphone.

• With microphone ECHO effect adjustment function.

• Built-in digital frequency shift circuit features strong anti-howling ability.

• 2 microphone EQ adjustment for better sound effect of different microphone.

Function Button Instruction

Front Pannel

Rear Pannel

Specification

• Input Voltage: AC 18V

• Output Voltage: 48V phantom power

• Output Current: 6.5mA

• Microphone connection match: phantom or non-phantom power supply

(Please turn the phantom power off if have no need with)

• Microphone connection mode: ten 6.35 socket, ten female cannon socket

• Weight: 2.5KGS

• Dimension: 485*206.5*61mm

• Power Consumption: <7.5W

• Output Impedance: 600Ω

• S/N Ratio: ≧R64dB

• Frequency Response: 30Hz-20kHz

Product Content

MG-D108 conference system 1pc

Adaptor 1pc

User manual 1pc

Certification 1pc

Waranty card 1pc

MIC 1 MIC 2

MIC 3

MIC 4 MIC 5 MIC 6 MIC 7 MIC 8 MIC 9 MIC 10 BASS

TREBLE

AUX IN 48V POWERVOLUMEECHO

MG-D108

IN

OUT

LINEMIC 1MIC 2

MIC 3

MIC 4MIC 5MIC 6MIC 7MI C 8MIC 9MIC 10AC 18V

MIC OUT

Made in China
