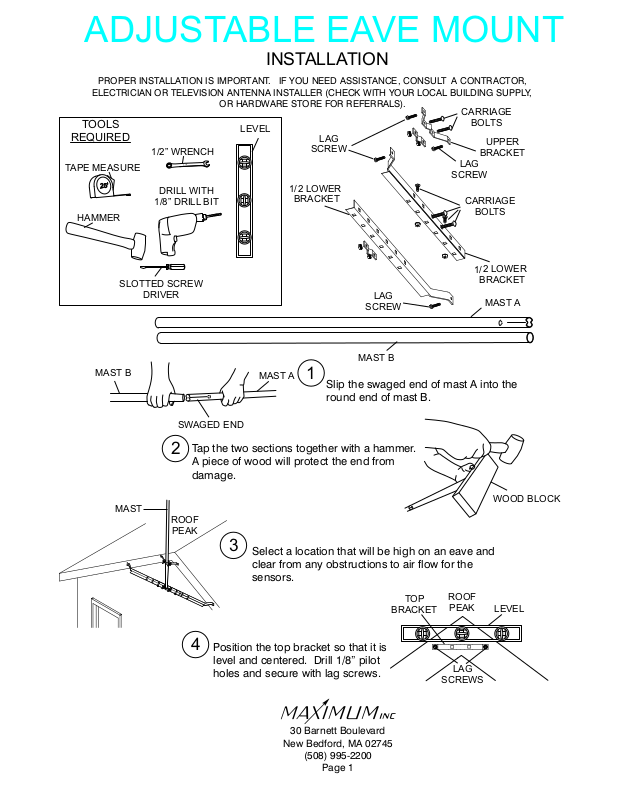

ADJUSTABLE EAVE MOUNT
INSTALLATION
PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR,
ELECTRICIAN OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY,
TOOLS
REQUIRED
TAPE MEASURE
HAMMER
SLOTTED SCREW
2” WRENCH
1/
2”
1/
DRILL WITH
1/8” DRILL BIT
DRIVER
OR HARDWARE STORE FOR REFERRALS).
LEVEL
1/
LAG
SCREW
2 LOWER
BRACKET
LAG
SCREW
CARRIAGE
BOLTS
BRACKET
LAG
SCREW
CARRIAGE
BOLTS
2 LOWER
1/
BRACKET
UPPER
MAST A
MAST B
MAST
MAST A
1

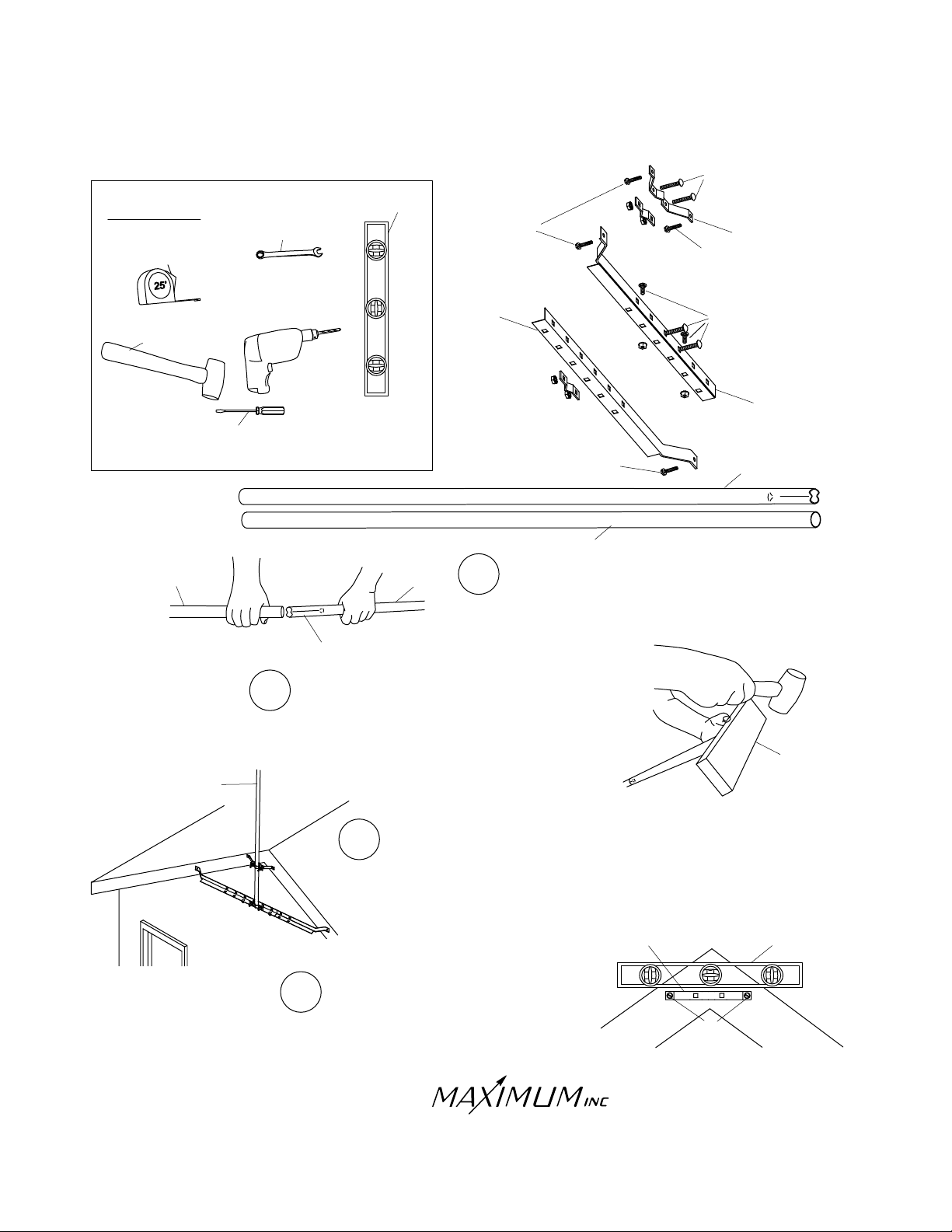

Slip the swaged end of mast A into the
round end of mast B.
SWAGED END
Tap the two sections together with a hammer.
2
A piece of wood will protect the end from
damage.
ROOF
PEAK
3
Select a location that will be high on an eave and
clear from any obstructions to air flow for the
sensors.
4
Position the top bracket so that it is
level and centered. Drill 1/8” pilot
holes and secure with lag screws.
MAST B
TOP
BRACKET
ROOF
PEAK
LAG
SCREWS
WOOD BLOCK
LEVEL
30 Barnett Boulevard
New Bedford, MA 02745
(508) 995-2200
Page 1
Page 2
ADJUSTABLE EAVE MOUNT
INSTALLATION

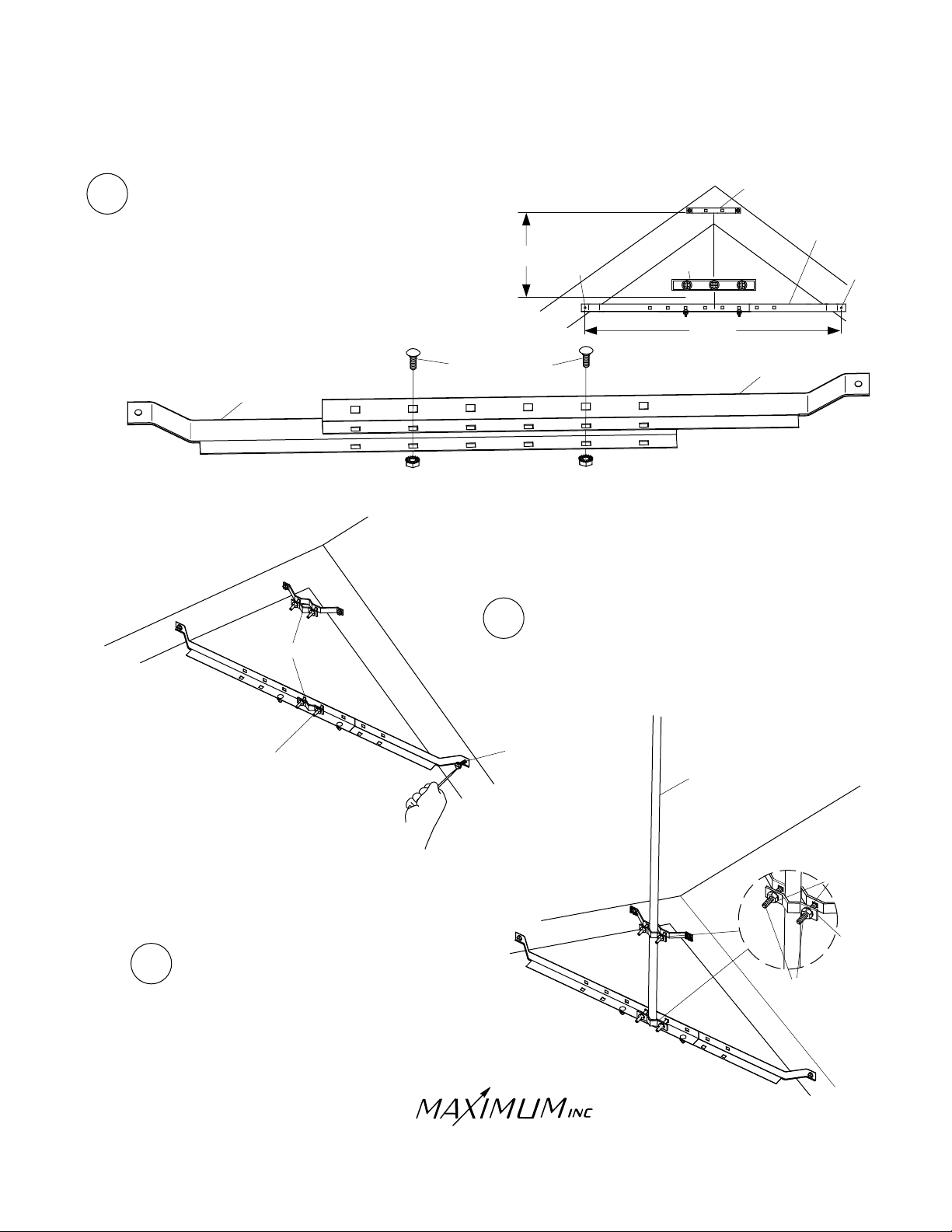

The bottom bracket should be mounted at least
5
18” directly centered below the top bracket.
Assemble the two sections so that the length will
span the distance on the eave below this point.
Using the assembled bracket, held level as a
guide, mark and drill the two 1/8” pilot holes.
LOWER
BRACKET
HALF
ROOF
PEAK
18”
SHORT
CARRIAGE
BOLTS
PILOT
HOLE
ROOF
PEAK
LEVEL
TOP
BRACKET
LOWER
BRACKET
PILOT
HOLE
45”-60”
LOWER
BRACKET
HALF
CLAMP
CARRIAGE
BOLTS
7
Slip the mast into place under the mast
clamps and tighten the nuts on the carriage
bolts.
Secure the brackets to the eaves
6
with the lag screws and install the
mast clamps but do not tighten the
carriage bolts at this time.
LAG
SCREW
MAST
NUTS
MAST
CLAMP
CARRIAGE
BOLTS
30 Barnett Boulevard
New Bedford, MA 02745
(508) 995-2200
