Model No. 054-8382-4
7 1/4" (18.5 cm)
Circular Saw with Electric Brake
Page 2
Page 3
3
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5
Key Parts Diagram 11
Important Information 13
Assembly Instructions 17
Operating Instructions 20
Maintenance 24
Troubleshooting 25
Parts List 26
Warranty 29
NOTE: If any parts are missing or damaged, or if you
have any questions, please call our toll-free helpline at
1-888-670-6682.
SAVE THESE INSTRUCTIONS
• This manual contains important safety and
operating instructions. Read all instructions
and follow them with use of this product.
TABLE OF CONTENTS
Page 4
4
model no. 054-8382-4 | contact us 1-888-670-6682
TECHNICAL SPECIFICATIONS
Rated power input 15A
Rated Voltage 120V~, 60Hz
No Load Speed 5500 RPM
Blade Diameter 7 1/4" (18.5 cm)
Blade Arbor 5/8" (16 mm)
Cutting Depth at 90° 2 3/8" (6 cm)
Cutting Depth at 45° 1 13/16" (4.6 cm)
Bevel Angle Adjustable 0–56°
Tool Weight 11 lb 3 oz (5.08 kg)
TECHNICAL SPECIFICATIONS
Page 5
5
RULES FOR SAFE OPERATION
KNOW YOUR TOOL
To operate this tool, carefully read this Instruction Manual and all labels affixed
to the Circular Saw before using. Keep this manual available for future reference.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more
information, call the toll free helpline at 1-888-670-6682.
READ ALL INSTRUCTIONS CAREFULLY
SAVE THESE INSTRUCTIONS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
Read all safety warnings and instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools create sparks, which may
ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do
not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep the cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
SAFETY GUIDELINES
Page 6
6
model no. 054-8382-4 | contact us 1-888-670-6682
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground-fault
circuit interruptor (GFCI) protected supply. Use of a GFCI reduces the risk of
electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a
power tools. Do not use a power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention while operating
power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure that the switch is in the off-position
before connecting to a power source or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in
personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• If devices are provided for the connection of dust extraction and collection
facilities, ensure that these are connected and properly used. Use of dust
collection devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and more safely at the rate for which
it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
SAFETY GUIDELINES
Page 7
7
• Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control;
• Use the power tool, accessories, tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
SERVICE
• Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
SAFETY INSTRUCTIONS FOR ALL SAWS
• Do not reach underneath the workpiece. The guard cannot protect you from the
blade below the workpiece.

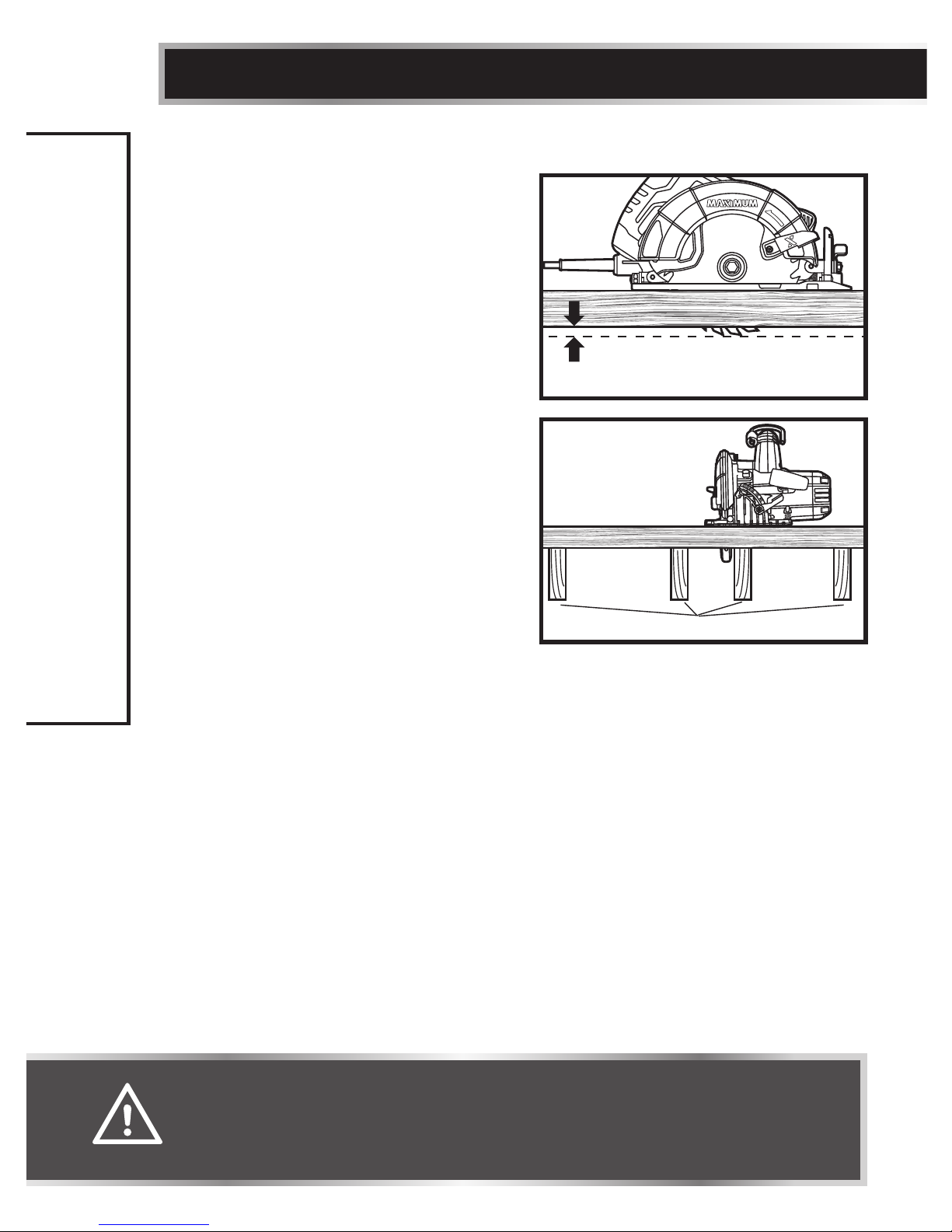

• Adjust the cutting depth to the thickness of the workpiece. Less than a full
tooth of the blade teeth should be visible below the workpiece.
• Never hold piece being cut in your hands or across your leg. Secure the
workpiece to a stable platform. It is important to support the work properly to
minimize body exposure, blade binding, or loss of control.
• Hold the power tool only by the insulated gripping surfaces when performing
an operation where the cutting accessory may contact hidden wiring or
its own cord. If a cutting accessory contacts a “live” wire, it may cause the
exposed metal parts of the power tool to become“live” and shock the operator.
• When ripping, always use a rip fence or straight edge guide. This improves the
accuracy of cut and reduces the chance of blade binding.
• Always use blades with correct size and shape (diamond versus round) of
arbor holes. Blades that do not match the mounting hardware of the saw will
run eccentrically, causing loss of control.
• Never use damaged or incorrect blade washers or bolt. The blade washers
and bolt were specially designed for your saw, for optimum performance and
safety of operation.
DANGER!
Keep hands away from cutting area and the blade. Keep your second
hand on auxiliary handle, or motor housing. If both hands are holding
the saw, they cannot be cut by the blade.
SAFETY GUIDELINES
Page 8
8
model no. 054-8382-4 | contact us 1-888-670-6682
FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
KICKBACK CAUSES AND RELATED WARNINGS
• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade,
causing an uncontrolled saw to lift up and out of the workpiece toward the
operator.
• When the blade is pinched or bound tightly by the kerf closing down, the blade
stalls and the motor reaction drives the unit rapidly back toward the operator.
• If the blade becomes twisted or misaligned in the cut, the teeth at the back
edge of the blade can dig into the top surface of the wood causing the blade to
climb out of the kerf and jump back toward the operator.
• Kickback is the result of saw misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below.
• Maintain a firm grip with both hands on the saw and position your arms to resist
kickback forces. Position your body to either side of the blade, but not in line
with the blade. Kickback could cause the saw to jump backwards, but kickback
forces can be controlled by the operator, if proper precautions are taken.
• When a blade is binding, or when interrupting a cut for any reason, release the
trigger and hold the saw motionless in the material until the blade comes to a
complete stop. Never attempt to remove the saw from the work or pull the saw
backward while the blade is in motion, or kickback may occur. Investigate and
take corrective actions to eliminate the cause of blade binding.
• When restarting a saw in the workpiece, centre the saw blade in the kerf and
check that saw teeth are not engaged into the material. If saw blade is binding,
it may walk up or kickback from the workpiece as the saw is restarted.
• Support large panels to minimize the risk of blade pinching and kickback. Large
panels tend to sag under their own weight. Supports must be placed under the
panel on both sides, near the line of cut and near the edge of the panel.
• Do not use dull or damaged blades. Unsharpened or improperly set blades
produce a narrow kerf, causing excessive friction, blade binding and kickback.
• Blade depth and bevel adjusting locking levers must be tight and secure before
making a cut. If blade adjustment shifts while cutting, it may cause binding and
kickback.
• Use extra caution when sawing into existing walls or other blind areas. The
protruding blade may cut objects that can cause kickback.
SAFETY INSTRUCTIONS FOR LOWER GUARD OF SAWS
• Check the lower guard for proper closing before each use. Do not operate the
saw if the lower guard does not move freely and close instantly. Never clamp or
tie the lower guard into the open position. If the saw is accidentally dropped,
the lower guard may be bent. Raise the lower guard with the retracting handle
and make sure it moves freely and does not touch the blade or any other part,
in all angles and depths of cut.
SAFETY GUIDELINES
Page 9
9
• Check the operation of the lower guard spring. If the guard and the spring are
not operating properly, they must be serviced before use. A lower guard may
operate sluggishly due to damaged parts, gummy deposits, or a build-up of
debris.
• The lower guard may be retracted manually only for special cuts, such as
“plunge cuts” and “compound cuts”. Raise the lower guard by retracting the
handle and then, as soon as blade enters the material, the lower guard must be
released. For all other sawing, the lower guard should operate automatically.
• Always observe that the lower guard is covering the blade before placing saw
down on a bench or the floor. An unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is in its path. Be aware of the time it
takes for the blade to stop after the switch is released.
ADDITIONAL SAFETY GUIDELINES FOR CIRCULAR SAWS
• Keep hands away from the cutting area and the blade. Keep your second hand
on the auxiliary handle or motor housing. If both hands are holding the saw,
they cannot be cut by the blade.
• Do not use any abrasive wheels with a circular saw.

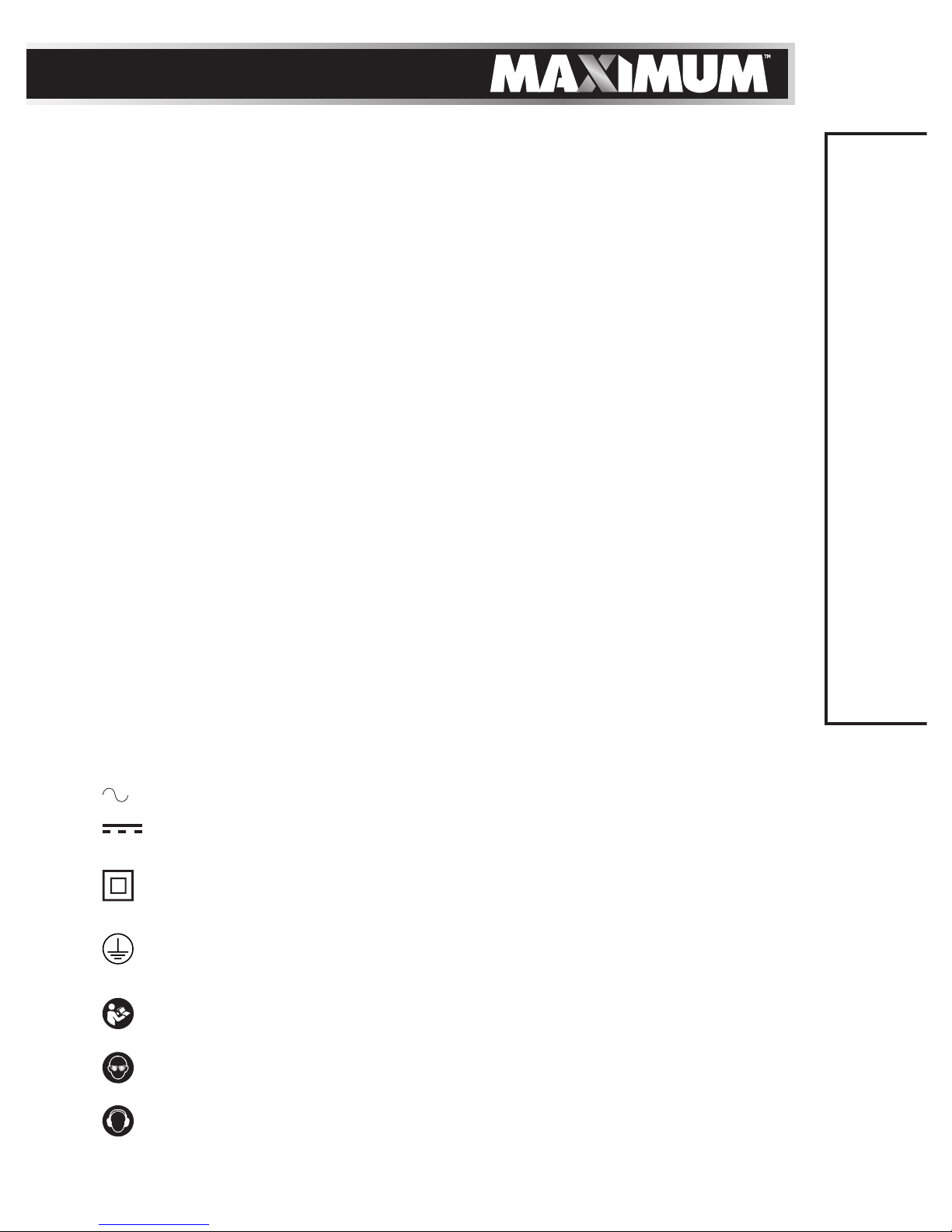

• The label on your tool may include the following symbols. The symbols and
their definitions are as follows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
............... Alternating current
............. Direct current
n
0
................... No-load speed
............... Class II Construction
…/min ........... Revolutions or reciprocations per minute
............... Grounding terminal
BPM ............... Beats per minute
.............. WARNING – To reduce the risk of injury, user must read
instruction manual.
.............. WARNING – To reduce the risk of injury always wear eye
protection.
.............. WARNING – To reduce the risk of injury always wear ear
protection.
SAFETY GUIDELINES
Page 10
10
model no. 054-8382-4 | contact us 1-888-670-6682
• Know your power tool. Read the instruction manual carefully. Learn the
applications and limitations, as well as the specific potential hazards related to
this tool. Following this rule will reduce the risk of electric shock, fire or serious
injury.
• Always wear safety glasses or eye shields when using this saw. Everyday
eyeglasses have only impact-resistant lenses; they are NOT safety glasses.
• Protect your lungs. Wear a face mask or dust mask if the operation is dusty.
• Protect your hearing. Wear appropriate personal hearing protection during
use. Under some conditions and duration of use, noise from this product may
contribute to hearing loss.
• All visitors and bystanders must wear the same safety equipment required for
the operator.
• Always check the tool for damaged parts. Before further use of the tool, a
guard or other part that is damaged should be carefully checked to determine
if it will operate properly and perform its intended function. Check for
misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool’s operation. A guard or other part that
is damaged should be properly repaired or replaced by a qualified service
technician.
• Inspect and remove all nails from lumber before sawing.
SAFETY GUIDELINES
Page 11
11
PACKAGE CONTENTS
Circular saw, blade wrench, blade, edge guide and instruction manual.

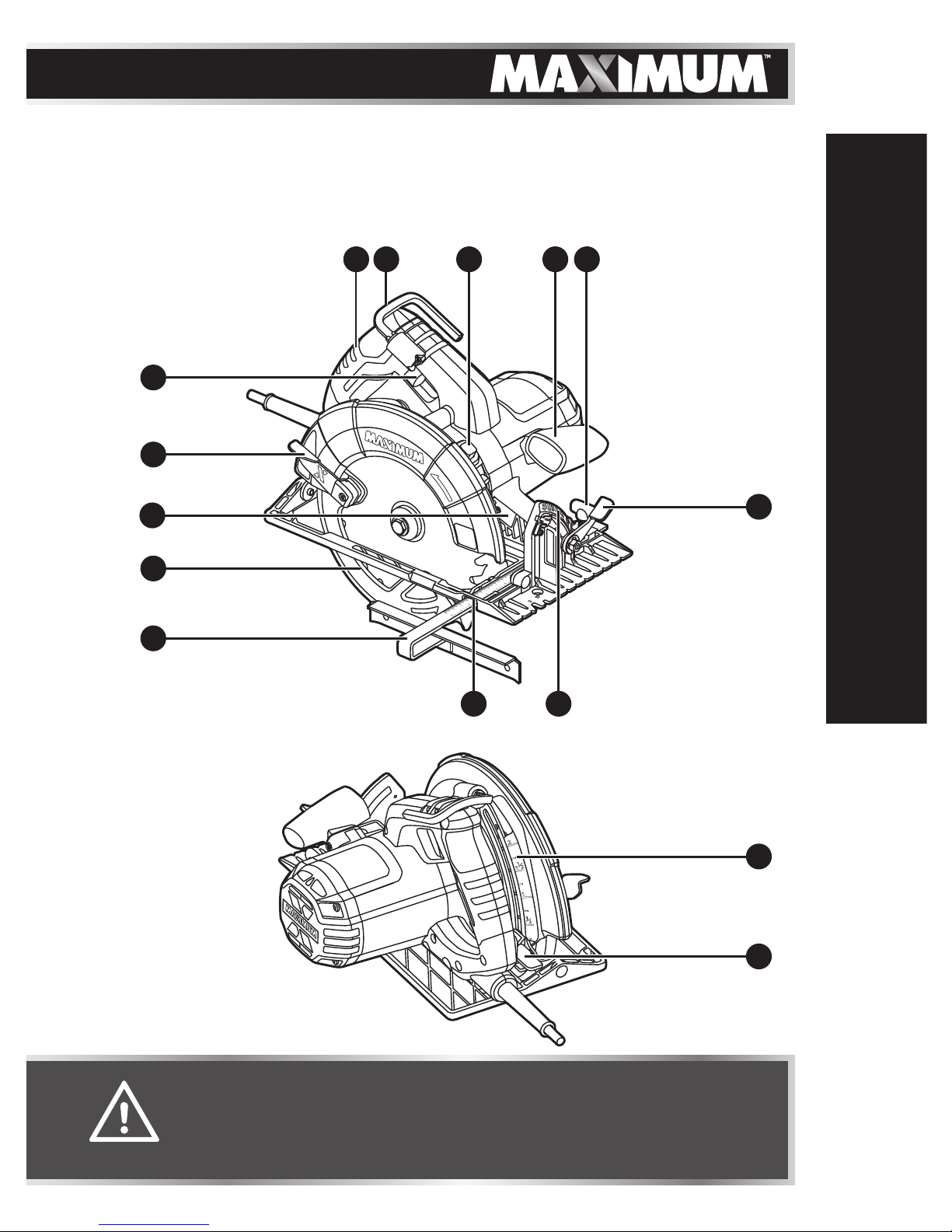

KEY PARTS DIAGRAM
1
2
11
14
15
5
4
76 8 9 10
3
13 12
KEY PARTS DIAGRAM
WARNING!
• Remove the circular saw from the package and examine it carefully.
Do not discard the carton or any packaging material until all parts
have been examined.
Page 12
12
model no. 054-8382-4 | contact us 1-888-670-6682
NO. PART NO. PART
1 On/off trigger switch 9 Auxiliary handle
2 Lower blade-guard lever 10 Edge-guide locking knob
3 LED worklight 11 Bevel-adjustment locking knob
4 Lower blade guard 12 Bevel scale
5 Edge guide 13 Mounting slots for edge guide
6 Main handle 14 Depth scale
7 Utility hook 15 Depth-of-cut adjustment lever
8 Spindle-lock button
KEY PARTS DIAGRAM
Page 13
13
IMPORTANT INFORMATION
Before attempting to use this tool, become familiar with all of its operating
features and safety requirements. For optimum performance and safety, read the
following operating instructions carefully before using.

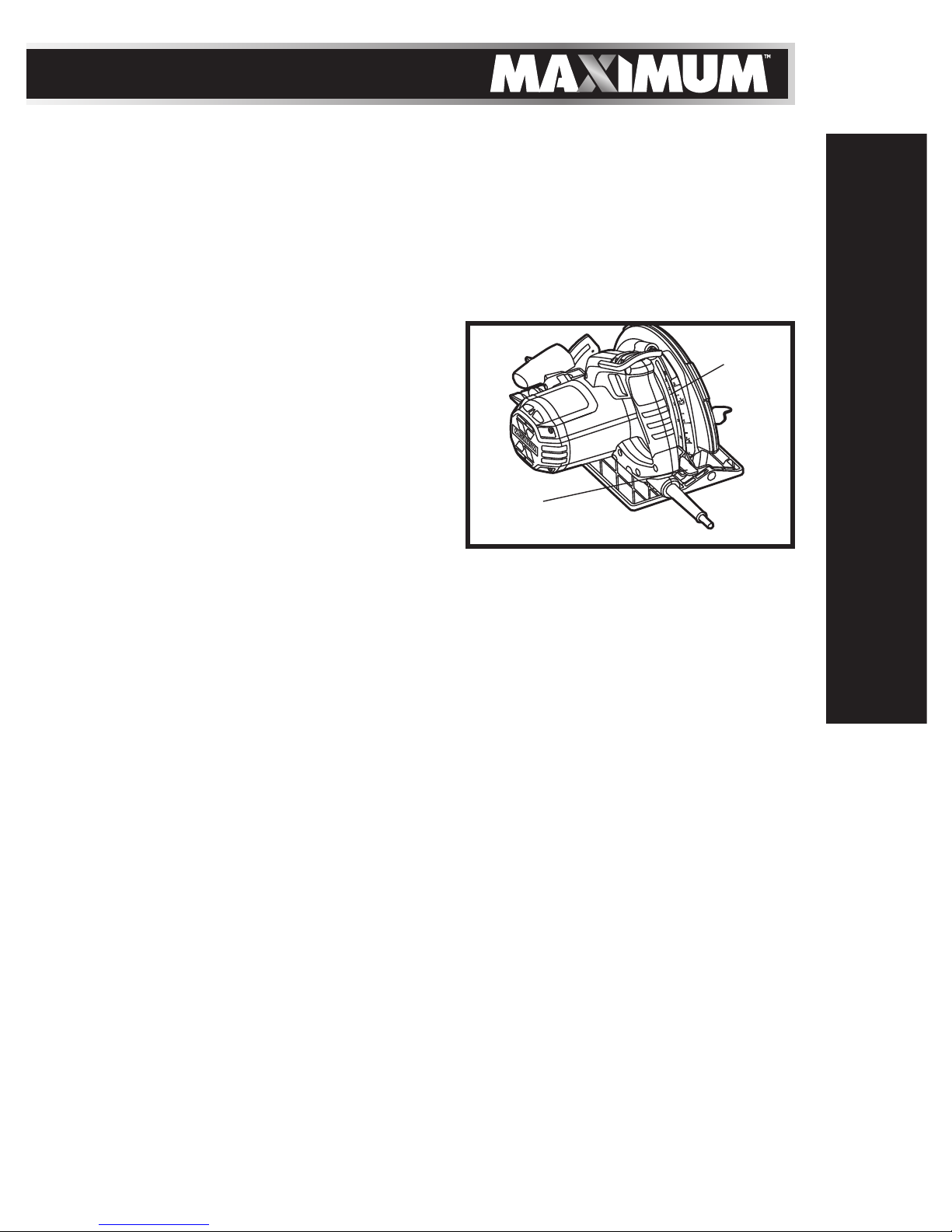

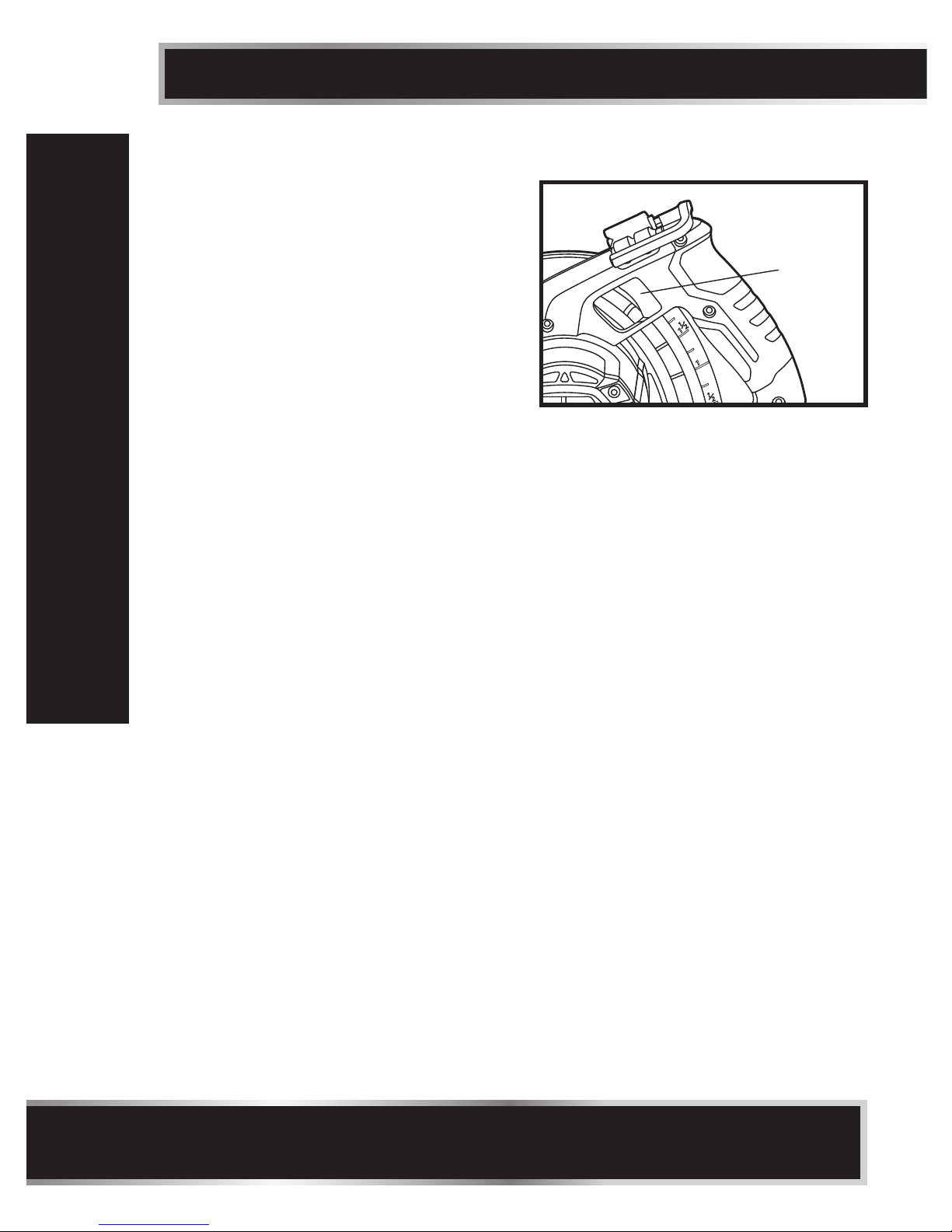

LED WORKLIGHT (g 1)
The LED worklight, located beside the
spindle-lock button, will illuminate when
the circular saw is plugged into a power
source. This provides additional light on
the surface of the workpiece for operation
in lower-light conditions.
UTILITY HOOK
Your tool is equipped with a convenient
utility hook for hanging your tool. To use, simply lift up hook until it snaps into
the open position. When not in use, always lower hook until it snaps into the
closed position.
ELECTRIC BRAKE
The saw has an electric brake to quickly stop the blade rotation. The electric
brake engages when the trigger switch is released.
IMPORTANT INFORMATION
WARNING!
• Never connect the circular saw to the power source when you
are assembling parts, making adjustments, installing or removing
cutting blade, cleaning, or when it is not in use. Disconnecting
the circular saw will prevent accidental starting, which could
cause serious personal injury.
DANGER!
• When sawing through a workpiece, the lower blade guard does
not cover the blade on the underside of the workpiece. Since the
blade is exposed on the underside of the workpiece, keep hands
and fingers away from the cutting area. Any part of your body
coming in contact with a moving blade will result in serious injury.
CAUTION!
• Never use the saw when the guard is not operating properly. The
guard should be checked for correct operation before each use.
If you drop your saw, check the lower blade guard and bumper
for damage at all depth settings before using.
LED
worklight
g 1
Page 14
14
model no. 054-8382-4 | contact us 1-888-670-6682
BLADE GUARD SYSTEM (g 2)
The lower blade guard attached to your
circular saw is there for your protection
and safety. It should never be altered for
any reason. If it becomes damaged or
begins to return slowly or sluggishly, do
not operate the saw until the blade guard
has been repaired or replaced. Always
leave the guard in its correct operating
position when using the saw.
SAW BLADES
All saw blades need to be kept clean, sharp and properly set in order to cut
efficiently. Using a dull blade places a heavy load on the saw and increases the
danger of kickback. Keep extra blades on hand, so sharp blades are always
available. Gum and wood pitch hardened on the blade slows the saw down. Use
gum and pitch remover, hot water or kerosene to remove them. Do not use gasoline.
KICKBACK
Kickback occurs when the blade stalls
rapidly and the saw is driven back
towards you. Blade stalling is caused by
any action that pinches the blade in the
wood (fig 3).
IMPORTANT INFORMATION

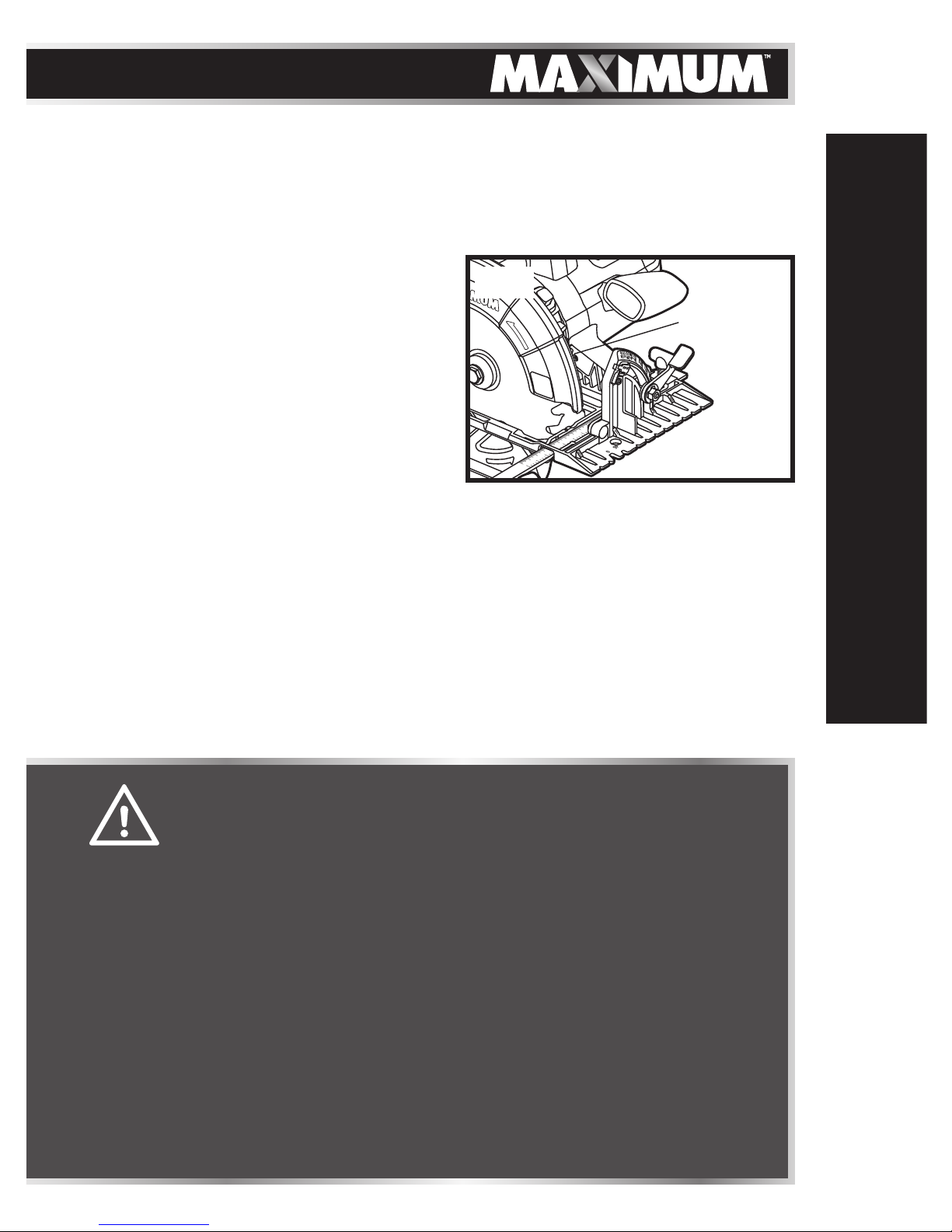

g 3
Kickback-Blade set too deep
g 2
Lower blade guard is in
the up position when
making a cut
Page 15
15
TO GUARD AGAINST KICKBACK, AVOID DANGEROUS PRACTICES
SUCH AS THE FOLLOWING:
• Setting blade depth incorrectly.
• Sawing into knots or nails in the
workpiece.
• Twisting the blade while making a cut.
• Making a cut with a dull, gummed up or
improperly set blade.

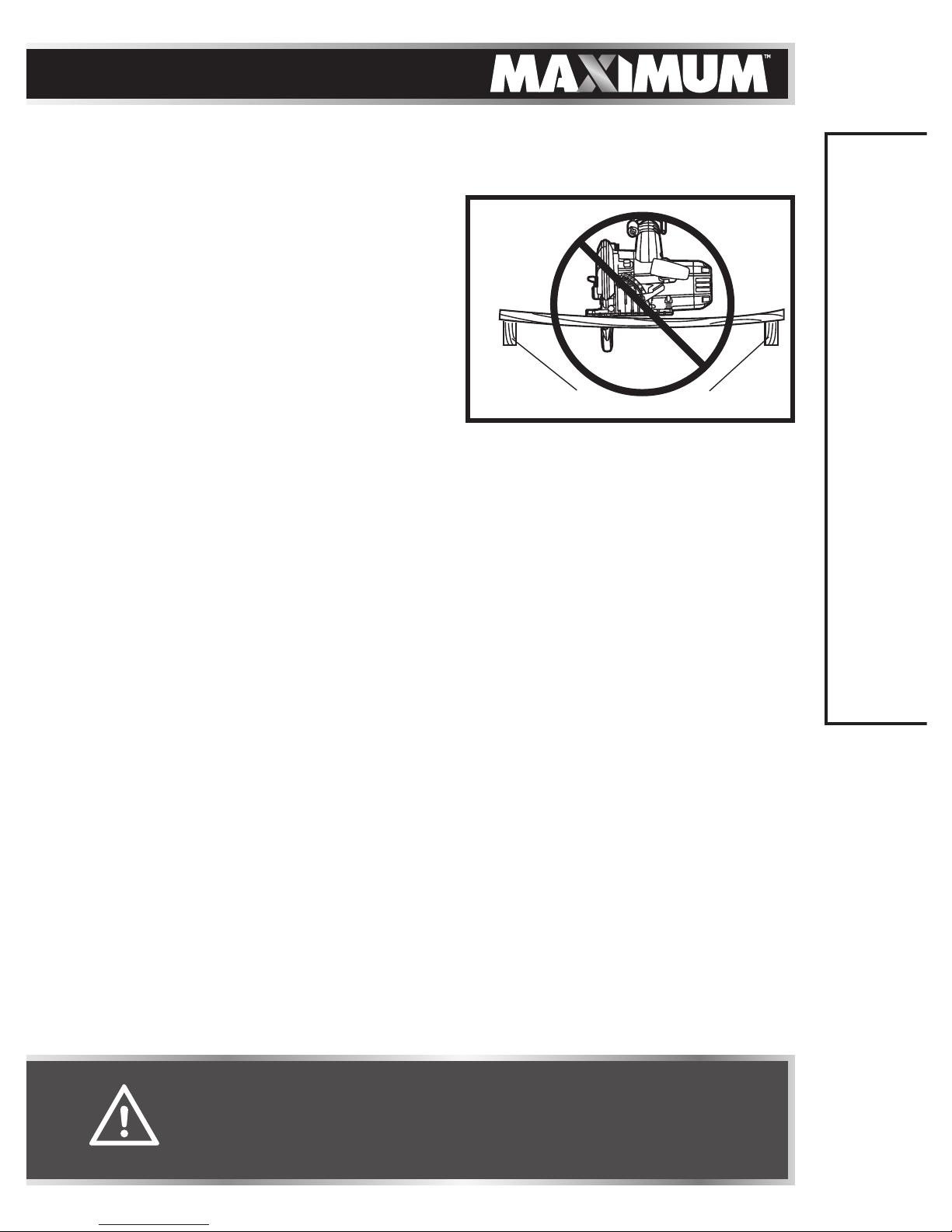

• Supporting the workpiece incorrectly
(fig 4).
• Forcing a cut.
• Cutting warped or wet lumber.
• Operating the tool incorrectly or misusing the tool.
• Attempting to cut with blade at less than full speed.
IMPORTANT INFORMATION

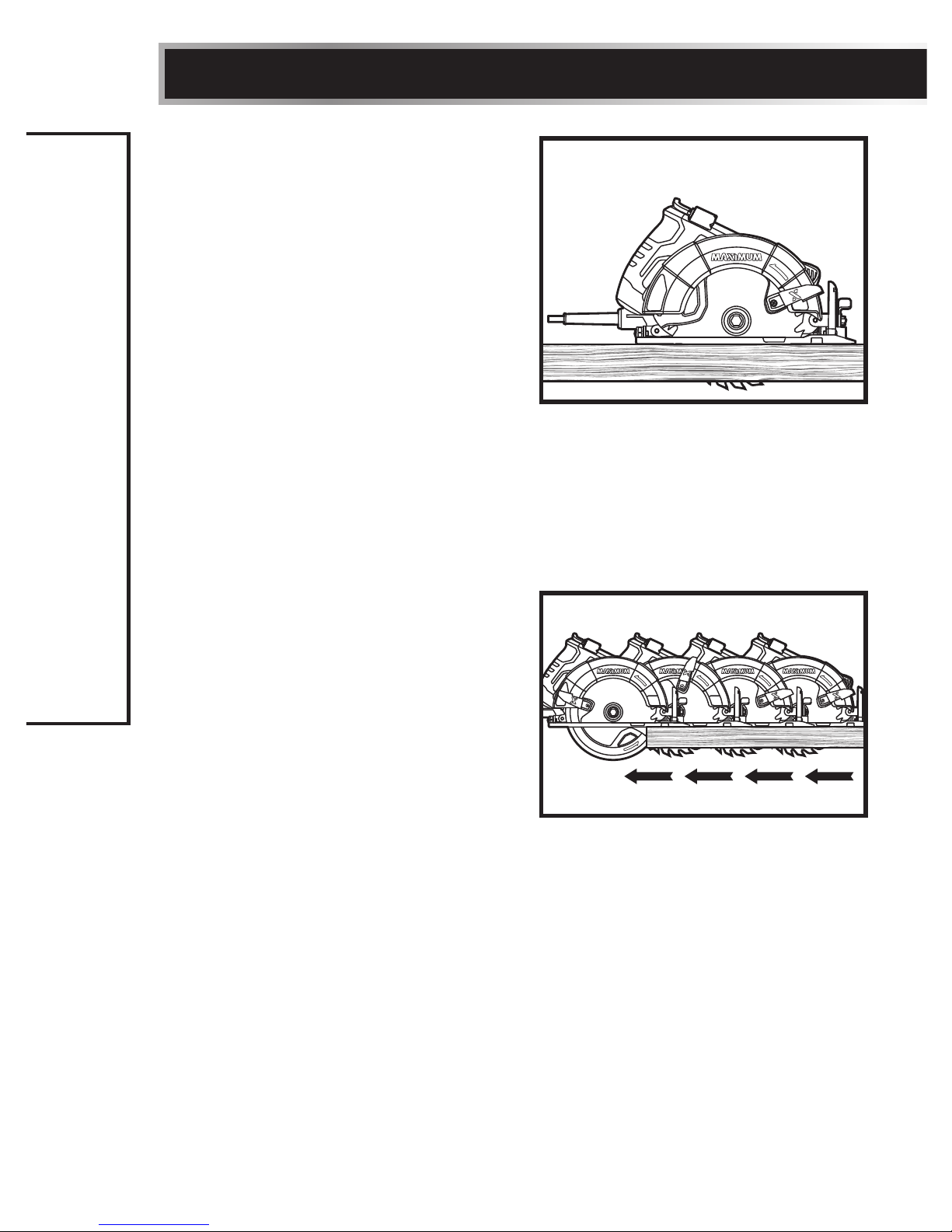

g 4
WRONG
INCORRECT SUPPORT
WARNING!
• If the blade comes in contact with the workpiece before it
reaches full speed, it could cause the saw to “kickback” towards
you, which could result in serious injury.
Page 16
16
model no. 054-8382-4 | contact us 1-888-670-6682
TO LESSEN THE CHANCE OF KICKBACK, FOLLOW THESE DIRECTIONS:
1. Keep the blade at the correct depth
setting. The depth setting should
not exceed 1/4" (6.35 mm) below the
material being cut (fig 5).
2. Inspect the workpiece for knots or nails
before cutting. Never saw into a knot
or nail.
3. Make straight cuts. Always use a
straight edge guide when rip cutting.
This helps prevent twisting of the
blade.
4. Use clean, sharp and properly set
blades. Never make cuts with dull
blades.

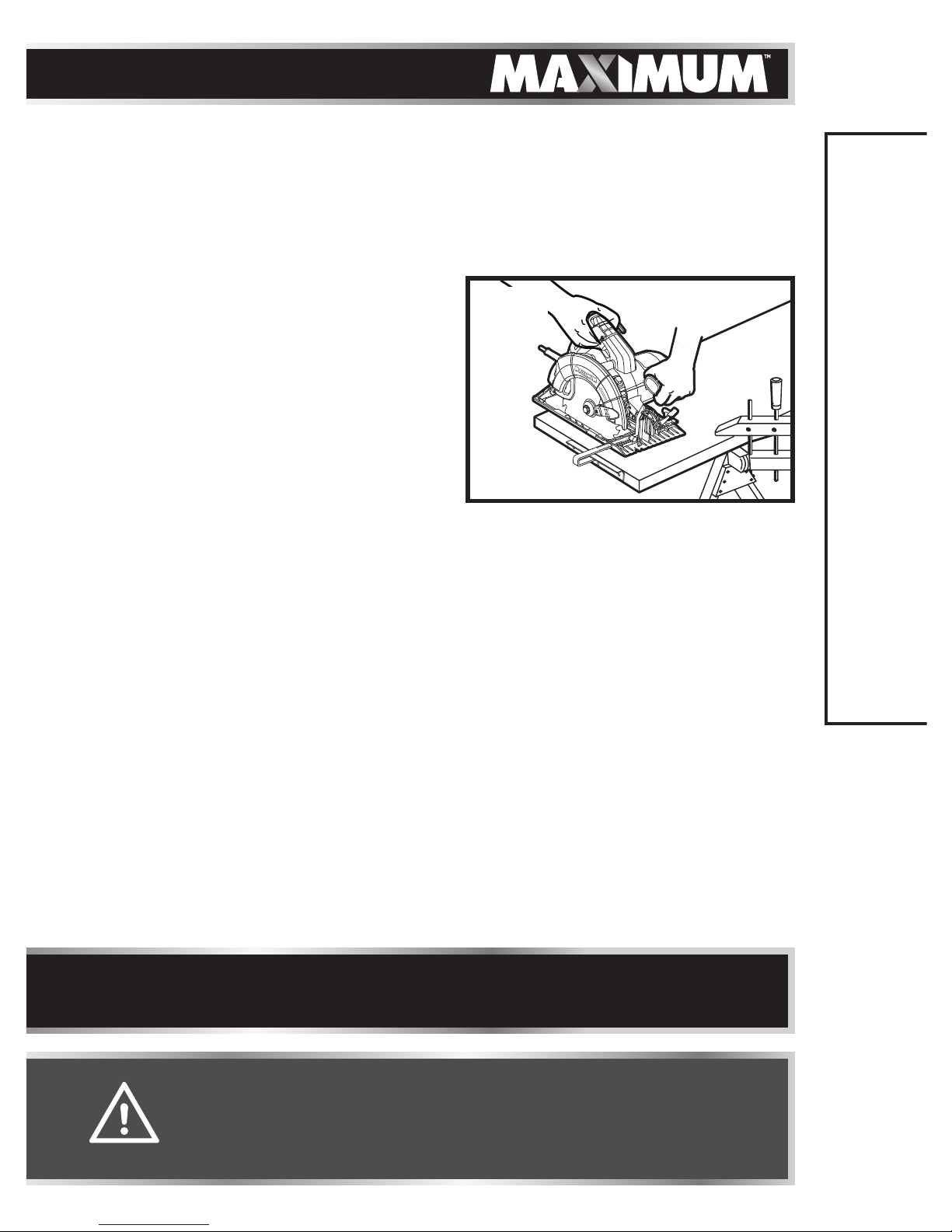

5. Support the workpiece properly
before beginning a cut (fig 6).
6. Use steady, even pressure when
making a cut. Never force a cut.
7. Do not cut warped or wet lumber.
8. Hold the saw firmly with both hands and keep your body in a balanced
position so as to resist the forces if kickback should occur.
INTEGRATED RIP AND CROSSCUT RULERS
Marked along the base across the front of the saw is a ruler for measuring
repetitive cuts. It is marked 5 inches to the left of 0° and 1 inch to the right of 0°
in 1/2 inch increments.
IMPORTANT INFORMATION
g 5
No more than 1/4 inch
Correct blade depth setting—blade exposed
1/4 " (6.35 mm) or less on underside of workpiece.
g 6
CORRECT SUPPORT
WARNING!
• To avoid kickback, release the trigger switch immediately if blade binds
or saw stalls. Kickback could cause you to lose control of the saw. Loss of
control can lead to serious injury.
Page 17
17
ASSEMBLY INSTRUCTIONS
DEPTH OF CUT ADJUSTMENTS
Always keep the correct blade-depth setting. The correct blade-depth setting for
all cuts should not exceed 1/4 in. below the material to be cut. Excess blade depth
will increase the chance of kickback and cause the cut to be rough. One blade
tooth below the material to be cut works is best for efficient cutting action.
TO ADJUST BLADE DEPTH (g 7)
1. Unplug the circular saw from the power
supply.
2. Loosen the depth-of-cut adjustment
lever by lifting it up.
3. Determine the desired depth of cut.
4. Hold the base of the saw flat against
the edge of the workpiece and
then raise or lower the saw until the
indicator on the bracket aligns with the desired depth on the depth scale.
5. Tighten depth-of-cut adjustment lever securely.
BEVEL ADJUSTMENTS
The angle of cut can be adjusted to any desired setting between 0°and 56°.
Because blade thicknesses vary and different angles require different settings,
always make a trial cut in scrap material along a guideline to determine how
much you should offset the guideline on the workpiece to be cut.
ASSEMBLY INSTRUCTIONS

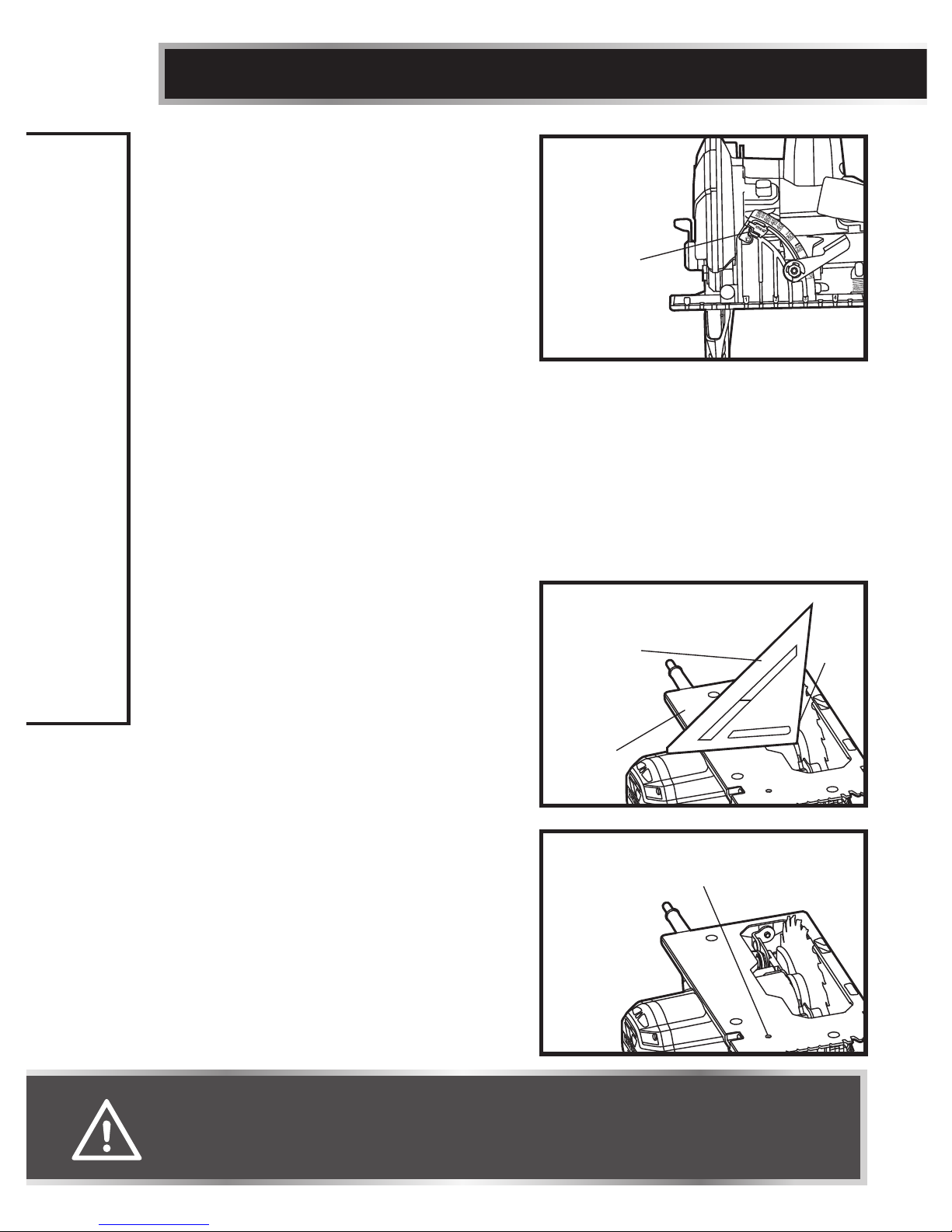

g 7
Depth
scale
Depth of cut
adjustment lever
Page 18
18
model no. 054-8382-4 | contact us 1-888-670-6682
TO ADJUST BEVEL SETTING (g 8)
The saw is equipped with a 45° stop to
quickly set for 45° bevels. To set 45-56°
bevel, raise the stop.
1. Unplug the circular saw from the power
supply.
2. Loosen the bevel-adjustment
locking knob by rotating the knob
counterclockwise.
3. Tilt the base until the bevel indicator reaches the desired setting on the bevel
scale.
4. Tighten the bevel-adjustment locking knob by rotating the knob clockwise.
0° BEVEL STOP
The saw has a 0° bevel stop that has been adjusted before shipment to assure
that the blade is vertical to the base at the 0° bevel setting.
TO CHECK 0° BEVEL STOP (g 9)
1. Unplug the circular saw from the power
supply.
2. Using a carpenter’s square (available
separately), check the squareness of
the saw blade to the base of the saw.
TO ADJUST 0° BEVEL STOP (g 10)
1. Unplug the circular saw from the power
supply.
2. Loosen the bevel adjustment knob.
3. Use a hex wrench (5mm, available
separately ) to turn the 0° stop
adjusting screw until the base is square
with the saw blade.
g 8
45° stop
g 9
Blade
Base
Carpenter’s
square
g 10
Adjusting
screw
WARNING!
• Attempting a bevel cut without fully tightening the bevel adjusting locking
knob can result in serious injury.
ASSEMBLY INSTRUCTIONS
Page 19
19

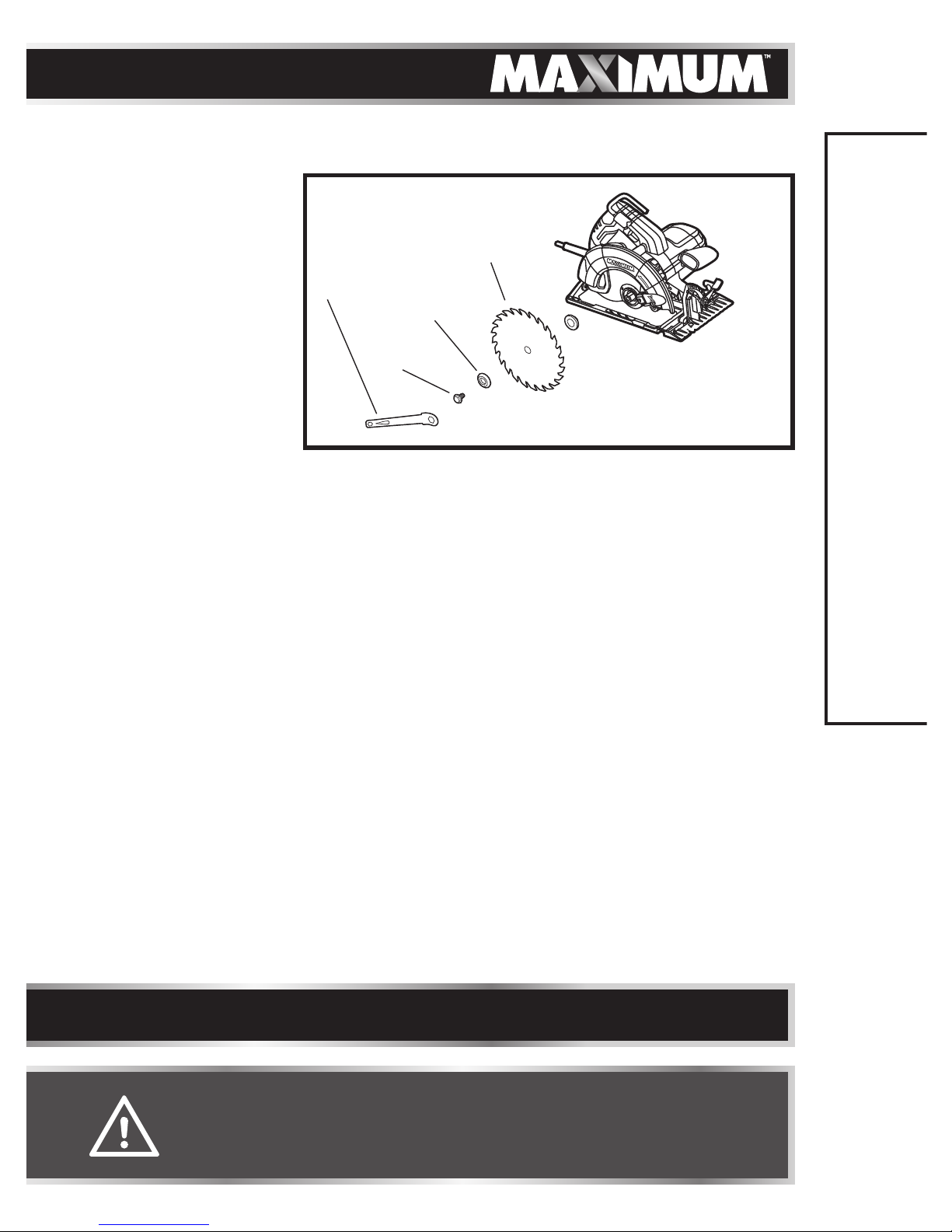

CHANGING THE BLADE (g 11)
1. Unplug the circular
saw from the power
supply.
2. Depress and hold the
spindle-lock button,
then place the blade
wrench on the blade
screw and move it
back and forth until
you feel the spindlelock button depress
further. This action
locks the blade in position so the blade screw can be removed.
3. With the spindle-lock button firmly depressed, turn the blade screw
counterclockwise to loosen it.
4. Remove the blade screw and the outer blade washer and the blade.
5. The remaining washer is the inner bushing washer that fits around the spindle
shaft; it does not need to be removed.
6. Put a drop of good-quality machine oil onto the inner bushing washer and
outer blade washer where they will contact the blade.
7. Place a new saw blade inside the lower blade guard, onto the spindle shaft
and against the inner bushing washer.
8. Replace the outer blade washer.
9. Depress and hold the spindle-lock button as you replace the blade screw
and hand-tighten the screw in a clockwise direction. Use the blade wrench to
tighten the blade screw securely.
NOTICE: The teeth of the blade should point upward at the front of the saw.
g 11
Blade
Outer
washer
Blade
screw
Blade
wrench
WARNING!
• Be sure to wear protective work gloves while handling a saw
blade. The blade can injure unprotected hands.
ASSEMBLY INSTRUCTIONS
Page 20
20
model no. 054-8382-4 | contact us 1-888-670-6682
OPERATING INSTRUCTIONS
TURNING THE SAW ON AND
OFF (g 12)
1. Connect the power cord of your
circular saw to a standard household
power outlet.
2. To turn the saw ON, depress the on/off
trigger switch.
3. To turn the tool OFF, release the
trigger switch.
OPERATING THE SAW
It is important to understand the correct method for operating the saw.
Refer to the figures and instructions in this section to learn the correct and
incorrect ways for handling the saw.
TO MAKE THE BEST POSSIBLE CUT:
1. Hold the saw firmly with both hands (fig 13).
2. Avoid placing your hand on the workpiece while making a cut.
3. Support the workpiece so that you are always standing to one side of the cut
(kerf).
4. Support the workpiece near the cut.
5. Clamp the workpiece securely so that the workpiece will not move during the
cut.
6. Always place the saw weight on the side of workpiece that is supported, not
on the side that will fall off when the cut is completed.
7. Place the workpiece with the “good” side down.
8. Draw a guideline along the desired line of cut before beginning your cut.
9. Rest the front edge of the base on the workpiece, without the blade touching
the workpiece, and then squeeze the trigger switch to start the saw.
10. Allow the blade to reach full speed, and then guide the saw into the
workpiece.
OPERATING INSTRUCTIONS
g 12
On/off
trigger
switch
NOTICE: The “good” side of the workpiece is the side where appearance is
important.
Page 21
21
11. After completing your cut, release the trigger switch and allow the blade
to come to a complete stop in the cut. Do not remove the saw from the
workpiece while the blade is moving. It will damage your bevel cut and could
cause kickback.
12. Lift the saw from the workpiece.
INSTALLING AND USING THE EDGE
GUIDE (g 13)
Always use an edge guide when making
long or wide rip cuts with your saw. You
can use either a straight edge or an edge
guide.
1. Unplug the circular saw from the power
supply.
2. Position the edge guide so that the
arm with the ruler side is facing up.
Slide the arm of the edge guide through the mounting slots at the front of the
saw base.
3. Adjust the edge guide to the desired width of cut.
4. Tighten the edge-guide locking knob.
5. When using an edge guide, position the face of the edge guide firmly against
the edge of the workpiece. This will help make a true cut without binding the
blade. The edge of the workpiece must be straight for the cut to be straight.
Use caution to prevent the blade from binding in the cut.
OPERATING INSTRUCTIONS
g 13
NOTICE: The edge guide can be used on the left or right side of
the blade (fig 13).
WARNING!
• Always clamp and support workpiece securely. Always maintain
proper control of saw. Failure to clamp and support workpiece
and loss of control of saw could result in serious injury.
Page 22
22
model no. 054-8382-4 | contact us 1-888-670-6682

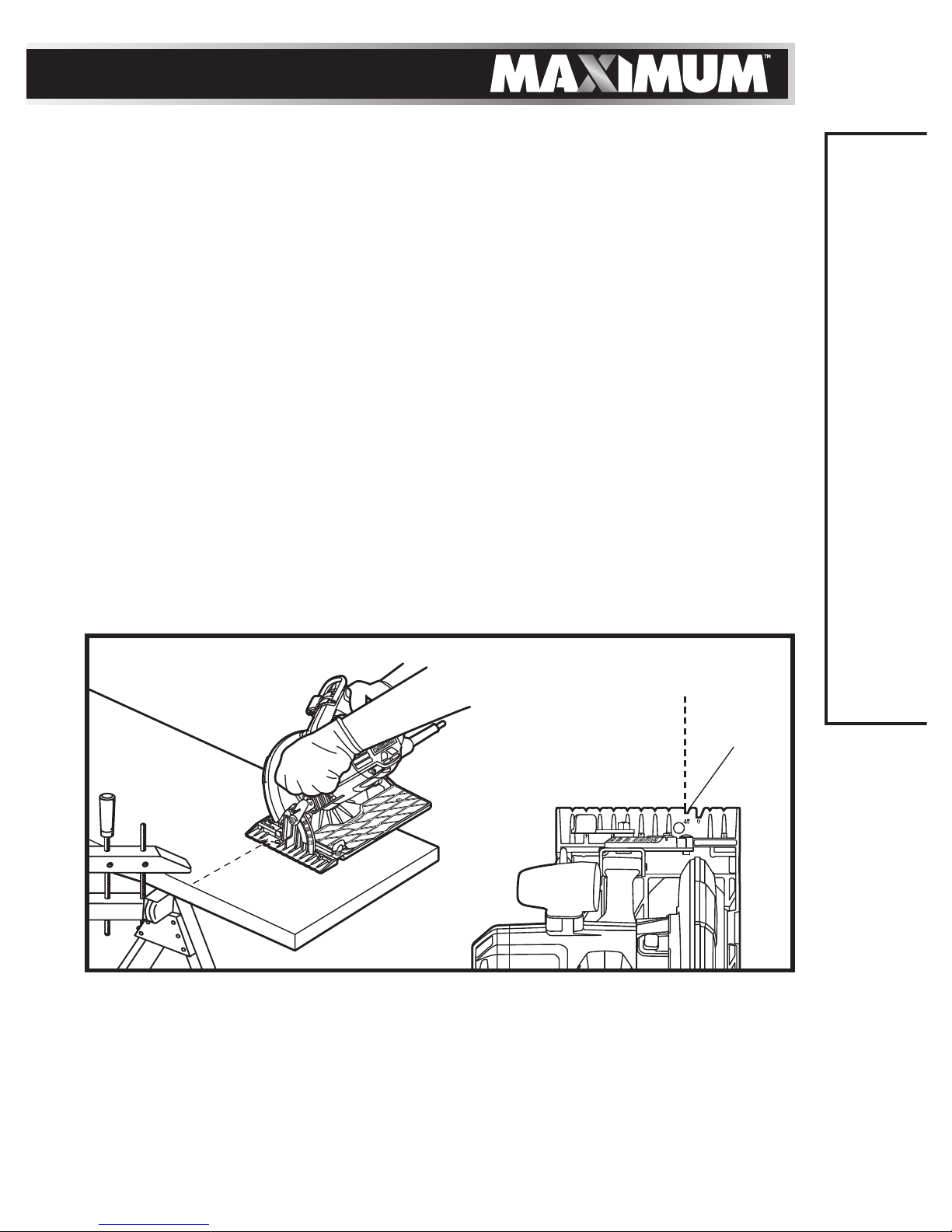

MAKING CROSS CUTS AND RIP
CUTS (g 14)
Refer to TO MAKE THE BEST POSSIBLE
CUT section for general instructions.
When making a cross cut or rip cut, align
your line of cut with the centre of the
notch by the 0° indicator. Because blade
thicknesses vary, always make a trial cut
in scrap material along a guideline to
determine how much, if any, the guideline
must be offset to produce an accurate cut.

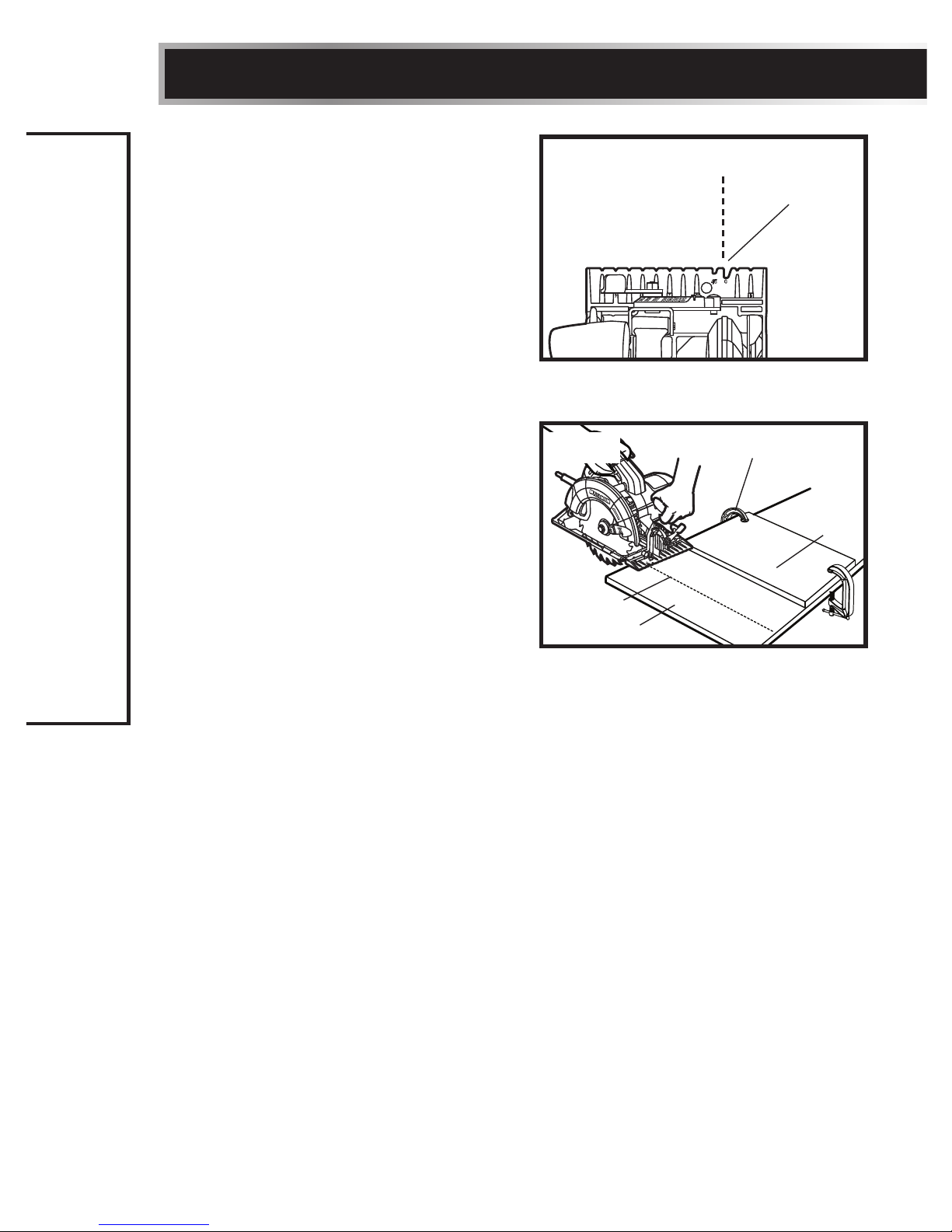

MAKING RIP CUTS (g 15)
The combination blade provided with
your saw is for both cross cuts and rip
cuts. Ripping is cutting lengthwise along
the grain of the wood.
When rip cutting a large sheet, use a
straight edge (available separately).
1. Secure the workpiece.
2. Use C-clamps (available separately) to
clamp a straight edge to the workpiece.
3. Follow the instructions
4. Carefully guide the saw along the straight edge to achieve a straight rip cut.
OPERATING INSTRUCTIONS
g 14
Line of cut
0° indicator
C-Clamp
Straight
Edge
Guideline
Workpiece
g 15
Page 23
23
MAKING A BEVEL CUT (g 16)
Refer to TO MAKE THE BEST POSSIBLE CUT sections for general instructions.
1. Secure the workpiece with clamps.
2. Draw a line of cut on the workpiece.
3. Unplug the saw.
4. Adjust and secure the saw at the desired bevel angle.
5. Connect the power cord of your circular saw to a standard household power
outlet.
6. When making a bevel cut, hold the saw firmly with both hands.
7. Rest the front edge of the base on the workpiece. Depress the trigger switch
to start the saw. Allow the saw to reach full speed before engaging the blade
in the workpiece.
8. Move the saw blade into the workpiece and smoothly follow the line of cut.
9 . After completing the cut, release the trigger switch and allow the blade to
come to a complete stop. After the blade has stopped, remove the saw from
the workpiece.
Line of cut
45°
indicator
g 16
OPERATING INSTRUCTIONS
Page 24
24
model no. 054-8382-4 | contact us 1-888-670-6682
MAINTENANCE
BEFORE EACH USE
1. Inspect the circular saw, the trigger switch, the cord and the accessories for
damage.
2. Check for damaged, missing, or worn parts.
3. Check for loose screws, misalignment or binding of moving parts, or any other
condition that may affect the operation.
4. If abnormal vibration or noise occurs, turn the tool off immediately and have
the problem corrected before further use.
Unplug the tool from power source before cleaning or performing any
maintenance. Using compressed air may be the most effective cleaning method.
Always wear safety goggles when cleaning tools using compressed air.
MAINTENANCE
WARNING!
• Do not allow brake fluids, gasoline and petroleum-based products,
penetrating oil, etc. come into contact with plastic parts. These substances
contain chemicals that can damage, weaken, or destroy plastic.
• When servicing, use only identical replacement parts. The use of any other
parts may create a hazard or cause damage to the product.
• Use only accessories that are recommended for this circular saw by the
manufacturer. Accessories that may be suitable for one tool may become
hazardous when used with another tool.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with sharp cutting edges are less likely to bind, and are
easier to control.
• To ensure safety and reliability, all repairs should be performed by a
qualified service technician.
Page 25
25
TROUBLESHOOTING
PROBLEM CAUSE OF THE PROBLEM
SUGGESTED
CORRECTIVE ACTION
The motor does not
start.
The tool is not connected to a
power source.
Connect the tool to a
power source.
The blade does not
follow a straight line.
1. Teeth are dull. This is
caused by hitting a hard
object such as a nail, dulling
teeth on one side. The blade
tends to cut to the side with
the sharpest teeth.
1. Replace with a new
sharp blade.
2. Edge guide or straight
edge is not being used.
2. Use an edge guide
or straight edge.
The blade binds or
smokes from friction.
1. Blade is dull. 1. Replace with a new
sharp blade.
2. Blade is on backwards. 2. Install the blade
correctly.
3. Blade is bent. 3. Replace with a new
blade.
4. Workpiece is not properly
supported.
4. Clamp the
workpiece correctly
and tightly.
5. Incorrect blade is being
used.
5. Use the correct
blade.
If the problem remains unsolved after performing the checks described above,
call the toll-free helpline at 1-888-670-6682.
TROUBLESHOOTING
Page 26
26
model no. 054-8382-4 | contact us 1-888-670-6682

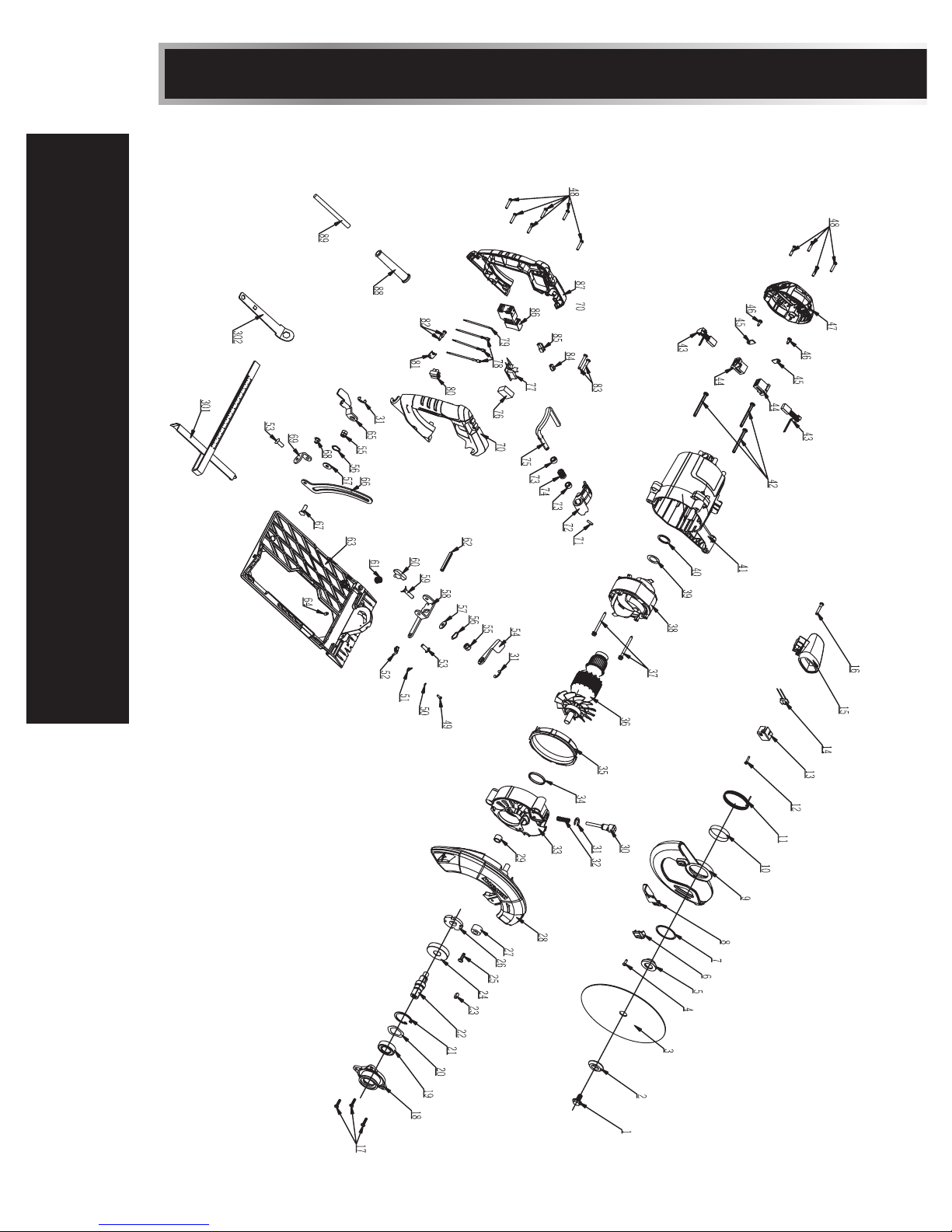

EXPLODED VIEW
PARTS LIST
Page 27
27
No. Part No. Description No. Part No. Description
1 5620398000 Flange bolt 27 3121051000 Stopper
2 3550222000 Clamp 28 3421586000 Upper guard
3 3810397000 Blade 29 5700041000 Oil impreging
bearing
4 5620164000 Screw 30 3402701000 Spindle lock
assembly
5 3550225000 Inner flange 31 5660010000 E ring
6 3128155000 Clamp 32 3660072000 Spring
7 5660030000 Circlips for
shaft
33 3421261000 Gear case
8 3705917000 Lever 34 3121057000 Rubber ring
9 3421720000 Lower guard 35 3126277000 Fan baffle
10 3700586000 Bushing 36 2823918000 Rotor set
11 3660170000 Torsion spring 37 5610226000 Tapping screw
12 5610013000 Tapping screw 38 2740383000 Stator
13 3126069000 Transparent
cap
39 3700255000 Washer
14 4891124000 PCB assembly 40 3121054000 Spring
15 3321208000 Front handle 41 3127546000 Motor housing
16 5620480000 Screw 42 5620161000 Hexagon socket
screw
17 5610094000 Thread
forming screw
43 4960021000 Carbon brush
assembly
18 3420311000 Gear case
cover
44 2800006000 Brush holder
assembly
19 5700019000 Ball bearing 45 3700539000 Epoxy board
20 3700281000 Wave washer 46 5610029000 Tapping screw
21 5660023000 Circlips for
hole
47 3128143000 Rear cover
22 3551045000 Gear shaft 48 5610248000 Tapping screw
23 5680160000 Plain key 49 5620032000 Screw
24 3551043000 Gear 50 5650003000 Spring waher
25 5620160000 Hexagon
socket screw
51 3703604000 Clamp
26 3550240000 Lock ring 52 3122926000 45° Stop block
PARTS LIST
Page 28
28
model no. 054-8382-4 | contact us 1-888-670-6682
No. Part No. Description No. Part No. Description
53 5680012000 Rivet 73 3520354000 Bush
54 3700242000 Lever 74 3660349000 Spring
55 5620043000 Nut 75 3704940000 Pothook
56 3700257000 Wave washer 76 3700540000 Sponge
57 5650017000 Plain washer 77 4890462000 PCB
assembly
58 3705054000 Support plate 78 2820790000 Internal wire
assembly
59 5620147000 Screw 79 4860319000 Internal wire
assembly
60 3400011000 Wing bolt 80 4930004000 Connector
61 3660036000 Spring 81 3700367000 Cord
anchorage
62 5670263000 Spring pin 82 5610093000 Tapping
screw
63 3421709000 Base plate 83 5620169000 Tapping
screw
64 5620017000 Hexagon socket
screw
84 4930013000 Receptacle
65 3700308000 Lever 85 4930012000 Terminal
66 3704591000 Depth bracket 86 4870530000 Trigger
switch
67 5620150000 Screw 87 3321425000 Left handle
68 5680009000 Rivet 88 3121050000 Cord guard
69 3704593000 Support 89 4810002000 Power cord
and plug
70 3321445000 Right handle 301 3700663000 Rip fence
71 5670003000 Spring pin 302 3700865000 Wrench
72 3128104000 Mounting
If the problem remains unsolved after performing the checks described above,
call the toll-free helpline at 1-888-670-6682.
PARTS LIST
Page 29
29
5-YEAR LIMITED WARRANTY
This MAXIMUM product is guaranteed for a period of 5
years from the date of original retail purchase against
defects in workmanship and materials only and is
subject to the following components:
a) Component A: The carrying case is guaranteed for
a period of 1-year from the date of original retail
purchase against defects in workmanship and
materials.
b) Component B: Accessories, including drill bits and
saw blades, do not carry a warranty.
Subject to the conditions and limitations described
below, this product, if returned to us with proof of purchase within the stated
warranty period and if covered under this warranty, will be repaired or replaced
(with the same model, or one of equal value or specification), at the sole discretion
of the Maximum Canada authorised repair centre (“Service Provider”). We will bear
the cost of any repair or replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:*
a) a bill of sale verifying the purchase and purchase date must be provided;
b) defects in workmanship and material to be assessed and determined by the
Service Provider;
c) this warranty will not apply to any product or part thereof which is worn or
broken or which has become inoperative due to abuse, misuse, accidental
damage, neglect or lack of proper installation, operation or maintenance
(as outlined in the applicable owner’s manual or operating instructions);
d) this warranty does not apply to normal wear and tear or to expendable parts
or accessories (including drill bits and saw blades) that may be supplied with
the product that by their nature have a limited life span and are expected to
become inoperative or unusable after a reasonable period of use;
e) this warranty will not apply to routine maintenance and consumable items
such as, but not limited to, fuel, lubricants, vacuum bags, blades, belts,
sandpaper, bits, fluids, rubber o-rings, tune-ups or adjustments;
f) this warranty excludes the following components that may accompany your
product:
(1) the carrying case, which is only for a period of 1-year from the date of
original retail purchase against defects in workmanship and materials.
(2) accessories, including drill bits and saw blades, which do not carry a
warranty of any kind.
g) this warranty will not apply where damage is caused by repairs made or
attempted by others (i.e. persons not authorized by the manufacturer), and
any such unauthorized repairs or attempted repairs shall void this warranty
in its entirety;
WARRANTY
Page 30
30
model no. 054-8382-4 | contact us 1-888-670-6682
h) this warranty will not apply to any parts other than original parts, except to
the extent that the retailer or manufacturer or persons authorized by either
of them have repaired or replaced them;
i) this warranty will not apply to any product that was sold to the original
purchaser as a reconditioned or refurbished product (unless otherwise
specified in writing);
j) this warranty will not apply to any product or part thereof if any part from
another manufacturer is installed therein or any repairs or alterations have
been made or attempted by unauthorized persons;
k) this warranty will not apply to normal deterioration of the exterior finish,
such as, but not limited to, scratches, dents, paint chips, or to any corrosion
or discolouring by heat, abrasive and chemical cleaners; and
l) this warranty will not apply to component parts sold by and identified as
the product of another company, which shall be covered under that product
manufacturer’s warranty, if any;
m) any products replaced by the retailer in attempt to fulfill warranty
obligations is subject to the original product warranty conditions and
related time period as initiated by the original date of purchase; if product
is purchased in Quebec, the warranty term will be extended for a period
equal to the time during which the Quebec retailer possesses the product in
attempt to fulfill warranty obligations; replaced product will not default to
new product warranty conditions; and
n) the retailer and manufacturer’s sole obligation and the purchaser’s sole
remedy under this warranty shall be as set out herein. The warranties
contained herein are not transferable and are given only to the purchaser.
FURTHER, THE WARRANTIES SET OUT HEREIN ARE IN LIEU OF ALL
OTHER WARRANTIES OR CONDITIONS, WHETHER EXPRESS, IMPLIED OR
STATUTORY (INCLUDING SUCH AS ARISE UNDER THE SALE OF GOODS
ACT OR THE INTERNATIONAL SALE OF GOODS ACT), ARISING OUT OF A
COURSE OF DEALING OR USAGE OF TRADE OR OTHERWISE, INCLUDING,
SUBJECT TO APPLICABLE LAW, ANY IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY, MERCHANTABLE QUALITY, FITNESS
OR ADEQUACY FOR A PARTICULAR PURPOSE OR USE, AND ALL OTHER
SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED BY THE RETAILER AND
MANUFACTURER.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred.
This warranty applies for a period of 5 years from the date of original retail
purchase, as indicated on the bill of sale.
Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for
any other expense, loss or damage, including, without limitation, any indirect,
incidental, consequential or exemplary damages arising in connection with the
sale, use or inability to use this product.
WARRANTY
Page 31
31
Under no circumstances shall the retailer, Maximum Canada, or manufacturer
be liable to the purchaser for any claim for (a) indirect, special, punitive,
incidental, exemplary, or consequential damages, (b) compensation for loss of
profits, anticipated revenue, savings or goodwill, or other economic loss of the
purchaser, (c) exemplary, aggravated or punitive damages howsoever incurred,
(d) contribution or set-off in respect of any claims against the purchaser, (e)
any damages whatsoever relating to third party products or services or the
purchaser’s materials, or (f) any damages whatsoever relating to interruption,
delays, errors or omissions; in each case under any theory of law or equity,
arising out of or in any way related to this warranty, even if advised of the
possibility thereof. Notwithstanding any provision herein or entitlement of
the purchaser at law, in equity or otherwise, in no event shall the liability of
the retailer or manufacturer under this warranty, whether in contract, tort,
product liability or otherwise, exceed, in the aggregate, the amount paid by the
purchaser to the retailer for the product to which this warranty applies.
*Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which
may vary from province to province. The provisions contained in this warranty are
not intended to limit, modify, take away from, disclaim or exclude any statutory
warranties set forth in any applicable provincial or federal legislation.
In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our:
1-Year Repair Warranty
Maximum Canada will maintain this product and replace critical parts which
have worn beyond reasonable use through normal use of such product, any time
during the first year after purchase.
The following are excluded from this 1-Year Repair Warranty:
a) missing or damaged parts or components that are a result of abuse or
misuse;
b) any wear and tear to non-critical parts or accessories that do not affect the
core function of the product.
90-Day Satisfaction Guarantee
If you are not completely satisfied with the performance of your MAXIMUM
product for any reason, you can return it within 90 days from the date of
purchase with proof of purchase for exchange or a full refund.
Made in China
Imported by
MAXIMUM Canada Toronto, Canada M4S 2B8
WARRANTY
Loading...
