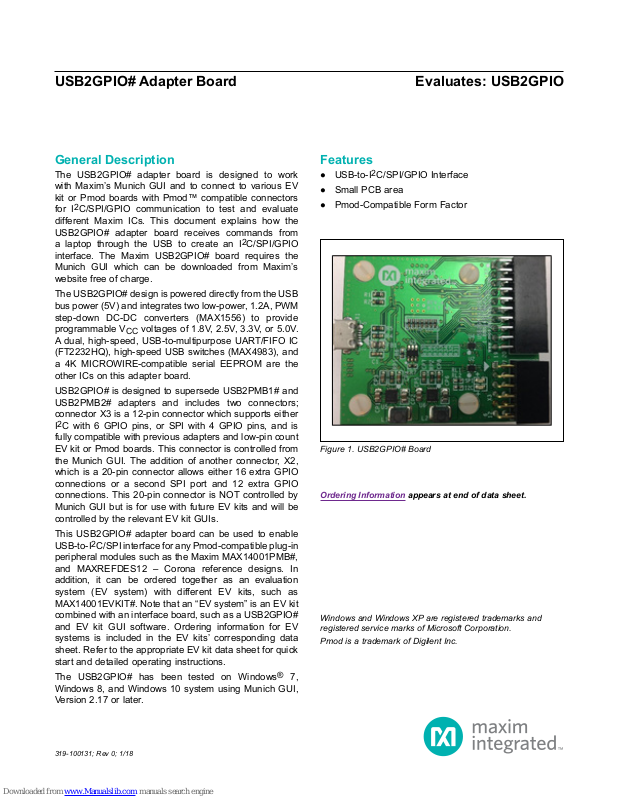

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

General Description

The USB2GPIO# adapter board is designed to work
with Maxim’s Munich GUI and to connect to various EV
kit or Pmod boards with Pmod™ compatible connectors
for I2C/SPI/GPIO communication to test and evaluate
different Maxim ICs. This document explains how the
USB2GPIO# adapter board receives commands from
a laptop through the USB to create an I2C/SPI/GPIO
interface. The Maxim USB2GPIO# board requires the
Munich GUI which can be downloaded from Maxim’s
website free of charge.

The USB2GPIO# design is powered directly from the USB
bus power (5V) and integrates two low-power, 1.2A, PWM
step-down DC-DC converters (MAX1556) to provide
programmable VCC voltages of 1.8V, 2.5V, 3.3V, or 5.0V.
A dual, high-speed, USB-to-multipurpose UART/FIFO IC
(FT2232HQ), high-speed USB switches (MAX4983), and
a 4K MICROWIRE-compatible serial EEPROM are the
other ICs on this adapter board.

USB2GPIO# is designed to supersede USB2PMB1# and
USB2PMB2# adapters and includes two connectors;
connector X3 is a 12-pin connector which supports either
I2C with 6 GPIO pins, or SPI with 4 GPIO pins, and is
fully compatible with previous adapters and low-pin count
EV kit or Pmod boards. This connector is controlled from
the Munich GUI. The addition of another connector, X2,
which is a 20-pin connector allows either 16 extra GPIO
connections or a second SPI port and 12 extra GPIO
connections. This 20-pin connector is NOT controlled by
Munich GUI but is for use with future EV kits and will be
controlled by the relevant EV kit GUIs.

This USB2GPIO# adapter board can be used to enable
USB-to-I2C/SPI interface for any Pmod-compatible plug-in
peripheral modules such as the Maxim MAX14001PMB#,
and MAXREFDES12 – Corona reference designs. In
addition, it can be ordered together as an evaluation
system (EV system) with different EV kits, such as
MAX14001EVKIT#. Note that an “EV system” is an EV kit
combined with an interface board, such as a USB2GPIO#
and EV kit GUI software. Ordering information for EV
systems is included in the EV kits’ corresponding data
sheet. Refer to the appropriate EV kit data sheet for quick
start and detailed operating instructions.

The USB2GPIO# has been tested on Windows® 7,
Windows 8, and Windows 10 system using Munich GUI,
Version 2.17 or later.

Features

● USB-to-I2C/SPI/GPIO Interface

● Small PCB area

● Pmod-Compatible Form Factor

Figure 1. USB2GPIO# Board

Ordering Information appears at end of data sheet.

Windows and Windows XP are registered trademarks and
registered service marks of Microsoft Corporation.

Pmod is a trademark of Digilent Inc.

319-100131; Rev 0; 1/18

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

Quick Start

Required Equipment

● PC with Windows OS (Windows 7, Windows 8, or

Windows 10) with a USB port

● USB2GPIO# board

● A-to-Micro-B USB cable (not supplied)

● Munich software V2.17 or later

● Supported I2C or SPI interface device for communication

like MAX14001PMB# board

Procedure

The USB2GPIO# is fully assembled and tested. Follow
the steps below to verify board operation:

1) Go to www.maximintegrated.com/evkitsoftware
to download the most recent version of the Munich
GUI software, MUNICH GUI. Save the software to a

temporary folder and decompress the Munich_GUI-

SetupV2.17.zip le.

2) Connect the USB cable between the USB2GPIO#
board and the PC; the USB driver is installed
automatically.

3) Ensure that the companion SPI interface device’s
jumper settings are correct. Refer to your companion
device’s documentation.

4) Connect the USB2GPIO# board’s 2 x 6-pin, right­angle connector to the companion device’s 2 x 6-pin,
right-angle header, as shown in Figure 2.

5) Once the USB2GPIO# board is connected to the
companion device, open the MUNICH GUI.exe
(double-click) software.

6) Start the Munich GUI software and select the tab
sheet that corresponds to the companion device.
Follow instructions in the companion device data
sheet to test it in conjunction with USB2GPIO#.

Figure 2. USB2GPIO# Board Connected with MAX14914PMB#

www.maximintegrated.com

Maxim Integrated

│

2

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

Detailed Description of Hardware

The USB2GPIO# board uses the FT2232HQ (U1), a USB

2.0 high-speed (480Mbps)-to-UART/FIFO IC, to process
commands sent by a program running on the PC. Each

particular EV kit has its own custom software specic

to that kit. The operation of this board is USB-to-dual­channel I2C and SPI engine with additional GPIO channels.

The subsystem block diagram and simplied power tree

are shown in Figure 3.

The VCCIO and +3.3V voltage supplies are generated

by two MAX1556ETBs (U5 and U6), 1.2A, highly efcient

PWM step-down DC-DC converters. The 5V supply volt­age input for these ICs is provided by the Micro-USB
supply terminal available from the laptop. The 3V3 sup­ply provides power to the FDTI chip’s VREGIN pin and

VC CIO

+3V3

FT2232HQ

USB

+5V

U1

its internal oscillator through an LC lter, and the 4K

MICROWIRE EEPROM (93LC66BT). The USB-to-I2C/SPI
engine is powered by 3.3V at the VREGIN pin and the core
voltage of 1.8V for the IC is generated at VREGOUT. This
VCORE is used within the FTDI IC itself for its internal logic
processes and there is an external 12MHz crystal across
OSCI and OSCO pins of the FTDI IC. See USB2GPIO#

Adapter Board Schematic for details.

Pmod and Connector Supply Voltages

The USB2GPIO# is designed to supply power (V_OUT) to
external boards through the connectors X2 and X3. This

voltage is dened by the type of board connected to X3,

and when the user selects that tab in the Munich GUI,
V_OUT is automatically set to the correct level, either

1.8V, 2.5V, 3.3V, or 5.0V.

SWITCHES

MAX 49 83, U2, U4

12-PIN

X3

20-PIN

X2

V_OUT

SPI/I2C

V_OUT

GPIO

DC-DC

MAX 15 56, U5

DC-DC

MAX 15 56, U6

Figure 3. USB2GPIO# Subsystem Block Diagram

www.maximintegrated.com

VC CIO

+3V3

SELECT

VOLTAGE

OUT PUT

M1 - M5

+5V

M3

VC CIO

M1

V_OUT

Maxim Integrated

│

3

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

Figure 4 shows the pin conguration for the 12-pin SPI/

I2C-compatible Pmod connector on the USB2GPIO#
board which aligns to the pin conguration for the
connector found on companion Pmod boards such as
MAX14001PMB#. The connector type is female on the
USB2GPIO# board and male type on the companion
Pmod boards.

Figure 5 shows the pin configuration for the 20-pin GPIO-

compatible connector on the USB2GPIO# board which
aligns to the pin configuration for the connector found on
companion EV kit boards. The connector type is female

SPI/I2C PIN CONFIGURATION

V_OUT

GND

SCLK/SDA

MISO/SCL

6 12

5 11

4 10

3 9

V_OUT

GND

IO

IO

on the USB2GPIO# board and male type on the companion
EV kit boards. Note that this connector is NOT used by
the Munich GUI, but by the appropriate EV kit GUI. The
pinout for this connector includes allowing for an extra SPI
port should the EV kit require this functionality.

GPIO PIN CONFIGURATION

IO

IO

1 2

3 4

5

7 8

9 10

11 12

13 14

V_OUT

IO

IO

6

IO

IO

IO

IO

V_OUT

SCLK/IO

MOSI/IO

MISO/IO

CS/IO

MOSI/IO

CS/IO

2 8

1 7

IO

IO

Figure 4. X3: Pmod SPI/I2C Connector Pin Configuration

GND

IO

IO

15 16

17 18

19 20

IO

IO

GND

Figure 5. X2: GPIO Connector Pin Configuration

www.maximintegrated.com

Maxim Integrated

│

4

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

Figure 6 shows the top view of the USB2GPIO# board,

with the different connectors and the pin 1 identifiers.
Note that there are no jumpers or shunts on this
board, all configuration is done under software control.
Care should be taken to only insert the boards in the
correct way as the connectors are not keyed to avoid false

insertions—reversing the connections (by turning the
Pmod board upside down, for example) may result in
damage to the USB2GPIO# or the companion board. Two
LEDs are included to indicate if the X3 Pmod connector is
configured as SPI or I2C.

Figure 6. USB2GPIO# Orientation and Pinouts

Ordering Information

PART TYPE

USB2GPIO# Adapter Board

#Denotes RoHS compliant.

www.maximintegrated.com

Maxim Integrated

│

5

USB2GPIO# Adapter Board

CAPACITOR; SMT; 0603;

FERRITE-BEAD; 330; TOL=+/-

CLEAR; GREEN; SMT (0603);

Evaluates: USB2GPIO

USB2GPIO# Adapter Board Bill of Materials

ITEM REF_DES DNI/DNP QTY MFG PART # MANUFACTURER VALUE DESCRIPTION COMMENTS

1 C1 - 1

2 C2, C12, C14 - 3 GRM21BR71C475KA73 MURATA 4.7UF

C3, C4, C8, C13,

3

C15-C22, CX3B

4 C5, C6 - 2

C7, CP1, CP5,

5

CX3A

6 CP2, CP6 - 2

- 13

- 4

C0603C103K5RAC;
GRM188R71H103K;C06
03X7R500-103KNE

C0603C104K5RAC;
C1608X7R1H104K

C0603C330J5GAC;
GRM1885C1H330JA01;
ECU-V1H330JCV

CL21A106KOQNNN;
GRM21BR61C106KE15;
EMK212ABJ106KD

C0805C226M9PAC;
GRM21BR60J226ME39;
JMK212BJ226MG;
CL21A226MQCLQN

KEMET/MURATA/VENKEL LTD. 0.01UF

KEMET; TDK 0.1UF

KEMET/MURATA/PANASONIC 33PF

SAMSUNG ELECTRONI CS;
MURATA; TAIYO YUDEN

GENERIC PART 22UF

10UF

CAPACITOR; SMT; 0603;
CERAMIC; 0.01uF; 50V;
10%; X7R; -55degC to +
125degC

CAPACITOR; SMT (0805);
CERAMIC CHIP; 4. 7UF; 16V;
TOL=10%; MODEL=GRM
SERIES; TG=-55 DEGC TO
+125 DEGC; TC=X7R

CAPACITOR; SMT (0603);
CERAMIC CHIP; 0. 1UF; 50V;
TOL=10%; TG=-55 DEGC TO
+125 DEGC; TC=X7R;

CAPACITOR; SMT; 0603;
CERAMIC; 33pF; 50V; 5%;
C0G; -55degC to + 125degC;
0 +/-30PPM/degC

CAPACITOR; SMT (0805);
CERAMIC CHIP; 10UF ; 16V;
TOL=10%; TG=-55 DEGC TO
+85 DEGC; TC=X5R

CAPACITOR; SMT (0805);
CERAMIC CHIP; 22UF ; 6.3V;
TOL=20%; TG=-55 DEGC TO
+125 DEGC; TC=X5R

7 CP3, CP7 - 2

8 CP4, CP8 - 2

9 FB1-FB3 - 3 BLM21PG331SN1 MURATA 330

10 I2C, SPI - 2 150060VS75000 W URTH ELECTRONICS INC 150060VS75000

11 L1, L2 - 2 B82432T1332K TDK 3.3UH

12 M1, M3 - 2 NTTFS5116PL ON SEMICONDUCTOR NTTFS5116PL

13 M2 - 1 SI2319DS-T1-E3 VISHAY SILICONIX SI2319DS-T1-E3

14 M4, M5 - 2 IRLML6346 INTE RNATIONAL RECTIFI ER IRLML6346

15 MT1-MT4 - 4 P440.375 GENERIC PART N/A

16 MT1-MT4 - 4 1902B GENERIC PART N/A

17 Q1 - 1 ECS-120-20-33 E CS INC 12MHZ

C0603C102K5RAC;
GRM188R71H102KA01;
C0603X7R500-102KNE

C0603C105K3PAC;
GRM188R61E105KA12;
06033D105KAT2A

KEMET/MURATA/VENKEL 1000PF

KEMET; MURATA; AVX 1UF

CERAMIC; 1000pF; 50V;
10%; X7R; -55degC to +
125degC; +/-15% from ­55degC to +125degC

CAPACITOR; SMT (0603);
CERAMIC CHIP; 1UF; 25V;
TOL=10%; TG=-55 DEGC TO
+85 DEGC;

INDUCTOR; SMT (0805);

25%; 1.5A

DIODE; LED; W L-SMCW
SMD CHIP LED TOP VIEW
MONO-COLOR WATE R

VF=2V; IF=0.02A

INDUCTOR; SMT (1812);
FERRITE CORE; 3. 3UH;
TOL=+/-10%; 0.9A

TRAN; POWE R MOSFET;
PCH; WDFN8; PD-(40W); I-(­20A); V-(-60V)

TRAN; P-CHANNEL D-S
MOSFET; PCH; SOT-23;
PD-(0.75W); I-(-2.3A );
V-(-40V)

TRAN; HEXFET POW ER
MOSFET; NCH; SOT-23; PD­(1.3W); I-(0.00025A); V -(30V)

MACHINE SCREW ;
SLOTTED; PAN; 4-40IN;
3/8IN; NYLON

STANDOFF; FEMALE­THREADED; HEX; 4-40IN;
3/8IN; NYLON

CRYSTAL; SMT; 20PF;
12MHZ; +/-50PPM; +/ -50PPM

www.maximintegrated.com

Maxim Integrated

│

6

USB2GPIO# Adapter Board

0.10W; THICK FILM

0.0625W, THICK FILM

0.10W; THICK FILM

IC; MMRY; DUAL HIGH

UART/FIFO; QFN64-EP

EEPROM; SOT23-6

IC; CONV; PW M

3X3

CONNECTOR; MALE;

CONNECTOR; FEMALE ;

RIGHT ANGLE; 20PI NS

CONNECTOR; FEMALE ;

ANGLE; 12PINS

Evaluates: USB2GPIO

USB2GPIO# Adapter Board Bill of Materials (continued)

ITEM REF_DES DNI/DNP QTY MFG PART # MANUFACTURER VALUE DESCRIPTION COMMENTS

TRAN; DUAL N-CHANNEL

18 Q2, Q3 - 2 PMGD280UN NXP PMGD280UN

R1, R9-R11, R16,

19

R17, RP3, RP4

20 R2 - 1 CRCW060315K0FK VISHAY DALE 15K

21 R3 - 1 CRCW060312K1FK VISHAY DALE 12.1K

22 R4, R5 - 2

R6, R12-R15,

23

R18-R37, RAD9,
RAD10

24 R7 - 1

25 RL1, RL2 - 2 ERJ -2GEJ471X PANA SONIC 470

26 RP1, RP2 - 2

- 8

- 27

CRCW060310K0FK;
ERJ-3EKF1002

CRCW060310R0FK;
MCR03EZPFX10R0

CRCW040210K0FK;
RC0402FR-0710K

CRCW04022K20FK;
RC0402FR-072K2L

CRCW0603100RFK;
ERJ-3EKF1000

VISHAY DALE; PANASONIC 10K

VISHAY DALE/ROHM 10

VISHAY DALE; YAGEO PHICOMP 10K

VISHAY DALE/YAGEO PHICOMP 2.2K

VISHAY DALE/PANASONIC 100

UTRENCHMOS ULTRA LOW
LEVEL FET; NCH; SOT-363;
PD-(0.4W); I-(0.87A ); V-(20V)

RESISTOR; 0603; 10K;
1%; 100PPM; 0.10W ; THICK
FILM

RESISTOR, 0603,
15K OHM,1%, 100PPM,

0.10W, THICK FILM

RESISTOR; 0603;

12.1K OHM; 1%; 100PPM;

0.1W; THICK FILM

RESISTOR; 0603;
10 OHM; 1%; 100PPM;

RESISTOR; 0402;
10K; 1%; 100PPM; 0.0625W ;
THICK FILM

RESISTOR, 0402,

2.2K OHM, 1%, 100PPM,

RESISTOR; 0402;
470 OHM; 5%; 200PPM;

0.10W; THICK FILM

RESISTOR; 0603;
100 OHM; 1%; 100PPM;

27 U1 - 1 FT2232HQ

28 U2, U4 - 2 MAX4983EEVB+ M AXIM MAX4983EEVB+

29 U3 - 1 93LC66BT-I/OT M ICROCHIP 93LC66BT-I/OT

30 U5, U6 - 2 MAX1556ETB+ MAXIM MAX1556ETB+

31 X1 - 1 ZX62RD-AB-5P8 HI ROSE ELECTRIC CO LTD. ZX62RD-AB-5P8

32 X2 - 1 PPT C102LJBN-RC SULLINS ELECTRONICS CORP PPTC102LJBN-RC

33 X3 - 1 PPP C062LJBN-RC SULLINS ELECTRONICS CORP. PPPC062LJBN-RC

34 PCB - 1 USB2GPIO_APPS_B M AXIM PCB PCB:USB2GPIO_APPS_B -

TOTAL 106

FUTURE TECHNOLOGY
DEVICES INTL LTD.

FT2232HQ

SPEED USB TO
MULTIPURPOSE

IC; ASW; HI-SPEED
USB 2.0 SWITCH WITH +/­15KV ESD; UTQFN10

IC; EPROM; 4K
MICROWIRE S ERIAL

STEP-DOWN DC-DC
CONVERTER; TDFN10-EP

SMT; MICRO-USB
CONNECTOR MEETING
REQUIREMENTS OF USB

2.0 STANDARD; RIGHT
ANGLE; 5PINS

THROUGH HOLE;
BREAKAWAY HEADER;

THROUGH HOLE; 0.1IN CC;
HEADER; 2 ROW; RIGHT

www.maximintegrated.com

Maxim Integrated

│

7

USB2GPIO# Adapter Board

10UF

V_OUT +3V3

Evaluates: USB2GPIO

USB2GPIO# Adapter Board Schematic

ADBUS5

ADBUS7

ADBUS4

ADBUS6

C8C7

INININ

IN

V_OUT

X3

PPPC062LJBN-RC

V_OUT

470

A K

470

RL1

SPI

6

R16

10K

RL2

A K

Q2

D

G

2

PMGD280UN

S

1

IN

ACBUS0

Q2

I2C

PMGD280UN

D

S

4

3

G

5

R17

10K

IN

ACBUS1

U2

MAX4983EEVB+

VCC

+5V

9

0.1UF

VCCIOVCCIOVCCIOVCCIO

0.1UF

0.1UF

0.1UF

VCORE

0.1UF

VCORE

0.1UF 0.1UF

C16 C17 C18 C20 C21C19 C22

VCORE

12

121110

65432

6

10UF 0.1UF

8103

CB

EN

NC1

172

IN

SDA_A/SCLK_A

SDA_A/SCLK_A

IN

COM1

NO1

V_OUT

VCCIO

VCORE

VPLL

VPHY

987

IN

MOSI_A

SCL_A/MISO_A

5

COM2

NC2

NO2

6

+3V3

7891011

12345

IN

CS_A

GND

10K

10K

10K

10K

10K

10K

10K

10K

56

42

31

20

64

37

12

9

4

C4

I2C

1

SPI

IN

ACBUS7

4

R21

R20

R19

R18

R15

R14

R13

R12

VCCIO

VCCIO

VCCIO

VCCIO

VCORE

VCORE

VCORE

VPLL

VPHY

0.1UF

+5V

4 - SDA

2 - IO

3 - SCL

1 - IO

3 - MISO

1 - CS

4 - SCLK

2 - MOSI

R11

10K

U4

+5V

ADBUS4

CS_A

IN

IN

16171819212223

ADBUS4

ADBUS3

ADBUS2

ADBUS1

ADBUS0

VREGOUT

VREGIN

50

49

4.7UF0.1UF

C3 C2

VCORE

C1

330

FB1

1.5A

5 - GND

6 - VCC

6 - VCC

5 - GND

835

EN

MAX4983EEVB+

VCC

9

ADBUS5

ADBUS6

ADBUS7

IN

IN

IN

24

ADBUS7

ADBUS6

ADBUS5

0.01UF
1 2

X1

ZX62RD-AB-5P8

10

CB

COM1

NO1

NC1

172

ACBUS1

ACBUS0

IN

IN

26

27282930323334

ACBUS1

ACBUS0

U1

FT2232HQ

7

10

10

R4

R5

12345

V_OUT

V_OUT

NC2

ACBUS3

ACBUS2

DPDMREF

8

CX3B

X2

CX3A

MOSI_A

IN

COM2

NO2

6

ACBUS3

IN

ACBUS4

6

12.1K

R3R2R1

54321

SHIELD

0.1UF

BCBUS1

BCBUS0

2

43

PPTC102LJBN-RC

1

BDBUS0

BDBUS1

10UF

4

GND

V_OUT

10K

R22

BDBUS0

ACBUS7

ACBUS6

ACBUS5

IN

IN

IN

ACBUS7

ACBUS6

ACBUS5

RESET#

14

10K

+5V

6

7

8

9

10

10 9876

BCBUS7

BCBUS6

BCBUS5

BCBUS4

BCBUS2

BCBUS3

INININININININ

IN

2019

1817

1615

1413

1211

1098765

INININININININ

IN

BDBUS2

BDBUS3

BDBUS7

BDBUS5

BDBUS4

BDBUS6

10K

10K

10K

10K

R26

R25

R24

R23

INININ

BDBUS3

BDBUS1

BDBUS2

BDBUS4

BDBUS3

BDBUS1

BDBUS2

BDBUS0

IN

38394041434445

BDBUS4

BDBUS3

BDBUS2

BDBUS1

BDBUS0

15K

U3

93LC66BT-I/OT

6

+3V3

ALL OTHER PINS GPIO

SPI

3 - SCLK

1,2 - VCC

10K

10K

10K

R29

R28

R27

INININININ

BDBUS4

BDBUS5

BDBUS6

BDBUS7

BDBUS5

BCBUS0

BDBUS6

BDBUS7

INININININININ

IN

485253

46

BCBUS0

BDBUS7

BDBUS6

BDBUS5

EECS

EECLK

626361

453

CS

CLK

VCC

DO

1

7 - MISO

5 - MOSI

BCBUS1

BCBUS2

IN

IN

BCBUS2

BCBUS1

EEDATA

R7

9 - CS

19,20 - GND

10K

R30

IN

BCBUS0

BCBUS3

IN

5455575859

BCBUS4

BCBUS3

2.2K

DI

VSS

10K

10K

R31

R32

INININ

BCBUS1

BCBUS5

BCBUS4

INININ

IN

BCBUS6

BCBUS5

OSCI

2

R6

+3V3

2

10K

R33

BCBUS2

BCBUS3

BCBUS7

BCBUS6

BCBUS7

OSCO

3

Q1

1 3

10K

10K

R34

BCBUS4

60

3613

PWREN#

SUSPEND#

TEST

2 4

C5 C6

10K

R35

BCBUS5

33PF33PF

12MHZ

V_OUT

+5V

10K

R36

IN

BCBUS6

EP

GND

GND

GND

GND

GND

GND

GND

GND

AGND

10K

R37

INININ

BCBUS7

65

51

47

35

25

15

11

5

1

10

NTTFS5116PL

M3

3
2

S

1

D

G

4
RP3

10K

NTTFS5116PL

M1

8
7
6
5

VCCIO

3
216

10K

8
7

S

5

D

G

4

M2

SI2319DS-T1-E3

S

D

G

S

D

G

IRLML6346 IRLML6346

M4 M5

RP4

S

D

G

IN

ACBUS3

VCCIO

CP2

22UF

L1

3.3UH

1 2

7

8

U5

INP LX

9

+5V

CP1

+5V

6

R9

10K

V_OUT

MAX1556ETB+

100

RP1RAD9

10UF

Q3

D

G

2

10K

IN

PGND

IN

1

S

1UF

CP4

PMGD280UN

1

4

OUT

ACBUS5

0.1UF

C15C14

4.7UF

CP6

22UF

U6

MAX1556ETB+

100

RP2

CP5

VPHY

7

PGND

IN

1

1UF

CP8

VPLL

330

FB3

1.5A

1 21 2

+3V3

L2

3.3UH

INP LX

9 8

+5V

1000PF

CP3

3

SS

EP

11

2

GND

SHDN

D1

D2

5106

+5V

Q3

PMGD280UN

D

+5V

S

4

3

G

R10

10K

5

10K

RAD10

IN

ACBUS6

C13C12

0.1UF

4.7UF

330

FB2

1.5A

1 2

1000PF

4

OUT

CP7

3

SS

EP

11

2

GND

SHDN

D1

D2

5106

www.maximintegrated.com

Maxim Integrated

│

8

USB2GPIO# Adapter Board

USB2GPIO# Adapter Board PCB Layout Diagrams

Evaluates: USB2GPIO

1”

USB2GPIO# Adapter Board—Top Silkscreen

1”

USB2GPIO# Adapter Board—Internal 2

1”

USB2GPIO# Adapter Board—To p

1”

USB2GPIO# Adapter Board—Internal 3

www.maximintegrated.com

Maxim Integrated

│

9

USB2GPIO# Adapter Board

USB2GPIO# Adapter Board PCB Layout Diagrams (continued)

Evaluates: USB2GPIO

1”

USB2GPIO# Adapter Board—Bottom USB2GPIO# Adapter Board—Bottom Silkscreen

1”

www.maximintegrated.com

Maxim Integrated

│

10

USB2GPIO# Adapter Board

Evaluates: USB2GPIO

Revision History

REVISION

NUMBER

0 12/17 Initial release —

REVISION

DATE

DESCRIPTION

PAGES

CHANGED

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim Integrated’s website at www.maximintegrated.com.

Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit patent licenses

are implied. Maxim Integrated reserves the right to change the circuitry and specications without notice at any time.

Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.

©

2017 Maxim Integrated Products, Inc.

│

11
