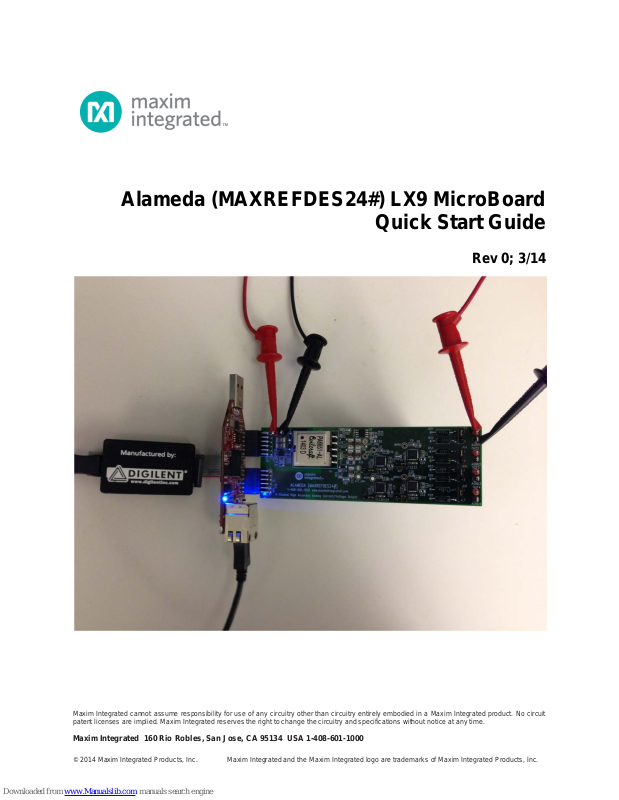

Maxim Integrated MAXREFDES24 Quick Start Manual

Alameda (MAXREFDES24#) LX9 MicroBoard

Quick Start Guide

Rev 0; 3/14

Maxim Integrated cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim Integrated product. No circuit
patent licenses are implied. Maxim Integrated reserves the right to change the circuitry and specifications without notice at any time.

Maxim Integrated 160 Rio Robles, San Jose, CA 95134 USA 1-408-601-1000

© 2014 Maxim Integrated Products, Inc. Maxim Integrated and the Maxim Integrated logo are trademarks of Maxim Integrated Products, Inc.

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

Table of Contents

1. Required Equipment ................................................................................................. 3

2. Overview ................................................................................................................... 3

3. Included Files ........................................................................................................... 5

4. Procedure ................................................................................................................. 6

5. Code Documentation .............................................................................................. 18

6. Appendix A: Project Structure and Key Filenames ................................................. 19

7. Trademarks ............................................................................................................ 19

8. Revision History ...................................................................................................... 20

2

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

1. Required Equipment

• PC with Windows® OS with Xilinx® ISE®/SDK version 14.2 or later and two USB
ports (Refer to Xilinx AR# 51895 if you installed ISE WebPACKTM design
software on your PC.)

• License for Xilinx EDK/SDK version 14.2 or later (free WebPACK license is OK)

• Alameda (MAXREFDES24#) board

• Avnet Spartan®-6 LX9 MicroBoard

• One +24V 1A DC power supply

• One 750Ω 0.25W resistor

2. Overview

Below is a high-level overview of the steps required to quickly get the Alameda design
running by downloading and running the FPGA project. Detailed instructions for each
step are provided in the following pages. The Alameda (MAXREFDES24#) subsystem
reference design will be referred to as Alameda throughout this document.

1) Connect the Alameda board to the J4 and J5 ports of an LX9 MicroBoard as
shown in Figure 1. Ensure the connector is aligned as shown in Figure 2
communication between the Alameda board and the LX9 MicroBoard is through
the pins on the J4 connector. The J5 connector is for the board physical support
only.

2) Download the latest RD24V01_00.ZIP file located at the Alameda page.

3) Extract the RD24V01_00.ZIP file to a directory on your PC.

4) Open the Xilinx SDK.

5) Download the bitstream (.BIT) file to the board. This bitstream contains the FPGA
hardware design and software bootloader.

6) Open a terminal program to communicate with FPGA board.

7) Use Xilinx SDK to download and run the executable file (.ELF) on the
MicroBlaze™.

. The

3

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

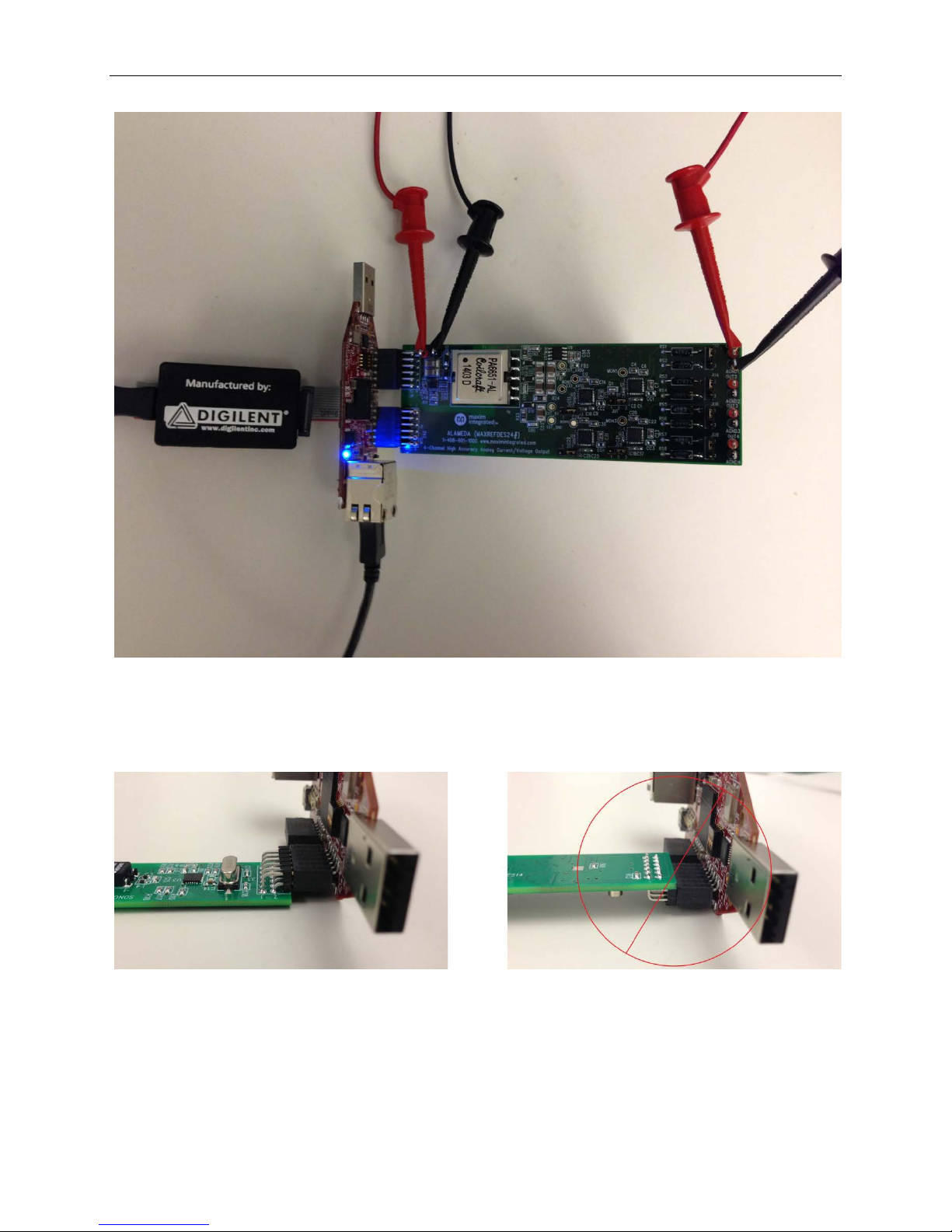

Figure 1. Alameda Board Connected to LX9 Kit

Figure 2. Pmod™ Connector Alignment

4

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

3. Included Files

The top level of the hardware design is a Xilinx ISE Project Navigator Project (.XISE) for
Xilinx ISE version 14.2. The Verilog-based HDL design instantiates the MicroBlaze core,
the support hardware required to run the MicroBlaze, and the peripherals that interface
to the Pmod ports. Software is supplied as a Xilinx software development kit (SDK)
project that includes a demonstration software application to evaluate the Alameda
subsystem reference design. The lower level c-code driver r outines are portable to the
user’s own software project.

5

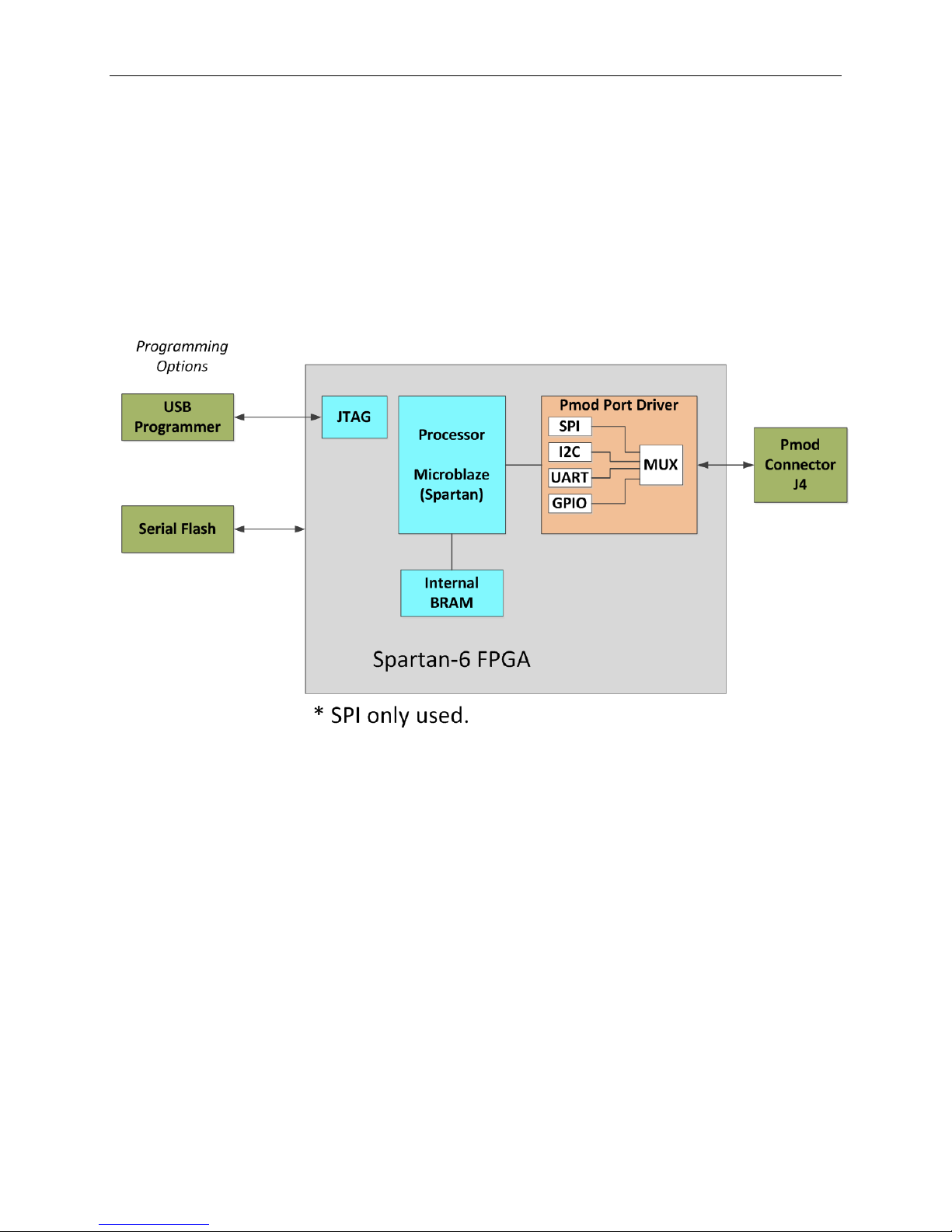

Figure 3. Block Diagram of FPGA Hardware Design

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

4. Procedure

1. Connect the Alameda board to the J4 and J5 ports of an LX9 MicroBoard as
shown in Figure 1.

2. Connect the +24V power supply positive terminal and the ground terminal to the
+24V and the PGND connectors on the Alameda board, respectively.

3. Connect one end of the 750Ω load resistor to the OUT1 connector on the
Alameda board. Connect the other end of the 750Ω load resistor to the AGND1
connector on the Alameda board.

4. Ver if y t hat the JU1, JU3, JU5, and JU7 jumpers are on the 2-3 position.

5. Ver if y t hat the JU2, JU4, JU6, and JU8 jumpers are on the 1-2 position.

6. Connect the J3 USB connector of the LX9 MicroBoard to a PC. This connection
is used to communicate with a PC through a terminal program. See step 16 f or
USB driver installation.

7. Connect the J6 JTAG connector of the LX9 MicroBoard to a PC through a Xilinx
programming cable. This connection is used to program and debug the FPGA.

8. Download the latest RD24V01_00.ZIP file at

www.maximintegrated.com/Alameda. All files available for download are

available at the bottom of the page.

9. Extract the RD24V01_00.ZIP file to a directory on your PC. The location is
arbitrary but the maximum path length limitation in Windows (260 characters)
should not be exceeded.

In addition, the Xilinx tools require the path to not contain any spaces.

C:\Do Not Use Spaces In The Path\RD24V01_00.ZIP

(This path has spaces.)

For the purposes of this document, it will be C:\designs\maxim\RD24V01_00\.
See Appendix A: Project Structure and Key Filenames in this document for
the project structure and key filenames.

6

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

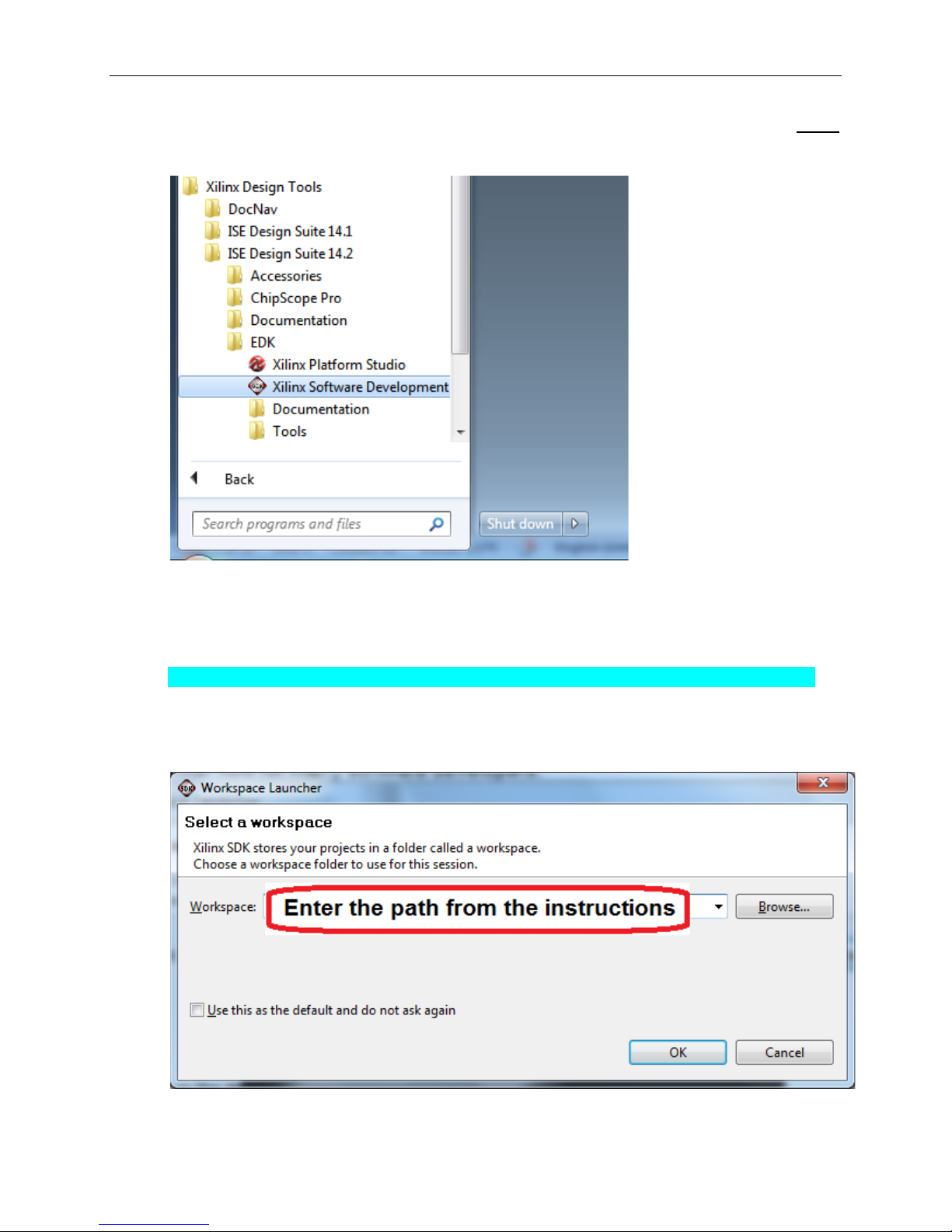

10. Open the Xilinx Software Development Kit (SDK) from the Windows Start
menu.

11. SDK will prompt for a workspace directory, which is the location where the
software project is located. For this example, it is:

C:\designs\maxim\RD24V01_00\RD24_LX9_V01_00\Design_Files\sdkWorkspace

Click OK and SDK will open. The Xilinx SDK is based on an Eclipse™-based
IDE, so it will be a familiar flow for many software developers.

7

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

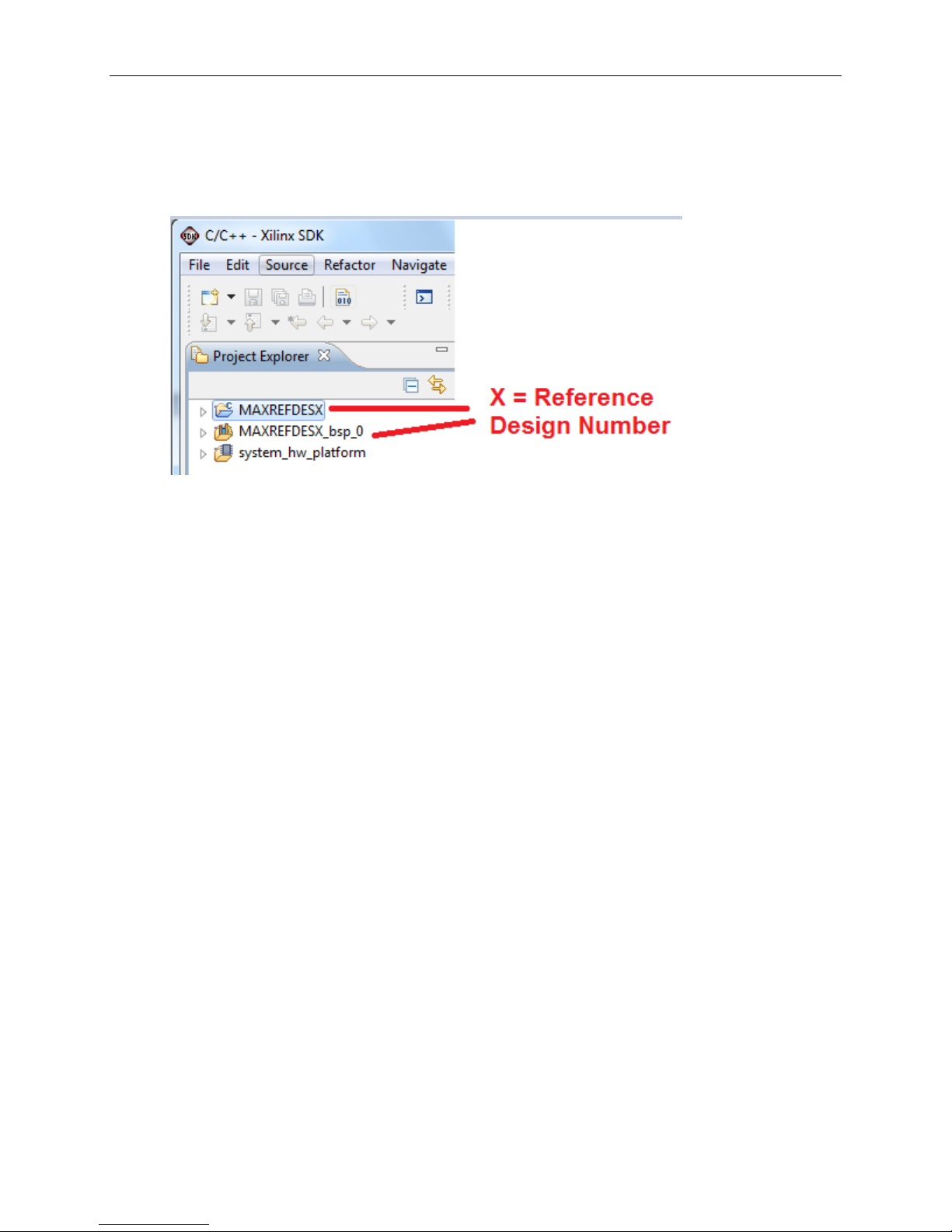

12. Review the SDK IDE. The Project Explorer in the upper left tab should have
three components as shown in the image below. If all three subfolders are
present, you can skip the next step.

8

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

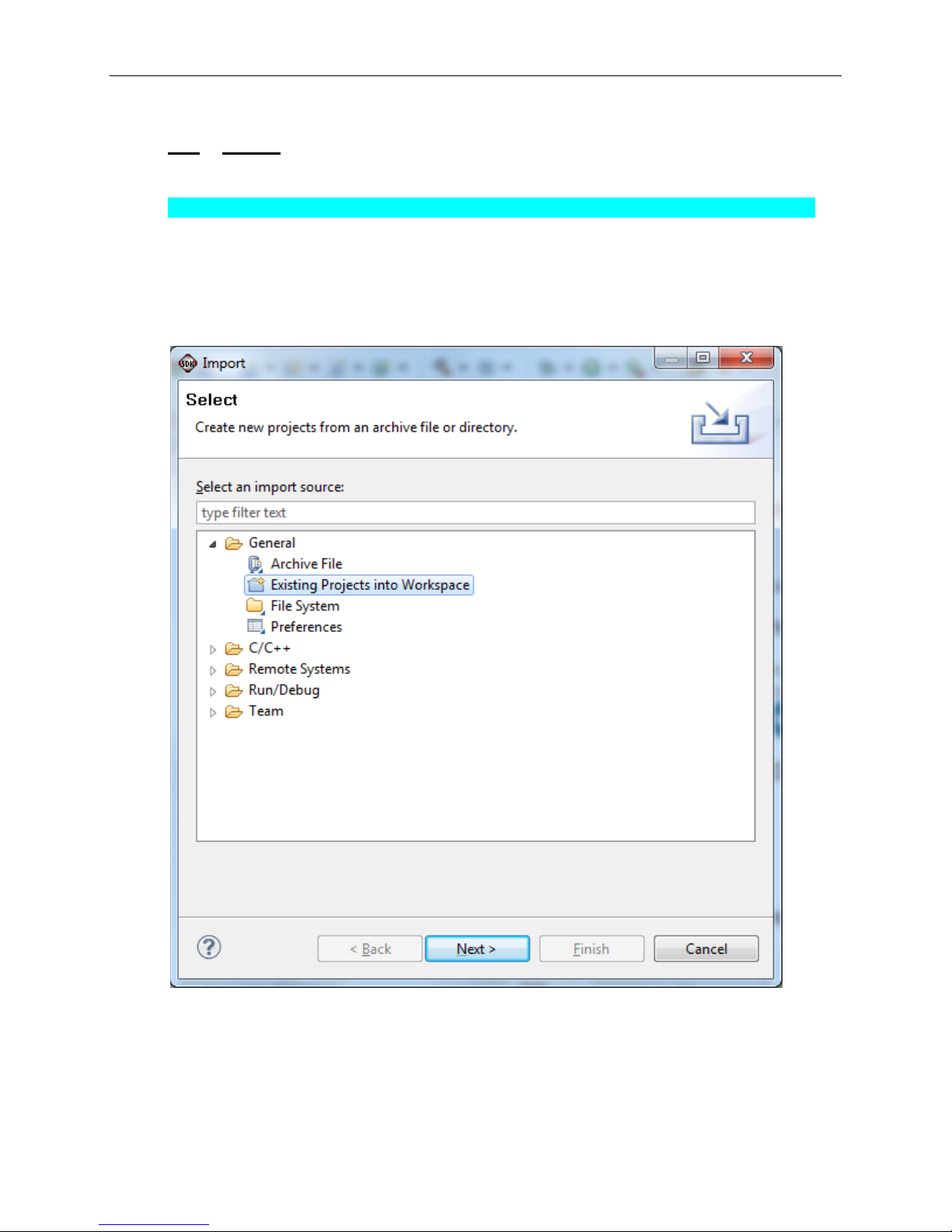

13. If the Project Explorer does not contain these three subfolders, launch the

File | Import menu, expand the General folder, and select Existing Projects
into Workspace. Click Next. Set the root directory to:

C:\designs\maxim\RD24V01_00\RD24_LX9_V01_00\Design_Files\sdkWorkspace

and the missing projects should appear in SDK Project Explorer with their
checkboxes checked.

Click Finish to import the projects.

9

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

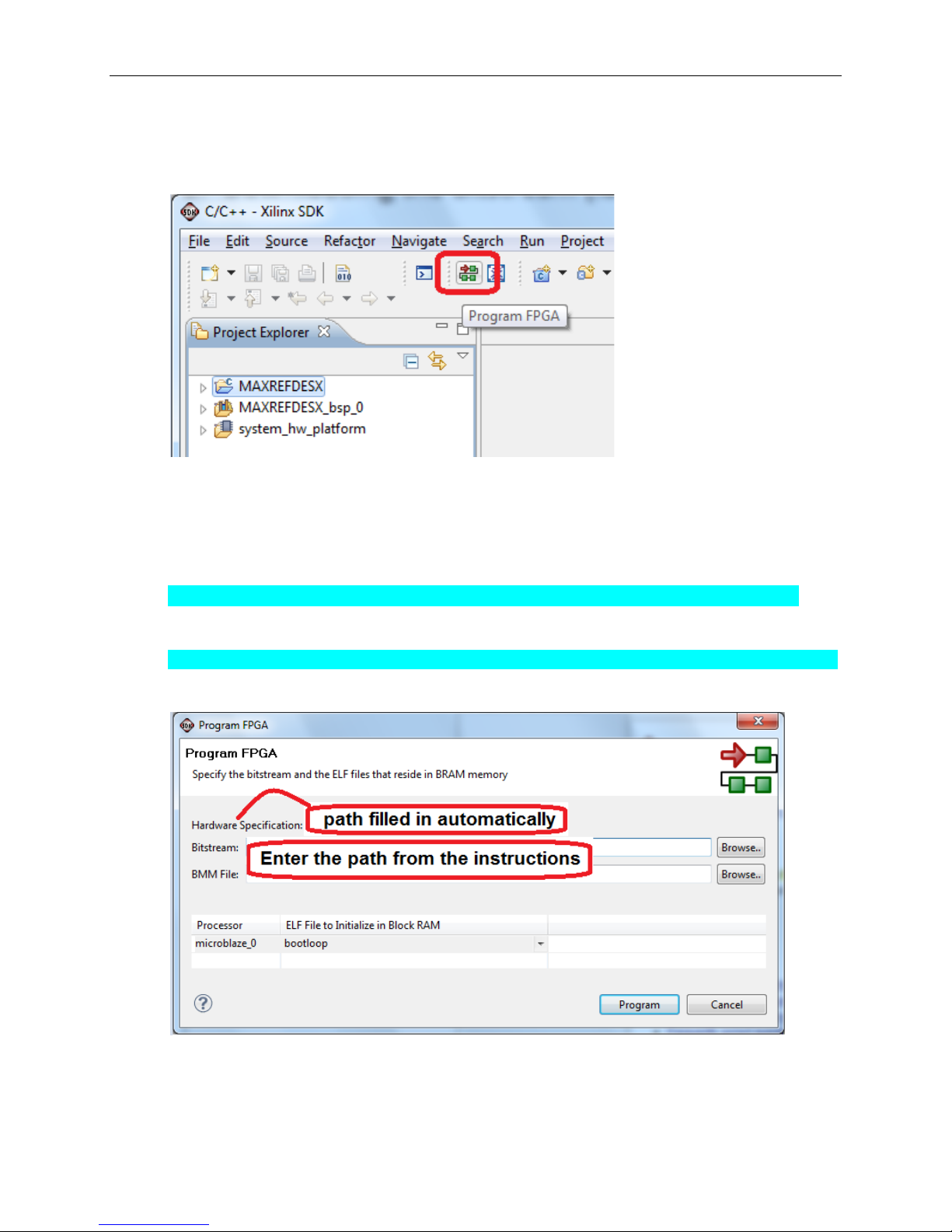

14. To download the bitstream (.BIT) file to the board, click on the Program FPGA
icon (which looks like a green chain of devices).

The Program FPGA dialog box appears. From here, an FPGA Bitstream (.bit)
file is selected as well as an FPGA BMM (.bmm) file. Be sure to select the .bit file
and the .bmm file by using the paths below.

Bitstream:

C:\designs\maxim\RD24V01_00\RD24_LX9_V01_00\Design_Files\top.bit

BMM File:

C:\designs\maxim\RD24V01_00\RD24_LX9_V01_00\Design_Files\edkBmmFile_bd.bmm

Also make sure the bootloop file is selected as shown, then press Program.

It takes approximately 10 seconds to download the FPGA, then a message box
indicating FPGA configuration complete appears.

10

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

15. Set up the terminal program to run on the PC using the following steps. Before
loading the executable firmware file on the FPGA, the terminal program on the
PC should be running. The example firmware running on the FPGA
communicates with the PC via a USB port set up to emulate a serial port (UART).
To establish this communication link, the PC must be configured with the
appropriate Windows drivers. A suitable terminal program such as Ter a Term or
HyperTerminal should be invoked.

The micro USB (J3) on the LX9 is the communication port. The LX9 ut ilizes the
Silicon Labs CP2102 USB-UART bridge IC, so you need to install Silicon Labs’
virtual COM port (VCP) driver for their CP210x device family. These may be
obtained from the Silicon Labs website (www.silabs.com).

Once installed, Windows will assign a previously unused COM port. Use the
Windows Control Panel | System | Device Manager to determine the COM port
number. (It will be named Silicon Labs CP210x USB to UART Bridge.) Mak e a
note of which COM port this is. That information is needed in the next step.

Next, a terminal emulation program needs to be installed and launched. For
Windows XP® and earlier systems, the HyperTerminal program is the usual
choice. However, since HyperTerminal was eliminated from Windows 7, it may
be necessary to locate an alternative. Several are available; one good choice is
called Tera Term (http://ttssh2.sourceforge.jp/). Whatever terminal program you
choose, the communication should be set up by opening the COM port number
previously described above and the port configured as:

bits per second: 115,200;
data bits: 8;
parity: none;
stop bits: 1;
flow control: none.

11

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

16. Use the Xilinx SDK to download and run the executable ELF (.ELF) file on the
MicroBlaze using the following steps.

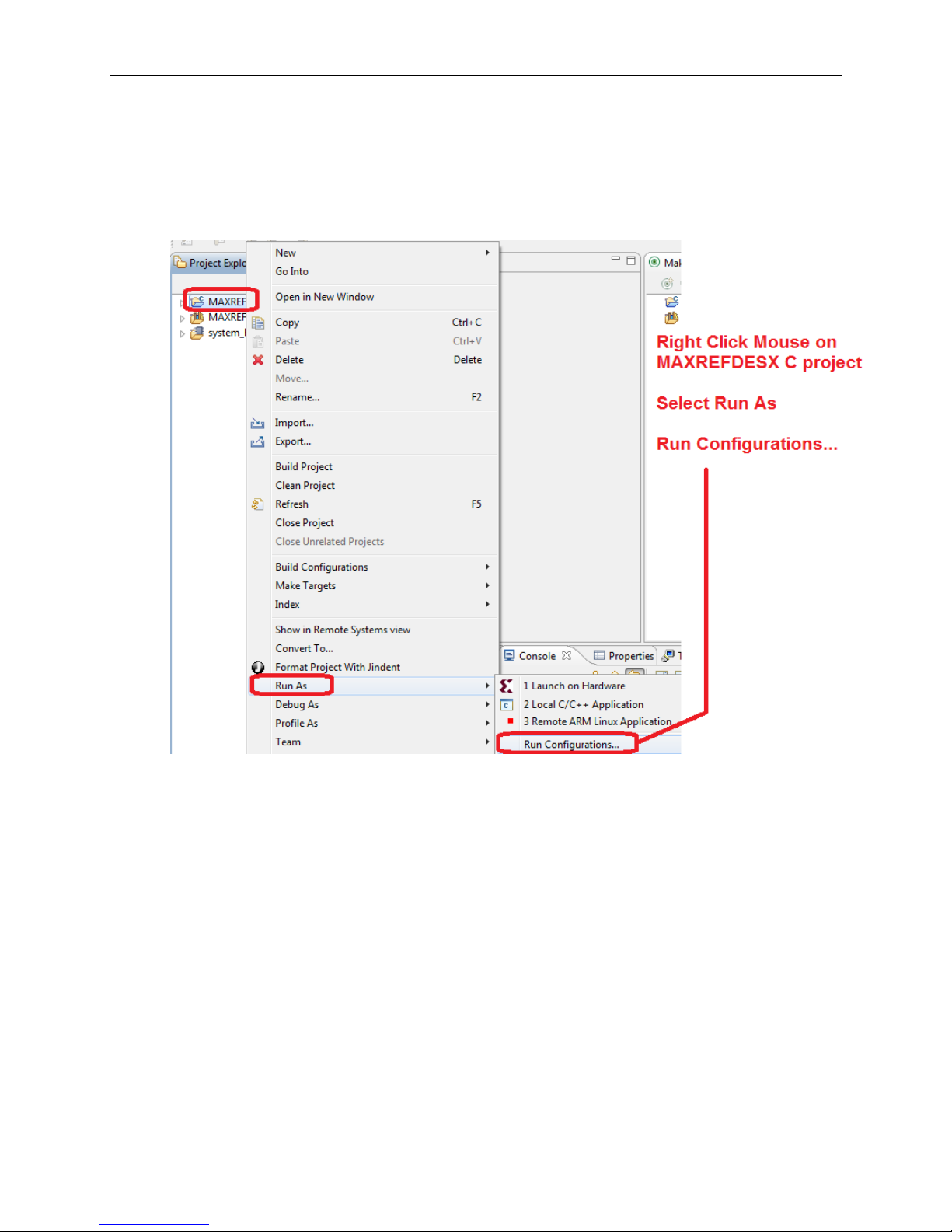

Right-click the mouse while the MAXREFDES24 C project is selected, choose
the Run As menu, and then Run Configurations… menu as shown below.

12

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

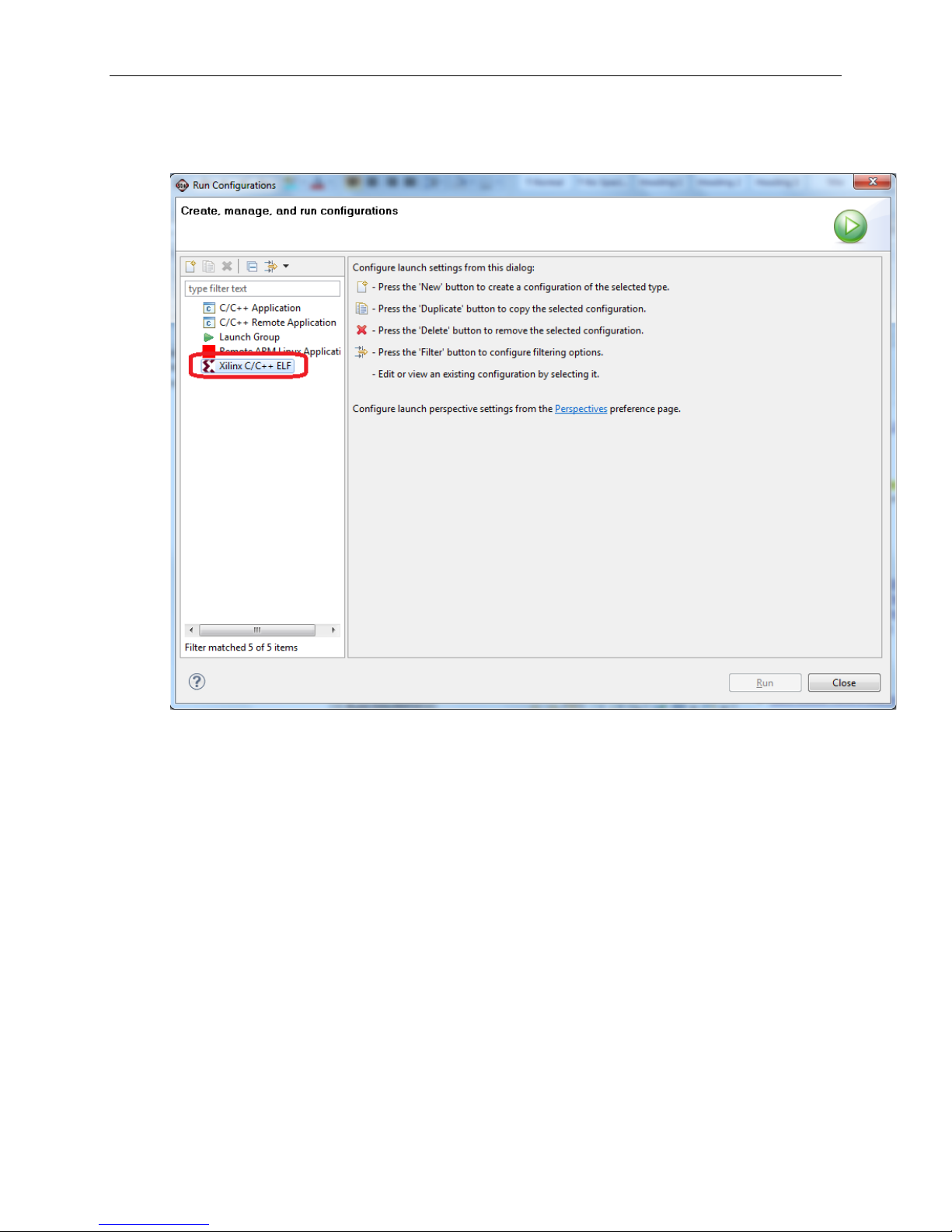

Next, double-click the mouse on the Xilinx C/C++ ELF menu.

13

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

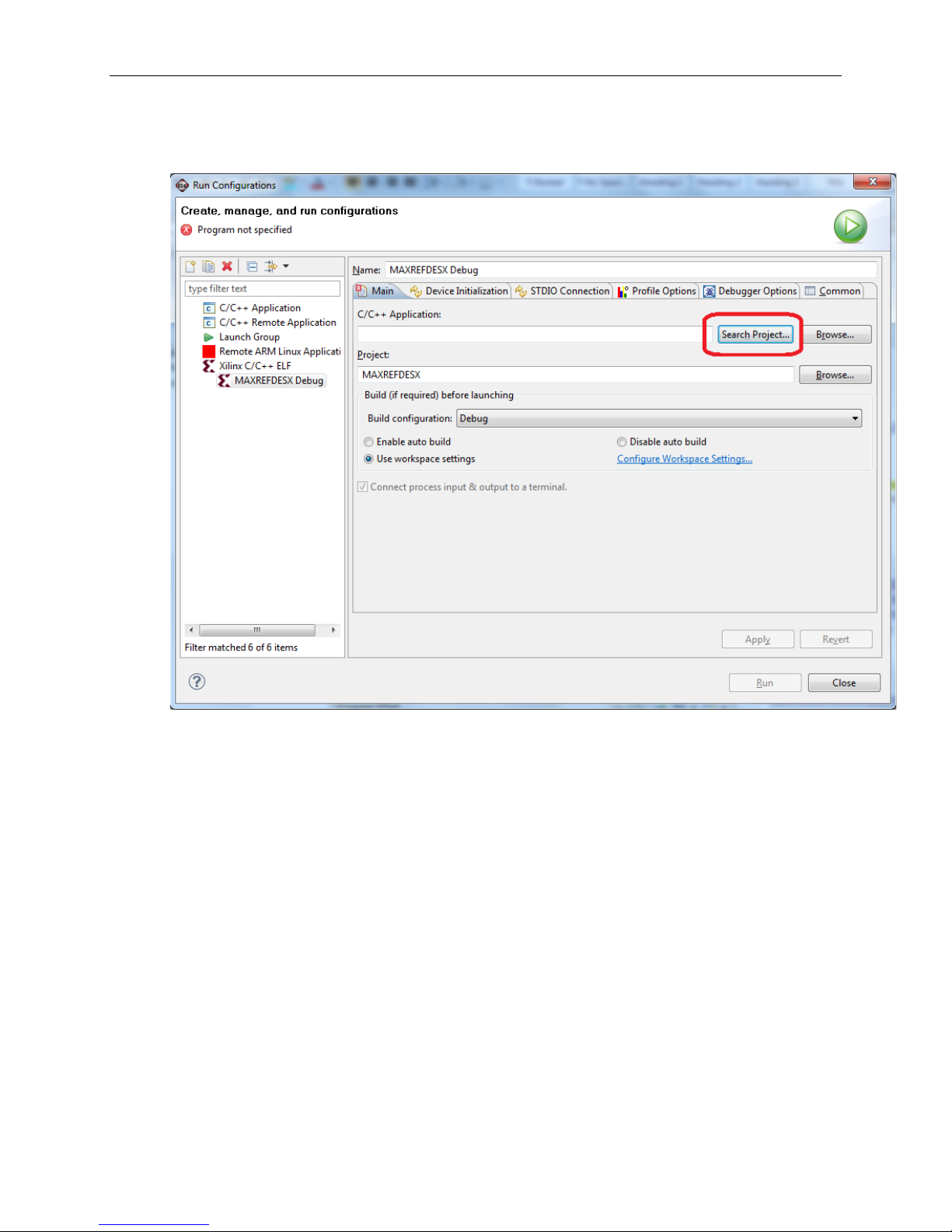

Next, press the Search Project button.

14

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

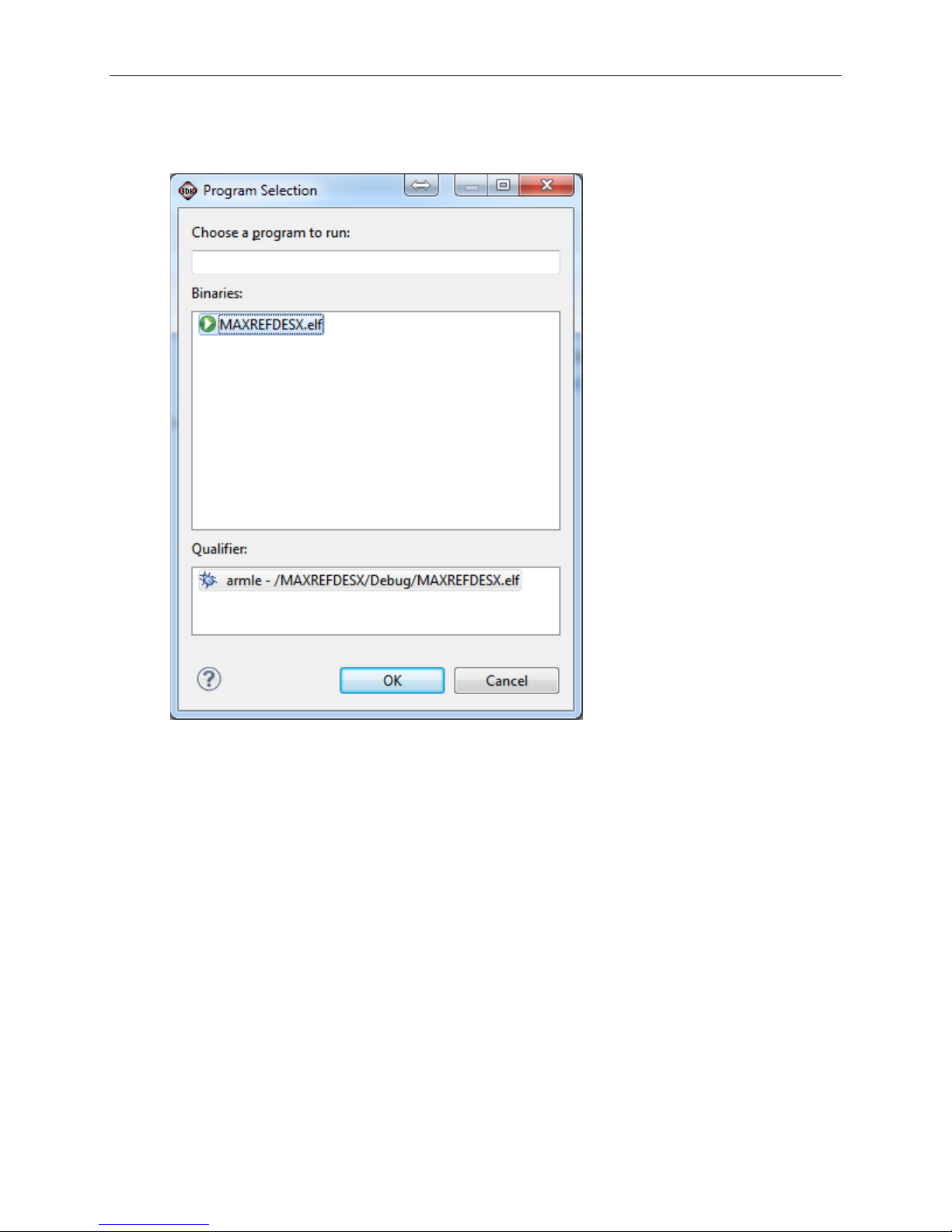

Double-click on the MAXREFDES24.elf binary.

15

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

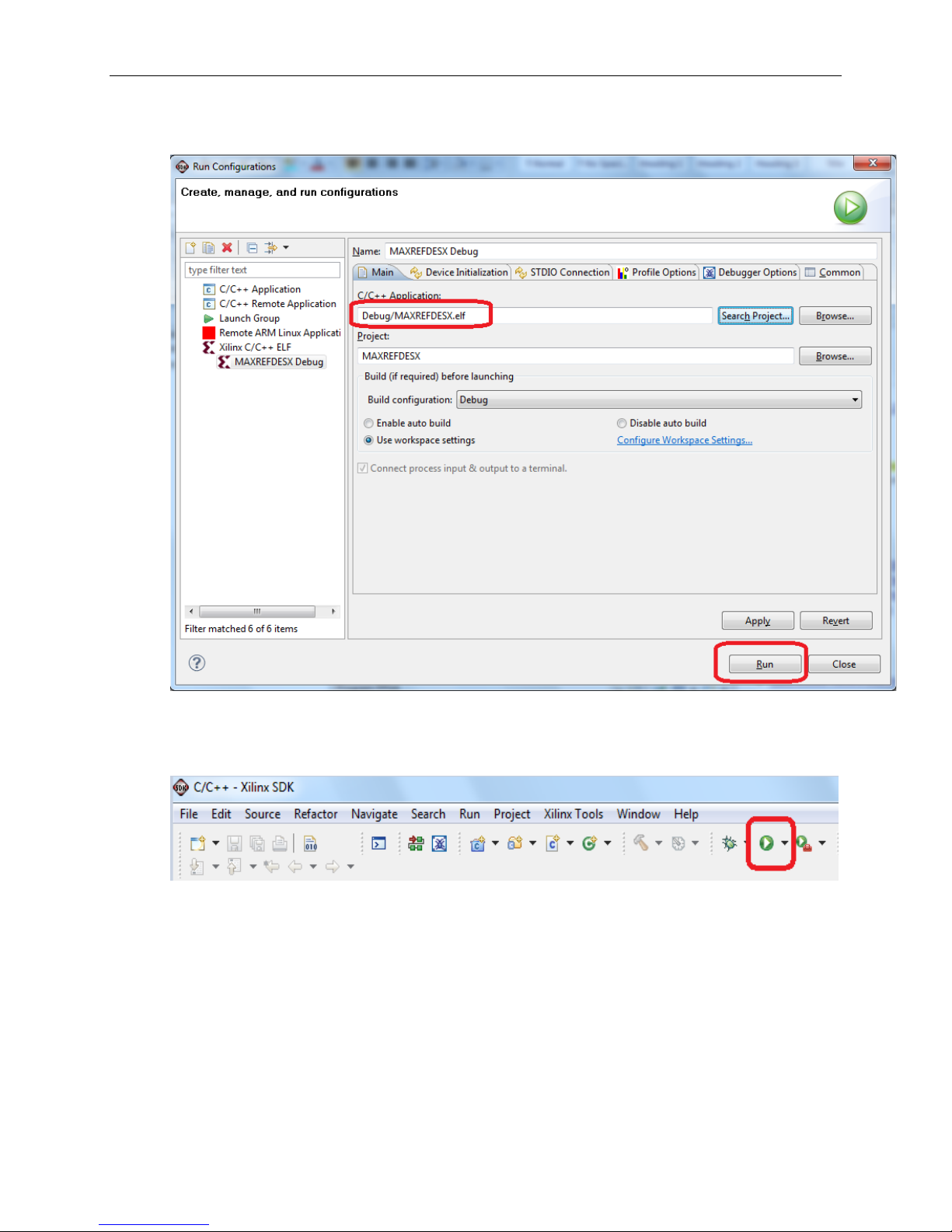

Verify the application is selected on the Main tab and press the Run button.

Once the Debug/MAXREFDES24 configuration is set up once, you just need to
press the Run button if you ever want to run the program again.

16

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

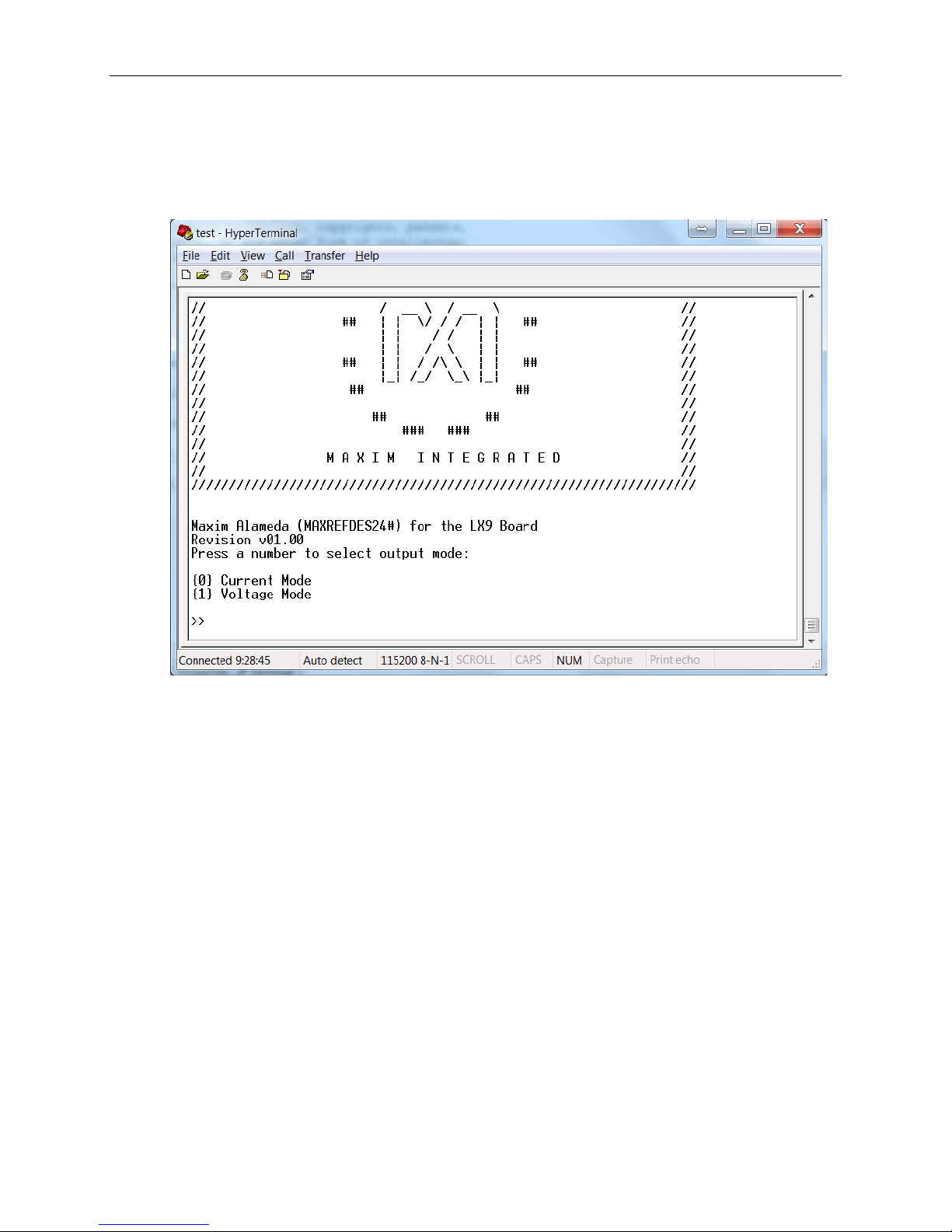

At this point, the application will be running on the MicroBlaze and the terminal
program should show the menu below. Make the desired selections by pressing
the appropriate keys on the keyboard. For example, to select current output,
press 0.

17

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

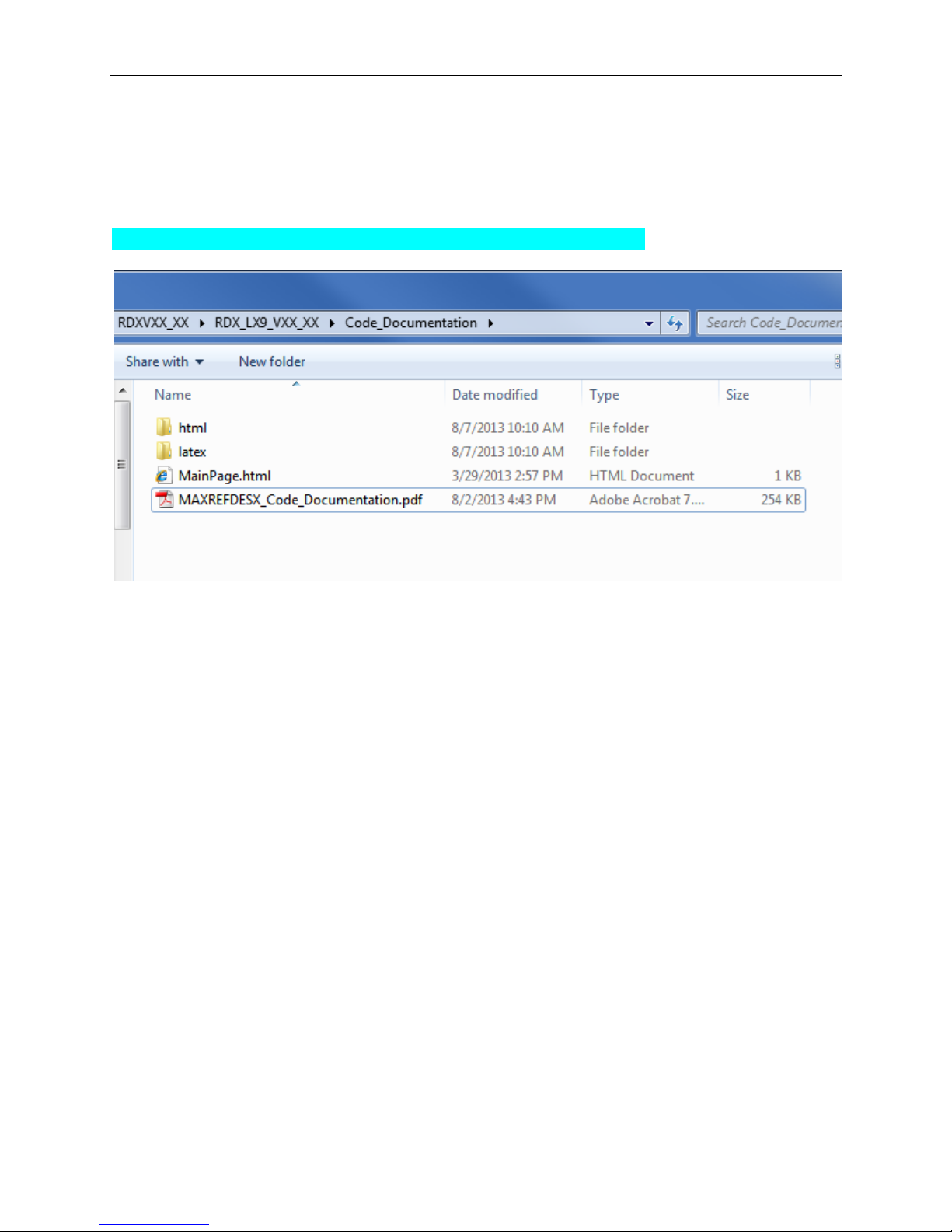

5. Code Documentation

Code documentation can be found at:
C:\...\RD24V01_00\RD24_LX9_V01_00\Code_Documentation\

To view the code documentation in HTML format with a browser, open the
MainPage.html file.

To view the code documentation in .PDF format with a PDF reader, open the
MAXREFDES24_Code_Documentation.pdf file.

18

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

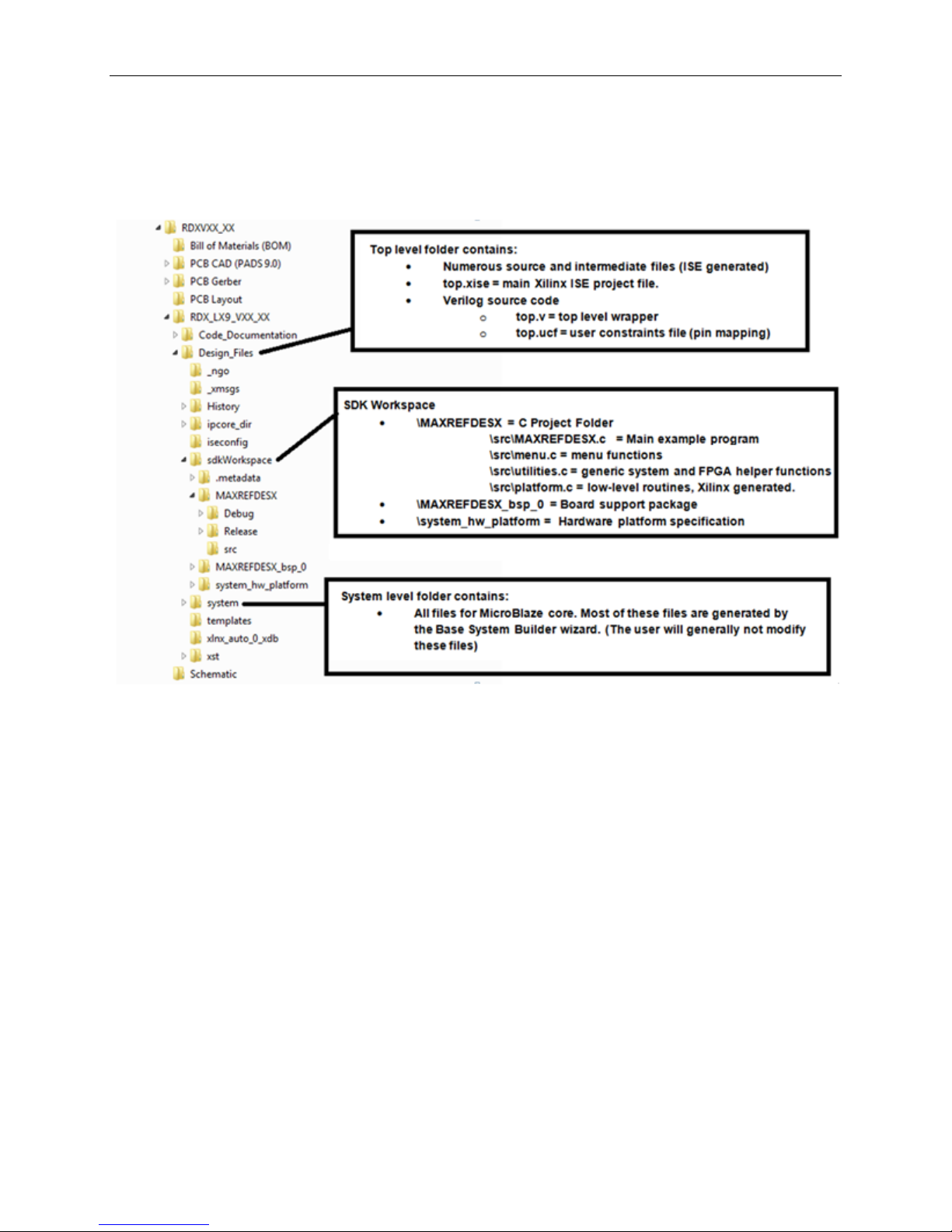

6. Appendix A: Project Structure and Key Filenames

7. Trademarks

Eclipse is a trademark of Eclipse Foundation, Inc.
ISE is a registered trademark of Xilinx, Inc.
MicroBlaze is a trademark of Xilinx, Inc.
Pmod is a trademark of Digilent, Inc.
Spartan-6 is a registered trademark of Xilinx, Inc.
WebPACK is a trademark of Xilinx, Inc.
Windows is a registered trademark and registered service mark and Windows XP is a
registered trademark of Microsoft Corporation.
Xilinx is a registered trademark and registered service mark of Xilinx, Inc.

19

8. Revision History

Alameda (MAXREFDES24#) LX9 MicroBoard Quick Start Guide

REVISION

NUMBER

REVISION

DATE

DESCRIPTION

PAGES

CHANGED

0 3/14 Initial release —
