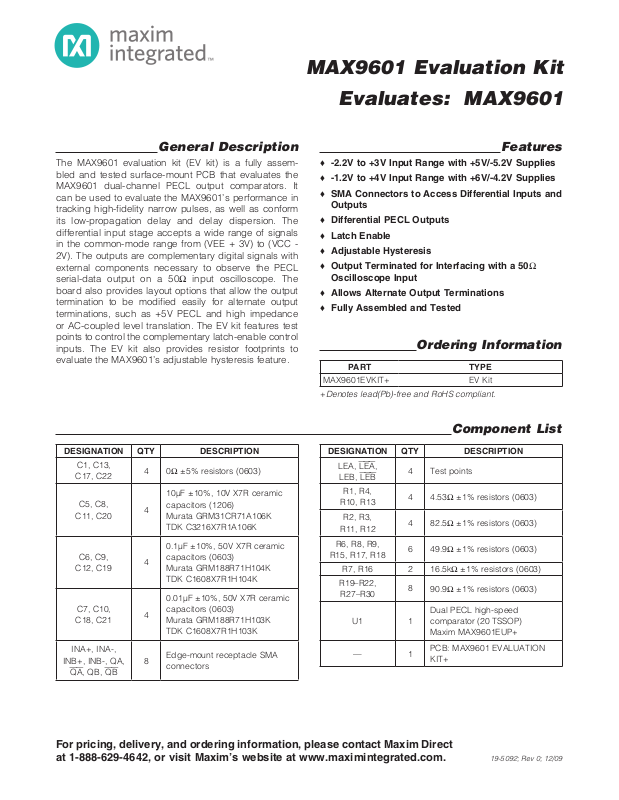

MAX9601 Evaluation Kit
Evaluates: MAX9601
General Description
The MAX9601 evaluation kit (EV kit) is a fully assembled and tested surface-mount PCB that evaluates the
MAX9601 dual-channel PECL output comparators. It
can be used to evaluate the MAX9601’s performance in
tracking high-fidelity narrow pulses, as well as conform
its low-propagation delay and delay dispersion. The
differential input stage accepts a wide range of signals
in the common-mode range from (VEE + 3V) to (VCC 2V). The outputs are complementary digital signals with
external components necessary to observe the PECL
serial-data output on a 50I input oscilloscope. The
board also provides layout options that allow the output
termination to be modified easily for alternate output
terminations, such as +5V PECL and high impedance
Features
S -2.2V to +3V Input Range with +5V/-5.2V Supplies
S -1.2V to +4V Input Range with +6V/-4.2V Supplies
S SMA Connectors to Access Differential Inputs and
Outputs
S Differential PECL Outputs
S Latch Enable
S Adjustable Hysteresis
S Output Terminated for Interfacing with a 50I
Oscilloscope Input
S Allows Alternate Output Terminations
S Fully Assembled and Tested
or AC-coupled level translation. The EV kit features test
points to control the complementary latch-enable control
inputs. The EV kit also provides resistor footprints to
evaluate the MAX9601’s adjustable hysteresis feature.
Ordering Information
PART TYPE
MAX9601EVKIT+ EV Kit
+Denotes lead(Pb)-free and RoHS compliant.
Component List
DESIGNATION QTY DESCRIPTION
C1, C13,
C17, C22
C5, C8,
C11, C20
C6, C9,
C12, C19
C7, C10,
C18, C21
INA+, INA-,
INB+, INB-, QA,
QA, QB, QB
4
0I Q5% resistors (0603)
10FF Q10%, 10V X7R ceramic
capacitors (1206)
4
Murata GRM31CR71A106K
TDK C3216X7R1A106K
0.1FF Q10%, 50V X7R ceramic
capacitors (0603)
4
Murata GRM188R71H104K
TDK C1608X7R1H104K
0.01FF Q10%, 50V X7R ceramic
capacitors (0603)
4
Murata GRM188R71H103K
TDK C1608X7R1H103K
Edge-mount receptacle SMA
8
connectors
DESIGNATION QTY DESCRIPTION
LEA, LEA,
LEB, LEB
R1, R4,
R10, R13
R2, R3,
R11, R12
R6, R8, R9,
R15, R17, R18
R7, R16 2
R19–R22,
R27–R30
U1 1
— 1
4 Test points
4
4.53I Q1% resistors (0603)
4
82.5I Q1% resistors (0603)
6
49.9I Q1% resistors (0603)
16.5kI Q1% resistors (0603)
8
90.9I Q1% resistors (0603)
Dual PECL high-speed
comparator (20 TSSOP)
Maxim MAX9601EUP+
PCB: MAX9601 EVALUATION
KIT+
For pricing, delivery, and ordering information, please contact Maxim Direct
at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
19-5092; Rev 0; 12/09
Page 2
MAX9601 Evaluation Kit
Evaluates: MAX9601
Component Suppliers
SUPPLIER PHONE WEBSITE
Murata Electronics North America, Inc. 770-436-1300 www.murata-northamerica.com
TDK Corp. 847-803-6100 www.component.tdk.com
Note: Indicate that you are using the MAX9601 when contacting these component suppliers.
Quick Start
Recommended Equipment
• DC power supplies
+5V, 100mA positive power supply (VCC)
-5.2V, 100mA negative power supply (VEE)
+5V, 100mA logic power supply (VCCO_)
+3V 1mA latch enable power supply (LE_)
• RF signal generator (e.g., MAX8685A)
• High-bandwidth oscilloscope
Procedure
The MAX9601 EV kit is fully assembled and tested. Follow the steps below to verify board operation.
Caution: Do not turn on power supplies until all connections are completed.
1) Set the VCC power supply to +5V. Disable VCC.
2) Connect the negative terminal of the VCC power
supply to the GND pad. Connect the positive terminal of the VCC power supply to the VCC pad.
3) Set the VEE power supply to -5.2V. Disable VEE.
4) Connect the negative terminal of the VEE power
supply to the VEE pad. Connect the positive terminal
of the VEE power supply to the GND pad.
5) Set the VCCO_ power supply to +5V. Disable
VCCO_.
6) Connect the negative terminal of the VCCO_ power
supply to the GND pad. Connect the positive terminal of the VCCO_ power supply to the VCCOA pad.
Short the VCCOA pad to the VCCOB pad.
7) Set the LE_ power supply to +3V. Disable LE_.
8) Connect the negative terminal of the LE_ power
supply to the GND pad. Connect the positive terminal of the LE_ power supply to the LEA pad. Short
the LEA pad to the LEB pad.
9) Set the signal generator to produce an output sinewave signal of 100mV
Disable the signal generator.
10) Connect the signal generator to the edge-mount
SMA connector marked INA+.
11) Enable all power supplies. Enable the signal
generator.
2 Maxim Integrated
at a frequency of 250MHz.
P-P
12) Monitor and verify outputs QA and QA with the oscil-
loscope. The oscilloscope must be configured for
50I input termination.
13) Monitor and verify outputs QB and QB with the oscil-
loscope. The oscilloscope must be configured for
50I input termination.
Detailed Description of Hardware
Supply Voltages
The MAX9601 EV kit operates from either standard
supply levels of -5.2V/+5V or shifted levels of -4.2V/+6V.
Connect the positive and negative supply voltages to
the VCC and VEE pads, respectively. The EV kit also
requires an output driver positive supply for each channel. Connect the logic supply voltages to the VCCOA
and VCCOB pads.
Inputs
The EV kit provides INA+, INA-, INB+, and INB- SMA
connectors to access the MAX9601’s differential inputs.
The differential input stage accepts a wide range of
signals in the common-mode range from (VEE + 3V)
to (VCC - 2V) with a CMRR of 70dB (typ). All the input
traces are symmetrical and have 50I of characteristic
impedance. Each input trace has a 49.9I termination
resistor to avoid signal reflections.
Outputs
The EV kit provides QA, QA, QB, and QB SMA connectors to access the MAX9601’s comparator outputs. All
the output traces are symmetrical and have 50I of characteristic impedance. The output signals are referenced
to the logic supply voltage VCCO_ and have the external
components necessary to observe the PECL output. See
the Output Termination section for more details.
Hysteresis
Hysteresis can be introduced to prevent oscillation or
multiple transitions due to noise on low-slew input signals. The EV kit features resistors R7 and R16 to program
the current-controlled hysteresis. Refer to the Hysteresis
(MAX9600/MAX9601) section in the MAX9601 IC data
sheet for a more detailed description.
Page 3
MAX9601 Evaluation Kit
Evaluates: MAX9601
Latch Enable
The complementary latch-enable control permits tracking, track-hold, or sample-hold modes of operation.
The latch enables can be driven with PECL logic. See
Table 1 for the latch-enable truth table. By default, the
EV kit is configured to operate in compare mode. LEA
and LEB are connected to the VCCOA and VCCOB pads
through resistors R6 and R15 (LEA and LEB signals
need to be provided externally).
Output Termination
DC-Coupled Output to Oscilloscope
The EV kit’s default output termination network provides
the output with a Thevenin equivalent of 50I to VCCO_
- 2V, when connected to a 50I load to ground. Hence,
the outputs can be conveniently connected directly to
an oscilloscope’s 50I input. The termination network
provides a 4x output signal attenuation. If only one of
the serial-data outputs is connected to an oscilloscope,
ensure that the other is still properly terminated. Keep
in mind that the resistor networks at each output provide proper termination only when they are terminated
through 50I to ground.
AC-Coupled Output to Oscilloscope
The output can also be AC-coupled to the next stage.
While AC-coupling the output, remember that the IC
has an open-emitter output. Hence the output must
have a DC path provided with suitable external pulldown resistors. Also, the resultant current sourced by
the output stage must not exceed the output current
capability of the part. For example, to AC-couple the QA
output to a 50I input oscilloscope, short resistor R19.
Replace resistor R2 with 125I and R27 with 187.5I. This
provides a DC Thevenin equivalent of 75I to VCCO - 2V.
Now replace resistor R1 with 49.9I resistor and populate
capacitor C1 with a suitable low-loss, high-frequency
capacitor. With good coupling, the AC load adds an
additional 8mA of output current only, since capacitor C1
blocks the DC component of the PECL output.
Table 1. Latch-Enable Truth Table
LATCH-ENABLE INPUT
LE_
0 1
1 0
0 1
1 0
LE_
Compare mode (output follows
input state)
Latch mode (output latches to
last known output state)
Invalid condition (output is in
unknown state)
OPERATION
Alternative PECL Output Termination
Alternative PECL output termination methods can be
used for different logic interfaces as long as they provide a DC Thevenin equivalent of 50I to VCC - 2V. For
example, to interface QA with a PECL or high-impedance
input, short resistors R1 and R19, and replace R27 with
a 124I resistor. To interface QA with a PECL input test
equipment, which is internally terminated with 50I to
VCCO_ - 2V, take the following steps:
1) Remove resistors R2 and R27.
2) Short resistors R1 and R19.
3) Place a bias-T in series between the MAX9601 and
the test equipment. Connect the bias-T’s RF and DC
terminals to the QA output and the RF terminal to
the test equipment’s PECL input. Then connect the
DC terminal to a VCCO_ - 2V termination voltage
through a 50I resistor.
Layout
The EV kit uses a two-layer board for simplicity. However,
special layout precautions have been taken due to the
large gain-bandwidth characteristics of the MAX9601.
The 0.01FF power-supply decoupling capacitors are
mounted as close as possible to the power-supply input
pins. The inductance of the return path is reduced by
flooding the ground plane with multiple vias. Multiple
ground vias are also present besides the decoupling
capacitors and signal traces to shorten the ground
return path and maximize isolation. The lead lengths
on the inputs and outputs are minimized to avoid
unwanted parasitic feedback around the comparators.
Microstrip layout and terminations are used at both the
inputs, as well as the outputs, to reduce signal reflections. Layer 2 is a continuous ground plane with no
signal or power traces. Impedance discontinuities have
been minimized by routing all the signal traces on the
top layer only, with no interconnecting vias or sharp corners. Edge-mount SMA connectors are used to reduce
the capacitive discontinuity and maximize frequency
response. The symmetric layout also minimizes the skew
due to the traces.
Test Setup
Note that a test setup optimized for high-speed measurement is essential to observe the true performance of
the MAX9601 device. Use matched SMA cables for the
differential inputs and outputs. Also, account for the time
delay and skew of the test setup. For accurate measurement of the device’s rise and fall times, an oscilloscope
with a bandwidth several times larger than the maximum
signal frequency must be used.
3Maxim Integrated
Page 4
MAX9601 Evaluation Kit
Evaluates: MAX9601

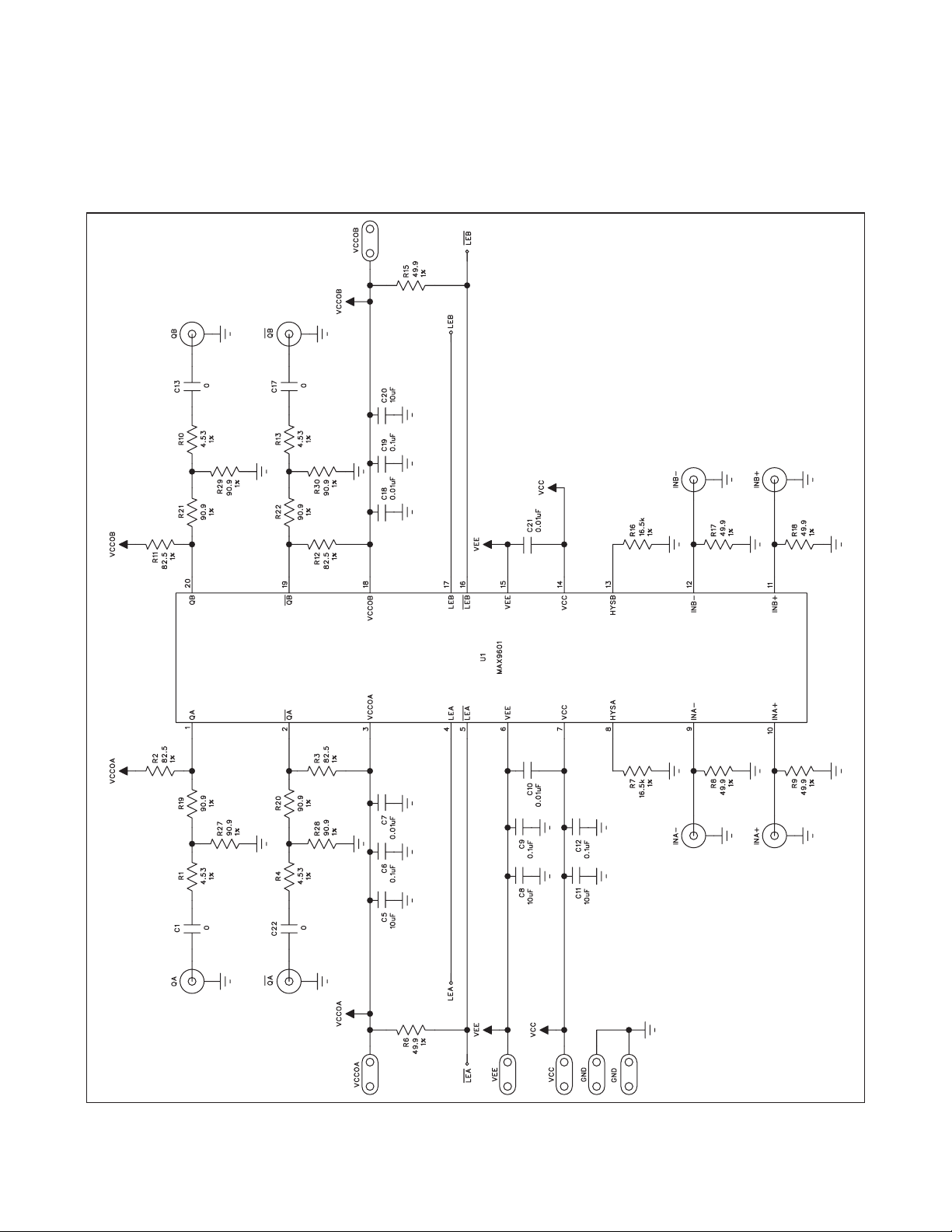

Figure 1. MAX9601 EV Kit Schematic
4 Maxim Integrated
Page 5
MAX9601 Evaluation Kit
Evaluates: MAX9601
1.0”

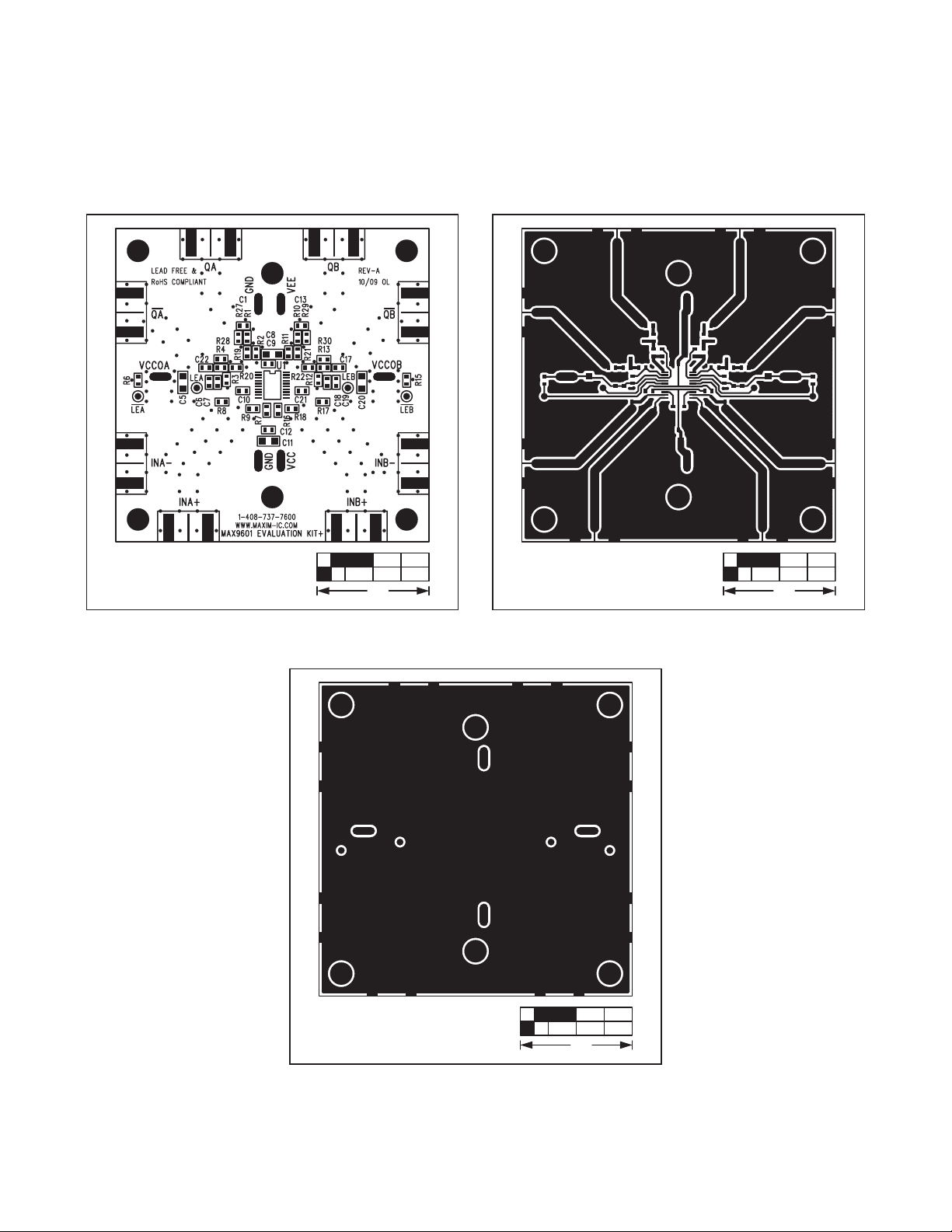

Figure 2. MAX9601 EV Kit Component Placement Guide—
