DS5001FP

128k Soft Microprocessor Chip

FEATURES

§ 8051-compatible microprocessor adapts to its

task
– Accesses up to 128kB of nonvolatile

SRAM

– In-system programming through on-chip

serial port

– Can modify its own program or data

memory

– Accesses memory on a separate byte-wide

bus

– Performs CRC-16 check of NV RAM

memory

– Decodes memory and peripheral chip

enables

§ High-reliability operation
– Maintains all nonvolatile resources for

over 10 years

– Power-fail reset
– Early warning power-fail interrupt
– Watchdog timer
– Lithium backs user SRAM for

program/data storage

– Precision bandgap reference for power

monitor

§ Fully 8051-compatible
– 128kB scratchpad RAM
– Two timer/counters
– On-chip serial port
– 32 parallel I/O port pins

§ Software security available with DS5002FP
secure microprocessor

PIN ASSIGNMENT (Top View)

BA2

PROG

BD7

RST

LE

BD6

BA1

P3.0/RXD

PSEN

BD5

BA0

P3.1/TXD

P2.7/A15

BD4

64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

P3.2/INT0

P3.3/INT1

P0.4AD4

CE2
PE2
BA9

P0.3/AD3

BA8

P0.2/AD2

BA13

P0.1/AD1

R/W

P0.0/AD0

VCC0

VCC

MSEL

P1.0

BA14

P1.1

BA12

P1.2

BA7

P1.3

PE3
PE4
BA6

BA11

P0.5/AD5

PE1

P0.6/AD6

BA10

P0.7/AD7

CE1NCCE1N

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

P1.4

BA5

P1.5

BA4

DS5001FP

BA3

P1.6

P1.7

80-Pin MQFP

P2.6/A14
CE3
CE4
BD3
P2.5/A13
BD2
P2.4/A12
BD1
P2.3/A11
BD0
VLI
BA15
GND
P2.2/A10
P2.1/A9
P2.0/A8
XTAL1
XTAL2
P3.7/RD
P3.6/WR
P3.5/TI
PF
VRST
P3.4/T0

44-Pin MQFP

Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple
revisions of any device may be simultaneously available through various sales channels. For information about device
errata, click here: http://www.maxim-ic.com/errata.

1 of 26 052302

DS5001FP

DESCRIPTION

The DS5001FP 128k soft microprocessor chip is an 8051-compatible microprocessor based on NV RAM
technology and designed for systems that need large quantities of nonvolatile memory. It provides full
compatibility with the 8051 instruction set, timers, serial port, and parallel I/O ports. By using NV RAM
instead of ROM, the user can program and then reprogram the microprocessor while in-system. The
application software can even change its own operation, which allows frequent software upgrades,
adaptive programs, customized systems, etc. In addition, by using NV SRAM, the DS5001FP is ideal for
data logging applications. It also connects easily to a Dallas real-time clock.

The DS5001FP provides the benefits of NV RAM without using I/O resources. It uses a nonmultiplexed
byte-wide address and data bus for memory access. This bus performs all memory access and provides
decoded chip enables for SRAM, which leaves the 32 I/O port pins free for application use. The
DS5001FP uses ordinary SRAM and battery-backs the memory contents for over 10 years at room
temperature with a small external battery. A DS5001FP also provides high-reliability operation in harsh
environments. These features include the ability to save the operating state, power-fail reset, power-fail
interrupt, and watchdog timer.

A user programs the DS5001FP through its on-chip serial bootstrap loader. The bootstrap loader
supervises the loading of software into NV RAM, validates it, and then becomes transparent to the user.
Software can be stored in multiple 32kB or one 128kB CMOS SRAM(s). Using its internal partitioning,
the DS5001FP can divide a common RAM into user-selectable program and data segments. This partition
can be selected at program loading time, but can then be modified later at any time. The microprocessor
decodes memory access to the SRAM and addresses memory through its byte-wide bus. Memory portions
designated code or ROM are automatically write-protected by the microprocessor. Combining program
and data storage in one device saves board space and cost.

The DS5001FP offers several bank switches for access to even more memory. In addition to the primary
data area of 64kB, a peripheral selector creates a second 64kB data space with four accompanying chip
enables. This area can be used for memory-mapped peripherals or more data storage. The DS5001FP can
also use its expanded bus on ports 0 and 2 (like an 8051) to access an additional 64kB of data space.
Lastly, the DS5001FP provides one additional bank switch that changes up to 60kB of the NV RAM
program space into data memory. Thus, with a small amount of logic, the DS5001 accesses up to 252kB
of data memory.

The DS2251T is available (Refer to the data sheet at www.maxim-ic.com/microcontrollers.) for users
who want a preconstructed module using the DS5001FP, RAM, lithium cell, and a real-time clock. For
more details, refer to the Secure Microcontroller User’s Guide. For users desiring software security, the
DS5002FP is functionally identical to the DS5001FP but provides superior firmware security. The 44-pin
version of the device is functionally identical to the 80-pin version but sports a reduced pin count and
footprint.

Refer to the Secure Microcontroller User’s Guide for operating details. This data sheet provides ordering
information, pinout, and electrical specifications.

ORDERING INFORMATION

PART PIN-PACKAGE MAX. CLOCK SPEED (MHz) TEMP. RANGE (°C)

DS5001FP-16 80-MQFP 16 0 to +70
DS5001FP-16N 80-MQFP 16 -40 to +85
DS5001FP-12-44 44-MQFP 12 0 to +70

2 of 26

Figure 1. BLOCK DIAGRAM

DS5001FP

3 of 26

PIN DESCRIPTION

DS5001FP

80-PIN
MQFP

11, 9, 7,
5, 1, 79,

77, 75

44-PIN
MQFP

31

(P0.5)

15, 17,
19, 21,
25, 27,

44

(P1.3)

29, 31
49, 50,
51, 56,
58, 60,

N/A

64, 66

36 8

38 10

39 N/A

40 11

41 N/A

44 12

45 13

46 N/A

68 25

34 6

70 27

47, 48 14, 15

52 16

SIGNAL DESCRIPTION

General-Purpose I/O Port 0. This port is open-drain and cannot drive a logic 1. It requires

P0.0–P0.7

external pullups. Port 0 is also the multiplexed expanded address/data bus. When used in
this mode, it does not require pullups.

P1.0–P1.7 General-Purpose I/O Port 1

P2.0–P2.7

P3.0 RXD

P3.1 TXD

P3.2

INT0

INT1

P3.3

P3.4 T0

P3.5 T1

P3.6

P3.7

General-Purpose I/O Port 2. Also serves as the MSB of the address in expanded memory

accesses, and as pins of the RPC mode when used.

General-Purpose I/O Port Pin 3.0. Also serves as the receive signal for the on board
UART. This pin should not be connected directly to a PC COM port.

General-Purpose I/O Port Pin 3.1. Also serves as the transmit signal for the on board
UART. This pin should not be connected directly to a PC COM port.

General-Purpose I/O Port Pin 3.2. Also serves as the active-low external interrupt 0.

General-Purpose I/O Port Pin 3.3. Also serves as the active-low external interrupt 1.

General-Purpose I/O Port Pin 3.4. Also serves as the timer 0 input.

General-Purpose I/O Port Pin 3.5. Also serves as the timer 1 input.

General-Purpose I/O Port Pin. Also serves as the write strobe for expanded bus

WR

operation.

General-Purpose I/O Port Pin. Also serves as the read strobe for expanded bus operation.

RD

Program Store Enable. This active-low signal is used to enable an external program

memory when using the expanded bus. It is normally an output and should be unconnected

PSEN

if not used.
down externally. This should only be done once the DS5001FP is already in a reset state.

PSEN also is used to invoke the bootstrap loader. At this time, PSEN is pulled

The device that pulls down should be open drain since it must not interfere with
under normal operation.

Active-High Reset Input. A logic 1 applied to this pin will activate a reset state. This pin

RST

is pulled down internally so this pin can be left unconnected if not used. An RC power-on
reset circuit is not needed and is not recommended.

Address Latch Enable. Used to demultiplex the multiplexed expanded address/data bus

ALE

on port 0. This pin is normally connected to the clock input on a ’373 type transparent
latch.

XTAL2,

XTAL1

XTAL2, XTAL1. Used to connect an external crystal to the internal oscillator. XTAL1 is

the input to an inverting amplifier and XTAL2 is the output.

GND Logic Ground

PSEN

13 39

12 38

54 17

53, 16,

8, 18,

80, 76,

4, 6, 20,

24, 26,
28, 30,

41, 36,
42, 32,
30, 34,
35, 43,
1, 2, 3,
4, 5, 7,

VCC V

VCCO

VLI

BA14–0

- +5V

CC

V

- VCC Output. This is switched between VCC and VLI by internal circuits based on the

CCO

level of V
lithium cell remains isolated from a load. When V
V

source. V

LI

Lithium Voltage Input. Connect to a lithium cell greater than V
V

LImax

. When power is above the lithium input, power will be drawn from VCC. The

CC

should be connected to the VCC pin of an SRAM.

CCO

is below VLI, the V

CC

LIMIN

CCO

and no greater than

as shown in the electrical specifications. Nominal value is +3V.

switches to the

Byte-Wide Address-Bus Bits 14–0. This bus is combined with the nonmultiplexed data
bus (BD7–0) to access NV SRAM. Decoding is performed using

CE1 through CE4 .

Therefore, BA15 is not actually needed. Read/write access is controlled by R/ W . BA14–0
connect directly to an 8k, 32k, or 128k SRAM. If an 8k RAM is used, BA13 and BA14 are

unconnected. If a 128k SRAM is used, the micro converts

CE2 and CE3 to serve as A16

4 of 26

33, 35,

9 and A15 respectively.

37

71, 69,
67, 65,
61, 59,

57, 55

28, 26,
24, 23,
21, 20,

19, 18

10 37

74 29

72 N/A

233

63 22

62 N/A

78 N/A

3N/A

22 N/A

23 N/A

32 N/A

42 N/A

43 N/A

14 40

73

Byte-Wide Data-Bus Bits 7–0. This 8-bit, bidirectional bus is combined with the

BD7–0

nonmultiplexed address bus (BA14–0) to access NV SRAM. Decoding is performed on

CE1 and CE2 . Read/write access is controlled by R/ W . BD7–0 connect directly to an

SRAM, and optionally to a real-time clock or other peripheral.

Read/Write. This signal provides the write enable to the SRAMs on the byte-wide bus. It

R/

W

is controlled by the memory map and partition. The blocks selected as program (ROM) are
write-protected.

Chip Enable 1. This is the primary decoded chip enable for memory access on the byte-

CE1

wide bus. It connects to the chip enable input of one SRAM.
remains in a logic high inactive state when V

CE1N

Non-battery-backed version of chip enable 1. This can be used with a 32kB EPROM. It
should not be used with a battery-backed chip.

Chip Enable 2. This chip enable is provided to access a second 32k block of memory. It

CE2

connects to the chip enable input of one SRAM. When MSEL = 0, the micro converts

into A16 for a 128k x 8 SRAM. CE2 is lithium-backed and remains at a logic high when

falls below VLI.

V

CC

Chip Enable 3. This chip enable is provided to access a third 32k block of memory. It

CE3

connects to the chip enable input of one SRAM. When MSEL = 0, the micro converts

into A15 for a 128k x 8 SRAM. CE3 is lithium-backed and remains at a logic high when

falls below VLI.

V

CC

Chip Enable 4. This chip enable is provided to access a fourth 32k block of memory. It

CE4

connects to the chip-enable input of one SRAM. When MSEL = 0, this signal is unused.

CE4 is lithium-backed and remains at a logic high when V

Peripheral Enable 1. Accesses data memory between addresses 0000h and 3FFFh when
the PES bit is set to a logic 1. Commonly used to chip enable a byte-wide real-time clock

PE1

such as the DS1283.
below V

Peripheral Enable 2. Accesses data memory between addresses 4000h and 7FFFh when

PE2

the PES bit is set to a logic 1.
falls below VLI. Connect PE2 to battery-backed functions only.

Peripheral Enable 3. Accesses data memory between addresses 8000h and BFFFh when

PE3

the PES bit is set to a logic 1.
of peripheral function. If connected to a battery-backed chip, it needs additional circuitry to
maintain the chip enable in an inactive state when V

Peripheral Enable 4. Accesses data memory between addresses C000h and FFFFh when

PE4

the PES bit is set to a logic 1.
of peripheral function. If connected to a battery-backed chip, it needs additional circuitry to
maintain the chip enable in an inactive state when V

Invokes the bootstrap loader on a falling edge. This signal should be debounced so that

PROG

only one edge is detected. If connected to ground, the micro enters bootstrap loading on
power-up. This signal is pulled up internally.

This I/O pin (open drain with internal pullup) indicates that the power supply (VCC)
has fallen below the V

VRST

DS5001FP drives this pin to a logic 0. Because the micro is lithium-backed, this signal is
guaranteed even when V
low externally. This allows multiple parts to synchronize their power-down resets.
This output goes to a logic 0 to indicate that VCC < VLI and the micro has switched to

PF

lithium backup. Because the micro is lithium-backed, this signal is guaranteed even when
V

= 0V. The normal application of this signal is to control lithium powered current to

CC

isolate battery-backed functions from non-battery-backed functions.

Memory Select. This signal controls the memory size selection. When MSEL = +5V, the

MSEL

DS5001FP expects to use 32k x 8 SRAMs. When MSEL = 0V, the DS5001FP expects to
use a 128k x 8 SRAM. MSEL must be connected regardless of partition, mode, etc.

NC No Connect.

falls below VLI.

CC

PE1 is lithium-backed and remains at a logic high when V

. Connect PE1 to battery-backed functions only.

LI

PE2 is lithium-backed and remains at a logic high when V

PE3 is not lithium-backed and can be connected to any type

CC

PE4 is not lithium-backed and can be connected to any type

CC

level and the micro is in a reset state. When this occurs, the

CCmin

= 0V. Because it is an I/O pin, it also forces a reset if pulled

CC

CE1 is lithium-backed. It

< VLI.

CC

< VLI.

< VLI.

DS5001FP

CE2

CE3

falls

CC

CC

5 of 26

DS5001FP

INSTRUCTION SET

The DS5001FP executes an instruction set that is object code-compatible with the industry standard 8051
microcontroller. As a result, software development packages such as assemblers and compilers that have
been written for the 8051 are compatible with the DS5001FP. A complete description of the instruction
set and operation are provided in the Secure Microcontroller User’s Guide. Also note that the DS5001FP
is embodied in the DS2251T module. The DS2251T combines the DS5001FP with between 32k and 128k
of SRAM, a lithium cell, and a real-time clock. This is packaged in a 72-pin SIMM module.

MEMORY ORGANIZATION

Figure 2 illustrates the memory map accessed by the DS5001FP. The entire 64k of program and 64k of
data are potentially available to the byte-wide bus. This preserves the I/O ports for application use. The
user controls the portion of memory that is actually mapped to the byte-wide bus by selecting the program
range and data range. Any area not mapped into the NV RAM is reached by the expanded bus on ports 0
and 2. An alternate configuration allows dynamic partitioning of a 64k space as shown in Figure 3.
Selecting PES=1 provides another 64k of potential data storage or memory-mapped peripheral space as
shown in Figure 4. These selections are made using special function registers. The memory map and its
controls are covered in detail in the Secure Microcontroller User’s Guide.

Figure 2. MEMORY MAP IN NONPARTITIONABLE MODE (PM = 1)

6 of 26

Figure 3. MEMORY MAP IN PARTITIONABLE MODE (PM = 0)

DS5001FP

Note: Partitionable mode is not supported when MSEL pin = 0 (128kB mode).

7 of 26

Figure 4. MEMORY MAP WITH PES = 1

DS5001FP

8 of 26

DS5001FP

Figure 5 illustrates a typical memory connection for a system using a 128kB SRAM. Note that in this
configuration, both program and data are stored in a common RAM chip Figure 6 shows a similar system
with using two 32kB SRAMs. The byte-wide address bus connects to the SRAM address lines. The
bidirectional byte-wide data bus connects the data I/O lines of the SRAM.

Figure 5. CONNECTION TO 128k x 8 SRAM

9 of 26

Figure 6. DS5001FP CONNECTION TO 64k x 8 SRAM

DS5001FP

POWER MANAGEMENT

The DS5001FP monitors VCC to provide power-fail reset, early warning power-fail interrupt, and switch
over to lithium backup. It uses an internal bandgap reference in determining the switch points. These are
called V
interrupt vector to location 2Bh if the power-fail warning was enabled. Full processor operation continues
regardless. When power falls further to V

execution is performed unless power rises back above V
signal go to an inactive (logic 1) state. VCC is still the power source at this time. When V
to below VLI, internal circuitry switches to the lithium cell for power. The majority of internal circuits are
disabled and the remaining nonvolatile states are retained. Any devices connected V
the lithium cell at this time. V
varies depending on the load. Low power SRAMs should be used for this reason. When using the
DS5001FP, the user must select the appropriate battery to match the RAM data retention current and the
desired backup lifetime. Note that the lithium cell is only loaded when V
more information on this topic. The trip points V

PFW

, V

, and VLI, respectively. When VCC drops below V

CCMIN

, the DS5001FP invokes a reset state. No further code

CCMIN

CCMIN

is at the lithium battery voltage minus approximately 0.45V. This drop

CCO

and V

CCMIN

, the DS5001FP performs an

PFW

. All decoded chip enables and the R/ W

drops further

CC

are powered by

CCO

< V

CC

are listed in Electrical Specifications.

PFW

. The User’s Guide has

LI

10 of 26

DS5001FP

ABSOLUTE MAXIMUM RATINGS*

Voltage Range on Any Pin Relative to Ground -0.3V to (VCC + 0.5V)
Voltage Range on VCC Related to Ground -0.3 °C to 6.0°C
Operating Temperature Range -40°C to +85°C
Storage Temperature Range

1

-55°C to +125°C

Soldering Temperature See IPC/JEDEC J-STD-020A

*

This is a stress rating only and functional operation of the device at these or any other conditions above
those indicated in the operation sections of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods of time may affect reliability.

1

Storage temperature is defined as the temperature of the device when VCC = 0V and VLI = 0V. In this
state, the contents of SRAM are not battery-backed and are undefined.

DC CHARACTERISTICS (TA = 0°C to +70°C; VCC = 5V ±10%)

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Input Low Voltage V
Input High Voltage V
Input High Voltage

(RST, XTAL1, PROG )
Output Low Voltage

at IOL = 1.6mA (Ports 1, 2, 3, PF )

V

V

Output Low Voltage
at IOL = 3.2mA (Ports 0, ALE, PSEN ,
BA15–0, BD7–0, R/ W , CE1N ,

CE 1–4, PE 1–4, V

RST

)
Output High Voltage
at IOH = -80µA (Ports 1, 2, 3)

V

V

Output High Voltage
at IOH = -400µA (Ports 0, ALE, PSEN ,

PF , BA15–0, BD7–0, R/ W , CE1N ,
CE 1–4, PE 1–4, V

RST

)

V

Input Low Current

= 0.45V (Ports 1, 2, 3)

V

IN

Transition Current; 1 to 0
VIN = 2.0V (Ports 1, 2, 3)
(0°C to +70°C)
Transition Current; 1 to 0
V

= 2.0V (Ports 1, 2, 3)

IN

(-40°C to +85°C)

I

I

I

IL

IH1

IH2

OL1

OL2

OH1

OH2

IL

TL

TL

-0.3 +0.8 V 1

2.0 VCC + 0.3 V 1

3.5 VCC + 0.3 V 1

0.15 0.45 V 1, 11

0.15 0.45 V 1

2.4 4.8 V 1

2.4 4.8 V 1

-50 µA

-500 µA

-600 µA 10

11 of 26

DS5001FP

DC CHARACTERISTICS (continued) (TA = 0°C to +70°C; VCC = 5V ±10%)

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Input Leakage Current

0.45 < VIN < VCC (Port 0, MSEL)
RST Pulldown Resistor
(0°C to +70°C)
RST Pulldown Resistor
(-40°C to +85°C)

VRST Pullup Resistor
PROG Pullup Resistor

Power-Fail Warning Voltage
(0°C to +70°C)
Power-Fail Warning Voltage
(-40°C to +85°C)
Minimum Operating Voltage
(0°C to +70°C)
Minimum Operating Voltage
(-40°C to +85°C)
Lithium Supply Voltage V
Operating Current at 16MHz I
Idle Mode Current at 12MHz
(0°C to +70°C)
Idle Mode Current at 12MHz
(-40°C to +85°C)
Stop Mode Current I
Pin Capacitance C
Output Supply Voltage (V

CCO

)

Output Supply Battery-Backed Mode
(V

, CE 1-4, PE 1-2)

CCO

(0°C to +70°C)
Output Supply Battery-Backed Mode

(V

, CE 1-4, PE 1-2)

CCO

(-40°C to +85°C)
Output Supply Current
at V

= VCC - 0.45V

CCO

Lithium-Backed Quiescent Current
(0°C to +70°C)
Lithium-Backed Quiescent Current
(-40°C to +85°C)
Reset Trip Point in Stop Mode
With BAT = 3.0V (0°C to +70°C)
With BAT = 3.0V (-40°C to +85°C)
With BAT = 3.0V (0°C to +70°C)

R

R

R
R

V

V

V

CCMIN

V

CCMIN

I

I

STOP

V

V

V

I

CCO1

I

IL

RE

RE

VR

PR

PFW

PFW

LI

CC

IDLE

IDLE

IN

CCO1

CCO2

CCO2

I

LI

I

LI

+10 µA

40 150

30 180

4.7
40

kW

kW

kW
kW

10

4.25 4.37 4.50 V 1

4.1 4.37 4.6 V 1, 10

4.00 4.12 4.25 V 1

3.85 4.09 4.25 V 1, 10

2.5 4.0 V 1
36 mA 2

7.0 mA 3

8.0 mA 3, 10

80 µA 4
10 pF 5

V

CC

-0.45

V

LI

-0.65

V

LI

-0.9

V 1, 2

V 1, 8

V 1, 8, 10

75 mA 6

575 nA 7

75 500 nA 7

4.0

3.85

4.4

4.25

4.25

4.65

1

1, 10

1

12 of 26

DS5001FP

AC CHARACTERISTICS
EXPANDED BUS MODE TIMING SPECIFICATIONS
(T

# PARAMETER SYMBOL MIN MAX UNITS

1 Oscillator Frequency 1/ t
2 ALE Pulse Width t
3 Address Valid to ALE Low t
4 Address Hold After ALE Low t

ALE Low to Valid Instruction In

5

at 12MHz

at 16MHz

6

ALE Low to PSEN Low

7

PSEN Pulse Width
PSEN Low to Valid Instruction In

8

at 12MHz

at 16MHz

Input Instruction Hold After PSEN Going

9

High
Input Instruction Float After PSEN Going

10

High

11

Address Hold After PSEN Going High
Address Valid to Valid Instruction In

12

at 12MHz

at 16MHz

13

PSEN Low to Address Float

14

RD Pulse Width

15

WR Pulse Width
RD Low to Valid Data In at 12MHz

16

17

Data Hold After

18

Data Float After
ALE Low to Valid Data In at 12MHz

19

Valid Address to Valid Data In at 12MHz

20

21

ALE Low to

22

Address Valid to

23

Data Valid to
Data Valid to

24

25

Data Valid After WR High

26

RD Low to Address Float

27

RD or WR High to ALE High

RD High
RD High

RD or WR Low

RD or WR Low
WR Going Low
WR High at 12MHz

at 16MHz

at 16MHz

at 16MHz

t

t

at 16MHz

t

t

= 0°C to +70°C; VCC = 5V ±10%)

A

CLK

ALPW

AVALL

AVAAV

t

ALLVI

t

ALLPSL

t

PSPW

t

PSLVI

t

PSIV

t

PSIX

t

PSAV

t

AVVI

t

PSLAZ

t

RDPW

t

WRPW

t

RDLDV

t

RDHDV

t

RDHDZ

t

ALLVD

t

AVDV

ALLRDL

t

AVRDL

t

DVWRL

DVWRH

WRHDV

t

RDLAZ

RDHALH

1.0 16 MHz

2t

- 40 ns

CLK

t

- 40 ns

CLK

t

- 35 ns

CLK

4t

- 150

CLK

4t

- 90

CLK

t

- 25 ns

CLK

3t

- 35 ns

CLK

3t

- 150

CLK

3t

- 90

CLK

0ns

t

- 20 ns

CLK

t

- 8 ns

CLK

5t

- 150

CLK

5t

- 90

CLK

0ns

6t

- 100 ns

CLK

6t

- 100 ns

CLK

5t

- 165

CLK

5t

- 105

CLK

0ns

2t

- 70 ns

CLK

8t

- 150

CLK

8t

- 90

CLK

9t

- 165

CLK

9t

- 105

CLK

3t

- 50 3t

CLK

4t

- 130 ns

CLK

t

- 60 ns

CLK

7t

- 150

CLK

7t

- 90

CLK

t

- 50 ns

CLK

+ 50 ns

CLK

0ns

t

- 40 t

CLK

+ 50 ns

CLK

ns
ns

ns
ns

ns
ns

ns
ns

ns

ns

ns

13 of 26

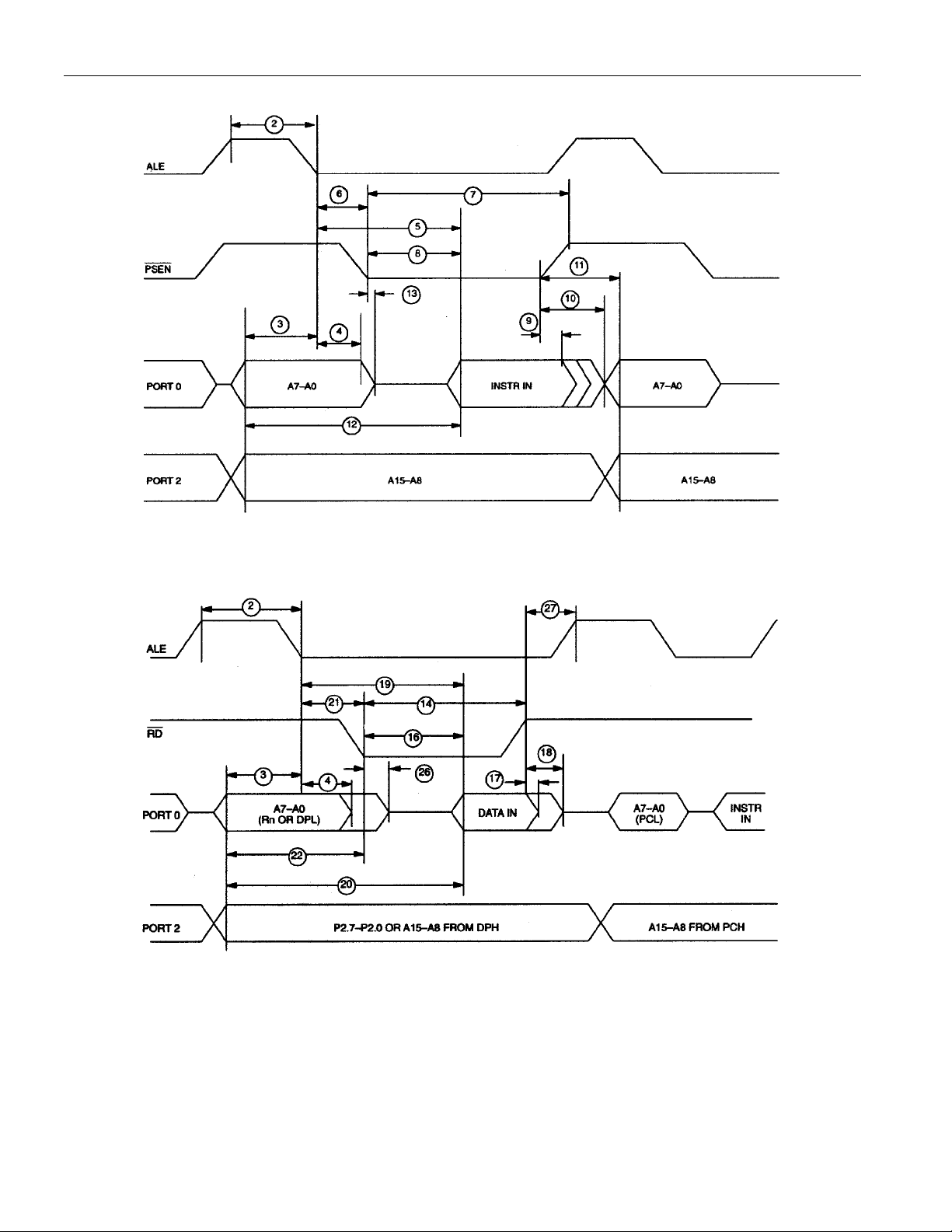

EXPANDED PROGRAM-MEMORY READ CYCLE

DS5001FP

EXPANDED DATA-MEMORY READ CYCLE

14 of 26

EXPANDED DATA-MEMORY WRITE CYCLE

DS5001FP

15 of 26

AC CHARACTERISTICS (continued)
EXTERNAL CLOCK DRIVE (T

# PARAMETER SYMBOL MIN MAX UNITS

External Clock-High Time

28

External Clock-Low Time

29

External Clock-Rise Time

30

External Clock-Fall Time

31

at 12MHz
at 16MHz

at 12MHz
at 16MHz

at 12MHz
at 16MHz

at 12MHz
at 16MHz

= 0°C to +70°C; VCC = 5V ±10%)

A

t

CLKHPW

20
15

t

CLKLPW

20
15

t

CLKR

20
15

t

CLKF

20
15

EXTERNAL CLOCK TIMING

DS5001FP

ns

ns

ns

ns

16 of 26

AC CHARACTERISTICS (continued)
POWER CYCLE TIME (T

# PARAMETER SYMBOL MIN MAX UNITS

32 Slew Rate from V
33 Crystal Startup Time t
34 Power-On Reset Delay t

CCMIN

to V

LI

= 0°C to +70°C; VCC = 5V ±10%)

A

t

F

CSU

POR

130 µs

(Note 9)

21,504 t

POWER CYCLE TIMING

DS5001FP

CLK

17 of 26

AC CHARACTERISTICS (continued)
SERIAL PORT TIMING, MODE 0 (T

# PARAMETER SYMBOL MIN MAX UNITS

35 Serial-Port Clock-Cycle Time t

36 Output-Data Setup to Rising-Clock Edge t

37 Output-Data Hold After Rising-Clock Edge t

38 Clock-Rising Edge to Input-Data Valid t

= 0°C to +70°C; VCC = 5V ±10%)

A

12t

10t

2t

CLK

CLK

CLK

- 133

- 117

10t

CLK

- 133

SPCLK

DOCH

CHDO

CHDV

DS5001FP

µs

ns

ns

ns

39 Input-Data Hold After Rising-Clock Edge t

SERIAL PORT TIMING, MODE 0

CHDIV

0ns

18 of 26

AC CHARACTERISTICS (continued)
BYTE-WIDE ADDRESS/DATA BUS TIMING
(T

# PARAMETER SYMBOL MIN MAX UNITS

Delay to Byte-Wide Address Valid from

40

41

42

43

44

45

46

47

48

49

50

51

CE1 , CE2 , or CE1N Low During Op Code

Fetch
Pulse Width of CE 1-4, PE 1-4 or CE1N

Byte-Wide Address Hold After CE1 , CE2 , or

CE1N High During Op Code Fetch

Byte-Wide Data Setup to CE1 , CE2 , or CE1N
High During Op Code Fetch

Byte-Wide Data Hold After CE1 , CE2 or

CE1N High During Op Code Fetch

Byte-Wide Address Hold After CE 1-4,

PE 1-4, or CE1N High During MOVX

Delay from Byte-Wide Address Valid

CE 1-4, PE 1-4, or CE1N Low During MOVX

Byte-Wide Data Setup to CE 1-4, PE 1-4, or

CE1N High During MOVX (read)

Byte-Wide Data Hold After CE 1-4,

PE 1-4, or CE1N High During MOVX (read)

Byte-Wide Address Valid to R/ W Active
During MOVX (write)

Delay from R/ W Low to Valid Data Out
During MOVX (write)

Valid Data-Out Hold Time from CE 1-4,

PE 1-4, or CE1N High

= 0°C to +70°C; VCC = 5V ±10%)

A

t

CE1LPA

t

CEPW

t

CE1HPA

t

OVCE1H

t

CE1HOV

t

CEHDA

t

CELDA

t

DACEH

t

CEHDV

t

AVRWL

t

RWLDV

t

CEHDV

4t

- 35 ns

CLK

2t

- 20 ns

CLK

1t

+ 40 ns

CLK

0ns

4t

- 30 ns

CLK

4t

- 35 ns

CLK

1t

+ 40 ns

CLK

0ns

3t

- 35 ns

CLK

20 ns

1t

- 15 ns

CLK

30 ns

DS5001FP

52

53

Valid Data-Out Hold Time from R/ W High

Write Pulse Width (R/ W Low Time)

19 of 26

t

RWHDV

t

RWLPW

0ns

6t

- 20 ns

CLK

DS5001FP

BYTE-WIDE BUS TIMING

RPC AC CHARACTERISTICS, DBB READ (TA = 0°C to +70°C; VCC = 5V ±10%)

# PARAMETER SYMBOL MIN MAX UNITS

54
55
56
57
58
59

CS , A
CS , A
RD Pulse Width
CS , A
RD to Data-Out Delay
RD to Data-Float Delay

Setup to RD

0

Hold After RD

0

to Data-Out Delay

0

t
t
t

t

t

t

RDZ

AR

RA

RR

AD

RD

0ns
0ns

160 ns

130 ns

0 130 ns

85 ns

20 of 26

DS5001FP

RPC AC CHARACTERISTICS, DBB WRITE (TA = 0°C to +70°C; VCC = 5V ±10%)

# PARAMETER SYMBOL MIN MAX UNITS

60
61A
61B

62

63

64

CS , A
CS , Hold After WR

Setup to WR

0

A0, Hold After WR

WR Pulse Width

Data Setup to WR
Data Hold After

WR

t
t
t

t

WW

t
t

AW

WA

WA

DW

WD

0ns
0ns

20 ns
160 ns
130 ns

20 ns

AC CHARACTERISTICS, DMA (TA = 0°C to +70°C; VCC = 5V ±10%)

# PARAMETER SYMBOL MIN MAX UNITS

65
66
67
68

DACK to WR or RD
RD or WR to DACK
DACK to Data Valid
RD or WR to DRQ Cleared

t

ACC

t

CAC

t

ACD

t

CRQ

0ns
0ns
0 130 ns

110 ns

AC CHARACTERISTICS, PROG (TA = 0°C to +70°C; VCC = 5V ±10%)

# PARAMETER SYMBOL MIN MAX UNITS

69
70

PROG Low to Active
PROG High to Inactive

t

t

PRA

PRI

48 CLKS

48 CLKS

21 of 26

RPC TIMING MODE

DS5001FP

22 of 26

DS5001FP

NOTES:

All parameters apply to both commercial and industrial temperature operation unless otherwise noted.

1) All voltages are referenced to ground.

2) Maximum operating ICC is measured with all output pins disconnected; XTAL1 driven with t

t

= 10ns, VIL = 0.5V; XTAL2 disconnected; RST = PORT0 = VCC, MSEL = VSS.

CLKF

3) Idle mode, I

= 10ns, VIL = 0.5V; XTAL2 disconnected; PORT0 = VCC, RST = MSEL = VSS.

t

CLKF

4) Stop mode, I

, is measured with all output pins disconnected; XTAL1 driven with t

IDLE

, is measured with all output pins disconnected; PORT0 = VCC; XTAL2 not

STOP

connected; RST = MSEL = XTAL1 = VSS.

5) Pin capacitance is measured with a test frequency: 1MHz, TA = +25°C.

6) I

7) ILI is the current drawn from VLI input when VCC = 0V and V

8) V

is the maximum average operating current that can be drawn from V

CCO1

CCO

is measured with VCC < VLI, and a maximum load of 10µA on V

CCO2

in normal operation.

CCO

is disconnected.

.

CCO

9) Crystal startup time is the time required to get the mass of the crystal into vibrational motion from the

time that power is first applied to the circuit until the first clock pulse is produced by the on-chip
oscillator. The user should check with the crystal vendor for a worst-case specification on this time.

10) This parameter applies to industrial temperature operation.

11) PF pin operation is specified with V

BAT

³ 3.0V.

CLKR

CLKR

,

,

23 of 26

80-PIN MQFP

DS5001FP

DIM

MM

MIN MAX

A -3.40
A1 0.25 -
A2 2.55 2.87

B 0.30 0.50

C 0.13 0.23

D 23.70 24.10
D1 19.90 20.10

E 17.70 18.10
E1 13.90 14.10

e 0.80 BSC

L 0.65 0.95

56-G4005-001

24 of 26

44-PIN MQFP

DS5001FP

25 of 26

DS5001FP

REVISION HISTORY

The following represent the key differences between 112795 and 073096 version of the DS5001FP data
sheet. Please review this summary carefully.

1) Change V

specification from VLI - 0.5 to VLI - 0.65 (PCN F62501).

CC02

2) Update mechanical specifications.

The following represent the key differences between 073096 and 111996 version of the DS5001FP data
sheet. Please review this summary carefully.

1) Change V

from VCC - 0.3 to VCC - 0.35.

CC01

The following represent the key differences between 111996 and 061297 version of the DS5001FP data
sheet. Please review this summary carefully.

1) PF signal moved from V

test specification to V

OL2

. PCN No. (D72502)

OL1

2) AC characteristics for battery-backed SDI pulse specification added.

The following represent the key differences between 061297 and 051099 version of the DS5001FP data
sheet. Please review this summary carefully.

1) Reduced absolute maximum voltage to VCC + 0.5V.

2) Added note clarifying storage temperature specification is for non-battery-backed state.

3) Changed RRE min (industrial temp range) from 40kW to 30kW.

4) Changed V

max (industrial temp range) from 4.5V to 4.6V.

PFW

5) Added industrial specification for ILI.

6) Reduced t

CE1HOV

and t

from 10ns to 0ns.

CEHDV

The following represent the key differences between 051099 and 052499 version of the DS5001FP data
sheet. Please review this summary carefully.

1) Minor markups and ready for approval.

26 of 26
