19-4622; Rev 0; 5/09

Crimzon® ZLR16300

Low-Voltage ROM MCUs

with Infrared Timers

Product Specification

Maxim Integrated Products Inc.

120 San Gabriel Drive, Sunnyvale CA 94086

Maxim Integrated Products 120 San Gabriel Drive Sunnyvale, CA 94086 United States

408-737-7600 www.maxim-ic.com

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. Maxim retains the right to make changes to its products or specifications to improve performance, reliability or manufacturability. All information in this document, including descriptions of features, functions, performance, technical specifications and availability, is subject to change without notice at any time. While the information furnished herein is held to be accurate and reliable, no responsibility will be assumed by Maxim for its use. Furthermore, the information contained herein does not convey to the purch aser of microelectronic devices any license under the patent right of any manufacturer.

Maxim is a registered trademark of Maxim Integrated Products, Inc.

All other products or service names used in this publication are for identification purposes only, and may be trademarks or registered trademarks of their respective companies. All other trademarks or registered trademarks mentioned herein are the property of their respective holders.

Z8 is a registered trademark of Zilog, Inc. Crimzon is a registered trademark of Universal Electronics Inc.

19-4622; Rev 0; 5/09

Revision History

Each instance in the Revision History table reflects a change to this document from its previous revision. For more details, refer to the corresponding pages and appropriate links in the table below.

Date

April 2009 19 Changed to Maxim product All

Crimzon® ZLR16300

Product Specification

iii

Revision Level Description Page No

February 2008

January 2008 17 Updated the Ordering Information section. 85 August

2007 February

2007 April

2006 December

2005

18 Updated the Ordering Information section.

16 Updated the Disclaimer section and implemented

style guide.

15 Updated Low-Voltage Detection.

14 Added pin P22 to the SMR block input, Figure 30.

13 Updated Input output port and Clock. 12, 47

All

19-4622; Rev 0; 5/09 Revision History

Architectural Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Pin Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

XTAL1 Crystal 1 (Time-Based Input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

XTAL2 Crystal 2 (Time-Based Output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Input/Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Program Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Expanded Register File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Counter/Timer Functional Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Input Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Power-On Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Stop Mode Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Watchdog Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Low-Voltage Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Expanded Register File Control Registers (0D) . . . . . . . . . . . . . . . . . . . . . 54

Expanded Register File Control Registers (0F) . . . . . . . . . . . . . . . . . . . . . . 60

Standard Control Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Crimzon® ZLR16300

Product Specification

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Standard Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Part Number Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

19-4622; Rev 0; 5/09 Table of Contents

Architectural Overview

Maxim’s Crimzon® ZLR16300 MCU is a ROM-based member of the Crimzon ZLR16300 family of general-purpose microcontrollers. With 1 KB to 16 KB of Program Memory and 237 B of general-purpose RAM, Maxim’s CMOS microcontrollers offer fast-executing, efficient use of memory, sophisticated interrupts, input/output (I/O) bit manipulation capabilities, automated pulse generation/reception, and internal key-scan pull-up transistors.

The Crimzon ZLR16300 architecture (see Figure 1 on page 3 and Figure 2 on page 4) is based on Maxim’s 8-bit microcontroller core with an Expanded Register File allowing access to register-mapped peripherals, I/O circuits, and powerful counter/timer circuitry. The Z8 structure, and a number of ancillary features that are useful in many consumer, automotive, computer peripheral, and battery-operated hand-held applications.

core offers a flexible I/O scheme, an efficient register and address space

Crimzon® ZLR16300

Product Specification

Features

There are three basic address spaces available to support a wide range of configurations:

1. Program Memory

2. Register File

3. Expanded Register File The Register file is composed of 256 B of RAM. It includes three I/O port registers, 16

control and status registers, and 237 general-pu rpose registers. The Expanded Register file consists of two additional register groups (F and D).

To unburden the program from coping with such real-time problems like generating complex waveforms or receiving and demodulating complex waveform/pulses, the Crimzon ZLR16300 offers a new intelligent counter/timer architecture with 8-bit and 16-bit counter/timers (see Figure 2 on page 4). Also included are a large number of user-selectable modes and two on-board comparators to process analog signals with separate reference voltages.

Table 1 lists the features of Crimzon ZLR16300 family.

Table 1. Crimzon ZLR16300 ROM MCU Features

Device ROM (KB) RAM* (Bytes) I/O Lines Voltage Range

Crimzon ZLR16300 1, 2, 4, 8, 16 237 24, 16 2.0–3.6 V

*General-purpose

19-4622; Rev 0; 5/09 Architectural Overview

Crimzon® ZLR16300

Product Specification

The additional features include:

•

Low power consumption–5 mW (typical)

•

Three standby modes:

–

STOP—1.3 A (typical)

–

HALT—0.5 mA (typical)

–

Low-voltage reset

•

Special architecture to automate both generation and reception of complex pulses or signals:

–

One programmable 8-bit counter/timer with two capture registers and two load registers

–

One programmable 16-bit counter/timer with one 16-bit capture register pair and one 16-bit load register pair

–

Programmable input glitch filter for pulse reception

•

Six priority interrupts

–

Three external

–

Two assigned to counter/timers

–

One low-voltage detection interrupt

•

Low-Voltage Detection and High-Voltage Detection Flags

•

Programmable Watchdog Timer (WDT)

•

Power-On Reset (POR)

•

Two independent comparators with programmable interrupt polarity

•

Selectable pull-up transistors on ports 0, 2, and 3

•

Mask options

–

Port 0: 0–3 pull-ups

–

Port 0: 4–7 pull-ups

–

Port 2: 0–7 pull-ups

–

Port 3: 0–3 pull-ups

–

Watchdog Timer at Power-On Reset

Power connections use the conventional descriptions listed in Table 2.

Table 2. Power Connections

Connection Circuit Device

Power V Ground GND V

19-4622; Rev 0; 5/09 Architectural Overview

DD SS

Functional Block Diagram

Z8® Core

Port 2

Port 0

P21 P22 P23 P24 P25 P26 P27

P20

I/O Bit

Programmable

P04 P05 P06 P07

P00 P01 P02 P03

I/O Nibble

Programmable

256 x 8-Bit

Internal

Address Bus

Internal

Data Bus

Expanded

File

Expanded

Core

Counter/Timer 8

8-Bit

Counter/Timer 16

16-Bit

XTAL

Pref1/P30 P31 P32 P33 P34 P35 P36 P37

Port 3

Machine Timing &

Instruction

Control

Power

ROM

Up to 16K x 8

Watchdog

Timer

Low-Voltage

Detection

High-Voltage

Detection

Power-On

Reset

Note: Refer to the specific package for available pins.

Figure 1 displays the Crimzon ZLR16300 MCU functional block diagram.

Crimzon® ZLR16300

Product Specification

Figure 1. Crimzon ZLR16300 MCU Functional Block Diagram

19-4622; Rev 0; 5/09 Architectural Overview

Crimzon® ZLR16300

HI16

LO16

16-Bit

T16

TC16H

TC16L

HI8 LO8

And/Or Logic

Clock Divider

Glitch Filter

Edge Detect Circuit

8-Bit T8

TC8H

TC8L

Input

SCLK

Timer 16

Timer 8/16

Timer 8

Product Specification

Figure 2. Counter/Timers Diagram

19-4622; Rev 0; 5/09 Architectural Overview

Pin Description

P25 P26 P27 P07 V

XTAL2 XTAL1

P31 P32 P33

P24 P23 P22 P21 P20 Vss P01 P00/Pref1/P30 P36 P34

1 2 3 4 5 6 7 8 9 10

20 19 18 17 16 15 14 13 12 11

20-Pin

DIP

SOIC

SSOP

The pin configuration for the 20-pin DIP/SOIC/SSOP is displayed in Figure 3 and described in Table 3. The pin configuration for the 28-pin DIP/SOIC/SSOP are displayed in Figure 4 on page 6 and described in Table 4 on page 6.

Crimzon® ZLR16300

Product Specification

Figure 3. 20-Pin DIP/SOIC/SSOP Pin Configuration

Table 3. 20-Pin DIP/SOIC/SSOP Pin Identification

Pin No Symbol Function Direction

1–3 P25–P27 Port 2, Bits 5,6,7 Input/Output 4 P07 Port 0, Bit 7 Input/Output 5V

6 XTAL2 Crystal Oscillator Clock Output 7 XTAL1 Crystal Oscillator Clock Input 8–10 P31–P33 Port 3, Bits 1,2,3 Input 11,12 P34, P36 Port 3, Bits 4,6 Output 13 P00/Pref1/P30 Port 0, Bit 0/Analog reference input

19-4622; Rev 0; 5/09 Pin Description

14 P01 Port 0, Bit 1 Input/Output 15 V 16–20 P20–P24 Port 2, Bits 0,1,2,3,4 Input/Output

Power Supply

Input/Output for P00

Port 3, Bit 0

Ground

Input for Pref1/P30

Crimzon® ZLR16300

P24 P23 P22 P21 P20 P03 V

P02 P01 P00 Pref1/P30 P36 P37 P35

P25 P26 P27 P04 P05 P06 P07 V

XTAL2 XTAL1

P31 P32 P33 P34

28-Pin

PDIP SOIC

SSOP

2 3 4 5 6 7 8 9 10 11 12 13 14

28 27 26 25 24 23 22 21 20 19 18 17 16 15

Product Specification

Figure 4. 28-Pin DIP/SOIC/SSOP Pin Configuration

Table 4. 28-Pin DIP/SOIC/SSOP Pin Identification

Pin No Symbol Function Direction

1-3 P25-P27 Port 2, Bits 5,6,7 Input/Output 4-7 P04-P07 Port 0, Bits 4,5,6,7 Input/Output 8V

9 XTAL2 Crystal, oscillator clock Output 10 XTAL1 Crystal, oscillator clock Input 11–13 P31-P33 Port 3, Bits 1,2,3 Input 14 P34 Port 3, Bit 4 Output 15 P35 Port 3, Bit 5 Output 16 P37 Port 3, Bit 7 Output 17 P36 Port 3, Bit 6 Output 18 Pref1 Analog ref input; connect to V

19-21 P00-P02 Port 0, Bits 0,1,2 Input/Output 22 V 23 P03 Port 0, Bit 3 Input/Output 24-28 P20-P24 Port 2, Bits 0-4 Input/Output

19-4622; Rev 0; 5/09 Pin Description

Power supply

not used Port 3 Bit 0

Ground

Input

Pin Functions

Caution:

XTAL1 Crystal 1 (Time-Based Input)

This pin connects a parallel-resonant crystal or ceramic resonator to the on-chip oscillator input. Additionally, an external single-phase clock can be connected to the on-chip oscillator input.

XTAL2 Crystal 2 (Time-Based Output)

This pin connects a parallel-resonant crystal or ceramic resonant to the on-chip oscillator output.

Input/Output Ports

Crimzon® ZLR16300

Product Specification

The CMOS input buffer for each ports 0, 1, or 2 pin is always connected to the pin, even when the pin is configured as an output. If the pin is configured as an open-drain output and no external signal is applied, a High output state causes the CMOS input buffer to float. This leads to excessive leakage current o f more than 10 0 A. T o pr event this leakage, connect the pin to an external signal with a defined logic level or ensure its output state is Low, especially during STOP mode.

Internal pull-ups are disabled on any given pin or group of port pins when programmed into output mode.

Port 0, 1, and 2 have both input and output capability. The input logic is always present no matter whether the port is configured as input or output. While performing a READ instruction, the MCU reads the actual value at the input logic but not from the output buffer. In addition, the instructions of OR, AND, and XOR have the Read-Modify-Write sequence. The MCU first reads the port, modifies the value, and loads back to the port.

Precaution must be taken if the port is configured as open-drain output or if the port is driving any circuit that makes the voltage different from the desired output logic. For example, pins P00–P07 are not connected to anything else. If it is configured as opendrain output with output logic as ONE, it is a floating port and reads back as ZERO. The following instruction sets P00-P07 all Low.

AND P0,#%F0

19-4622; Rev 0; 5/09 Pin Description

Crimzon® ZLR16300

Note:

ZLR16300

Port 0 (I/O)

Pad

Out

I/O

Open-Drain

Resistive Transistor Pull-up

Mask Option

Product Specification

Port 0 (P07–P00)

Port 0 is an 8-bit, bidirectional, and CMOS-compatible port. These eight I/O lines ar e configured under software control as a nibble I/O port. The output drivers are push-pull or open-drain controlled by bit D2 in the PCON register.

If one or both nibbles are required for I/O operation, they must be configured by writing to the Port 0 mode register. After a hardware reset, Port 0 is configured (see Figure 5) as an input port.

An optional pull-up transistor is available as a mask option on all Port 0 bits with nibble select.

The Port 0 direction is reset to be input following an Stop Mode Recovery.

Figure 5. Port 0 Configuration

19-4622; Rev 0; 5/09 Pin Description

Crimzon® ZLR16300

Port 2 (I/O)

Pad

Out

I/O

Open-Drain

Resistive Transistor Pull-up

Mask Option

ZLR16300 ROM

Product Specification

Port 2 (P27–P20)

Port 2 is an 8-bit, bidirectional, and CMOS-compatible I/O port (see Figure 6). These eight I/O lines are independently configured under software control as inputs or outputs. Port 2 is always available for I/O operation. A mask option connects eight pull-up transistors on this port. Bits programmed as outputs are globally programmed as either push-pull or open-drain. The POR resets with the eight bits of Port 2 configured as inputs.

Port 2 also has an 8-bit input OR and AND gate which can be used to wake up the part. P20 is programmed to access the edge-detection circuitry in DEMODULATION mode.

19-4622; Rev 0; 5/09 Pin Description

Figure 6. Port 2 Configuration

Crimzon® ZLR16300

Port 3 (I/O)

P32 (AN2)

P31 (AN1) Pref1

From Stop Mode Recovery Source of SMR

IRQ2, P31 Data Latch

Pref1/P30 P31

P32 P33

P34 P35

P36 P37

1 = Analog 0 = Digital

R247 = P3M

IRQ0, P32 Data Latch

IRQ1, P33 Data Latch

Comp1

Comp2

Dig.

An.

ZLR16300 ROM

P33 (REF2)

Product Specification

Port 3 (P37–P30)

Port 3 is an 8-bit, CMOS-compatible fixed I/O port (see Figure 7). Port 3 consists of four fixed input (P33–P30) and four fixed output (P37–P34), which are configured under software control for interrupt and as output from the counter/timers. P30, P31, P32, and P33 are standard CMOS inputs; P34, P35, P36, and P37 are push-pull outputs.

19-4622; Rev 0; 5/09 Pin Description

Figure 7. Port 3 Configuration

Crimzon® ZLR16300

Note:

Product Specification

Two on-board comparators process analog signals on P31 and P32, with reference to the voltage on Pref1 and P33. The analog function is enabled by programming the Port 3 Mode Register (bit 1). P31 and P32 are programmable as rising, falling, or both edge triggered interrupts (IRQ register bits 6 and 7). Pref1 and P33 are the comparator reference voltage inputs. Access to the Counter Timer edge-detection circuit is through P31 or P20 (see T8 and T16 Common Functions—CTR1(0D)01h on page 23). Other edge detect and IRQ modes are described in Table 5.

Comparators are powered down by entering STOP mode. For P31–P33 to be used in a SMR source, these inputs must be placed into DIGITAL mode.

Table 5. Port 3 Pin Function Summary

Pin I/O Counter/Timers Comparator Interrupt

Pref1/P30 IN RF1 P31 IN IN AN1 IRQ2 P32 IN AN2 IRQ0 P33 IN RF2 IRQ1 P34 OUT T8 AO1 P35 OUT T16 P36 OUT T8/16 P37 OUT AO2 P20 I/O IN

Port 3 also provides output for each of the counter/timers and the AND/OR Logic (see

Figure 8). Control is performed by programming bits D5–D4 of CTR1, bit 0 of CTR0, and

bit 0 of CTR2.

19-4622; Rev 0; 5/09 Pin Description

Pad

P34

Comp1

MUX

PCON, D0

MUX

CTR0, D0

P31

P30 (Pref1)

P34 data

T8_Out

Pad

P35

MUX

CTR2, D0

Out 35

T16_Out

Pad

P36

MUX

CTR1, D6

Out 36

T8/T16_Out

Pad P37

MUX

PCON, D0

P37 data

P31

P3M D1

Comp2

P32

P33

P32

P3M D1

Crimzon® ZLR16300

Product Specification

Figure 8. Port 3 Counter/Timer Output Configuration

19-4622; Rev 0; 5/09 Pin Description

Crimzon® ZLR16300

Note:

Product Specification

Comparator Inputs

In ANALOG mode, P31 and P32 have a comparator front end. The comparator reference is supplied to P33 and P

. In this mode, the P33 internal data latch and its

REF1

corresponding IRQ1 are diverted to the SMR sources (excluding P31, P32, and P33) as displayed in Figure 7 on page 10. In DIGITAL mode, P33 is used as D3 of the Port 3 input register, which then generates IRQ1.

Comparators are powered down by entering STOP mode. For P31–P33 to be used in a Stop Mode Recovery source, these inputs must be placed into DIGITAL mode.

Comparator Outputs

These channels are programmed to be output on P34 and P37 through the PCON register.

19-4622; Rev 0; 5/09 Pin Description

Functional Description

Crimzon® ZLR16300

Product Specification

The Crimzon ZLR16300 family of devices incorporate special functions to enhance the functionality of Z8

Program Memory

These devices address from 1 KB to 16 KB of Program Memory. The first 12 bytes are reserved for interrupt vectors. These locations contain the six 16-bit vectors that correspond to the six available interrupts. See Figure 9 on page 15.

in consumer and battery-operated applications.

19-4622; Rev 0; 5/09 Functional Description

RAM

On-Chip ROM

Reset Start Address

IRQ5

IRQ4

IRQ3

IRQ2

IRQ1

IRQ1 IRQ0

IRQ0

12 11

Maximum ROM Size

Location of first byte of instruction executed after RESET

Interrupt Vector (Lower Byte)

Interrupt Vector (Upper Byte)

Not Accessible

Crimzon® ZLR16300

Product Specification

The Crimzon ZLR16300 product family features 237 bytes of RAM.

Figure 9. Program Memory Map

19-4622; Rev 0; 5/09 Functional Description

Expanded Register File

Note:

The register file has been expanded to allow for additional system control registers and for mapping additional peripheral devices into the register address area. The Z8 register address space (0 through15 (OFh)) has been implemented as 16 banks, with 16 registers per bank. These register banks are known as the ERF (Expanded Register File). Bits 7–4 of register RP select the working register group. Bits 3–0 of register RP select the expanded register file bank.

An expanded register bank is also referr ed to as an expanded r egister gr oup (see Figure 10 on page 17).

Crimzon® ZLR16300

Product Specification

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

UUUUUUU0

00000000 00000000

00000000

FF SPL

00000000

UUUUUUUU 00000000

UUUUUUUU

UUUUUUUU UUUUUUUU

11111111

00000000

11001111

UUUUUUUU UUUUUUUU UUUUUUUU UUUUUUUU UUUUUUUU

FE SPH FD RP FC FLAGS FB IMR FA IRQ F9 IPR F8 P01M F7 P3M F6 P2M F5 Reserved F4 Reserved F3 Reserved F2 Reserved F1 Reserved F0 Reserved

D7D6D5 D4 D3D2 D1 D0

UU001101

U01000U0

11111110

(F) 0F WDTMR (F) 0E Reserved (F) 0D SMR2 (F) 0C Reserved (F) 0B SMR (F) 0A Reserved (F) 09 Reserved (F) 08 Reserved (F) 07 Reserved (F) 06 Reserved (F) 05 Reserved (F) 04 Reserved (F) 03 Reserved (F) 02 Reserved (F) 01 Reserved (F) 00 PCON

76543210

Expanded Register Bank Pointer

Working Register

UUUUUUUU

00000000

(D) 0C LVD (D) 0B HI8 (D) 0A LO8 (D) 09 HI16 (D) 08 LO16 (D) 07 TC16H (D) 06 TC16L (D) 05 TC8H (D) 04 TC8L (D) 03 CTR3 (D) 02 CTR2 (D) 01 CTR1 (D) 00 CTR0

Group Pointer

00011111

* *

00000000

00000000 00000000 00000000 00000000

U = Unknown. *Is not reset with a Stop Mode Recovery.

**All addresses are in hexadecimal.



Is not reset with a Stop Mode Recovery, except Bit 0.



Bit 5 is not reset with a Stop Mode Recovery.



Bits 5,4,3,2 not reset with a Stop Mode Recovery.



Bits 5 and 4 not reset with a Stop Mode Recovery.



Bits 5,4,3,2,1 not reset with a Stop Mode Recovery.

Expanded Reg. Bank 0/Group (0)

(0) 03 P3 (0) 02 P2









* * *

* * * *

Expanded Reg. Bank F/Group 0**

Z8 Standard Control Registers

Expanded Reg. Bank D/Group 0



Reset Condition

(0) 00 P0

Reserved

NOTE: A write has no effect. Will always read back FF.

NOTE

Product Specification

19-4622; Rev 0; 5/09 Functional Description

Figure 10. Expanded Register File Architecture

Crimzon® ZLR16300

Product Specification

The upper nibble of the register pointer (see Figure 11) selects which working register group, of 16 bytes in the register file, is accessed out of the possible 256. The lower nibble selects the expanded register file bank and in the case of the Crimzon ZLR16300 family, banks 0, F, and D are implemented. A file (bank 0) to be addressed. Any other value from

0h in the lower nibble allows the normal register

1h to Fh exchanges the lower 16 reg-

isters to the selected expanded register bank.

R253 RP D7 D6 D5 D4 D3 D2 D1 D0

Expanded Register File Pointer

Working Register

Default Setting After Reset = 0000 0000

Pointer

Figure 11. Register Pointer

Example: (See Figure 10 on page 17) R253 RP = 00h

R0 = Port 0 R2 = Port 2 R3 = Port 3

But if:

R253 RP = 0Dh R0 = CTR0 R1 = CTR1 R2 = CTR2 R3 = CTR3

The counter/timers are mapped into ERF group D. Access is easily performed using the following:

LD RP, #0Dh ;Select ERF D

for access to

bank D ;(working register group

LD R0,#xx ;load CTR0

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Note:

Product Specification

LD 1, #xx ;load CTR1 LD R1, 2 ;CTR2CTR1

LD RP, #0Dh ;Select ERF D

for access to bank D ; (working register group

LD RP, #7Dh ;Select

expanded register bank D and working ;register group 7 of bank 0 for access.

LD 71h, 2

;CTRL2register 71h LD R1, 2 ;CTRL2register 71h

Register File

The Register file (bank 0) consists of three I/O port registers, 237 general-purpose registers, 16 control and status registers (R0, R2, R3, R4–R239, and R2 40–R255, respectively), and two expanded register Banks D (see Table 6 on page 22) and F . Instructions can access registers directly or indirectly through an 8-bit address field, thereby allowing a short, 4bit register address to use the Register Pointer (see Figure 12 on page 20). In the 4-bit mode, the register file is divided into 16 working register groups, each occupying 16 continuous locations. The Register Pointer addresses the starting location of the active working register group.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

R7R6R5R4R3R2R1R

The upper nibble of the register file addr es s provided by the register pointer specifies the active working-register group.

Specified Working

R253

The lower nibble of the register file address provided by the instruction points to the specified register.

* RP = 00: Selects Register Bank 0, Working Register Group 0

R15 to R0 R15 to R4 *

R3 to R0 *

40 3F

30 2F

20 1F

10 0F

FF F0

Product Specification

Figure 12. Register Pointer—Detail

Stack

The internal register file is used for the stack. An 8-bit Stack Pointer SPL (R255) is used for the internal stack that resides in the general-purpose registers (R4–R239). SPH (R254) is used as a general-purpose register.

Timers

T8_Capture_HI—HI8(0D)0Bh

This register stores the captured data from the output of the 8-bit Counter/Timer0. Typically, this register holds the number of counts when the input signal is 1.

19-4622; Rev 0; 5/09 Functional Description

Field Bit Position Description

T8_Capture_HI [7:0] R/W Captured Data—No Effect

Crimzon® ZLR16300

Product Specification

T8_Capture_LO—L08(0D)0Ah

This register holds the captured data from the output of the 8-bit Counter/Timer0. Typically, this register holds the number of counts when the input signal is 0.

Field Bit Position Description

T8_Capture_L0 [7:0] R/W Captured Data—No Effect

T16_Capture_HI—HI16(0D)09h

This register holds the captured data from the output of the 16-bit Counter/Timer16. This register holds the MS-Byte of the data.

Field Bit Position Description

T16_Capture_HI [7:0] R/W Captured Data—No Effect

T16_Capture_LO—L016(0D)08h

This register holds the captured data from the output of the 16-bit Counter/Timer16. This register holds the LS-Byte of the data.

Field Bit Position Description

T16_Capture_LO [7:0] R/W Captured Data—No Effect

Counter/Timer2 MS-Byte Hold Register—TC16H(0D)07h

Field Bit Position Description

T16_Data_HI [7:0] R/W Data

Counter/Timer2 LS-Byte Hold Register—TC16L(0D)06h

Field Bit Position Description

T16_Data_LO [7:0] R/W Data

19-4622; Rev 0; 5/09 Functional Description

Counter/Timer8 High Hold Register—TC8H0(D)05h

Field Bit Position Description

T8_Level_HI [7:0] R/W Data

Counter/Timer8 Low Hold Register—TC8L(0D)04h

Field Bit Position Description

T8_Level_LO [7:0] R/W Data

CTR0 Counter/Timer8 Control Register—CTR0(0D)00h

Crimzon® ZLR16300

Product Specification

Table 6 lists and briefly describes the fields for this register.

Table 6. CTR0(0D)00h Counter/Timer8 Control Register

Field Bit Position Value Description

T8_Enable 7------- R/W 0*

1 0 1

Single/Modulo-N -6------- R/W 0*

Time_Out --5------ R/W 0**

1 0 1

T8 _Clock ---43--- R/W 0 0**

0 1 1 0 1 1

Capture_INT_Mask -----2-- R/W 0**

Counter Disabled Counter Enabled Stop Counter Enable Counter

Modulo-N Single-Pass

No Counter Time-Out Counter Time-Out Occurred No Effect Reset Flag to 0

SCLK SCLK/2 SCLK/4 SCLK/8

Disable Data Capture Interrupt Enable Data Capture Interrupt

Counter_INT_Mask ------1- R/W 0**

P34_Out -------0 R/W 0*

*Indicates the value at Power-On Reset. **Indicates the value upon Power-On Reset. Not reset with a Stop Mode Recovery.

19-4622; Rev 0; 5/09 Functional Description

Disable Time-Out Interrupt Enable Time-Out Interrupt

P34 as Port Output T8 Output on P34

Crimzon® ZLR16300

Caution:

Note:

Product Specification

T8 Enable

This field enables T8 when set to 1.

Single/Modulo-N

When set to 0 (MODULO-N), the counter reloads the initial value when the terminal count is reached. When set to 1 (Single-Pass), the counter stops when the terminal count is reached.

Timeout

This bit is set when T8 times out (terminal count reached). T o r eset this bit, write a 1 to its location.

Writing a 1 is the only way to reset the Terminal Count status condition. Reset this bit before using/enabling the counter/timers.

The first clock of T8 might not have complete clock width and can occur any time when enabled.

Ensure to manipulate CTR0, bit 5 and CTR1, bits 0 and 1 (DEMODULATION mode) while using the OR or AND commands. These instructions use a Read-Modify-Write sequence in which the current status from the CTR0 and CTR1 registers is ORed or ANDed with the designated value and then written back into the registers.

T8 Clock

These bits define the frequency of the input signal to T8.

Capture_INT_Mask

Set this bit to allow an interrupt when data is captured into either LO8 or HI8 upon a positive or negative edge detection in CAPTURE Mode.

Counter_INT_Mask

Set this bit to allow an interrupt when T8 has a timeout.

P34_Out

This bit defines whether P34 is used as a normal output pin or the T8 output.

T8 and T16 Common Functions—CTR1(0D)01h

This register controls the functions common with the T8 and T16.

Table 7 lists and briefly describes the fields for this register.

19-4622; Rev 0; 5/09 Functional Description

Product Specification

Table 7. CTR1(0D)01h T8 and T16 Common Functions

Field Bit Position Value Description

Mode 7------- R/W 0*

P36_Out/ Capture_Input

T8/T16_Logic/ Edge _Detect

Transmit_Submode/ Glitch_Filter

Initial_T8_Out/ Rising Edge

-6------ R/W

--54---- R/W

----32-- R/W

------1-

R/W

R W

0* 1

00** 01 10 11

00 01 10 11

0 1

0 1 0 1

TRANSMIT Mode DEMODULATION Mode

TRANSMIT Mode Port Output T8/T16 Output DEMODULATION Mode P31 P20

TRANSMIT Mode AND OR NOR NAND DEMODULATION Mode Falling Edge Rising Edge Both Edges Reserved

TRANSMIT Mode Normal Operation PING-PONG Mode T16_Out = 0 T16_Out = 1 DEMODULATION Mode No Filter 4 SCLK Cycle 8 SCLK Cycle Reserved

TRANSMIT Mode T8_OUT is 0 Initially T8_OUT is 1 Initially DEMODULATION Mode No Rising Edge Rising Edge Detected No Effect Reset Flag to 0

Crimzon® ZLR16300

19-4622; Rev 0; 5/09 Functional Description

Product Specification

Table 7. CTR1(0D)01h T8 and T16 Common Functions (Continued)

Field Bit Position Value Description

Initial_T16_Out/ Falling_Edge

*Default at Power-On Reset. *Indicates the value upon Power-On Reset. Not reset with a Stop Mode Recovery.

-------0

R/W

R W

0 1

0 1 0 1

TRANSMIT Mode T16_OUT is 0 Initially T16_OUT is 1 Initially DEMODULATION Mode No Falling Edge Falling Edge Detected No Effect Reset Flag to 0

Mode

Crimzon® ZLR16300

If the result is 0, the counter/timers are in TRANSMIT mode, else, they are in DEMODULATION mode.

P36_Out/Demodulator_Input

In TRANSMIT mode, this bit defines whether P36 is used as a normal output pin or the combined output of T8 and T16.

In DEMODULATION mode, this bit defines whether the input signal to the Counter/Timers is from P20 or P31.

If the input signal is from Port 31, a capture event generates an IRQ2 interrupt. To prevent generating an IRQ2, either disable the IRQ2 interrupt by clearing its IMR bit D2 or use P20 as the input.

T8/T16_Logic/Edge_Detect

In TRANSMIT mode, this field defines how the outputs of T8 and T16 are combined (AND, OR, NOR, NAND).

In DEMODULATION mode, this field defines which edge is detected by the edge detector.

Transmit_Submode/Glitch Filter

In TRANSMIT mode, this field defines whether T8 and T16 are in the PING-PONG mode or in independent Normal operation mode. Setting this field to ‘Normal Operation mode’ terminates the ‘PING-PONG mode’ operation. When set to 10, T16 is immediately forced to a 0; a setting of 11 forces T16 to output a 1.

In DEMODULATION mode, this field defines the width of the glitch that must be filtered out.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Note:

Product Specification

Initial_T8_Out/Rising_Edge

In TRANSMIT mode, if 0, the output of T8 is set to 0 when it starts to count. If 1, the output of T8 is set to 1 when it starts to count. When the counter is not enabled and this bit is set to 1 or 0, T8_OUT is set to the opposite state of this bit. This ensures that when the clock is enabled, a transition occurs to the initial state set by CTR1, D1.

In DEMODULATION mode, this bit is set to 1 when a rising edge is detected in the input signal. In order to reset the mode, a 1 should be written to this location.

Initial_T16 Out/Falling _Edge

In TRANSMIT mode, if it is 0, the output of T16 is set to 0 when it starts to count. If it is 1, the output of T16 is set to 1 when it starts to count. This bit is effective only in NORMAL or PING-PONG mode (CTR1, D3; D2). When the counter is not enabled and this bit is set, T16_OUT is set to the opposite state of this bit. This ensures that when the clock is enabled, a transition occurs to the initial state set by CTR1, D0.

In DEMODULATION mode, this bit is set to 1 when a falling edge is detected in the input signal. In order to reset it, a 1 should be written to this location.

Modifying CTR1 (D1 or D0) while the counters are enabled causes unpredictable output from T8/16_OUT.

CTR2 Counter/Timer 16 Control Register—CTR2(0D)02h

Table 8 lists and briefly describes the fields for this register.

Table 8. CTR2(0D)02h: Counter/Timer16 Control Register

Field Bit Position Value Description

T16_Enable 7------- R

Single/Modulo-N -6------ R/W

0* 1 0 1

0 1

Counter Disabled Counter Enabled Stop Counter Enable Counter

TRANSMIT Mode Modulo-N Single Pass DEMODULATION Mode T16 Recognizes Edge T16 Does Not Recognize Edge

Time_Out --5----- R

19-4622; Rev 0; 5/09 Functional Description

0** 1

0 1

No Counter Timeout Counter Timeout Occurred No Effect Reset Flag to 0

Crimzon® ZLR16300

Product Specification

Table 8. CTR2(0D)02h: Counter/Timer16 Control Register (Continued)

Field Bit Position Value Description

T16 _Clock ---43--- R/W 00**

01 10 11

Capture_INT_Mask -----2-- R/W 0**

Counter_INT_Mask ------1- R/W 0* Disable Timeout Int.

P35_Out -------0 R/W 0*

*Indicates the value upon Power-On Reset. **Indicates the value upon Power-On Reset. Not reset with a Stop Mode Recovery.

SCLK SCLK/2 SCLK/4 SCLK/8

Disable Data Capture Int. Enable Data Capture Int.

Enable Timeout Int. P35 as Port Output

T16 Output on P35

T16_Enable

This field enables T16 when set to 1.

Single/Modulo-N

In TRANSMIT mode, when set to 0, the counter reloads the initial value when it reaches the terminal count. When set to 1, the counter stops when the terminal count is reached.

In DEMODULATION mode, when set to 0, T16 captures and reloads on detection of all the edges. When set to 1, T16 captures and detects on the first edge but ignores the subsequent edges. For details, see T16 DEMODULATION Mode on page 36.

Time_Out

This bit is set when T16 times out (terminal count reached). To reset the bit, write a 1 to this location.

T16_Clock

This bit defines the frequency of the input signal to Counter/Timer16.

Capture_INT_Mask

This bit is set to allow an interrupt when data is captured into LO16 and HI16.

Counter_INT_Mask

Set this bit to allow an interrupt when T16 times out.

19-4622; Rev 0; 5/09 Functional Description

P35_Out

This bit defines whether P35 is used as a normal output pin or T16 output.

CTR3 T8/T16 Control Register—CTR3(0D)03h

Table 9 lists and briefly describes the fields for this register. This register allow the T8 and

T16 counters to be synchronized.

Table 9. CTR3(0D)03h T8/T16 Control Register

Crimzon® ZLR16300

Product Specification

T16_Enable 7------- R

R W W

T8 Enable -6------ R/W 0**

Sync Mode --5----- R/W 0*

Reserved ---43210 R/W 1

*Indicates the value upon Power-On Reset. ***Indicates the value upon Power-On Reset. Not reset with a Stop Mode Recovery.

0* 1 0 1

1 0 1

Counter/Timer Functional Blocks

Input Circuit

The edge detector monitors the input signal on P31 or P20. Based on CTR1 D5–D4, a pulse is generated at the Pos Edge or Neg Edge line when an edge is detected. Glitches in the input signal that have a width less than specified (CTR1 D3, D2) are filtered out (see

Figure 13).

Counter Disabled Counter Enabled Stop Counter Enable Counter

Disable Sync Mode Enable Sync Mode

Always reads 11111 No Effect

19-4622; Rev 0; 5/09 Functional Description

Figure 13. Glitch Filter Circuitry

MUX

Glitch Filter

Edge Detector

P31 P20

Pos Edge

Neg Edge

CTR1 D5,D4

CTR1 D6

CTR1 D3, D2

Crimzon® ZLR16300

Product Specification

T8 TRANSMIT Mode

Before T8 is enabled, the output of T8 depends on CTR1, D1. If it is 0, T8_OUT is 1; if it is 1, T8_OUT is 0. See Figure 14 on page 30.

19-4622; Rev 0; 5/09 Functional Description

Set Timeout Status Bit

(CTR0 D5) and Generate

Timeout_Int if Enabled

Set Timeout Status Bit

(CTR0 D5) and Generate

Timeout_Int if Enabled

T8 (8-Bit)

TRANSMIT Mode

T8_Enable Bit Set

CTR0, D7

Yes

CTR1, D1

Value

Reset T8_Enable Bit

Load TC8L

Reset T8_OUT

Load TC8H

Set T8_OUT

Enable T8

T8_Timeout

Yes

Single Pass

Single

Modulo-N

T8_OUT Value

Enable T8

T8_Timeout

Yes

Pass?

Load TC8H

Set T8_OUT

Load TC8L

Reset T8_OUT

Crimzon® ZLR16300

Product Specification

Figure 14. TRANSMIT Mode Flowchart

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

CTR0 D1

Negative Edge

Positive Edge

Z8 Data Bus

IRQ4

CTR0 D2

SCLK

Z8 Data Bus

CTR0 D4, D3

Clock

T8_OUT

LO8

TC8H TC8L

Clock Select

8-Bit Counter T8

HI8

Caution:

Note:

Product Specification

When T8 is enabled, the output T8_OUT switches to the initial value (CTR1, D1). If the initial value (CTR1, D1) is 0, TC8L is loaded, else, TC8H is loaded into the counter. In SINGLE-PASS mode (CTR0, D6), T8 counts down to 0 and stops, T8_OUT toggles, the timeout status bit (CTR0, D5) is set, and a timeout interrupt can be generated if it is enabled (CTR0, D1). In MODULO-N mode, upon reaching terminal count, T8_OUT is toggled, but no interrupt is generated. From that point, T8 loads a new count (if the T8_OUT level now is 0), TC8L is loaded; if it is 1, TC8H is loaded. T8 counts down to 0, toggles T8_OUT, and sets the timeout status bit (CTR0, D5), thereby generating an interrupt if enabled (CTR0, D1). One cycle is complete. T8 then loads from TC8H or TC8L according to the T8_OUT level and repeats the cycle. See Figure 15.

Figure 15. 8-Bit Counter/Timer Circuits

The values in TC8H or TC8L can be modified at any time. The new values take effect when they are loaded.

To ensure known operation do not write these registers at the time the values are to be loaded into the counter/timer. An initial count of 1 is not allowed (a non-function occurs). An initial count of 0 causes TC8 to count from 0 to

19-4622; Rev 0; 5/09 Functional Description

The letter

h denotes hexadecimal values.

Transition from 0 to

FFh is not a timeout condition.

FFh to FEh.

Crimzon® ZLR16300

Caution:

TC8H Counts

Counter Enable Command; T8_OUT Switches to Its Initial Value (CTR1 D1)

T8_OUT Toggles; Timeout Interrupt

Counter Enable Command; T8_OUT Switches to Its Initial Value (CTR1 D1)

Timeout Interrupt

T8_OUT

T8_OUT Toggles

TC8L TC8H TC8H TC8LTC8L

...

Product Specification

Using the same instructions for stopping the counter/timers and setting the status bits is not recommended.

Two successive commands are necessary. First, the counter/timers must be stopped. Second, the status bits must be reset. These commands are required because it takes one counter/timer clock interval for the initiated event to actually occur. See Figure 16 and

Figure 17.

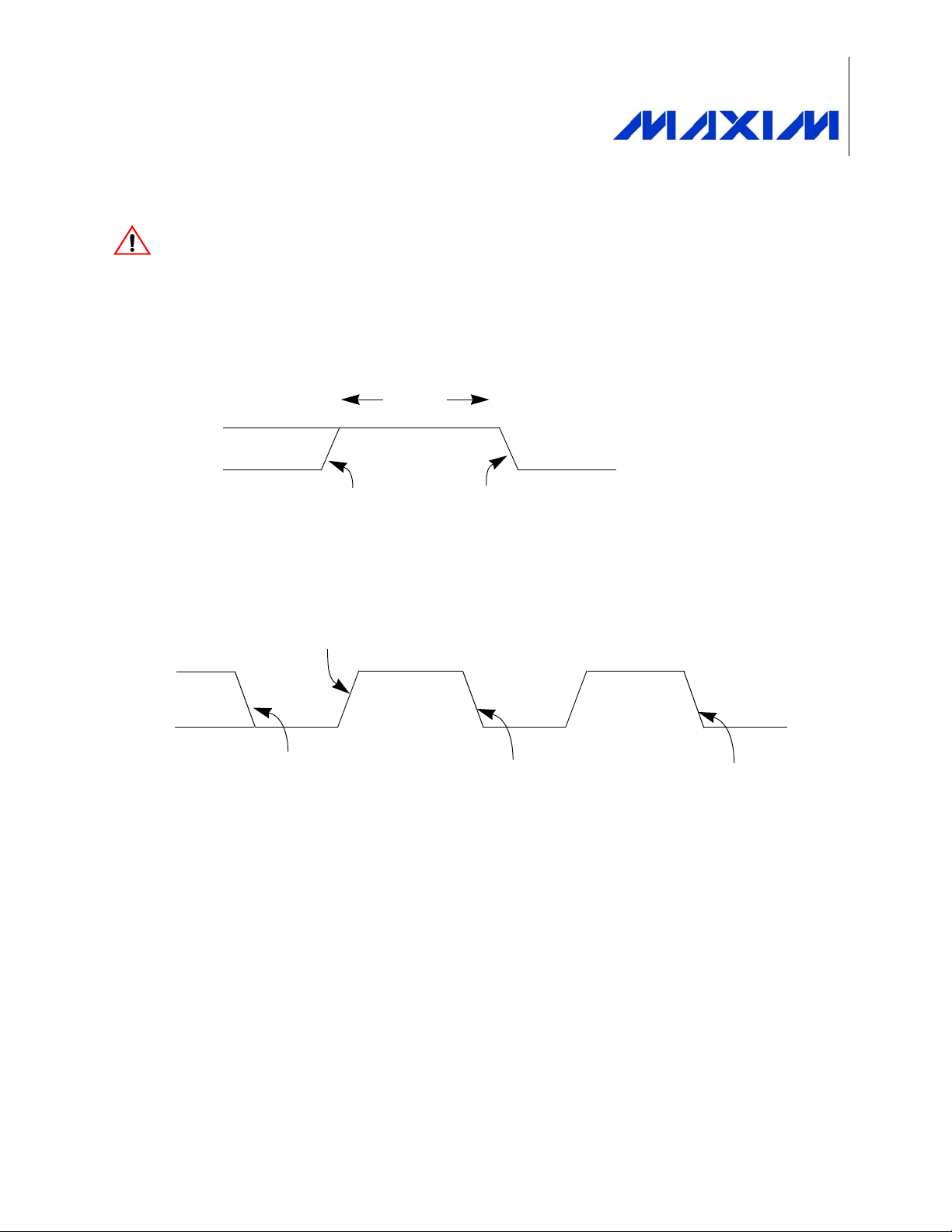

Figure 16. T8_OUT in SINGLE-PASS Mode

Figure 17. T8_OUT in MODULO-N Mode

T8 DEMODULATION Mode

You must program TC8L and TC8H to ing, falling, or both depending on CTR1, D5; D4) is detected, it starts to count down. When a subsequent edge (rising, falling, or both depending on CTR1, D5; D4) is detected during counting, the current value of T8 is complemented and put into one of the capture registers. If it is a positive edge, data is put into LO8; if it is a negative edge, data is stored in HI8. From that point, one of the edge detect status bits (CTR1, D1; D0) is set, and an interrupt is generated if enabled (CTR0, D2). Meanwhile, T8 is loaded with counting again. If T8 reaches 0, the timeout status bit (CTR0, D5) is set, and an interrupt

FFh. After T8 is enabled, when the first edge (ris-

FFh and starts

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

T8 (8-Bit)

Count Capture

T8 Enable

(Set by User)

Yes

Edge Present

What Kind

of Edge

HI8

Yes

Negative

FFh T8

Positive

T8 LO8

Product Specification

can be generated if enabled (CTR0, D1). T8 then continues counting from FFh (see

Figure 19 on page 34).

Figure 18. DEMODULATION Mode Count Capture Flowchart

19-4622; Rev 0; 5/09 Functional Description

T8 (8-Bit)

CAPTURE Mode

T8 Enable CTR0, D7

Yes

FFh TC8

First

Edge Present

Enable TC8

T8_Enable

Bit Set

Edge Present

T8 Timeout

Set Edge Present Status

Bit and Trigger Data

Capture Int. If Enabled

Set Timeout Status

Bit and Trigger

Timeout Int. If Enabled

Continue Counting

Disable TC8

Yes

Crimzon® ZLR16300

Product Specification

Figure 19. DEMODULATION Mode Flowchart

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

CTR2 D1

Negative Edge

Positive Edge

Z8 Data Bus

IRQ3

CTR2 D2

SCLK

Z8 Data Bus

CTR2 D4, D3

Clock

T16_OUT

LO16

TC16H TC16L

Clock Select

16-Bit Counter T16

HI16

Note:

Product Specification

T16 TRANSMIT Mode

In NORMAL or PING-PONG mode, the output of T16 when not enabled, is dependent on CTR1, D0. If it is a 0, T16_OUT is a 1; if it is a 1, T16_OUT is 0. You can force the output of T16 to either a 0 or 1 whether it is enabled or not by programming CTR1 D3; D2 to a 10 or 11.

When T16 is enabled, TC16H * 256 + TC16L is loaded, and T16_OUT is switched to its initial value (CTR1, D0). When T16 counts down to 0, T16_OUT is toggled (in NORMAL or PING-PONG mode), an interrupt (CTR2, D1) is generated (if enabled), and a status bit (CTR2, D5) is set. See Figure 20.

Figure 20. 16-Bit Counter/Timer Circuits

Global interrupts override this function as described in Interrupts on page 39.

If T16 is in SINGLE-PASS mode, it is stopped at this point (see Figure 21 on page 36). If it is in MODULO-N mode, it is loaded with TC16H * 256 + TC16L, and the counting continues (see Figure 22 on page 36).

19-4622; Rev 0; 5/09 Functional Description

The values in TC16H and TC16L can be modified at any time. The new values take effect when they are loaded.

Crimzon® ZLR16300

Caution:

TC16H*256+TC16L Counts

“Counter Enable” Command T16_OUT Switches to Its Initial Value (CTR1 D0)

T16_OUT Toggles, Timeout Interrupt

TC16H*256+TC16L

T16_OUT Toggles, Timeout Interrupt

‘Counter Enable’ Command, T16_OUT Switches to Its Initial Value (CTR1 D0)

TC16_OUT

...

Product Specification

Do not load these registers at the time the values ar e to be loaded into the counter/timer to ensure known operation. An initial count of 1 is not allowed. An initial count of 0 causes T16 to count from 0 to

FFFFh to FFFEh. Transiti on from 0 to FFFFh is not a time-

out condition.

Figure 21. T16_OUT in SINGLE-PASS Mode

19-4622; Rev 0; 5/09 Functional Description

T16 DEMODULATION Mode

You must program TC16L and TC16H to FFh. Once T16 is enabled, and the first edge (rising, falling, or both depending on CTR1 D5; D4) is detected, T16 captures HI16 and LO16, reloads, and begins counting.

If D6 of CTR2 Is 0

When a subsequent edge (rising, falling, or both depending on CTR1, D5; D4) is detected during counting, the current count in T16 is complemented and put into HI16 and LO16. When data is captured, one of the edge detect status bits (CTR1, D1; D0) is set, and an interrupt is generated if enabled (CTR2, D2). T16 is loaded with

This T16 mode is generally used to measure space time, the length of time between bursts of carrier signal (marks).

Figure 22. T16_OUT in MODULO-N Mode

FFFFh and starts again.

Crimzon® ZLR16300

Note:

Enable

TC8

Enable

Timeout

TC16

Ping-Pong CTR1 D3,D2

Timeout

Product Specification

If D6 of CTR2 Is 1

T16 ignores the subsequent edges in the input signal and continues counting down. A timeout of T8 causes T16 to capture its current value and generate an interrupt if enabled (CTR2, D2). In this case, T16 does not reload and continues counting. If the D6 bit of CTR2 is toggled (by writing a 0 then a 1 to it), T16 captures and reloads on the next edge (rising, falling, or both depending on CTR1, D5; D4), continuing to ignore subsequent edges.

This T16 mode generally measures mark time, the length of an active carrier signal burst.

If T16 reaches 0, T16 continues counting from

FFFFh. Meanwhile, a status bit (CTR2 D5)

is set, and an interrupt timeout is generated if enabled (CTR2 D1).

PING-PONG Mode

This operation mode is valid only in TRANSMIT mode. T8 and T16 must be programmed in SINGLE-PASS mode (CTR0, D6; CTR2 , D6), and Ping-Pong mode must be programmed in CTR1, D3; D2. You can begin the operation by enabling either T8 or T16 (CTR0, D7 or CTR2, D7). For example, if T8 is enabled, T8_OUT is set to this initial value (CTR1, D1). According to T8_OUT's level, TC8H or TC8L is loaded into T8. After the terminal count is reached, T8 is disabled, and T16 is enabled. T16_OUT then switches to its initial value (CTR1, D0), data from TC16H and TC16L is loaded, and T16 starts to count. After T16 reaches the terminal count, it stops, T8 is enabled again, repeating the entire cycle. Interrupts are allowed when T8 or T16 reaches terminal control (CTR0, D1; CTR2, D1). To stop the Ping-Pong operation, write 00 to bits D3 and D2 of CTR1. See

Figure 23.

Enabling Ping-Pong operation while the counter/timers are running might cause intermittent counter/timer function. Disable the counter/timers and reset the status Flags before instituting this operation.

19-4622; Rev 0; 5/09 Functional Description

Figure 23. PING-PONG Mode Diagram

Crimzon® ZLR16300

T16_OUT

MUX

CTR1 D3

T8_OUT

P34

AND/OR/NOR/NAND Logic

MUX

P35

P36

P34_Internal

CTR1 D5, D4

P36_Internal

P35_Internal

CTR1, D2

CTR0 D0

CTR1 D6

CTR2 D0

Product Specification

Initiating PING-PONG Mode

Ensure that both counter/timers are not running. Set T8 into SINGLE-PASS mode (CTR0, D6), set T16 into SINGLE-PASS mode (CTR2, D6), and set the PING-PONG mode (CTR1, D2; D3). These instructions can be in random order. Finally, start PING-PONG mode by enabling either T8 (CTR0, D7) or T16 (CTR2, D7). See Figure 23 on page 38.

Figure 24. Output Circuit

The initial value of T8 or T16 must not be

1. If you stop the timer and restart the timer,

reload the initial value to avoid an unknown previous value.

During PING-PONG Mode

The enable bits of T8 and T16 (CTR0, D7; CTR2, D7) are set and cleared alternately by hardware. The timeout bits (CTR0, D5; CTR2, D5) are set every time the counter/timers reach the terminal count.

Timer Output

The output logic for the timers is displayed in Figure 24. P34 is used to output T8-OUT when D0 of CTR0 is set. P35 is used to output the value of T16-OUT when D0 of CRTR2 is set. When D6 of CTR1 is set, P36 outputs the logic combination of T8-OUT and T16OUT determined by D5 and D4 of CTR1.

19-4622; Rev 0; 5/09 Functional Description

Interrupts

Crimzon® ZLR16300

Product Specification

The Crimzon ZLR16300 features six different interrupts (see Table 10 on page 41). The interrupts are maskable and prioritized (see Figure 25 on page 40). The six sources are divided as follows:

•

Three sources are claimed by Port 3 lines P33–P31

•

Two by the counter/timers (see Table 10 on pag e 41)

•

One for low-voltage detection

The Interrupt Mask Register (globally or individually) enables or disables the six interrupt requests.

The source for IRQ is determined by bit 1 of the Port 3 mode register (P3M). When in DIGITAL mo de, Pin P33 is the source. When in ANALOG mode the output of the Stop Mode Recovery source logic is used as the source for the interrupt. See Figure 30 on page

47.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Low-Voltage Detection

Timer 8

Timer 16

Interrupt Edge Select

IMR

IPR

Priority Logic

IRQ

IRQ2 IRQ0 IRQ1 IRQ3 IRQ4 IRQ5

P31 P32

IRQ Register D6, D7

Global Interrupt Enable

Interrupt Request

Vector Select

D1 of P3M Register

P33

Stop Mode Recovery Source

Product Specification

Figure 25. Interrupt Block Diagram

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Product Specification

Table 10. Interrupt Types, Sources, and Vectors

Name Source Vector Location Comments

IRQ0 P32 0,1 External (P32), Rising, Falling Edge Triggered IRQ1 P33 2,3 External (P33), Falling Edge Triggered

IRQ2 P31, T IRQ3 T16 6,7 Internal IRQ4 T8 8,9 Internal IRQ5 LVD 10,11 Internal

4,5 External (P31), Rising, Falling Edge Triggered

When more than one interrupt is pending, priorities are resolved by a programmable priority encoder controlled by the Interrupt Priority Register. An interrupt machine cycle activates when an interrupt request is granted. As a result, all subsequent interrupts are disabled, and the Program Counter and Status Flags are saved. The cycle then branches to the Program Memory vector location reserved for that interrupt. All Crimzon ZLR16300 interrupts are vectored through locations in the Program Memory. This memory location and the next byte contain the 16-bit address of the interrupt service routine for that particular interrupt request. To accommodate polled interrupt systems, interrupt inputs are masked, and the Interrupt Request register is polled to determine which of the interrupt requests require service.

An interrupt resulting from AN1 is mapped into IRQ2, and an interrupt from AN2 is mapped into IRQ0. Interrupts IRQ2 and IRQ0 can be rising, falling, or both edge triggered. You can program these interrupts. The software can poll to identify the state of the pin.

Programming bits for the Interrupt Edge Select are located in the IRQ Register (R250), bits D7 and D6. Table 11 indicates the IRQ configuration.

Table 11. IRQ Register

IRQ Interrupt Edge

D7 D6 IRQ2 (P31) IRQ0 (P32)

00F F 01F R 10R F 11R/F R/F

Note: F = Falling Edge; R = Rising Edge.

19-4622; Rev 0; 5/09 Functional Description

Clock

Note:

XTAL1

XTAL2

XTAL1

XTAL2

Crystal C1, C2 = 10 pF * f = 8 MHz

External Clock

*Note: preliminary value.

XTAL1

XTAL2

Ceramic Resonator f = 8 MHz

Crimzon® ZLR16300

Product Specification

The device’ s on-ch ip oscill ato r has a high-gai n, parallel-resonant amplifier for connection to a crystal, ceramic resonator, or any suitable external clock source (XTAL1 = Input, XT AL2 = Output). The crystal must be AT cut, 1 MHz to 8 MHz (maximum) with a series resistance (RS) less than or equal to 100 . The on-chip oscillator is driven with a suitable external clock source.

The crystal must be connected across XTAL1 and XTAL2 using the recommended capacitors from each pin to ground. The typical capacitor value is 10 pF for 8 MHz.

Check with the crystal supplier for the optimum capacitance.

Figure 26. Oscillator Configuration

Maxim’s IR MCU supports crystal, resonator, and oscillator. Most resonators have a frequency tolerance of less than ±0.5%, which is enough for remote control application. Resonator has a very fast startup time, which is around few hundred microseconds. Most crystals have a frequency tolerance of less than 50 ppm (±0.005%). However, crystal needs longer startup time than the resonator. The large loading capacitance slows down the oscillation startup time. Maxim suggests not to use more than 10 pF loading capacitor for the crystal. If the stray capacitance of the PCB or the crystal is high, the loading capacitance C1 and C2 must be reduced further to ensure stable oscillation before the T (Power-On Reset time is typically 5–6 ms, see Table 18 on page 75).

POR

For SMR operation, bit 5 of SMR register allows you to select the SMR delay, which is the

. If SMR delay is not selected, the MCU executes instruction immediately after it

POR

wakes up from the STOP mode. If resonator or crystal is used as a clock source then SMR delay needs to be selected (bit 5 of SMR = 1).

19-4622; Rev 0; 5/09 Functional Description

For both resonator and crystal oscillator, the oscillation ground must go directly to the ground pin of the microcontroller. The oscillation ground must use the shortest distance from the microcontroller ground pin and it must be isolated from other connections.

Power Management

Power-On Reset

A timer circuit clocked by a dedicated on-board RC-oscillator is used for the Power-On Reset timer function. The POR time allows V before instruction execution begins.

The POR timer circuit is a one-shot timer triggered by one of three conditions:

Crimzon® ZLR16300

Product Specification

and the oscillator circuit to stabilize

1. Power Fail to Power OK status, including Waking up from V

Standby.

2. Stop Mode Recovery (if D5 of SMR = 1).

3. WDT Timeout. The POR timer is 2.5 ms minimum. Bit 5 of the Stop-Mode Register determines whether

the POR timer is bypassed after Stop Mode Recovery (typical for external clock).

HALT Mode

This instruction turns Off the internal CPU clock, but not the XTAL oscillation. The counter/timers and external interrupts IRQ0, IRQ1, IRQ2, IRQ3, IRQ4, and IRQ5 remain active. The devices are recovered by interrupts, either externally or internally generated. An interrupt request must be executed (enabled) to exit HALT mode. After the interrupt service routine, the program continues from the instruction after the HALT.

STOP Mode

This instruction turns OFF the internal clock and external crystal oscillation, reducing the standby current to 10 A or less. STOP mode is terminated only by a reset, such as WDT timeout, POR or SMR. This condition causes the processor to restart the application program at address

000Ch. In order to enter STOP (or HALT) mode, first flush the instruction

pipeline to avoid suspending execution in mid-instruction. Execute an NOP instruction (Opcode =

FFh) immediately before the appropriate sleep instruction, as follows:

FF NOP ; clear the pipeline 6F STOP ; enter Stop Mode

FF NOP ; clear the pipeline 7F HALT ; enter Halt Mode

19-4622; Rev 0; 5/09 Functional Description

Port Configuration

Port Configuration Register

The Port Configuration (PCON) register (see Figure 27) configures the comparator output on Port 3. It is located in the expanded register file at Bank F, location 00.

PCON (0F) 00H

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

Comparator Output Port 3 0 P34, P37 Standard Output* 1 P34, P37 Comparator Output

Reserved (Must be 1)

Port 0 0: Open-Drain 1: Push-Pull*

Reserved (Must be 1)

*Default setting after reset.

Figure 27. Port Configuration Register (PCON) (Write Only)

Comparator Output Port 3 (D0)

Bit 0 controls the comparator used in Port 3. A 1 in this location brings the comparator outputs to P34 and P37, and a 0 releases the Port to its standard I/O configuration.

Port 0 Output Mode (D2)

Bit 2 controls the output mode of port 0. A 1 in this location sets the output to push-pull, and a 0 sets the output to open-drain.

Stop Mode Recovery

Stop Mode Recovery Register

This register selects the clock divide value and determines the mode of Stop Mode Recovery (see Figure 28 on page 45). All bits are write only except bit 7, which is read only. Bit

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Product Specification

7 is a Flag bit that is hardware set on the condition of Stop recovery and reset by a poweron cycle. Bit 6 controls whether a low level or a high level at the XOR-gate input (see

Figure 30 on page 47) is required from the recovery source. Bit 5 controls the reset delay

after recovery. Bits D2, D3, and D4 of the SMR register specify the source of the Stop Mode Recovery signal. Bits D0 determines if SCLK/TCLK are divided by 16 or not. The SMR is located in Bank F of the Expanded Register File at address

0Bh.

SMR (0F) 0BH

D7 D6 D5 D4 D3 D2 D1 D0

SCLK/TCLK Divide-by-16 0 OFF * * 1 ON

Reserved (Must be 0)

Stop Mode Recovery Source 000 POR Only * 001 Reserved 010 P31 011 P32 100 P33 101 P27 110 P2 NOR 0-3 111 P2 NOR 0-7

Stop Delay 0 OFF 1 ON * * * *

Stop Recovery Level * * * 0 Low * 1 High

Stop Flag 0 POR * 1 Stop Recovery * *

*Default after Power-On Reset or Watchdog Reset. * *Default setting after Reset and Stop Mode Recovery. * * *At the XOR gate input. * * * *Default setting after reset. Must be 1 if using a crystal or resonator clock source.

Figure 28. Stop Mode Recovery Register

SCLK/TCLK Divide-by-16 Select (D0)

D0 of the SMR controls a divide-by-16 prescaler of SCLK/TCLK (see Figure 29 on page

46). This control selectively reduces device power consumption during normal processor

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

SCLK TCLKSMR, D0

2

OSC

16

Product Specification

execution (SCLK control) and/or HALT mode (where TCLK sources interrupt logic). After Stop Mode Recovery, this bit is set to 0.

Figure 29. SCLK Circuit

Stop Mode Recovery Register 2—SMR2(0F)0DH

Table 12 lists and describes the fields for this register.

Table 12. SMR2(F)0DH:Stop Mode Recovery Register 2*

Field Bit Position Value Description

Reserved 7------- 0 Reserved (Must be 0) Recovery Level -6------ W0

Reserved --5----- 0 Reserved (Must be 0) Source ---432-- W 000

Reserved ------10 00 Reserved (Must be 0)

†

001 010 011 100 101 110 111

Low High

†

A. POR Only B. NAND of P23–P20 C. NAND of P27–P20 D. NOR of P33–P31 E. NAND of P33–P31 F. NOR of P33–P31, P00, P07 G. NAND of P33–P31, P00, P07 H. NAND of P33–P31, P22–P20

*Port pins configured as outputs are ignored as an SMR recovery source.

†

Indicates the value at Power-On Reset.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

SMR2 D4 D3 D2

100

SMR2 D4 D3 D2

111

SMR D4D3D2

010

SMR D4D3D2

111

SMR D4D3D2

101

SMR D4D3D2

100

SMR D4D3D2

011

SMR D4D3D2

000

SMR D4D3D2

110

VCC

P31

P32

P33

P27

P20 P23

P20 P27

SMR2 D4 D3 D2

001

SMR2 D4 D3 D2

000

SMR2 D4 D3 D2

010

SMR2 D4 D3 D2

011

SMR2 D4 D3 D2

101

SMR2 D4 D3 D2

110

VCC

P20 P23

P20 P27

P31 P32 P33

P31 P32 P33 P00

P31 P32 P33 P20 P21

SMR D6

SMR2 D6

To RESET and WDT Circuitry (Active Low)

Product Specification

Stop Mode Recovery Source (D2, D3, and D4)

These three bits of the SMR specify the wake-up source of the Stop recovery (see

Figure 30 on page 47 and Table 13 on page 48).

Figure 30. Stop Mode Recovery Source

19-4622; Rev 0; 5/09 Functional Description

Table 13. Stop Mode Recovery Source

Note:

SMR: 432 Operation D4 D3 D2 Description of Action

0 0 0 POR and/or external reset recovery 001Reserved 010P31 transition 011P32 transition 100P33 transition 101P27 transition 1 1 0 Logical NOR of P20 through P23

Crimzon® ZLR16300

Product Specification

1 1 1 Logical NOR of P20 through P27

Any Port 2 bit defined as an output drives the corr esponding input to the default state. This condition allows the remaining inputs to control the AND/OR function. For other recover sources, see Stop Mode Recovery Register 2 (SMR2).

Stop Mode Recovery Delay Select (D5)

This bit, if Low, disables the T

delay after Stop Mode Recovery. The default configu-

POR

ration of this bit is 1. If the ‘fast’ wake-up is selected, the Stop Mode Recovery source must be kept active for at least 10 TpC.

This bit must be set to 1 if using a crystal or resonator clock source. The T

POR

delay

allows the clock source to stabilize before executing instructions.

Stop Mode Recovery Edge Select (D6)

A 1 in this bit position indicates that a High level on any one of the recovery sources wakes the Crimzon ZLR16300 from STOP mode. A 0 indicates Low level recovery. The default is 0 on POR.

Cold or Warm Start (D7)

This bit is read only. It is set to 1 when the device is recovered from STOP mode. The bit is set to 0 when the device reset is other than SMR.

Stop Mode Recovery Register 2 (SMR2)

This register determines the mode of Stop Mode Recovery for SMR2 (see Figure 31 on page 49).

19-4622; Rev 0; 5/09 Functional Description

SMR2 (0F) DH

Note:

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

Reserved (Must be 0)

Stop Mode Recovery Source 2 000 POR Only * 001 NAND P20, P21, P22, P23 010 NAND P20, P21, P22, P23, P24, P25, P26, P27 011 NOR P31, P32, P33 100 NAND P31, P32, P33 101 NOR P31, P32, P33, P00, P07 110 NAND P31, P32, P33, P00, P07 111 NAND P31, P32, P33, P20, P21, P22

Reserved (Must be 0)

Recovery Level * * 0Low * 1 High

Reserved (Must be 0)

Note: If used in conjunction with SMR, either of the two specified events causes a Stop Mode Recovery. *Default setting after reset. * *At the XOR gate input.

Figure 31. Stop Mode Recovery Register 2 ((0F) DH:D2–D4, D6 Write Only)

If SMR2 is used in conjunction with SMR, either of the specified events causes a Stop Mode Recovery.

Port pins configured as outputs are ignored as an SMR or SMR2 recovery source. For example, if the NAND or P23–P20 is selected as the recovery source and P20 is configured as an output, the remaining SMR pins (P23–P21) form the NAND equation.

19-4622; Rev 0; 5/09 Functional Description

Watchdog Timer Mode

Watchdog Timer Mode Register (WDTMR)

The W atchdog T imer is a retriggerable one-shot timer that resets the Z8 if it reaches its terminal count. The WDT must initially be enabled by executing the WDT instruction. On subsequent executions of the WDT instruction, the WDT is refreshed. The WDT circuit is driven by an on-board RC-oscillator. The WDT instruction affects the Zero (Z), Sign (S), and Overflow (V) Flags.

The POR clock source the internal RC-oscillator . Bits 0 and 1 of the WDT register control a tap circuit that determines the minimum timeout period. Bit 2 determines whether the WDT is active during HALT, and Bit 3 determines WDT activity during ST OP. Bits 4 through 7 are reserved (see Figure 32). This register is accessible only during the first 60 processor cycles (120 XTAL clocks) from the execution of the first instruction after Power-On Reset, Watchdog Reset, or a Stop Mode Recovery (see Figure 31 on page 49). After this point, the register cannot be modified by any means (intentional or otherwise). The WDTMR cannot be read. The register is located in Bank F of the Expanded Register File at address location

Crimzon® ZLR16300

Product Specification

0Fh. It is organized as displayed in Figure 32.

WDTMR (0F) 0FH

D7 D6 D5 D4 D3 D2 D1 D0

WDT TAP INT RC OSC 00 10 ms min. 01* 20 ms min. 10 40 ms min. 11 160 ms min.

WDT During Halt 0OFF 1ON *

WDT During Stop 0OFF 1ON *

Reserved (Must be 0)

*Default setting after reset.

Figure 32. Watchdog Timer Mode Register (Write Only)

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Product Specification

WDT Time Select (D0, D1)

This bit selects the WDT time period. It is configured as indicated in Table 14.

Table 14. Watchdog Timer Time Select

D1 D0 Timeout of Internal RC-Oscillator

0 0 10 ms min. 0 1 20 ms min. 1 0 40 ms min. 1 1 160 ms min.

WDTMR During Halt (D2)

This bit determines whether the WDT is active or not during HALT mode. A 1 indicates active during HALT. The default is 1. See Figure 33 on page 52.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

*CLR1 and CLR2 enable the WDT/POR and 18 Clock Reset timers respectively upon a Low-to-High input translation.

From Stop Mode Recovery Source

Stop Delay Select (SMR)

5 Clock Filter

*CLR2

18 Clock RESET

CLK Generator

RESET

WDT TAP SELECT

POR 10 ms 20 ms 40 ms 160 ms

CLK

*CLR1

WDT/POR Counter Chain

Internal RC Oscillator

WDT

Low Operating Voltage Detection

VBO

Internal RESET Active High

12-ns Glitch Filter

XTAL

Product Specification

WDTMR During Stop (D3)

Figure 33. Resets and WDT

This bit determines whether or not the WDT is active during STOP mode. A 1 indicates active during STOP. The default is 1.

ROM Selectable Options

There are five ROM Selectable Options to choose from based on ROM code requirements. These options are listed in Table 15 on page 53.

19-4622; Rev 0; 5/09 Functional Description

Table 15. ROM Selectable Options

Note:

Port 00–03 Pull-Ups ON/OFF Port 04–07 Pull-Ups ON/OFF Port 20–27 Pull-Up Port 3 Pull-Ups ON/OFF Port 3 Pull-Ups ON/OFF Watchdog Timer at Power-On Reset ON/OFF

Voltage Brownout/Standby

Crimzon® ZLR16300

Product Specification

An on-chip Voltage Comparator checks that the V operation of the device. Reset is globally driven when V in V the V

causes the XTAL1 and XTAL2 circuitry to stop the crystal or resonator clock. If

is allowed to stay above V

level is returned to above V

Low-Voltage Detection

Low-Voltage Detection Register—LVD(0D)0CH

Voltage detection does not work at STOP mode.

Field Bit Position Description

LVD 765432--- Reserved

-----2 R 1

------1- R 1

-------0 R/W 1

is at the required level for correct

falls below VBO. A small drop

, the RAM content is preserved. When the power

RAM

, the device performs a POR and functions normally.

HVD Flag set

HVD Flag reset LVD Flag set

LVD Flag reset Enable VD

Disable VD

*Default after POR.

Do not modify register P01M while checking a low-voltage condition. Switching noise of both ports 0 and 1 together might trigger the LVD Flag.

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Note:

Product Specification

Voltage Detection and Flags

The Voltage Detection register (LVD, register 0Ch at the expanded register bank 0Dh) offers an option of monitoring the V 0 of LVD register is set. When V oltage Detection is enabled, the V

voltage. The Voltage Detection is enabled when bit

level is monitored in

real time. The Flags in the LVD register valid 20 us after Voltage Detection is enabled. The HVD Flag (bit 2 of the L VD register) is set only if V

is lower than the V

HVD

. When Voltage Detection is enabled, the LVD Flag also triggers IRQ5. The IRQ bit 5 latches the low-voltage condition until it is cleared by instructions or reset. The IRQ5 interrupt is served if it is enabled in the IMR register. Otherwise, bit 5 of IRQ register is latched as a Flag only.

If it is necessary to receive an L VD interrupt upon power -up at an operating voltage lower than the low battery detect threshold, enable interrupts using the Enable Interrupt instruction (EI) prior to enabling the voltage detection.

Expanded Register File Control Registers (0D)

The expanded register file control registers (0D) are displayed in Figure 34 through

Figure 38 on page 59.

CTR0 (0D) 00H

D7 D6 D5 D4 D3 D2 D1 D0

0 P34 as Port Output* 1 Timer8 Output

0 Disable T8 Timeout Interrupt** 1 Enable T8 Timeout Interrupt

0 Disable T8 Data Capture Interrupt** 1 Enable T8 Data Capture Interrupt

19-4622; Rev 0; 5/09 Functional Description

CTR0 (0D) 00H

Crimzon® ZLR16300

Product Specification

00 SCLK on T8** 01 SCLK/2 on T8 10 SCLK/4 on T8 11 SCLK/8 on T8

R 0 No T8 Counter Timeout** R 1 T8 Counter Timeout Occurred W 0 No Effect W 1 Reset Flag to 0

0 Modulo-N* 1 Single Pass

R 0 T8 Disabled * R1 T8 Enabled W0 Stop T8 W 1 Enable T8

*Default setting after reset. **Default setting after Reset. Not reset with a Stop Mode Recovery.

Figure 34. TC8 Control Register ((0D) 00H: Read/Write Except Where Noted)

19-4622; Rev 0; 5/09 Functional Description

CTR1 (0D) 01H

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

TRANSMIT Mode* R/W 0 T16_OUT is 0 initially*

1 T16_OUT is 1 initially

CAPTURE Mode R 0 No Falling Edge Detection R 1 Falling Edge Detection

W 0 No Effect W 1 Reset Flag to 0

TRANSMIT Mode* R/W 0 T8_OUT is 0 initially*

1 T8_OUT is 1 initially

CAPTURE Mode R 0 No Rising Edge Detection R 1 Rising Edge Detection

W 0 No Effect W 1 Reset Flag to 0

TRANSMIT Mode*

0 0 Normal Operation*

0 1 PING-PONG Mode

1 0 T16_OUT = 0

1 1 T16_OUT = 1

CAPTURE Mode

0 0 No Filter

0 1 4 SCLK Cyc le Filt er

1 0 8 SCLK Cycle Filter

11Reserved

TRANSMIT Mode/T8/T16 Logic

0 0 AND**

01OR

1 0 NOR

11NAND

CAPTURE Mode

0 0 Falling Edge Detection

0 1 Rising Edge Detection

1 0 Both Edge Detection

11Reserved

TRANSMIT Mode

0 P36 as Port Output*

1 P36 as T8/T16_OUT

CAPTURE Mode

0 P31 as Demodulator Input

1 P20 as Demodulator Input

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Notes:

Product Specification

CTR1 (0D) 01H

TRANSMIT/CAPTURE Mode

*Default setting after reset. **Default setting after Reset. Not reset with a Stop Mode recovery.

0 TRANSMIT Mode*

1 CAPTURE Mode

Figure 35. T8 and T16 Common Control Functions ((0D) 01H: Read/Write)

Ensure to differentiate the TRANSMIT mode from CAPTURE mode. Depending on the operation of these two modes, the CTR1 bit has different functions.

Changing from one mode to another cannot be performed without disabling the counter/ timers.

CTR2 (0D) 02H

D7 D6 D5 D4 D3 D2 D1 D0

0 P35 is Port Output * 1 P35 is TC16 Output

0 Disable T16 Timeout Interrupt* 1 Enable T16 Timeout Interrupt

0 Disable T16 Data Capture Interrupt** 1 Enable T16 Data Capture Interrupt

0 0 SCLK on T16** 0 1 SCLK/ 2 on T16 1 0 SCLK/ 4 on T16 1 1 SCLK/ 8 on T16

19-4622; Rev 0; 5/09 Functional Description

*Default setting after reset. **Default setting after Reset. Not reset with a Stop Mode Recovery.

Crimzon® ZLR16300

Product Specification

R 0 No T16 Timeout** R 1 T16 Timeout Occurs W 0 No Effect W 1 Reset Flag to 0

TRANSMIT Mode 0 Modulo-N for T16* 1 Single-Pass for T16

CAPTURE Mode 0 T16 Recognizes Edge 1 T16 Does Not Recognize Edge

R 0 T16 Disabled * R 1 T16 Enabled W 0 Stop T16 W1Enable T16

Figure 36. T16 Control Register ((0D) 02H: Read/Write Except Where Noted)

CTR3 (0D) 03H

D7 D6 D5 D4 D3 D2 D1 D0

Reserved No effect when written Always reads 11111

Sync Mode 0 Disable Sync Mode** 1 Enable Sync Mode

Enable

*Default setting after reset. **Default setting after reset. Not reset after Stop Mode Recovery

R 0* T R 1 T

W 0 Stop T W 1 Enable T

T16 Enable R 0* T R 1 T

W 0 Stop T W 1 Enable T

Disabled

Enabled

Disabled

Enabled

Figure 37. T8/T16 control Register (0D) 03H: Read/Write (Except Where Noted)

19-4622; Rev 0; 5/09 Functional Description

Crimzon® ZLR16300

Note:

Product Specification

If Sync Mode is enabled, the first pulse of T8 (carrier) is always synchronized with T16 (demodulated signal). It can always provide a full carrier pulse.

LVD (0D) 0CH

D7 D6 D5 D4 D3 D2 D1 D0

Voltage Detection 0: Disable * 1: Enable

LVD Flag (Read only) 0: LVD Flag reset * 1: LVD Flag set

*Default setting after reset.

Figure 38. Voltage Detection Register

HVD Flag (Read only) 0: HVD Flag reset * 1: HVD Flag set

Reserved (Must be 0)

19-4622; Rev 0; 5/09 Functional Description

Expanded Register File Control Registers (0F)

The expanded register file control registers (0F) are displayed in Figure 39 through

Figure 52 on page 68.

PCON (0F) 00H

D7 D6 D5 D4 D3 D2 D1 D0

Comparator Output Port 3 0 P34, P37 Standard Output * 1 P34, P37 Comparator Output

Crimzon® ZLR16300

Product Specification

Reserved. (Must be 1)

Port 0 0: Open-Drain 1: Push-Pull *

Reserved (Must be 1)

*Default setting after reset.

Figure 39. Port Configuration Register (PCON) ((0F)00H: Write Only))

19-4622; Rev 0; 5/09 Functional Description

SMR (0F) 0BH

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

SCLK/TCLK Divide-by-16 0 OFF * 1 ON

Reserved (Must be 0) Stop Mode Recovery Source

000 POR Only* * 001 Reserved 010 P31 011 P32 100 P33 101 P27 110 P2 NOR 0–3 111 P2 NOR 0–7

Stop Delay 0OFF 1 ON * * * *

Stop Recovery Level * * * 0 Low** 1 High

Stop Flag 0 POR * * * * * 1 Stop Recovery * *

*Default setting after Reset. * *Set after Stop Mode Recovery. * * *At the XOR gate input. * * * *Default setting after reset. Must be 1 if using a crystal or resonator clock source. Not reset with a Stop Mode Recovery. * * * * *Default setting after Power-On Reset.

Figure 40. Stop Mode Recovery Register ((0F) 0BH: D6–D0=Write Only, D7=Read Only)

19-4622; Rev 0; 5/09 Functional Description

SMR2 (0F) 0DH

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

Reserved (Must be 0)

Recovery Level * * 0Low 1 High

Reserved (Must be 0)

Note: If used in conjunction with SMR, either of the two specified events causes a Stop Mode Recovery. *Default setting after reset. Not reset with a Stop Mode Recovery. * *At the XOR gate input

Figure 41. Stop Mode Recovery Register 2 ((0F) 0DH: D2–D4, D6 Write Only)

19-4622; Rev 0; 5/09 Functional Description

WDTMR (0F) 0FH

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

WDT TAP INT RC OSC 00 10 ms min. 01 20 ms min.* 10 40 ms min. 11 80 ms min.

WDT During Halt 0OFF 1ON *

WDT During Stop 0OFF 1ON *

*Default setting after reset. Not reset with a Stop Mode Recovery.

Figure 42. Watchdog Timer Register ((0F) 0FH: Write Only)

Standard Control Registers

The standard control registers are displayed in Figure 43 through Figure 52 on page 68. R246 P2M (F6H)

D7 D6 D5 D4 D3 D2 D1 D0

*Default setting after reset. Not reset with a Stop Mode Recovery.

Reserved (Must be 0)

P27–P20 I/O Definition 0 Defines bit as OUTPUT 1 Defines bit as INPUT *

Figure 43. Port 2 Mode Register (F6H: Write Only)

19-4622; Rev 0; 5/09 Functional Description

R247 P3M (F7H)

D7 D6 D5 D4 D3 D2 D1 D0

0: Port 2 Open Drain * 1: Port 2 Push-Pull

0= P31, P32 DIGITAL Mode* 1= P31, P32 ANALOG Mode

Reserved (Must be 0)

*Default setting after reset. Not reset with a Stop Mode Recovery.

Crimzon® ZLR16300

Product Specification

Figure 44. Port 3 Mode Register (F7H: Write Only)

R248 P01M (F8H)

D7 D6 D5 D4 D3 D2 D1 D0

P00–P03 Mode 0: Output 1: Input *

Reserved (Must be 0)

Reserved (Must be 1)

Reserved (Must be 0)

P07–P04 Mode 0: Output 1: Input *

Reserved (Must be 0)

*Default setting after reset; only P00, P01 and P07 are available on 20-pin configurations.

Figure 45. Port 0 Register (F8H: Write Only)

19-4622; Rev 0; 5/09 Functional Description

R249 IPR (F9H)

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

Interrupt Group Priority 000 Reserved 001 C > A > B 010 A > B >C 011 A > C > B 100 B > C > A 101 C > B > A 110 B > A > C 111 Reserved

IRQ1, IRQ4, Priority (Group C) 0: IRQ1 > IRQ4 1: IRQ4 > IRQ1

IRQ0, IRQ2, Priority (Group B) 0: IRQ2 > IRQ0 1: IRQ0 > IRQ2

IRQ3, IRQ5, Priority (Group A) 0: IRQ5 > IRQ3 1: IRQ3 > IRQ5

Reserved; must be 0

Figure 46. Interrupt Priority Register (F9H: Write Only)

19-4622; Rev 0; 5/09 Functional Description

R250 IRQ (F AH)

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

IRQ0 = P32 Input IRQ1 = P33 Input IRQ2 = P31 Input IRQ3 = T16 IRQ4 = T8 IRQ5 = LVD

Inter Edge P31

 P32 = 00

P31

 P32 = 01

P31

 P32 = 10

P31

 P32 = 11

Figure 47. Interrupt Request Register (FAH: Read/Write)

R251 IMR (FBH)

D7 D6 D5 D4 D3 D2 D1 D0

1 Enables IRQ5–IRQ0

(D0 = IRQ0)

Reserved (Must be 0) 0 Master Interrupt Disable *

1 Master Interrupt Enable * *

*Default setting after reset. * *Only by using EI, DI instruction; DI is required before changing the IMR register.

Figure 48. Interrupt Mask Register (FBH: Read/Write)

19-4622; Rev 0; 5/09 Functional Description

R252 Flags (FCH)

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

User Flag F1

User Flag F2

Half Carry Flag

Decimal Adjust Flag

Overflow Flag

Figure 49. Flag Register (FCH: Read/Write)

R253 RP (FDH)

D7 D6 D5 D4 D3 D2 D1 D0

Default setting after reset = 0000 0000

Sign Flag

Zero Flag

Carry Flag

Expanded Register Bank Pointer

Working Register Pointer

Figure 50. Register Pointer (FDH: Read/Write)

19-4622; Rev 0; 5/09 Functional Description

R254 SPH (FEH)

D7 D6 D5 D4 D3 D2 D1 D0

Figure 51. Stack Pointer High (FEH: Read/Write)

R255 SPL (FFH)

D7 D6 D5 D4 D3 D2 D1 D0

Crimzon® ZLR16300

Product Specification

General-Purpose Register

Stack Pointer Low Byte (SP7–SP0)

Figure 52. Stack Pointer Low (FFH: Read/Write)

19-4622; Rev 0; 5/09 Functional Description

Electrical Characteristics

Absolute Maximum Ratings

A stress greater than listed in Table 16 may or may not cause permanent damage to the device. Functional operation of the device at any condition above those indicated in the operational sections of these specifications is not implied. Exposure to absolute maximum rating conditions for an extended period affects device reliability.

Table 16. Absolute Maximum Ratings

Crimzon® ZLR16300

Product Specification

Minimum

Parameter

Ambient temperature under bias 0 +70 C Storage temperature -65 +150 C Voltage on any pin with respect to V Voltage on V Maximum current on input and/or inactive output pin -5 +5 mA Maximum output current from active output pin -25 +25 mA Maximum current into V

This voltage applies to all pins except VDD.

pin with respect to V

or out of V

Stress

-0.3 +4.0 V 1

-0.3 +3.6 V

Maximum

Stress Units Notes

75 mA

19-4622; Rev 0; 5/09 Electrical Characteristics

Standard Test Conditions

From Output

Under Test

150 pF

The characteristics listed in this product specification apply for standard test conditions. All voltages are referenced to GND. Positive current flows into the referenced pin (see

Figure 53).

Crimzon® ZLR16300

Product Specification

DC Characteristics

Table 17. DC Characteristics

Symbol Parameter V

OH1

OH2

OL1

OL2

Supply Voltage 2.0 V 3.6 V See note 5 Clock Input High

2.0–3.6 V 0.8 V

Voltage Clock Input Low

2.0–3.6 V VSS–0.3 0.5 V Driven by External

Voltage Input High Voltage 2.0–3.6 V 0.7 V Input Low Voltage 2.0–3.6 V VSS–0.3 0.2 V Output High

2.0–3.6 V VCC–0.4 V IOH = –0.5 mA

Voltage Output High

2.0–3.6 V VCC–0.8 V IOH = –7 mA Voltage (P36, P37, P00, P01)

Output Low Voltage 2.0–3.6 V 0.4 V IOL = 4.0 mA Output Low Voltage

2.0–3.6 V 0.8 V IOL = 10 mA (P00, P01, P36, P37)

Figure 53. Test Load Diagram

TA= 0 °C to +70 °C

Minimum Typ(7) Maximum Units Conditions Notes

VCC+0.3 V Driven by External

VCC+0.3 V

Clock Generator

19-4622; Rev 0; 5/09 Electrical Characteristics

Table 17. DC Characteristics (Continued)

TA= 0 °C to +70 °C

Crimzon® ZLR16300

Product Specification

Symbol Parameter V

OFFSE

REF

Comparator Input Offset Voltage

Comparator Reference

2.0–3.6 V 25 mV

2.0–3.6 V 0 V

Minimum Typ(7) Maximum Units Conditions Notes

-1.75

Voltage

Input Leakage 2.0–3.6 V –1 1 AVIN = 0V, V

Pull-ups disabled

Pull-up Resistance 2.0 V 225 675 k VIN = 0V; Pullups

3.6 V 75 275 k

selected by mask

option

CC1

Output Leakage 2.0–3.6 V –1 1 AVIN = 0V, V Supply Current 2.0 V

3.6 V

Standby Current (HALT Mode)

2.0 V

3.6 V

1.2

2.1

0.5

0.8

3 5

1.6

2.0

mA mA

at 8.0 MHz at 8.0 MHz

mAmAVIN = 0V, Clock at

8.0 MHz

Same as above

10 20 30

A A A A

= 0 V, VCC

WDT is not

Running

Same as above

= 0 V, VCC

CC2

Standby Current (STOP Mode)

2.0 V

3.6 V

2.0 V

3.6 V

1.2

1.4

3.5

6.5 WDT is Running

Same as above

Standby Current

0.8 6 A Measured at 1.3 V 4

(Low Voltage)

LVD

VCC Low Voltage Protection

Vcc Low-Voltage

1.8 2.0 V 8 MHz maximum

Ext. CLK Freq.

2.4 V

Detection

HVD

Vcc High-Voltage

2.7 V

Detection

Notes

1. All outputs unloaded, inputs at rail.

2. CL1 = CL2 = 100 pF.

3. Oscillator stopped.

4. Oscillator stops when V

5. It is strongly recommended to add a filter capacitor (minimum 0.1 F), physically close to VDD and V operating voltage fluctuations are anticipated, such as those resulting from driving an IR LED.

6. Comparators and Timers are On. Interrupt disabled.

7. Typical values shown are at 25 °C.

falls below VBO limit.

pins if

1, 2 1, 2

1, 2, 6 1, 2, 6

3 3 3 3

19-4622; Rev 0; 5/09 Electrical Characteristics

AC Characteristics

Clock

Stop Mode

Recovery

Source

Clock Setup

IRQ

Figure 54 and Table 18 on page 75 describe the alternating current (AC) characteristics.

Crimzon® ZLR16300

Product Specification

Figure 54. AC Timing Diagram

19-4622; Rev 0; 5/09 Electrical Characteristics

Crimzon® ZLR16300

Product Specification

Table 18. AC Characteristics

TA=0 °C to +70 °C

8.0 MHz

No Symbol Parameter V

1 TpC Input Clock Period 2.0–3.6 121 DC ns 1

Minimum Maximum Units Notes

Watchdog Timer Mode Register (D1, D0)

2 TrC,TfC Clock Input Rise and

2.0–3.6 25 ns 1

Fall Times 3 TwC Input Clock Width 2.0–3.6 37 ns 1 4 TwTinL Timer Input

Low Width 5 TwTinH Timer Input High

2.0

3.6

100

ns 1

2.0–3.6 3TpC 1

Width 6 TpTin Timer Input Period 2.0–3.6 8TpC 1 7 TrTin,TfTin Timer Input Rise and

2.0–3.6 100 ns 1

Fall Timers 8 TwIL Interrupt Request

Low Time 9 TwIH Interrupt Request

2.0

3.6

100

ns 1, 2

2.0–3.6 10TpC 1, 2

Input High Time

10 Twsm Stop Mode Recovery

2.0–3.6 12

ns 3

Width Spec

10TpC

11 Tost Oscillator

2.0–3.6 5TpC 4

Start-Up Time

12 Twdt Watchdog Timer

Delay Time

2.0–3.6

10 20 40

160

ms ms ms ms

0, 0 0, 1 1, 0 1, 1

13 T

POR

Notes

1. Timing Reference uses 0.9 V

2. Interrupt request through Port 3 (P33–P31).

3. SMR – D5 = 1.

4. SMR – D5 = 0.

19-4622; Rev 0; 5/09 Electrical Characteristics

Power-On Reset 2.0–3.6 2.5 10 ms

for a logic 1 and 0.1 VCC for a logic 0.

Capacitance

Table 19 lists the capacitances.

Table 19. Capacit ance

Crimzon® ZLR16300

Product Specification

Parameter Maximum

Input capacitance 12 pF

Output capacitance 12 pF

I/O capacitance 12 pF

Note: TA = 25 °C, VCC = GND = 0 V, f = 1.0 MHz, unmeasured pins returned to GND.

19-4622; Rev 0; 5/09 Electrical Characteristics

Packaging

Figure 55 through Figure 60 on page 84 display package information available for all the

Crimzon ZLR16300 device versions.

Crimzon® ZLR16300

Product Specification

Figure 55. 20-Pin DIP Package Diagram

19-4622; Rev 0; 5/09 Packaging

Crimzon® ZLR16300

Product Specification

Figure 56. 20-Pin SOIC Package Diagram

19-4622; Rev 0; 5/09 Packaging

Crimzon® ZLR16300

Product Specification

Figure 57. 20-Pin SSOP Package Diagram

19-4622; Rev 0; 5/09 Packaging

Crimzon® ZLR16300

Product Specification

Figure 58. 28-Pin SOIC Package Diagram

19-4622; Rev 0; 5/09 Packaging

Crimzon® ZLR16300

Product Specification

Figure 59. 28-Pin DIP Package Diagram

19-4622; Rev 0; 5/09 Packaging

Crimzon® ZLR16300

SYMBOL

A A1

B C

MILLIMETER INCH

MIN MAX MIN MAX

1.73

0.05

1.68

0.25

5.20

0.65 TYP

0.09

10.07

7.65

0.63

1.86

0.0256 TYP

0.13

10.20

1.73

7.80

5.30

1.99

0.21

1.78

0.75

0.068

0.002

0.066

0.010

0.205

0.004

0.397

0.301

0.025

0.073

0.005

0.068

0.209

0.006

0.402

0.307

0.030

0.078

0.008

0.070

0.015

0.212

0.008

0.407

0.311

0.037

0.38

0.20

10.33

5.38

7.90

0.95

NOM NOM

D E

H L

CONTROLLING DIMENSIONS: MM LEADS ARE COPLANAR WITHIN .004 INCHES.

DET AIL A

28 15

114

SEA TING PLANE

0 - 8

DET AIL 'A'

Note:

Product Specification

Figure 60. 28-Pin SSOP Package Diagram

Contact Maxim for the actual bonding diagram and chip-on-boa rd assembly.

19-4622; Rev 0; 5/09 Packaging

Ordering Information

The Crimzon ZLR16300 is available for 16K, 8K, 4K, 2K, and 1K parts.

Memory Size Part Number Description

16K ZLR16300H2816G 28-pin SSOP 16 K ROM

ZLR16300P2816G 28-pin PDIP 16 K ROM ZLR16300S2816G 28-pin SOIC 16 K ROM ZLR16300H2016G 20-pin SSOP 16 K ROM ZLR16300P2016G 20-pin PDIP 16 K ROM ZLR16300S2016G 20-pin SOIC 16 K ROM

8K ZLR16300H2808G 28-pin SSOP 8 K ROM

ZLR16300P2808G 28-pin PDIP 8 K ROM

Crimzon® ZLR16300

Product Specification

ZLR16300S2808G 28-pin SOIC 8 K ROM ZLR16300H2008G 20-pin SSOP 8 K ROM ZLR16300P2008G 20-pin PDIP 8 K ROM ZLR16300S2008G 20-pin SOIC 8 K ROM

4K ZLR16300H2804G 28-pin SSOP 4 K ROM

ZLR16300P2804G 28-pin PDIP 4 K ROM ZLR16300S2804G 28-pin SOIC 4 K ROM ZLR16300H2004G 20-pin SSOP 4 K ROM ZLR16300P2004G 20-pin PDIP 4 K ROM ZLR16300S2004G 20-pin SOIC 4 K ROM

2K ZLR16300H2802G 28-pin SSOP 2 K ROM

ZLR16300P2802G 28-pin PDIP 2 K ROM ZLR16300S2802G 28-pin SOIC 2 K ROM ZLR16300H2002G 20-pin SSOP 2 K ROM ZLR16300P2002G 20-pin PDIP 2 K ROM ZLR16300S2002G 20-pin SOIC 2 K ROM

1K ZLR16300H2801G 28-pin SSOP 1 K ROM

ZLR16300P2801G 28-pin PDIP 1 K ROM ZLR16300S2801G 28-pin SOIC 1 K ROM ZLR16300H2001G 20-pin SSOP 1 K ROM ZLR16300P2001G 20-pin PDIP 1 K ROM

19-4622; Rev 0; 5/09 Ordering Information

Memory Size Part Number Description

ZLR16300S2001G 20-pin SOIC 1 K ROM

Development Tools

ZLP128ICE01ZEMG* In-Circuit Emulator

Note: *ZLP128ICE01ZEMG has been replaced by an im-

proved version, ZCRMZNICE01ZEMG.

ZCRMZNICE01ZEMG Crimzon In-Circuit Emulator ZCRMZN00100KITG Crimzon In-Circuit Emulator

Development Kit ZCRMZNICE01ZACG 20-Pin Accessory Kit ZCRMZNICE02ZACG 40/48-Pin Accessory Kit

Note: Contact www.maxim-ic.com for the die form.

Crimzon® ZLR16300

Product Specification

For faster results, contact your local Maxim sales office for assistance in ordering the part(s) required.

19-4622; Rev 0; 5/09 Ordering Information

Part Number Description

Maxim part numbers consist of a number of components as shown below. For example, part number ZLR16300H2816G is a Crimzon masked ROM product in a 28-pin SSOP package, with 16 KB of ROM and built with lead-free solder.

Z LR 16300 H 28 16 G

Crimzon® ZLR16300

Product Specification

Environmental Flow

G = Lead Free Memory Size

16 = 16 KB 8 = 8 KB 4 = 4 KB 2 = 2 KB 1 = 1 KB

Number of Pins in Package

28 = 28 Pins 20 = 20 Pins

Package Type H = SSOP P = PDIP S = SOIC

Product Number

16300

Product Line

Crimzon ROM

Maxim Product Prefix

19-4622; Rev 0; 5/09 Ordering Information

Crimzon® ZLR16300

Product Specification

Index

Numerics

16-bit counter/timer circuits 36 20-pin DIP package diagram 20-pin SSOP package diagram 28-pin DIP package diagram 28-pin SOICpackage diagram 28-pin SSOP package diagram 8-bit counter/timer circuits

timing diagram address spaces, basic architecture

expanded register file

basic address spaces 1 Block Diagram block diagram, ZLR16300 functional

1, 3

capture_INT_mask 24, 28

clock comparator inputs/outputs configuration

port 0

port 2

port 3

port 3 counter/timer counter/timer

16-bit circuits

8-bit circuits

brown-out voltage/standby

clock

demodulation mode count capture flowchart

demodulation mode flowchart EPROM selectable options glitch filter circuitry halt instruction input circuit interrupt block diagram interrupt types, sources and vectors oscillator configuration output circuit ping-pong mode port configuration register resets and WDT SCLK circuit stop instruction stop mode recovery register stop mode recovery register 2 stop mode recovery source T16 demodulation mode T16 transmit mode T16_OUT in modulo-N mode T16_OUT in single-pass mode T8 demodulation mode T8 transmit mode T8_OUT in modulo-N mode T8_OUT in single-pass mode transmit mode flowchart voltage detection and flags watchdog timer mode register watchdog timer time select

counter/timer functional blocks

input circuit

T8 transmit mode counter_INT_mask crt3 T8/T16 control register

49, 50

demodulation mode

count capture flowchart

flowchart

19-4622; Rev 0; 5/09 Index

Crimzon® ZLR16300

Product Specification

T16 37 T8

description

functional

EPROM

selectable options expanded register file expanded register file architecture expanded register file control registers

flag

interrupt mask register

interrupt priority register

interrupt request register

port 0 and 1 mode register

port 2 configuration register

port 3 mode register

port configuration register

stack pointer high register

stack pointer low register

stop mode recovery register

stop mode recovery register 2

T16 control register

T8 and T16 common control functions register

TC8 control register

watch-dog timer register

HI8(0D)0Bh register L08(0D)0Ah register L0I6(0D)08h register program memory map RAM

register description register file register pointer register pointer detail stack TC16H(0D)07h register TC16L(0D)06h register TC8H(0D)05h register TC8L(0D)04h register TC8L(D)04h register

21 22

glitch filter circuitry 29, 30

halt instruction, counter/timer 44

input circuit 29 interrupt block diagram, counter/timer interrupt types, sources and vectors

features

standby modes

ZLR16300 functional description

counter/timer functional blocks

CTR0(0D)00h register

CTR1(0D)01h register

CTR2(0D)02h register

expanded register file

expanded register file architecture

HI16(0D)09h register

19-4622; Rev 0; 5/09 Index

29 23 24 27

low-voltage detection register 54

memory, program 15 modulo-N mode

T16_OUT T8_OUT

Crimzon® ZLR16300

Product Specification

oscillator configuration 43 output circuit, counter/timer

P34_out 24 P35_out P36_out/demodulator input package information

part number format pin configuration

Pin Descriptions pin functions

ping-pong mode port 0

port 2

port 3

port 3 pin function port configuration register power connections power supply

20-pin DIP package diagram 20-pin SSOP package diagram 28-pin DIP package diagram 28-pin SOIC package diagram 28-pin SSOP package diagram

20-pin DIP/SOIC/SSOP 28-pin DIP/SOIC/SSOP

port 0 (P07 - P00) port 0 configuration port 2 (P27 - P20) port 2 (P37 - P30) port 2 configuration port 3 configuration port 3 counter/timer configuration XTAL1 (time-based input XTAL2 (time-based output)

8 9 10

configuration pin function

configuration counter/timer configuration

5 6

79 83

Precharacterization Product program memory

map

CTR0(0D)00h CTR1 (0D) 01 CTR1(0D)01h CTR2(0D)02h

flag HI16(0D)09h HI8(0D)0Bh interrupt priority interrupt request interruptmask L016(0D)08h L08(0D)0Ah LVD(D)0Ch pointer port 0 and 1 port 2 configuration port 3 mode port configuration stack pointer high stack pointer low stop mode recovery stop mode recovery 2 stop mode recovery stop mode recovery 2 T16 control T8 and T16 common control functions TC16H(0D)07h TC16L(0D)06h TC8 control TC8H(0D)05h TC8L(0D)04h TC8L(D)04h voltage detection watch-dog timer

counter/timer2 LS-Byte hold counter/timer2 MS-Byte hold

23 24 24 27

45, 64

19-4622; Rev 0; 5/09 Index

Crimzon® ZLR16300

Product Specification

counter/timer8 control 23 counter/timer8 High hold counter/timer8 Low hold CTR2 counter/timer 16 control T16_capture_LO T8 and T16 common functions T8_Capture_HI T8_capture_LO

expanded

detail

resets and WDT

21 22

SCLK circuit 47 single/modulo-N single-pass mode

T16_OUT T8_OUT

stack standby modes stop instruction, counter/timer stop mode recovery

2 register

source stop mode recovery 2 stop mode recovery register

24, 28

27 24

test load diagram time_out timeout timers

timing diagram, AC transmit mode flowchart transmit_submode/glitch filter

counter/timer2 LS-byte hold counter/timer2 MS-byte hold counter/timer8 high hold counter/timer8 low hold CTR0 counter/timer8 control T16_Capture_HI T16_Capture_LO T8_Capture_HI T8_Capture_LO

VCC 5 voltage

brown-out/standby detection and flags

voltage detection register

54 55

watchdog timer

mode register watchdog timer mode register time select

T 16 clock 28 T16 enable T16 initial out/falling edge T16 transmit mode T16_capture_HI T8 and T16 common functions t8 clock T8 enable T8 intiial out/rising edge T8 transmit mode T8/T16_logic/edge_detect T8_Capture_HI

19-4622; Rev 0; 5/09 Index

XTAL1 5 XTAL1 pin function XTAL2 XTAL2 pin function

7 7

ZLR16300 family members 1

Customer Support

For any comments, detail technical questions, or reporting problems, please visit Maxim’s Technical Support at https://support.maxim-ic.com/micro

Crimzon® ZLR16300

Product Specification

19-4622; Rev 0; 5/09 Customer Support

MAXIM ZLR16300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Crimzon® ZLR16300

Revision History

Table of Contents

Architectural Overview

Features

Functional Block Diagram

Pin Description

Pin Functions

Functional Description

Program Memory

Expanded Register File

Register File

Stack

Timers

Counter/Timer Functional Blocks

Input Circuit

Interrupts

Clock

Power Management

Power-On Reset

Port Configuration

Stop Mode Recovery

Watchdog Timer Mode

Low-Voltage Detection

Expanded Register File Control Registers (0D)

Expanded Register File Control Registers (0F)

Standard Control Registers

Electrical Characteristics

Absolute Maximum Ratings

Standard Test Conditions

DC Characteristics

AC Characteristics

Capacitance

Packaging

Ordering Information

Part Number Description

Index

Customer Support
