Page 1
MS50B
800.621-2789
WARNING
USE EXTREME CAUTION WHILE USING THIS EQUIPMENT. INJURY CAN OCCUR.
Owner’s Manual MMS50BA
READ CAREFULLY AND UNDERSTAND ALL ASSEMBLY AND SAFE OPERATION
INSTRUCTIONS BEFORE OPERATING. FAILURE TO FOLLOW THE SAFETY RULES
AND OTHER BASIC SAFETY PRECAUTIONS MAY RESULT IN SERIOUS PERSONAL
INJURY.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
1
Page 2
MS50B
800.621-2789
Table of Contents
1 INTRODUCTION ........................................................................................................................................................ 5
1.1 ... Application ............................................................................................................................................................................5
1.2 ... Benefits ....................................................................................................................................................................................5
1.3 ... Navigating This Manual ..................................................................................................................................................5
1.4 ... Warnings and Safety Precautions ..............................................................................................................................5
1.5 ... Operation References/Terminology ..........................................................................................................................7
1.6 ... Owner Assistance ................................................................................................................................................................8
1.7 ... Model Identification ..........................................................................................................................................................8
1.8 ... Further Assistance .............................................................................................................................................................8
2 SAFETY ......................................................................................................................................................................... 9
2.1 ... General Safety Rules ..........................................................................................................................................................9
2.2 ... PRODUCT-SPECIFIC SAFETY RULES ...................................................................................................................... 10
2.3 ... ENGINE SAFETY PRECAUTIONS .............................................................................................................................. 11
2.4 ... Safety Decals ...................................................................................................................................................................... 14
2.5 ... Training ............................................................................................................................................................................... 15
2.6 ... Preparation ........................................................................................................................................................................ 15
2.7 ... Operation ............................................................................................................................................................................ 15
2.8 ... Maintenance and Storage ........................................................................................................................................... 16
3 PARTS BREAKDOWN ........................................................................................................................................... 17
3.1 ... Frame Parts Breakdown .............................................................................................................................................. 17
3.2 ... Transmission Parts Breakdown ................................................................................................................................
19
3.3 ... General Information ....................................................................................................................................................... 20
4 ASSEMBLY ................................................................................................................................................................ 20
4.1 ... Final Set-up ........................................................................................................................................................................ 25
5 OPERATING CONTROLS ..................................................................................................................................... 25
5.1 ... Speed ..................................................................................................................................................................................... 25
5.2 ... Depth of Tilling ................................................................................................................................................................. 25
5.3 ... Throttle Control Lever ................................................................................................................................................... 25
5.4 ... Engage Lever ..................................................................................................................................................................... 26
6 OPERATION ............................................................................................................................................................. 26
6.1 ... Before Operating ............................................................................................................................................................. 26
6.2 ... Starting the Engine ......................................................................................................................................................... 27
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
2
Page 3
MS50B
800.621-2789
6.3 ... Pre-Start .............................................................................................................................................................................. 27
6.4 ... Filling Fuel Tank .............................................................................................................................................................. 27
6.5 ... Checking and adding Oil .............................................................................................................................................. 28
6.6 ... Cold Starting Procedure ............................................................................................................................................... 28
6.7 ... Stopping Engine ............................................................................................................................................................... 28
6.8 ... Operation ............................................................................................................................................................................ 29
6.9 ... Operation Tips .................................................................................................................................................................. 30
6.10 . Tilling Pattern ................................................................................................................................................................... 30
7 ADJUSTMENTS........................................................................................................................................................ 30
7.1 ... Clutch Adjustment ........................................................................................................................................................... 31
7.2 ... Wheel Height Adjustment ............................................................................................................................................ 31
7.3 ... Tine Adjustment ............................................................................................................................................................... 31
8 Maintenance ............................................................................................................................................................ 32
8.1 ... Periodic Check ................................................................................................................................................................... 32
8.2 ... Engine Oil ............................................................................................................................................................................ 32
8.3 ... Dual Filter Element Air Cleaner ................................................................................................................................ 32
8.4 ... Cleaning the Cooling System ...................................................................................................................................... 33
8.5 ... Belt Replacement ............................................................................................................................................................. 33
8.6 ... Cleaning ............................................................................................................................................................................... 33
9 LUBRICATION ......................................................................................................................................................... 34
9.1 ... Wheels ................................................................................................................................................................................... 34
9.2 ... Clutch Lever Pivots.......................................................................................................................................................... 34
9.3 ... Transmission ..................................................................................................................................................................... 34
9.4 ... Idler Arms Pivot ................................................................................................................................................................ 34
10 STORAGE ................................................................................................................................................................... 34
10.1 . Engine ................................................................................................................................................................................... 34
10.2 . Tiller ...................................................................................................................................................................................... 34
11 TRANSPORTING ..................................................................................................................................................... 35
12 WARRANTY ............................................................................................................................................................. 36
12.1 . Warranty/Product Registration .............................................................................................................................. 36
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
3
Page 4
MS50B
800.621-2789
⚠
READ ENTIRE MANUAL BEFORE ATTEMPTING TO OPERATE MACHINE
⚠
THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF
WARNING
If incorrectly used, this machine can cause severe injury. Those who use and maintain this machine
should be trained in its proper use, warned of its dangers, and should read the entire manual before
attempting to set up, operate, adjust, or service this machine.
Read and keep this manual for future reference. This manual contains important information on
SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the product
information is included with the unit. This information includes the MANUAL, the REPLACEMENT
PARTS and the WARRANTIES. This information must be included to make sure state laws and other
laws are followed. This manual should remain with the product even if it is resold.
WARNING
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARMS.
IMPORTANT: This unit is equipped with an internal combustion engine and should not be used on or
near any unimproved forest-covered, brush covered, or grass-covered land unless the engine’s exhaust
system is equipped with a spark arrester meeting applicable local laws (if any). If a spark arrester is
used, it should be maintained in effective working order by the operator.
In the state of California, a spark arrester is required by law (section 4442 of the California public
resources code). Other states may have similar laws. Federal laws apply on federal lands. See your
authorized service center for a spark arrester.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
4
Page 5
MS50B
800.621-2789
1 INTRODUCTION
Maxim tillers feature rugged all-steel construction, heavy-duty welded tines and a ruggedly built
transmission. It’s this simple, yet sturdy design that makes Maxim tillers low maintenance and
easy to use.
Please read this entire manual before assembly and use. The manufacturer reserves the right
to change, alter or improve the product and this document at any time without prior notice.
1.1 Application
Our consumer tiller line is perfect for homeowners. We offer a wide array of easy to use tillers to
provide you with the power and tine speed you need. Sturdiness, simplicity and ease of
maintenance guaranteed, you only have to choose the model.
1.2 Benefits
• Transmission case components have double welded flanged tine shaft bearing supports
for increased durability.
• Rugged all-steel construction
• Simplicity of design for ease of use and maintenance
• Adjustable tilling width
• Drag bar
• Heavy-duty tines
1.3 Navigating This Manual
1. Use this manual to help familiarize yourself with safety, assembly, operation,
adjustments, troubleshooting, maintenance, specifications and warranty information. It
is very important that you read this manual and follow the instructions to ensure safe
operation of the attachment.
2. Please visit www.maximmfg.com
for updated information.
1.4 Warnings and Safety Precautions
The safety of our customers and other’s well-being is very important to us. Using this equipment
is an important responsibility. Accurate assembly and safe and effective use of the machine is the
owner’s responsibility.
• Read and follow all safety instructions
• Carefully follow all assembly instructions
• Maintain the machine according to directions and schedule included in this manual.
• Ensure that anyone who uses the machine is familiar with all controls and safety
precautions.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
5
Page 6
MS50B
800.621-2789
⚠
⚠
WARNING INDICATED A HAZARD WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH
⚠
CAUTION INDICATED YOU CAN BE HURT OR YOUR EQUIPMENT DAMAGED IF THE
SPECIAL MESSAGES
Your manual contains special message to bring attention to potential safety concerns, machine
damage as well as helpful operating and servicing information. Please read all the information
carefully to avoid injury and machine damage. This information alerts you to potential hazards
that could hurt you or others.
NOTE: General information is given throughout the manual that may help the operator in the
operation or service of the machine.
You will find important safety information in a variety of forms, including:
1. Safety labels – on the tillers
2. Safety messages – preceded by a safety alert symbol
words: DANGER, WARNING, OR CAUTION.
These signal words mean:
DANGER: You will be killed or seriously injured if you don’t follow instructions
DANGER
WARNING: You can be killed or seriously injured if you don’t follow instructions.
WARNING
CAUTION: You can be injured if you don’t follow instructions.
OR SERIOUS INJURY AND/OR PROPERTY DAMAGE
⚠ and one of the three signal
CAUTION
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
SAFETY INSTUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
6
Page 7
MS50B
800.621-2789
⚠
CALIFONINA PROPOSITION 65 WARNING
⚠
YOU MUST READ, UNDERSTAND AND COMPLY WITH ALL SAFETY AND OPERATING
Left
Right
WARNING
ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE
OF CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM.
WARNING
INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO SETUP AND OPERATE YOUR
MACHINE.
FAILURE TO COMPLY WITH ALL SAFETY AND OPERATIING INSTRUCTIONS CAN RESULT IN
LOSS OF MACHINE CONTROL, SERIOUS PERSONAL INJURY TO YOU AND/OR
BYSTANDERS, AND RISK OF EQUIPMENT AND PROPERTY DAMAGE. THE TRIANGLE IN THE
TEXT SIGNIFIES IMPORATNT CAUTIONS OR WARNINGS WHICH MUST BE FOLLOWED
⚠ This symbol points out important safety instructions which if not followed could endanger
your personal safety. Read and follow all instructions in this manual before attempting to
operate this equipment.
BEFORE OPERATING ENGINE:
Please read this section carefully. Read entire operating and maintenance instructions for this
product. Failure to follow instructions could result in serious injury or death. Operate the
machine according to the safety instructions outlined here and inserted throughout the text.
Anyone who uses this machine must read the instructions and be familiar with the controls.
Intended Use / Foreseeable Misuse
IMPORTANT: This is a motorized rotary tiller that works the soil by means of rotating tines. It is
pedestrian-controlled, but not self-propelled, with a gasoline-fueled internal combustion engine
to power the tines. It shall not be used for any other purpose.
1.5 Operation References/Terminology
References throughout this manual referred to as “Right” or “Left” are determined by being face-
standing behind tiller and facing the direction the unit will operate while in use.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
7
Page 8
MS50B
800.621-2789

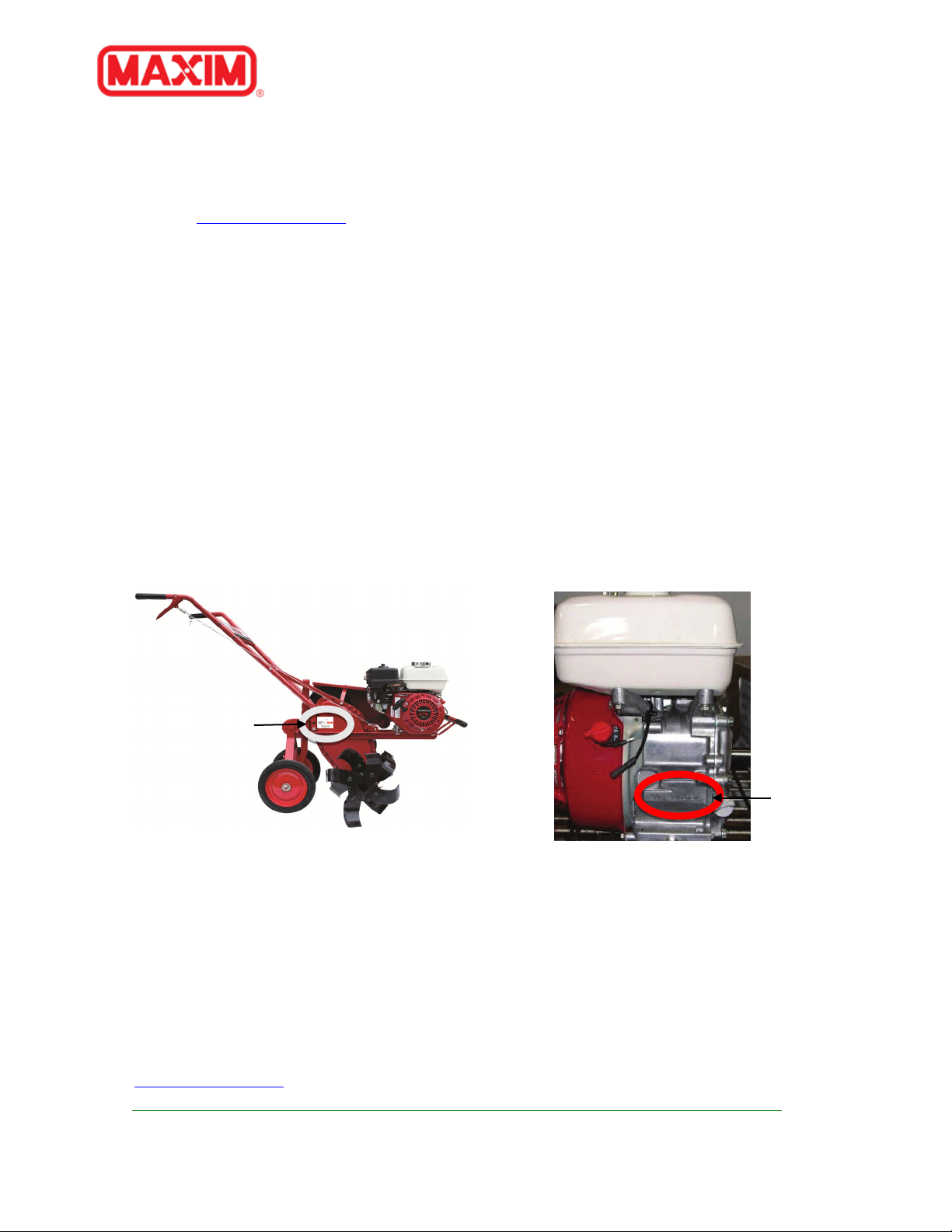

Engine Serial Number
Tiller Serial Number
1.6 Owner Assistance
Please complete the Warranty/Product Registration at the time of purchase. You will need to
complete the warranty/product registration form (pg. 38) with your new unit, or you may visit our
website www.maximmfg.com
and complete our online product registration form. We require
this information, so we can keep you updated with any important information about your tiller
and provide you with the best customer service possible.
The parts and components used on your Maxim tiller have been specifically engineered for Maxim
tiller and should only be replaced with Maxim parts. Contact your local Maxim Dealer for OEM
replacement parts or contact our customer service department for assistance in parts, locating
your local servicing dealer and more. Your local dealer is equipped and trained to handle service
and repair for your tiller.
1.7 Model Identification
Please fill in your model and serial number below for future reference. This will help assist in
prompt service when ordering parts and service from your local Maxim Dealer.
Tiller Model No.___________________ Tiller Serial No. ______________________________
Engine Model No.__________________ Engine Serial No. _____________________________
Refer to the image below for location of your serial number plate:
1.8 Further Assistance
Your dealer and all of us at Maxim want you to be pleased with your tiller. Should you require
further assistance or have questions regarding your tiller, please contact your local dealer where
you purchased your tiller. If you are unable to satisfy your needs by your local dealer, please
contact us at:
Maxim
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
800-621-2789
www.maximmfg.com
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
8
Page 9
MS50B
800.621-2789
2 SAFETY
2.1 General Safety Rules
• Read, understand and follow all instructions on the machine and in the manual(s). Be
thoroughly familiar with the controls and proper use of the machine before starting.
• Use this equipment for its intended purpose only.
• Familiarize yourself with all of the safety and operating decals on this equipment and on
any of its attachments or accessories.
• Do not put hands or feet near or under rotating parts.
• Only allow responsible individuals who are familiar with the instructions to operate the
machine. Do not allow children to operate this machine. Do not allow adults to operate
the machine without proper instruction.
• Thoroughly inspect the area where the machine is to be used and remove all foreign
objects. Your equipment can propel small objects at high speed causing personal injury or
property damage. Stay away from breakable objects, such as house windows,
automobiles, greenhouse, etc.
• Wear appropriate clothing such as sturdy, rough-soled shoes (steel toe recommended)
and close-fitting pants and shirt. Loose fitting clothes or jewelry can be caught in moving
parts. Never wear shorts. Never wear sandals, sneakers or open shoes, and never
operate the machine with bare feet.
• Do not wear loose clothing or jewelry. They can get caught in moving parts. Always keep
hands, feet, hair and loose clothing away from any moving parts on engine and machine.
• Always wear safety goggles or safety glasses with side shields when operating the
machine to protect your eyes from foreign objects which can be thrown from the unit.
• Always wear a protective hearing device.
• Always wear work gloves and sturdy rugged soled footwear. Wear footwear that will
improve footing on slippery surfaces. Leather work shoes or short boots work well for
most people. These will protect the operator’s ankles and shins from small sticks,
splinters, and other debris.
• It is advisable to wear protective headgear to prevent the possibility of being struck by
small flying particles, or being struck by low hanging branches, twigs or other objects
which may be unnoticed by the operator.
• Do not operate the machine without proper guards or other safety protective devices in
place.
• See manufacturer’s instructions for proper operation and installation of accessories. Only
use accessories approved by the manufacturer.
• Operate only in daylight.
• Do not operate product when fatigued or under the influence of alcohol, drugs or other
medication which can cause drowsiness or affect your ability to operate machine safely.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
9
Page 10
MS50B
800.621-2789
• Never operate machine in wet grass. Always be sure of your footing; keep a firm hold on
the handle and walk; never run.
• Watch for traffic when operating tiller near, or when crossing roads.
• If the equipment should start to vibrate abnormally, stop the engine (motor), flip the
ON/OFF switch to the OFF position located on engine.
• Regularly inspect the machine. Make sure parts are not bent, damaged or loose.
• Temperature of muffler and nearby areas may exceed 150° F (65° C). Allow muffler and
engine areas to cool before touching.
• Never pick up or carry the machine while the engine is running.
• Prolonged exposure to noise and vibration from gasoline engine-powered equipment
should be avoided. Take intermittent breaks and/or wear ear protection from engine
noise as well as heavy work gloves to reduce vibration in hands.
• Keep all screws, nuts and bolts tight.
• Do not transport the machine from one place to another with the engine running.
• Always turn off fuel supply valve on engine before transport.
• When moving the packaged machine, always do so with a partner.
• Check local regulations for age restrictions on use of this machine.
2.2 PRODUCT-SPECIFIC SAFETY RULES
• Do not till above underground utilities, including water lines, gas lines, electric cables or
pipe. Contact appropriate utility representatives to determine if/where electrical
cables, gas lines, water lines, etc. are buried BEFORE operation.
• Do not operate the machine on terrain/soil with large rocks and foreign objects which can
damage the equipment.
• After striking a foreign object, stop the engine. Flip the ON/OFF switch to the OFF position
located on engine. Inspect the machine for damage. If damaged, repair before starting
and operating the machine.
• The tines of the tiller should not rotate when the engine is idling. If they do, contact your
local dealer or Maxim technical service for instruction.
• If an object becomes lodged in the tines, flip the ON/OFF switch to the OFF position
located on engine, then allow the machine to cool before attempting to remove the
foreign object.
• The idler and belt will transfer maximum power after about two hours of normal
operation. During this break-in period clutch slippage may occur. The clutch should be
kept free of oil or other moisture for efficient operation.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
10
Page 11
MS50B
800.621-2789
⚠
E
⚠
2.3 ENGINE SAFETY PRECAUTIONS
⚠ Warning Carbon Monoxide Poisoning
Engines give off carbon monoxide, an odorless, colorless, poisonous gas. Carbon monoxide may
be present even if you do not smell or see any engine exhaust. Breathing carbon monoxide can
cause nausea, fainting or death, in addition to drowsiness, dizziness and confusion. If you
experience any of these symptoms, seek fresh air and medical attention immediately.
WARNING
NGINES GIVE OFF CARBON MONOXIDE, AN ODORLESS, COLORLESS, POISONOUS GAS. CARBON MONOXIDE
MAY BE PRESENT EVEN IF YOU DO NOT SMELL OR SEE ANY ENGINE EXHAUST. BREATHING CARBON
MONOXIDE CAN CAUSE NAUSEA
CONFUSION.
IF YOU EXPERIENCE ANY OF THESE SYMPTOMS, SEEK FRESH AIR AND MEDICAL ATTENTION IMMEDIATELY.
, FAINTING OR DEATH, IN ADDITION TO DROWSINESS, DIZZINESS AND
CAUTION
HOT GASES ARE A NORMAL BY-PRODUCT OF A FUNCTIONING INTERNAL COMBUSTION ENGINE. FOLLOW
ALL SAFETY INSTRUCTIONS TO PREVENT BURNS AND FIRES.
DO NOT ALTER/MODIFY ENGINE:
NEVER ALTER OR MODIFY THE ENGINE FROM THE FACTORY. SERIOUS INJURY OR DEATH MAY OCCUR IF
ENGINE IS MODIFIED OR ALTERED.
WHEN WORKING ON OR REPLACING PARTS FOR THE ENGINE OR PRODUCT, YOU MUST ALWAYS FLIP THE
ON/OFF SWITCH TO THE OFF POSITION.
PREVENTING CARBON MONOXIDE POSIONING
• Always start and run engine outdoors. Do not start or run engine in an enclosed area,
even if doors or windows are open.
• Never try to ventilate engine exhaust indoors. Carbon monoxide can reach dangerous
levels very quickly.
• Never run engine outdoors where exhaust fumes may be pulled into a building.
• Never run engine outdoors in a poorly ventilated area where the exhaust fumes may be
trapped and not easily taken away. (Examples include: in a large hole or areas where hills
surround your working area.)
• Never run engine in an enclosed or partially enclosed area. (Examples include: buildings
that are enclosed on one or more sides, under tents, car ports or basements.)
• Always run the engine with the exhaust pointed in the direction away from the operator.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
11
Page 12
MS50B
800.621-2789
• Never point the exhaust towards anyone. People should always be a minimum of ten feet
away from the operation of the engine and its attachments.
• Do not change the engine governor settings or over-speed the engine.
GASOLINE FIRES AND HANDLING FUEL SAFELY
⚠ Warning gasoline is highly flammable and explosive
You can be burned or seriously injured when handling fuel. Use extreme care when handling
gasoline or other fuels. They are flammable, and vapors are explosive.
• When storing extra fuel be sure that it is in an appropriate
container and away from any fire hazards.
• Prevent fire and explosion caused by static electric discharge.
Use only nonmetal, portable fuel containers approved by the
Underwriter’s Laboratory (U.L.) or the American Society for
Testing & Materials (ASTM).
• Always fill fuel tank outside in a well-ventilated area. Never fill
fuel tank with fuel indoors. (Examples include: basement, garage,
barn, shed, house, porch, etc.) Never fill tank near appliances
with pilot lights, heaters, or other ignition sources. If the fuel has
to be drained, this should be done outdoors. The drained fuel should be stored in a
container specifically designed for fuel storage or it should be disposed of carefully.
• Never remove the fuel cap or add fuel with the engine running. Stop engine and allow to
cool before filling.
• Do not smoke while using engine or around fuel.
• Never drain fuel from engine in an enclosed area.
• Always wipe up excess (spilled) fuel from engine before starting. Clean up spilled fuel
immediately. If fuel is spilled, do not start the engine but move product and fuel container
from area. Clean up spilled fuel and allow to evaporate and dry after wiping and before
starting.
• Allow fuel fumes/vapors to escape from the air before starting the engine.
• Test the fuel cap for proper installation before starting and using engine.
• Always run the engine with fuel cap properly installed on the engine.
• Never smoke while refilling engine fuel tank.
• Do not store engine with fuel in fuel tank indoors. Fuel and fuel vapors are highly
explosive.
• Never pour fuel from engine fuel tank.
• Never siphon fuel by mouth to drain fuel tank.
• Always have an adult fill the fuel tank and never allow children to fill the engine.
• Never allow anyone under the influence of drugs or alcohol to fill the engine.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
12
Page 13
MS50B
800.621-2789
• When storing gasoline or equipment with fuel in the tank, store away from furnaces,
stoves, water heaters or other appliances that have a pilot light or other ignition source
because they can ignite gasoline vapors.
BURNS AND FIRES
The muffler, muffler guard and other parts of the engine become extremely hot during the
operation of the engine. These parts remain extremely hot after the engine has stopped.
• Never remove the muffler guard from the engine.
• Never touch the muffler guard because it is extremely hot and will cause severe burns.
• Never touch parts of the engine that become hot after operation.
• Always keep materials and debris away from the muffler guard and other hot parts of the
engine to avoid fires.
CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the presence of children and/or
bystanders. Never assume that others will remain where you last saw them.
• Keep the area of operation clear of all persons, especially small children and pets. Keep
children under the watchful care of a responsible adult.
• Be alert and turn machine off if children enter the area.
• Before and while moving backwards, look behind and down for small children.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may
obscure vision.
SERVICE
• Always stop the engine whenever you leave the equipment, before cleaning, repairing or
inspecting the unit. Engine should be turned off and cool. Never make adjustments or
repairs with the engine (motor) running. Flip the ON/OFF switch to the OFF position,
located on engine, to prevent accidental starting.
• Always wear eye protection when you make adjustments or repairs.
• Keep all nuts and bolts tight and keep equipment in good condition.
• Never tamper with safety devices. Check their proper operation regularly.
• When servicing or repairing the machine, do not tip the machine over or up unless
specifically instructed to do so in this manual. Service and repair procedures can be done
with the machine in an upright position. Some procedures will be easier if the machine is
lifted on a raised platform or working surface.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
13
Page 14
MS50B
800.621-2789
Item # 366720
Item # 336784
Item # 336776
Item # 336777
Item # 799546
Item # 336799
Item # ZS001
• To reduce fire hazard, keep machine free of grass, leaves or other debris build-up. Clean
up oil or fuel spillage. Allow machine to cool before storing.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before
restarting.
• Clean and replace safety and instruction decals as necessary.
• To guard against engine over-heating, always have engine air filter mounted and clean.
• Inspect machine before storage. When not in use, flip the ignition ON/OFF switch to the
OFF position and store indoors in a dry place locked or otherwise inaccessible to children.
• Use only original equipment parts from the factory, including all nuts and bolts.
2.4 Safety Decals
This Tiller has been designed and manufactured to provide you the safety and reliability you
would expect from an industry leader in outdoor power equipment manufacturing.
Reading this manual and the safety instructions it contains will provide you with the necessary
basic knowledge to operate this equipment safely and effectively. We have placed safety decals
on the tiller to remind you of some of this important information while you are operating the unit.
These important safety decals are illustrated below and are shown here to help familiarize you
with the content of the safety messages you will see as you perform normal tilling operations.
Please review these decals now, and if you have any questions regarding its meaning or how to
comply with these instructions, reread the complete safety instruction text in this manual, or
contact your local dealer.
Should a decal become unreadable because of being worn, faded or otherwise damaged during
the use of your tiller; please use the part number information provide to order a replacement
label. These decals are easily applied and will act as a constant visual reminder to you, and others
who may use the equipment, to follow the safety instructions necessary for safe, effective
operation of your tiller.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
14
Page 15
MS50B
800.621-2789
2.5 Training
1. Read the Owner’s Manual carefully. Be thoroughly familiar with the controls and the
proper use of the equipment. Know how to stop the unit and disengage the tines quickly.
2. Never allow children to operate the equipment. Never allow adults to operate the
equipment without proper instructions.
3. Keep the area of operation clear of all persons, particularly small children and pets.
4. Always stay alert. Watch what you are doing and use common sense. Do not operate unit
when fatigued.
5. Understand the use of all tiller controls.
2.6 Preparation
1. Thoroughly inspect the area where the equipment is to be used and remove all foreign
objects.
2. Disengage the idler before starting the engine (motor).
3. Always wear substantial footwear and long pants. Do not operate the equipment when
barefoot or wearing open sandals.
4. Wear ear and eye protection. Eye protection must meet applicable CE requirements. To
avoid hearing damage, we recommend hearing protection be worn whenever using the
equipment.
5. Handle fuel with care; it is highly flammable.
6. Use an approved fuel container.
7. Never add fuel to a running engine or hot engine.
8. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
9. Replace gasoline cap securely and clean up spilled fuel before starting.
10. Never attempt to make any adjustments while the engine (motor) is running.
2.7 Operation
1. Do not put hands or feet near or under rotating parts.
2. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads.
Stay alert for hidden hazards or traffic. Do not carry passengers.
3. After striking a foreign object, stop the engine (motor) by turning the ON/OFF switch to
OFF, located on engine, thoroughly inspect the tiller for any damage, and repair the
damage before restarting and operating the tiller.
4. Exercise caution to avoid slipping or falling.
5. If the unit should start to vibrate abnormally or make unusual noise, stop the engine
(motor) and check immediately for the cause. Vibration is generally a warning of trouble.
6. Stop the engine (motor) when leaving the operating position.
7. Take all possible precautions when leaving the machine unattended. Disengage the tines
and stop the engine by turning the ON/OFF switch to OFF, located on engine.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
15
Page 16
MS50B
800.621-2789
8. Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving
parts have stopped. Disconnect the spark plug wire, and keep the wire away from the
plug to prevent accidental starting.
9. Do not run the engine indoors; exhaust fumes are dangerous.
10. Never operate the tiller without proper guards, plates, or other safety protective devices
in place.
11. Keep children and pets away when operating.
12. Do not overload the machine capacity by attempting to till too deep or too fast.
13. Never operate the machine at high speeds on slippery surfaces. Look behind and use care
when backing up.
14. Never allow bystanders near the unit.
15. Use only attachments and accessories approved by the manufacturer of the tiller.
16. Never operate the tiller without good visibility or light.
17. Be careful when tilling in hard ground. The tines may catch in the ground and propel the
tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.
2.8 Maintenance and Storage
1. Keep machine, attachments, and accessories in safe working conditions.
2. Check assembly pins, engine mounting bolts, and other bolts at frequent intervals for
proper tightness to be sure the equipment is in safe working condition.
3. Never store the machine with fuel in the fuel tank inside a building where ignition sources
are present, such as hot water and space heaters, clothes dryers, etc. allow the engine to
cool before storing in any enclosure.
4. Always refer to the storage instructions (Section 10) for important details if the tiller is to
be stored for an extended period.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
16
Page 17
MS50B
800.621-2789
Cross Brace Decal
Belt Guard Decal
Part # 87622
Made In USA Decal
Part # 797158
3 PARTS BREAKDOWN
3.1 Frame Parts Breakdown
Part # 87621
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
17
Page 18
MS50B
800.621-2789
Ref #
Qty
Part #
Description
1 1 400104
BOLT,HHCS,1/4-20 X 1/2,GR5,ZINC
2 3 80029
BOLT, HEX, 1/4-20 X 3/4, GR5, ZINC
3 4 80039
5/16-18 X 1-3/4 HEX SCREW GR 5-
4 3 80045
BOLT, HHCS, 5/16-18 X 2 3/4, GR5, ZINC
5 1 400265
3/8-16 X 1-1/2 HEX SCREW GR 5-ZINC
6 2 80193
1/4-20 X 1/2 THRD CUT HEX - ZINC
7
12
80205
5/16 SAE FLAT WASHER - ZINC
8 1 80206
WASHER, SAE, 3/8, ZINC
9 1 80212
1/4 USS FLAT WASHER - ZINC
10 3 85128
1/4" NYLON LOCK NUT
11
11
86101
5/16 NYLON LOCK NUT
12 1 86383
NUT, NYLOCK, 3/8-16, GR5, ZINC
13 1 86454
KEY-SQUARE 3/16 X 1 (SERVICE ONLY)
14 2 460312
HAIRPIN, RU, 3/8-7/16, 1-7/8, ZINC
15 2 461466
PIN, CLEVIS, 3/8, 2-1/4, ZINC
16 3 87268
5/16-18 X 5/16 SETSCREW ZN
17 1 87269
3/16 X 3/4 WOODRUFF KEYK9N
18 1 87270
3/8-24 HEX NUT
19 1 271686
2 X 3/4 C/SHAFT PULLEY
20 1 272201
BELT, 4L51(MT/TP/RMT)
21 1 87373
NUT, CLIP, 1/4-20, 0025-015, BLACK
22 2 87422
3/8-24 NYLOCK NUT
23 4 400196
BOLT, FHH, 5/16-18 X 2, GR5, ZINC
24 1 87440
BAG, HARDWARE, MS50B
25 2 80037
5/16-18 X 3/4 HEX SCREW GR 5-ZINC
26 1 80039
5/16-18 X 1-3/4 HEX SCREW GR 5-
27 1 400196
5/16-18 X 2 HEX SCREW GR 5 - ZINC
28 1 80193
1/4-20 X 1/2 THRD CUT HEX - ZINC
29 1 80212
1/4 USS FLAT WASHER - ZINC
30 1 80214
WASHER, 5/16, USS, ZINC
31 2 85128
1/4" NYLON LOCK NUT
32 2 400112
1/4 X 1 HEX SCREW GR 5 - ZINC
33 5 86101
5/16 NYLON LOCK NUT
34 1 86115
5/16-18 X 1-1/4 HEX SCREW GR 5-ZINC
35 4 460312
HAIRPIN, RU, 3/8-7/16, 1-7/8, ZINC
36 4 461466
PIN, CLEVIS, 3/8, 2-1/4, ZINC
37 2 87374
P-CLIP, 3/8 X 9/16, GAL
38 1 87381
OWNERS MANUAL -MS
39 1 87416
SPRING, EXTENSION (MS,GM,MT)
40 1 790471
HOLDER, MANUAL, SMALL
40* 1 162029
CLUTCH CABLE ASSY -(MS.GM)
41 2 87532
NUT, NYLOCK, 6-32, ZINC
42 2 87533
BOLT, HEX, 6-32 X .5, ZINC
Ref #
Qty
Part #
Description
44 1 162077
THROTTLE CONTROL
45 1 336672
PULLEY, 10 X 5/8" (MS)
46 1 87542
KIT, DECAL, SHEET, MS50B
50 2 130102-D
WHEEL TUBE (GM,MS,MT)
51 1 130500
TRANS, COMPLETE (MS,GM) PAINT
52 1 130670
REAR SUPPORT ASSY
53.1 1 130698-SD
R.H. HANDLE
53.2 1 313786.MX
HANDLE GRIP, 1
53.3 1 336683-SD
CLUTCH LEVER - PAINT (MS)
53.4 1 87372
POST, BINDING, 0.25 X 1.25, ZINC
53.5 1 87425
BOLT, TRUSS, #10-24 X 5/16, ZINC
54.1 1 130699
L.H. HANDLE - PAINT (MS)
54.2 1 313786
HANDLE GRIP, 1
55 1 130717
ASSY, TINE, MS
55.1 1 130716
RH INNER TINE ASSY -PAINT (MS)
55.2 1 130712
RH OUTER TINE ASSEMBLY -PAINT (MS)
55.3 1 130715
LH INNER TINE ASSY -PAINT (MS)
55.4 1 130711
LH OUTER TINE ASSY -PAINT (MS)
56.1 1 130731
CROSS BRACE - PAINT (MS) <B&S>
56.2 1 87621
DECAL, CROSSBRACE (MS,GM,M30B)
57 1 130757-
MS50B
ASSY, GUARD, BELT, MS50B
58.1 1 Engine
CONTACT YOUR LOCAL BRIGGS DEALER
58.2 1 162067
BELT GUIDE - PAINT
58.5 2 80196
5/16 LOCK WASHER - ZINC
58.6 2 86667
BOLT,HHCS,5/16-24 X 3/4,GR5,ZINC
59.1 1 162034
WHEEL YOKE ASSY -PAINT (PARTS)
59.2 2 162031
WHEEL, 10" X 1.75" (REG)
59.5 2 359330
BOLT, SHOULDER, 1/2, 1-13/32, 3/8, Z
59.6 2 444719
NUT, JAM, NYLOCK, 3/8" NC, ZN
60 1 162069
IDLER SHAFT, TILLER (MS50B)
61 1 336676
R.H. SUPPORT - PAINT (MS,GM)
62 1 336677
L.H. SUPPORT - PAINT (MS,GM)
63 1 336685
DEPTH BAR - PAINT (MS)
64 4 359335
SPACER, TRANS
65 1 359321
IDLER PULLEY, 2-1/4" X 3/8"
66 1 359325
LEVER, IDLER - CUT/PUNCH (MS50B)
67 2 359339
BRACE - PAINT (MS/GM) <PARTS>
68 1 359340
BRACKET,LOWER B/GUARD-PAINT(MS
69 1 359343
BRACKET,UPPER B/GUARD-PAINT(MS
70 1 162027
L.H. FRAME RAIL ASSEMBLY
71 1 336680
R. H. FRAME RAIL
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
18
Page 19
MS50B
800.621-2789
Ref #
Qty
Part #
Description
A1 1 59354
SEALANT, GASKET, BRUSH-ON
A2 1 80045
BOLT, HHCS, 5/16-18 X 2 3/4, GR5, ZINC
A3 5 80150
5/16-18 SERRATED FLANGE NUT
A4 1 86101
5/16 NYLON LOCK NUT
A5 1 87277
1/4-20 X 1/2 HEX SER FL SCREW
A6
16
445768
1/4-20 SERRATED FLANGE NUT ZINC
A7 1 400291
BOLT, HHFB, 3/8-16 x 3/4, GR5 ZINC
A8
16
400104
BOLT, HHFB, 1/4-20 X 1/2, GR5, ZINC
A9 1 87559
NUT, NYLOCK, FL, 3/8-16, ZINC
A10 5 87560
BOLT, HHFB, 5/16-18 X 1/2, GR5, ZINC
A11 1 130696
RH CASE SIDE - WELD SUPP.(MS)
A12 1 130697
LH CASE SIDE -REAM,PRES,SPTWLD
A13 1 162024
IDLER SPROCKET CLUSTER (MS,GM)
A14 1 162025
OUTPUT SHAFT/SPROCKET ASSY (MS, GM)
A15 1 162039
INPUT SHAFT/SPROCKET (35A11)MS
A16 1 336674
GASKET, CASE (GM.MS)
A17 2 359293
BUSHING, INPUT (AA811)<BRONZE>
Ref #
Qty
Part #
Description
A18 1 359295
CHAIN, #35 X 58 LINKS (MS,GM)
A19 2 359297
IDLER BEARING, #SCH912 (MS/GM)
A20 1 359298
BUSHING, IDLER CLUSTER (MS/GM)
A21 2 359299
WASHER, TRANSMISSION -FORM (MS
A22 1 359300
CHAIN, #50 X 40 LINKS (MS,GM)
A23 1 359303
OUTPUT SHAFT SPACER-FORM(MS/TP
A24 2 359304
BEARING #SCE2016, OUTPUT SHAFT
A25 2 359305
OIL SEAL. OUTPUT SHAFT (MS/TP)
A26 2 359306
DUST SHIELD -FORM (MS.GM,MT,TP
A27 1 359310
PLUG, EXPANSION
A28 1 359312
OIL FILL PLUG
A29 2 359313
WASHER,.062 X 2OD X 1.265"ID"
A30 1 359314
WASHER,.0375 X 2"OD X 1.265"ID
A31 1 359315
WASHER, .020 X 2"OD X 1.265"ID
A32 1 359336
WASHER, RUBBER SEAL
A33 2 455049
WASHER,SHIM 41/64 X 1 X .0625#
A34 2 455062
WASHER, SHIM 41/64"X 1"X .032"
A
3.2 Transmission Parts Breakdown
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
19
Page 20
MS50B
800.621-2789
Cross Brace
3.3 General Information
Engine Briggs & Stratton 127cc
Transmission Chain Drive
Tine speed (max) 78 RPM
Tines Slasher Tines w/ Welded Blade Tines
Tilling width 14” or 26”
Tilling depth Up to 10”
Drag Bar Standard
Handles 1”-14 Gauge Tubular Steel
Hitch Stamped Hitch with 3/8” x 1-1/2” Drag Stake
Tires 8 x 1.75 (for transport only)
Dimensions (L x W x H) 55” x 26” x 40”
Shipping weight 130 lbs.
4 ASSEMBLY
Prior to assembling your tiller, make sure that you have a clear work space and that there are no
missing parts.
1. Remove the tiller from the box. Do not attempt to lift the tiller from the box. After
opening the top, remove manuals, protective packaging and all unassembled parts
including the parts bag. Note location of cross brace, carefully remove from cardboard.
Place these parts off to the side for later assembly. Carefully cut all four sides of the box
and lay the sides flat on the floor as shown below. While moving through the first few
steps of assembly, temporarily leave the tiller resting on the top of the box containing the
tines.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
20
Page 21
MS50B
800.621-2789
A- Right handle with lever
Lower Belt Guard Bracket
A
B
C
D
Left/Rear
Stabilize as needed
2. Stabilize as needed and prop/block up the transmission approx. 1” – 1 ½” from the
ground, by using the cardboard box used to box the Cross brace or a piece of wood.
3. Install right and left handle bars to hitch/frame assembly using the four 5/16” x 2” hex
bolts, washers and nylon lock nuts, pre-installed in mounting holes. The mounting support
plate for wheels and drag bar goes between the frame and handles. Note illustration
below: Be sure the right handle, has the clutch engagement lever on it. Place this
handle on the right side, as you stand in an operating position.
4. On the left rear mounting bolt, incorporate the Lower Belt Guard support bracket under
the frame as shown, bottom right image:
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
with the bottom of
transmission off the
ground by 1”-1 ½”
B- Left handle
C- Mounting support plate
D- Tiller frame
mounting bolt
21
Page 22
MS50B
800.621-2789
A
B
C
D
A
D
E C B
A
5. Once all handle mounting bolts are in place, only partially tighten them, do not fully
tighten until all the remaining mounting hardware for the tie and cross brace, is started
with a snug fit.
6. Install the two handle bar tie braces (A) shown below, to the transmission using two ¼” x
1” for the top two holes. The first/top one is also used to bolt the belt guard upper
bracket (B).
7. Using one 5/16” x 1 ¼” mount the tie braces and a P-clip/cable guide for throttle cable, in
the bottom hole on the right side as shown below:
A- Handle bar tie brace (2)
B- Upper Belt Guard bracket
C- Two ¼” bolt and lock nuts
D- One 5/16” bolt, lock nut,
and P-clip/cable guide
8. Fasten the top end of the handle bar braces to the handle bar with the Cross brace using
one 5/16” x 1 ¾” bolt and lock nut on the right side and one 5/16” x 2” bolt and lock nut
on the left side incorporating the top hole of the Manual tube. For the lower end of
handle bar tie brace and cross brace use two 5/16” x ¾” bolts and lock nuts. The lower
right mounting bolt will also incorporate a P-clip. Use ¼” x ½” self-tapping bolt to secure
the bottom of the manual tube as shown:
9.
A- Cross Brace
B- Handle Bar Tie braces (2)
C- P-clip
D- Manual tube
E- ¼” self-tapping lower bolt
mount
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
22
Page 23
MS50B
800.621-2789
9. Tighten all bolts a little at a time going from one to the next, moving around in a crisscross
pattern until they are all tight.
10. Install clutch cable through cable guides and ensure both clutch cable guides are adjusted
accordingly, for smooth clutch cable action. Hook loop end of the cable at bottom into
notch of clutch arm, see left image below. At the top end of the clutch cable, see right
image below, and hook one end of spring into chain and the other into hole in clutch
lever. The clutch cable should be adjusted so that the spring will be extended ¼” – ½”
when lever is engaged however making certain the belt will slip and tines stop turning,
when the lever is released.
11. The throttle cable is mounted to the engine by the factory. Carefully mount the control
end to the cross brace, by rotating the throttle handle enough to fit through the throttle
mount, coming from the underside of the cross brace. Use two #6 x ½” bolts and lock nuts
to mount. Test for smooth movement of throttle handle between slow and fast. Note:
“Off” position of throttle handle will only slow engine speed and aid in disengaging the
tines when clutch lever is released, it will not stop the engine. Use engine on/off switch
located on engine to turn engine off or on.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
23
Page 24
MS50B
800.621-2789
(A) Long end
2nd set of tines
(B) Short end
12. Your tiller is now ready to mount the tines. Use caution and slowly tip the unit back to
rest on the handle bars:
13. Use caution when assembling the tines to the tiller.
A second person is recommended to help stabilize
the tiller during this step. Assemble the inner tine
assemblies on the shaft of the transmission. You may need to
need to use a mallet to gently tap tine assemblies
onto tine shaft. The long end (A) of the tube/hub
goes to the outside of unit for the 2
nd
outer tine
out towards
towards
transmission
mount, The Short end (B) of the tube/hub goes to
the inside near the transmission.
Be sure the cutting edge of all the tines, face forward
in the direction of the tine tilling rotation.
Secure with clevis and hair pins
14. Once tines have been mounted and pins inserted, unit can be brought upright, to rest on
the tine assembly and wheels.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
24
Page 25
MS50B
800.621-2789
4.1 Final Set-up
1. Check the transmission to ensure that it has the proper amount of lube
a. Remove check plug.
b. Use 90 wt. gear lube. Approx. 1 pt.
c. Fill until check plug hole overflows.
d. Replace plug. NOTE: do not overtighten.
2. Remove the engine dipstick and fill crankcase with oil, according
to engine owner’s manual.
NOTE: Engine is shipped from factory without oil. You must add
engine oil before starting engine. If engine is started without oil,
engine may be damaged beyond repair and will not be covered by
warranty.
3. Fill the fuel tank with clean, fresh, lead-free gasoline. Do not fill
fuel tank completely, allow space for fuel to expand. DO NOT MIX
OIL WITH GASOLINE.
5 OPERATING CONTROLS
5.1 Speed
1. The tiller will dig deeper and move forward slower by pushing down on the handles.
2. The tiller will move ahead faster, but at a shallower depth, by raising the handles.
3. The speed of the tines is controlled by the use of the throttle control lever.
5.2 Depth of Tilling
1. The proper throttle speed and correct up and down hand pressure on the handles must
be used to accomplish a quality till while accommodating operator ability/safety.
2. Raising up means going forward, this action releases the grip of the drag stake in the soil,
allowing the tiller to progress ahead.
3. Pushing down means slowing down or even standing still. This directs the drag stake into
the soil, thus holding the tiller back.
4. Adjust throttle for desired speed and depth of tines.
5.3 Throttle Control Lever
The throttle control lever, located on the handle cross brace, controls engine speed. When
starting, place control lever in center position. Then adjust to desired speed. To stop engine,
move throttle control lever to low idle position. Push ignition on/off switch to off located on
engine.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
25
Page 26
MS50B
800.621-2789
5.4 Engage Lever
The clutch is disengaged when clutch lever is away from handle grip. To engage clutch, depress
clutch lever to handle.
6 OPERATION
6.1 Before Operating
1. Check your tiller. Be sure all bolts are tight. After several hours of operating and at
periodic maintenance intervals, check all fasteners and tighten securely as required.
2. Check oil and fill according to the engine owner’s manual.
⚠ WARNING: Engine is shipped from factory without oil. You must add engine oil before
starting engine. If engine is started without oil engine may be damaged beyond repair and will
not be covered by warranty.
3. Read engine manual for full instructions and safety warnings.
4. Place tiller on level ground.
5. Remove dipstick. Wipe with clean cloth.
6. Reinsert dipstick (do not screw dipstick back in). Remove dipstick and check.
7. Oil should be at FULL level.
8. If oil is required, add slowly. Recheck level.
9. Change oil if contaminated.
10. Tighten dipstick and clean around oil fill area before starting.
11. Fill engine with clean unleaded gasoline according to the engine owner’s manual.
⚠ WARNING: Gasoline is flammable. Use caution when handling or storing gasoline. Never fill
the gas tank while the engine is running or hot. Do not fill fuel tank completely, allow space for
fuel to expand. Allow the engine to cool before adding gas. Clean any spilled gasoline.
12. Ensure that the air element/filter and seal are installed properly. Clean and maintain
according to engine owner’s manual.
13. Familiarize yourself with all operating controls.
⚠ DANGER: Never operate the tiller without proper guards, plates, or other safety devices in
place. Serious injury or death could result.
⚠ WARNING: Do not attempt to start or operate this tiller until you are completely familiar with
location and use of each control necessary to operate this tiller. You must know how to stop this
machine before you start it. Each time prior to starting, check the throttle control lever to ensure
it is working properly.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
26
Page 27
MS50B
800.621-2789
⚠
6.2 Starting the Engine
Before starting the engine, check the machine against the Set-Up instructions (section 4) to see
that it is properly assembled. Review the safety suggestions and operating instructions for safe
and proper use of the tiller.
6.3 Pre-Start
1. Check the spark plug wire for proper connection on the spark plug.
2. Check the oil for proper level.
3. Make certain clutch lever is in disengaged position.
6.4 Filling Fuel Tank
We recommend the use of clean, fresh, lead-free gasoline. The use of lead-free gasoline results in
few combustion deposits and longer valve life. Do not fill fuel tank completely,
allow space for fuel to expand. Provide approximately ¼” of tank space for fuel
expansion.
1. Shut-off engine and allow engine to completely cool before refilling
the fuel tank.
2. Move to a well-ventilated area, outdoors, away from flames and
sparks.
3. Clean debris from area around the fuel cap.
4. Loosen fuel cap slowly. Prevent the cap from coming in contact with
dirt or debris.
5. Carefully add fuel without spilling.
6. Do not fill gas tank completely full, allow space for fuel to expand.
7. Immediately replace fuel cap and tighten. Wipe off spilled fuel to allow it to dry before
starting engine.
CAUTION
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL BEFORE STARTING ENGINE. IF ENGINE IS
STARTED WITHOUT OIL, ENGINE MAY BE DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED BY WARRANTY.
NEVER STORE ENGINE WITH FUEL IN THE TANK INDOORS. FUEL AND FUEL VAPORS ARE HIGHLY FLAMMABLE.
AN ADULT ONLY MUST ALWAYS HANDLE AND FILL THE ENGINE WITH FUEL.
ALWAYS HANDLE GAS IN A WELL-VENTILATED AREA, OUTDOORS, AWAY FROM FLAMES OR SPARKS.
DO NOT START ENGINE IF FUEL IS SPILLED. WIPE OFF EXCESS FUEL AND ALLOW TO DRY. REMOVE ENGINE FROM AREA AND
AVOID SPARKS
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
.
27
Page 28
MS50B
800.621-2789
⚠
ENGINE MUST BE ON LEVEL SURFACE WHEN CHECKING OIL LEVEL OR FILLING WITH OIL.
6.5 Checking and adding Oil
1. Be sure the engine is located on a level surface before checking or refilling oil. Clean
around oil fill area.
2. Be sure engine is cool.
3. Unscrew dipstick and wipe clean with cloth.
4. Reinsert dipstick (do NOT thread in for accurate reading).
5. Remove and check dipstick. If no oil shows on the dipstick, refill so that the oil level
appears between the low and high marks on the dipstick.
6. Change oil if contaminated.
*NOTE: See engine Owner’s Manual for proper oil maintenance instructions
IMPORTANT
FAILURE TO DO SO CAN RESULT IN OVERFILLING THE ENGINE WITH OIL WHICH WILL
IMPAIR THE ENGINE’S PERFORMANCE.
6.6 Cold Starting Procedure
1. Move throttle control lever to center position.
2. Move choke control to choke position. Hold the handle with your left hand while pulling
the starter rope with your right. Pull the rope out slowly until the engine reaches the start
of the compression cycle (the rope will pull slightly harder at this point). Then allow the
rope to retract fully.
3. Pull the rope with a continuous full arm stroke. Keep a firm grip on the starter handle and
let the rope rewind slowly. Do not let the handle snap back against the recoil starter.
4. Repeat steps number 2-3 above until engine starts. If engine fails to start after 3 pulls on
the rope, repeat step number 1-2 above as necessary. Slowly move choke control to RUN
position after engine has responded and engine warms up.
5. As the engine warms up, move the throttle lever to full throttle position. Allow engine
warm-up period before operating tiller.
⚠ NOTE: A warm engine may start without choking. Do not use the choke if engine is hot.
6.7 Stopping Engine
1. Move the throttle control to slow/idle position.
2. Turn ON/OFF switch to off position located on engine.
3. Disconnect the wire from the spark plug to prevent accidental starting of the machine
while it is unattended.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
28
Page 29
MS50B
800.621-2789
⚠
To prevent personal injury, the chain drive must disengage immediately when clutch
⚠
Keep hands clear of belt and tines while engine is running. Never attempt to adjust or
6.8 Operation
⚠ IMPORTANT: Keep hands clear of belt and tines while engine is running.
⚠ WARNING: For safe operation, the chain drive must disengage immediately when clutch lever
is released. If it does not, adjust belt and cable tension as described in Section 7 in this manual.
Never leave the tiller unattended with the engine running.
DANGER
lever is released. If it does not, stop the tiller, adjust belt and cable tension as described
in Adjustments section of this manual. Never leave the tiller unattended with the engine
running. Children are attracted to a running tiller and could be injured if struck by the
rotating tines.
WARNING
clean tines while engine is running, at risk of sever injury.
1. When ground is hard (especially during spring and fall tilling season), place wheels in up
position by pulling the locking pin from the wheel yoke and repositioning the wheel frame
bar, re-insert the pin to reposition and lock wheels in the up position. For weeding or
cultivation, wheels may be left down if you prefer.
2. Adjust the drag stake for comfortable operation. This is done by pulling the locking pin
from the drop stake locking hub and sliding the drag stake down or up. The drag stake
should be set so that when it is firmly in the ground, and your hands are on the tiller
handle, your arms hand comfortably with the elbows slightly bent. Once determined reinsert locking pin.
3. Move the throttle control to center position. Start the engine and allow it to warm up,
then set the throttle at about half speed. After you have become familiar with the tiller,
you may want to run the engine a little faster.
4. Press down firmly on the handles and squeeze the clutch lever. The tines will begin to
turn, but the tiller should not move forward. If it does, don’t pull backwards – merely
press down harder on the handles. When you find the right amount of downward
pressure so that the tines are beginning to dig however not moving forward, release the
pressure slightly. As you release it you’ll notice the tiller beginning to move forward.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
29
Page 30
MS50B
800.621-2789
⚠
To avoid possible serious bodily injury, when performing any adjustments, remove the
⚠ NOTE: The whole tilling operation is controlled by the amount of pressure you put on the drag
stake. Do not fight the tiller. Stand between the handles and press down to go slower and dig
deeper and release the downward pressure to move forward faster. In normal soil, the actual up
and down movement of the handles will be no more than an inch or two.
6.9 Operation Tips
To acquire the knack of letting the tiller do the work without effort on the part of the operator,
we offer the following suggestions:
1. Adjust drag stake so the handles are at such a height that your arms hang straight down
to contact them. Rear wheels should be in up position for deep tillage or ease of turning
in confined areas.
2. Operate the tiller at about ¾ throttle.
3. Don’t hurry the job – proceed at a slow walk – give the machine time to do its job.
4. Concentrate on keeping your arms relaxed (There is a natural tendency for any beginner
to tense up). Operating the tiller actually takes very little effort. Let the tiller do the work.
5. When tilling on sloping ground, turn the front of the machine uphill to sufficiently
counteract the tendency to run downhill.
6. For best results, operate at reduced throttle settings when ground is extremely hard or
rough.
7. Tighten all nuts and bolts periodically.
6.10 Tilling Pattern
1. Whenever possible till the soil in the direction in which the planting or rows will run. If the
soil is extremely hard and dry, it may be advisable to till across the plot on the first digging
and then obtain the depth you want by tilling in the direction the planting will be done.
7 ADJUSTMENTS
DANGER
spark plug wire and place the wire away from the plug to prevent accidental starting.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
30
Page 31
MS50B
800.621-2789
7.1 Clutch Adjustment
Proper clutch adjust is very important. Minor adjustment, if needed, can be made by using the
links on the clutch cable chain only. However, the friction type clutch may need further
adjustments as the “V” belt wears. Adjust as follows:
1. Remove belt guard.
2. Loosen 4 engine mount bolts. Slide engine forward or backwards as required.
3. Unhook clutch cable from load spring.
4. Push upward on idler pulley to take all slack from the drive belt. Distance between the
inside of belt at the idler pulley should be between 2 7/8 and 3 1/8 of an inch.
5. Ensure pulleys are aligned with a long straight edge.
6. Retighten engine mounting bolts (17
foot lbs. of torque).
7. Remove all the slack from clutch cable
and hook spring in proper chain link.
8. Check your adjustment by starting the
tiller and holding the tines off the
ground. If the tines turn without any
hand pressure on the engage lever,
the adjustment is too tight. Unhook
the clutch load and hook into next
chain link to lengthen clutch cable. If
the cable spring on the clutch handle
doesn’t stretch when you hold the clutch handle all the way in, the adjustment is too
loose. Unhook spring end from chain and hook next link to shorten clutch cable.
7.2 Wheel Height Adjustment
1. Wheel position may be adjusted. To place wheels in up position, pull the locking pin from
the wheel yoke and repositioning the wheel frame bar re-insert pin to reposition and lock
wheels in the up position. For weeding or cultivation, wheels may be left down if you
prefer.
7.3 Tine Adjustment
The standard tilling width is 26” with both inner and outer tine assemblies mounted. Tilling width
is 14” with outer assemblies removed.
1. To remove outer tine assemblies from inner tine assemblies, remove pin clip from clevis
pin.
2. Slide clevis pin out and remove outer tine assembly.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
31
Page 32
MS50B
800.621-2789
⚠
To avoid possible serious bodily injury, when performing any adjustments, remove the
DANGER
spark plug wire and place the wire away from the plug to prevent accidental starting.
8 Maintenance
⚠ DANGER: To avoid possible serious bodily injury, when performing any adjustments, remove
the spark plug wire and place the wire away from the plug to prevent accidental starting.
8.1 Periodic Check
1. Regularly check all bolts and nuts for tightness.
2. If the belt begins to bottom out on the engine pulley, then replacement of the pulley is
needed. This is noticeable by the pulley “V” bottom becoming shiny.
8.2 Engine Oil
1. Check the oil level before starting the engine and after every five hours of operation.
2. Be sure engine is cool.
3. Before removing the filer plug, clean the area around it to prevent dirt from entering the
oil fill hole.
4. The engine should be in a level position when checking the oil.
5. Remove the filler plug and fill the crankcase with oil.
6. Use a high-quality detergent oil – refer to your engine owner’s manual for oil
requirements.
7. Add oil as necessary to keep oil level as indicated. Detergent oils keep the engine cleaner
and reduce the formation of gum and varnish deposits. Nothing should be added to the
recommended oil.
8. Change the oil after the first 20 hours of operation and every 100 hours there-after or
every 6 months, whichever comes first. Always change oil while the engine is warm. Oil
may be drained through the oil drain port towards the bottom of the engine. Refer to
your Engine Owner’s Manual for complete details.
8.3 Dual Filter Element Air Cleaner
Clean cartridge at three month intervals or every 50 hours, whichever occurs first.
⚠ NOTE: Service more often under dust conditions.
1. Remove the wing nut from the air cleaner cover and remove cover.
2. Remove the wing nut from the air filter and remove the filer.
3. Remove the foam filter, if equipped, from the paper filter.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
32
Page 33
MS50B
800.621-2789
4. Inspect both air filter elements and replace them if they are damaged.
5. Always replace the paper air filter element at 300 hours.
6. Re-install filters making certain all seals and gaskets are in properly installed
⚠ NOTE: Replace or clean cartridge included with DUAL ELEMENT AIR CLEANER yearly or every
300 hours as described in CARTRIDGE AIR CLEANER. Service more often if necessary.
8.4 Cleaning the Cooling System
1. Remove blower housing and clean regularly.
⚠ NOTE: Grass or chaff may clog cooling system after prolonged service. Continued operation
with a clogged cooling system causes severe overheating and possible engine damage.
8.5 Belt Replacement
The drive belt located on the left side of the machine. To replace a worn or slipping belt proceed
as follows:
⚠ DANGER: To avoid possible serious bodily injury, when performing any adjustments, remove
the spark plug wire and place the wire away from the plug to prevent accidental starting.
1. Remove belt guard.
2. Make sure clutch lever is in disengaged position.
3. Start at the top of 10” pulley and begin removing belt in clockwise direction (facing tiller
from left side). If tension on belt is too great the idler pulley may be pulled downward to
relieve pressure on belt.
4. Once belt is off 10” pulley, remove it from smaller pulley.
5. Replace belt by reversing sequence of steps above.
6. Replace belt guard.
8.6 Cleaning
⚠ IMPORTANT: If the engine has been running, allow it to cool for at least half an hour before
washing.
1. Wash the tiller, including the underside, after use.
2. Wash the engine by hand, be careful to prevent water or debris from entering the air
cleaner.
⚠ NOTE: Do not use a garden hose or pressure washing equipment, it can force water into the
air cleaner. Water in the air cleaner will soak the filter element and can enter the carburetor or
engine cylinder, causing damage.
3. After washing the tiller, wipe dry.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
33
Page 34
MS50B
800.621-2789
4. After the tiller is clean and dry, touch up any damaged paint and coat other areas with a
light film of oil.
5. Wipe the tines with oil or spay to prevent rusting.
9 LUBRICATION
9.1 Wheels
Lubricate wheels and wheel support shafts once a month or every 40 operation hours with #30
oil. Apply oil to axle and hub at back of wheel. Spin to allow oil to move into bearings.
In extremely dusty conditions, wheels may become tight because of dust in bearing area. When
this condition occurs, remove the wheels. Clean axle and wheel bearing surfaces with solvent or
emery cloth, then oil and reassemble.
9.2 Clutch Lever Pivots
Apply a Few drops of SAE 30 oil to the clutch hand lever and idler lever pivots as required to
maintain a free and smooth operation of clutch.
9.3 Transmission
Fill transmission with machine in normal upright position. Fill plug is located on the upper
righthand side. Use 90 weight gear lube. Capacity is approximately 16 ounces. Remove check plug.
Fill until check plug hole overflows. Replace plug. NOTE: Be careful not to overtighten fill plug.
If excessive oil leakage appears around tine rotor shaft, the seals and shields must be replaced.
No need to remove transmission and split case halves for tine shaft seals and shields replacement.
9.4 Idler Arms Pivot
Lubricate idler arm pivots once a month or every 40 operating hours with #30 oil.
10 STORAGE
10.1 Engine
1. If your tiller is to be stored over 30 days, please see your Engine Owner’s Manual for
storage information. The engine should be completely drained of fuel to prevent gum
deposits from forming on essential carburetor parts, fuel filter, fuel lines and tank.
2. Refer to engine manual for further engine storage procedures.
10.2 Tiller
1. At the end of the season or if tiller is to be stored for any length of time it should be
cleaned following the cleaning instructions in Section 8.6.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
34
Page 35
MS50B
800.621-2789
11 TRANSPORTING
To transport tiller from garden to storage area:
1. Move the throttle control to idle position.
2. Turn ON/OFF switch to OFF position, located on engine.
3. Turn fuel supply valve off.
4. Place wheels in down position by pulling the pin from the wheel yoke and repositioning
the wheel frame bar then re-insert pin to reposition and lock wheels in the up position.
5. Raise drag stake. This is done by pulling the locking pin from the drop stake locking hub
and sliding the drag stake up, then re-insert pin.
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
35
Page 36
MS50B
800.621-2789
12 WARRANTY
12.1 Warranty/Product Registration
Please register your product immediately after purchase. You can do that by visiting our
website at www.maximmfg.com
and complete our online product registration.
Or, complete the following warranty/production registration form on the next page and
return to:
Maxim
Attn: Warranty Registration Department
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
36
Page 37
MS50B
800.621-2789
Or, Fax completed form to: 763-428-4821
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
37
Page 38
MS50B
800.621-2789
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
38
Page 39
MS50B
800.621-2789
Page Intentionally Left Blank
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
39
Page 40
MS50B
800.621-2789
Maxim
A Brand of Great Northern Equipment
20195 South Diamond Lake Road
Suite 100
Rogers, MN 55374
www.maximmfg.com
800-621-2789
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
40
