_______________General Description

The MAX987/MAX988/MAX991/MAX992/MAX995/
MAX996 single/dual/quad micropower comparators
feature low-voltage operation and Rail-to-Rail®inputs
and outputs. Their operating voltage ranges from +2.5V
to +5.5V, making them ideal for both 3V and 5V sys­tems. These comparators also operate with ±1.25V to
±2.75V dual supplies. They consume only 48µA per
comparator while achieving a 120ns propagation delay.

The common-mode input voltage range extends 250mV
beyond the supply rails. Input bias current is typically

1.0pA, and input offset voltage is typically 0.5mV.
Internal hysteresis ensures clean output switching,
even with slow-moving input signals.

The output stage’s unique design limits supply-current
surges while switching, virtually eliminating the supply
glitches typical of many other comparators. This design
also minimizes overall power consumption under
dynamic conditions. The MAX987/MAX991/MAX995
have a push/pull output stage that sinks as well as
sources current. Large internal output drivers allow rail­to-rail output swing with loads up to 8mA. The
MAX988/MAX992/MAX996 have an open-drain output
stage that can be pulled beyond VCCto 6V (max)
above VEE. These open-drain versions are ideal for
level translators and bipolar to single-ended converters.

The single MAX987/MAX988 are available in tiny 5-pin
SOT23 packages.

____________________________Features

♦ 120ns Propagation Delay
♦ 48µA Quiescent Supply Current
♦ +2.5V to +5.5V Single-Supply Operation
♦ Common-Mode Input Voltage Range Extends

250mV Beyond the Rails

♦ Push/Pull Output Stage Sinks and Sources

8mA Current (MAX987/MAX991/MAX995)

♦ Open-Drain Output Voltage Extends Beyond V

CC

(MAX988/MAX992/MAX996)

♦ Unique Output Stage Reduces Output Switching

Current, Minimizing Overall Power Consumption

♦ 100µA Supply Current at 1MHz Switching

Frequency

♦ No Phase Reversal for Overdriven Inputs
♦ Available in Space-Saving Packages:

5-Pin SOT23 (MAX987/MAX988)
8-Pin

µMAX (MAX991/MAX992)

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

________________________________________________________________

Maxim Integrated Products

1

V

CC

IN-

IN+

1

5

V

EE

OUT

MAX987
MAX988

SOT23

TOP VIEW

2

3

4

_________________Pin Configurations

19-1266; Rev 0b; 7/97

PART

MAX987EUK-T

MAX987ESA
MAX988EUK-T

-40°C to +85°C

-40°C to +85°C

-40°C to +85°C

TEMP. RANGE

PIN-

PACKAGE

5 SOT23-5
8 SO
5 SOT23-5

______________Ordering Information

Ordering Information continued at end of data sheet.
Typical Application Circuit appears at end of data sheet.

COMPARATORS
PER PACKAGE

OUTPUT

STAGE

MAX987

1 Push/Pull

MAX991

2 Push/Pull

PART

MAX992

2 Open-Drain

MAX995

4 Push/Pull

MAX996

4 Open-Drain

PIN-

PACKAGE

8 SO/
5 SOT23-5

8 SO/µMAX
8 SO/µMAX
14 SO
14 SO

8 SO/
5 SOT23-5

MAX988

1 Open-Drain

Rail-to-Rail is a registered trademark of Nippon Motorola Ltd.

Pin Configurations continued at end of data sheet.

MAX988ESA -40°C to +85°C 8 SO

SOT

TOP MARK

ABZB

—

ABZC

—

Portable/Battery­Powered Systems

Mobile Communications
Zero-Crossing Detectors
Window Comparators
Level Translators

Threshold Detectors/
Discriminators

Ground/Supply Sensing
IR Receivers
Digital Line Receivers

_____________________Selector Guide

________________________Applications

For free samples & the latest literature: http://www.maxim-ic.com, or phone [phone].
For small orders, phone [phone] ext. 3468.

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS (Note 1)

(VCC= +2.7V to +5.5V, VEE= 0V, VCM= 0V, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

Supply Voltage (VCCto VEE) ...................................................6V

IN_-, IN_+ to V

EE

.......................................-0.3V to (VCC+ 0.3V)

OUT_ to V

EE

MAX987/MAX991/MAX995 ....................-0.3V to (VCC+ 0.3V)

MAX988/MAX992/MAX996.....................................-0.3V to 6V

OUT_ Short-Circuit Duration to V

EE

or VCC.......................10sec

Continuous Power Dissipation (T

A

= +70°C)

5-Pin SOT23 (derate 7.10mW/°C above +70°C)...........571mW

8-Pin SO (derate 5.88mW/°C above +70°C).................471mW

8-Pin µMAX (derate 4.10mW/°C above +70°C)............330mW

14-Pin SO (derate 8.33 mW/°C above +70°C)..............667mW

Operating Temperature Range ...........................-40°C to +85°C

Storage Temperature Range.............................-65°C to +150°C

Lead Temperature (soldering, 10sec).............................+300°C

Inferred from PSRR test

CONDITIONS

V2.5 5.5V

CC

Supply Voltage

UNITSMIN TYP MAXSYMBOLPARAMETER

53 80

2.5V ≤ VCC≤ 5.5V dB55 80PSRRPower-Supply Rejection Ratio

VCC= 5V

96

mV

±0.5 ±5

TA= +25°C

VEE- VCC+

0.25 0.25

±2.5V

HYST

Input Hysteresis

Full common-mode
range

nAI

B

Input Bias Current
(Note 4)

0.001 10

pF1.0C

IN

Input Capacitance

dB50 80CMRRCommon-Mode Rejection Ratio

pA0.5I

OS

Input Offset Current

±7

V

OS

Input Offset Voltage
(Note 3)

V

OUT

= high µA1.0I

LEAK

Output Leakage Current
(MAX988/MAX992/
MAX996 only)

35

95

TA= +25°C
TA= -40°C to +85°C

48 80

VCC= 2.7V

µA

96

I

CC

Supply Current per
Comparator

TA= +25°C
TA= -40°C to +85°C

Sourcing or sinking,
V

OUT

= V

EE

or V

CC

I

SC

Output Short-Circuit Current

TA= +25°C
TA= -40°C to +85°C

TA= -40°C to +85°C V

EE

V

CC

VV

CMR

Common-Mode Voltage
Range (Note 2)

mV

VCC= 5V
VCC= 2.7V

mA

VCC= 5V,
I

SINK

= 8mA

0.55

0.2 0.4

V

OL

OUT Output Voltage Low

VCC= 2.7V,
I

SINK

= 3.5mA

V

0.4

0.15 0.3

TA= +25°C
TA= -40°C to +85°C
TA= +25°C
TA= -40°C to +85°C
TA= +25°C

VCC= 5V,
I

SOURCE

= 8mA

TA= -40°C to +85°C 4.45

4.6 4.85

V

OH

TA= +25°C

OUT Output Voltage High
(MAX987/MAX991/
MAX995 only)

VCC= 2.7V,
I

SOURCE

= 3.5mA

TA= -40°C to +85°C

V

2.3

2.4 2.55

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VCC= +2.7V to +5.5V, VEE= 0V, VCM= 0V, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

CONDITIONS UNITSMIN TYP MAXSYMBOLPARAMETER

VCC= 5.0V ns

40

t

RISE

OUT Rise Time
(MAX987/MAX991/
MAX995 only)

20

15

µs25t

PU

Power-Up Time

nsVCC= 5.0V

40

t

FALL

OUT Fall Time 20

15

120

210

100mV overdrive

100mV overdrive

CL= 15pF,
VCC= 5V

120

t

PD+

Propagation Delay

210

ns

210

t

PD-

120

MAX987/MAX991/
MAX995 only

10mV overdrive
100mV overdrive

MAX987/MAX991/MAX995
only, CL= 15pF, VCC= 5V

10mV overdrive

10mV overdrive

CL= 15pF
CL= 50pF
CL= 200pF
CL= 15pF
CL= 50pF
CL= 200pF

MAX988/MAX992/
MAX996 only,
R

PULL-UP

= 5.1kΩ

Note 1: The MAX98 _EUK specifications are 100% tested at TA= +25°C. Limits over the extended temperature range are guaran-

teed by design, not production tested.

Note 2: Inferred from the V

OS

test. Either or both inputs can be driven 0.3V beyond either supply rail without output phase reversal.

Note 3: V

OS

is defined as the center of the hysteresis band at the input.

Note 4: I

B

is defined as the average of the two input bias currents (IB-, IB+).

__________________________________________Typical Operating Characteristics

(VCC= 5V, VCM= 0V, TA= +25°C, unless otherwise noted.)

30

40

50

60

70

80

90

-60 -20-40 0 20 40 60 80 100

SUPPLY CURRENT PER COMPARATOR

vs. TEMPERATURE

MAX9879 TOC1

TEMPERATURE (°C)

SUPPLY CURRENT (µA)

VCC = 5.5.V

VCC = 2.5.V

V

IN+

> V

IN-

1000

10

0.01 0.1 1 10 100 1000 10,000

SUPPLY CURRENT PER COMPARATOR

vs. OUTPUT TRANSITION FREQUENCY

MAX987 TOC2

OUTPUT TRANSITION FREQUENCY (kHz)

SUPPLY CURRENT (µA)

100

VCC = 2.5V

VCC = 5.5V

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

4 _______________________________________________________________________________________

10,000

1

0.01 0.1 1 10 100

OUTPUT LOW VOLTAGE

vs. OUTPUT SINK CURRENT

MAX987-03a

OUTPUT SINK CURRENT (mA)

OUTPUT LOW VOLTAGE (mV) (V

OL

)

10

100

1000

V

IN+

< V

IN-

VCC = 2.7V

V

CC

= 5.0V

120

0

-60 100

OUTPUT SHORT-CIRCUIT

CURRENT vs. TEMPERATURE

20
10

90
80

110
100

MAX987 05

TEMPERATURE (°C)

OUTPUT SINK CURRENT (mA)

-40 -20 0 20 40 60 80

70
60
50
40
30

VCC = 5.0V

VCC = 2.7V

1.1

-0.3

-60 100

INPUT OFFSET VOLTAGE

vs. TEMPERATURE

-0.1

0.7

0.9

MAX987 06

TEMPERATURE (°C)

OFFSET VOLTAGE (mV)

-40 -20 0 20 40 60 80

0.5

0.3

0.1

10,000

0.1

0.01

0.1

1 10 100

OUTPUT HIGH VOLTAGE

vs. OUTPUT SOURCE CURRENT

1

MAX987-04

OUTPUT SOURCE CURRENT (mA)

OUTPUT HIGH VOLTAGE

(mV) (V

CC

- V

OH

)

10

100

1000

V

IN+

> V

IN-

VCC = 5.0V

VCC = 2.7V

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

_______________________________________________________________________________________

5

__________________________________________Typical Operating Characteristics

(VCC= 5V, VCM= 0V, TA= +25°C, unless otherwise noted.)

100

110

130

150

170

190

120

140

160

180

200

-60 -20-40 0 20 40 60 80 100

PROPAGATION DELAY

vs. TEMPERATURE

MAX987 TOC9

TEMPERATURE (°C)

PROPAGATION DELAY (ns)

VCC = 5.5.V

VCC = 2.5.V

VOD = 50mV

1000

10,000

100

0.01 0.1 101 100 1000

PROPAGATION DELAY
vs. CAPACITIVE LOAD

MAX987 TOC8

CAPACITIVE LOAD (nF)

PROPAGATION DELAY (ns)

VOD = 50mV

300

0

0 60 120

20 8040 100

140

PROPAGATION DELAY
vs. INPUT OVERDRIVE

100

50

250

200

150

MAX987 TOC10

INPUT OVERDRIVE (mV)

PROPAGATION DELAY (ns)

VCC = 2.5V

VCC = 5.5V

PROPAGATION DELAY (t

PD-

)

IN+

OUT

MAX987-12

100ns/div

50mV/
div

2V/div

V

OD

= 50mV

MAX987/MAX991/MAX995

PROPAGATION DELAY (t

PD+

)

IN+

OUT

MAX987-11

100ns/div

50mV/
div

2V/div

V

OD

= 50mV

MAX987/MAX991/MAX995

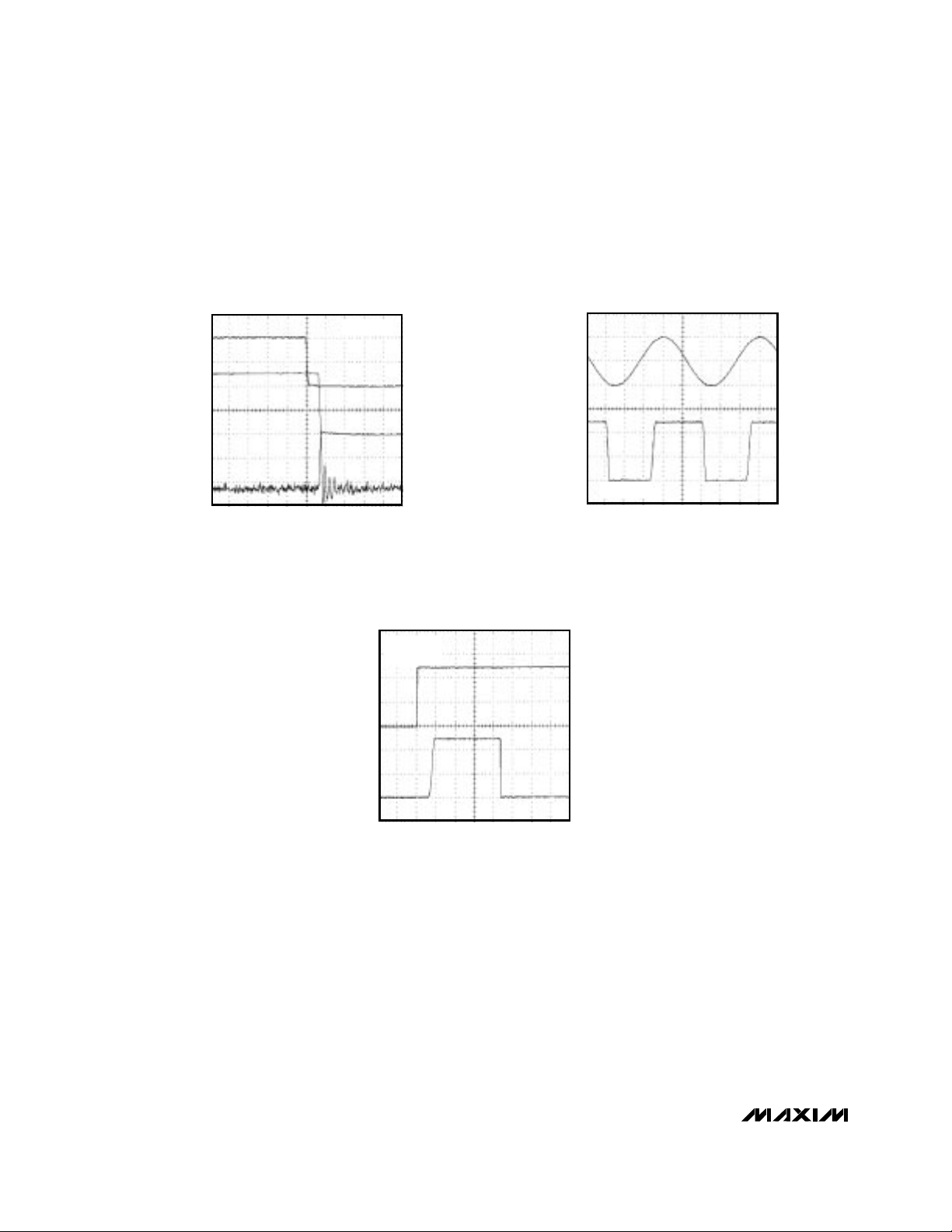

SWITCHING CURRENT, OUT RISING

IN+

OUT

I

CC

MAX987-13

200ns/div

50mV/
div

2V/div

2mA/div

V

OD

= 50mV

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

6 _______________________________________________________________________________________

POWER-UP DELAY

V

CC

OUT

MAX987-16

5µs/div

2V/div

2V/div

V

IN-

= 50mV

V

IN+

= 0V

SWITCHING CURRENT, OUT FALLING

IN+

OUT

I

CC

MAX987-14

200ns/div

50mV/
div

2V/div

2mA/div

VOD = 50mV

1MHZ RESPONSE

IN+

OUT

MAX987-15

200ns/div

50mV/
div

2V/div

VOD = 50mV

____________________________Typical Operating Characteristics (continued)

(VCC= 5V, VCM= 0V, TA= +25°C, unless otherwise noted.)

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

_______________________________________________________________________________________ 7

______________________________________________________________Pin Description

N.C.——— 1, 5, 8 No Connection. Not internally connected.

IND-

OUTD

IND+

INC+

13
14

12

10

—
—

—

—

OUTC

INC-

OUTB

—

INA-

INB+

INB-

INA+

OUTA

V

CC

IN-

V

EE

IN+

—

OUT

Comparator D Inverting Input

8
9

7

—

2

5
6

3

1

4

—
11

—

—

—

Comparator D Output

—
—

7

—

2

5
6

3

1

8

—

4

—

—

—

Comparator D Noninverting Input

— — Comparator C Output
— — Comparator C Inverting Input

— — Comparator B Output

— — Comparator C Noninverting Input

— — Comparator A Inverting Input

— — Comparator B Noninverting Input
— — Comparator B Inverting Input

— — Comparator A Noninverting Input

— — Comparator A Output

2 7 Positive Supply Voltage

4 2 Comparator Inverting Input
5 4 Negative Supply Voltage

3 3 Comparator Noninverting Input

1 6 Comparator Output

NAME

SO

MAX995
MAX996

MAX991
MAX996

SO/µMAX

MAX987
MAX988

SOT23-5 SO

PIN

FUNCTION

_______________Detailed Description

The MAX987/MAX988/MAX991/MAX992/MAX995/
MAX996 are single/dual/quad low-power, low-voltage
comparators. They have an operating supply voltage
range between +2.5V and +5.5V and consume only
48µA per comparator, while achieving 120ns propaga­tion delay. Their common-mode input voltage range
extends 0.25V beyond each rail. Internal hysteresis
ensures clean output switching, even with slow-moving
input signals. Large internal output drivers allow rail-to­rail output swing with up to 8mA loads.

The output stage employs a unique design that mini­mizes supply-current surges while switching, virtually
eliminating the supply glitches typical of many other
comparators. The MAX987/MAX991/MAX995 have a
push/pull output structure that sinks as well as sources
current. The MAX988/MAX992/MAX996 have an open­drain output stage that can be pulled beyond VCCto an
absolute maximum of 6V above VEE.

Input Stage Circuitry

The devices’ input common-mode range extends from

-0.25V to (VCC+ 0.25V). These comparators may oper­ate at any differential input voltage within these limits.
Input bias current is typically 1.0pA if the input voltage
is between the supply rails. Comparator inputs are pro­tected from overvoltage by internal body diodes con­nected to the supply rails. As the input voltage exceeds
the supply rails, these body diodes become forward
biased and begin to conduct. Consequently, bias cur­rents increase exponentially as the input voltage
exceeds the supply rails.

Output Stage Circuitry

These comparators contain a unique output stage
capable of rail-to-rail operation with up to 8mA loads.
Many comparators consume orders of magnitude more
current during switching than during steady-state oper­ation. However, with this family of comparators, the
supply-current change during an output transition is
extremely small. The

Typical Operating Characteristics

graph Supply Current vs. Output Transition Frequency
shows the minimal supply-current increase as the out­put switching frequency approaches 1MHz. This char­acteristic eliminates the need for power-supply filter
capacitors to reduce glitches created by comparator
switching currents. Battery life increases substantially
in high-speed, battery-powered applications.

__________Applications Information

Additional Hysteresis

MAX987/MAX991/MAX995

The MAX987/MAX991/MAX995 have ±2.5mV internal
hysteresis. Additional hysteresis can be generated with
three resistors using positive feedback (Figure 1).
Unfortunately, this method also slows hysteresis
response time. Use the following procedure to calcu­late resistor values for the MAX987/MAX991/MAX995.

1) Select R3. Leakage current at IN is under 10nA;
therefore, the current through R3 should be at least
1µA to minimize errors caused by leakage current.
The current through R3 at the trip point is (V

REF

-

V

OUT

) / R3. Considering the two possible output
states and solving for R3 yields two formulas: R3 =
V

REF

/ 1µA or R3 = (V

REF

- VCC) / 1µA. Use the
smaller of the two resulting resistor values. For
example, if V

REF

= 1.2V and VCC= 5V, then the two

R3 resistor values are 1.2MΩ and 3.8MΩ. Choose a

1.2MΩ standard value for R3.

2) Choose the hysteresis band required (VHB). For this
example, choose 50mV.

3) Calculate R1 according to the following equation:

R1 = R3 x (VHB/ VCC)

For this example, insert the values R1 = 1.2MΩ x
(50mV / 5V) = 12kΩ.

4) Choose the trip point for VINrising (V

THR

; V

THF

is
the trip point for VINfalling). This is the threshold
voltage at which the comparator switches its output
from low to high as VINrises above the trip point. For
this example, choose 3V.

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

V

CC

MAX987
MAX991
MAX995

OUT

0.1µF

R3

R1

R2

V

REF

V

EE

V

IN

V

CC

Figure 1. Additional Hysteresis (MAX987/MAX991/MAX995)

8 _______________________________________________________________________________________

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

_______________________________________________________________________________________ 9

5) Calculate R2 as shown. For this example, choose an

8.2kΩ standard value:

6) Verify trip voltages and hysteresis as follows:

MAX988/MAX992/MAX996

The MAX988/MAX992/MAX996 have ±2.5mV internal
hysteresis. They have open-drain outputs and require
an external pull-up resistor (Figure 2). Additional hys­teresis can be generated using positive feedback, but
the formulas differ slightly from those of the
MAX987/MAX991/MAX995.

Use the following procedure to calculate resistor
values:

1) Select R3 according to the formulas R3 = V

REF

/ 1µA

or R3 = (V

REF

- VCC) / 1µA - R4. Use the smaller of

the two resulting resistor values.

2) Choose the hysteresis band required (VHB). For this
example, choose 50mV.

3) Calculate R1 according to the following equation:

R1 = (R3 + R4) x (VHB/ VCC)

4) Choose the trip point for VINrising (V

THR

; V

THF

is
the trip point for VINfalling). This is the threshold
voltage at which the comparator switches its output
from low to high as VINrises above the trip point.

5) Calculate R2 as follows:

6) Verify trip voltages and hysteresis as follows:

Circuit Layout and Bypassing

These comparators’ high-gain bandwidth requires
design precautions to maximize their high-speed capa­bility. The recommended precautions are:

1) Use a printed circuit board with an unbroken, low­inductance ground plane.

2) Place a decoupling capacitor (a 0.1µF ceramic
capacitor is a good choice) as close to VCCas
possible.

3) On the inputs and outputs, keep lead lengths short
to avoid unwanted parasitic feedback around the
comparators.

4) Solder the devices directly to the printed circuit
board instead of using a socket.

V rising: V = V x R1 x

1

R1

V falling

IN THR REF

IN

:

+ +

+











= −

+











= −

1

2

1

3 4

1

3 4

R R R

V V

R x V

R R

Hysteresis V V

THF THR

CC

THR THF

R2 =

1

V

V

THR

REF

x R R R R1

1

1

1

3 4











− −
+

V rising: V = V x R1 x

1

R1

V falling

IN THR REF

IN

:

+ +











= −











= −

1

2

1

3

1

3

R R

V V

R x V

R

Hysteresis V V

THF THR

CC

THR THF

R2 =

1

V

V

R2 =

1

3.0V

1.2 x 12k

THR

REF

.

.

x R R R

k M

k

1

1

1

1

3

1

12

1

2 2

8 03











− −











− −

=

Ω Ω Ω

Ω

V

EE

V

CC

OUT

R3

R2

R1

R4

0.1µF

V

REF

V

IN

V

CC

MAX988
MAX992
MAX996

Figure 2. Additional Hysteresis (MAX988/MAX992/MAX996)

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

10 ______________________________________________________________________________________

Zero-Crossing Detector

Figure 3 shows a zero-crossing detector application.
The MAX987’s inverting input is connected to ground,
and its noninverting input is connected to a 100mVp-p
signal source. As the signal at the noninverting input
crosses 0V, the comparator’s output changes state.

Logic-Level Translator

Figure 4 shows an application that converts 5V logic lev­els to 3V logic levels. The MAX988 is powered by the +5V
supply voltage, and the pull-up resistor for the MAX988’s
open-drain output is connected to the +3V supply volt­age. This configuration allows the full 5V logic swing with­out creating overvoltage on the 3V logic inputs. For 3V to
5V logic-level translation, simply connect the +3V supply
to VCCand the +5V supply to the pull-up resistor.

MAX987

IN+

4

3

OUT

1

2

5

V

CC

100mV

V

CC

V

EE

IN-

0.1µF

Figure 3. Zero-Crossing Detector Figure 4. Logic-Level Translator

_____________________________________________Pin Configurations (continued)

14
13
12
11
10

9
8

1
2
3
4
5
6
7

OUTD
IND­IND+
V

EE

V

CC

INA+

INA-

OUTA

MAX995
MAX996

INC+
INC­OUTCOUTB

INB-

INB+

SO

OUT

N.C.

V

EE

1

2

87N.C.

V

CC

IN-

IN+

N.C.

SO

TOP VIEW

3

4

6

5

MAX987
MAX988

INB-

INB+

V

EE

1

2

87V

CC

OUTB

INA-

INA+

OUTA

SO/µMAX

3

4

6

5

MAX991
MAX992

+5V (+3V)

0.1µF

+3V (+5V)

100k

4

100k

3

5V (3V) LOGIC IN

IN-

IN+

V

CC

V

EE

2

MAX988

5

OUT

R

PULL-UP

3V (5V)

1

LOGIC OUT

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,

SOT23, Rail-to-Rail I/O Comparators

______________________________________________________________________________________ 11

_Ordering Information (continued)________Typical Application Circuit

MAX98_
MAX99_

IN+

0.1µF

*R

PULL-UP

THRESHOLD DETECTOR

* MAX988/MAX992/MAX996 ONLY

V

IN

OUT

V

CC

V

CC

V

EE

V

REF

IN-

14 SO

14 SO-40°C to +85°C

-40°C to +85°C

MAX996ESD

MAX995ESD

8 µMAX-40°C to +85°CMAX992EUA

8 SO

8 µMAX

8 SO

PIN-

PACKAGE

TEMP. RANGE

-40°C to +85°C

-40°C to +85°C

-40°C to +85°C

MAX992ESA

MAX991EUA

MAX991ESA

PART

—

—

—

—

—

—

SOT

TOP MARK

__________________________________________________Tape-and-Reel Information

4.0 ±0.1

0.30 ±0.05

0.8 ±0.05

0.30R MAX.

Bo

Ko

2.2 ±0.1

0.5 RADIUS
TYPICAL

A0

4.0 ±0.1

2.0 ±0.05

1.5 +0.1/-0.0 DIAMETER

1.75 ±0.1

1.0 ±0.1

A

8.0 ±0.3

3.5 ±0.05

1.0 MINIMUM

A

Ao = 3.1mm ±0.1
Bo = 2.7mm ±0.1
Ko = 1.2mm ±0.1

NOTE: DIMENSIONS ARE IN MM.
AND FOLLOW EIA481-1 STANDARD.

MAX987/MAX988/MAX991/MAX992/MAX995/MAX996

High-Speed, Micropower, Low-Voltage,
SOT23, Rail-to-Rail I/O Comparators

________________________________________________________Package Information

SOT5L.EPS

8LUMAXD.EPS

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

12

____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
