General Description

Packaged in a 1mm x 1mm UCSP™ with 4 bumps, the
MAX9515 is an ultra-small standard-definition video fil­ter amplifier with automatic shutdown.

The automatic shutdown circuitry eliminates the need
for a shutdown control. This feature provides intelligent
power management by disabling the filter and output
amplifier in the absence of a video input signal and/or
an output video load. At shutdown, the device only con­sumes 5µA.

The MAX9515 features an internal reconstruction filter
that smoothes the steps and reduces the spikes on the
video signal from the video digital-to-analog converter
(DAC). The reconstruction filter typically has ±1dB
passband flatness to 9MHz and typically 50dB of atten­uation at 27MHz.

The video input to the MAX9515 can be directly con­nected to the DAC output. The MAX9515 has an inter­nal fixed gain of 2V/V and expects a nominal full-scale
video input signal of 1V

P-P

. The MAX9515 is specified
to operate over the -40°C to +125°C automotive tem­perature range.

Applications

Digital Still Cameras (DSC)

Mobile Phones

Digital Video Camcorders (DVC)

Portable or Space-Constrained Applications

Features

♦ Ultra-Small, 4-Bump, 1mm x 1mm UCSP

♦ Automatic Shutdown

♦ DC-Coupled Input and Output

♦ 2.7V to 3.6V Single-Supply Operation

♦ Reconstruction Filter with 9MHz Passband and

50dB Attenuation at 27MHz

♦ 5µA Shutdown Supply Current

MAX9515

1mm x 1mm Video Filter Amplifier with

Automatic Shutdown and 2V/V Gain

________________________________________________________________

Maxim Integrated Products

1

Ordering Information

AV = 2V/V

OUTIN

BUFFER

LPF

AUTOMATIC
SHUTDOWN

CONTROL LOGIC

MAX9515

0mV

TO

50mV

300mV

TO

400mV

1V

P-P

VIDEO

2V

P-P

VIDEO

Block Diagram

OUT

V

DD

IN

GND

12

A

B

MAX9515

UCSP

(1mm × 1mm)

TOP VIEW

(BUMPS FACING DOWN)

Pin Configuration

19-3214; Rev 1; 8/08

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.

EVALUATION KIT

AVAILABLE

PART

PIN-PACKAGE

TOP

PKG

CODE

MAX9515ABS+T

4 UCSP AFW B4+1

Note: This device is specified over the -40°C to +125°C operat­ing temperature range.

+

Denotes a lead-free/RoHS-compliant package.

T = Tape and reel.

UCSP is a trademark of Maxim Integrated Products, Inc.

MARK

MAX9515

1mm x 1mm Video Filter Amplifier with
Automatic Shutdown and 2V/V Gain

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VDD= 3.3V, video output has RL= 150Ω connected to GND, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at

T

A

= +25°C.) (Note 1)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

(Voltages with respect to GND.)
V

DD

.................................................................................0 to +4V

IN ............................................................................. -0.3V to +4V

OUT (during shutdown) ....................................... -0.3V to +1.5V

Continuous Current

IN ...................................................................................±20mA

Continuous Power Dissipation (T

A

= +70°C)

4-Bump UCSP (derate 3mW/°C above +70°C).............239mW

Maximum Output Current

OUT ................................................................................±100mA

Operating Temperature Range ........................-40°C to +125°C

Junction Temperature .....................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Bump Temperature (soldering)

Infrared (15s) ...............................................................+220°C

Vapor Phase (60s) .......................................................+215°C

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Supply Voltage Range V

Supply Current I

DD

DD

Guaranteed by PSRR test 2.7 3.3 3.6 V

Automatic shutdown
mode

Active-detect mode

No load, IN does not
have an active video
signal

No load, IN has a
black-burst video
signal with a sync tip

510

920

µA

RL = 150Ω connected to GND, IN has a
black-burst video signal with a sync tip,
quiescent current only; no load current is
included

AUTOMATIC SHUTDOWN

Minimum Line Frequency 7.3 kHz

Sync Slice Level 4.1 5.2 %V

Output Load Detect Threshold 200 Ω

DC CHARACTERISTICS

Input Voltage Range

Input Current I

Input Resistance R

DC Voltage Gain (Note 2) A

Output Level IN = GND 0.21 0.30 0.41 V

Output-Voltage Swing Measured at output

Guaranteed by
output-voltage swing

IN = GND 2 5 µA

B

IN

Guaranteed by output-voltage swing 1.96 2.00 2.04 V/V

V

2.7V ≤ VDD ≤ 3.6V 0 1.05

3.0V ≤ V

2.7V ≤ VDD ≤ 3.6V,
0 ≤ V

3.0V ≤ V
0 ≤ V

≤ 3.6V 0 1.20

DD

≤ 1.05V

IN

DD

≤ 1.20V

IN

≤ 3.6V,

2.058 2.1 2.121

2.352 2.4 2.424

2.9 4.8 mA

V

17 MΩ

V

P-P

DD

MAX9515

1mm x 1mm Video Filter Amplifier with

Automatic Shutdown and 2V/V Gain

_______________________________________________________________________________________ 3

Note 1: All devices are 100% production tested at TA= +25°C. Specifications over temperature limits are guaranteed by design.
Note 2: Voltage gain (A

V

) is a two-point measurement in which the output-voltage swing is divided by the input-voltage swing.

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, video output has RL= 150Ω connected to GND, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at

T

A

= +25°C.) (Note 1)

Output Resistance R

Output Leakage Current

Power-Supply Rejection Ratio PSRR 2.7V ≤ VDD ≤ 3.6V, VIN = 1.05V 48 dB

AC CHARACTERISTICS

Standard-Definition
Reconstruction Filter

Differential Gain DG

Differential Phase DP

Group-Delay Distortion 100kHz ≤ f ≤ 5MHz, V

Peak Signal-to-RMS Noise 100kHz ≤ f ≤ 5MHz -71.8 dB

Power-Supply Rejection Ratio PSRR f = 100kHz, 200mV

2T Pulse Response 2T = 200ns 0.2 K%

2T Pulse-to-Bar K Rating

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

V

OUT

= 1.3V, -5mA ≤ I

OUT

IN does not have active video signal,
V

= 1.5V

OUT

±1dB passband flatness 9 MHz

= 1V

V

IN

reference frequency
is 1MHz

f = 3.58MHz 0.2

f = 4.43MHz 0.25

f = 3.58MHz 0.35

f = 4.43MHz 0.45

2T = 200ns, bar time is 18µs; the beginning

2.5% and the ending 2.5% of the bar time is
ignored

P-P

,

LOAD

f = 5.5MHz 0

f = 9.6MHz -3

f = 27MHz -50

= 2V

OUT

P-P

≤ +5mA 0.47 Ω

P-P

1µA

9.84 ns

42 dB

0.2 K%

dB

%

D eg r ees

RMS

2T = 200ns, bar time is 18µs; the beginning

2T Bar Response

Nonlinearity 5-step staircase 0.3 %

Output Impedance f = 5MHz 6 Ω

2.5% and the ending 2.5% of the bar time is
ignored

0.2 K%

MAX9515

1mm x 1mm Video Filter Amplifier with
Automatic Shutdown and 2V/V Gain

4 _______________________________________________________________________________________

Typical Operating Characteristics

(VDD= 3.3V, GND = 0V, DC-coupled input, video output has RL= 150Ω connected to GND, TA= +25°C, unless otherwise noted.)

SMALL-SIGNAL GAIN

vs. FREQUENCY

10

0

-10

-20

-30

GAIN (dB)

-40

-50

-60

-70

0.1 100
FREQUENCY (MHz)

LARGE-SIGNAL GAIN FLATNESS

vs. FREQUENCY

2

1

0

-1

-2

-3

GAIN (dB)

-4

-5

-6

-7

-8

0.1 100
FREQUENCY (MHz)

V

101

101

OUT

= 100mV

V

= 2V

OUT

SMALL-SIGNAL GAIN FLATNESS

vs. FREQUENCY

MAX9515 toc02

10

0

-10

-20

-30

GAIN (dB)

-40

-50

-60

-70

0.1 100

P-P

MAX9515 toc01

2

1

0

-1

-2

-3

GAIN (dB)

-4

-5

-6

-7

-8

0.1 100
FREQUENCY (MHz)

V

101

OUT

= 100mV

P-P

GROUP DELAY

vs. FREQUENCY

0

-10

-20

-30

-40

PSRR (dB)

-50

-60

-70

-80

0.1 100

MAX9515 toc04

125

V

= 2V

OUT

P-P

100

75

DELAY (ns)

50

25

0

0.1 100
FREQUENCY (MHz)

101

MAX9515 toc05

P-P

LARGE-SIGNAL GAIN

vs. FREQUENCY

V

= 2V

OUT

101

FREQUENCY (MHz)

POWER-SUPPLY REJECTION RATIO

vs. FREQUENCY

VDD = 3.3V

= 200mV

V

RIPPLE

P-P

101

FREQUENCY (MHz)

P-P

MAX9515 toc03

MAX9515 toc06

QUIESCENT SUPPLY CURRENT

vs. TEMPERATURE

2.9
VIN = BLACK VIDEO SIGNAL

= 150Ω

R

L

= IDD - I

I

SUPPLY

2.8

2.7

2.6

2.5

QUIESCENT SUPPLY CURRENT (mA)

2.4

-50 125

OUT

TEMPERATURE (°C)

2.05
VIN = 1V

2.04

MAX9515 toc07

2.03

2.02

2.01

2.00

1.99

VOLTAGE GAIN (V/V)

1.98

1.97

1.96

1007550250-25

1.95

-50 125

VOLTAGE GAIN

vs. TEMPERATURE

TEMPERATURE (°C)

OUTPUT VOLTAGE

vs. INPUT VOLTAGE

3.5

3.0

MAX9515 toc08

2.5

2.0

1.5

OUTPUT VOLTAGE (V)

1.0

0.5

1007525 500-25

0

0 1.50

INPUT VOLTAGE (V)

MAX9515 toc09

1.251.000.750.500.25

MAX9515

1mm x 1mm Video Filter Amplifier with

Automatic Shutdown and 2V/V Gain

_______________________________________________________________________________________

5

Typical Operating Characteristics (continued)

(VDD= 3.3V, GND = 0V, DC-coupled input, video output has RL= 150Ω connected to GND, TA= +25°C, unless otherwise noted.)

PAL COLOR BARS

MAX9515 toc16

10μs/div

IN
500mV/div

OUT
1V/div

FIELD SQUARE-WAVE RESPONSE

MAX9515 toc17

2ms/div

IN
500mV/div

OUT
1V/div

DIFFERENTIAL GAIN

AND PHASE

0.1

0

-0.1

-0.2

(%)

-0.3

-0.4

DIFFERENTIAL GAIN

0.8

0.6

0.4

(deg)

0.2
0

-0.2

DIFFERENTIAL PHASE

-0.4
17

12.5T RESPONSE

f = 3.58MHz

6543217

f = 3.58MHz

65432

MAX9515 toc13

0.1

MAX9515 toc10

-0.1

-0.2

(%)

-0.3

-0.4

DIFFERENTIAL GAIN

0.8

0.6

0.4

(deg)

0.2

-0.2

DIFFERENTIAL PHASE

-0.4

IN
200mV/div

0

0

17

DIFFERENTIAL GAIN

AND PHASE

f = 4.43MHz

f = 4.43MHz

NTC-7 VIDEO TEST SIGNAL

2T RESPONSE

MAX9515 toc11

6543217

65432

MAX9515 toc14

PAL MULTIBURST RESPONSE

500mV/div

100ns/div

MAX9515 toc12

MAX9515 toc15

IN
200mV/div

OUT
400mV/div

IN
500mV/div

400ns/div

OUT
400mV/div

10μs/div

1V/div

10μs/div

OUT
1V/div

MAX9515

1mm x 1mm Video Filter Amplifier with
Automatic Shutdown and 2V/V Gain

6 _______________________________________________________________________________________

Pin Description

Detailed Description

The MAX9515 is an ultra-small, standard-definition
video filter amplifier with automatic shutdown. Automatic
shutdown circuitry provides intelligent power manage­ment by disabling the filter and output amplifier in the
absence of an input video signal and/or output load.

An internal reconstruction filter smoothes the steps and
reduces the spikes on the video signal from the video
digital-to-analog converter. The reconstruction filter typ­ically has ±1dB passband flatness to 9MHz and typi­cally 50dB of attenuation at 27MHz. The MAX9515 has
an internal fixed gain of 2V/V and expects a nominal
full-scale video input signal of 1V

P-P

.

CURRENT

DAC

VIDEO ENCODER

NO VIDEO

SIGNAL

AV = 2V/V

OUTIN

BUFFER

LPF

AUTOMATIC

SHUTDOWN

CONTROL LOGIC

MAX9515

V

DD

+3.3V

GND

5μA

75Ω

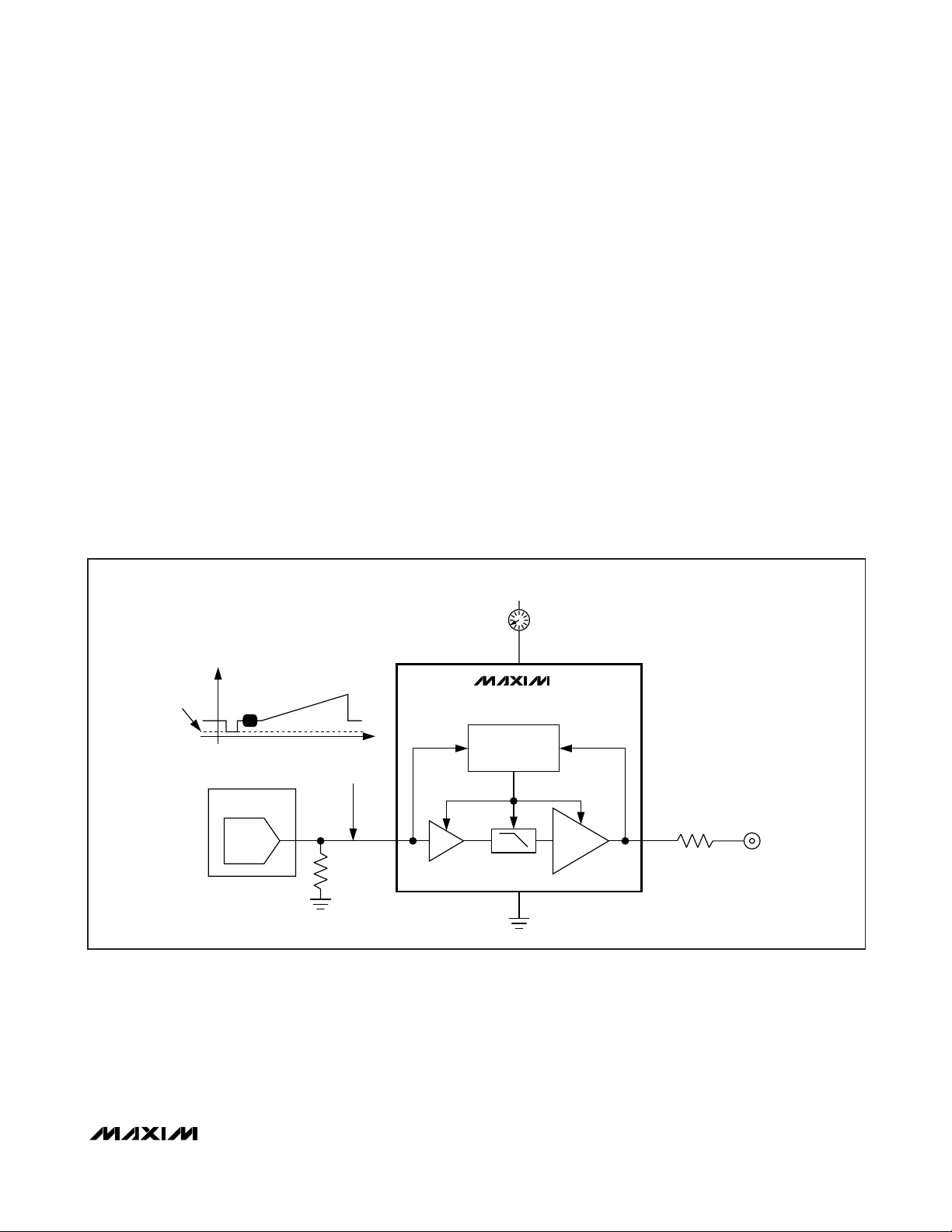

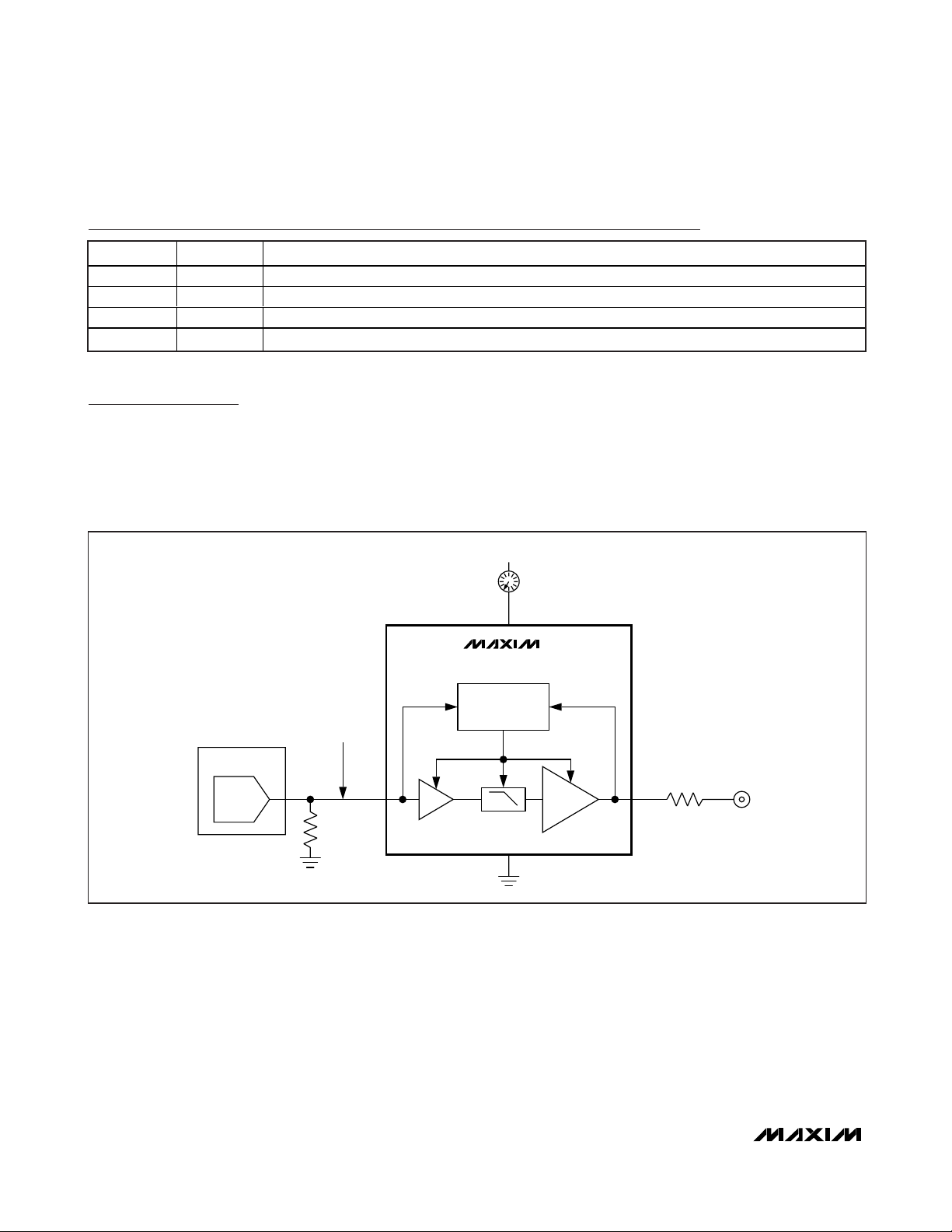

Figure 1. Automatic Shutdown

PIN NAME FUNCTION

A1 GND Ground

A2 OUT Video Output

B1 IN Video Input

B2 V

DD

Positive Power Supply. Bypass VDD with a 0.1µF capacitor to ground.

Automatic Shutdown

The MAX9515 automatic shutdown circuitry reduces
power consumption when there is no active video input
signal or an output load. In shutdown, the supply cur­rent is reduced to 5µA. The video amplifier only turns
on when both an active video input signal and an out­put load are present.

The MAX9515 slices the IN signal at 4.7% of the power
supply (155mV for a 3.3V supply). If the transitions
occur at a rate of 7.3kHz or higher, a video signal is
present. When the MAX9515 detects a video signal
with sync at the input, the control logic enters the
active-detect mode and enables the load sense circuit­ry (Figure 2). The supply current increases from 5µA to
9µA typically.

If an output load is not connected to the amplifier, the
MAX9515 remains in active-detect mode. Eight times
per second, the load-sense circuit checks for a load by

connecting an internal 15kΩ pullup resistor to the out­put for 1ms. If the output is pulled up, no load is pre­sent. If the output stays low, a load is connected.

If the input video signal is present and a load is con­nected to the output, the filter and amplifier turn on and
remain on until the output load is disconnected.
Automatic shutdown intelligently reduces the supply
current based on the input signal presence and output
loading (Figure 3).

When the amplifier is on, it continually checks if the
load has been disconnected by detecting if the amplifi­er output is sourcing current during a horizontal line
time. If no sourcing current is detected within one hori­zontal line time (approximately 64µs), the load has
been disconnected and the amplifier returns to active­detect mode. If, at any time, the input video signal is
removed, the MAX9515 returns to standby mode.

MAX9515

1mm x 1mm Video Filter Amplifier with

Automatic Shutdown and 2V/V Gain

_______________________________________________________________________________________ 7

Figure 2. Active-Detect Mode

0

TO

50mV

VIDEO

1V

P-P

+3.3V

9μA

V

DD

MAX9515

VIDEO ENCODER

CURRENT

DAC

VIDEO SIGNAL

PRESENT

AUTOMATIC
SHUTDOWN

CONTROL LOGIC

75Ω

IN

BUFFER

LPF

AV = 2V/V

GND

OUT

NO LOAD

MAX9515

1mm x 1mm Video Filter Amplifier with
Automatic Shutdown and 2V/V Gain

8 _______________________________________________________________________________________

Input

The MAX9515 video input should be directly connected
to the output of the video current DAC. DC-coupling
ensures that the input signal is ground referenced such
that the sync tip of the composite video signal is within
50mV of ground. Any standard-definition video signal
can be applied to the input as long as the signal is
between ground and 1.05V when VDD= 2.7V.

Video Reconstruction Filter

The filter passband (±1dB) is typically 9MHz, which
makes the device suitable for standard-definition video
signals from all sources (e.g., broadcast and DVD).
Broadcast video signals are channel limited: NTSC sig­nals have 4.2MHz bandwidth, and PAL signals have
5MHz of bandwidth. Video signals from a DVD player,
however, are not channel limited; so the bandwidth of
DVD video signals approaches the Nyquist limit of

6.75MHz. (Recommendation ITU-R BT.601-5 specifies

13.5MHz as the sampling rate for standard-definition
video). Therefore, the maximum bandwidth of the signal
is 6.75MHz. To ease the filtering requirements, most
modern video systems over sample by two times,
clocking the video current DAC at 27MHz.

Output

The MAX9515 output expects to drive a DC-coupled
load to ground. The amplifier output stage needs about
300mV of headroom from either supply rail. The device
has an internal level shift circuit that positions the sync
tip at approximately 300mV at the output.

Applications Information

Power-Supply Bypassing and Ground

The MAX9515 operates from a single-supply voltage
down to 2.7V, allowing for low-power operation. Bypass
VDDto GND with a 0.1µF capacitor. Place all external
components as close as possible to the device.

UCSP Applications Information

For the latest application details on UCSP construction,
dimensions, tape carrier information, PCB techniques,
bump-pad layout, and recommended reflow tempera­ture profile, as well as the latest information on reliability
testing results, go to the Maxim’s website at

www.maxim-ic.com/ucsp to find the Application Note

1891:

Understanding the Basics of the Wafer-Level

Chip-Scale Package (WL-CSP).

CURRENT

DAC

VIDEO ENCODER

VIDEO SIGNAL

PRESENT

AV = 2V/V

OUTIN

BUFFER

LPF

AUTOMATIC
SHUTDOWN

CONTROL LOGIC

2.9mA QUIESCENT SUPPLY CURRENT PLUS OUTPUT LOAD CURRENT

MAX9515

V

DD

+3.3V

75Ω

75Ω

GND

0

TO

50mV

1V

P-P

VIDEO

Figure 3. Full-Operation Mode

Chip Information

PROCESS: BiCMOS

MAX9515

1mm x 1mm Video Filter Amplifier with

Automatic Shutdown and 2V/V Gain

_______________________________________________________________________________________ 9

Package Information

For the latest package outline information and land patterns, go to www.maxim-ic.com/packages.

PACKAGE TYPE PACKAGE CODE DOCUMENT NO.

4 UCSP B4+1

21-0117

4L, UCSP 2x2.EPS

PACKAGE OUTLINE, 2x2 UCSP

21-0117

1

G

1

MAX9515

1mm x 1mm Video Filter Amplifier with
Automatic Shutdown and 2V/V Gain

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

10

____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2008 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Revision History

REVISION

NUMBER

0 5/08 Initial release —

1 8/08 Updated EC table 3

REVISION

DATE

DESCRIPTION

PAGES

CHANGED
