MAXIM MAX9392, MAX9393 User Manual

General Description

The MAX9392/MAX9393 dual 2 x 2 crosspoint switches
perform high-speed, low-power, and low-noise signal
distribution. The MAX9392/MAX9393 multiplex one of two
differential input pairs to either or both low-voltage differ­ential signaling (LVDS) outputs for each channel.
Independent enable inputs turn on or turn off each differ­ential output pair.

Four LVCMOS/LVTTL logic inputs (two per channel) con­trol the internal connections between inputs and outputs.
This flexibility allows for the following configurations: 2 x 2
crosspoint switch, 2:1 mux, 1:2 splitter, or dual repeater.
This makes the MAX9392/MAX9393 ideal for protection
switching in fault-tolerant systems, loopback switching for
diagnostics, fanout buffering for clock/data distribution,
and signal regeneration.

Fail-safe circuitry forces the outputs to a differential low
condition for undriven inputs or when the common­mode voltage exceeds the specified range. The
MAX9392 provides high-level input fail-safe detection
for LVDS, HSTL, and other GND-referenced differential
inputs. The MAX9393 provides low-level input fail-safe
detection for LVPECL, CML, and other V

CC

-referenced

differential inputs.

Ultra-low 98ps

(P-P)

(max) pseudorandom bit sequence
(PRBS) jitter ensures reliable communications in high­speed links that are highly sensitive to timing error,
especially those incorporating clock-and-data recovery,
or serializers and deserializers. The high-speed switch­ing performance guarantees 1.5GHz operation and less
than 67ps (max) skew between channels.

LVDS inputs and outputs are compatible with the
TIA/EIA-644 LVDS standard. The LVDS outputs drive
100Ω loads. The MAX9392/MAX9393 are offered in
a 32-pin TQFP package and operate over the extended
temperature range (-40°C to +85°C).

Also see the MAX9390/MAX9391 for the crossflow version.

Applications

High-Speed Telecom/Datacom Equipment

Central-Office Backplane Clock Distribution

DSLAM

Protection Switching

Fault-Tolerant Systems

Features

♦ 1.5GHz Operation with 250mV Differential Output

Swing

♦ 2ps

RMS

(max) Random Jitter

♦ AC Specifications Guaranteed for 150mV

Differential Input

♦ Signal Inputs Accept Any Differential Signaling

Standard

♦ LVDS Outputs for Clock or High-Speed Data

♦ High-Level Input Fail-Safe Detection (MAX9392)

♦ Low-Level Input Fail-Safe Detection (MAX9393)

♦ 3.0V to 3.6V Supply Voltage Range

♦ LVCMOS/LVTTL Logic Inputs Control Signal

Routing

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

________________________________________________________________ Maxim Integrated Products 1

Pin Configurations

Ordering Information

19-2913; Rev 1; 5/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

+Denotes a lead-free package.

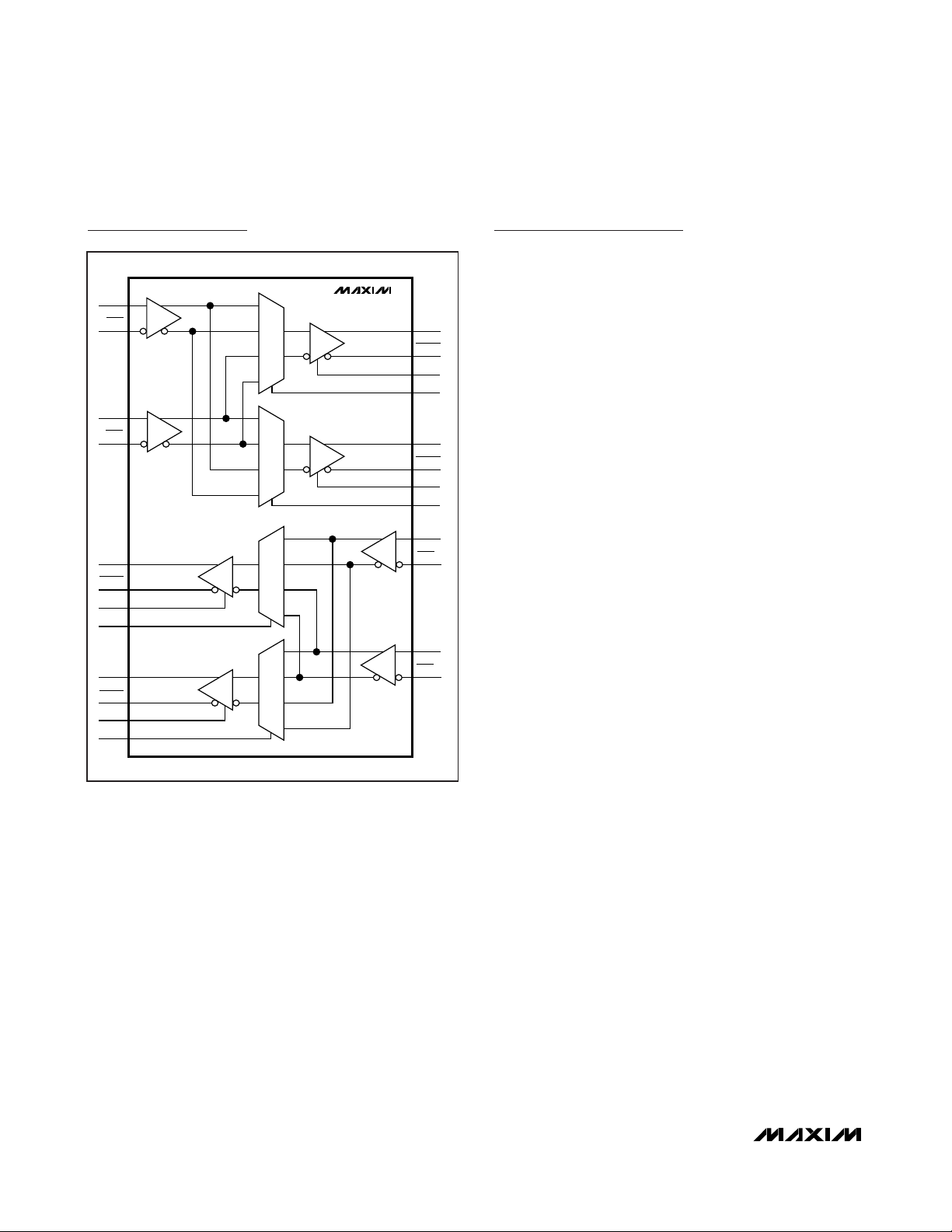

Functional Diagram and Typical Operating Circuit appear at
end of data sheet.

EVALUATION KIT

AVAILABLE

PART TEMP RANGE

MAX9392EHJ -40°C to +85°C 32 TQFP H32-1

MAX9392EHJ+ -40°C to +85°C 32 TQFP H32-1

MAX9393EHJ -40°C to +85°C 32 TQFP H32-1

MAX9393EHJ+ -40°C to +85°C 32 TQFP H32-1

PIN­PACKAGE

PKG

CODE

TOP VIEW

INA1

INA1

OUTB1

VCCASEL0

293031

MAX9392
MAX9393

GND

OUTB1

TQFP

13

ENB0

27

14

INA0

26

15

OUTB0

INA0

25

1611 12

OUTB0

GND

CC

V

24 V

23

22

21

20

19

18

17

CC

OUTA0

OUTA0

ENA0

GND

OUTA1

OUTA1

ENA1

INB0

INB0

BSEL0

V

INB1

INB1

ASEL1

32 28

+

1GND

2

3

4

5

CC

6

7

8BSEL1

10

9

ENB1

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

DC ELECTRICAL CHARACTERISTICS

(VCC= 3.0V to 3.6V, RL= 100Ω±1%, EN_ _ = VCC, VCM= 0.05V to (VCC- 0.6V) (MAX9392), VCM= 0.6V to (VCC- 0.05V)
(MAX9393), T

A

= -40°C to +85°C, unless otherwise noted. Typical values are at VCC= 3.3V, |VID| = 0.2V, VCM= 1.2V, TA= +25°C,

unless otherwise noted.) (Notes 1, 2, and 3)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VCCto GND...........................................................-0.3V to +4.1V

IN_ _, IN_ _, OUT_ _, OUT_ _, EN_ _,

_SEL_ to GND..........................................-0.3V to (V

CC

+ 0.3V)

IN_ _ to IN_ _ ..........................................................................±3V

Short-Circuit Duration (OUT_ _, OUT_ _) ...................Continuous

Continuous Power Dissipation (T

A

= +70°C)
32-Pin TQFP (derate 13.1mW/°C

above +70°C).............................................................1047mW

Junction-to-Ambient Thermal Resistance in Still Air

32-Pin TQFP............................................................+76.4°C/W

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Soldering Temperature (10s) ...........................................+300°C

LVCMOS/LVTTL INPUTS (EN_ _, _SEL_)

Input High Voltage V

Input Low Voltage V

Input High Current I

Input Low Current I

DIFFERENTIAL INPUTS (IN_ _, IIIINNNN____ ____)

Differential Input Voltage V

Input Common-Mode Range V

Input Current

LVDS OUTPUTS (OUT_ _, OOOOUUUUTTTT____ ____)

Differential Output Voltage V

Change in Magnitude of V
Between Complementary Output
States

Offset Common-Mode Voltage V

Change in Magnitude of V
Between Complementary Output
States

PARAMETER SYM B O L CONDITIONS MIN TYP MAX UNITS

IH

IL

VIN = 2.0V to V

VIN = 0 to 0.8V 0 10 µA

V

ID

,

OD

OS

> 0 and V

ILD

MAX9392 0.05 VCC - 0.6

MAX9393 0.6 VCC - 0.05

MAX9392 |VID| < 3.0V -50 +10

RL = 100Ω, Figure 2 250 350 450 mV

Figure 2 1.0 50 mV

Figure 2 1.125 1.25 1.375 V

Figure 2 1.0 50 mV

OD

OS

IH

IL

CM

I

IN_ _

I

IN_ _ MAX9393 |V

OD

ΔV

OS

ΔV

2.0 V

0 0.8 V

CC

< VCC, Figure 1 0.1 3.0 V

IHD

| < 3.0V -10 +90

ID

020µA

CC

V

V

µA

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

_______________________________________________________________________________________ 3

AC ELECTRICAL CHARACTERISTICS

(VCC= 3.0V to 3.6V, fIN≤ 1.34GHz, t

R_IN

= t

F_IN

= 125ps, RL= 100Ω±1%, |VID| ≥ 150mV, VCM= 0.075V to (VCC- 0.6V) (MAX9392

only), V

CM

= 0.6V to (VCC- 0.075V) (MAX9393 only), EN_ _ = VCC, TA= -40°C to +85°C, unless otherwise noted. Typical values are

at V

CC

= 3.3V, |VID| = 0.2V, VCM= 1.2V, fIN= 1.34GHz, TA= +25°C, unless otherwise noted.) (Note 5)

Note 1: Measurements obtained with the device in thermal equilibrium. All voltages referenced to GND except V

ID

, VOD, and ΔVOD.

Note 2: Current into the device defined as positive. Current out of the device defined as negative.
Note 3: DC parameters tested at T

A

= +25°C and guaranteed by design and characterization for TA= -40°C to +85°C.

Note 4: Current through either output.
Note 5: Guaranteed by design and characterization. Limits set at ±6 sigma.
Note 6: t

SKEW

is the magnitude difference of differential propagation delays for the same output over same conditions. t

SKEW

=

|t

PHL

- t

PLH

|.

Note 7: Measured between outputs of the same device at the signal crossing points for a same-edge transition, under the same

conditions.

Note 8: Device jitter added to the differential input signal.

DC ELECTRICAL CHARACTERISTICS (continued)

(VCC= 3.0V to 3.6V, RL= 100Ω±1%, EN_ _ = VCC, VCM= 0.05V to (VCC- 0.6V) (MAX9392), VCM= 0.6V to (VCC- 0.05V)
(MAX9393), T

A

= -40°C to +85°C, unless otherwise noted. Typical values are at VCC= 3.3V, |VID| = 0.2V, VCM= 1.2V, TA= +25°C,

unless otherwise noted.) (Notes 1, 2, and 3)

Output Short-Circuit Current
(Either Output Shorted to GND)

Output Short-Circuit Current
(Outputs Shorted Together)

SUPPLY CURRENT

Supply Current I

PARAMETER SYM B O L CONDITIONS MIN TYP MAX UNITS

V

|I

|I

OSB

OS

CC

V

= ±100m V

ID

|

( N ote 4)

= ±100mV, V

V

ID

|

(Note 4)

RL = 100Ω, EN_ _ = V

OUT_ _

V

OUT_ _

OUT_ _

CC

or V

= V

= V

OUT_ _

= 0 30 40

OUT_ _

= 0 18 24

OUT_ _

mA

5.0 12 mA

68 98 mA

PARAMETER SYM B O L CONDITIONS MIN TYP MAX UNITS

_SEL_ to Switched Output t

Disable Time to Differential
Output Low

Enable Time to Differential
Output High

Switching Frequency f

Low-to-High Propagation Delay t

High-to-Low Propagation Delay t

SWITCH

t

PHD

t

PDH

MAX

PLH

PHL

Figure 3 1.1 ns

Figure 4 1.7 ns

Figure 4 1.7 ns

VOD > 250mV 1.5 2.2 GHz

Figures 1, 5 294 410 574 ps

Figures 1, 5 286 402 555 ps

Pulse Skew |t

Output-to-Output Skew t

Output Low-to-High Transition
Time (20% to 80%)

Output High-to-Low Transition
Time (80% to 20%)

Added Random Jitter t

Added Deterministic Jitter t

PLH

- t

|t

PHL

SKEW

CCS

t

R

t

F

RJ

DJ

Figures 1, 5 (Note 6) 17 104 ps

Figures 5, 6 (Note 7) 4 67 ps

Figures 1, 5; fIN = 100MHz 112 142 185 ps

Figures 1, 5; fIN = 100MHz 112 145 185 ps

f

= 1.34GHz, clock pattern (Note 8) 2 ps

IN_ _

1.34Gbps, 223 - 1 PRBS (Note 8) 60 98 ps

RMS

P-P

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

4 _______________________________________________________________________________________

Typical Operating Characteristics

(VCC= +3.3V, |VID| = 0.2V, VCM= +1.2V, fIN= 1.34GHz, TA= +25°C, unless otherwise noted.)

SUPPLY CURRENT

vs. TEMPERATURE

MAX9392 toc01

TEMPERATURE (°C)

SUPPLY CURRENT (mA)

603510-15

55

60

65

70

75

80

50

-40 85

VCC = 3.6V

VCC = 3.0V

VCC = 3.3V

0

150

100

50

200

250

350

300

400

0 0.4 0.60.2 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4

OUTPUT AMPLITUDE vs. FREQUENCY

MAX9392 toc02

FREQUENCY (GHz)

OUTPUT AMPLITUDE (mV)

OUTPUT RISE AND FALL TIMES

vs. TEMPERATURE

MAX9392 toc03

TEMPERATURE (°C)

RISE/FALL TIME (ps)

603510-15

130

140

150

160

170

180

120

-40 85

fIN = 100MHz

t

F

t

R

350

380

370

360

390

400

410

420

430

440

450

-40 10-15 35 60 85

PROPAGATION DELAY

vs. TEMPERATURE

MAX9392 toc04

TEMPERATURE (°C)

PROPAGATION DELAY (ps)

MAX9392

DIFFERENTIAL INPUT CURRENT

vs. TEMPERATURE

MAX9392 toc05

TEMPERATURE (°C)

INPUT CURRENT (μA)

603510-15

-45

-40

-35

-30

-25

-20

-15

-10

-5

0

5

10

-50

-40 85

VIN = 3.0V

VIN = 0.1V

MAX9393

DIFFERENTIAL INPUT CURRENT

vs. TEMPERATURE

MAX9392 toc06

TEMPERATURE (°C)

INPUT CURRENT (μA)

603510-15

10

20

30

40

50

60

70

0

-40 85

VIN = 3.2V

VIN = 0.3V

MAX9392

INPUT CURRENT vs. V

IHD

MAX9392 toc07

V

IHD

(V)

INPUT CURRENT (μA)

3.33.02.4 2.70.6 0.9 1.2 1.5 1.8 2.10.3

-45

-40

-35

-30

-25

-20

-15

-10

-5

0

5

10

-50
0 3.6

VCC = 3V

IN_ _ OR IN_ _ = GND

VCC = 3.6V

MAX9393

INPUT CURRENT vs. V

ILD

MAX9392 toc08

V

ILD

(V)

INPUT CURRENT (μA)

3.33.02.4 2.70.6 0.9 1.2 1.5 1.8 2.10.3

0

10

20

30

40

50

60

70

80

-10
0 3.6

VCC = 3V

VCC = 3.6V

IN_ _ OR IN_ _ = V

CC

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

_______________________________________________________________________________________ 5

Pin Description

PIN NAME FUNCTION

1, 12,

20, 25

5, 16,

24, 29

GND Ground

2 INB0

3 INB0

4 BSEL0

V

CC

6 INB1

7 INB1

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Noninverting Input. An internal 128kΩ resistor to V
the input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Inverting Input. An internal 128kΩ resistor to V
input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

Input Select for B0 Output. Selects the differential input to reproduce at the B0 differential outputs. Connect
BSEL0 to GND or leave open to select the INB0 (INB0) set of inputs. Connect BSEL0 to VCC to select the INB1
(INB1) set of inputs. An internal 435kΩ resistor pulls BSEL0 low when unconnected.

Power-Supply Input. Bypass each VCC to GND with 0.1µF and 0.01µF ceramic capacitors. Install both bypass
capacitors as close to the device as possible, with the 0.01µF capacitor closest to the device.

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Noninverting Input. An internal 128kΩ resistor to V
the input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Inverting Input. An internal 128kΩ resistor to V
input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

pulls

CC

pulls the

CC

pulls

CC

pulls the

CC

8 BSEL1

9 ENB1

10 OUTB1

11 OUTB1

13 ENB0

14 OUTB0

15 OUTB0

Input Select for B1 Output. Selects the differential input to reproduce at the B1 differential outputs. Connect
BSEL1 to GND or leave open to select the INB0 (INB0) set of inputs. Connect BSEL1 to V
(INB1) set of inputs. An internal 435kΩ resistor pulls BSEL1 low when unconnected.

B1 Output Enable. Drive ENB1 high to enable the B1 LVDS outputs. An internal 435kΩ resistor pulls ENB1 low
when unconnected.

B1 LVDS Inverting Output. Connect a 100Ω termination resistor between OUTB1 and OUTB1 at the receiver
inputs to ensure proper operation.

B1 LVDS Noninverting Output. Connect a 100Ω termination resistor between OUTB1 and OUTB1 at the receiver
inputs to ensure proper operation.

B0 Output Enable. Drive ENB0 high to enable the B0 LVDS outputs. An internal 435kΩ resistor pulls ENB0 low
when unconnected.

B0 LVDS Inverting Output. Connect a 100Ω termination resistor between OUTB0 and OUTB0 at the receiver
inputs to ensure proper operation.

B0 LVDS Noninverting Output. Connect a 100Ω termination resistor between OUTB0 and OUTB0 at the receiver
inputs to ensure proper operation.

to select the INB1

CC

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

6 _______________________________________________________________________________________

Pin Description (continued)

PIN NAME FUNCTION

17 ENA1

18 OUTA1

19 OUTA1

21 ENA0

22 OUTA0

23 OUTA0

26 INA0

A1 Output Enable. Drive ENA1 high to enable the A1 LVDS outputs. An internal 435kΩ resistor pulls ENA1 low
when unconnected.

A1 LVDS Inverting Output. Connect a 100Ω termination resistor between OUTA1 and OUTA1 at the receiver
inputs to ensure proper operation.

A1 LVDS Noninverting Output. Connect a 100Ω termination resistor between OUTA1 and OUTA1 at the receiver
inputs to ensure proper operation.

A0 Output Enable. Drive ENA0 high to enable the A0 LVDS outputs. An internal 435kΩ resistor pulls ENA0 low
when unconnected.

A0 LVDS Inverting Output. Connect a 100Ω termination resistor between OUTA0 and OUTA0 at the receiver
inputs to ensure proper operation.

A0 LVDS Noninverting Output. Connect a 100Ω termination resistor between OUTA0 and OUTA0 at the receiver
inputs to ensure proper operation.

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Noninverting Input. An internal 128kΩ resistor to V
the input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

pulls

CC

27 INA0

28 ASEL0

30 INA1

31 INA1

32 ASEL1

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Inverting Input. An internal 128kΩ resistor to V
input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

Input Select for A0 Output. Selects the differential input to reproduce at the A0 differential outputs. Connect
ASEL0 to GND or leave open to select the INA0 (INA0) set of inputs. Connect ASEL0 to V
(INA1) set of inputs. An internal 435kΩ resistor pulls ASEL0 low when unconnected.

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Noninverting Input. An internal 128kΩ resistor to V
the input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

LVDS/HSTL (MAX9392) or LVPECL/CML (MAX9393) Inverting Input. An internal 128kΩ resistor to V
input high when unconnected (MAX9392). An internal 68kΩ resistor to GND pulls the input low when
unconnected (MAX9393).

Input Select for A1 Output. Selects the differential input to reproduce at the A1 differential outputs. Connect
ASEL1 to GND or leave open to select the INA0 (INA0) set of inputs. Connect ASEL1 to VCC to select the INA1
(INA1) set of inputs. An internal 435kΩ resistor pulls ASEL1 low when unconnected.

to select the INA1

CC

pulls the

CC

CC

pulls the

CC

pulls

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

_______________________________________________________________________________________ 7

Figure 1. Output Transition Time and Propagation Delay Timing
Diagram

Figure 3. Input to Rising/Falling Edge Select and Mux Switch Timing Diagram

Figure 2. Test Circuit for VODand V

OS

V

V

V

OUT_ _

V

OUT_ _

IN_ _

IN_ _

V

= 0

ID

t

PLH

= 0

V

OD

80%

t

R

V

= V

ID

VOD = V

OD

IN_ _

OUT_ _

= 0

- V

- V

IN_ _

50% V

20%

t

AND t

PLH

MEASURED FOR ANY COMBINATION OF _SEL0 AND _SEL1.

PHL

OUT_ _

80%

50%

V

= 0

ID

t

PHL

VOD = 0

VOD = 0

t

F

V

V

20%

IHD

OUT_ _

RL/2

/2

R

L

OUT_ _

V

OD

V

OS

ILD

1/4 MAX9392/MAX9393

IN_ _

IN_ _

EN_ _ = HIGH
VID = V

IN_ _

- V

IN_ _

ΔVOD = ⎪VOD - VOD*⎪

= ⎪VOS - VOS*⎪

ΔV

OS

AND V

V

OD

V

OD

ARE MEASURED WITH VID = +100mV

OS

* AND VOS* ARE MEASURED WITH VID = -100mV

IN_0

= 0

V

ID

IN_0

IN_1

V

= 0

ID

IN_1

1.5V

_SEL_

OUT_ _

V

IN_0 IN_0

OD

= 0

OUT_ _

t

SWITCH

EN_0 = EN_1 = HIGH
V

= V

- V

ID

IN_ _

IN_ _

IN_1

1.5V

V

OD

V

IHD

V

ILD

V

IHD

V

ILD

V

IH

V

IL

= 0

t

SWITCH

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

8 _______________________________________________________________________________________

Figure 4. Output Active-to-Disable and Disable-to-Active Test Circuit and Timing Diagram

Figure 5. Output Transition Time, Propagation Delay, and Output Channel-to-Channel Skew Test Circuit

IN_ _

IN_ _

1/4 MAX9392/MAX9393

PULSE

GENERATOR

50Ω

RL = 100Ω ±1%

= 1.0pF

C

L

OUT_ _

C

L

RL/2

1.25V

/2

R

L

OUT_ _

C

L

V

V

WHEN VID = +100mV

OUT_ _

V

WHEN VID = -100mV

OUT_ _

V

WHEN VID = -100mV

OUT_ _

V

WHEN VID = +100mV

OUT_ _

EN_ _

_SEL0

IN_0

0

1

0

1

PULSE

GENERATOR

50Ω

IN_0

MAX9392
MAX9393

50Ω

IN_1

IN_1

1.5V

t

PHD

t

PHD

50%

50%

VID = V

C

C

1.5V

t

PDH

t

PDH

- V

IN_ _

IN_ _

C

L

L

C

L

L

R

R

OUT_0

L

OUT_0

OUT_1

L

OUT_1

3V

0

50%

50%

EN_0 = EN_1 = HIGH
1 CHANNEL SHOWN

_SEL1

RL = 100Ω ±1%

= 1.0pF

C

L

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

_______________________________________________________________________________________ 9

Detailed Description

The LVDS interface standard provides a signaling
method for point-to-point communication over a con­trolled-impedance medium as defined by the ANSI
TIA/EIA-644 standard. LVDS utilizes a lower voltage
swing than other communication standards, achieving
higher data rates with reduced power consumption,
while reducing EMI emissions and system susceptibility
to noise.

The MAX9392/MAX9393 1.5GHz dual 2 x 2 crosspoint
switches optimize high-speed, low-power, point-to­point interfaces. The MAX9392 accepts LVDS and
HSTL signals, while the MAX9393 accepts LVPECL and
CML signals. Both devices route the input signals to
either or both LVDS outputs.

When configured as a 1:2 splitter, the outputs repeat
the selected inputs. This configuration creates copies
of signals for protection switching. When configured as
a repeater, the device operates as a two-channel
buffer. Repeating restores signal amplitude, allowing
isolation of media segments or longer media drive.
When configured as a 2:1 mux, select primary or back­up signals to provide a protection-switched, fault-toler­ant application.

Input Fail-Safe

The differential inputs of the MAX9392/MAX9393 pos­sess internal fail-safe protection. Fail-safe circuitry
forces the outputs to a differential low condition for
undriven inputs or when the common-mode voltage
exceeds the specified range. The MAX9392 provides
high-level input fail-safe detection for LVDS, HSTL, and
other GND-referenced differential inputs. The MAX9393
provides low-level input fail-safe detection for LVPECL,
CML, and other VCC-referenced differential inputs.

Select Function

The _SEL_ logic inputs control the input and output sig­nal connections. Two logic inputs control the signal rout­ing for each channel. _SEL0 and _SEL1 allow the
devices to be configured as a differential crosspoint
switch, 2:1 mux, dual repeater, or 1:2 splitter (Figure 7).
See Table 1 for mode-selection settings (insert A or B for
the _). Channels A and B possess separate select
inputs, allowing different configurations for each channel.

Enable Function

The EN_ _ logic inputs enable and disable each set of
differential outputs. Connect EN_ 0 to V

CC

to enable

the OUT_0/OUT_0 differential output pair. Connect
EN_0 to GND to disable the OUT_0/OUT_0 differential
output pair. The differential output pairs assert to a dif­ferential low condition when disabled.

V

Figure 6. Output Channel-to-Channel Skew

Figure 7. Programmable Configurations

V

V

V

OUT_0

OUT_0

OUT_1

OUT_1

VOD = 0

t

CCS

V

= 0 VOD = 0

OD

VOD = V

t

MEASURED WITH _SEL0 = _SEL1 = HIGH OR LOW

CCS

(1:2 SPLITTER CONFIGURATION).

OUT_ _

- V

OUT_ _

VOD = 0

t

CCS

IN_0

IN_1

2 x 2 CROSSPOINT

IN_0

IN_1

OUT_0

OUT_1

OUT_0 OR OUT_1

2:1 MUX

OUT_0

IN_0 OR IN_1

OUT_1

1:2 SPLITTER

IN_0

IN_1

DUAL REPEATER

OUT_0

OUT_1

MAX9392/MAX9393

Applications Information

Differential Inputs

The MAX9392/MAX9393 inputs accept any differential
signaling standard within the specified common-mode
voltage range. The fail-safe feature detects common­mode input signal levels and generates a differential
output low condition for undriven inputs or when the
common-mode voltage exceeds the specified range.
Leave unused inputs unconnected or connect to V

CC

for the MAX9392 or to GND for the MAX9393.

Differential Outputs

The output common-mode voltage is not properly
established if the LVDS output is higher than 0.6V when
the supply voltage is ramping up at power-on. This
condition can occur when an LVDS output drives an
LVDS input on the same chip. To avoid this situation for
the MAX9392/MAX9393, connect a 10kΩ resistor from
the noninverting output (OUT_) to ground, and connect
a 10kΩ resistor from the inverting output (OUT_) to
ground. These pulldown resistors keep the output
below 0.6V when the supply is ramping up (Figure 8).

Expanding the Number of LVDS Output

Ports

Cascade devices to make larger switches. Consider
the total propagation delay and total jitter when deter­mining the maximum allowable switch size.

Power-Supply Bypassing

Bypass each VCCto GND with high-frequency surface­mount ceramic 0.1µF and 0.01µF capacitors in parallel
as close to the device as possible. Install the 0.01µF
capacitor closest to the device.

Differential Traces

Input and output trace characteristics affect the perfor­mance of the MAX9392/MAX9393. Connect each input
and output to a 50Ω characteristic impedance trace.
Maintain the distance between differential traces and
eliminate sharp corners to avoid discontinuities in dif­ferential impedance and maximize common-mode
noise immunity. Minimize the number of vias on the dif­ferential input and output traces to prevent impedance

discontinuities. Reduce reflections by maintaining the
50Ω characteristic impedance through connectors and
across cables. Minimize skew by matching the electri­cal length of the traces.

Output Termination

Terminate LVDS outputs with a 100Ω resistor between
the differential outputs at the receiver inputs. LVDS out­puts require 100Ω termination for proper operation.

Ensure that the output currents do not exceed the cur­rent limits specified in the Absolute Maximum Ratings.
Observe the total thermal limits of the MAX9392/
MAX9393 under all operating conditions.

Cables and Connectors

Use matched differential impedance for transmission
media. Use cables and connectors with matched differ­ential impedance to minimize impedance discontinu­ities. Avoid the use of unbalanced cables. Balanced
cables such as twisted pair offer superior signal quality
and tend to generate less EMI due to canceling effects.

Board Layout

Use a four-layer printed circuit (PC) board providing
separate signal, power, and ground planes for high­speed signaling applications. Bypass VCCto GND as
close to the device as possible. Install termination
resistors as close to receiver inputs as possible. Match
the electrical length of the differential traces to minimize
signal skew.

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

10 ______________________________________________________________________________________

Table 1. Input/Output Function Table

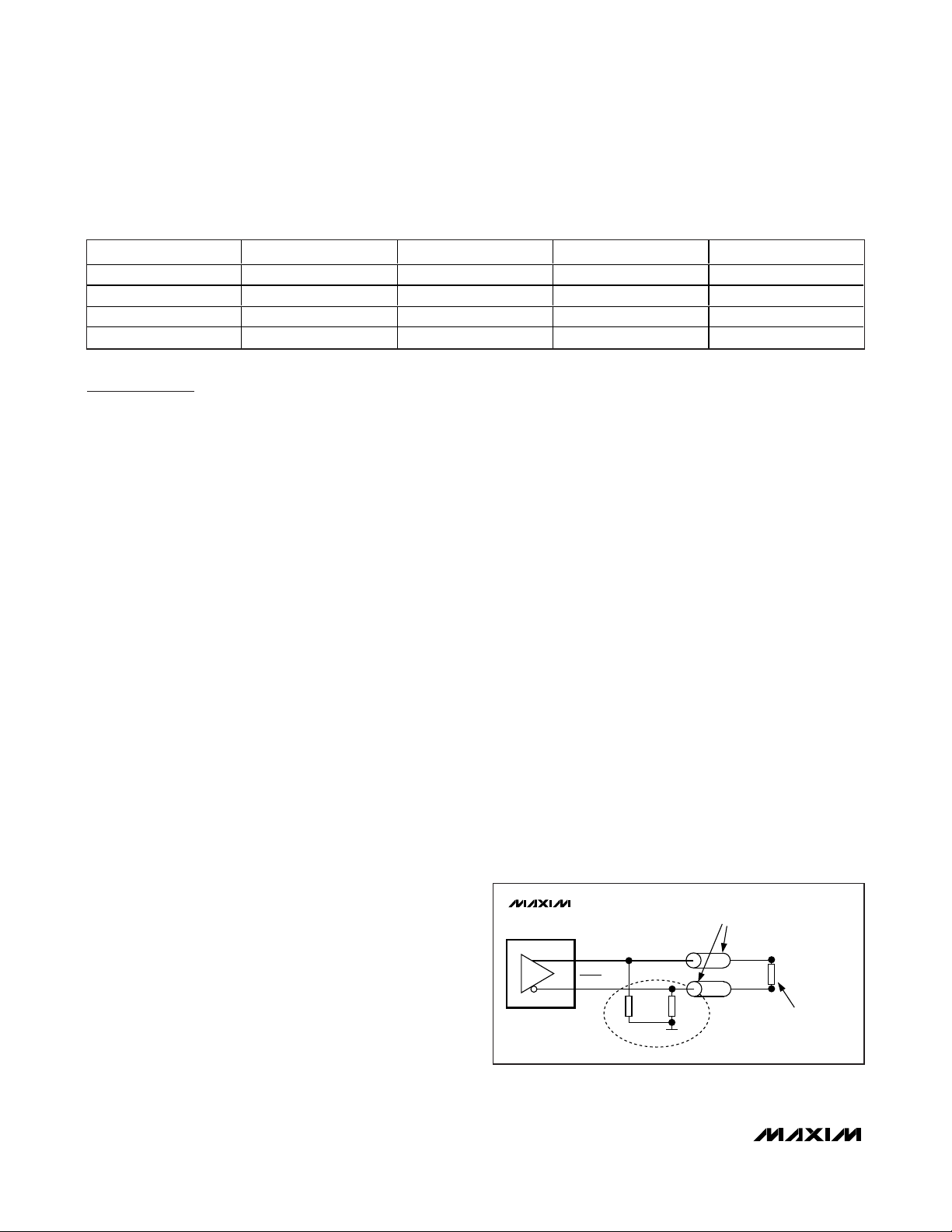

Figure 8. Pulldown Resistor Configuration for LVDS Outputs

_SEL0 _SEL1 OUT_0 / OUT_0 OUT_1 / OUT_1 MODE

0 0 IN_0 / IN_0 IN_0 / IN_0 1:2 splitter
0 1 IN_0 / IN_0 IN_1 / IN_1 Repeater
1 0 IN_1 / IN_1 IN_0 / IN_0 Switch
1 1 IN_1 / IN_1 IN_1 / IN_1 1:2 splitter

100Ω DIFFERENTIAL

MAX9392
MAX9393

OUT_

OUT_

10kΩ

TRANSMISSION LINE

10kΩ

GND

100Ω

TERMINATION
RESISTOR

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

______________________________________________________________________________________ 11

Typical Operating Circuit

3.0V TO

3.6V

0.1μF 0.01μF

Z0 = 50Ω

= 50Ω

Z

0

LVCMOS/LVTTL
LOGIC INPUTS

100Ω

INA0

INA0

INA1

INA1

INB0

INB0

INB1

INB1

ENA0

ENA1

ENB0

ENB1

ASEL0

ASEL1

BSEL0

BSEL1

V

CC

Z0 = 50Ω

Z

= 50Ω

0

Z0 = 50Ω

Z0 = 50Ω

Z0 = 50Ω

Z

= 50Ω

0

Z0 = 50Ω

Z0 = 50Ω

100Ω

LVDS

RECEIVER

MAX9173

MAX9392
MAX9393

OUTA0

OUTA0

OUTA1

OUTA1

OUTB0

OUTB0

OUTB1

OUTB1

GNDGND GNDGND

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

12 ______________________________________________________________________________________

Chip Information

TRANSISTOR COUNT: 1565

PROCESS: BIPOLAR

Functional Diagram

INA0

INA0

INA1

INA1

0

1

1

0

MAX9392
MAX9393

OUTB0

OUTB0

ENB0

BSEL0

OUTB1

OUTB1

ENB1

BSEL1

0

1

1

0

OUTA0

OUTA0

ENA0

ASEL0

OUTA1

OUTA1

ENA1

ASEL1

INB0

INB0

INB1

INB1

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2

Crosspoint Switches

______________________________________________________________________________________ 13

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

32L TQFP, 5x5x01.0.EPS

PACKAGE OUTLINE, 32L TQFP, 5x5x1.0mm

1

21-0110

B

2

MAX9392/MAX9393

Anything-to-LVDS Dual 2 x 2
Crosspoint Switches

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

14 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2007 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

Revision History

Pages changed at Rev 1: 1–4, 6, 8, 10–14

PACKAGE OUTLINE, 32L TQFP, 5x5x1.0mm

2

21-0110

B

2
