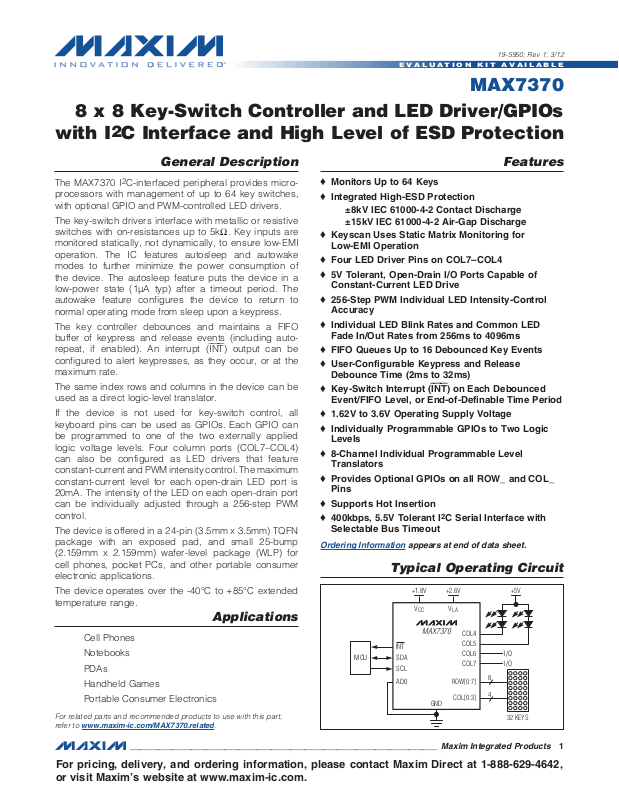

MAXIM MAX7370 Technical data

EVALUATION KIT AVAILABLE

19-5950; Rev 1; 3/12

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

General Description

The MAX7370 I2C-interfaced peripheral provides microprocessors with management of up to 64 key switches, with optional GPIO and PWM-controlled LED drivers.

The key-switch drivers interface with metallic or resistive switches with on-resistances up to 5kI. Key inputs are monitored statically, not dynamically, to ensure low-EMI operation. The IC features autosleep and autowake modes to further minimize the power consumption of the device. The autosleep feature puts the device in a low-power state (1µA typ) after a timeout period. The autowake feature configures the device to return to normal operating mode from sleep upon a keypress.

The key controller debounces and maintains a FIFO buffer of keypress and release events (including autorepeat, if enabled). An interrupt (INT) output can be configured to alert keypresses, as they occur, or at the maximum rate.

The same index rows and columns in the device can be used as a direct logic-level translator.

If the device is not used for key-switch control, all keyboard pins can be used as GPIOs. Each GPIO can be programmed to one of the two externally applied logic voltage levels. Four column ports (COL7–COL4) can also be configured as LED drivers that feature constant-current and PWM intensity control. The maximum constant-current level for each open-drain LED port is 20mA. The intensity of the LED on each open-drain port can be individually adjusted through a 256-step PWM control.

The device is offered in a 24-pin (3.5mm x 3.5mm) TQFN package with an exposed pad, and small 25-bump (2.159mm x 2.159mm) wafer-level package (WLP) for cell phones, pocket PCs, and other portable consumer electronic applications.

The device operates over the -40°C to +85°C extended temperature range.

Applications

Cell Phones

Notebooks

PDAs

Handheld Games

Portable Consumer Electronics

For related parts and recommended products to use with this part, refer to www.maxim-ic.com/MAX7370.related.

Features

S Monitors Up to 64 Keys S Integrated High-ESD Protection

±8kV IEC 61000-4-2 Contact Discharge ±15kV IEC 61000-4-2 Air-Gap Discharge

S Keyscan Uses Static Matrix Monitoring for

Low-EMI Operation

S Four LED Driver Pins on COL7–COL4 S 5V Tolerant, Open-Drain I/O Ports Capable of

Constant-Current LED Drive

S 256-Step PWM Individual LED Intensity-Control

Accuracy

S Individual LED Blink Rates and Common LED

Fade In/Out Rates from 256ms to 4096ms

S FIFO Queues Up to 16 Debounced Key Events S User-Configurable Keypress and Release

Debounce Time (2ms to 32ms)

S Key-Switch Interrupt (INT) on Each Debounced

Event/FIFO Level, or End-of-Definable Time Period

S 1.62V to 3.6V Operating Supply Voltage S Individually Programmable GPIOs to Two Logic

Levels

S 8-Channel Individual Programmable Level

Translators

S Provides Optional GPIOs on all ROW� and COL�

Pins

S Supports Hot Insertion S 400kbps, 5.5V Tolerant I2C Serial Interface with

Selectable Bus Timeout

Ordering Information appears at end of data sheet.

Typical Operating Circuit

+5V

I/O I/O

8

4

32 KEYS

MCU

INT SDA SCL

AD0

+1.8V

V

CC

MAX7370

GND

+2.6V

V

LA

ROW[0:7]

COL[0:3]

COL4 COL5 COL6 COL7

�� Maxim Integrated Products 1

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

ABSOLUTE MAXIMUM RATINGS

VCC, VLA to GND ....................................................-0.3V to +4V

COL3–COL0, ROW7–ROW0 to GND ....... -0.3V to (VCC + 0.3V)

COL7–COL4 to GND ............................................... -0.3V to +6V

SDA, SCL, AD0, INT to GND ..................................-0.3V to +6V

VLA to VCC ...........................................................-0.3V to +2.3V

DC Current on COL7–COL4 to GND .................................25mA

DC Current on COL3–COL0, ROW7–ROW0 to GND ...........7mA

VCC, VLA, GND Current .....................................................80mA

DC Current VCC, VLA to COL3–COL0, ROW7–ROW0 .........5mA

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

PACKAGE THERMAL CHARACTERISTICS (Note 1)

24 TQFN

Junction-to-Ambient Thermal Resistance (BJA) .........65.1°C/W

Junction-to-Case Thermal Resistance (BJC) ................5.4°C/W

Note 1: Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-

layer board. For detailed information on package thermal considerations, refer to www.maxim-ic.com/thermal-tutorial.

Continuous Power Dissipation (TA = +70°C)

24-Pin TQFN (derate 15.4mW/°C above +70°C) ......1229mW

25-Bump WLP (derate 19.2mW/°C above +70°C) ......850mW

Operating Temperature Range .......................... -40°C to +85°C

Junction Temperature .....................................................+150°C

Storage Temperature Range ............................ -65°C to +150°C

Lead Temperature (TQFN) (soldering, 10s) ...................+300°C

Soldering Temperature (reflow) ......................................+260°C

25 WLP

Junction-to-Ambient Thermal Resistance (BJA) ...........52°C/W

ELECTRICAL CHARACTERISTICS

(VCC = 1.62V to 3.6V, TA = -40NC to +85NC, unless otherwise noted. Typical values are at VCC = 3.3V, TA = +25NC.) (Notes 2, 3)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Operating Supply Voltage V Second Logic Supply V

Operating Supply Current I

Sleep-Mode Supply Current I

POR Threshold V

KEY-SWITCH SPECIFICATIONS

Key-Switch Source Current I Key-Switch Source Voltage V Key-Switch Resistance R Startup Time from Sleep t

GPIO SPECIFICATIONS

External Supply Voltage COL7–COL4 (LED Drivers)

LED Port-to-Port Sink Current Variation

START

V

CC

LA

CC

SL

POR

KEY

LED

All key switches open, oscillator running

N keys pressed

Not using GPO or LED configuration 1.8 3

(Note 4) 5

VCC = 3.3V, VOL = 1V, TA = +25NC, 10mA output mode

1.62 3.3 3.6 V V

CC

3.3 3.6 V

50 65

50 + 28 O N

1.2 V

28 40

0.45 0.5 V

2 2.7 ms

5 V

Q1.5 Q2.4

FA

kI

%

�� Maxim Integrated Products 2

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

ELECTRICAL CHARACTERISTICS (continued)

(VCC = 1.62V to 3.6V, TA = -40NC to +85NC, unless otherwise noted. Typical values are at VCC = 3.3V, TA = +25NC.) (Notes 2, 3)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

8.6 11.4

9.5

18.13 21.52

19.05

0.7 O V

S

0.3 O V

-2 +2

20 pF

VCC -

120

VCC -

250

0.7 O V

-1 +1

VCC -

40

VCC -

70

CC

0.3 O V

CC

mA

V

S

FA

mV

V

FA

10mA Port Sink Current COL7–COL4

20mA Port Sink Current COL7–COL4

Input High Voltage COL_, ROW_

Input Low Voltage COL_, ROW_

Input Leakage Current COL3–COL0, ROW_

Input Leakage Current COL7–COL4

Input Capacitance COL _, ROW_

Maximum Allowable Load Capacitance for Keyscan Function

Output Low Voltage COL_, ROW_

Output High Voltage COL3–COL0, ROW_

Output Logic-Low Voltage (INT)

PWM Frequency f

SERIAL-INTERFACE SPECIFICATIONS

Input High Voltage SDA, SCL, AD0

Input Low Voltage SDA, SCL, AD0

Input Leakage Current SDA, SCL, AD0

Output Logic-Low Voltage SDA

Input Capacitance SDA, SCL, AD0

I

LEAKAGE

I

LEAKAGE

I

LEAKAGE

I

OL

I

OL

V

IH

V

IL

C

IN

V

OL

V

OH

V

OL

PWM

V

IH

V

IL

V

OL

C

IN

VOL = 1V

VOL = 0.5V

VOL = 1V

VOL = 0.5V

VS = VCC or VLA depending on reference logic level setting

Input voltage = VCC or V

Input voltage = 5V -1 +1

N keys pressed simultaneously 500 pF

VCC = 1.62V and I VCC = 1.62V and I

VCC = 1.62V and I

I

= 6mA 0.6 V

SINK

Derived from oscillator clock 500 Hz

Input voltage = 5.5V or V

I

= 6mA 0.6 V

SINK

(Notes 4, 5) 10 pF

TA = +25NC VCC = 3.3V 9.04 10 10.96

VCC = 3.6V, TA = +25NC

TA = +25NC VCC = 3.3V 18.47 20 21.34

VCC = 3.6V, TA = +25NC

GND

= 2.5mA 50 100

SINK

= 5mA 80 250

SINK

SOURCE

= 2.5mA

= 5mA

GND

�� Maxim Integrated Products 3

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

ELECTRICAL CHARACTERISTICS (continued)

(VCC = 1.62V to 3.6V, TA = -40NC to +85NC, unless otherwise noted. Typical values are at VCC = 3.3V, TA = +25NC.) (Notes 2, 3)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

I2C TIMING SPECIFICATIONS

SCL Serial-Clock Frequency f

Bus Free Time Between a STOP and START Condition

Hold Time (Repeated) START Condition t Repeated START Condition Setup Time t STOP Condition Setup Time t Data Hold Time t Data Setup Time t SCL Clock Low Period t SCL Clock High Period t

Rise Time of Both SDA and SCL Signals, Receiving

Fall Time of Both SDA and SCL Signals, Receiving

Fall Time of SDA Signal, Transmitting t

Pulse Width of Spike Suppressed t Capacitive Load for Each Bus Line C Bus Time Out t

ESD PROTECTION

t

HD, STA

SU, STA

SU, STO

HD, DAT

SU, DAT

LOW

HIGH

F, TX

TIMEOUT

SCL

BUF

t

SP

Bus timeout enabled 0.05 400 Bus timeout disabled 0 400

1.3

0.6

(Note 6) 0.9

100 ns

1.3

0.7

(Notes 4, 5)

R

(Notes 4, 5)

F

(Notes 4, 7)

(Notes 4, 8) 50 ns (Note 4) 400 pF

B

14 19 27 ms

20 +

0.1C

20 +

0.1C

20 +

0.1C

B

kHz

Fs

Fs Fs Fs Fs

Fs Fs

300 ns

250 ns

IEC 61000-4-2 Air-Gap Discharge

ROW7–ROW0, COL7–COL0

IEC 61000-4-2 Contact Discharge

All Other Pins Human Body Model

Note 2: All parameters are tested at TA = +25°C. Specifications over temperature are guaranteed by design. Note 3: All digital inputs at VCC or GND. Note 4: Guaranteed by design. Note 5: CB = total capacitance of one bus line in pF. tR and tF measured between 0.8V and 2.1V. Note 6: A master device must provide a hold time of at least 300ns for the SDA signal (referred to VIL of the SCL signal) to bridge

the undefined region of SCL’s falling edge.

Note 7: I Note 8: Input filters on the SDA, SCL, and AD0 inputs suppress noise spikes less than 50ns.

= 6mA. CB = total capacitance of one bus line in pF. tR and tF measured between 0.8V and 2.1V.

SINK

�� Maxim Integrated Products 4

Q15

Q8

Q2.5

kV

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Typical Operating Characteristics

(VCC = 2.5V, VLA = 2.5V, TA = +25NC, unless otherwise noted.)

GPO OUTPUT LOW VOLTAGE

vs. SINK CURRENT (COL7–COL4)

120

VCC = 2.4V

100

80

60

40

GPO OUTPUT LOW VOLTAGE (mV)

20

0

0 20

TA = +25°C

SINK CURRENT (mA)

TA = +85°C

TA = -40°C

SUPPLY CURRENT vs. SUPPLY VOLTAGE

60

AUTOSLEEP = OFF

55

50

45

40

SUPPLY CURRENT (µA)

35

30

1.6 3.6

TA = +25°C

SUPPLY VOLTAGE (V)

TA = +85°C

TA = -40°C

GPO OUTPUT LOW VOLTAGE

vs. SINK CURRENT (COL7–COL4)

120

VCC = 3.0V

100

MAX7370 toc01

80

60

40

GPO OUTPUT LOW VOLTAGE (mV)

20

18161412108642

0

0 20

TA = +25°C

SINK CURRENT (mA)

TA = +85°C

TA = -40°C

18161412108642

120

100

MAX7370 toc02

GPO OUTPUT LOW VOLTAGE (mV)

KEY-SWITCH SOURCE CURRENT

vs. SUPPLY VOLTAGE

27.0 V

= 0V

COL0

26.5

MAX7370 toc04

26.0

25.5

25.0

24.5

KEY-SWITCH SOURCE CURRENT (µA)

3.43.23.02.82.62.42.22.01.8

24.0

1.6 3.6

TA = +85°C

TA = +25°C

TA = -40°C

3.43.23.02.82.62.42.22.01.8

SUPPLY VOLTAGE (V)

1.8

1.6

MAX7370 toc05

1.4

1.2

1.0

0.8

0.6

0.4

SLEEP-MODE SUPPLY CURRENT (µA)

0.2

GPO OUTPUT LOW VOLTAGE

vs. SINK CURRENT (COL7–COL4)

VCC = 3.6V

TA = +85°C

80

60

40

20

0

0 20

TA = +25°C

TA = -40°C

SINK CURRENT (mA)

SLEEP-MODE SUPPLY CURRENT

vs. SUPPLY VOLTAGE

TA = +85°C

TA = +25°C

TA = -40°C

0

SUPPLY VOLTAGE (V)

MAX7370 toc03

18161412108642

MAX7370 toc06

3.43.23.02.82.62.42.22.01.81.6 3.6

CONSTANT-CURRENT GPIO OUTPUT SINK

CURRENT vs. OUTPUT VOLTAGE (COL7–COL4)

25

VCC = 2.4V

20

15

10

5

0

0 3.0

CONSTANT-CURRENT GPIO OUTPUT SINK CURRENT (mA)

TA = +85°C

TA = +25°C

TA = -40°C

2.52.01.51.00.5

OUTPUT VOLTAGE (V)

�� Maxim Integrated Products 5

CONSTANT-CURRENT GPIO OUTPUT SINK

CURRENT vs. OUTPUT VOLTAGE (COL7–COL4)

25

VCC = 3.0V

MAX7370 toc07

20

15

10

5

0

0 3.0

CONSTANT-CURRENT GPIO OUTPUT SINK CURRENT (mA)

TA = +85°C

TA = -40°C

OUTPUT VOLTAGE (V)

TA = +25°C

CONSTANT-CURRENT GPIO OUTPUT SINK

CURRENT vs. OUTPUT VOLTAGE (COL7–COL4)

25

VCC = 3.6V

MAX7370 toc08

2.52.01.51.00.5

20

15

10

5

0

0 3.0

CONSTANT-CURRENT GPIO OUTPUT SINK CURRENT (mA)

TA = +85°C

MAX7370 toc09

TA = +25°C

TA = -40°C

2.52.01.51.00.5

OUTPUT VOLTAGE (V)

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Pin/Bump Configurations

TOP VIEW

(BUMP SIDE DOWN)

MAX7370

TOP VIEW

ROW0

ROW1

ROW2

ROW3

GND

ROW4

CC

INT

V

18 17 16 15 14 13

19

20

21

22

23

24

1+23456

ROW5

SCL

MAX7370

ROW6

ROW7

COL7

SDA

AD0

EP*

COL6

LA

V

COL5

12

COL0

11

COL1

10

COL2

COL3

9

GND

8

COL4

7

TQFN

*CONNECT EP TO GROUND.

PIN BUMP

TQFN WLP

NAME FUNCTION

1 A2 ROW5 Row 5 Input from Key Matrix or GPIO Port 2 B2 ROW6 Row 6 Input from Key Matrix or GPIO Port 3 A3 ROW7 Row 7 Input from Key Matrix or GPIO Port

4 B3 COL7

5 A4 COL6

6 A5 COL5

7 B4 COL4

8, 23

B1, B5,

C3

GND Ground

Column 7 Output from Key Matrix or Open-Drain GPIO Port. COL7 can be configured as a constant-current sink.

Column 6 Output from Key Matrix or Open-Drain GPIO Port. COL6 can be configured as a constant-current sink.

Column 5 Output from Key Matrix or Open-Drain GPIO Port. COL5 can be configured as a constant-current sink.

Column 4 Output from Key Matrix or Open-Drain GPIO Port. COL4 can be configured as a constant-current sink.

9 C5 COL3 Column 3 Output from Key Matrix or GPIO Port 10 C4 COL2 Column 2 Output from Key Matrix or GPIO Port 11 D5 COL1 Column 1 Output from Key Matrix or GPIO Port 12 E5 COL0 Column 0 Output from Key Matrix or GPIO Port

1234

+

A

ROW4

B

GND

C

ROW3

D

ROW1

E

ROW0

ROW5 ROW7 COL6 COL5

ROW6 COL7 COL4 GND

ROW2 GND COL2 COL3

V

CC

INT

SDA V

SCL AD0 COL0

WLP

Pin/Bump Description

5

COL1

LA

�� Maxim Integrated Products 6

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Pin Description (continued)

TQFN WLP

13 D4 V

NAME FUNCTION

Second Logic Level for GPIO Level Shifting (where VCC P VLA P 3.6V)

LA

14 E4 AD0 Address Input. Selects up to four device slave addresses (Table 3). 15 D3 SDA I2C-Compatible, Serial-Data I/O 16 E3 SCL I2C-Compatible, Serial-Clock Input 17 E2 18 D2 V

INT Active-Low Key-Switch Interrupt Output. INT is open-drain and requires a pullup resistor.

Positive Supply Voltage. Bypass to GND with a 0.1FF capacitor as close as possible to the device.

CC

19 E1 ROW0 Row 0 Input from Key Matrix or GPIO Port 20 D1 ROW1 Row 1 Input from Key Matrix or GPIO Port 21 C2 ROW2 Row 2 Input from Key Matrix or GPIO Port 22 C1 ROW3 Row 3 Input from Key Matrix or GPIO Port 24 A1 ROW4 Row 4 Input from Key Matrix or GPIO Port

— — EP

Exposed Pad (TQFN Only). Internally connected to GND. Connect to a large ground plane to maximize thermal performance. Not intended as an electrical connection point.

Functional Block Diagram

V

CC

I/O SUPPLY CONTROL

PWM

MAX7370

GPIO

LOGIC

LED ENABLE

PWM SIGNAL

V

LA

INT

SDA

SCL

AD0

COL0

COL1

COL2

COL3

COL4

COL5

COL6

COL7

ROW0

ROW1

ROW2

ROW3

ROW4

ROW5

ROW6

ROW7

128kHz

OSCILLATOR

2

C

I

INTERFACE

BUS TIMEOUT POR

CONTROL

REGISTERS FIFO

KEY-SCAN

LOGIC

COLUMN ENABLE

CURRENT DETECT

GPIO ENABLE

GPIO INPUT

ROW ENABLE

ROW DETECT

GPIO ENABLE

GPIO INPUT

CURRENT

SOURCE

COLUMN

DRIVES/

PUSH-

PULL GPIO/

LED DRIVERS

ROW

DRIVES/

PUSH-

PULL GPIO

�� Maxim Integrated Products 7

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Detailed Description

autowake are enabled/disabled by programming the

configuration register (0x01). The MAX7370 is a microprocessor peripheral low-noise key-switch controller that monitors up to 64 key switches with optional autorepeat, and key events that are presented in a 16-byte FIFO. Key-switch functionality can be traded to provide up to 16 logic inputs. The device also features 12 push-pull GPOs configured for digital I/O and four open-drain GPOs configurable as constantcurrent outputs for LED applications up to 5V. The device supports a second 1.62V to 3.6V power supply for level translation. The second logic supply voltage (VLA) must be set equal to or higher than VCC.

The device features an automatic sleep mode and automatic wakeup that further reduce supply current consumption. The device can be configured to enter sleep mode after a programmable time following a key event.

To prevent overloading the microprocessor with too

many interrupts, interrupt requests can be triggered

after a programmable number of FIFO entries have been

exceeded, and/or after a set period of time (0x05). The

key-switch status is checked by reading the key-switch

FIFO. A 1-byte read access returns both the next key

event in the FIFO (if there is one) and the FIFO status.

Up to four of the key-switch outputs function as open-

drain GPOs capable of driving additional LEDs when the

application requires fewer keys to be scanned. For each

key-switch output used as a GPO, the number of moni-

tored key switches reduces by eight.

The device meets ESD requirements for ±8kV contact dis-

charge and 15kV Air-Gap Discharge on all key-switch pins.

The FIFO content is maintained and can be read in sleep mode. The device does not enter autosleep when a key is held down. The autowake feature takes the device

On power-up, all control registers are set to power-up

values (Table 1) and the device is in sleep mode. out of sleep mode following a keypress. Autosleep and

Table 1. Register Address Map and Power-Up Conditions

Initial Power-Up

ADDRESS

CODE (hex)

0x00 Read only 0x3F Keys FIFO Read FIFO keyscan data out

0x01

0x02 0x03 0x05 0x06 0x30

0x31

0x34

0x35

0x36

0x37

READ/WRITE

R/W

R/W R/W R/W R/W R/W

R/W

�� Maxim Integrated Products 8

POWER-UP

VALUE (hex)

0x0B Configuration

0xFF Debounce Key debounce time setting 0x00 Interrupt 0x00 Key repeat Delay and frequency for key repeat 0x07 Sleep Idle time to autosleep 0xFF Key-switch size Keyscan switch array size

0x00

0xFF

0x0F

REGISTER FUNCTION

LED driver

enable

GPIO

direction 1

GPIO

direction 2

GPO output

mode 1

GPO output

mode 2

Power-down, key-release enable, autowake, and I2C timeout enable

Key-switch interrupt and INT frequency setting

LED driver enable register

GPIO input/output control register 1 for ROW7–ROW0

GPIO input/output control register 2 for COL7–COL0

GPO open-drain/push-pull output setting for ROW7–ROW0

GPO open-drain/push-pull output setting for COL7–COL0

DESCRIPTION

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 1. Register Address Map and Power-Up Conditions (continued)

ADDRESS

CODE (hex)

0x38

0x39

0x3A 0x3B

0x3C

0x40

0x42

0x43

0x45 0x48 Read only 0x00 I2C timeout flag I2C timeout since last POR

0x50

0x51

0x52

0x53

0x54

0x55

0x56

0x57

0x58

0x59

0x5A

0x5B

READ/WRITE

R/W

R/W R/W

R/W

POWER-UP

VALUE (hex)

0x00

0xFF GPIO values 1 Debounced input or output values of ROW7–ROW0 0xFF GPIO values 2 Debounced input or output values of COL7–COL0

0x00

0x00 GPIO debounce ROW7–ROW0 debounce time setting

0xC0

0x00 Common PWM Common PWM duty-cycle setting

0x00

0xFF

0x00

REGISTER

FUNCTION

GPIO supply

voltage 1

GPIO supply

voltage 2

GPIO level-

shifter enable

GPIO global

configuration

LED constant-

current setting

COL4 PWM

ratio

COL5 PWM

ratio

COL6 PWM

ratio

COL7 PWM

ratio

COL4 LED

configuration

COL5 LED

configuration

COL6 LED

configuration

COL7 LED

configuration

Interrupt

mask 1

Interrupt

mask 2

GPI trigger

mode 1

GPI trigger

mode 2

GPIO voltages supplied by VCC or VLA for ROW7–ROW0

GPIO voltages supplied by VCC or VLA for COL7–COL0

GPIO direct level-shifter pair enable

GPIO global enable, GPIO reset, LED fade enable

COL7–COL4 constant-current output setting

COL4 individual duty-cycle setting

COL5 individual duty-cycle setting

COL6 individual duty-cycle setting

COL7 individual duty-cycle setting

COL4 interrupt, PWM mode control, and blinkperiod settings

COL5 interrupt, PWM mode control, and blinkperiod settings

COL6 interrupt, PWM mode control, and blinkperiod settings

COL7 interrupt, PWM mode control, and blinkperiod settings

Interrupt mask for ROW7–ROW0

Interrupt mask for COL7–COL0

GPI edge-triggered detection setting for ROW7–ROW0

GPI edge-triggered detection setting for COL7–COL0

DESCRIPTION

�� Maxim Integrated Products 9

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Keyscan Controller

Key inputs are scanned statically, not dynamically, to ensure low-EMI operation. Since inputs only toggle in response to switch changes, the key matrix can be routed closer to sensitive circuit nodes.

The keyscan controller debounces and maintains a FIFO buffer of keypress and release events (including autorepeated keypresses, if autorepeat is enabled). Table 2 shows the key-switch order. The user-programmable keyswitch debounce time and autosleep timer are derived from the 64kHz clock, which in turn is derived from the 128kHz oscillator. Time delay for autorepeat and keyswitch interrupt is based on the key-switch debounce time. There is no limitation for the number of keys pressed simultaneously as long as no ghost keys are generated. If the application requires fewer keys to be scanned, the unused key-switch ports can be configured as GPIOs.

Keys FIFO Register (0x00)

The Keys FIFO register contains the information pertaining to the status of the keys FIFO, as well as the key events that have been debounced. See Table 7. Bits D[5:0] denote which of the 64 keys have been debounced and the keys are numbered as shown in Table 2.

Bit D7 indicates if there is more data in the FIFO, except when D[5:0] indicate key 63 or key 62. When D[5:0] indicate key 63 or key 62, the host should read the FIFO one more time to determine whether there is more data in the FIFO. Use key 62 and key 63 for rarely used keys. D6 indicates if it is a keypress or release event, except when D[5:0] indicate key 63 or key 62.

Reading the keyscan FIFO clears the interrupt (INT), depending on the setting of bit D5 in the configuration register (0x01).

Configuration Register (0x01)

The Configuration register controls the I2C bus time-

out feature, enables key-release detection, enables

autowake, and determines how INT is deasserted. Write

to bit D7 to put the device into sleep mode or operating

mode. Autosleep and autowake, when enabled, also

change the status of D7. See Table 8.

Debounce Register (0x02)

The Debounce register sets the keypress and key-

release time for each debounce cycle. Bits D[3:0] set the

debounce time for keypresses, while bits D[7:4] set the

debounce time for key releases. Both debounce times

are configured in increments of 2ms starting at 2ms and

ending at 32ms. See Table 9.

Interrupt Register (0x03)

The Interrupt register contains information related to the

settings of the interrupt request function, as well as the sta-

tus of the INT output. If bits D[7:0] are set to 0x00, the INT

is disabled. There are two types of interrupts, the FIFO-

based interrupt and time-based interrupt. Set bits D[4:0]

to assert interrupts at the end of the selected number of

debounce cycles following a key event. See Table 10.

This number ranges from 1–31 debounce cycles. Setting

bits D[5:7] set the FIFO-based interrupt when there are

2–14 key events stored in the FIFO. Both interrupts can be

configured simultaneously and INT asserts depending on

which condition is met first. INT deasserts depending on

the status of bit D5 in the configuration register.

Autorepeat Register (0x05)

The device autorepeat feature notifies the host that at

least one key has been pressed for a continuous period.

The Autorepeat register enables or disables this feature,

sets the time delay after the last key event before the key-

repeat code (0x7E) is entered into the FIFO, and sets

Table 2. Key-Switch Mapping

PIN COL0 COL1 COL2 COL3 COL4 COL5 COL6 COL7 ROW0 ROW1 ROW2 ROW3 ROW4 ROW5 ROW6 ROW7

KEY 0 KEY 8 KEY 16 KEY 24 KEY 32 KEY 40 KEY 48 KEY 56 KEY 1 KEY 9 KEY 17 KEY 25 KEY 33 KEY 41 KEY 49 KEY 57 KEY 2 KEY 10 KEY 18 KEY 26 KEY 34 KEY 42 KEY 50 KEY 58 KEY 3 KEY 11 KEY 19 KEY 27 KEY 35 KEY 43 KEY 51 KEY 59 KEY 4 KEY 12 KEY 20 KEY 28 KEY 36 KEY 44 KEY 52 KEY 60 KEY 5 KEY 13 KEY 21 KEY 29 KEY 37 KEY 45 KEY 53 KEY 61 KEY 6 KEY 14 KEY 22 KEY 30 KEY 38 KEY 46 KEY 54 KEY 62 KEY 7 KEY 15 KEY 23 KEY 31 KEY 39 KEY 47 KEY 55 KEY 63

�� Maxim Integrated Products 10

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

the frequency at which the key-repeat code is entered into the FIFO thereafter. The key being pressed is not entered again into the FIFO. Bit D7 specifies whether the autorepeat function is enabled with 0, denoting autorepeat disabled, and 1, denoting autorepeat enabled. Bits D[3:0] specify the autorepeat delay in terms of debounce cycles, ranging from eight debounce cycles to 128 debounce cycles. See Table 11. Bits D[6:4] specify the autorepeat rate or frequency ranging from 4–32 debounce cycles.

Only one autorepeat code is entered into the FIFO, regardless of the number of keys pressed. The autorepeat code continues to be entered in the FIFO at the frequency set by bits D[3:0] until another key event is recorded. Following the key-release event, if any keys are still pressed, the device restarts the autorepeat sequence.

Autosleep Register (0x06)

Autosleep puts the device in sleep mode to draw minimal current. When enabled, the device enters sleep mode if no keys are pressed for the autoshutdown time. See

Table 12.

Key-Switch Array Size Register (0x30)

Bits D[7:4] set the row size of the key-switch array, and bits D[3:0] set the column size of the key-switch array. See Table 13. Set the bits to 0 if no key switches are used. The key-switch array should be connected beginning at ROW0 and COL0. If not used as a key-switch matrix pin, then the pin can function as a GPIO port.

Key-Switch Sleep Mode

In sleep mode, the device draws minimal current. Switchmatrix current sources are turned off and pulled up to VCC. When autosleep is enabled, key-switch inactivity for a period longer than the autosleep time puts the part into sleep mode (FIFO data is maintained). Writing a 1 to D7 or a keypress can take the device out of sleep mode. Bit D7 in the configuration register gives the sleep-mode status and can be read any time.

Autowake

Keypresses initiate autowake and the device goes into operating mode. Keypresses that autowake the device are not lost. When a key is pressed while the device is in sleep mode, all analog circuitry, including switch-matrix

current sources, turn on in 2ms. The initial key needs to be pressed for 2ms plus the debounce time to be stored in the FIFO. Write a 0 to bit D1 in the configuration register (0x01) to disable autowake.

FIFO Overflow

The FIFO overflow status occurs when the FIFO is full (16 bytes) and additional events occur. If key release is disabled, then the FIFO overflow status occurs when the FIFO is full and not upon additional key events. When the FIFO is overflowed, the first byte read from the FIFO buffer is the overflow byte (0x7F). The order of the original 16 bytes of event data is preserved, but further events could be lost. When the FIFO is full, if the 18th key event is a key release, then the FIFO overflow status is removed.

GPIOs

The device has 16 GPIO ports, four of which have LED control functions. The ports can be used as logic inputs or logic outputs. COL7–COL4 are also configurable as constant-current PWM LED drivers. Each port’s logic level is referenced to VCC or VLA. The GPIO ports’ inputs can also be debounced. When in PWM mode, the ports are set up to start their PWM cycle in 45N phase increments. This prevents large current spikes on the LED supply voltage when driving multiple LEDs.

LED Driver Enable Register (0x31)

Bits D[3:0] correspond to COL7–COL4 on the device. Set the corresponding bit to 1 for enabling the LED driver circuitry and 0 for normal GPIO function. See Table 14.

GPIO Direction 1 and 2 Registers (0x34, 0x35)

These registers configure the pins as an input or an output port. GPIO Direction 1 register bits D[7:0] correspond with ROW7–ROW0. See Table 15. GPIO Direction 2 register bits D[7:0] correspond with COL7–COL0. See Table 16. Set the corresponding bit to 0 to configure as input and 1 to configure as output.

When the port is initially programmed as an input, there is a delay of one debounce period prior to detecting a transition on the input port. This is to prevent a false interrupt from occurring when changing a port from an output to an input.

�� Maxim Integrated Products 11

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

GPO Output Mode 1 and 2 Registers (0x36, 0x37)

These registers configure the pin as an open-drain or push-pull output. GPO Output Mode 1 register bits D[7:0] correspond with ROW7–ROW0. See Table 17. GPO Output Mode 2 register bits D[7:0] correspond with COL7–COL0. See Table 18. Set the corresponding bit to 0 to configure the output mode as open-drain and 1 to configure the output mode as push-pull.

GPIO Supply Voltage 1 and 2

Registers (0x38, 0x39)

These registers configure input and output voltages to be referenced to VCC or VLA. GPIO Supply Voltage 1 register bits D[7:0] correspond with ROW7–ROW0. See

Table 19. GPIO Supply Voltage 2 register bits D[7:0] cor-

respond with COL7–COL0. See Table 20. Set the bit to 0 for input/output voltages referenced to VCC or set the bit to 1 for the input/output voltage referenced to VLA.

GPIO Values 1 and 2 Registers (0x3A, 0x3B)

The GPIO Values 1 and 2 registers contain the debounced input data for all the GPIOs for ROW7–ROW0 and COL7– COL0, respectively. See Tables 21 and 22. There is one debounce period delay prior to detecting a transition on the input port. This prevents a false interrupt from occurring when changing a port from an output to an input. The GPIO Values 1 and 2 registers report the state of all input ports regardless of any interrupt mask settings.

When writing to the GPIO Values 1 and 2 registers, the corresponding port voltage is set high when written 1 or cleared when written 0. Reading the port when configured as an output always returns the value 0 for the corresponding port regardless of the output value.

GPIO Level-Shifter Enable Register (0x3C)

Enabling bit D_ in this register enables the direct level shifter between GPIO pins COL_ and ROW_. See

Table 23. As an example, setting D5 to logic-high

enables level shifting between COL5 and ROW5. The direction of the level shifter is controlled by the GPIO Direction 2 register (0x35). When setting the corresponding bit in the GPIO Direction 2 register to 0, COL_ are inputs, and ROW_ are outputs. When setting the bit to 1, ROW_ become inputs and COL_ become outputs.

GPIO Global Configuration Register (0x40)

The GPIO Global Configuration register controls the main settings for the GPIO ports. See Table 24. Bit D5 enables

interrupt generation for I2C timeouts. D4 is the main enable/shutdown bit for the GPIOs. Bit D3 functions as a software reset for the GPIO registers (0x31 to 0x5B). Bits D[2:0] set the fade-in/out time for the LED drivers.

GPIO Debounce Configuration Register (0x42)

The GPIO Debounce Configuration Register sets the amount of time a GPIO must be held in order for the device to register a logic transition. See Table 25. The GPIO debounce setting is independent of the key-switch debounce setting. Five bits (D[4:0]) set 32 possible debounce times from 9ms up to 40ms.

LED Constant-Current Setting Register (0x43)

The LED Constant-Current Setting register sets the global constant-current amount. See Table 26. Bit D0 selects the global current values between 10mA and 20mA. This setting only applies to the LED driver-enabled pins, COL7–COL4.

Common PWM Ratio Register (0x45)

The Common PWM Ratio register stores the common constant-current output PWM duty cycle. See Table 27. The values stored in this register translate over to a PWM ratio in the same manner as the individual PWM ratio registers (0x50 to 0x53). Ports can use their own individual PWM value or the common PWM value. Write to this register to change the PWM ratio of several ports at once.

I2C Timeout Flag Register (0x48) (Read Only)

The I2C Timeout Flag register contains a single bit (D0) that indicates if an I2C timeout has occurred. See

Table 28. Read this register to clear an I2C timeout-

initiated interrupt.

COL4–COL7 Individual PWM Ratio

Registers (0x50 to 0x53)

Each LED driver port has an individual PWM ratio register, 0x50 to 0x53. See Table 29. Use values 0x00 to 0xFE in these registers to configure the number of cycles out of 256 the output sinks current (LED is on), from 0 cycles to 254 cycles. Use 0xFF to have an output continuously sink current (always on). For applications requiring multiple ports to have the same intensity, program a particular port’s configuration register (0x54 to 0x57) to use the Common PWM Ratio register (0x45). New PWM settings take place at the beginning of a PWM cycle, to allow changes from common intensity to individual intensity with no interruption in the PWM cycle.

�� Maxim Integrated Products 12

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

COL4–COL7 LED Configuration

Registers (0x54 to 0x57)

Registers 0x54 to 0x57 set individual configurations for each port. See Table 30. D5 sets the port’s PWM setting to either the common or individual PWM setting. Bits D[4:2] enable and set the port’s individual blink period from 0 to 4096ms. Bits D[1:0] set a port’s blink duty cycle.

Interrupt Mask 1 and 2 Registers (0x58, 0x59)

The Interrupt Mask 1 and 2 registers control which ports trigger an interrupt for ROW7–ROW0 and COL7–COL0, respectively. See Tables 31 and 32. Set the bit to 0 to enable the interrupt. Set the bit to 1 to mask the interrupt.

If the port that has generated the interrupt is not masked, the interrupt causes the INT signal to assert. A read of the GPIO Values 1 and 2 registers (0x3A, 0x3B) is required to deassert the INT pin. Note that transitions that occur while the INT signal is asserted, but before the read of the GPIO Values 1 and 2 registers, set the appropriate bit of the GPIO Values 1 and 2 registers only, but has no effect on the INT pin as it is already asserted. However, transitions that occur when the I2C is active cannot be latched into the GPIO Values 1 and 2 registers until after the read has taken place. If there are transitions that cause the INT signal to assert, during the time of an I2C read, they cause the INT signal to reassert once the read transaction has taken place. Note that the interrupt configurations only apply when a port is configured as an input.

GPI Trigger Mode 1 and 2 Registers (0x5A, 0x5B)

The GPI Trigger Mode 1 and 2 registers control how ports can trigger an interrupt for ROW7–ROW0 and COL7– COL0, respectively. See Tables 33 and 34. Set the bit to 0 for rising-edge triggering. Set the bit to 1 for rising- and falling-edge triggering.

The inputs are debounced (if enabled) by taking a snapshot of the port state when the transition occurs, and another after the debounce time has elapsed—ensuring that the state of the port is stable prior to triggering the interrupt. After the debounce cycle, an interrupt is generated and the INT pin asserted if it is not masked for that particular port. Regardless of whether or not the INT signal is masked, the GPIO Values 1 and 2 registers (0x3A, 0x3B) report the state of all input ports.

Sleep Mode

The device is put into sleep mode by clearing bit D7 in the Configuration register, or after power-on reset (POR). In sleep mode, the keyscan controller is disabled and the device draws minimal current. No additional supply current is drawn if no keys are pressed. All switch-matrix current sources are turned off, and row outputs ROW7–ROW0 are low and column outputs COL7–COL0 become high.

The device is taken out of sleep mode and put into operating mode by setting bit D7 in the configuration register. The keyscan controller FIFO buffers are cleared and key monitoring starts. Note that rewriting the configuration register with bit D7 high, when bit D7 was already high, does not clear the FIFOs. The FIFOs are only cleared when the device is changing state from sleep mode to operating mode.

In sleep mode, the internal oscillator is disabled and I2C timeout features are disabled. The GPO or LED ports consume current even in sleep mode. The part does not enter sleep mode if any of the GPIOs or LED drivers are enabled.

LED Fade

Set the fade cycle time in the GPIO Global Configuration register (0x40) to a non-zero value to enable fade in/out. See Table 24. Fade in increases an LED’s PWM intensity in 16 even steps, from zero to its stored value. Fade out decreases an LED’s PWM intensity in 16 even steps from its current value to zero. Fading occurs automatically in any of the following scenarios:

• Change the common PWM register value from any

value to zero to cause all ports using the common PWM register settings to fade out. No ports using individual PWM settings are affected.

• ChangethecommonPWMregistervaluetoanyvalue

from zero to cause all ports using the common PWM register settings to fade in. No ports using individual PWM settings are affected.

• Takethepartout of sleep mode to causeallportsto

fade in. Changing an individual PWM intensity during fade in automatically cancels that port’s fade and immediately outputs at its newly programmed intensity.

�� Maxim Integrated Products 13

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

• Putthepartintosleepmodetocauseallportstofade

out. Changing an individual PWM intensity during fade out automatically cancels that port’s fade and immediately turns off.

LED PWM

Each port has an individual PWM ratio register. The value stored in this register configures the number of cycles out of 255 that the output is sinking current (LED is on). Setting a value of 0xFF in an individual intensity register sets the output to continuously sink current (always on). Conversely, setting a value of 0x00 in an individual intensity register sets the output in a high-impedance state (always off).

For applications requiring multiple ports to have the same intensity, the common PWM ratio intensity setting can be used in lieu of the individual intensity setting. To use the common intensity setting, program bit D5 of the corresponding port’s configuration register to logic-high. Setting a port to use the common PWM ratio setting copies the value of the common intensity register into the individual intensity register at the beginning of each PWM cycle. This allows an output port to be seamlessly changed from common intensity to individual intensity with no interruption in the PWM cycle.

Outputs are configured to sink a constant current of either 10mA or 20mA during the period of time when the output is on. The setting in the individual GPIO constant-current setting register (0x43) controls the value of the current.

LED Blink

Each LED driver-supported port has its own blink-control settings through registers 0x54 to 0x57. See Table 30. The blink period ranges from 0 (blink disabled) to 4.096s. Settable blink duty cycles range from 6.25% to 50%. All blink periods start at the same PWM cycle for synchronized blinking between multiple ports.

Each port has its own counter to generate blink timing. The blink counter can be programmed to cause the output to gate off and on at a programmable rate. The blink period can be set to 256ms, 512ms, 1.024s, 2.048s, or

4.096s using D[4:2] of the port’s individual configuration register. The percentage of time that the LED is on for one blink cycle is set to 50%, 25%, 12.5%, or 6.25% by D[1:0] of the individual configuration register.

Interrupts

Three possible sources generate INT: key-switch FIFO level/debounce cycle settings, I2C timeout, or GPIOs configured as inputs (registers 0x03, 0x48, 0x5A, and 0x5B). Read the respective data/status registers for each type of interrupt to clear INT. If multiple sources generate the interrupt, all the related status registers must be read to clear INT.

Serial Interface

Figure 1 shows the two-wire serial interface timing details.

SDA

t

SU, DAT

t

LOW

t

SCL

t

HD, STA

START

CONDITION

Figure 1. Two-Wire Serial Interface Timing Details

�� Maxim Integrated Products 14

HIGH

t

R

F

t

HD, DAT

t

SU, STA

START CONDITION

REPEATED

t

R

t

HD, STA

t

SU, STO

t t

F F, TX

STOP

CONDITION

t

BUF

START

CONDITION

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Serial Addressing

The device operates as a slave that sends and receives data through an I2C-compatible two-wire interface. The interface uses a serial-data line (SDA) and a serialclock line (SCL) to achieve bidirectional communication between master(s) and slave(s). A master (typically a microcontroller) initiates all data transfers to and from the device and generates the SCL clock that synchronizes the data transfer.

The device’s SDA line operates as both an input and an open-drain output. A pullup resistor, typically 4.7kω, is required on SDA. The device’s SCL line operates only as an input. A pullup resistor is required on SCL if there are multiple masters on the two-wire interface, or if the master in a single-master system has an open-drain SCL output.

Each transmission consists of a START (S) condition (Figure 2) sent by a master, followed by the device’s 7-bit slave address plus R/W bit, a register address byte, one or more data bytes, and finally, a STOP (P) condition.

START and STOP Conditions

Both SCL and SDA remain high when the interface is not busy. A master signals the beginning of a transmission

with a START condition by transitioning SDA from high to low while SCL is high. When the master has finished communicating with the slave, it issues a STOP condition by transitioning SDA from low to high while SCL is high. The bus is then free for another transmission.

Bit Transfer

One data bit is transferred during each clock pulse (Figure 3). The data on SDA must remain stable while SCL is high.

Acknowledge

The acknowledge bit is a clocked 9th bit (Figure 4), which the recipient uses to handshake receipt of each byte of data. Thus, each byte transferred effectively requires 9 bits. The master generates the 9th clock pulse, and the recipient pulls down SDA during the acknowledge clock pulse; therefore, the SDA line is stable low during the high period of the clock pulse. When the master is transmitting to the device, the device generates the acknowledge bit because the device is the recipient. When the device is transmitting to the master, the master generates the acknowledge bit because the master is the recipient.

SDA

SCL

S

START

CONDITION

Figure 2. START and STOP Conditions

SDA

SCL

DATA LINE STABLE;

Figure 3. Bit Transfer

�� Maxim Integrated Products 15

DATA VALID

P

STOP

CONDITION

CHANGE OF DATA

ALLOWED

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

START

CONDITION

1 2 8 9

TRANSMITTER

Figure 4. Acknowledge

Figure 5. Slave Address

SCL

SDA BY

RECEIVER

SDA

SCL

S

01 1A3A2A11

MSB

Table 3. Two-Wire Interface Address Map

AD0

GND V

CC

SDA 1 0 SCL 1 1

A7 A6 A5 A4 A3 A2 A1 A0

0 1 1 1

The device has two 7-bit long slave addresses. The bit following a 7-bit slave address is the R/W bit, which is low for a write command and high for a read command.

The first 4 bits (MSBs) of the device slave addresses are always 0111. Slave address bits A[3:1] correspond, by the matrix in Table 3, to the states of the device address input pin AD0, and A0 corresponds to the R/W bit (Figure 5). The AD0 input can be connected to any of four signals: GND, VCC, SDA, or SCL, giving four possible slave-address pairs, allowing up to four devices to share the same bus. Because SDA and SCL are dynamic signals, care must be taken to ensure that AD0 transitions no sooner than the signals on SDA and SCL.

The device monitors the bus continuously, waiting for a START condition, followed by its slave address. When the device recognizes its slave address, it acknowledges and is then ready for continued communication.

DEVICE ADDRESS

0 0 0 1

Slave Addresses

0

R/W

CLOCK PULSE FOR

ACKNOWLEDGE

ACKR/W

LSB

Bus Timeout

The device features a 20ms (min) bus timeout on the two-wire serial interface, largely to prevent the device from holding the SDA I/O low during a read transaction should the SCL lock up for any reason before a serial transaction is completed. Bus timeout operates by causing the device to internally terminate a serial transaction, either read or write, if the time between adjacent edges on SCL exceeds 20ms. After a bus timeout, the device waits for a valid START condition before responding to a consecutive transmission. This feature can be enabled or disabled under user control by writing to the configuration register.

Message Format for Writing

the Keyscan Controller

A write to the device comprises the transmission of the slave address with the R/W bit set to zero, followed by at least one byte of information. The first byte of information is the command byte. The command byte determines which register of the device is to be written by the next byte, if received. If a STOP condition is detected after the command byte is received, the device takes no further action (Figure 6) beyond storing the command byte.

Any bytes received after the command byte are data bytes. The first data byte goes into the internal register of the device selected by the command byte (Figure 7).

If multiple data bytes are transmitted before a STOP condition is detected, these bytes are generally stored in subsequent internal registers of the device, because the command-byte address generally autoincrements (Table 4).

�� Maxim Integrated Products 16

MAX7370

AA

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

COMMAND BYTE IS STORED ON RECEIPT OF

SAAP0SLAVE ADDRESS COMMAND BYTE

Figure 6. Command Byte Received

ACKNOWLEDGE FROM MAX7370

SA

R/W

Figure 7. Command and Single Data Byte Received

ACKNOWLEDGE FROM MAX7370

SA

ACKNOWLEDGE CONDITION

ACKNOWLEDGE FROM MAX7370

R/W

D7 D6 D5 D4 D3 D2 D1 D0 D1 D0D3 D2D5 D4D7 D6

ACKNOWLEDGE FROM MAX7370

D7 D6 D5 D4 D3 D2 D1 D0

ACKNOWLEDGE FROM MAX7370

P0SLAVE ADDRESS COMMAND BYTE DATA BYTE

1 BYTE

AUTOINCREMENT

COMMAND BYTE ADDRESS

ACKNOWLEDGE FROM MAX7370

P0SLAVE ADDRESS COMMAND BYTE DATA BYTE

R/W

Figure 8. N Data Bytes Received

Message Format for Reading

the Keyscan Controller

The device is read using the internally stored command byte as an address pointer, the same way the stored command byte is used as an address pointer for a write. The pointer generally autoincrements after each data byte is read using the same rules as for a write (Table 4). Thus, a read is initiated by first configuring the device’s command byte by performing a write (Figure 6). The master can now read N consecutive bytes from the device, with the first data byte being read from the register addressed by the initialized command byte. When performing read-after-write verification, remember to reset the command byte’s address because the stored command byte address is generally autoincremented after the write (Figure 8, Table 4).

�� Maxim Integrated Products 17

N BYTES

AUTOINCREMENT

COMMAND BYTE ADDRESS

Table 4. Autoincrement Rules

REGISTER FUNCTION

Keys FIFO 0x00 0x00 Autosleep 0x06 0x00

All other key switches

All other GPIOs 0x30 to 0x5B Addr + 0x01

ADDRESS

CODE (hex)

0x01 to 0x05 Addr + 0x01

AUTOINCREMENT

ADDRESS (hex)

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Operation with Multiple Masters

When the device is operated on a two-wire interface with multiple masters, a master reading the device uses a repeated start between the write that sets the device’s address pointer, and the read(s) that takes the data from the location(s). This is because it is possible for master 2 to take over the bus after master 1 has set up the device’s address pointer but before master 1 has read the data. If master 2 subsequently resets the device’s address pointer, master 1’s read can be from an unexpected location.

Command Address Autoincrementing

Address autoincrementing allows the device to be configured with fewer transmissions by minimizing the number of times the command address needs to be sent. The command address stored in the device generally increments after each data byte is written or read (Table 4). Autoincrement only functions when doing a multiburst read or write.

Applications Information

Reset from I2C

After a catastrophic event such as ESD discharge or microcontroller reset, use bit D7 of the configuration register (0x01) as a software reset for the key switches. Use bit D4 of the GPIO global configuration register (0x40) as a software reset for the GPIOs.

Ghost-Key Elimination

Ghost keys are a phenomenon inherent with key-switch matrices. When three switches located at the corners of a matrix rectangle are pressed simultaneously, the

switch that is located at the last corner of the rectangle (the ghost key) also appears to be pressed. This occurs because the potentials at the two sides of the ghost-key switch are identical due to the other three connections— the switch is electrically shorted by the combination of the other three switches (Figure 9). Because the key appears to be pressed electrically, it is impossible to detect which of the four keys is the ghost key.

The device employs a proprietary scheme that detects any three-key combination that generates a fourth ghost key, and does not report the third key that causes a ghost-key event. This means that although ghost keys are never reported, many combinations of three keys are effectively ignored when pressed at the same time. Applications requiring three-key combinations (such as <Ctrl><Alt><Del>) must ensure that the three keys are not wired in positions that define the vertices of a rectangle (Figure 10). There is no limit on the number of keys that can be pressed simultaneously as long as the keys do not generate ghost-key events and the FIFO is not full.

Low-EMI Operation

The device uses two techniques to minimize EMI radiating from the key-switch wiring. First, the voltage across the switch matrix never exceeds 0.5V if not in sleep mode, independent of supply voltage VCC. This reduces the voltage swing at any node when a switch is pressed to 0.5V (max). Second, the keys are not dynamically scanned, which would cause the key-switch wiring to continuously radiate interference. Instead, the keys are monitored for current draw (only occurs when pressed), and debounce circuitry only operates when one or more keys are actually pressed.

REGULAR KEYPRESS

EVENT

GHOST-KEY EVENT

KEY-SWITCH MATRIX

Figure 9. Ghost-Key Phenomenon Figure 10. Valid Three-Key Combinations

�� Maxim Integrated Products 18

EXAMPLES OF VALID THREE-KEY COMBINATIONS

KEY-SWITCH MATRIX KEY-SWITCH MATRIX

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Switch On-Resistance

The device is designed to be insensitive to resistance, either in the key switches, or the switch routing to and from the appropriate COL_ and ROW_ up to 5kI (max). These controllers are therefore compatible with low-cost membrane and conductive carbon switches.

Hot Insertion

The INT, SCL, and AD0 inputs and SDA remain high impedance with up to 5.5V asserted on them when the device powers down (VCC = 0V). I/O ports remain high impedance with up to 5.5V asserted on them when not powered. Use the device in hot-swap applications.

Staggered PWM

The LED’s on-time in each PWM cycle is phase delayed by 45N into four evenly spaced start positions. Optimize phasing, when using fewer than four ports as constant-current

Table 5. ESD Test Levels

1A—CONTACT DISCHARGE 1B—AIR DISCHARGE

LEVEL

1 2 1 2 2 4 2 4 3 6 3 8 4 8 4 15

X Special X Special

X = Open level. The level has to be specified in the dedicated equipment specification. If higher voltages than those shown are specified, special test equipment might be needed.

TEST VOLTAGE

(kV)

LEVEL

TEST

VOLTAGE (kV)

outputs, by allocating the ports with the most appropriate start positions. For example, if using two constant-current outputs, choose COL4 and COL6 because their PWM start positions are evenly spaced. In general, choose the ports that spread the current demand from the ports’ load supply.

Power-Supply Considerations

The device operates with a 1.62V to 3.6V power-supply voltage. Bypass the power supply (VCC) to GND with a

0.1µF or higher ceramic capacitor as close as possible to the device. Bypass the logic power supply (VLA) to GND with a 0.1µF or higher ceramic capacitor as close as possible to the device.

ESD Protection

All the device pins meet the ±2.5kV Human Body Model ESD tolerances. Key-switch inputs and GPIOs meet IEC 61000-4-2 ESD protection. The IEC test stresses consist of 10 consecutive ESD discharges per polarity at the maximum specified level and below (per IEC 61000-4-2). Test criteria include:

• ThepowereddevicedoesnotlatchupduringtheESD

discharge event.

• Thedevice subsequently passes the final test used

for prescreening.

Tables 5 and 6 are taken from the IEC 61000-4-2:

Edition 1.1 1999-05: Electromagnetic compatibility (EMC)

Testing and measurement techniques—Electrostatic discharge immunity test.

Table 6. ESD Waveform Parameters

INDICATED

LEVEL

1 2 7.5 0.7 to 1 4 2 2 4 15 0.7 to 1 8 4 3 6 22.5 0.7 to 1 12 6 4 8 30 0.7 to 1 16 8

VOLTAGE

(kV)

�� Maxim Integrated Products 19

FIRST PEAK

OF CURRENT

DISCHARGE Q10%

(A)

RISE TIME (tr) WITH

DISCHARGE SWITCH

(ns)

CURRENT

(Q30%) AT 30ns

(A)

CURRENT (Q30%)

AT 60ns

(A)

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Register Tables

Table 7. Keys FIFO Register Format (0x00)

SPECIAL FUNCTION

The key number indicated by D[5:0] is a key event. D7 is always for a keypress of key 62 and key 63. When D7 is 0, the key read is the last data in the FIFO. When D7 is 1, there is more data in the FIFO. When D6 is 1, key data read from the FIFO is a key release. When D6 is 0, key data read from the FIFO is a keypress.

FIFO is empty. 0 0 1 1 1 1 1 1

FIFO is overflow. Continue to read data in the FIFO.

Key 63 is pressed. Read one more time to determine whether there is more data in the FIFO.

Key 63 is released. Read one more time to determine whether there is more data in the FIFO.

D7 D6 D5 D4 D3 D2 D1 D0

FIFO not-

empty flag

0 1 1 1 1 1 1 1

1 0 1 1 1 1 1 1

1 1 1 1 1 1 1 1

Key-

release

flag

KEYS FIFO REGISTER DATA

Key number/key event

Key repeat. Indicates the last data in the FIFO.

Key repeat. Indicates more data in the FIFO.

Key 62 is pressed. Read one more time to determine whether there is more data in the FIFO.

Key 62 is released. Read one more time to determine whether there is more data in the FIFO.

�� Maxim Integrated Products 20

0 0 1 1 1 1 1 0

0 1 1 1 1 1 1 0

1 0 1 1 1 1 1 0

1 1 1 1 1 1 1 0

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 8. Configuration Register (0x01)

REGISTER

BIT

D7 Sleep

D6 Reserved 0 — 0

D5 Interrupt

D4 Reserved 0 — 0

D3

D2 Reserved 0 — 0

D1

D0

DESCRIPTION VALUE FUNCTION

Key-release

enable

Autowake

enable

Timeout

disable

X

(when 0x40

D4 = 1)

0

(when 0x40

D4 = 0)

1

(when 0x40

D4 = 0)

0 INT cleared when the FIFO is empty.

1

0 Disable key releases. 1 Enable key releases.

0 Disable keypress wakeup. 1 Enable keypress wakeup. 0 I2C timeout enabled. 1 I2C timeout disabled.

Key-switch operating mode. Key switches always remain active when constant-current PWM is enabled (bit 4 of register 0x40 is high), regardless of autosleep, autowake, or an I2C write to this bit.

Key-switch sleep mode. The entire chip is shut down.

Key-switch operating mode.

INT cleared after host read. In this mode, I2C should read the FIFO until interrupt condition is removed or further INT could be lost.

When constant-current PWM is disabled (bit 4 of register 0x40 is low), I2C write, autosleep, and autowake all can change this bit. This bit can be read back by I2C any time for current status.

DEFAULT

VALUE

0

1

X = Don’t care.

�� Maxim Integrated Products 21

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 9. Key-Switch Debounce Register (0x02)

REGISTER DESCRIPTION

DEBOUNCE TIME RELEASE DEBOUNCE TIME PRESS DEBOUNCE TIME

2ms 4ms 0 0 0 1 6ms 0 0 1 0

⋮

28ms 30ms 1 1 1 0 32ms 1 1 1 1

2ms 0 0 0 0

6ms 0 0 1 0

⋮

28ms 1 1 0 1

32ms 1 1 1 1

Power-on default (32ms) 1 1 1 1 1 1 1 1

X = Don’t care.

D7 D6 D5 D4 D3 D2 D1 D0

X

REGISTER DATA

0 0 0 0

1 1 0 1

X4ms 0 0 0 1

X30ms 1 1 1 0

Table 10. Key-Switch Interrupt Register (0x03)

REGISTER DATA

REGISTER DESCRIPTION

Power-up default setting

All INT disabled Time-based INT disabled

INT asserts every debounce cycle INT asserts every 2 debounce cycles

⋮

INT asserts every 29 debounce cycles INT asserts every 30 debounce cycles INT asserts every 31 debounce cycles

FIFO-based INT disabled INT asserts when the FIFO has 2 key events INT asserts when the FIFO has 4 key events

⋮

INT asserts when the FIFO has 10 key events INT asserts when the FIFO has 12 key events INT asserts when the FIFO has 14 key events

Both time-based and FIFO-based interrupts active Not all zero Not all zero

X = Don’t care.

D7 D6 D5 D4 D3 D2 D1 D0

FIFO-BASED INT TIME-BASED INT

0 0 0 0 0 0 0 0

0 0 0 0 0

X

0 0 0 0 0 1 0 1 0

1 0 1 1 1 0 1 1 1

0 0 0 0 1 0 0 0 1 0

1 1 1 0 1 1 1 1 1 0 1 1 1 1 1

X

�� Maxim Integrated Products 22

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 11. Key-Switch Autorepeat Register (0x05)

REGISTER DATA

REGISTER DESCRIPTION

Autorepeat is disabled 0 X X X X X X X Autorepeat is enabled 1 Autorepeat rate Autorepeat delay

D7 D6 D5 D4 D3 D2 D1 D0

ENABLE AUTOREPEAT RATE AUTOREPEAT DELAY

Autorepeat delay is 8 debounce cycles 1 Autorepeat delay is 16 debounce cycles 1 0 0 0 1 Autorepeat delay is 24 debounce cycles 1 0 0 1 0

⋮

Autorepeat delay is 112 debounce cycles 1 Autorepeat delay is 120 debounce cycles 1 1 1 1 0 Autorepeat delay is 128 debounce cycles 1 1 1 1 1

Autorepeat frequency is 4 debounce cycles 1 0 0 0 Autorepeat frequency is 8 debounce cycles 1 0 0 1

Autorepeat frequency is 12 debounce cycles

⋮

Autorepeat frequency is 24 debounce cycles

Autorepeat frequency is 28 debounce cycles

Autorepeat frequency is 32 debounce cycles

Power-on default setting 0 0 0 0 0 0 0 0

X = Don’t care.

1 0 1 0

1 1 0 1

1 1 1 0

1 1 1 1

X

0 0 0 0

1 1 0 1

X

Table 12. Autosleep Register (0x06)

REGISTER DESCRIPTION

AUTOSLEEP (ms)

Autosleep disabled 0 0 0 0 0 0 0 0 8192 0 0 0 0 0 0 0 1 4096 0 0 0 0 0 0 1 0 2048 0 0 0 0 0 0 1 1 1024 0 0 0 0 0 1 0 0 512 0 0 0 0 0 1 0 1 256 0 0 0 0 0 1 1 0 256 0 0 0 0 0 1 1 1

Power-up default settings 0 0 0 0 0 1 1 1

�� Maxim Integrated Products 23

D7 D6 D5 D4 D3 D2 D1 D0

RESERVED AUTOSHUTDOWN TIME

REGISTER DATA

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 13. Key-Switch Array Size Register (0x30)

REGISTER DATA

REGISTER DESCRIPTION

No rows are key switches 0 0 0 0 ROW0 is a key switch 0 0 0 1 ROW0 to ROW1 are key switches 0 0 1 0 ROW0 to ROW2 are key switches 0 0 1 1 ROW0 to ROW3 are key switches 0 1 0 0 ROW0 to ROW4 are key switches 0 1 0 1 ROW0 to ROW5 are key switches 0 1 1 0 ROW0 to ROW6 are key switches 0 1 1 1 ROW0 to ROW7 are key switches 1 X X X No columns are key switches COL0 is a key switch 0 0 0 1 COL0 to COL1 are key switches 0 0 1 0 COL0 to COL2 are key switches 0 0 1 1 COL0 to COL3 are key switches 0 1 0 0 COL0 to COL4 are key switches 0 1 0 1 COL0 to COL5 are key switches 0 1 1 0 COL0 to COL6 are key switches 0 1 1 1 COL0 to COL7 are key switches 1 X X X

Power-up default setting 1 1 1 1 1 1 1 1

X = Don’t care.

D7 D6 D5 D4 D3 D2 D1 D0

ROWS COLUMNS

X

0 0 0 0

X

Table 14. LED Driver Enable Register (0x31)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D[7:4] Reserved 0000 — 0000

D3 COL7

D2 COL6

D1 COL5

D0 COL4

�� Maxim Integrated Products 24

0 GPIO function 1 LED driver enable 0 GPIO function 1 LED driver enable 0 GPIO function 1 LED driver enable 0 GPIO function 1 LED driver enable

0

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 15. GPIO Direction 1 Register (0x34)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin

0

Table 16. GPIO Direction 2 Register (0x35)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7

D6 COL6

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin 0 Set as input pin 1 Set as output pin

0

�� Maxim Integrated Products 25

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 17. GPO Output Mode 1 Register (0x36)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output

1

Table 18. GPO Output Mode 2 Register (0x37)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7 0 Port is an open-drain output 0 D6 COL6 0 Port is an open-drain output 0 D5 COL5 0 Port is an open-drain output 0 D4 COL4 0 Port is an open-drain output 0

D3

D2 COL2

D1 COL1

D0 COL0

Note: When programmed as GPO, COL7–COL4 are always open drain and bits D[7:4] are not writable.

COL3

0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output 0 Port is an open-drain output 1 Port is a push-pull output

1

�� Maxim Integrated Products 26

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 19. GPIO Supply Voltage 1 Register (0x38)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 ROW7 supplied by V 1 ROW7 supplied by V 0 ROW6 supplied by V 1 ROW6 supplied by V 0 ROW5 supplied by V 1 ROW5 supplied by V 0 ROW4 supplied by V 1 ROW4 supplied by V 0 ROW3 supplied by V 1 ROW3 supplied by V 0 ROW2 supplied by V 1 ROW2 supplied by V 0 ROW1 supplied by V 1 ROW1 supplied by V 0 ROW0 supplied by V 1 ROW0 supplied by V

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

0

Table 20. GPIO Supply Voltage 2 Register (0x39)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7

D6 COL6

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

0 COL7 supplied by V 1 COL7 supplied by V 0 COL6 supplied by V 1 COL6 supplied by V 0 COL5 supplied by V 1 COL5 supplied by V 0 COL4 supplied by V 1 COL4 supplied by V 0 COL3 supplied by V 1 COL3 supplied by V 0 COL2 supplied by V 1 COL2 supplied by V 0 COL1 supplied by V 1 COL1 supplied by V 0 COL0 supplied by V 1 COL0 supplied by V

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

CC

LA

0

�� Maxim Integrated Products 27

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 21. GPIO Values 1 Register (0x3A)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 Clear ROW7 low 1 Set ROW7 high 0 Clear ROW6 low 1 Set ROW6 high 0 Clear ROW5 low 1 Set ROW5 high 0 Clear ROW4 low 1 Set ROW4 high 0 Clear ROW3 low 1 Set ROW3 high 0 Clear ROW2 low 1 Set ROW2 high 0 Clear ROW1 low 1 Set ROW1 high 0 Clear ROW0 low 1 Set ROW0 high

1

Table 22. GPIO Values 2 Register (0x3B)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7

D6 COL6

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

*Open-drain output, pullup resistor required.

0 Clear COL7 low 1 Set COL7 high* 0 Clear COL6 low 1 Set COL6 high* 0 Clear COL5 low 1 Set COL5 high* 0 Clear COL4 low 1 Set COL4 high* 0 Clear COL3 low 1 Set COL3 high 0 Clear COL2 low 1 Set COL2 high 0 Clear COL1 low 1 Set COL1 high 0 Clear COL0 low 1 Set COL0 high

1

�� Maxim Integrated Products 28

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 23. GPIO Level-Shifter Enable Register (0x3C)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

0 Level shifting disabled

D7 COL7

D6 COL6 0

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

1

0 Level shifting disabled

1

0 Level shifting disabled

1

0 Level shifting disabled

1

0 Level shifting disabled

1

0 Level shifting disabled

1

0 Level shifting disabled

1

Level shift between COL7 and ROW7 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shifting disabled

Level shift between COL6 and ROW6 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL5 and ROW5 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL4 and ROW4 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL3 and ROW3 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL2 and ROW2 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL1 and ROW1 enabled; direction controlled by GPIO direction 2 register (0x35)

Level shift between COL0 and ROW0 enabled; direction controlled by GPIO direction 2 register (0x35)

0

�� Maxim Integrated Products 29

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 24. GPIO Global Configuration Register (0x40)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D[7:6] Reserved 0 — 00

0 Disabled

D5

D4 GPIO enable

D3 GPIO reset

D[2:0] Fade-in/out time

I2C timeout

interrupt enable

1

0

1

0 Normal operation

1

000 No fading

XXX

INT is asserted when I2C bus times out. INT is deasserted when a read is performed on the I2C timeout flag register (0x48).

PWM, constant-current circuits, and GPIs are shut down. GPO values depend on their setting. Register 0x31 to 0x5B values are stored and cannot be changed. The entire part is shut down if the key switches are in sleep mode (D7 of register 0x01).

Normal GPIO operation. PWM, constant-current circuits, and GPIOs are enabled regardless of key-switch sleep-mode state (see Table 8).

Return all GPIO registers (registers 0x31 to 0x5B) to their POR value. This bit is momentary and resets itself to 0 after the write cycle.

PWM intensity ramps up (down) between the common PWM value and 0% duty cycle in 16 steps over the following time period: D[2:0] = 001 = 256ms D[2:0] = 010 = 512ms D[2:0] = 011 = 1024ms D[2:0] = 100 = 2048ms D[2:0] = 101 = 4096ms D[2:0] = 110/111 = Undefined

0

000

Table 25. GPIO Debounce Configuration Register (0x42)

REGISTER DATA

REGISTER DESCRIPTION

Power-up default setting

Debounce time is 9ms

Debounce time is 10ms 0 0 0 0 0 0 0 1 Debounce time is 11ms 0 0 0 0 0 0 1 0 Debounce time is 12ms 0 0 0 0 0 0 1 1

Debounce time is 37ms 0 0 0 1 1 1 0 0 Debounce time is 38ms 0 0 0 1 1 1 0 1 Debounce time is 39ms 0 0 0 1 1 1 1 0 Debounce time is 40ms 0 0 0 1 1 1 1 1

�� Maxim Integrated Products 30

D7 D6 D5 D4 D3 D2 D1 D0

RESERVED DEBOUNCE TIME

0 0 0 0 0 0 0 0

⋮

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 26. LED Constant-Current Setting Register (0x43)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D[7:6] Reserved 11 Set always as 11 11 D[5:1] Reserved 00000 — 00000

D0

Constant-current

setting

Table 27. Common PWM Register (0x45)

REGISTER DESCRIPTION

Power-up default setting

Common PWM ratio is 0/256

Common PWM ratio is 1/256 0 0 0 0 0 0 0 1 Common PWM ratio is 2/256 0 0 0 0 0 0 1 0 Common PWM ratio is 3/256 0 0 0 0 0 0 1 1

Common PWM ratio is 252/256 1 1 1 1 1 1 0 0 Common PWM ratio is 253/256 1 1 1 1 1 1 0 1 Common PWM ratio is 254/256 1 1 1 1 1 1 1 0 Common PWM ratio is 256/256 (100% duty cycle) 1 1 1 1 1 1 1 1

0 Constant current is 20mA 1 Constant current is 10mA

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0

⋮

0

REGISTER DATA

COMMON PWM

Table 28. I2C Timeout Flag Register (0x48) (Read Only)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D[7:1] Reserved 0000000 — 0000000

0

D0 I2C timeout flag

1

�� Maxim Integrated Products 31

No I2C timeout has occurred since last read or POR.

I2C timeout has occurred since last read or POR. This bit is reset to zero when a read is performed on this register. I2C timeouts must be enabled for this function to work (see Table 8).

0

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 29. COL4–COL7 Individual PWM Ratio Registers (0x50 to 0x53)

REGISTER DATA

REGISTER DESCRIPTION

Power-up default setting

PORT PWM ratio is 0/256

PORT PWM ratio is 1/256 0 0 0 0 0 0 0 1 PORT PWM ratio is 2/256 0 0 0 0 0 0 1 0 PORT PWM ratio is 3/256 0 0 0 0 0 0 1 1

PORT PWM ratio is 252/256 1 1 1 1 1 1 0 0 PORT PWM ratio is 253/256 1 1 1 1 1 1 0 1 PORT PWM ratio is 254/256 1 1 1 1 1 1 1 0 PORT PWM ratio is 256/256 (100% duty cycle) 1 1 1 1 1 1 1 1

Table 30. COL4–COL7 LED Configuration Registers (0x54 to 0x57)

D7 D6 D5 D4 D3 D2 D1 D0

PORT PWM

0 0 0 0 0 0 0 0

⋮

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D[7:6] Don’t care 00 — 00

Port uses individual PWM intensity register to set the PWM ratio

Port uses common PWM intensity register to set the PWM ratio

0

000

00

D5 Common PWM

D[4:2] Blink period

D[1:0] Blink-on time

0

1

000 Port does not blink 001 Port blink period is 256ms 010 Port blink period is 512ms 011 Port blink period is 1024ms 100 Port blink period is 2048ms 101 Port blink period is 4096ms

110/111 Undefined

00 LED is on for 50% of the blink period 01 LED is on for 25% of the blink period 10 LED is on for 12.5% of the blink period 11 LED is on for 6.25% of the blink period

�� Maxim Integrated Products 32

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 31. Interrupt Mask 1 Register (0x58)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked

1

Table 32. Interrupt Mask 2 Register (0x59)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7

D6 COL6

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked 0 Interrupt is not masked 1 Interrupt is masked

1

�� Maxim Integrated Products 33

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Table 33. GPI Trigger Mode 1 Register (0x5A)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 ROW7

D6 ROW6

D5 ROW5

D4 ROW4

D3 ROW3

D2 ROW2

D1 ROW1

D0 ROW0

0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts

0

Table 34. GPI Trigger Mode 2 Register (0x5B)

REGISTER BIT DESCRIPTION VALUE FUNCTION DEFAULT VALUE

D7 COL7

D6 COL6

D5 COL5

D4 COL4

D3 COL3

D2 COL2

D1 COL1

D0 COL0

0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts 0 Rising-edge-triggered interrupts 1 Rising- and falling-edge-triggered interrupts

0

�� Maxim Integrated Products 34

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Typical Application Circuit

+5V

+3.3V

V

µC

GND

+1.8V

V

CC

+2.6V

V

LA

MAX7370

CC

SDA

SCL

INT

SDA

SCL

INT

AD0

GND

COL7

COL6

COL5

COL4

COL3

COL2

COL1

COL0

ROW7

ROW6

ROW5

ROW4

ROW3

ROW2

ROW1

ROW0

I/O

KEY 7 KEY 15 KEY 23 KEY 31

KEY 6 KEY 14 KEY 22 KEY 30

KEY 5 KEY 13 KEY 21 KEY 29

KEY 4 KEY 12 KEY 20 KEY 28

KEY 3 KEY 11 KEY 19 KEY 27

KEY 2 KEY 10 KEY 18 KEY 26

KEY 1 KEY 9 KEY 17 KEY 25

KEY 0 KEY 8 KEY 16 KEY 24

�� Maxim Integrated Products 35

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Wafer-Level Packaging (WLP)

Applications Information

For the latest application details on WLP construction, dimensions, tape-carrier information, PCB techniques, bump-pad layout, and recommended reflow temperature profile, as well as the latest information on reliability testing results, refer to Application Note 1891: Wafer-Level Packaging (WLP) and Its Applications, available at www.maxim-ic.com.

Package Information

For the latest package outline information and land patterns (footprints), go to www.maxim-ic.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.

PACKAGE

TYPE

24 TQFN-EP T243A3+1

25 WLP W252F2+1

PACKAGE

CODE

OUTLINE

NO.

21-0188 90-0122

21-0453

LAND

PATTERN NO.

Refer to

Application

Note 1891

Chip Information

PROCESS: BiCMOS

Ordering Information

PART TEMP RANGE PIN-PACKAGE

MAX7370ETG+ MAX7370EWA+**

+Denotes a lead(Pb)-free/RoHS-compliant package. *EP = Exposed. pad. **Future product—contact factory for availability.

-40NC to +85NC

24 TQFN-EP* 25 WLP

�� Maxim Integrated Products 36

MAX7370

8 x 8 Key-Switch Controller and LED Driver/GPIOs

with I2C Interface and High Level of ESD Protection

Revision History

REVISION

NUMBER

0 6/11 Initial release — 1 3/12 Updated ESD protection specifications 1, 4, 8, 19

REVISION

DATE

DESCRIPTION

PAGES

CHANGED

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time. The parametric values (min and max limits) shown in the Electrical Characteristics table are guaranteed. Other parametric values quoted in this data sheet are provided for guidance.

Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 37

©

2012 Maxim Integrated Products Maxim is a registered trademark of Maxim Integrated Products, Inc.

MAXIM MAX7370 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual

General Description

Applications

Features

Typical Operating Circuit

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

ELECTRICAL CHARACTERISTICS (continued)

ELECTRICAL CHARACTERISTICS (continued)

Typical Operating Characteristics

Functional Block Diagram

Detailed Description

Initial Power-Up

Keyscan Controller

Keys FIFO Register (0x00)

Configuration Register (0x01)

Debounce Register (0x02)

Interrupt Register (0x03)

Autorepeat Register (0x05)

Table 2. Key-Switch Mapping

Autosleep Register (0x06)

Key-Switch Array Size Register (0x30)

Key-Switch Sleep Mode

Autowake

FIFO Overflow

GPIOs

LED Driver Enable Register (0x31)

GPIO Direction 1 and 2 Registers (0x34, 0x35)

GPO Output Mode 1 and 2 Registers (0x36, 0x37)

GPIO Values 1 and 2 Registers (0x3A, 0x3B)

GPIO Level-Shifter Enable Register (0x3C)

GPIO Global Configuration Register (0x40)

GPIO Debounce Configuration Register (0x42)

LED Constant-Current Setting Register (0x43)

Common PWM Ratio Register (0x45)

I2C Timeout Flag Register (0x48) (Read Only)

Interrupt Mask 1 and 2 Registers (0x58, 0x59)

GPI Trigger Mode 1 and 2 Registers (0x5A, 0x5B)

Sleep Mode

LED Fade

LED PWM

LED Blink

Interrupts

Serial Interface

Serial Addressing

START and STOP Conditions

Bit Transfer

Acknowledge

Figure 2. START and STOP Conditions

Figure 3. Bit Transfer

Figure 4. Acknowledge

Figure 5. Slave Address

Table 3. Two-Wire Interface Address Map

Slave Addresses

Bus Timeout

Figure 6. Command Byte Received

Figure 8. N Data Bytes Received

Table 4. Autoincrement Rules

Operation with Multiple Masters

Command Address Autoincrementing

Applications Information

Reset from I2C

Ghost-Key Elimination

Low-EMI Operation

Figure 9. Ghost-Key Phenomenon Figure 10. Valid Three-Key Combinations

Switch On-Resistance

Hot Insertion

Staggered PWM

Table 5. ESD Test Levels

Power-Supply Considerations

ESD Protection

Table 6. ESD Waveform Parameters

Register Tables

Table 8. Configuration Register (0x01)

Table 12. Autosleep Register (0x06)

Table 21. GPIO Values 1 Register (0x3A)

Table 22. GPIO Values 2 Register (0x3B)
