MAXIM MAX5893 Technical data

General Description

The MAX5893 programmable interpolating, modulating,
500Msps, dual digital-to-analog converter (DAC) offers
superior dynamic performance and is optimized for high­performance wideband, single-carrier transmit applica­tions. The device integrates a selectable 2x/4x/8x
interpolating filter, a digital quadrature modulator, and
dual 12-bit high-speed DACs on a single integrated cir­cuit. At 30MHz output frequency and 500Msps update
rate, the in-band SFDR is 84dBc while consuming 1.1W.
The device also delivers 72dB ACLR for single-carrier
WCDMA at a 61.44MHz output frequency.

The selectable interpolating filters allow lower input data
rates while taking advantage of the high DAC update
rates. These linear-phase interpolation filters ease
reconstruction filter requirements and enhance the
passband dynamic performance. Individual offset and
gain programmability allow the user to calibrate out local
oscillator (LO) feedthrough and sideband suppression
errors generated by analog quadrature modulators.

The MAX5893 features a f

IM

/4 digital image-reject mod­ulator. This modulator generates a quadrature-modulat­ed IF signal that can be presented to an analog I/Q
modulator to complete the upconversion process. A
second digital modulation mode allows the signal to be
frequency-translated with image pairs at fIM/2 or fIM/4.

The MAX5893 features a standard 1.8V CMOS, 3.3V tol­erant data input bus for easy interface. A 3.3V SPI™ port
is provided for mode configuration. The programmable
modes include the selection of 2x/4x/8x interpolating fil­ters, f

IM

/2, fIM/4 or no digital quadrature modulation with
image rejection, channel gain and offset adjustment, and
offset binary or two’s complement data interface.

Pin-compatible 14- and 16-bit devices are also available.
Refer to the MAX5894 data sheet for the 14-bit version
and the MAX5895 data sheet for the 16-bit version.

Applications

Base Stations: 3G UMTS, CDMA, and GSM

Broadband Wireless Transmitters

Broadband Cable Infrastructure

Instrumentation and Automatic Test Equipment (ATE)

Analog Quadrature Modulation Architectures

Features

o 72dB ACLR at f

OUT

= 61.44MHz (Single-Carrier

WCDMA)

o Meets 3G UMTS, cdma2000

®

, GSM Spectral Masks

(f

OUT

= 122MHz)

o Noise Spectral Density = -151dBFS/Hz at

f

OUT

= 16MHz

o 90dBc SFDR at Low-IF Frequency (10MHz)

o 86dBc SFDR at High-IF Frequency (50MHz)

o Low Power: 511mW (f

CLK

= 100MHz)

o User Programmable

Selectable 2x, 4x, or 8x Interpolating Filters

< 0.01dB Passband Ripple

> 99dB Stopband Rejection
Selectable Real or Complex Modulator Operation
Selectable Modulator LO Frequency: OFF, fIM/2,
or f

IM

/4
Selectable Output Filter: Lowpass or Highpass
Channel Gain and Offset Adjustment

o EV Kit Available (Order the MAX5893EVKIT)

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

________________________________________________________________

Maxim Integrated Products

1

Ordering Information

Simplified Diagram

19-3546; Rev 2; 10/08

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.

Pin Configuration appears at end of data sheet.

SPI is a trademark of Motorola, Inc.
cdma2000 is a registered trademark of Telecommunications

Industry Association.

Selector Guide

D = Dry pack.

*

EP = Exposed pad.

+

Denotes a lead-free/RoHS-compliant package.

EVALUATION KIT

AVAILABLE

PART TEMP RANGE PIN-PACKAGE

MAX5893EGK-D -40°C to +85°C 68 QFN-EP*

MAX5893EGK+D -40°C to +85°C 68 QFN-EP*

PART

MAX5893 12 500 CMOS

MAX5894 14 500 CMOS

MAX5895 16 500 CMOS

MAX5898 16 500 LVDS

RESOLUTION

(BITS)

DAC UPDATE

RATE (Msps)

DATA

PORT A

DATACLK

DATA

PORT B

DATA SYNCH

AND DEMUX

FILTERS

INTERPOLATING

1x/2x/4x

MODULATOR

FILTERS

INTERPOLATING

DAC

2x

DAC

INPUT

LOGIC

OUTI

OUTQ

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, DATACLK input mode, dual-port

mode, 50Ω double-terminated outputs, external reference at 1.25V, T

A

= -40°C to +85°C, unless otherwise noted. Typical values are

at T

A

= +25°C, unless otherwise noted.) (Note 2)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

DV

DD1.8

, AV

DD1.8

to GND, DACREF ..................-0.3V to +2.16V

AV

DD3.3

, AV

CLK

, DV

DD3.3

to GND, DACREF........-0.3V to +3.9V

DATACLK, A0–A11, B0–B9,

SELIQ/B11, DATACLK/B10, CS, RESET, SCLK,

SDI and SDO to GND, DACREF......-0.3V to (DV

DD3.3

+ 0.3V)

CLKP, CLKN to GND, DACREF..............-0.3V to (AV

CLK

+ 0.3V)

REFIO, FSADJ to GND, DACREF ........-0.3V to (AV

DD3.3

+ 0.3V)

OUTIP, OUTIN, OUTQP,

OUTQN to GND, DACREF..................-1V to (AV

DD3.3

+ 0.3V)

SDO, DATACLK, DATACLK/BIO Continuous Current ..........8mA

Continuous Power Dissipation (TA= +70°C)

68-Pin QFN (derate 41.7mW/°C above +70°C)

(Note 1) ...................................................................3333.3mW

Junction Temperature......................................................+150°C

Operating Temperature Range ...........................-40°C to +85°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

Thermal Resistance θ

JC

(Note 1)....................................0.8°C/W

Note 1: Thermal resistance based on a multilayer board with 4 x 4 via array in exposed pad area.

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

STATIC PERFORMANCE

Resolution 12 Bits

Differential Nonlinearity DNL ±0.5 LSB

Integral Nonlinearity INL ±1 LSB

Offset Error OS -0.025 ±0.003 +0.025 %FS

Offset Drift ±0.03 ppm/°C

Full-Scale Gain Error GE

FS

Gain-Error Drift ±110 ppm/°C

Full-Scale Output Current I

OUTFS

Output Compliance -0.5 +1.1 V

Output Resistance R

Output Capacitance C

OUT

OUT

DYNAMIC PERFORMANCE

Maximum Clock Frequency f

Minimum Clock Frequency f

Maximum DAC Update Rate f

Minimum DAC Update Rate f

Maximum Input Data Rate f

CLK

CLK

DAC

DAC

DATA

f

= f

DAC

f

= f

DAC

f

DATACLK

f

= 16MHz, f

OUT

CLK

CLK

= 125MHz,

= 10MHz, -12dBFS

Noise Spectral Density

f

DATACLK

f

OUT

= 125MHz,

= 16MHz, f

= 10MHz, 0dBFS

-4 ±0.6 +4 %FS

220mA

1MΩ

5pF

500 MHz

or f

or f

DAC

DAC

= f

/2 500 Msps

CLK

= f

/2 1 Msps

CLK

125 MWps

No interpolation -151

OFFSET

2x interpolation -147

4x interpolation -148

OFFSET

4x interpolation -145

1 MHz

dBFS/

Hz

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, DATACLK input mode, dual-port

mode, 50Ω double-terminated outputs, external reference at 1.25V, T

A

= -40°C to +85°C, unless otherwise noted. Typical values are

at T

A

= +25°C, unless otherwise noted.) (Note 2)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

In-Band SFDR
(DC to f

DATA

/2)

SFDR

Two-Tone IMD TTIMD

f

DATACLK

= 125MHz,

interpolation off, 0dBFS

f

DATACLK

= 125MHz,

2x interpolation, 0dBFS

f

DATACLK

= 125MHz,

4x interpolation, 0dBFS

f

DATACLK

f

OUT1

= 125MHz,

= 9MHz, f

OUT2

10MHz, -6.1dBFS

f

= 125MHz, f

DATA

= 79MHz, f

OUT2

=

80MHz, -6.1dBFS

f

DATACLK

f

OUT1

= 62.5MHz,

= 9MHz, f

OUT2

10MHz, -6.1dBFS

f

= 10MHz 90

OUT

f

= 30MHz 83

OUT

= 50MHz 72

f

OUT

f

= 10MHz 77 88

OUT

f

= 30MHz 83

OUT

f

= 50MHz 84

OUT

f

= 10MHz 90

OUT

f

= 30MHz 84

OUT

f

= 50MHz 86

OUT

No interpolation -100

2x interpolation -100

=

4x interpolation -100

2x interpolation,
f

OUT1

/4 complex

IM

modulation

-73

4x interpolation,

/4 complex

f

IM

-75

modulation

=

8x interpolation -99

dBc

dBc

Four-Tone IMD FTIMD

ACLR for WCDMA
(Note 3)

ACLR

f

DATACLK

f

OUT1

= 70MHz, -6.1dBFS

f

DATACLK

f

OUT1

= 180MHz, -6.1dBFS

f

DATACLK

= 62.5MHz,

= 69MHz, f

= 62.5MHz,

= 179MHz, f

= 125MHz, f

OUT2

OUT2

8x interpolation,

/4 complex

f

IM

modulation

8x, highpass
interpolation,
f

/4 complex

IM

modulation

spaced 1MHz

OUT

apart from 32MHz, -12dBFS, 2x
interpolation

f

DATACLK

f

OUT

f

DATACLK

= 61.44MHz,

= baseband

=

122.88MHz, f

61.44MHz

f

DATACLK

=

122.88MHz, f

122.88MHz

OUT

OUT

=

=

4x interpolation 74

8x interpolation 73

2x interpolation,
fIM/4 complex
modulation

4x interpolation,
fIM/4 complex
modulation

-67

-62

-93 dBc

73

dB

69

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, DATACLK input mode, dual-port

mode, 50Ω double-terminated outputs, external reference at 1.25V, T

A

= -40°C to +85°C, unless otherwise noted. Typical values are

at T

A

= +25°C, unless otherwise noted.) (Note 2)

Output Propagation Delay t

Output Rise Time t

Output Fall Time t

Output Settling Time To 0.5% (Note 5) 11 ns

Output Bandwidth -1dB bandwidth (Note 6) 240 MHz

Passband Width Ripple < -0.01dB

Stopband Rejection

Data Latency

DAC INTERCHANNEL MATCHING

Gain Match ∆Gain f
Gain-Match Tempco ∆Gain/°C I
Phase Match ∆Phase f
Phase-Match Tempco ∆Phase/°C f

DC Gain Match I

Channel-to-Channel Crosstalk f

REFERENCE

Reference Input Range 0.125 1.250 V

Reference Output Voltage V

Reference Input Resistance R

Reference Voltage Drift ±50 ppm/°C

CMOS LOGIC INPUT/OUTPUT (A11–A0, SELIQ/B11, DATACLK/B10, B9–B0, DATACLK)

Input High Voltage V

Input Low Voltage V

Input Current I

Input Capacitance C

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

PD

RISE

FALL

REFIO

REFIO

IH

IL

IN

IN

1x interpolation (Note 4) 2.9 ns

10% to 90% (Note 5) 0.75 ns

10% to 90% (Note 5) 1 ns

0.604 x f

0.604 x f

0.604 x f

1x interpolation 22

2x interpolation 70

4x interpolation 146

8x interpolation 311

OUT

OUTFS

OUT

OUT

OUTFS

OUT

Internal reference 1.14 1.20 1.27 V

DATA

DATA

DATA

= DC - 80MHz, I

= 20mA ±0.02 ppm/°C

= 60MHz, I

= 60MHz, I

= 20mA -0.2 ±0.04 +0.2 dB

= 50MHz, f

0.4 x

f

DATA

, 2x interpolation 100

, 4x interpolation 100

, 8x interpolation 100

= 20mA ±0.1 dB

OUTFS

= 20mA ±0.13 Deg

OUTFS

= 20mA ±0.006 Deg/°C

OUTFS

= 250MHz, 0dBFS -90 dB

DAC

10 kΩ

0.7 x

DV

DD1.8

0.3 x

DV

±1 ±20 µA

3pF

DD1.8

dB

Clock

Cycles

V

V

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, DATACLK input mode, dual-port

mode, 50Ω double-terminated outputs, external reference at 1.25V, T

A

= -40°C to +85°C, unless otherwise noted. Typical values are

at T

A

= +25°C, unless otherwise noted.) (Note 2)

Output High Voltage V

Output Low Voltage V

Output Leakage Current Three-state 1 µA

Rise/Fall Time C

CLOCK INPUT (CLKP, CLKN)

Differential Input Voltage Swing V

Differential Input Slew Rate > 100 V/µs

Common-Mode Voltage V

Input Resistance R

Input Capacitance C

Minimum Clock Duty Cycle 45 %

Maximum Clock Duty Cycle 55 %

CLKP/CLKN, DATACLK TIMING (Figure 4) (Notes 7, 8)

CLK to DATACLK Delay t

Data Hold Time, DATACLK
Input/Output (Pin 14)

Data Setup Time, DATACLK
Input/Output (Pin 14)

Data Hold Time, DATACLK/B10
Input/Output (Pin 27)

Data Setup Time, DATACLK/B10
Input/Output (Pin 27)

SERIAL PORT INTERFACE TIMING (Figure 3) (Note 7)

SCLK Frequency f
CS Setup Time t

Input Hold Time t

Input Setup Time t

Data Valid Duration t

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

OH

OL

DIFF

COM

CLK

CLK

D

t

DH

t

DS

t

DH

t

DS

SCLK

SS

SDH

SDS

SDV

200µA load

200µA load

Sine-wave input > 1.5

Square-wave input > 0.5

AC-coupled AV

DATACLK output mode, C

Capturing rising edge 1.0

Capturing falling edge 2.1

Capturing rising edge 0.4

Capturing falling edge -0.7

Capturing rising edge 1.0

Capturing falling edge 2.3

Capturing rising edge 0.2

Capturing falling edge -0.4

= 10pF, 20% to 80% 1.6 ns

LOAD

0.8 x

DV

DD3.3

= 10pF 6.2 ns

LOAD

2.5 ns

0ns

4.5 ns

6.5 16.5 ns

0.2 x

DV

DD3.3

/2 V

CLK

5kΩ

3pF

10 MHz

V

V

V

P-P

ns

ns

ns

ns

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

6 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, DATACLK input mode, dual-port

mode, 50Ω double-terminated outputs, external reference at 1.25V, T

A

= -40°C to +85°C, unless otherwise noted. Typical values are

at T

A

= +25°C, unless otherwise noted.) (Note 2)

Note 2: All specifications are 100% tested at T

A

≥ +25°C. Specifications at TA< +25°C are guaranteed by design and characteriza-

tion data.

Note 3: 3.84MHz bandwidth, single carrier.
Note 4: Excludes data latency.
Note 5: Measured single-ended into a 50Ω load.
Note 6: Excludes sin(x)/x rolloff.
Note 7: Guaranteed by design and characterization.
Note 8: Setup and hold time specifications characterized with 3.3V CMOS logic levels.
Note 9: Parameter defined as the change in midscale output caused by a ±5% variation in the nominal supply voltage.

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

POWER SUPPLIES

Digital Supply Voltage DV

Digital I/O Supply Voltage DV

Clock Supply Voltage AV

Analog Supply Voltage

AV

AV

I

AVDD3.3

Analog Supply Current

I

AVDD1.8

Digital Supply Current I

Digital I/O Supply Current I

Clock Supply Current I

DVDD1.8

DVDD3.3

AVCLK

Total Power Dissipation P

Power-Down Current

AV
Ratio

Power-Supply Rejection

DD3.3

PSRR

DD1.8

DD3.3

CLK

DD3.3

DD1.8

TOTAL

1.71 1.8 1.89 V

3.0 3.3 3.6 V

3.135 3.3 3.465 V

3.135 3.3 3.465

1.71 1.8 1.89

f

= 250MHz, 2x interpolation, 0dBFS,

CLK

f

= 10MHz, DATACLK output mode

OUT

f

= 250MHz, 2x interpolation, 0dBFS,

CLK

f

= 10MHz, DATACLK output mode

OUT

f

= 250MHz, 2x interpolation, 0dBFS,

CLK

= 10MHz, DATACLK output mode

f

OUT

f

= 250MHz, 2x interpolation, 0dBFS,

CLK

= 10MHz, DATACLK output mode

f

OUT

f

= 250MHz, 2x interpolation, 0dBFS,

CLK

= 10MHz, DATACLK output mode

f

OUT

110 130

27 32

205 250 mA

21 32 mA

35mA

511 mW

AV

DD3.3

AV

DV

DV

AV

DD1.8

DD1.8

DD3.3

CLK

All I/O are static high or
low, bit 2 to bit 4 of
address 00h are set high

(Note 9) 0.05 %FS/V

A

450

1

10

100

1

V

mA

µA

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

_______________________________________________________________________________________

7

Y

Typical Operating Characteristics

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, output is transformer-coupled to

50Ω load, T

A

= +25°C, unless otherwise noted.)

IN-BAND SFDR vs. OUTPUT FREQUENCY

f

120

100

80

60

SFDR (dBc)

40

20

0

050

IN-BAND SFDR vs. OUTPUT FREQUENCY

f

120

100

80

60

SFDR (dBc)

40

20

0

050

IN-BAND SFDR vs. OUTPUT FREQUENCY

f

90

80

70

60

50

40

SFDR (dBc)

30

20

10

0

125 175

DATA

SPURS MEASURED BETWEEN
0MHz AND 62.5MHz

DATA

SPURS MEASURED BETWEEN
0MHz AND 62.5MHz

DATA

-6dBFS

UPPER SIDEBAND MODULATION
SPURS MEASURED BETWEEN
125MHz AND 187.5MHz

= 125MWps, 2x INTERPOLATION

-6dBFS

-12dBFS

OUTPUT FREQUENCY (MHz)

-0.1dBFS

40302010

= 125MWps, 4x INTERPOLATION

-6dBFS

OUTPUT FREQUENCY (MHz)

-0.1dBFS

-12dBFS

40302010

= 125MWps, 4x INTERPOLATION

-0.1dBFS

-12dBFS

165155145135

OUTPUT FREQUENCY (MHz)

MAX5893 toc01

MAX5893 toc04

MAX5893 toc07

100

SFDR (dBc)

SFDR (dBc)

120

100

TWO-TONE IMD (-dBc)

0UT-OF-BAND SFDR vs. OUTPUT FREQUENCY

= 125MWps, 2x INTERPOLATION

f

DATA

-12dBFS

90

80

70

60

50

40

30

20

10

-6dBFS

-0.1dBFS

SPURS MEASURED BETWEEN

62.5MHz AND 125MHz

0

050

OUTPUT FREQUENCY (MHz)

40302010

MAX5893 toc02

OUT-OF-BAND SFDR vs. OUTPUT FREQUENC

f

= 125MWps, 4x INTERPOLATION

DATA

90

80

70

60

-6dBFS

50

40

30

20

SPURS MEASURED BETWEEN

10

62.5MHz AND 250MHz

0

050

-0.1dBFS

MAX5893 toc05

-12dBFS

40302010

OUTPUT FREQUENCY (MHz)

TWO-TONE IMD vs. OUTPUT FREQUENCY

= 125MWps, 2x INTERPOLATION

f

DATA

80

60

40

20

0

0

-9dBFS

1MHz CARRIER SPACING
COMPLEX MODULATION FOR
OUTPUT FREQUENCIES
GREATER THAN 50MHz

CENTER FREQUENCY (MHz)

-12dBFS

-6dBFS

MAX5893 toc08

100755025

IN-BAND SFDR vs. OUTPUT FREQUENCY

= 125MWps, 2x INTERPOLATION

f

DATA

90

80

70

60

50

40

SFDR (dBc)

30

20

UPPER SIDEBAND MODULATION
SPURS MEASURED BETWEEN

10

62.5MHz AND 125MHz

0

62.5 112.5

IN-BAND SFDR vs. OUTPUT FREQUENCY

= 125MWps, 4x INTERPOLATION

f

DATA

100

90

80

70

60

-6dBFS

50

SFDR (dBc)

40

30

20

LOWER SIDEBAND MODULATION
SPURS MEASURED BETWEEN

10

62.5MHz AND 125MHz

0

75 125

TWO-TONE IMD vs. OUTPUT FREQUENCY

f

DATA

120

90

60

TWO-TONE IMD (-dBc)

30

1MHz CARRIER SPACING
COMPLEX MODULATION FOR
OUTPUT FREQUENCIES
GREATER THAN 50MHz

0

0

-6dBFS

-0.1dBFS -12dBFS

102.592.582.572.5

OUTPUT FREQUENCY (MHz)

-0.1dBFS

-12dBFS

1151059585

OUTPUT FREQUENCY (MHz)

= 125Msps, 4x INTERPOLATION

-6dBFS

-12dBFS

-9dBFS

150120906030

CENTER FREQUENCY (MHz)

MAX5893 toc03

MAX5893 toc06

MAX5893 toc09

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

8 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, output is transformer-coupled to

50Ω load, T

A

= +25°C, unless otherwise noted.)

GAIN MISMATCH vs. TEMPERATURE

= 125Msps, 2x INTERPOLATION

f

DATA

0.100

f

= 22.7MHz

OUT

= -6dBFS

A

OUT

0.075

0.050

GAIN MISMATCH (dB)

0.025

0

-40 85

TEMPERATURE (°C)

603510-15

MAX5893 toc10

DIFFERENTIAL NONLINEARITY

vs. DIGITAL INPUT CODE

1.0

0.5

0

DNL (LSB)

-0.5

-1.0
512

0 4096

1536

1024

DIGITAL INPUT CODE

2048

2560

3072

3584

MAX5893 toc11

INL (LSB)

1.00

0.75

0.50

0.25

0

-0.25

-0.50

-0.75

-1.00

INTEGRAL NONLINEARITY

vs. DIGITAL INPUT CODE

1536

512

0 4096

1024

DIGITAL INPUT CODE

2048

2560

3072

MAX5893 toc12

3584

SUPPLY CURRENTS vs. DAC UPDATE RATE

3.3V TOTAL

(MHz)

OUT

= 5MHz

250200150

2x INTERPOLATION, f

500

450

400

350

300

250

200

150

SUPPLY CURRENT (mA)

100

50

0

100 300

1.8V TOTAL

f

DAC

MAX5893 toc13

SUPPLY CURRENTS vs. DAC UPDATE RATE

1.8V TOTAL

3.3V TOTAL

(MHz)

OUT

= 5MHz

400300200

4x INTERPOLATION, f

500

450

400

350

300

250

200

150

SUPPLY CURRENT (mA)

100

50

0

100 500

f

DAC

SUPPLY CURRENTS vs. DAC UPDATE RATE

8x INTERPOLATION, f

500

450

MAX5893 toc14

400

350

300

250

200

150

SUPPLY CURRENT (mA)

100

50

0

100 500

f

(MHz)

DAC

OUT

1.8V TOTAL

3.3V TOTAL

= 5MHz

MAX5893 toc15

400300200

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

_______________________________________________________________________________________

9

Typical Operating Characteristics (continued)

(DV

DD1.8

= AV

DD1.8

= 1.8V, AV

CLK

= AV

DD3.3

= DV

DD3.3

= 3.3V, modulator off, 2x interpolation, output is transformer-coupled to

50Ω load, T

A

= +25°C, unless otherwise noted.)

WCDMA ACLR vs. OUTPUT FREQUENCY

f

DATA

= 122.88MWps, 4x INTERPOLATION

MAX5893 toc16

f

CENTER

(MHz)

ACLR (dB)

1208040

50

60

70

80

90

100

40

0 160

SINGLE-CARRIER
ALTERNATE CHANNEL

SINGLE-CARRIER
ADJACENT CHANNEL

WCDMA ACLR vs. OUTPUT FREQUENCY

f

DATA

= 76.8MWps, 4x INTERPOLATION

MAX5893 toc17

f

CENTER

(MHz)

ACLR (dB)

8040

50

60

70

80

90

100

40

0

SINGLE-CARRIER
ALTERNATE CHANNEL

SINGLE-CARRIER
ADJACENT CHANNEL

MAX5893 toc18

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-120

WCDMA ACLR SPECTRAL PLOT

f

DATA

= 61.44MWps, 8x INTERPOLATION

f

CENTER

= 61.44MHz

SPAN = 25.5MHz

ACLR2 = 73dB

OUTPUT POWER (dBm)

ACLR1 = 73dB

ACLR1 = 72dB

ACLR2 = 73dB

CARRIER = -12dBm

WCDMA ACLR SPECTRAL PLOT
= 122.88MWps, 4x INTERPOLATION

f

DATA

-20

-30

-40

-50

-60

-70

-80

-90

OUTPUT POWER (dBm)

-100

-110

-120

ACLR2 = 71dB

ACLR1 = 69dB

CARRIER = -14dBm

f

= 122.88MHz

CENTER

SPAN = 25.5MHz

ACLR2 = 70dB

ACLR1 = 69dB

MAX5893 toc19

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

10 ______________________________________________________________________________________

Pin Description

PIN NAME FUNCTION

1 CLKP Noninverting Differential Clock Input

2 CLKN Inverting Differential Clock Input

3, 4, 5, 22–25,

40–43

6, 21, 30, 37 DV

7–12, 15–20 A11–A0

N.C. Internally Connected. Do not connect.

DD1.8

Digital Power Supply. Accepts a 1.71V to 1.89V supply range. Bypass each pin to ground with a

0.1µF capacitor as close to the pin as possible.

A-Port Data Inputs.
Dual-port mode:
I-channel data input. Data is latched on the rising/falling edge (programmable) of the DATACLK.
Single-port mode:
I-channel and Q-channel data input, with SELIQ.

13, 44 DV

14 DATACLK Programmable Data Clock Input/Output. See the DATACLK Modes section for details.

26 SELIQ/B11

27 DATACLK/B10

28, 29, 31–36,

38, 39

45 SDO Serial-Port Data Output

46 SDI Serial-Port Data Input

47 SCLK Serial-Port Clock Input. Data on SDI is latched on the rising edge of SCLK.
48 CS Serial-Port Interface Select. Drive CS low to enable serial-port interface.
49 RESET Reset Input. Set RESET low during power-up.

50 REFIO Reference Input/Output. Bypass to ground with a 1µF capacitor as close to the pin as possible.

51 DACREF

52 FSADJ

DD3.3

B9–B0

CMOS I/O Power Supply. Accepts a 3.0V to 3.6V supply range. Bypass each pin to ground with a

0.1µF capacitor as close to the pin as possible.

Select I/Q-Channel Input or B-Port MSB Input.
Single-port mode:
If SELIQ = LOW, data is latched into Q-channel on the rising/falling edge (programmable) of
the DATACLK.
If SELIQ = HIGH, data is latched into I-channel on the rising/falling edge (programmable) of the
DATACLK.
Dual-port mode:
Q-channel MSB input.

Alternate DATACLK Input/Output or B-Port Bit 10 Input.
Single-port mode:
See the DATACLK Modes section for details.
Dual-port mode:
Q-channel bit 10 input.
If unused connect to GND.

B-Port Data Bits 9–0.
Dual-port mode:
Q-channel inputs. Data is latched on the rising/falling (programmable) edge of the DATACLK.
Single-port mode:
Connect to GND.

C ur r ent- S et Resi stor Retur n P ath. For a 20m A ful l - scal e outp ut cur r ent, connect a 2kΩ r esi stor b etw een
FS AD J and D AC RE F. Inter nal l y connected to GN D . D o no t u s e a s a n e x t e r n a l g r o u n d co n n e c t io n .

Full-Scale Adjust Input. This input sets the full-scale output current of the DAC. For a 20mA full­scale output current, connect a 2kΩ resistor between FSADJ and DACREF.

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 11

Pin Description (continued)

Functional Diagram

PIN NAME FUNCTION

53, 67 AV

54, 56, 59, 61,

64, 66

55, 60, 65 AV

DD1.8

GND Ground

DD3.3

57 OUTQN Inverting Differential DAC Current Output for Q-Channel

58 OUTQP Noninverting Differential DAC Current Output for Q-Channel

62 OUTIN Inverting Differential DAC Current Output for I-Channel

63 OUTIP Noninverting Differential DAC Current Output for I-Channel

68 AV

CLK

— EP Exposed Pad. Must be connected to GND through a low-impedance path.

INTERPOLATING

FILTER

A0–A11

DATACLK

B0–B11

SELIQ

DATA SYNCH

AND DEMUX

INTERPOLATING

FILTER

Low Analog Power Supply. Accepts a 1.71V to 1.89V supply range. Bypass each pin to GND with
a 0.1µF capacitor as close to the pin as possible.

Analog Power Supply. Accepts a 3.135V to 3.465V supply range. Bypass each pin to GND with a

0.1µF capacitor as close to the pin as possible.

Clock Power Supply. Accepts a 3.135V to 3.465V supply range. Bypass to ground with a 0.1µF
capacitor as close to the pin as possible.

MODULATOR

INTERPOLATING

INTERPOLATING

FILTER

2x

2x

FILTER

INTERPOLATING

2x

MUX

I

Q

fIM/2, fIM/4

I

MUX

2x

Q

∑

∑

FILTER

MAX5893

INTERPOLATING

FILTER

DIGITAL
OFFSET

MUX

MUX

ADJUST

∑

DIGITAL
OFFSET
ADJUST

2x

∑

2x

IDAC

QDAC

DIGITAL
GAIN
ADJUST

OUTIP

OUTIN

f

DAC

DIGITAL
GAIN
ADJUST

OUTQP

OUTQN

RESET

f

DAC

/2/2

CONTROL REGISTERS

SERIAL INTERFACE

SDO SDI CS SCLK DACREF FSADJ REFIO

REFERENCE

CLOCK BUFFERS

AND DIVIDERS

/2/2

f

CLK

CLKPCLKN

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

12 ______________________________________________________________________________________

Detailed Description

The MAX5893 dual, 500Msps, high-speed, 12-bit, cur­rent-output DAC provides superior performance in
communication systems requiring low-distortion ana­log-signal reconstruction. The MAX5893 combines two
DAC cores with 8x/4x/2x/1x programmable digital inter­polation filters, a digital quadrature modulator, an SPI­compatible serial interface for programming the device,
and an on-chip 1.20V reference. The full-scale output
current range is programmable from 2mA to 20mA to
optimize power dissipation and gain control.

Each channel contains three selectable interpolating fil­ters making the MAX5893 capable of 1x, 2x, 4x, or 8x
interpolation, which allows for low-input and high-out­put data rates. When operating in 8x interpolation
mode, the interpolator increases the DAC conversion
rate by a factor of eight, providing an eight-fold
increase in separation between the reconstructed
waveform spectrum and its first image. The MAX5893
accepts either two’s complement or offset binary input
data format and can operate from either a single- or
dual-port input bus.

The MAX5893 includes modulation modes at f

IM

/2 and
fIM/4, where fIMis the data rate at the input of the modu­lator. If 2x interpolation is used, this data rate is 2x the
input data rate. If 4x or 8x interpolation is used, this data
rate is 4x the input data rate. Table 1 summarizes the
modulator operating data rates for dual-port mode.

The power-down modes can be used to turn off each
DAC’s output current or the entire digital section.
Programming both DACs into power-down simultane­ously will automatically power down the digital interpo­lator filters. Note the SPI section is always active.

The analog and digital sections of the MAX5893 have
separate power-supply inputs (AV

DD3.3

, AV

DD1.8

,

AV

CLK

, DV

DD3.3

, and DV

DD1.8

), which minimize noise

coupling from one supply to the other. AV

DD1.8

and

DV

DD1.8

operate from a typical 1.8V supply, and all

other supply inputs operate from a typical 3.3V supply.

Serial Interface

The SPI-compatible serial interface programs the
MAX5893 registers. The serial interface consists of the
CS, SDI, SCLK, and SDO. Data is shifted into SDI on
the rising edge of the SCLK when CS is low. When CS
is high, data presented at SDI is ignored and SDO is in
high-impedance mode. Note: CS must transition high
after each read/write operation. SDO is the serial data
output for reading registers to facilitate easy debug­ging during development. SDI and SDO can be con­nected together to form a 3-wire serial interface bus or
remain separate and form a 4-wire SPI bus.

The serial interface supports two-byte transfer in a
communication cycle. The first byte is a control byte
written to the MAX5893 only. The second byte is a data
byte and can be written to or read from the MAX5893.

Table 1. Quadrature Modulator Operating Data Rates (fIMis the Data Rate at the Input of
the Modulator) for Dual-Port Mode

INTERPOLATION RATE MODULATION MODE (fLO)

1x

2x

4x

8x

fIM/2 f

f

/4 f

IM

fIM/2 f

f

/4 f

IM

fIM/2 f

/4 f

f

IM

fIM/2 f

/4 f

f

IM

MODULATION FREQUENCY

RELATIVE TO f

DAC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

/2 f

/4 f

/2 f

/4 f

/2 2 x f

/4 f

/4 2 x f

/8 f

MODULATION FREQUENCY

RELATIVE TO f

DATA

DATA

DATA

DATA

/2

/4

DATA

/2

DATA

DATA

DATA

DATA

When writing to the MAX5893, data is shifted into SDI;
data is shifted out of SDO in a read operation. Bits 0 to
3 of the control byte are the address bits. These bits set
the address of the register to be written to or read from.
Bits 4 to 6 of the control byte must always be set to 0.
Bit 7 is a read/write bit: 0 for write operation and 1 for
read operation. The most significant bit (MSB) is shifted

in first in default mode. If the serial port is set to LSB­first mode, both the control byte and data byte are shifted
LSB in first. Figures 1 and 2 show the SPI serial interface
operation in the default write and read mode, respectively.
Figure 3 is a timing diagram for the SPI serial interface.

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 13

Figure 1. SPI Serial Interface Write Cycle, MSB-First Mode

Figure 2. SPI Serial Interface Read Cycle, MSB-First Mode

CS

SCLK

SDI

SDO

0 0 0 0 A3 A2 A1 A0 D7 D6 D5 D4 D3 D2 D1 D0

HIGH IMPEDANCE

CS

SCLK

SDI

SDO

READ CYCLE N - 1

ADDRESS DATA

10003210

HIGH

IMPEDANCE

IGNORED

DATA N - 2

10003210

IMPEDANCE

READ CYCLE N

ADDRESS DATA

IGNORED

HIGH

DATA N - 1

READ CYCLE N + 1

ADDRESS DATA

10003210

HIGH

IMPEDANCE

IGNORED

DATA N

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

14 ______________________________________________________________________________________

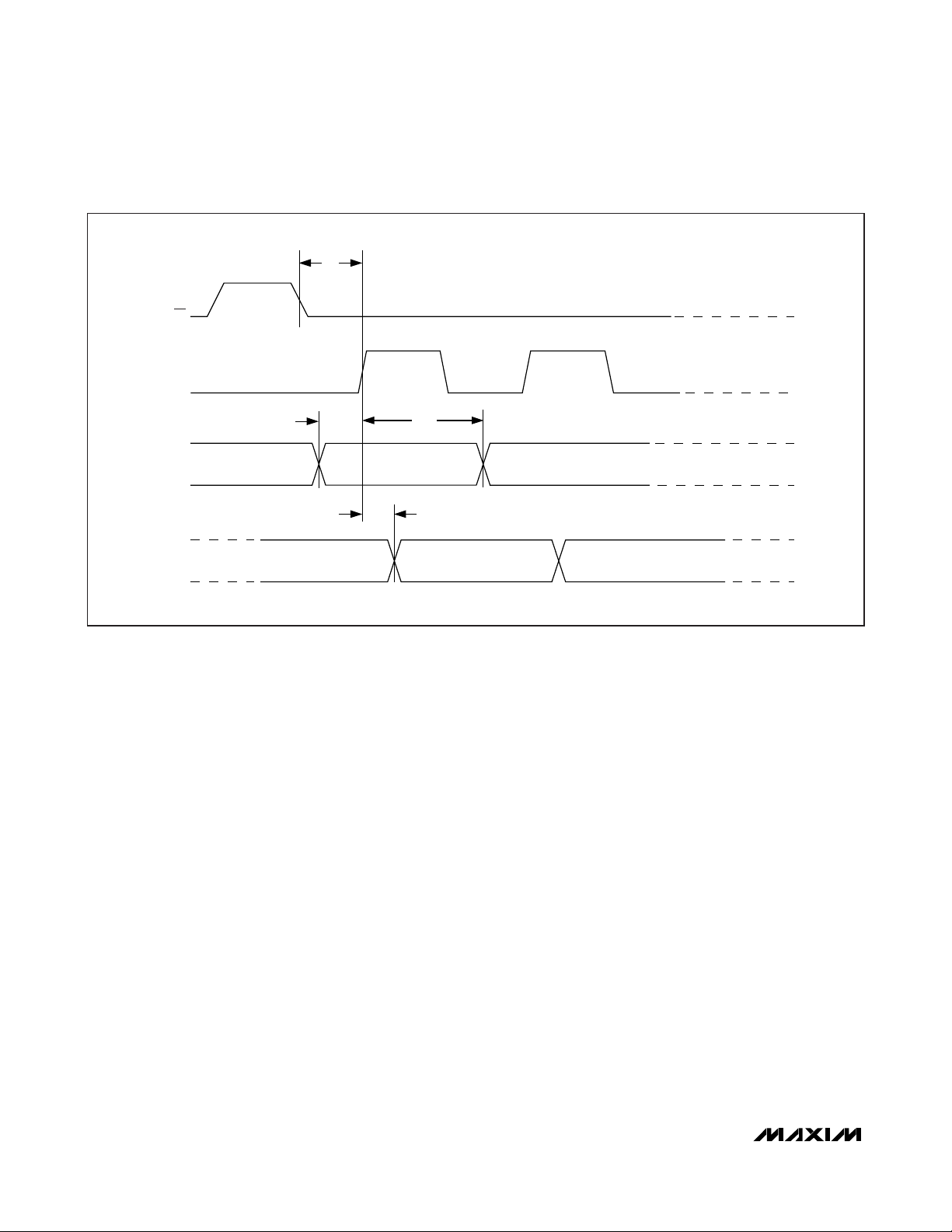

Figure 3. SPI Serial-Interface Timing Diagram

t

SS

CS

SCLK

t

SDS

SDI

SDO

t

SDH

t

SDV

MAX5893

Programming Registers

Programming its registers with the SPI serial interface
sets the MAX5893 operation modes. Table 2 shows all

of the registers. The following are descriptions of each
register.

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 15

Table 2. MAX5893 Programmable Registers

Conditions in bold are default states after reset.

ADD BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

00h Unused

Interpolation Rate
(Bit 7, Bit 6)
00 = No interpolation

01h

01 = 2x interpolation
10 = 4x interpolation

11 = 8x interpolation

0 = Two’s
complement
input data

02h

1 = Offset
binary input
data

03h Unused

04h 8-Bit IDAC Fine-Gain Adjustment (see the Gain Adjustment section). Bit 7 is MSB and bit 0 is LSB. Default: 00h

05h Unused

10-Bit IDAC Offset Adjustment (see the Offset Adjustment section). Bits 7 to 0 of the 06h register are the MSB bits. Bit 1 and bit 0 are the LSB

06h

bits in 07h register. Default: 000h

IDAC IOFFSET
Direction

0 = Current on

07h

OUTIN

1 = Current on
OUTIP

08h 8-Bit QDAC Fine-Gain Adjustment (see the Gain Adjustment section). Bit 7 is MSB and bit 0 is LSB. Default: 00h

09h Unused

10-Bit QDAC Offset Adjustment (see the Offset Adjustment section). Bits 7 to 0 of the 0Ah register are the MSB bits. Bit 1 and bit 0 are the

0Ah

LSB bits in 0Bh register. Default: 000h

QDAC
IOFFSET
Direction

0 = Current on

0Bh

OUTQN

1 = Current on
OUTQP

0Ch Reserved, do not write to these bits.

0Dh Reserved, do not write to these bits.

0Eh Reserved, do not write to these bits.

0 = MSB first

1 = LSB first

0 = Single
port (A),
interleaved
I/Q

1 = Dual port
I/Q input

Unused

Unused

Software Reset

0 = Normal

1 = Reset all
registers

Third
Interpolation
Filter
Configuration

0 = Lowpass

1 = Highpass

0 = Clock output
on DATACLK

1 = Clock output
on D ATAC LK/B10

Interpolator
Power-Down

0 = Normal

1 = Power-down

Modulation Mode
(Bit 4, Bit 3)
00 = Modulation off
01 = f

/2

IM

/4

10 = f

IM

11 = f

/4

IM

0 = Input data
latched on
rising clock
edge

1 = Input data
latched on falling
clock edge

IDAC Power­Down

0 = Normal

1 = Power-down

0 = Data clock
input enabled

1 = Data clock
output enabled

4-Bit IDAC Coarse-Gain Adjustment (see the Gain Adjustment
section). Bit 3 is MSB and bit 0 is LSB. Default: Fh

4-Bit QDAC Coarse-Gain Adjustment (see the Gain Adjustment
section). Bit 3 is MSB and bit 0 is LSB. Default: Fh

QDAC Power­Down

0 = Normal

1 = Power-down

Mixer Modulation
Mode
0 = Complex

1 = Real

Data
Synchronizer

0 = Enabled

1 = Disabled

Unused

Modulation
Sign

-jω

0 = e

+jω

1 = e

Unused

IDAC Offset
Adjustment
Bit 1
(see 06h
register)

QDAC Offset
Adjustment
Bit 1
(see 0Ah
register)

Unused

IDAC Offset
Adjustment
Bit 0
(see 06h
register)

QDAC Offset
Adjustment
Bit 0
(see 0Ah
register)

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

16 ______________________________________________________________________________________

Address 00h

Bit 6 Logic 0 (default) causes the serial port to use

MSB first address/data format. When set to a
logic 1, the serial port will use LSB first
address/data format.

Bit 5 When set to a logic 1, all registers reset to

their default state (this bit included).

Bit 4 Logic 1 stops the clock to the digital interpo-

lators. DAC outputs hold last value prior to
interpolator power-down.

Bit 3 IDAC power-down mode. A logic 1 to this bit

powers down the IDAC.

Bit 2 QDAC power-down mode. A logic 1 to this bit

powers down the QDAC.

Note: If both bit 2 and bit 3 are 1, the MAX5893 is in
full-power-down mode, leaving only the serial interface
active.

Address 01h

Bits 7, 6 Configure the interpolation filters according

to the following table:

00 1x (no interpolation)

01 2x

10 4x

11 8x (default)

Bit 5 Logic 0 configures FIR3 as a lowpass digital

filter (default). A logic 1 configures FIR3 as a
highpass digital filter.

Bits 4, 3 Configure the modulation frequency accord-

ing to the following table:

00 No modulation

01 fIM/2 modulation

10 fIM/4 modulation (default)

11 fIM/4 modulation

where fIMis the data rate at the input of the
modulator.

Bit 2 Configures the modulation mode for either

real or complex (image reject) modulation.
Logic 1 sets the modulator to the real mode
(default). Complex modulation is only avail­able for f

IM

/4 modulation.

Bit 1 Quadrature modulator sign inversion. With I-

channel data leading Q-channel data by 90°,
logic 0 sets the complex modulation to be
e

-jw

(default), cancelling the upper image

when used with an external quadrature mod-

ulator. A logic 1 sets the complex modulation
to be e

+jw

, cancelling the lower image when

used with an external quadrature modulator.

Address 02h

Bit 7 Logic 0 (default) configures the data port for

two’s complement. A logic 1 configures the
data ports for offset binary.

Bit 6 Logic 0 (default) configures the data bus for

single-port, interleaved I/Q data. I and Q data
enter through one 12-bit bus. Logic 1 config­ures the data bus for dual-port I/Q data. I and
Q data enter on separate buses.

Bit 5 Logic 0 (default) configures the data clock

for pin 14. A logic 1 configures the data clock
for pin 27 (DATACLK/B10).

Bit 4 Logic 0 (default) sets the internal latches to

latch the data on the rising edge of DATACLK.
A logic 1 sets the internal latches to latch the
data on the falling edge of DATACLK.

Bit 3 Logic 0 (default) configures the DATACLK

pin (pin 14 or pin 27) to be an input. A logic 1
configures the DATACLK pin to be an output.

Bit 2 Logic 0 (default) enables the data synchro-

nizer circuitry. A logic 1 disables the data
synchronizer circuitry.

Address 03h

Bits 7–0 Unused.

Address 04h

Bits 7–0 These 8 bits define the binary number for

fine-gain adjustment of the IDAC full-scale
current (see the

Gain Adjustment

section). Bit

7 is the MSB. Default is all zeros.

Address 05h

Bits 3–0 These four bits define the binary number for

the coarse-gain adjustment of the IDAC full­scale current (see the

Gain Adjustment

sec-

tion). Bit 3 is the MSB. Default is all ones.

Address 06h, Bits 7 to 0; Address 07h, Bit 1 and Bit 0

These 10 bits represent a binary number that
defines the magnitude of the offset added to
the IDAC output (see the

Offset Adjustment

section). Default is all zeros.

Address 07h

Bit 7 Logic 0 (default) adds the 10 bits offset cur-

rent to OUTIN. A logic 1 adds the 10 bits off­set current to OUTIP.

Address 08h

Bits 7–0 These 8 bits define the binary number for

fine-gain adjustment of the QDAC full-scale
current (see the

Gain Adjustment

section). Bit

7 is the MSB. Default is all zeros.

Address 09h

Bits 3–0 These 4 bits define the binary number for the

coarse-gain adjustment of the QDAC full­scale current (see the

Gain Adjustment

sec-

tion). Bit 3 is the MSB. Default is all ones.

Address 0Ah, Bits 7 to 0; Address 0Bh, Bit 1 and Bit 0

These 10 bits represent a binary number that
defines the magnitude of the offset added to
the QDAC output (see the

Offset Adjustment

section). Default is all zeros.

Address 0Bh

Bit 7 Logic 0 (default) adds the 10 bits offset to

OUTQN. A logic 1 adds the 10 bits offset to
OUTQP.

Offset Adjustment

Offset adjustment is achieved by adding a digital code
to the DAC inputs. The code OFFSET (see equation
below), as stored in the relevant control registers, has a
range from 0 to 1023 and a sign bit. The applied DAC
offset is 4 times the code stored in the register, provid­ing an offset adjustment range of ±255 LSB codes. The
resolution is 1 LSB.

Gain Trim

Gain trimming is done by varying the full-scale current
according to the following formula:

where I

REF

is the reference current (see the

Internal

Reference

section). COARSE is the register content of
registers 05h and 09h for the I- and Q-channel, respec­tively. FINE is the register content of register 04h and

08h for the I- and Q-channel, respectively. The range of
coarse is from 0 to 11, with 11 being the default. The
range for FINE is from 0 to 255 with 0 being the default.
Given this, the gain can be adjusted in steps of approx­imately 0.01dB.

Single-Port/Dual-Port Data Input Modes

The MAX5893 is capable of capturing data in single­port and dual-port modes (selected through bit 6,
address 02h). In single-port mode, the data for both
channels is input through the A port (A11–A0).
The channel for the input data is determined through
the state of the SELIQ/B11 (pin 26) bit. When SELIQ is
set to logic-high, the input data is presented to the
I-channel, when set to logic-low, the input data is
presented to the Q-channel. The unused B-port inputs
(DATACLK/B10, B9–B0) should be grounded when run­ning in single-port mode.

Dual-port mode, as the name implies, requires that
each channel receives its data from a separate data
bus. SELIQ/B11 and DATACLK/B10 revert to data bit
inputs for the Q-channel in dual-port mode.

The MAX5893 control registers can be programmed to
allow either signed or unsigned binary format (bit 7,
address 02h) data in either single-port or dual-port
mode. Table 3 shows the corresponding DAC output
levels when using signed or unsigned data modes.

Data Synchronization Modes

Data synchronization circuitry is provided to allow oper­ation with an input data clock. The data clock must be
frequency locked to the DAC clock (f

DAC

), but can
have arbitrary phase with respect to the DAC clock.
The synchronization circuitry allows for phase jitter on
the input data clock of up to ±1 data clock cycles.
Synchronization is initially established when the reset
pin is asynchronously deasserted and the input data
clock has been running for at least 4 clock cycles.
Subsequently, the MAX5893 monitors the phase rela-

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 17

Table 3. DAC Output Code Table

OFFSET

I

OFFSET OUTFS

=

××4

16

2

I

DIGITAL INPUT CODE

OFFSET
BINARY

(UNSIGNED)

0000 0000 0000 1000 0000 0000 0 I

0111 1111 1111 0000 0000 0000 I

1111 1111 1111 0111 1111 1111 I

TWO'S

COMPLEMENT

(SIGNED)

OUT_P OUT_N

OUTFS

/2 I

OUTFS

OUTFS

OUTFS

0

/2

I

OUTFS

⎡

I

×

3

⎛

⎢

⎜
⎝

⎣

⎞

COARSE

⎛

REF REF

⎜

⎟

⎝

⎠

4

16

+

1

⎞
⎟

⎠

3

⎛

−

⎜
⎝

I

×

32 256

⎞
⎟

⎠

FINE

⎛
⎜

⎝

⎤

1024

⎞

⎛

=

⎟

⎜

⎥

⎠

⎝

24

⎦

⎞
⎟

⎠

MAX5893

tionship and detects if the phase drifts more than ±1
data clock cycle. If this occurs, the synchronizer auto­matically reestablishes synchronization. However, dur­ing the resynchronization phase, up to 8 data words
may be lost or repeated.

Bit 2 of register 02h disables or enables (default) the
automatic data clock phase detection. Disabling the
data synchronization circuitry requires the data clock
and the DAC clock phase to be locked.

DATACLK Modes

The MAX5893 has a main DATACLK available at
pin 14. An alternate DATACLK is available at pin 27
(DATACLK/B10) when configured in single-port data
input mode (bit 5, address 02h). The DATACLK can be
configured to accept an input clock signal for latching
the input data, or to source a clock signal that can drive
up to 10pF load while latching the input data (bit 3,
address 02h). If DATACLK is configured as an output, it
is frequency divided from the CLKP/CLKN input,
depending on the operating mode, see Table 4.

The MAX5893 can be configured to latch the input
data on either the rising edge or falling edge of the
DATACLK signal (bit 4, address 02h). Figure 4 shows
the timing requirements between the DATACLK signal
and the input data bus with latching on the rising edge.

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

18 ______________________________________________________________________________________

Table 4. Clock Frequency Ratios in
Various Modes

Figure 4. Data Input Timing Diagram

CLKP–CLKN

INPUT
MODE

Single

Port

Dual Port

INTERPOLATION

RATE

1x 1:1 1:2

2x 1:1 1:1

4x 1:2 1:1

8x 1:4 1:1

1x 1:1 1:1

2x 1:2 1:1

4x 1:4 1:1

8x 1:8 1:1

f

DATA:fCLKfDAC:fCLK

DATACLK

A0–A11/B0–B11

t

CLK

t

D

t

DS

t

DH

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 19

Interpolating Filter

The MAX5893 features three cascaded FIR half-band
filters. The interpolating filters are enabled or disabled
in combinations to support 1x (no interpolation), 2x, 4x,
or 8x interpolation. Bits 7 and 6 of register 01h set the
interpolation rate (see Table 2). The last interpolation fil-

ter is located after the modulator. In the 8x interpolation
mode, the last filter (FIR3) can be configured as low­pass or highpass (bit 5, address 01h) to select the
lower or upper sideband from the modulation output.
The frequency responses of these three filters are plot­ted in Figures 5–8.

Figure 5. Interpolation Filter Frequency Response, 2x
Interpolation Mode

Figure 6. Interpolation Filter Frequency Response, 4x
Interpolation Mode

Figure 7. Interpolation Filter Frequency Response, 8x
Interpolation Mode (FIR3 Lowpass Mode)

Figure 8. Interpolation Filter Frequency Response, 8x
Interpolation Mode (FIR3 Highpass Mode)

0

-20

-40

-60

GAIN (dBFS)

-80

-100

-120

0.2

0 0.4 0.6 0.8

f

OUT

-0.0002

-0.0004

- NORMALIZED TO INPUT DATA RATE

PASSBAND DETAIL

0

0.3

0.2

0.1

0

1.0 1.2 1.4 1.6 1.8 2.0

0.4

0

-20

-40

-60

-0.0002

-0.0004

GAIN (dBFS)

-80

-100

-120

0.5

0 1.0 1.5 2.0

- NORMALIZED TO INPUT DATA RATE

f

OUT

PASSBAND DETAIL

0

0.4

0.3

0

0.2

0.1

2.5 3.0 3.5 4.0

0

-20

PASSBAND DETAIL

-0.0002

-0.0004

0

0.4

0.3

0.2

0.1

0

-40

-60

GAIN (dBFS)

-80

-100

-120
1

0234

f

- NORMALIZED TO INPUT DATA RATE

OUT

5678

0

-20

-40

-60

GAIN (dBFS)

-0.0002

-0.0004

PASSBAND DETAIL

0

3.6 3.8 4.0 4.2 4.4

-80

-100

-120
1

0234

f

- NORMALIZED TO INPUT DATA RATE

OUT

5678

MAX5893

The programmable interpolation filters multiply the
MAX5893 input data rate by a factor of 2x, 4x, or 8x to
separate the reconstructed waveform spectrum and the
DAC image. The original spectral images, appearing at
around multiples of the input data rate, are attenuated
by the internal digital filters. This feature provides three
benefits:

1) Image separation reduces complexity of analog
reconstruction filters.

2) Lower input data rates eliminate board-level high­speed data transmission.

3) Sin(x)/x rolloff is reduced over the effective bandwidth.

Figure 9 illustrates a practical example of the benefits
when using the MAX5893 in 2x, 4x, and 8x interpolation
modes with the third filter configured as a lowpass filter.
With no interpolation filter, the first image signal appears
in the second Nyquist zone between fS/2 and fS. The first
interpolating filter removes this image. In fact, all of the

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

20 ______________________________________________________________________________________

Figure 9. Spectral Representation of Interpolating Filter Responses (Output Frequencies are Relative to the Data Input Frequency, fS)

FILTER



RESPONSE

3f

S

3f

S

3f

S

INPUT
SPECTRUM
AND FIRST
FILTER
RESPONSE

OUTPUT
SPECTRUM
OF THE
FIRST
FILTER

INPUT
SPECTRUM
AND
SECOND
FILTER
RESPONSE

SIGNAL

SIGNAL

SIGNAL


f

S

f

S

f

S

2f

S

2f

S

2f

S

NO INTERPOLATION

4f

S

4f

S

4f

S

5f

5f

5f

S

S

S

FILTER
RESPONSE

6f

S

6f

S

6f

S

7f

S

7f

S

7f

S

8f

S

2x INTERPOLATION

8f

S

8f

S

OUTPUT
SPECTRUM
OF THE
SECOND
FILTER

INPUT
SPECTRUM
AND THIRD
FILTER
RESPONSE

OUTPUT
SPECTRUM
OF THE
THIRD
FILTER

SIGNAL

SIGNAL

SIGNAL


f

S

f

S

f

S

2f

S

2f

S

2f

S

FILTER
RESPONSE

3f

S

3f

S

3f

S

4f

S

4f

S

4f

S


5f

S

5f

S

5f

S

6f

S

6f

S

6f

S

7f

S

7f

S


7f

S

4x INTERPOLATION

8f

S

8f

S

8x INTERPOLATION

8f

S

images at odd numbers of fSare filtered. At the output of
the first filter, the images are at 2fS, 4fS, etc. This signal is
then passed to the second interpolating filter, which is
similar to the first filter and removes the images at 2fS, 6fS,
10fS, etc. Finally, the third filter removes images at 4fS,

12fS, 20fS, etc. Figures 10, 11, and 12 similarly illustrate
the spectral responses when using the interpolating filters
combined with the digital modulator.

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 21

Figure 10. Spectral Representation of 4x Interpolation Filter with fIM/4 Modulation (Output Frequencies are Relative to the Data Input
Frequency, f

S

)

INPUT
SPECTRUM
AND FIRST
FILTER
RESPONSE

OUTPUT
SPECTRUM
OF THE
FIRST
FILTER

INPUT
SPECTRUM
AND
SECOND
FILTER
RESPONSE

SIGNAL

SIGNAL

SIGNAL

f

f

f


S

S

FILTER
RESPONSE

S

FILTER

RESPONSE

2f

S


2f

S


2f

S

3f

S

3f

S

3f

S

NO INTERPOLATION

4f

S

2x INTERPOLATION

4f

S

4f

S

OUTPUT
SPECTRUM
OF THE
SECOND
FILTER

OUTPUT
SPECTRUM
OF THE
MODULATOR

SIGNAL

f

S

SIGNAL

LOWER

SIDEBAND

FOR COMPLEX MODULATION THE MODULATION SIGN (BIT 1, ADDRESS 01h) SELECTS UPPER OR LOWER SIDEBAND

UPPER
SIDEBAND

f

S

2f

S

2f

S

3f

S


3f

S


4x INTERPOLATION

4f

S

4f

S

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

22 ______________________________________________________________________________________

Figure 11. Spectral Representation of 8x Interpolation Filter with fIM/4 Modulation and Lowpass Mode Enabled (Output Frequencies
are Relative to the Data Input Frequency, f

S

)

INPUT

SIGNAL

SPECTRUM
AND FIRST
FILTER
RESPONSE

OUTPUT

SIGNAL

SPECTRUM
OF THE
FIRST
FILTER

INPUT
SPECTRUM

SIGNAL

AND
SECOND
FILTER
RESPONSE

OUTPUT

SIGNAL

SPECTRUM
OF THE
SECOND
FILTER

FILTER


f

S

2f

S

RESPONSE

3f

S

4f

S

5f

S

6f

S

7f

S


f

S

2f

S

3f

S

4f

S

5f

S

6f

S

7f

S

NO INTERPOLATION

8f

S

2x INTERPOLATION

8f

S

FILTER

4f

S

4f

S

RESPONSE


5f

S

6f

S

7f

S

8f

S

4x INTERPOLATION

5f

S

6f

S

7f

S

8f

S


f

S

f

S

2f

S

2f

S

3f

S

3f

S

SIGNAL

OUTPUT

LOWER

SIDEBAND

UPPER
SIDEBAND


SPECTRUM
OF THE
MODULATOR

f

S

2f

S

3f

S

4f

S

5f

S

6f

S

7f

S

8f

S

FOR COMPLEX MODULATION THE MODULATION SIGN (BIT 1, ADDRESS 01h) SELECTS UPPER OR LOWER SIDEBAND

FILTER RESPONSE


INPUT
SPECTRUM

SIGNAL

AND THIRD
FILTER
RESPONSE

OUTPUT
SPECTRUM

f

S

SIGNAL

2f

S

3f

S

4f

S

5f

S

6f

S


7f

S

8f

S

8x INTERPOLATION

OF THE
THIRD
FILTER

f

S

2f

S

3f

S

4f

S

5f

S

6f

S

7f

S

8f

S

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 23

Figure 12. Spectral Representation of 8x Interpolation Filter with fIM/4 Modulation and Highpass Mode Enabled (Output Frequencies
are Relative to the Data Input Frequency, f

S

)

INPUT
SPECTRUM
AND FIRST
FILTER
RESPONSE

SIGNAL

FILTER


f

S

2f

S

RESPONSE

3f

S

4f

S

5f

S

6f

S

7f

S

NO INTERPOLATION

8f

S

OUTPUT
SPECTRUM
OF THE
FIRST
FILTER

INPUT
SPECTRUM
AND
SECOND
FILTER
RESPONSE

OUTPUT
SPECTRUM
OF THE
SECOND
FILTER

OUTPUT
SPECTRUM
OF THE
MODULATOR

SIGNAL

SIGNAL

SIGNAL

f

S

f

S

f

S


2f

S


2f

S

3f

S

4f

S

5f

S

6f

S

FILTER
RESPONSE

3f

S

4f

S

5f

S

6f

S


2f

S

3f

S

4f

S

5f

S

6f

S

SIGNAL

LOWER

SIDEBAND

f

S

UPPER
SIDEBAND


2f

S

3f

S

4f

S

5f

S

6f

S

FOR COMPLEX MODULATION THE MODULATION SIGN (BIT 1, ADDRESS 01h) SELECTS UPPER OR LOWER SIDEBAND

2x INTERPOLATION

7f

S

7f

S

8f

S

8f

S

4x INTERPOLATION

7f

S

7f

S

8f

S

8f

S

INPUT
SPECTRUM

SIGNAL


FILTER
RESPONSE

AND THIRD
FILTER
RESPONSE

OUTPUT
SPECTRUM

f

S

2f

S

3f

S

SIGNAL

4f

S

5f

S


6f

S

7f

S

8f

S

8x INTERPOLATION

OF THE
THIRD
FILTER

f

S

2f

S

3f

S

4f

S

5f

S

6f

S

7f

S

8f

S

MAX5893

Digital Modulator

The MAX5893 features digital modulation at frequen­cies of fIM/2 and fIM/4, where fIMis the data rate at the
input to the modulator. fIMequals f

DAC

in 1x, 2x, and 4x

interpolation modes. In 8x interpolation mode, f

IM

equals f

DAC

/2. The output rate of the modulator is
always the same as the input data rate to the modula­tor, f

IM

.

In complex modulation mode, data from the second
interpolation filter is frequency mixed with the on-chip
in-phase and quadrature (I/Q) local oscillator (LO).
Complex modulation provides the benefit of image
sideband rejection when combined with an external
quadrature modulator commonly found in wireless
communication systems.

In the f

LO

= fIM/4 mode, real or complex modulation can

be used. The modulator multiplies successive input data
samples by the sequence [1, 0, -1, 0] for a cos(ωt). The
modulator modulates the input signal up to fIM/4, creat­ing upper and lower images around fIM/4. The quadra­ture LO sin(ωt) is realized by delaying the cos(ωt)
sequence by one clock cycle. Using complex modula­tion, complex IF is generated. The complex IF combined
with an external quadrature modulator provides image
rejection. The sign of the LO can be changed to allow
the user to select whether the upper or the lower image
should be rejected (bit 1 of register 01h).

When f

IM

/2 is chosen as the LO frequency, the input
signal is multiplied by [-1, 1] on both channels. This pro­duces images around f

IM

/2. The complex image-reject

modulation mode is not available for this LO frequency.

The outputs of the modulator can be expressed as:

in complex modulation, e

+jwt

in complex modulation, e

-jwt

where ω = 2 x π x fLO.

For real modulation, the outputs of the modulator can
be expressed as:

If more than one MAX5893 is used, their LO phases
can be synchronized by simultaneously releasing
RESET. This sets the MAX5893 to its predefined initial
phase.

Device Reset

The MAX5893 can be reset by holding the RESET pin
low for 10ns. This will program the control registers to
their default values in Table 2. During power-on, RESET
must be held low until all power supplies have stabi­lized. Alternatively, programming bit 5 of address 00h
to a logic-high also resets the MAX5893 after power-up.

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

24 ______________________________________________________________________________________

Figure 13. (a) Modulator in Complex Modulation Mode; (b) Modulator in Real Modulation Mode

It At t Bt t

()=()×() ()×()

=

Qt At t Bt t

()

sin cos

()×()+()×()

It At t Bt t

()=()×()+()×()

Qt At t Bt t

cos sin

=

sin cos

()×()+()×()

()

− cos sin

ωω

ωω

ωω

ωω

It At t

()=()×()

Qt At t

()

cos

=

cosωω

()×()

I-CHANNEL
INPUT DATA

cos(ωt)

sin(ωt)

sin(ωt)

Q-CHANNEL
INPUT DATA

cos(ωt)

(a)

∑

∑

I-CHANNEL
OUTPUT DATA

TO
FIR3

Q-CHANNEL
OUTPUT DATA

I-CHANNEL
INPUT DATA

Q-CHANNEL
INPUT DATA

cos(ωt)

sin(ωt)

sin(ωt)

cos(ωt)

I-CHANNEL

∑

OUTPUT DATA

TO
FIR3

Q-CHANNEL

∑

OUTPUT DATA

(b)

Power-Down Mode

The MAX5893 features three power-saving modes.
Each DAC can be individually powered down through
bits 2 and 3 of address 00h. The interpolation filters can
also be powered down through bit 4 of address 00h,
preserving the output level of each DAC (the DACs
remain powered). Powering down both DACs will auto­matically put the MAX5893 into full power-down, includ­ing the interpolation filters.

Applications Information

Frequency Planning

System designers need to take the DAC into account
during frequency planning for high-performance appli­cations. Proper frequency planning can ensure that
optimal system performance is achieved. The
MAX5893 is designed to deliver excellent dynamic per­formance across wide bandwidths, as required for
communication systems. As with all DACs, some com­binations of output frequency and update rate produce
better performance than others.

Harmonics are often folded down into the band of inter­est. Specifically, if the DAC outputs a frequency close
to fS/N, the Mth harmonic of the output signal will be
aliased down to:

Thus, if N ≈ (M + 1), the Mth harmonic will be close to
the output frequency. SFDR performance of a current­steering DAC is often dominated by third-order har­monic distortion. If this is a concern, placing the output
signal at a different frequency other than fS/4 should be
considered.

Common to interpolating DACs are images near the
divided clocks. In a DAC configured for 4x interpolation
this applies to images around fS/4 and fS/2. In a DAC
configured for 8x interpolation this applies to images
around fS/8, fS/4, and fS/2. Most of these images are
not part of the in-band (0 to f

DATA

/2) SFDR specifica­tion, though they are a consideration for out-of-band
(f

DATA

/2 - f

DAC

/2) SFDR and may depend on the rela-

tionship of the DATACLK to DAC update clock (see the

Data Clock

section). When specifying the output recon­struction filter for other than baseband signals, these
images should not be ignored.

Data Clock

The MAX5893 features synchronizers that allow for
arbitrary phase alignment between DATACLK and
CLKP/CLKN. The DATACLK causes internal switching
in the MAX5893 and the phase between DATACLK
(input mode) to CLKP/CLKN will influence the images
at DATACLK. Optimum image rejection is achieved
when DATACLK transitions are aligned with the falling
edge of CLKP. Figure 14 shows the image level near
DATACLK as a function of the DATACLK (input mode)
to CLKP/CLKN phase at 500Msps, 4x interpolation for a
10MHz, -6dBFS output signal.

Clock Interface

The MAX5893 features a flexible differential clock input
(CLKP, CLKN) with a separate supply (AV

CLK

) to
achieve optimum jitter performance. It uses an ultra-low
jitter clock to achieve the required noise density. Clock
jitter must be less than 0.5ps

RMS

to meet the specified
noise density. For that reason, the CLKP/CLKN input
source must be designed carefully. The differential
clock (CLKN and CLKP) input can be driven from a sin­gle-ended or a differential clock source. Differential
clock drive is required to achieve the best dynamic
performance from the DAC. For single-ended opera­tion, drive CLKP with a low noise source and bypass
CLKN to GND with a 0.1µF capacitor.

The CLKP and CLKN pins are internally biased to
AV

CLK

/2. This allows the user to AC-couple clock

⎤
⎦

⎥

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 25

Figure 14. Effect of CLKP/CLKN to DATACLK Phase on fS/4
Images

ff Mf f

=×=

−

S OUT S

−

NM

⎡
⎢

N

⎣

fS/4 IMAGES vs. CLKP/CLKN to DATACLK DELAY

= 125MWps, 4x INTERPOLATION

f

DATA

-50

-60

-70

-80

IMAGE LEVEL (dBc)

-90

-100

-110
0 8.0

fS/4 - f

OUT

fS/4 + f

OUT

CLKP/CLKN DELAY (ns)

f

OUT

A

OUT

6.04.02.0

= 10MHz

= -6dBFS

MAX5893

sources directly to the device without external resistors
to define the DC level. The input resistance of CLKP
and CLKN is 5kΩ.

A convenient way to apply a differential signal is with a
balun transformer as shown in Figure 15. Alternatively,

these inputs may be driven from a CMOS-compatible
clock source, however it is recommended to use
sine-wave or AC-coupled differential ECL/PECL drive for
best dynamic performance.

Output Interface (OUTI, OUTQ)

The MAX5893 outputs complementary currents (OUTIP,
OUTIN) and (OUTQP, OUTQN), that can be utilized in a
differential configuration. Load resistors convert these
two output currents into a differential output voltage.

The differential output between OUTIP (OUTQP) and
OUTIN (OUTQN) can be converted to a single-ended
output using a transformer or a differential amplifier.
Figure 16 shows a typical transformer-based applica­tion circuit for generation of IF output signals. In this
configuration, the MAX5893 operates in differential
mode, which reduces even-order harmonics, and
increases the available output power. Pay close atten­tion to the transformer core saturation characteristics
when selecting a transformer. Transformer core satura­tion can introduce strong second harmonic distortion,
especially at low output frequencies and high signal

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

26 ______________________________________________________________________________________

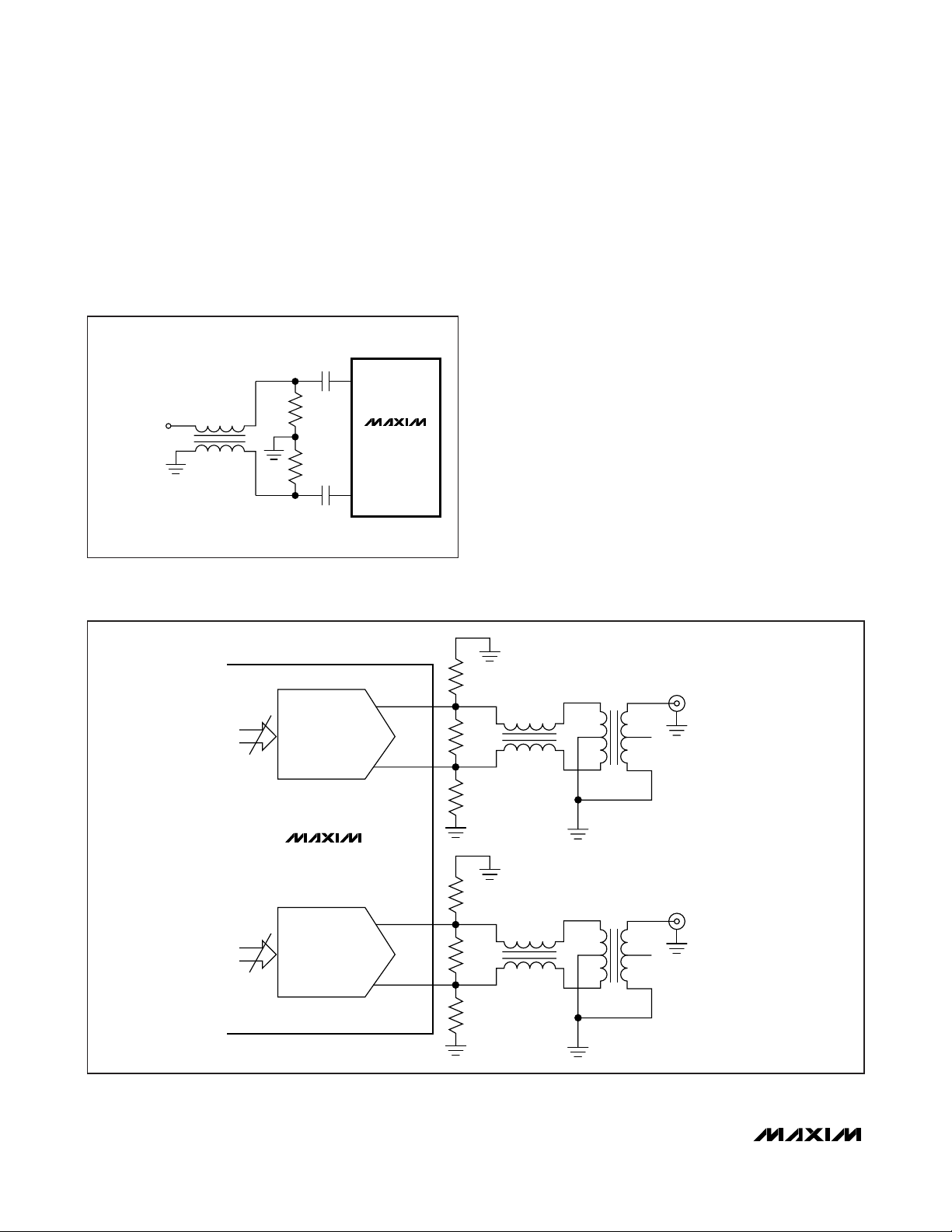

Figure 15. Single-Ended-to-Differential Clock Conversion Using
a Balun Transformer

Figure 16. Differential-to-Single-Ended Conversion Using Wideband RF Transformers

MINI-CIRCUITS

SINGLE-ENDED

IINPUT

ADTL1-12

1:1 RATIO

100nF

CLKP

24.9Ω

MAX5893

24.9Ω

100nF

CLKN

OUTIP

50Ω

1:1

, SINGLE-ENDED

V

IOUT

IDAC

12

OUTIN

MAX5893

OUTQP

QDAC

12

OUTQN

100Ω

50Ω

50Ω

100Ω

50Ω

1:1

V

, SINGLE-ENDED

QOUT

1:1

1:1

amplitudes. It is recommended to connect the trans­former center tap to ground.

If a transformer is not used, the outputs must have a
resistive termination to ground. Figure 17 shows the
MAX5893 output configured for differential DC-coupled
mode. The DC-coupled configuration can be used to
eliminate waveform distortion due to highpass filter
effects. Applications include communication systems
employing analog quadrature upconverters and requir­ing a high-speed DAC for baseband I/Q synthesis.

If a single-ended DC-coupled unipolar output is desir­able, OUTIP (OUTQP) should be selected as the out­put, and connect OUTIN (OUTQN) to ground. Using the
MAX5893 output single-ended is not recommended
because it introduces additional noise and distortion.

The distortion performance of the DAC also depends
on the load impedance. The MAX5893 is optimized for
a 50Ω double termination. It can be used with a trans­former output as shown in Figure 16 or just one 25Ω
resistor from each output to ground and one 50Ω resis­tor between the outputs (Figure 17). Higher output ter­mination resistors may be used, as long as each output
voltage does not exceed +1V with respect to GND, but
at the cost of degraded distortion performance and
increased output noise voltage.

Reference Input/Output

The MAX5893 supports operation with the on-chip 1.2V
bandgap reference or an external reference voltage
source. REFIO serves as the input for an external, low­impedance reference source, and as the output if the
DAC is operating with the internal reference.

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 27

Figure 17. The DC-Coupled Differential Output Configuration

25Ω

OUTIP

IDAC

12

OUTIN

MAX5893

OUTQP

QDAC

12

OUTQN

50Ω

25Ω

25Ω

50Ω

25Ω

MAX5893

For stable operation with the internal reference, REFIO
should be decoupled to GND with a 1µF capacitor.
REFIO must be buffered with an external amplifier, if
heavy loading is required, due to its 10kΩ output resis­tance.

Alternatively, apply a temperature-stable external refer­ence to REFIO (Figure 18). The internal reference is over­driven by the external reference. For improved accuracy
and drift performance, choose a fixed output voltage ref­erence such as the MAX6520 bandgap reference.

The MAX5893’s reference circuit (Figure 19) employs a
control amplifier, designed to regulate the full-scale

current I

OUT

for the differential current outputs of the

DAC. The output current can be calculated as:

I

OUTFS

= 32 x I

REFIO

- 1LSB

I

OUTFS

= 32 x I

REFIO

- (I

OUT

/212)

where I

REFIO

is the reference output current (I

REFIO

=

V

REFIO/RSET

) and I

OUT

is the full-scale output current
of the DAC. Located between FSADJ and DACREF,
R

SET

is the reference resistor, which determines the
amplifier’s output current for the DAC. Use Table 5 for a
matrix of different I

OUTFS

and R

SET

selections.

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

28 ______________________________________________________________________________________

Figure 18. Typical External Reference Circuit

Figure 19. MAX5893 Internal Reference Architecture

Table 5. I

OUTFS

and R

SET

Selection Matrix Based on a Typical 1.20V Reference Voltage

*

Terminated into a 50Ωload.

1.2V

REFERENCE

MAX5893

CURRENT-

SOURCE

ARRAY DAC

EXTERNAL

1.25V

REFERENCE

10kΩ

REFIO

1µF

FSADJ

I

REF

R

SET

DACREF

REFIO

1µF

FSADJ

I

REF

R

SET

DACREF

REFERENCE

1.2V

10kΩ

MAX5893

CURRENT-

SOURCE

ARRAY DAC

FULL-SCALE

CURRENT

I

OUTFS

2 62.50 19.2k 19.1k 100

5 156.26 7.68k 7.5k 250

10 312.50 3.84k 3.83k 500

15 468.75 2.56k 2.55k 750

20 625.00 1.92k 1.91k 1000

(mA) I

REFERENCE

CURRENT

(µA) CALCULATED 1% EIA STD V

REF

(Ω) OUTPUT VOLTAGE

R

SET

IOUTP/N

* (mV

P-P

)

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 29

Power Supplies, Bypassing,

Decoupling, and Layout

Grounding and power-supply decoupling strongly influ­ence the MAX5893 performance. Unwanted digital
crosstalk can couple through the input, reference,
power-supply, and ground connections, which can
affect dynamic specifications like signal-to-noise ratio
or spurious-free dynamic range. In addition, electro­magnetic interference (EMI) can either couple into or
be generated by the MAX5893. Observe the grounding
and power-supply decoupling guidelines for high­speed, high-frequency applications. Follow the power­supply and filter configuration guidelines to achieve
optimum dynamic performance.

Using a multilayer PCB with separate ground and
power-supply planes, run high-speed signals on lines
directly above the ground plane. Since the MAX5893
has separate analog and digital sections, the PCB
should include separate analog and digital ground sec­tions with only one point connecting the three planes at
the exposed pad under the MAX5893. Run digital sig­nals above the digital ground plane and analog/clock
signals above the analog/clock ground plane. Keep
digital signals as far away from sensitive analog inputs,
reference lines, and clock inputs as practical. Use a
symmetric design of clock input and the analog output
lines to minimize 2nd-order harmonic distortion compo­nents, thus optimizing the dynamic performance of the
DAC. Keep digital signal paths short and run lengths
matched to avoid propagation delay and data skew
mismatches.

The MAX5893 requires five separate power-supply
inputs for the analog (AV

DD1.8

and AV

DD3.3

), digital

(DV

DD1.8

and DV

DD3.3

), and clock (AV

CLK

) circuitry.

Decouple each voltage supply pin with a separate

0.1µF capacitor as close to the device as possible and
with the shortest possible connection to the appropriate
ground plane. Minimize the analog and digital load
capacitances for optimized operation. Decouple all
power-supply voltages at the point they enter the PCB
with tantalum or electrolytic capacitors. Ferrite beads
with additional decoupling capacitors forming a pi-net­work could also improve performance.

The exposed pad (EP) MUST be soldered to the
ground. Use multiple vias, an array of at least 4 x 4

vias, directly under the EP to provide a low thermal and
electrical impedance path for the IC.

Static Performance Parameter

Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from either a best straight-line fit
(closest approximation to the actual transfer curve) or a
line drawn between the end points of the transfer func­tion, once offset and gain errors have been nullified.
For a DAC, the deviations are measured at every indi­vidual step.

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an
actual step height and the ideal value of 1 LSB. A DNL
error specification of less than 1 LSB guarantees no
missing codes and a monotonic transfer function.

Offset Error

The offset error is the difference between the ideal and
the actual offset current. For a DAC, the offset point is
the average value at the output for the two midscale
digital input codes with respect to the full-scale of the
DAC. This error affects all codes by the same amount.

Gain Error

A gain error is the difference between the ideal and the
actual full-scale output voltage on the transfer curve,
after nullifying the offset error. This error alters the slope
of the transfer function and corresponds to the same
percentage error in each step.

Dynamic Performance

Parameter Definitions

Settling Time

The settling time is the amount of time required from the
start of a transition until the DAC output settles its new
output value to within the specified accuracy.

Noise Spectral Density

The DAC output noise is the sum of the quantization
noise and thermal noise. Noise spectral density is the
noise power in 1Hz bandwidth, specified in dBFS/Hz.

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of
the full-scale analog output (RMS value) to the RMS
quantization error (residual error). The ideal, theoretical
maximum SNR can be derived from the DAC’s resolu­tion (N bits):

SNR

dB

= 6.02dBx N + 1.76

dB

MAX5893

However, noise sources such as thermal noise, refer­ence noise, clock jitter, etc. affect the ideal reading.
Therefore, SNR is computed by taking the ratio of the
RMS signal to the RMS noise, which includes all spec­tral components minus the fundamental, the first four
harmonics, and the DC offset.

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio of the RMS amplitude of the carrier
frequency (maximum signal components) to the RMS
value of their next largest distortion component. SFDR
is usually measured in dBc and with respect to the car­rier frequency amplitude or in dBFS with respect to the
DAC’s full-scale range. Depending on its test condition,
SFDR is observed within a predefined window or
to Nyquist.

Two-/Four-Tone Intermodulation

Distortion (IMD)

The two-tone IMD is the ratio expressed in dBc (or
dBFS) of the worst 3rd-order (or higher) IMD products
to either output tone.

Adjacent Channel Leakage

Power Ratio (ACLR)

Commonly used in combination with WCDMA (wide­band code-division multiple-access), ACLR reflects the
leakage power ratio in dB between the measured pow­ers within a channel relative to its adjacent channel.
ACLR provides a quantifiable method of determining
out-of-band spectral energy and its influence on an
adjacent channel when a bandwidth-limited RF signal
passes through a nonlinear device.

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

30 ______________________________________________________________________________________

MAX5893

12-Bit, 500Msps Interpolating and Modulating

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 31

Pin Configuration

PACKAGE TYPE PACKAGE CODE DOCUMENT NO.

68 QFN-EP G6800-4

21-0122

Package Information

For the latest package outline information and land patterns, go to www.maxim-ic.com/packages.

CLKP

CLKN

N.C.

N.C.

N.C.

D

VDD1.8

A11

A10

D

VDD3.3

DATACLK

TOP VIEW

A9

10

A8

A7

11

12

A6

13

14

15

A5

16

A4

A3 17

DD1.8

CLK

AV

68

1

2

3

4

5

6

7

8

9

EXPOSED PAD

DD3.3

GND

GND

AV

OUTIP

64

656667

AV

OUTIN

GND

MAX5893

DD3.3

AV

GND

OUTQP

5859606162 5455565763

OUTQN

GND

DD3.3

AV

GND

DD1.8

AV

5253

FSADJ

51

DACREF

50

49

48 CS

47

46

45

44

43

42

41

40

39

38

37 DV

36

35

REFIO

RESET

SCLK

SDI

SDO

DV

DD3.3

N.C.

N.C.

N.C.

N.C.

B0

B1

DD1.8

B2

B3

2322212019 2726252418 2928 323130

A1

A0

A2

DD1.8

DV

N.C.

N.C.

N.C.

N.C.

SELIQ/B11

B8B9B7

DATACLK/B10

DD1.8

DV

3433

B6

B5

B4

QFN

MAX5893

12-Bit, 500Msps Interpolating and Modulating
Dual DAC with CMOS Inputs

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

32

____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2008 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Revision History

REVISION

NUMBER

0 — Initial release —

1 4/07 — —

2 10/08 Add note to setup and hold specifications. 5, 6

REVISION

DATE

DESCRIPTION

PAGES

CHANGED
