MAXIM MAX5890 Technical data

General Description

The MAX5890 advanced 14-bit, 600Msps, digital-to­analog converter (DAC) meets the demanding perfor­mance requirements of signal synthesis applications
found in wireless base stations and other communica­tions applications. Operating from 3.3V and 1.8V sup­plies, the MAX5890 DAC supports update rates of
600Msps using high-speed LVDS inputs while consum­ing only 297mW of power and offers exceptional
dynamic performance such as 80dBc spurious-free
dynamic range (SFDR) at f

OUT

= 30MHz.

The MAX5890 utilizes a current-steering architecture that
supports a 2mA to 20mA full-scale output current range,
and produces -2dBm to -22dBm full-scale output signal
levels with a double-terminated 50Ω load. The MAX5890
features an integrated 1.2V bandgap reference and con­trol amplifier to ensure high-accuracy and low-noise per­formance. A separate reference input (REFIO) allows for
the use of an external reference source for optimum flexi­bility and improved gain accuracy.

The MAX5890 digital inputs accept LVDS voltage lev­els, and the flexible clock input can be driven differen­tially or single-ended, AC- or DC-coupled. The
MAX5890 is available in a 68-pin QFN package with an
exposed paddle (EP) and is specified for the extended
(-40°C to +85°C) temperature range.

Refer to the MAX5891 and MAX5889 data sheets for
pin-compatible 16-bit and 12-bit versions of the
MAX5890.

Applications

Base Stations: Single/Multicarrier UMTS,
CDMA, GSM

Communications: Fixed Broadband Wireless
Access, Point-to-Point Microwave

Direct Digital Synthesis (DDS)

Cable Modem Termination Systems (CMTS)

Automated Test Equipment (ATE)

Instrumentation

Features

♦ 600Msps Output Update Rate

♦ Low Noise Spectral Density: -162dBFS/Hz at

f

OUT

= 36MHz

♦ Excellent SFDR and IMD Performance

SFDR = 80dBc at f

OUT

= 30MHz (to Nyquist)

SFDR = 68dBc at f

OUT

= 130MHz (to Nyquist)

IMD = -95dBc at f

OUT

= 30MHz

IMD = -70dBc at f

OUT

= 130MHz

♦ ACLR = 73dB at f

OUT

= 122.88MHz

♦ 2mA to 20mA Full-Scale Output Current

♦ LVDS-Compatible Digital Inputs

♦ On-Chip 1.2V Bandgap Reference

♦ Low 297mW Power Dissipation at 600Msps

♦ Compact (10mm x 10mm) QFN-EP Package

♦ Evaluation Kit Available (MAX5891EVKIT)

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-3619; Rev 1; 3/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

EVALUATION KIT

AVAILABLE

PART

TEMP RANGE

PIN­PACKAGE

PKG

CODE

MAX5890EGK-D

G6800-4

MAX5890EGK+D

G6800-4

MAX5890

1.2V

REFERENCE

REFIO

DACREF

FSADJ

CLK

INTERFACE

600MHz

14-BIT DAC

LATCH

LVDS

RECEIVER

D0–D13

LVDS DATA

INPUTS

POWER

DOWN

PD

CLKP

CLKN

OUTP

OUTN

Functional Diagram

PART

RESOLUTION

(BITS)

UPDATE RATE

(Msps)

LOGIC INPUT

MAX5889

12 600 LVDS

MAX5890

14 600 LVDS

MAX5891

16 600 LVDS

Selector Guide

*EP = Exposed paddle.
D = Dry pack.
+Denotes lead-free package.

Pin Configuration appears at end of data sheet.

-40°C to +85°C 68 QFN-EP*

-40°C to +85°C 68 QFN-EP*

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-terminat-

ed, transformer-coupled output, I

OUT

= 20mA, TA= -40°C to +85°C, unless otherwise noted. Specifications at TA≥ +25°C are guar-

anteed by production testing. Specifications at T

A

< +25°C are guaranteed by design and characterization. Typical values are at T

A

= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

AV

DD1.8

, DV

DD1.8

to AGND, DGND, DACREF,

and CGND.......................................................-0.3V to +2.16V

AV

DD3.3

, DV

DD3.3

, AV

CLK

to AGND, DGND,

DACREF, and CGND.........................................-0.3V to +3.9V

REFIO, FSADJ to AGND, DACREF,

DGND, and CGND ..........................-0.3V to (AV

DD3.3

+ 0.3V)

OUTP, OUTN to AGND, DGND, DACREF,

and CGND .......................................-1.2V to (AV

DD3.3

+ 0.3V)

CLKP, CLKN to AGND, DGND, DACREF,

and CGND..........................................-0.3V to (AV

CLK

+ 0.3V)

PD to AGND, DGND, DACREF,

and CGND.......................................-0.3V to (DV

DD3.3

+ 0.3V)

Digital Data Inputs (D0N–D13N, D0P–D13P) to AGND,

DGND, DACREF, and CGND ..........-0.3V to (DV

DD1.8

+ 0.3V)

Continuous Power Dissipation (T

A

= +70°C) (Note 1)

68-Pin QFN-EP (derate 28.6mW/°C above +70°C)....3333mW

Thermal Resistance

θ

JA

(Note 1) ....................................24°C/W

Operating Temperature Range ..........................-40°C to +85°C

Junction Temperature .....................................................+150°C

Storage Temperature Range ............................-60°C to +150°C

Lead Temperature (soldering, 10s) ................................+300°C

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

STATIC PERFORMANCE

Resolution 14 Bits

Integral Nonlinearity INL Measured differentially ±1 LSB

Differential Nonlinearity DNL Measured differentially

LSB

Offset Error OS

%FS

Full-Scale Gain Error GE

FS

External reference -4 ±1 +4

%FS

Internal reference

Gain-Drift Tempco

External reference

ppm/°C

Full-Scale Output Current I

OUT

220mA

Output Compliance Single-ended

V

Output Resistance R

OUT

1MΩ

Output Capacitance C

OUT

5pF

Output Leakage Current PD = high, power-down mode ±1µA

DYNAMIC PERFORMANCE

Maximum DAC Update Rate

Msps

Minimum DAC Update Rate 1

Msps

f

OUT

= 36MHz

Noise Spectral Density N

-12dBFS, 20MHz
offset from the
carrier

f

OUT

= 151MHz

dBFS/Hz

Note 1: Thermal resistance based on a multilayer board with 4 x 4 via array in exposed-paddle area.

±0.5

-0.02 ±0.001 +0.02

±130
±100

f

= 500MHz,

CLK

A

FULL-SCALE

A

FULL-SCALE

= -3.5dBm

= -6.4dBm

-1.0 +1.1

600

-162

-153

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-terminat-

ed, transformer-coupled output, I

OUT

= 20mA, TA= -40°C to +85°C, unless otherwise noted. Specifications at TA≥ +25°C are guar-

anteed by production testing. Specifications at T

A

< +25°C are guaranteed by design and characterization. Typical values are at T

A

= +25°C.)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

f

OUT

= 16MHz 89

f

CLK

= 200MHz,

0dBFS

f

OUT

= 30MHz 85

f

OUT

= 16MHz 79

f

CLK

= 200MHz,

-12dBFS

f

OUT

= 30MHz 78

f

OUT

= 16MHz 76 81

f

OUT

= 30MHz 80

f

OUT

= 130MHz 71

Spurious-Free
Dynamic Range to
Nyquist

SFDR

f

CLK

= 500MHz,

0dBFS

f

OUT

= 200MHz 55

dBc

f

CLK

= 500MHz

f

OUT1

= 29MHz,

f

OUT2

= 30MHz,

-6.5dBFS per tone

-95

Two-Tone IMD TTIMD

f

CLK

= 500MHz

f

OUT1

= 129MHz,

f

OUT2

= 130MHz,

-6.5dBFS per tone

-70

dBc

f

CLK

= 491.52MHz,

f

OUT

= 30.72MHz

82

WCDMA single
carrier

f

CLK

= 491.52MHz,

73

f

CLK

= 491.52MHz,

f

OUT

= 30.72MHz

74

Adjacent Channel
Leakage Power Ratio

ACLR

f

CLK

= 491.52MHz,

67

dB

Output Bandwidth

(Note 2)

MHz

REFERENCE

Internal Reference Voltage Range

V

REFIO

1.2

V

Reference Input Voltage Range

Using external reference

1.2

V

Reference Input Resistance R

REFIO

10 kΩ

Reference Voltage Temperature
Drift

ppm/°C

ANALOG OUTPUT TIMING (Figure 3)

Output Fall Time t

FALL

90% to 10% (Note 3) 0.4 ns

Output Rise Time t

RISE

10% to 90% (Note 3) 0.4 ns

Output Propagation Delay t

PD

Reference to data latency (Note 3) 2.5 ns

BW

-1dB

V

REFIOCR

TCO

REF

WCDMA four carriers

f

= 122.88MHz

OUT

f

= 122.88MHz

OUT

1.14

0.10

1000

1.26

1.32

±50

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-terminat-

ed, transformer-coupled output, I

OUT

= 20mA, TA= -40°C to +85°C, unless otherwise noted. Specifications at TA≥ +25°C are guar-

anteed by production testing. Specifications at T

A

< +25°C are guaranteed by design and characterization. Typical values are at T

A

= +25°C.)

PARAMETER

CONDITIONS

UNITS

Output Settling Time To 0.025% of the final value (Note 3) 11 ns

Glitch Impulse Measured differentially 1

pV•s

I

OUT

= 2mA 30

Output Noise N

OUT

I

OUT

= 20mA 30

pA/√Hz

TIMING CHARACTERISTICS

Input Data Rate 600

MWps

Data Latency 5.5

Clock

cycles

Data to Clock Setup Time t

SETUP

ns

Data to Clock Hold Time t

HOLD

2.6 ns

Clock Frequency f

CLK

CLKP, CLKN 600

MHz

t

CH

CLKP, CLKN 0.6 ns

t

CL

CLKP, CLKN 0.6 ns

Turn-On Time t

SHDN

External reference, PD falling edge to
output settle within 1%

µs

CMOS LOGIC INPUT (PD)

Input Logic-High V

IH

0.7 x
V

Input Logic-Low V

IL

0.3 x
V

Input Current I

IN

-10

µA

Input Capacitance C

IN

3pF

LVDS INPUTS

Differential Input High

(Notes 6, 7, 8)

mV

Differential Input Low

(Notes 6, 7, 8)

mV

Internal Common-Mode Bias

V

Differential Input Resistance

Ω

3.2 kΩ

Input Capacitance

3pF

DIFFERENTIAL CLOCK INPUTS (CLKP, CLKN)

Clock Common-Mode Voltage CLKP and CLKN are internally biased

V

Minimum Differential Input
Voltage Swing

0.5

V

P-P

1V

Maximum Common-Mode
Voltage

1.9 V

SYMBOL

MIN TYP MAX

Minimum Clock Pulse-Width High

Minimum Clock Pulse-Width Low

Common-Mode Input Resistance R

V

IHLVDS

V

ILLVDS

V

ICMLVDS

R

IDLVDS

ICMLVDS

C

INLVDS

Minimum Common-Mode Voltage

Referenced to rising edge of clock (Note 4) -1.5

Referenced to rising edge of clock (Note 4)

DV

DD3.3

+100 +1000

-1000 -100

1.125 1.375

±1.8 +10

AV

350

110

CLK

DV

/ 2

DD3.3

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

_______________________________________________________________________________________ 5

Note 2: This parameter does not include update-rate-dependent effects of sin(x)/x filtering inherent in the MAX5890.
Note 3: Parameter measured single-ended with 50Ω double-terminated outputs.
Note 4: Not production tested. Guaranteed by design.
Note 5: Parameter defined as the change in midscale output caused by a ±5% variation in the nominal supply voltages.
Note 6: Not production tested. Guaranteed by design.
Note 7: Differential input voltage defined as V

D_P

- V

D_N

.

Note 8: Combination of logic-high/-low and common-mode voltages must not exceed absolute maximum rating for D_P/D_N inputs.

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-terminat-

ed, transformer-coupled output, I

OUT

= 20mA, TA= -40°C to +85°C, unless otherwise noted. Specifications at TA≥ +25°C are guar-

anteed by production testing. Specifications at T

A

< +25°C are guaranteed by design and characterization. Typical values are at T

A

= +25°C.)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

Input Resistance R

CLK

Single-ended 5 kΩ

Input Capacitance C

CLK

3pF

POWER SUPPLIES

3.3

Analog Supply Voltage Range

1.8

V

Clock Supply Voltage Range AV

CLK

3.3

V

3.3

Digital Supply Voltage Range

1.8

V

f

CLK

= 100MHz, f

OUT

= 16MHz

f

CLK

= 500MHz, f

OUT

= 16MHz

f

CLK

= 600MHz, f

OUT

= 16MHz

f

CLK

= 100MHz, f

OUT

= 16MHz

f

CLK

= 500MHz, f

OUT

= 16MHz 50 58

Analog Supply Current

f

CLK

= 600MHz, f

OUT

= 16MHz 60

mA

f

CLK

= 100MHz, f

OUT

= 16MHz 2.8

f

CLK

= 500MHz, f

OUT

= 16MHz 2.8 3.6Clock Supply Current I

AVCLK

f

CLK

= 600MHz, f

OUT

= 16MHz 2.8

mA

f

CLK

= 100MHz, f

OUT

= 16MHz 0.2

f

CLK

= 500MHz, f

OUT

= 16MHz 0.2 0.5

f

CLK

= 600MHz, f

OUT

= 16MHz 0.2

f

CLK

= 100MHz, f

OUT

= 16MHz

f

CLK

= 500MHz, f

OUT

= 16MHz 43 49

Digital Supply Current

f

CLK

= 600MHz, f

OUT

= 16MHz

mA

f

CLK

= 100MHz, f

OUT

= 16MHz

f

CLK

= 500MHz, f

OUT

= 16MHz

298

f

CLK

= 600MHz, f

OUT

= 16MHz

mW

Total Power Dissipation P

DISS

Power-down, clock static low,
data input static

13 µW

Power-Supply Rejection Ratio PSRR (Note 5)

%FS

V

D_N

V

D_P

AV

DD3.3

AV

DD1.8

DV

DD3.3

DV

DD1.8

AVDD3.3

I

AVDD1.8

I

DVDD3.3

I

DVDD1.8

V

IHLVDS

3.135

1.710

3.135

3.135

1.710

3.465

1.890

3.465

3.465

1.890

26.5

26.5 28.5I

26.5

11.3

V

ILLVDS

10.6

50.5

137

264

297

±0.025

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

6 _______________________________________________________________________________________

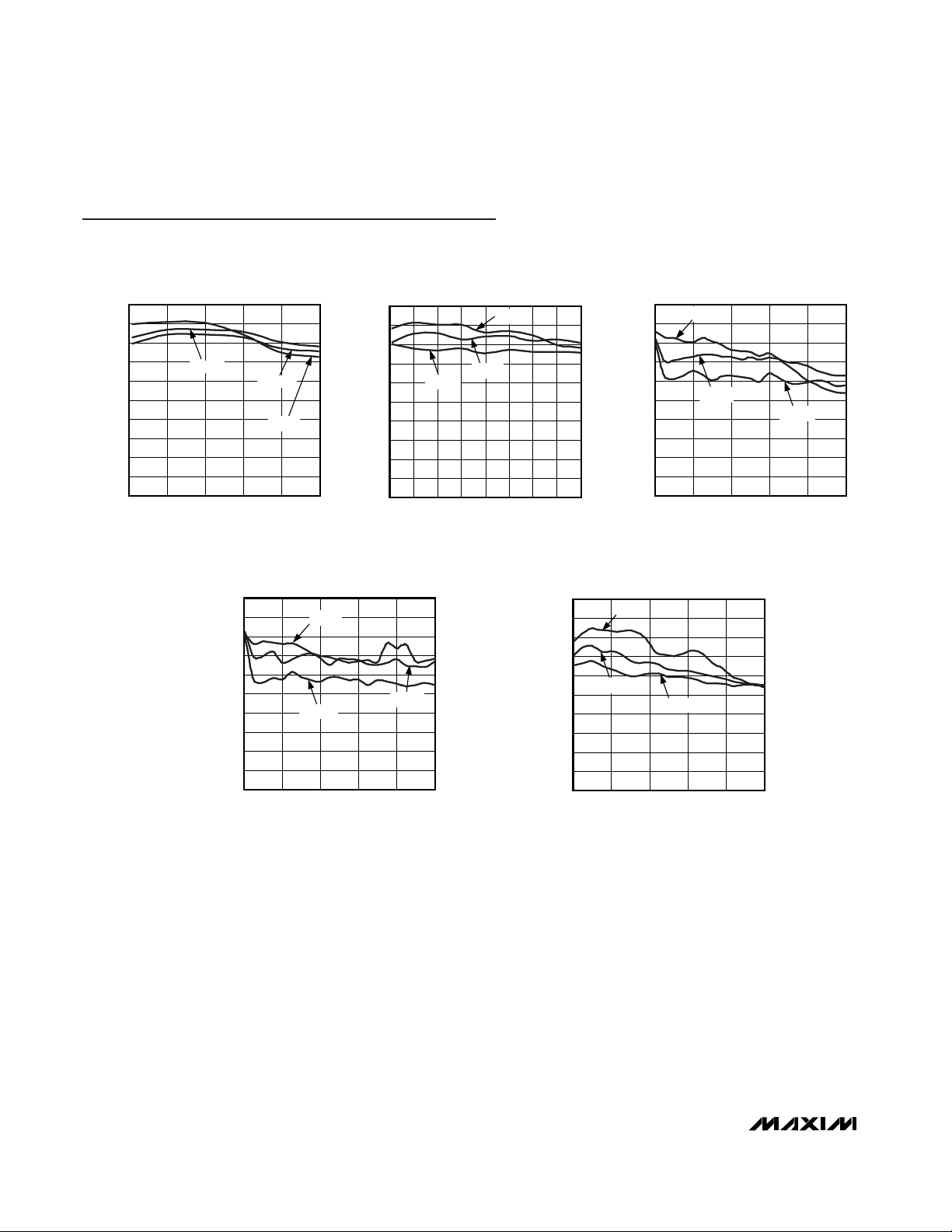

Typical Operating Characteristics

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-termi-

nated, transformer-coupled output, I

OUT

= 20mA, TA= +25°C, unless otherwise noted.)

SPURIOUS-FREE DYNAMIC RANGE

vs. OUTPUT FREQUENCY (f

CLK

= 100MHz)

MAX5890 toc01

OUTPUT FREQUENCY (MHz)

SFDR (dBc)

403020

10

20

30

40

50

60

70

80

90

100

0

10 50

0

-12dBFS

0dBFS

-6dBFS

SPURIOUS-FREE DYNAMIC RANGE

vs. OUTPUT FREQUENCY (f

CLK

= 200MHz)

MAX5890 toc02

OUTPUT FREQUENCY (MHz)

SFDR (dBc)

706040 5020 3010

10

20

30

40

50

60

70

80

90

100

0

80

-6dBFS

0dBFS

-12dBFS

0

SPURIOUS-FREE DYNAMIC RANGE

vs. OUTPUT FREQUENCY (f

CLK

= 500MHz)

MAX5890 toc03

OUTPUT FREQUENCY (MHz)

SFDR (dBc)

1601208040

10

20

30

40

50

60

70

80

90

100

0

0 200

0dBFS

-6dBFS

-12dBFS

SPURIOUS-FREE DYNAMIC RANGE

vs. OUTPUT FREQUENCY (f

CLK

= 600MHz)

MAX5890 toc04

OUTPUT FREQUENCY (MHz)

SFDR (dBc)

1601208040

10

20

30

40

50

60

70

80

90

100

0

0 200

0dBFS

-6dBFS

-12dBFS

SPURIOUS-FREE DYNAMIC RANGE

vs. OUTPUT FREQUENCY

(f

CLK

= 500MHz, I

OUT

= 20mA, 10mA, 5mA)

MAX5890 toc05

OUTPUT FREQUENCY (MHz)

SFDR (dBc)

1601208040

10

20

30

40

50

60

70

80

90

100

0

0200

20mA

0dBFS

10mA

5mA

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

_______________________________________________________________________________________ 7

TWO-TONE INTERMODULATION DISTORTION

vs. OUTPUT FREQUENCY

(f

CLK

= 500MHz, 1MHz CARRIER SPACING)

MAX5890 toc06

OUTPUT FREQUENCY (MHz)

TTIMD (dBc)

1601208040

-110

-100

-90

-80

-70

-60

-120
0200

-12dBFS

-50

-6.5dBFS

SINGLE-CARRIER WCDMA ACLR

(f

CLK

= 491.52MHz)

OUTPUT POWER (dBm)

MAX5890 toc07

2.55MHz/div

-120

-130

-110

-100

-90

-80

-70

-60

-50

-40

-20

-30

ACLR = 72.9dB
f

CENTER

= 122.88MHz

FOUR-CARRIER WCDMA ACLR

(f

CLK

= 491.52MHz)

MAX5890 toc08

4.06MHz/div

OUTPUT POWER (dBm)

-120

-130

-110

-100

-90

-80

-70

-60

-50

-40

-20

-30

ACLR = 67.4dB
f

CENTER

= 122.88MHz

SPURIOUS-FREE DYNAMIC RANGE

vs. TEMPERATURE (f

CLK

= 500MHz)

MAX5890 toc09

TEMPERATURE (°C)

SFDR (dBc)

603510-15

60

70

80

90

100

50

-40 85

0dBFS

f

OUT

= 100MHz

f

OUT

= 10MHz

f

OUT

= 50MHz

INTEGRAL NONLINEARITY

MAX5890 toc10

DIGITAL INPUT CODE

INL (LSB)

16,3840 81924096 12,288

-0.80

-0.60

-0.40

-0.20

0

0.20

0.60

0.40

0.80

1.00

-1.00

DIFFERENTIAL NONLINEARITY

MAX5890 toc11

DIGITAL INPUT CODE

DNL (LSB)

12,2884096 8192

-0.8

-0.6

-0.4

-0.2

0.2

0.4

0

0.8

0.6

1.0

-1.0
016,384

TOTAL POWER DISSIPATION vs. CLOCK FREQUENCY

(f

OUT

= 16MHz, A

OUT

= 0dBFS)

MAX5890 toc12

CLOCK FREQUENCY (MHz)

POWER DISSIPATION (mW)

500400300200100

50

100

150

200

250

300

350

0

0 600

Typical Operating Characteristics (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference V

REFIO

= 1.2V, output load 50Ω double-termi-

nated, transformer-coupled output, I

OUT

= 20mA, TA= +25°C, unless otherwise noted.)

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

8 _______________________________________________________________________________________

PIN NAME FUNCTION

1, 3, 5, 46, 48,
50, 52, 54, 56,
58, 60, 63, 65,

67

D2N, D1N, D0N,

D13N, D12N, D11N,

D10N, D9N, D8N,

D7N, D6N, D5N,

D4N, D3N

Differential Negative LVDS Inputs. Data bits D0–D13 (offset binary format).

2, 4, 45, 47,
49, 51, 53, 55,
57, 59, 62, 64,

66, 68

D1P, D0P, D13P,

D12P, D11P, D10P,

D9P, D8P, D7P, D6P,

Differential Positive LVDS Inputs. Data bits D0–D13 (offset binary format).

6–9 N.C. No Connection. Leave floating or connect to DGND.

10 DGND Digital Ground. Ground return for DV

DD3.3

and DV

DD1.8

.

11 DV

DD3.3

Digital Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass with a

0.1µF capacitor to DGND.

12 PD

Power-Down Input. Set PD high to force the DAC into power-down mode. Set PD low for
normal operation. PD has an internal 2µA pulldown.

13, 42, 43, 44

N.C. No Connection. Leave floating or connect to AGND.

14, 21, 22, 25,

26, 31, 32

AV

DD3.3

Analog Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass with a

0.1µF capacitor to AGND.

15, 20, 23, 24,

27, 30, 33

AGND Analog Ground. Ground return for AV

DD3.3

and AV

DD1.8

.

16 REFIO

Reference I/O. Output of the internal 1.2V precision bandgap reference. Bypass with a

0.1µF capacitor to AGND. REFIO can be driven with an external reference source.

17 FSADJ

Full-Scale Current Adjustment. Connect an external resistor R

SET

between FSADJ and
DACREF to set the output full-scale current. The output full-scale current is equal to 32 x
V

REF

/ R

SET

.

18 DACREF

Current-Set Resistor Return Path. Internally connected to ground, but do not use as
ground connection.

19, 34, 35 AV

DD1.8

Analog Supply Voltage. Accepts a 1.71V to 1.89V supply voltage range. Bypass with a

0.1µF capacitor to AGND.

28 OUTN Complementary DAC Output. Negative terminal for current output.

29 OUTP DAC Output. Positive terminal for current output.

36, 41 AV

CLK

Clock Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass with a

0.1µF capacitor to CGND.

37, 40 CGND Clock Supply Ground

38 CLKN

Complementary Converter Clock Input. Negative input terminal for differential converter
clock.

39 CLKP Converter Clock Input. Positive input terminal for differential converter clock.

61 DV

DD1.8

Digital Supply Voltage. Accepts a 1.71V to 1.89V supply voltage range. Bypass with a

0.1µF capacitor to DGND.

—EP

Exposed Pad. Must be connected to common point for AGND, DGND, and CGND through
a low-impedance path. EP is internally connected to AGND, DGND, and CGND.

Pin Description

D5P, D4P, D3P, D2P

Detailed Description

Architecture

The MAX5890 high-performance, 14-bit, current-steer­ing DAC (see the Functional Diagram) operates with
DAC update rates up to 600Msps. The current-steering
array generates differential full-scale currents in the
2mA to 20mA range. An internal current-switching net­work, in combination with external 50Ω termination
resistors, converts the differential output currents into a
differential output voltage with a 0.1V to 1V peak-to­peak output voltage range. The analog outputs have a

-1.0V to +1.1V voltage compliance. For applications
requiring high dynamic performance, use the differen­tial output configuration and limit the output voltage
swing to ±0.5V at each output. An integrated 1.2V
bandgap reference, control amplifier, and user-selec­table external resistor determine the data converter’s
full-scale output range.

Reference Architecture and Operation

The MAX5890 operates with the internal 1.2V bandgap
reference or an external reference voltage source.
REFIO serves as the input for an external, low-imped­ance reference source or as a reference output when
the DAC operates in internal reference mode. For sta­ble operation with the internal reference, bypass REFIO
to AGND with a 0.1µF capacitor. The REFIO output
resistance is 10kΩ. Buffer REFIO with a high-input­impedance amplifier when using it as a reference
source for external circuitry.

The MAX5890’s reference circuit (Figure 1) employs a
control amplifier to regulate the full-scale current,
I

OUTFS

, for the differential current outputs of the DAC.

Calculate the output current as follows:

where I

OUTFS

is the full-scale output current of the

DAC. R

SET

(located between FSADJ and DACREF)
determines the amplifier’s full-scale output current for
the DAC. See Table 1 for a matrix of different I

OUTFS

and R

SET

selections.

Analog Outputs (OUTP, OUTN)

The complementary current outputs (OUTP, OUTN) can
be connected in a single-ended or differential configu­ration. A load resistor converts these two output cur­rents into complementary single-ended output
voltages. A transformer or a differential amplifier con­verts the differential voltage existing between OUTP
and OUTN to a single-ended voltage. When not using a
transformer, terminate each output with a 25Ω resistor
to ground and a 50Ω resistor between the outputs.

To generate a single-ended output, select OUTP as the
output and connect OUTN to AGND. Figure 2 shows a
simplified diagram of the internal output structure of the
MAX5890.

I

V

R

OUTFS

REFIO

SET

=× ×−











32 1

1

2

14

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

_______________________________________________________________________________________ 9

R

SET

(Ω)

FULL-SCALE CURRENT

I

OUTFS

(mA)

1% EIA STD

2 19.2k 19.1k

5 7.68k 7.5k

10 3.84k 3.83k

15 2.56k 2.55k

20 1.92k 1.91k

Table 1. I

OUTFS

and R

SET

Selection Matrix
Based on a Typical 1.200V Reference
Voltage

OUTP

OUTN

1.2V

REFERENCE

CURRENT-SOURCE

ARRAY DAC

REFIO

FSADJ

R

SET

I

REF

10kΩ

DACREF

0.1µF

I

REF

= V

REFIO

/ R

SET

Figure 1. Reference Architecture, Internal Reference
Configuration

CALCULATED

MAX5890

Clock Inputs (CLKP, CLKN)

To achieve the best possible jitter performance, the
MAX5890 features flexible differential clock inputs
(CLKP, CLKN) that operate from a separate clock
power supply (AV

CLK

). Drive the differential clock
inputs from a single-ended or a differential clock
source. For highest dynamic performance, differential
clock source is required. For single-ended operation,
drive CLKP and bypass CLKN to CGND.

CLKP and CLKN are internally biased at AV

CLK

/ 2,
allowing the AC-coupling of clock sources directly to
the device without external resistors to define the DC
level. The input resistance from CLKP and CLKN to
ground is approximately 5kΩ.

Data-Timing Relationship

Figure 3 shows the timing relationship between digital
LVDS data, clock, and output signals. The MAX5890
features a 2ns hold, a -1.2ns setup, and a 2.5ns propa­gation delay time. There is a 5.5 clock-cycle latency
between data write operation and the corresponding
analog output transition.

LVDS Data Inputs

The MAX5890 has 14 pairs of LVDS data inputs (offset
binary format) and can accept data rates up to
600MWps. Each differential input pair is terminated with
an internal 110Ω resistor. The common-mode input
resistance is 3.2kΩ.

Power-Down Operation (PD)

The MAX5890 features a power-down mode that
reduces the DAC’s power consumption. Set PD high to
power down the MAX5890. Set PD low or leave uncon­nected for normal operation.

When powered down, the MAX5890 overall power con­sumption is reduced to less than 13µW. The MAX5890
requires 350µs to wake up from power-down and enter
a fully operational state if the external reference is
used. If the internal reference is used, the power-down
recovery time is 10ms. The PD internal pulldown circuit
sets the MAX5890 in normal mode when PD is left
unconnected.

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

10 ______________________________________________________________________________________

I

OUT

I

OUT

OUTN OUTP

CURRENT
SOURCES

CURRENT

SWITCHES

AV

DD3.3

Figure 2. Simplified Analog Output Structure

D0–D13

t

SETUP

t

HOLD

D

N

CLKP

CLKN

D

N + 2

D

N + 4

D

N + 6

IOUTP

IOUTN

t

PD

D

N + 1

D

N + 3

D

N + 5

D

N + 7

OUT

N - 2

OUT

N - 3

OUT

N - 4

OUT

N - 5

OUT

N - 6

OUT

N - 7

OUT

N-1

OUT

N

Figure 3. Timing Relationship Between Clock, Input Data, and Analog Output

Applications Information

Clock Interface

To achieve the best possible jitter performance, the
MAX5890 features flexible differential clock inputs
(CLKP, CLKN) that operate from a separate clock
power supply (AV

CLK

). Use a low-jitter clock to reduce
the DAC’s phase noise and wideband noise. To
achieve the best DAC dynamic performance, the
CLKP/CLKN input source must be designed carefully.
The differential clock (CLKN and CLKP) input can be
driven from a single-ended or a differential clock
source. Use differential clock drive to achieve the best
dynamic performance from the DAC. For single-ended
operation, drive CLKP with a low noise source and
bypass CLKN to CGND with a 0.1µF capacitor.

Figure 4 shows a convenient and quick way of applying
a differential signal created from a single-ended source
using a wideband transformer. Alternatively, drive
CLKP/CLKN from a CMOS-compatible clock source.
Use sinewave or AC-coupled differential ECL/PECL
drive for best dynamic performance.

Differential Output Coupling Using a

Wideband RF Transformer

Use a pair of transformers (Figure 5) or a differential
amplifier configuration to convert the differential voltage
existing between OUTP and OUTN to a single-ended
voltage. Optimize the dynamic performance by using a
differential transformer-coupled output and limit the out­put power to < 0dBm full scale. To achieve the best
dynamic performance, use the differential transformer
configuration. Terminate the DAC as shown in Figure 5,
and use 50Ω termination at the transformer single­ended output. This will provide double 50Ω termination
for the DAC output network. With the double-terminated
output and 20mA full-scale current, the DAC will pro­duce a full-scale signal level of approximately -2dBm.
Pay close attention to the transformer core saturation
characteristics when selecting a transformer for the
MAX5890. Transformer core saturation can introduce
strong 2nd-order harmonic distortion especially at low
output frequencies and high signal amplitudes. For best
results, connect the center tap of the transformer to
ground. When not using a transformer, terminate each
DAC output to ground with a 25Ω resistor. Additionally,
place a 50Ω resistor between the outputs (Figure 6).

For a single-ended unipolar output, select OUTP as the
output and connect OUTN to AGND. Operating the
MAX5890 single-ended is not recommended because
it degrades the dynamic performance.

The distortion performance of the DAC depends on the
load impedance. The MAX5890 is optimized for 50Ω
differential double termination. Using higher termination
impedance degrades distortion performance and
increases output noise voltage.

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

______________________________________________________________________________________ 11

WIDEBAND RF TRANSFORMER

PERFORMS SINGLE-ENDED-TO-

DIFFERENTIAL CONVERSION

SINGLE-ENDED

CLOCK SOURCE

AGND

1:1

25Ω

25Ω

CLKP

CLKN

TO DAC

0.1µF

0.1µF

Figure 4. Differential Clock-Signal Generation

MAX5890

OUTP

OUTN

WIDEBAND RF TRANSFORMER T2 PERFORMS THE
DIFFERENTIAL-TO-SINGLE-ENDED CONVERSION

T1, 1:1

T2, 1:1

AGND

50Ω

100Ω

50Ω

V

OUT

, SINGLE-ENDED

D0–D13

LVDS

DATA INPUTS

Figure 5. Differential-to-Single-Ended Conversion Using a Wideband RF Transformer

MAX5890

Grounding, Bypassing, and Power-Supply

Considerations

Grounding and power-supply decoupling strongly influ­ence the MAX5890 performance. Unwanted digital
crosstalk coupling through the input, reference, power
supply, and ground connections affects dynamic per­formance. High-speed, high-frequency applications
require closely followed proper grounding and power­supply decoupling. These techniques reduce EMI and
internal crosstalk that can significantly affect the
MAX5890 dynamic performance.

Use a multilayer PCB with separate ground and power­supply planes. Run high-speed signals on lines directly
above the ground plane. Keep digital signals as far
away from sensitive analog inputs and outputs, refer­ence input sense lines, common-mode inputs, and
clock inputs as practical. Use a symmetric design of
clock input and the analog output lines to minimize
2nd-order harmonic-distortion components, thus opti­mizing the DAC’s dynamic performance. Keep digital
signal paths short and run lengths matched to avoid
propagation delay and data skew mismatches.

The MAX5890 requires five separate power-supply
inputs for analog (AV

DD1.8

and AV

DD3.3

), digital

(DV

DD1.8

and DV

DD3.3

), and clock (AV

CLK

) circuitry.

Decouple each AV

DD3.3

, AV

DD1.8

, AV

CLK

, DV

DD3.3

, and

DV

DD1.8

input with a separate 0.1µF capacitor as close
to the device as possible with the shortest possible con­nection to the respective ground plane (Figure 7).
Connect all of the 3.3V supplies together at one point
with ferrite beads to minimize supply noise coupling.
Decouple all five power-supply voltages at the point they
enter the PCB with tantalum or electrolytic capacitors.
Ferrite beads with additional decoupling capacitors
forming a pi network can also improve performance.
Similarly, connect all 1.8V supplies together at one point
with ferrite beads.

The analog and digital power-supply inputs AV

DD3.3

,

AV

CLK

, and DV

DD3.3

allow a 3.135V to 3.465V supply
voltage range. The analog and digital power-supply
inputs AV

DD1.8

and DV

DD1.8

allow a 1.71V to 1.89V

supply voltage range.

The MAX5890 is packaged in a 68-pin QFN-EP package
with exposed paddle, providing optimized DAC AC per­formance. The exposed pad must be soldered to the
ground plane of the PCB. Thermal efficiency is not the
key factor, since the MAX5890 features low- power oper­ation. The exposed pad ensures a solid ground connec­tion between the DAC and the PCB’s ground layer.

The data converter die attaches to an EP lead frame
with the back of this frame exposed at the package
bottom surface, facing the PCB side of the package.
This allows for a solid attachment of the package to the
PCB with standard infrared (IR) reflow soldering tech­niques. A specially created land pattern on the PCB,
matching the size of the EP (6mm x 6mm), ensures the
proper attachment and grounding of the DAC. Place
vias into the land area and implement large ground

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

12 ______________________________________________________________________________________

MAX5890

OUTP

OUTN

AGND

25Ω

50Ω

25Ω

OUTP

OUTN

D0–D13

LVDS

DATA INPUTS

Figure 6. Differential Output Configuration

MAX5890

OUTPAV

DD3.3

AV

DD1.8

DV

DD3.3

DV

DD1.8

AV

CLK

OUTN

0.1µF

3.3V VOLTAGE SUPPLY

0.1µF

0.1µF 0.1µF

1.8V VOLTAGE SUPPLY

0.1µF

BYPASSING—DAC LEVEL

*FERRITE BEADS

D0–D13

LVDS

DATA INPUTS

*

**

**

Figure 7. Recommended Power-Supply Decoupling and
Bypassing Circuitry

planes in the PCB design to ensure the highest dynam­ic performance of the DAC. Connect the MAX5890
exposed paddle to the common connection point of
DGND, AGND, and CGND. Vias connect the top land
pattern to internal or external copper planes. Use as
many vias as possible to the ground plane to minimize
inductance. The vias should have a diameter greater
than 0.3mm.

Static Performance Parameter

Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from a line drawn between the
end points of the transfer function, once offset and gain
errors have been nullified. For a DAC, the deviations
are measured at every individual step.

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an
actual step height and the ideal value of 1 LSB.

Offset Error

The offset error is the difference between the ideal and
the actual offset current. For a DAC, the offset point is
the average value at the output for the two midscale
digital input codes with respect to the full scale of the
DAC. This error affects all codes by the same amount.

Gain Error

A gain error is the difference between the ideal and the
actual full-scale output voltage on the transfer curve,
after nullifying the offset error. This error alters the slope
of the transfer function and corresponds to the same
percentage error in each step.

Settling Time

The settling time is the amount of time required from the
start of a transition until the DAC output settles its new
output value to within the converter’s specified accuracy.

Glitch Impulse

A glitch is generated when a DAC switches between
two codes. The largest glitch is usually generated
around the midscale transition, when the input pattern
transitions from 011...111 to 100...000. The glitch
impulse is found by integrating the voltage of the glitch
at the midscale transition over time. The glitch impluse
is usually specified in pV•s.

Dynamic Performance Parameter

Definitions

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of the
full-scale analog output (RMS value) to the RMS quanti­zation error (residual error). The ideal, theoretical maxi­mum can be derived from the DAC’s resolution (N bits):

SNR = 6.02 x N + 1.76

However, noise sources such as thermal noise, refer­ence noise, clock jitter, etc., affect the ideal reading;
therefore, SNR is computed by taking the ratio of the
RMS signal to the RMS noise, which includes all spec­tral components minus the fundamental, the first four
harmonics, and the DC offset.

Noise Spectral Density

The DAC output noise floor is the sum of the quantiza­tion noise and the output amplifier noise (thermal and
shot noise). Noise spectral density is the noise power in
1Hz bandwidth, specified in dBFS/Hz.

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio of RMS amplitude of the carrier
frequency (maximum signal components) to the RMS
value of their next-largest distortion component. SFDR is
usually measured in dBc and with respect to the carrier
frequency amplitude or in dBFS with respect to the
DAC’s full-scale range. Depending on its test condition,
SFDR is observed within a predefined window or to
Nyquist.

Two-Tone Intermodulation Distortion (IMD)

The two-tone IMD is the ratio expressed in dBc (or
dBFS) of the worst 3rd-order IMD differential product to
either output tone. The two-tone IMD performance of
the MAX5890 is tested with the two individual output
tone levels set to at least -6.5dBFS.

Adjacent Channel Leakage Power Ratio (ACLR)

Commonly used in combination with wideband code­division multiple-access (WCDMA), ACLR reflects the
leakage power ratio in dB between the measured
power within a channel relative to its adjacent channel.
ACLR provides a quantifiable method of determining
out-of-band spectral energy and its influence on an
adjacent channel when a bandwidth-limited RF signal
passes through a nonlinear device.

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

______________________________________________________________________________________ 13

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

14 ______________________________________________________________________________________

Pin Configuration

D2N 1

D1P

2

D1N

3

D0P

4

D0N

5

N.C.

6

N.C.

7

N.C.

8

N.C.

9

DGND

10

DV

DD3.3

11

PD

12

N.C.

13

AV

DD3.3

14

AGND

15

REFIO

EXPOSED PADDLE

16

FSADJ

17

D10P

51

D11N

50

D11P

49

D12N

48

D12P

47

D13N

46

D13P

45

N.C.

44

N.C.

43

N.C.

42

AV

CLK

41

CGND

40

CLKP

39

CLKN

38

CGND

37

AV

CLK

36

AV

DD1.8

35

DACREF

18

AV

DD1.8

19

AGND

20

AV

DD3.3

21

AV

DD3.3

22

AGND23AGND

24

AV

DD3.3

25

AV

DD3.3

26

AGND

27

OUTN

28

OUTP

29

AGND

30

AV

DD3.3

31

AV

DD3.3

32

AGND

33

AV

DD1.8

34

D2P68D3N67D3P66D4N65D4P64D5N63D5P62DV

DD1.8

61

D6N60D6P59D7N58D7P57D8N56D8P55D9N54D9P53D10N

52

MAX5890

QFN-EP

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance

DAC with LVDS Inputs

______________________________________________________________________________________ 15

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

68L QFN.EPS

C

1

2

21-0122

PACKAGE OUTLINE, 68L QFN, 10x10x0.9 MM

MAX5890

14-Bit, 600Msps, High-Dynamic-Performance
DAC with LVDS Inputs

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

16 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2007 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

C

1

2

21-0122

PACKAGE OUTLINE, 68L QFN, 10x10x0.9 MM

Revision History

Pages changed at Rev 1: 1–7, 9, 11, 12, 13, 15 16
