MAXIM MAX5874 Technical data

General Description

The MAX5874 is an advanced 14-bit, 200Msps, dual
digital-to-analog converter (DAC). This DAC meets the
demanding performance requirements of signal synthesis
applications found in wireless base stations and other
communications applications. Operating from 3.3V and

1.8V supplies, this dual DAC offers exceptional dynamic
performance such as 78dBc spurious-free dynamic range
(SFDR) at f

OUT

= 16MHz and supports update rates of

200Msps, with a power dissipation of only 260mW.
The MAX5874 utilizes a current-steering architecture

that supports a 2mA to 20mA full-scale output current
range, and allows a 0.1V

P-P

to 1V

P-P

differential

output voltage swing. The device features an integrated

1.2V bandgap reference and control amplifier to ensure
high-accuracy and low-noise performance. A separate
reference input (REFIO) allows for the use of an exter­nal reference source for optimum flexibility and
improved gain accuracy.

The digital and clock inputs of the MAX5874 accept

3.3V CMOS voltage levels. The device features a flexi­ble input data bus that allows for dual-port input or a
single-interleaved data port. The MAX5874 is available
in a 68-pin QFN package with an exposed paddle (EP)
and is specified for the extended temperature range
(-40°C to +85°C).

Refer to the MAX5873 and MAX5875 data sheets for
pin-compatible 12-bit and 16-bit versions of the
MAX5874, respectively. Refer to the MAX5877 for an
LVDS-compatible version of the MAX5874.

Applications

Base Stations: Single/Multicarrier UMTS, CDMA, GSM

Communications: Fixed Broadband Wireless Access,
Point-to-Point Microwave

Direct Digital Synthesis (DDS)

Cable Modem Termination System (CMTS)

Automated Test Equipment (ATE)

Instrumentation

Features

♦ 200Msps Output Update Rate

♦ Noise Spectral Density = -160dBFS/Hz at

f

OUT

= 16MHz

♦ Excellent SFDR and IMD Performance

SFDR = 78dBc at f

OUT

= 16MHz (to Nyquist)

SFDR = 74dBc at f

OUT

= 80MHz (to Nyquist)

IMD = -86dBc at f

OUT

= 10MHz

IMD = -74dBc at f

OUT

= 80MHz

♦ ACLR = 75dB at f

OUT

= 61MHz

♦ 2mA to 20mA Full-Scale Output Current

♦ CMOS-Compatible Digital and Clock Inputs

♦ On-Chip 1.2V Bandgap Reference

♦ Low 260mW Power Dissipation

♦ 68-Lead QFN-EP Package

♦ Evaluation Kit Available (MAX5874EVKIT)

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

________________________________________________________________ Maxim Integrated Products 1

Pin Configuration

Ordering Information

19-3514; Rev 2; 1/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

*EP = Exposed pad.
+ = Lead-free package. D = Dry pack.

EVALUATION KIT

AVAILABLE

Selector Guide

PART

RESOLUTION

(Bits)

MAX5873 12 200 CMOS

MAX5874 14 200 CMOS

MAX5875 16 200 CMOS

MAX5876 12 250 LVDS

MAX5877 14 250 LVDS

MAX5878 16 250 LVDS

UPDATE

RATE (Msps)

LOGIC

INPUTS

PART TEMP RANGE

MAX5874EGK-D -40°C to +85°C

MAX5874EGK+D -40°C to +85°C

PIN­PACKAGE

68 QFN-EP*

68 QFN-EP*

TOP VIEW

DD1.8

A12

A13

DV

N.C.

A6

A5

A4

A3

A2

A1

A0

N.C.

N.C.

GND

DV

DD3.3

GND

GND

AV

DD3.3

GND

REFIO

FSADJ 17

MAX5874

OUTQN

QFN

OUTQP

GND

N.C.B0B1B2B3

5859606162 5455565763

GND

OUTIN

A11

A8A9A10

A7

64

656667

68

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

2322212019 2726252418 2928 323130

GND

AV

DD3.3

AV

DD3.3

GND

DACREF

AV

DD1.8

OUTIP

GND

AV

DD3.3

B4

AV

DD3.3

B5

GND

B6

5253

3433

DD1.8

AV

PKG

CODE

G6800-4

G6800-4

51 B7

B8

50

49

B9

48 B10

47

B11

46

B12

45

B13

44

SELIQ

43

GND

42

XOR

41

DORI

40

PD

TORB

39

CLKP

38

37

CLKN

GND

36

AV

35

CLK

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

AV

DD1.8

, DV

DD1.8

to GND, DACREF ................. -0.3V to +2.16V

AV

DD3.3

, DV

DD3.3

, AV

CLK

to GND, DACREF....... -0.3V to +3.9V

DACREF, REFIO, FSADJ to GND,

DACREF.......................................... -0.3V to (AV

DD3.3

+ 0.3V)

OUTIP, OUTIN, OUTQP,

OUTQN to GND, DACREF ....................-1V to (AV

DD3.3

+ 0.3V)

CLKP, CLKN to GND, DACREF..............-0.3V to (AV

CLK

+ 0.3V)

A13/B13–A0/B0, XOR, SELIQ to GND,

DACREF...............................................-0.3V to (DV

DD3.3

+ 0.3V)

TORB, DORI, PD to GND, DACREF ....-0.3V to (DV

DD3.3

+ 0.3V)

Continuous Power Dissipation (T

A

= +70°C)
68-Pin QFN-EP

(derate 41.7mW/°C above +70°C) (Note 1)............3333.3mW

Thermal Resistance θ

JA

(Note 1)...................................+24°C/W

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-60°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

ELECTRICAL CHARACTERISTICS

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, GND = 0, external reference V

REFIO

= 1.25V, output load 50Ω double-

terminated, transformer-coupled output, I

OUTFS

= 20mA, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA = +25°C.)

(Note 2)

Note 1: Thermal resistors based on a multilayer board with 4 x 4 via array in exposed paddle area.

STATIC PERFORMANCE

Resolution 14 Bits
Integral Nonlinearity INL Measured differentially ±1 LSB

Differential Nonlinearity DNL Measured differentially ±0.7 LSB

Offset Error OS -0.025 ±0.001 +0.025 %FS
Offset-Drift Tempco ±10 ppm/°C

Full-Scale Gain Error GE

Gain-Drift Tempco

Full-Scale Output Current I

Output Compliance Single-ended -0.5 +1.1 V

Output Resistance R

Output Capacitance C

DYNAMIC PERFORMANCE

Clock Frequency f

Output Update Rate f

Noise Spectral Density

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

External reference ±1%FS

FS

Internal reference ±100
External reference ±50

OUTFS

CLK

DAC

(Note 3) 2 20 mA

OUT

OUT

1MΩ

5pF

1 200 MHz

f

= f

DAC

f

DAC

f

DAC

f

DAC

/ 2, single-port mode 1 100

CLK

= f

, dual-port mode 1 200

CLK

= 150MHz f

= 200MHz f

= 16MHz, -12dBFS -160

OUT

= 80MHz, -12dBFS -158

OUT

ppm/°C

Msps

dBFS/Hz

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, GND = 0, external reference V

REFIO

= 1.25V, output load 50Ω double-

terminated, transformer-coupled output, I

OUTFS

= 20mA, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA = +25°C.)

(Note 2)

Spurious-Free Dynamic Range to
Nyquist

Spurious-Free Dynamic Range,
25MHz Bandwidth

Two-Tone IMD TTIMD

Four-Tone IMD, 1MHz
Frequency Spacing, GSM Model

Adjacent Channel Leakage Power
Ratio 3.84MHz Bandwidth,
W-CDMA Model

Output Bandwidth BW

INTER-DAC CHARACTERISTICS

Gain Matching ∆Gain

Gain-Matching Tempco ∆Gain/°C ±20 ppm/°C
Phase Matching ∆Phase f

Phase-Matching Tempco ∆Phase/°C ±0.002

Channel-to-Channel Crosstalk f

REFERENCE

Internal Reference Voltage Range V

Reference Input Compliance
Range

Reference Input Resistance R

Reference Voltage Drift TCO

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

f

= 1MHz, 0dBFS 88

OUT

f

= 1MHz, -6dBFS 82

OUT

f

= 1MHz, -12dBFS 82

OUT

f

= 10MHz, -12dBFS 80

OUT

= 30MHz, -12dBFS 79

f

OUT

f

= 10MHz, -12dBFS 80

OUT

f

= 16MHz, -12dBFS,

OUT

≥ +25oC

T

A

f

= 16MHz, -12dBFS 68 78

OUT

f

= 50MHz, -12dBFS 77

OUT

f

= 80MHz, -12dBFS 74

OUT

= 16MHz, -12dBFS 84 dBc

OUT

f

= 9MHz, -7dBFS;

OUT1

f

= 10MHz, -7dBFS

OUT2

f

= 79MHz, -7dBFS;

OUT1

f

= 80MHz, -7dBFS

OUT2

= 16MHz, -12dBFS -82 dBc

OUT

= 61.44MHz 75 dB

f

OUT

= 50MHz, 0dBFS -70 dB

OUT

71 78

-86

-74

1.14 1.2 1.26 V

0.125 1.250 V

10 kΩ

±25 ppm/°C

SFDR

SFDR f

FTIMD f

ACLR

-1dB

REFIO

V

REFIOCR

REFIO

REF

f

= 100MHz

DAC

f

= 200MHz

DAC

= 150MHz f

DAC

f

= 100MHz

DAC

f

= 200MHz

DAC

= 150MHz f

DAC

f

=

DAC

184.32MHz

(Note 4) 240 MHz

f

= DC - 80MHz ±0.2

OUT

f

= DC +0.01

OUT

= 60MHz ±0.25 D egr ees

OUT

= 200MHz, f

CLK

dBc

dBc

dB

D eg r ees/

°C

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, GND = 0, external reference V

REFIO

= 1.25V, output load 50Ω double-

terminated, transformer-coupled output, I

OUTFS

= 20mA, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA = +25°C.)

(Note 2)

ANALOG OUTPUT TIMING (See Figure 4)

Output Fall Time t

Output Rise Time t

Output-Voltage Settling Time t

Output Propagation Delay t

Glitch Impulse Measured differentially 1 pV•s

Output Noise n

TIMING CHARACTERISTICS

Data to Clock Setup Time t

Data to Clock Hold Time t

Single-Port (Interleaved Mode)
Data Latency

Dual-Port (Parallel Mode) Data
Latency

Minimum Clock Pulse-Width High t

Minimum Clock Pulse-Width Low t

CMOS LOGIC INPUTS (A13/B13–A0/B0, XOR, SELIQ, PD, TORB, DORI)

Input Logic High V

Input Logic Low V

Input Leakage Current I

PD, TORB, DORI Internal
Pulldown Resistance

Input Capacitance C

CLOCK INPUTS (CLKP, CLKN)

Differential Input Voltage Swing

Differential Input Slew Rate SR

External Common-Mode Voltage
Range

Input Resistance R

Input Capacitance C

POWER SUPPLIES

Analog Supply Voltage Range

Digital Supply Voltage Range

Clock Supply Voltage Range

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

FALL

RISE

SETTLE

PD

OUT

SETUP

HOLD

CH

CL

V

COM

CLK

CLK

AV

DD3.3

AV

DD1.8

DV

DD3.3

DV

DD1.8

AV

IH

IL

IN

IN

CLK

CLK

90% to 10% (Note 5) 0.7 ns

10% to 90% (Note 5) 0.7 ns

Output settles to 0.025% FS (Note 5) 14 ns

Excluding data latency (Note 5) 1.1 ns

I

= 2mA 30

OUTFS

I

= 20mA 30

OUTFS

Referenced to rising edge of clock (Note 6) -0.6 -1.2 ns

Referenced to rising edge of clock (Note 6) 2.1 1.5 ns

Latency to I output 9

Latency to Q output 8

CLKP, CLKN 2.4 ns

CLKP, CLKN 2.4 ns

= V

V

PD

TORB

Sine wave > 1.5

Square wave > 0.5

(Note 7) > 100 V/µs

= V

= 3.3V 1.5 MΩ

DORI

5.5

0.7 x

DV

DD3.3

120µA

2.5 pF

AV

/ 2

CLK

±0.3

5kΩ

2.5 pF

3.135 3.3 3.465

1.710 1.8 1.890

3.135 3.3 3.465

1.710 1.8 1.890

3.135 3.3 3.465 V

0.3 x

DV

DD3.3

pA/√Hz

Clock

cycles

Clock

cycles

V

V

V

P-P

V

V

V

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, GND = 0, external reference V

REFIO

= 1.25V, output load 50Ω double-

terminated, transformer-coupled output, I

OUTFS

= 20mA, TA = T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA = +25°C.)

(Note 2)

Note 2: Specifications at T

A

≥ +25°C are guaranteed by production testing. Specifications at TA< +25°C are guaranteed by design

and characterization data.

Note 3: Nominal full-scale current I

OUTFS

= 32 x I

REF

.

Note 4: This parameter does not include update-rate-dependent effects of sin(x)/x filtering inherent in the MAX5874.
Note 5: Parameter measured single-ended into a 50Ω termination resistor.
Note 6: Not production tested. Guaranteed by design and characterization data.
Note 7: A differential clock input slew rate of > 100V/µs is required to achieve the specified dynamic performance.
Note 8: Parameter defined as the change in midscale output caused by a ±5% variation in the nominal supply voltage.

Typical Operating Characteristics

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference, V

REFIO

= 1.25V, RL = 50Ω double-terminated,

I

OUTFS

= 20mA, TA= +25°C, unless otherwise noted.)

SINGLE-TONE SFDR vs. OUTPUT

FREQUENCY (f

CLK

= 50Msps)

MAX5874 toc01

f

OUT

(MHz)

SFDR (dBc)

2015105

20

40

60

80

100

0

025

-12dBFS

-6dBFS

0dBFS

SINGLE-TONE SFDR vs. OUTPUT

FREQUENCY (f

CLK

= 100Msps)

MAX5874 toc02

f

OUT

(MHz)

SFDR (dBc)

40302010

20

40

60

80

100

0

050

-12dBFS

-6dBFS

0dBFS

SINGLE-TONE SFDR vs. OUTPUT

FREQUENCY (f

CLK

= 150Msps)

MAX5874 toc03

f

OUT

(MHz)

SFDR (dBc)

60453015

20

40

60

80

100

0

075

-12dBFS

-6dBFS

0dBFS

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

I

AVDD3.3

+ I

Analog Supply Current

AVCLK Power-down 0.001

I

AVDD1.8

I

DVDD3.3

Digital Supply Current

I

DVDD1.8

Power Dissipation P

DISS

Power-Supply Rejection Ratio PSRR

f

= 200Msps, f

DAC

f

= 200Msps, f

DAC

= 1MHz 53 58

OUT

= 1MHz 24 32

OUT

Power-down 0.001

f

= 200Msps, f

DAC

= 1MHz 1.5 3

OUT

Power-down 0.001

f

= 200Msps, f

DAC

= 1MHz 21 25

OUT

Power-down 0.001

f

= 200Msps, f

DAC

= 1MHz 260 300 mW

OUT

Power-down 14 µW

AV
(Notes 7, 8)

DD3.3

= AV

CLK

= DV

DD3.3

= +3.3V ±5%

-0.1 +0.1 %FS/V

mA

mA

mA

mA

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

6 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference, V

REFIO

= 1.25V, RL = 50Ω double-terminated,

I

OUTFS

= 20mA, TA= +25°C, unless otherwise noted.)

TWO-TONE IMD vs. OUTPUT FREQUENCY

(1MHz CARRIER SPACING, f

CLK

= 200Msps)

MAX5874 toc07

f

OUT

(MHz)

TWO-TONE IMD (dBc)

70605040302010

-90

-80

-70

-60

-50

-40

-100
080

-6dBFS

-12dBFS

SFDR vs. FULL-SCALE OUTPUT CURRENT

(f

CLK

= 200MHz)

MAX5874 toc08

f

OUT

(MHz)

SFDR (dBc)

80604020

20

40

60

80

100

0

0 100

A

OUT

= -6dBFS

10mA

5mA

20mA

SFDR vs. TEMPERATURE

(f

CLK

= 200MHz)

MAX5874 toc09

f

OUT

(MHz)

SFDR (dBc)

80604020

70

65

80

75

90

85

95

60

0 100

A

OUT

= -6dBFS

TA = +25°C

TA = -40°C

TA = +85°C

INTEGRAL NONLINEARITY

vs. DIGITAL INPUT CODE

MAX5874 toc10

DIGITAL INPUT CODE

INL (LSB)

12,28881924096

-0.75

-0.50

-0.25

0

0.25

0.50

0.75

1.00

-1.00
0 16,384

DIFFERENTIAL NONLINEARITY

vs. DIGITAL INPUT CODE

MAX5874 toc11

DIGITAL INPUT CODE

DNL (LSB)

12,28881924096

-0.50

-0.25

0

0.25

0.50

0.75

1.00

0 16,384

POWER DISSIPATION vs. CLOCK

FREQUENCY (f

OUT

= 10MHz)

MAX5874 toc12

f

CLK

(MHz)

POWER DISSIPATION (mW)

190170150130110907050

200

220

240

260

280

180

30

A

OUT

= 0dBFS

SINGLE-TONE SFDR vs. OUTPUT

FREQUENCY (f

CLK

= 200Msps)

MAX5874 toc04

f

OUT

(MHz)

SFDR (dBc)

80604020

20

40

60

80

100

0

0100

-12dBFS

-6dBFS

0dBFS

TWO-TONE IMD vs. OUTPUT FREQUENCY

(1MHz CARRIER SPACING, f

CLK

= 100Msps)

MAX5874 toc05

f

OUT

(MHz)

TWO-TONE IMD (dBc)

353025201510

-90

-80

-70

-60

-50

-40

-100
540

-6dBFS

-12dBFS

TWO-TONE IMD

(f

CLK

= 100Msps)

MAX5874 toc06

f

OUT

(MHz)

OUTPUT POWER (dBFS)

3432302826

-80

-60

-40

-20

0

-100

24 36

BW = 12MHz

2 x f

OUT1

- f

OUT2

2 x f

OUT2

- f

OUT1

f

OUT1

f

OUT2

f

OUT1

= 29.8706MHz

f

OUT2

= 30.9937MHz

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 7

Typical Operating Characteristics (continued)

(AV

DD3.3

= DV

DD3.3

= AV

CLK

= 3.3V, AV

DD1.8

= DV

DD1.8

= 1.8V, external reference, V

REFIO

= 1.25V, RL = 50Ω double-terminated,

I

OUTFS

= 20mA, TA= +25°C, unless otherwise noted.)

POWER DISSIPATION vs. SUPPLY VOLTAGE

(f

CLK

= 100MHz, f

OUT

= 10MHz)

MAX5874 toc13

SUPPLY VOLTAGE (V)

POWER DISSIPATION (mW)

3.4353.3353.235

200

210

220

230

240

190

3.135

A

OUT

= 0dBFS

EXTERNAL REFERENCE

INTERNAL REFERENCE

FOUR-TONE POWER RATIO PLOT

(f

CLK

= 150MHz, f

CENTER

= 31.6040MHz )

MAX5874 toc14

f

OUT

(MHz)

OUTPUT POWER (dBFS)

3634323028

-80

-60

-40

-20

0

-100

26 38

BW = 12MHz

f

OUT1

f

OUT2

f

OUT4

f

OUT3

f

OUT1

= 29.9997MHz

f

OUT2

= 31.0251MHz

f

OUT3

= 31.0640MHz

f

OUT4

= 32.9829MHz

ACLR FOR WCDMA MODULATION,

TWO CARRIERS

MAX5874 toc15

3.05MHz/div

ANALOG OUTPUT POWER (dBm)

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-120

f

CLK

= 184.32MHz

f

CENTER

= 30.72MHz

ACLR = 76dB

ACLR FOR WCDMA MODULATION,

SINGLE CARRIER

MAX5874 toc16

9.2MHz/div

ANALOG OUTPUT POWER (dBm)

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

DC 92.16MHz

f

CENTER

= 61.44MHz

f

CLK

= 184.32MHz

ACLR = 75dB

-20

WCDMA BASEBAND ACLR

MAX5874 toc17

NUMBER OF CARRIERS

ACLR (dB)

4321

76

77

82

84

85

75

ALTERNATE

ADJACENT

83

81

80

79

78

79.5

84.5

78.6

79.4

79.0

81.4

78.6

79.7

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

8 _______________________________________________________________________________________

Pin Description

PIN NAME FUNCTION

1–7

8, 9, 59, 60 N.C. No Connection. Leave floating or connect to GND.

10, 12, 13, 15,
20, 23, 26, 27,

30, 33, 36, 43

A6, A5, A4,

A3, A2, A1, A0

GND Converter Ground

Data Bits A6–A0. In dual-port mode, data is directed to the Q-DAC. In single-port mode, data bits
are not used. Connect bits A6–A0 to GND in single-port mode.

11 DV

14, 21, 22, 31,

32

16 REFIO

17 FSADJ

18 DACREF

19, 34 AV

24 OUTQN Complementary Q-DAC Output. Negative terminal for current output.

25 OUTQP Q-DAC Output. Positive terminal for current output.

28 OUTIN Complementary I-DAC Output. Negative terminal for current output.

29 OUTIP I-DAC Output. Positive terminal for current output.

35 AV

37 CLKN

38 CLKP

39 TORB

AV

DD3.3

DD3.3

DD1.8

CLK

Digital Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass with a 0.1µF
capacitor to GND.

Analog Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass each pin with
a 0.1µF capacitor to GND.

Reference I/O. Output of the internal 1.2V precision bandgap reference. Bypass with a 1µF
capacitor to GND. REFIO can be driven with an external reference source. See Table1.

Full-Scale Adjust Input. This input sets the full-scale output current of the DAC. For a 20mA full­scale output current, connect a 2kΩ resistor between FSADJ and DACREF. See Table1.

Current-Set Resistor Return Path. For a 20mA full-scale output current, connect a 2kΩ resistor
between FSADJ and DACREF. Internally connected to GND. Do not use as an external ground

connection.

Analog Supply Voltage. Accepts a 1.71V to 1.89V supply voltage range. Bypass each pin with a

0.1µF capacitor to GND.

Clock Supply Voltage. Accepts a 3.135V to 3.465V supply voltage range. Bypass with a 0.1µF
capacitor to GND.

Complementary Converter Clock Input. Negative input terminal for differential converter clock.
Internally biased to AV

Converter Clock Input. Positive input terminal for differential converter clock. Internally biased to
AV

/ 2.

CLK

Two’s-Complement/Binary Select Input. Set TORB to a CMOS-logic-high level to indicate a two’s­complement input format. Set TORB to a CMOS-logic-low level to indicate a binary input format.
TORB has an internal pulldown resistor.

CLK

/ 2.

40 PD

41 DORI

Power-Down Input. Set PD to a CMOS-logic-high level to force the DAC into power-down mode.
Set PD to a CMOS-logic-low level for normal operation. PD has an internal pulldown resistor.

Dual (Parallel)/Single (Interleaved) Port Select Input. Set DORI high to configure as a dual-port
DAC. Set DORI low to configure as a single-port interleaved DAC. DORI has an internal pulldown
resistor.

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

_______________________________________________________________________________________ 9

Detailed Description

Architecture

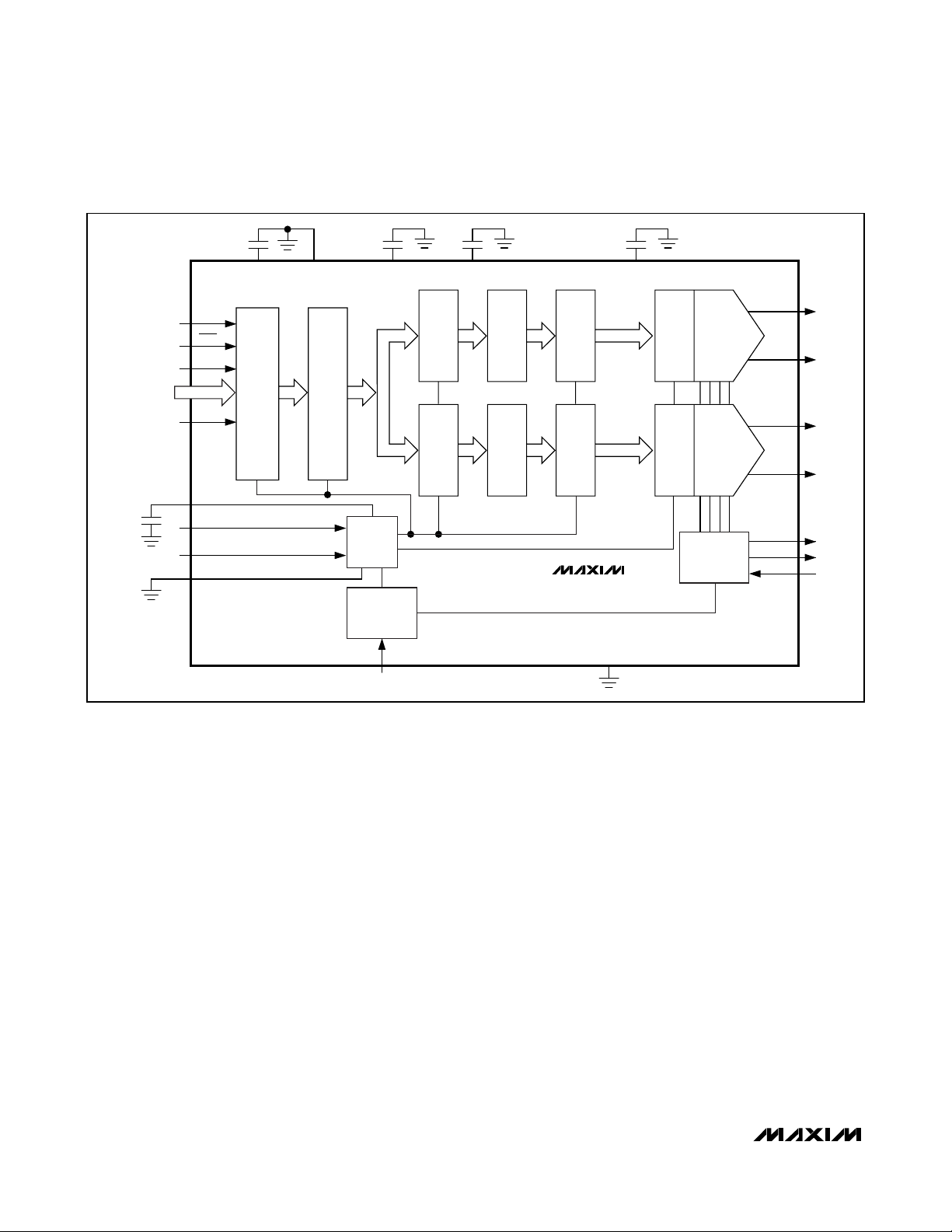

The MAX5874 high-performance, 14-bit, dual current­steering DAC (Figure 1) operates with DAC update rates
up to 200Msps. The converter consists of input registers
and a demultiplexer for single-port (interleaved) mode,
followed by a current-steering array. During operation in
interleaved mode, the input data registers demultiplex
the single-port data bus. The current-steering array gen­erates differential full-scale currents in the 2mA to 20mA
range. An internal current-switching network, in combina­tion with external 50Ω termination resistors, converts the
differential output currents into dual differential output
voltages with a 0.1V to 1V peak-to-peak output voltage
range. An integrated 1.2V bandgap reference, control
amplifier, and user-selectable external resistor determine
the data converter’s full-scale output range.

Reference Architecture and Operation

The MAX5874 supports operation with the internal 1.2V
bandgap reference or an external reference voltage
source. REFIO serves as the input for an external, low­impedance reference source. REFIO also serves as a
reference output when the DAC operates in internal ref­erence mode. For stable operation with the internal ref­erence, decouple REFIO to GND with a 1µF capacitor.
Due to its limited output-drive capability, buffer REFIO
with an external amplifier when driving large
external loads.

The MAX5874’s reference circuit (Figure 2) employs a
control amplifier to regulate the full-scale current
I

OUTFS

for the differential current outputs of the DAC.

Calculate the full-scale output current as follows:

where I

OUTFS

is the full-scale output current of the

DAC. R

SET

(located between FSADJ and DACREF)
determines the amplifier’s full-scale output current for
the DAC. See Table 1 for a matrix of different I

OUTFS

and R

SET

selections.

Pin Description (continued)

Table 1. I

OUTFS

and R

SET

Selection
Matrix Based on a Typical 1.200V
Reference Voltage

PIN NAME FUNCTION

42 XOR

44 SELIQ

B13, B12, B11,

45–58

61 DV

62–68

— EP Exposed Pad. Must be connected to GND through a low-impedance path.

B10, B9, B8,

B7, B6, B5, B4,

B3, B2, B1, B0

DD1.8

A13, A12, A11,

A10, A9, A8, A7

DAC Exclusive-OR Select Input. Set XOR low to allow the data stream to pass unchanged to the
DAC input. Set XOR high to invert the input data into the DAC. If unused, connect XOR to GND.

DAC Select Input. Set SELIQ low to direct data into the Q-DAC inputs. Set SELIQ high to direct
data into the I-DAC inputs. If unused, connect SELIQ to GND. SELIQ’s logic state is only valid in
single-port (interleaved) mode.

Data Bits B13–B0. In dual-port mode, data is directed to the I-DAC. In single-port mode, the state
of SELIQ determines where the data bits are directed.

Digital Supply Voltage. Accepts a 1.71V to 1.89V supply voltage range. Bypass with a 0.1µF
capacitor to GND.

Data Bits A13–A7. In dual-port mode, data is directed to the Q-DAC. In single-port mode, data
bits are not used. Connect bits A13–A7 to GND in single-port mode.

CURRENT I

V

I

=× ×

OUTFS

FULL-SCALE

(mA)

OUTFS

2 19.2k 19.1k

5 7.68k 7.5k

10 3.84k 3.83k

15 2.56k 2.55k

20 1.92k 1.91k

REFIO

R

SET

CALCULATED 1% EIA STD

⎛
⎜

⎝

R

SET

⎞

1

−32 1

⎟

14

⎠

2

(Ω)

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

10 ______________________________________________________________________________________

Analog Outputs

(OUTIP, OUTIN, OUTQP, OUTQN)

Each MAX5874 DAC outputs two complementary cur­rents (OUTIP/N, OUTQP/N) that operate in a single­ended or differential configuration. A load resistor
converts these two output currents into complementary
single-ended output voltages. A transformer or a differ­ential amplifier configuration converts the differential
voltage existing between OUTIP (OUTQP) and OUTIN
(OUTQN) to a single-ended voltage. If not using a
transformer, the recommended termination from the
output is a 25Ω termination resistor to ground and a
50Ω resistor between the outputs.

To generate a single-ended output, select OUTIP (or
OUTQP) as the output and connect OUTIN (or OUTQN)
to GND. SFDR degrades with single-ended operation.
Figure 3 displays a simplified diagram of the internal
output structure of the MAX5874.

Clock Inputs (CLKP, CLKN)

The MAX5874 features flexible differential clock inputs
(CLKP, CLKN) operating from a separate supply

(AV

CLK

) to achieve the optimum jitter performance.
Drive the differential clock inputs from a single-ended
or a differential clock source. For single-ended opera­tion, drive CLKP with a logic source and bypass CLKN
to GND with a 0.1µF capacitor.

CLKP and CLKN are internally biased to AV

CLK

/ 2. This
facilitates the AC-coupling of clock sources directly to
the device without external resistors to define the DC
level. The dynamic input resistance from CLKP and
CLKN to ground is > 5kΩ.

Data Timing Relationship

Figure 4 displays the timing relationship between digital
CMOS data, clock, and output signals. The MAX5874
features a 1.5ns hold, a -1.2ns setup, and a 1.1ns propa­gation delay time. A nine (eight)-clock-cycle latency
exists between CLKP/CLKN and OUTIP/OUTIN
(OUTQP/OUTQN) when operating in single-port (inter­leaved) mode. In dual-port (parallel) mode, the clock
latency is 5.5 clock cycles for both channels. Table 2
shows the DAC output codes.

Figure 1. MAX5874 High-Performance, 14-Bit, Dual Current-Steering DAC

TORB

DORI

DATA13–

DATA 0

SELIQ

AV

CLKP

CLKN

GND

XOR

CLK

DV

DD3.3

CMOS

RECEIVER

GND AV

LATCH

DV

DD1.8

LATCH

LATCH

CLK

INTERFACE

POWER-DOWN

BLOCK

PD GND

DD1.8

XOR/

DECODE

XOR/

DECODE

AV

DD3.3

LATCH

LATCH LATCH DAC

MAX5874

LATCH DAC

1.2V

REFERENCE

OUTIP

OUTIN

OUTQP

OUTQN

DACREF

REFIO

FSADJ

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 11

CMOS-Compatible Digital Inputs

Input Data Format Select (TORB,

DORI

)

The TORB input selects between two’s-complement or
binary digital input data. Set TORB to a CMOS-logic­high level to indicate a two’s-complement input format.
Set TORB to a CMOS-logic-low level to indicate a binary
input format.

The DORI input selects between a dual-port (parallel) or
single-port (interleaved) DAC. Set DORI high to configure
the MAX5874 as a dual-port DAC. Set DORI low to con­figure the MAX5874 as a single-port DAC. In dual-port
mode, connect SELIQ to ground.

CMOS DAC Inputs (A13/B13–A0/B0, XOR, SELIQ)

The MAX5874 latches input data on the rising edge of
the clock in a user-selectable two’s-complement or
binary format. A logic-high voltage on TORB selects
two’s-complement and a logic-low selects offset
binary format.

The MAX5874 includes a single-ended, CMOS-compati­ble XOR input. Input data (all bits) are compared with the

bit applied to XOR through exclusive-OR gates. Pulling
XOR high inverts the input data. Pulling XOR low leaves
the input data noninverted. By applying a previously
encoded pseudo-random bit stream to the data input and
applying decoding to XOR, the digital input data can be
decorrelated from the DAC output, allowing for the trou­bleshooting of possible spurious or harmonic distortion
degradation due to digital feedthrough on the printed
circuit board (PCB).

A13/B13–A0/B0, XOR, and SELIQ are latched on the ris­ing edge of the clock. In single-port mode (DORI pulled
low) a logic-high signal on SELIQ directs the B13–B0
data onto the I-DAC inputs. A logic-low signal at SELIQ
directs data to the Q-DAC inputs. In dual-port (parallel)
mode (DORI pulled high), data on pins A13–A0 are
directed onto the Q-DAC inputs and B13–B0 are directed
onto the I-DAC inputs.

Power-Down Operation (PD)

The MAX5874 also features an active-high power­down mode that reduces the DAC’s digital current
consumption from 22mA to less than 2µA and the ana­log current consumption from 77mA to less than 2µA.
Set PD high to power down the MAX5874. Set PD low
for normal operation.

When powered down, the power consumption of the
MAX5874 is reduced to less than 14µW. The MAX5874
requires 10ms to wake up from power-down and enter a
fully operational state. The PD integrated pulldown resistor
activates the MAX5874 if PD is left floating.

Figure 2. Reference Architecture, Internal Reference
Configuration

Figure 3. Simplified Analog Output Structure

Table 2. DAC Output Code Table

1.2V

REFERENCE

10kΩ

REFIO

1µF

OUTIP

I

REF

= V

I

REF

REFIO

FSADJ

R

SET

DACREF

/ R

SET

CURRENT-SOURCE

ARRAY DAC

OUTIN

AV

DD

CURRENT

SWITCHES

CURRENT
SOURCES

I

OUT

OUTIN OUTIP

I

OUT

DIGITAL INPUT CODE

OFFSET

BINARY

00 0000 0000 0000 10 0000 0000 0000 0 I

01 1111 1111 1111 00 0000 0000 0000 I

11 1111 1111 1111 01 1111 1111 1111 I

TWO’S

COMPLEMENT

OUT_P OUT_N

OUTFS

/ 2 I

OUTFS

OUTFS

OUTFS

0

/ 2

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

12 ______________________________________________________________________________________

Applications Information

CLK Interface

The MAX5874 features a flexible differential clock input
(CLKP, CLKN) with a separate supply (AV

CLK

) to
achieve optimum jitter performance. Use an ultra-low
jitter clock to achieve the required noise density. Clock
jitter must be less than 0.5ps

RMS

for meeting the speci­fied noise density. For that reason, the CLKP/CLKN
input source must be designed carefully. The differen­tial clock (CLKN and CLKP) input can be driven from a
single-ended or a differential clock source. Differential

clock drive is required to achieve the best dynamic
performance from the DAC. For single-ended opera­tion, drive CLKP with a low-noise source and bypass
CLKN to GND with a 0.1µF capacitor.

Figure 5 shows a convenient and quick way to apply a
differential signal created from a single-ended source
(e.g., HP/AGILENT 8644B signal generator) and a wide­band transformer. Alternatively, these inputs can be
driven from a CMOS-compatible clock source; however, it
is recommended to use sinewave or AC-coupled differ­ential ECL/PECL drive for best dynamic performance.

Figure 4. Timing Relationships Between Clock and Input Data for (a) Dual-Port (Parallel) Mode and (b) Single-Port (Interleaved) Mode

DATA13–DATA0, XOR

CLK

DAC OUTPUT

CLK

DATA

IN

SELIQ

I OUT

I - 6

N - 1 N N + 1 N + 2

t

H

N - 4

(a) DUAL-PORT (PARALLEL) TIMING DIAGRAM

I - 4 I - 2

N - 3

I - 3

N - 6

I0 Q2I2Q1I1 I3 Q3Q0

t

t

S

H

I - 5

t

S

N - 5

t

PD

N - 2

Q OUT

Q - 6

Q - 5

t

PD

(b) SINGLE-PORT (INTERLEAVED) TIMING DIAGRAM

Q - 4

Q - 3 Q - 2

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 13

Differential-to-Single-Ended Conversion

Using a Wideband RF Transformer

Use a pair of transformers (Figure 6) or a differential
amplifier configuration to convert the differential voltage
existing between OUTIP/OUTQP and OUTIN/OUTQN to
a single-ended voltage. Optimize the dynamic perfor­mance by using a differential transformer-coupled output
to limit the output power to < 0dBm full scale. Pay close
attention to the transformer core saturation characteris­tics when selecting a transformer for the MAX5874.
Transformer core saturation can introduce strong 2nd­order harmonic distortion, especially at low output fre­quencies and high signal amplitudes. For best results,
center tap the transformer to ground. When not using a
transformer, terminate each DAC output to ground with a
25Ω resistor. Additionally, place a 50Ω resistor between
the outputs (Figure 7).

For a single-ended unipolar output, select OUTIP
(OUTQP) as the output and ground OUTIN (OUTQN) to
GND. Driving the MAX5874 single-ended is not recom­mended since additional noise and distortion will
be added.

The distortion performance of the DAC depends on the
load impedance. The MAX5874 is optimized for 50Ω
differential double termination. It can be used with a
transformer output as shown in Figure 6 or just one 25Ω
resistor from each output to ground and one 50Ω resis­tor between the outputs (Figure 7). This produces a full­scale output power of up to -2dBm, depending on the
output current setting. Higher termination impedance
can be used at the cost of degraded distortion perfor­mance and increased output noise voltage.

Grounding, Bypassing, and Power-

Supply Considerations

Grounding and power-supply decoupling can strongly
influence the MAX5874 performance. Unwanted digital
crosstalk couples through the input, reference, power
supply, and ground connections, and affects dynamic
performance. High-speed, high-frequency applications
require closely followed proper grounding and power­supply decoupling. These techniques reduce EMI and
internal crosstalk that can significantly affect the
MAX5874 dynamic performance.

Use a multilayer PCB with separate ground and power­supply planes. Run high-speed signals on lines directly
above the ground plane. Keep digital signals as far
away from sensitive analog inputs and outputs, refer­ence input sense lines, and clock inputs as practical.
Use a controlled-impedance symmetric design of
clock input and the analog output lines to minimize
2nd-order harmonic distortion components, thus

Figure 5. Differential Clock-Signal Generation

Figure 6. Differential-to-Single-Ended Conversion Using a Wideband RF Transformer

WIDEBAND RF TRANSFORMER

PERFORMS SINGLE-ENDED-TO-

DIFFERENTIAL CONVERSION

SINGLE-ENDED

CLOCK SOURCE

1:1

GND

25Ω

25Ω

0.1µF

CLKP

TO DAC

0.1µF

CLKN

50Ω

DATA13–DATA0

MAX5874

14

GND

OUTIP/OUTQP

OUTIN/OUTQN

100Ω

T1, 1:1

50Ω

V

, SINGLE-ENDED

T2, 1:1

WIDEBAND RF TRANSFORMER T2 PERFORMS THE
DIFFERENTIAL-TO-SINGLE-ENDED CONVERSION

OUT

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

14 ______________________________________________________________________________________

optimizing the DAC’s dynamic performance. Keep digi­tal signal paths short and run lengths matched to avoid
propagation delay and data skew mismatches.

The MAX5874 requires five separate power-supply
inputs for analog (AV

DD1.8

and AV

DD3.3

), digital

(DV

DD1.8

and DV

DD3.3

), and clock (AV

CLK

) circuitry.

Decouple each AVDD, DVDD, and AV

CLK

input pin with
a separate 0.1µF capacitor as close to the device as
possible with the shortest possible connection to the
ground plane (Figure 8). Minimize the analog and digi­tal load capacitances for optimized operation.
Decouple all three power-supply voltages at the point
they enter the PCB with tantalum or electrolytic capaci­tors. Ferrite beads with additional decoupling capaci­tors forming a pi-network could also improve
performance.

The analog and digital power-supply inputs AV

DD3.3

,

AV

CLK

, and DV

DD3.3

allow a 3.135V to 3.465V supply
voltage range. The analog and digital power-supply
inputs AV

DD1.8

and DV

DD1.8

allow a 1.71V to 1.89V

supply voltage range.

The MAX5874 is packaged in a 68-pin QFN-EP pack­age, providing greater design flexibility and optimized
DAC AC performance. The EP enables the use of nec­essary grounding techniques to ensure highest perfor­mance operation. Thermal efficiency is not the key
factor, since the MAX5874 features low-power opera­tion. The exposed pad ensures a solid ground connec­tion between the DAC and the PCB’s ground layer.

The data converter die attaches to an EP lead frame
with the back of this frame exposed at the package
bottom surface, facing the PCB side of the package.
This allows for a solid attachment of the package to the
PCB with standard infrared (IR) reflow soldering tech­niques. A specially created land pattern on the PCB,
matching the size of the EP (6mm x 6mm), ensures the
proper attachment and grounding of the DAC. Refer to
the MAX5874 EV kit data sheet. Designing vias into the
land area and implementing large ground planes in the
PCB design allow for the highest performance opera­tion of the DAC. Use an array of at least 4 x 4 vias
(≤ 0.3mm diameter per via hole and 1.2mm pitch
between via holes) for this 68-pin QFN-EP package.
Connect the MAX5874 exposed paddle to GND. Vias
connect the land pattern to internal or external copper
planes. Use as many vias as possible to the ground
plane to minimize inductance.

Figure 7. Differential Output Configuration

Figure 8. Recommended Power-Supply Decoupling and
Bypassing Circuitry

25Ω

DATA13–DATA0

MAX5874

14

GND

OUTIP/OUTQP

50Ω

OUTIN/OUTQN

25Ω

OUTP

OUTN

BYPASSING—DAC LEVEL

AV

DATA13–DATA0

14

DV

*BYPASS EACH POWER-SUPPLY PIN INDIVIDUALLY.

DD1.8

0.1µF

0.1µF 0.1µF

DD1.8

AV

DD3.3

MAX5874

DV

DD3.3

0.1µF

AV

CLK

0.1µF

OUTIP/OUTQP

OUTIN/OUTQN

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,

Dual DAC with CMOS Inputs

______________________________________________________________________________________ 15

Static Performance Parameter Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from either a best straight-line fit
(closest approximation to the actual transfer curve) or a
line drawn between the end points of the transfer func­tion, once offset and gain errors have been nullified. For a
DAC, the deviations are measured at every individual
step.

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an actu­al step height and the ideal value of 1 LSB. A DNL error
specification of less than 1 LSB guarantees a monoton­ic transfer function.

Offset Error

The offset error is the difference between the ideal and
the actual offset current. For a DAC, the offset point is
the average value at the output for the two midscale
digital input codes with respect to the full scale of the
DAC. This error affects all codes by the same amount.

Gain Error

A gain error is the difference between the ideal and the
actual full-scale output voltage on the transfer curve,
after nullifying the offset error. This error alters the slope
of the transfer function and corresponds to the same
percentage error in each step.

Dynamic Performance Parameter Definitions

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital sam­ples, the theoretical maximum SNR is the ratio of the full­scale analog output (RMS value) to the RMS quantization
error (residual error). The ideal, theoretical minimum can
be derived from the DAC’s resolution (N bits):

SNR = 6.02 x N + 1.76

However, noise sources such as thermal noise, reference
noise, clock jitter, etc., affect the ideal reading; therefore,
SNR is computed by taking the ratio of the RMS signal to
the RMS noise, which includes all spectral components
minus the fundamental, the first four harmonics, and the
DC offset.

Noise Spectral Density

The DAC output noise floor is the sum of the quantiza­tion noise and the output amplifier noise (thermal and
shot noise). Noise spectral density is the noise power in
1Hz bandwidth, specified in dBFS/Hz.

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio of RMS amplitude of the carrier fre­quency (maximum signal components) to the RMS value
of their next-largest distortion component. SFDR is usual­ly measured in dBc and with respect to the carrier fre­quency amplitude or in dBFS with respect to the DAC’s
full-scale range. Depending on its test condition, SFDR is
observed within a predefined window or to Nyquist.

Two-Tone Intermodulation Distortion (IMD)

The two-tone IMD is the ratio expressed in dBc (or dBFS)
of the worst 3rd-order (or higher) IMD product(s) to either
output tone.

Adjacent Channel Leakage Power Ratio (ACLR)

Commonly used in combination with wideband code­division multiple-access (W-CDMA), ACLR reflects the
leakage power ratio in dB between the measured
power within a channel relative to its adjacent channel.
ACLR provides a quantifiable method of determining
out-of-band spectral energy and its influence on an
adjacent channel when a bandwidth-limited RF signal
passes through a nonlinear device.

Settling Time

The settling time is the amount of time required from the
start of a transition until the DAC output settles its new
output value to within the converter’s specified accuracy.

Glitch Impulse

A glitch is generated when a DAC switches between two
codes. The largest glitch is usually generated around the
midscale transition, when the input pattern transitions from

011...111 to 100...000. The glitch impulse is found by inte­grating the voltage of the glitch at the midscale transition
over time. The glitch impulse is usually specified in pV

•

s.

MAX5874

14-Bit, 200Msps, High-Dynamic-Performance,
Dual DAC with CMOS Inputs

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

16 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2007 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

Revision History

Pages changed at Rev 2: 1–16

68L QFN.EPS

PACKAGE OUTLINE, 68L QFN, 10x10x0.9 MM

21-0122

PACKAGE OUTLINE, 68L QFN, 10x10x0.9 MM

21-0122

C

C

1

2

1

2
