Maxim MAX503EAG, MAX503CWG, MAX503CNG, MAX503CAG, MAX503EWG Datasheet

_______________General Description

The MAX503 is a low-power, 10-bit, voltage-output digital­to-analog converter (DAC) that uses single 5V or dual ±5V
supplies. This device has an internal voltage reference plus
an output buffer amplifier. Operating current is only 250µA
from a single 5V supply, making it ideal for portable and
battery-powered applications. In addition, the shrink small­outline package (SSOP) measures only 0.1 square inches,
using less board area than an 8-pin DIP. 10-bit resolution is
achieved through laser trimming of the DAC, op amp, and
reference. No further adjustments are necessary.

Internal gain-setting resistors can be used to define a DAC
output voltage range of 0V to +2.048V, 0V to +4.096V, or
±2.048V. Four-quadrant multiplication is possible without
the use of external resistors or op amps. The parallel logic
inputs are double buffered and are compatible with 4-bit, 8­bit, and 16-bit microprocessors. For a hardware and soft­ware compatible 12-bit upgrade, refer to the MAX530 data
sheet. For DACs with similar features but with a serial data
interface, refer to the MAX504/MAX515 data sheet.

________________________Applications

Battery-Powered Data-Conversion Products
Minimum Component-Count Analog Systems
Digital Offset/Gain Adjustment
Industrial Process Control
Arbitrary Function Generators
Automatic Test Equipment
Microprocessor-Controlled Calibration

____________________________Features

♦ Buffered Voltage Output
♦ Internal 2.048V Voltage Reference
♦ Operates from Single 5V or Dual ±5V Supplies
♦ Low Power Consumption:

250µA Operating Current
40µA Shutdown-Mode Current

♦ SSOP Package Saves Space
♦ Relative Accuracy: ±

1

/

2

LSB Max Over

Temperature

♦ Guaranteed Monotonic Over Temperature
♦ 4-Quadrant Multiplication with No External

Components

♦ Power-On Reset
♦ Double-Buffered Parallel Logic Inputs

______________Ordering Information

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

________________________________________________________________

Maxim Integrated Products

1

24
23

22
21
20

19
18
17

1
2
3
4
5
6
7
8

D6/S0
V

DD

ROFS
RFB

D2

D9/D1

D8/D0

D7/S1

TOP VIEW

VOUT
V

SS

REFOUT
REFGND

A0

D5

D4

D3

16
15
14
13

9
10
11
12

LDAC
CLR
AGND
REFIN

DGND

CS

WR

A1

DIP/SO/SSOP

MAX503

__________________Pin Configuration

MAX503

REFOUT REFIN ROFS

2.048V

REFERENCE

POWER-ON

RESET

DAC

CONTROL

LOGIC

REFGND

AGND

CLR

A0
A1
CS

WR

LDAC

V

DD

DGND
V

SS

VOUT

RFB

17
14

DAC LATCH

NBL
INPUT
LATCH

D6/S0

D7/S1

D8/D0

D2

D9/D1

D4

D3

D5

NBM
INPUT
LATCH

NBH
INPUT
LATCH

24 1

234567

21

20

23
12
19

18 13 22

15

8

9
11
10

16

10-BIT DAC LATCH

________________Functional Diagram

Call toll free 1-800-998-8800 for free samples or literature.

PART TEMP. RANGE PIN-PACKAGE

MAX503CNG 0°C to +70°C 24 Narrow Plastic DIP
MAX503CWG 0°C to +70°C 24 Wide SO
MAX503CAG 0°C to +70°C 24 SSOP

19-0279; Rev 0; 8/94

Refer to the MAX530 for military temperature or die equivalents.

MAX503ENG -40°C to +85°C 24 Narrow Plastic DIP
MAX503EWG -40°C to +85°C 24 Wide SO
MAX503EAG -40°C to +85°C 24 SSOP

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

VDDto DGND and VDDto AGND................................-0.3V, +6V

V

SS

to DGND and VSSto AGND .................................-6V, +0.3V

V

DD

to VSS............................................................... -0.3V, +12V

AGND to DGND........................................................-0.3V, +0.3V

REFGND to AGND.........................................-0.3V, (V

DD

+ 0.3V)

Digital Input Voltage to DGND .................... -0.3V, (V

DD

+ 0.3V)

REFIN..................................................(V

SS

- 0.3V), (VDD+ 0.3V)

REFOUT..............................................(V

SS

- 0.3V), (VDD+ 0.3V)

REFOUT to REFGND.................................... -0.3V, (V

DD

+ 0.3V)

RFB ....................................................(V

SS

- 0.3V), (VDD+ 0.3V)

ROFS ..................................................(V

SS

- 0.3V), (VDD+ 0.3V)

VOUT to AGND (Note 1) .............................................. V

SS,VDD

Continuous Current, Any Input ........................................±20mA

Continuous Power Dissipation (T

A

= +70°C)

Narrow Plastic DIP (derate 13.33mW/°C above +70°C)...1067mW

Wide SO (derate 11.76mW/°C above +70°C)............... 941mW

SSOP (derate 8.00mW/°C above +70°C) ......................640mW

Operating Temperature Ranges

MAX503C_G .........................................................0°C to +70°C

MAX503E_G ......................................................-40°C to +85°C

Storage Temperature Range.............................-65°C to +165°C

Lead Temperature (soldering, 10sec) ........................... +300°C

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

PARAMETER SYMBOL MIN TYP MAX UNITS

Differential Nonlinearity DNL ±1 LSB
Unipolar Offset Error V

OS

0 0.25 3 LSB

Unipolar Offset
Temperature Coefficient

TCV

OS

3 ppm/°C

Unipolar Offset-Error
Supply Rejection

PSRR 0.1 LSB/V

Resolution

STATIC PERFORMANCE

N 10 Bits

Gain-Error Temperature Coefficient 1 ppm/°C
Gain-Error Power-Supply Rejection PSRR 0.1 LSB/V

DAC VOLTAGE OUTPUT (VOUT)

Output Voltage Range 0V

DD

- 0.4 V
Resistive Load 2 kΩ
DC Output Impedance 0.2 Ω
Short-Circuit Current I

SC

12 mA

REFERENCE INPUT (REFIN)

Reference Input Range 0V

DD

- 2 V
Reference Input Resistance 40 kΩ
Reference Input Capacitance 10 50 pF
AC Feedthrough -80 dB

CONDITIONS

Guaranteed monotonic

4.5V ≤ VDD≤ 5.5V

4.5V ≤ VDD≤ 5.5V

VOUT = 2V, load regulation ≤ ±0.5LSB

Code dependent, minimum at code 0101...
Code dependent (Note 3)
(Note 4)

Gain Error (Note 2) GE LSB±1

Note 1: The output may be shorted to VDD, VSS, DGND, or AGND if the continuous package power dissipation and current ratings

are not exceeded. Typical short-circuit currents are 20mA.

ELECTRICAL CHARACTERISTICS—Single +5V Supply

(VDD= 5V, VSS= 0V, AGND = DGND = REFGND = 0V, REFIN = 2.048V (external), RFB = ROFS = VOUT, C

REFOUT

= 33µF,

RL= 10kΩ, CL= 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted.)

DAC latch = all 1s,
VOUT < VDD- 0.4V (Note 2)

Relative Accuracy INL ±0.5 LSB(Note 2)

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS—Single +5V Supply (continued)

(VDD= 5V, VSS= 0V, AGND = DGND = REFGND = 0V, REFIN = 2.048V (external), RFB = ROFS = VOUT, C

REFOUT

= 33µF,

R

L

= 10kΩ, CL= 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted.)

PARAMETER

Temperature Coefficient

SYMBOL MIN TYP MAX UNITS

Reference Tolerance V

REFOUT

ppm/°C

2.011 2.085

DYNAMIC PERFORMANCE

V2.015 2.081

REFERENCE OUTPUT (REFOUT)

Voltage Output Slew Rate

Reference Output Resistance R

REFOUT

2 Ω

Power-Supply Rejection Ratio PSRR 200 µV/V

0.15 0.25 V/µs

Voltage Output Settling Time

Noise Voltage e

n

400

25

µVp-p

µs

30

Digital Feedthrough 5 nV-s

68

Signal-to-Noise Plus
Distortion Ratio

SINAD

68

dB

DIGITAL INPUTS (S0, S1, D0–D9, LDAC, CLR, CS, WR, A0, A1)

Logic High Input V

IH

2.4 V

Logic Low Input V

IL

0.8 V
Digital Leakage Current ±1 µA
Digital Input Capacitance 8 pF

POWER SUPPLIES

CONDITIONS

(Note 5)

4.5V ≤ VDD≤ 5.5V

TA= +25°C
To ±0.5LSB, VOUT = 2V
WR = VDD, digital inputs all 1s to all 0s
Unity gain (Note 4)
Gain = 2 (Note 4)

VIN= 0V or V

DD

2.024 2.048 2.072TA= +25°C

0.1Hz to 10kHz

Positive Supply-Voltage Range V

DD

4.5 5.5 V

Positive Supply Current I

DD

Outputs unloaded, all digital inputs = 0V or V

DD

250 400 µA

SWITCHING CHARACTERISTICS

Address to WR Setup t

AWS

5 ns

Address to WR Hold t

AWH

5 ns

CS to WR Setup t

CWS

0 ns

CS to WR Hold t

CWH

0 ns

Data to WR Setup

t

DS

45 ns

Data to WR Hold

t

DH

0 ns

WR Pulse Width t

WR

45 ns

LDAC Pulse Width t

LDAC

45 ns

CLR Pulse Width t

CLR

45 ns

Internal Power-On Reset
Pulse Width

t

POR

(Note 3) 1.3 10 µs

Required External Capacitor C

REFOUT

3.3 µF

MAX503E

MAX503C

ELECTRICAL CHARACTERISTICS—Dual ±5V Supplies

(VDD= 5V, VSS= -5V, AGND = DGND = REFGND = 0V, REFIN = 2.048V (external), RFB = ROFS = VOUT, C

REFOUT

= 33µF,

R

L

= 10kΩ, CL= 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted.)

Note 2: In single supply, INL and GE are calculated from code 3 to code 1023 (code excludes S0 and S1).
Note 3: Guaranteed by design.
Note 4: REFIN = 1kHz, 2.0Vp-p.
Note 5: Tested at I

OUT

= 100µA. The reference can typically source up to 5mA (see

Typical Operating Characteristics

).

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

4 _______________________________________________________________________________________

SWITCHING CHARACTERISTICS—Specifications are identical to those under Single +5V Supply

POWER SUPPLIES

Positive Supply Voltage V

DD

4.5 5.5 V

Negative Supply Voltage V

SS

-5.5 0 V

Positive Supply Current I

DD

Outputs unloaded, all digital inputs = 0V or V

DD

250 400 µA

Negative Supply Current I

SS

Outputs unloaded, all digital inputs = 0V or V

DD

150 200 µA

PARAMETER

DAC VOLTAGE OUTPUT (VOUT)

SYMBOL MIN TYP MAX

DYNAMIC PERFORMANCE—Specifications are identical to those under Single +5V Supply
DIGITAL INPUTS (S0, S1, D0–D9, LDAC, CLR, CS, WR, A0, A1)—Specifications are identical to those under Single +5V Supply

UNITS

Bipolar Offset Error V

OS

±3

Output Voltage Range

LSB

Differential Nonlinearity

VSS+ 0.4 VDD- 0.4

DNL ±1 LSB

V

Resolution N

Bipolar Offset-Error
Power-Supply Rejection

Resistive Load

Bipolar Offset
Temperature Coefficient

TCV

OS

3 ppm/°C

2 kΩ

DC Output Impedance

Gain-Error Temperature Coefficient TC 1

0.2

ppm/°C

Gain-Error Power-Supply Rejection

Ω

PSRR 0.1 LSB/V

Short-Circuit Current I

SC

20 mA

REFERENCE INPUT (REFIN)

10

REFERENCE OUTPUT (REFOUT)—Specifications are identical to those under Single +5V Supply

Reference Input Range

STATIC PERFORMANCE

VSS+ 2 V

DD

- 2 V
Reference Input Resistance 40 kΩ
Reference Input Capacitance

Bits

PSRR

10 50 pF

AC Feedthrough -80 dB

0.1 LSB/V

CONDITIONS

Guaranteed monotonic

4.5V ≤ VDD≤ 5.5V, -5.5V ≤ V

SS

≤ -4.5V

VOUT = 2V, load regulation ≤ ±0.5LSB

4.5V ≤ VDD≤ 5.5V, -5.5V ≤ VSS≤ -4.5V

Code dependent, minimum at code 0101...
Code dependent (Note 3)
(Note 4)

Gain Error ±1 LSB

Relative Accuracy INL +0.5 LSB

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

_______________________________________________________________________________________

5

12

0

0 0.8

OUTPUT SINK CAPABILITY vs.

OUTPUT PULL-DOWN VOLTAGE

2

10

MAX503-1

OUTPUT PULL-DOWN VOLTAGE (V)

OUTPUT SINK CAPABILITY (mA)

0.6

6
4

0.2 0.4

8

1.0

14

16

6

0

04

OUTPUT SOURCE CAPABILITY vs.

OUTPUT PULL-UP VOLTAGE

1

5

MAX503-2

OUTPUT PULL-UP VOLTAGE (V)

OUTPUT SOURCE CAPABILITY (mA)

3

3
2

12

4

5

7

8

300

230

-60 -20 60 140

SUPPLY CURRENT vs. TEMPERATURE

250

280

TEMPERATURE (°C)

SUPPLY CURRENT (µA)

20 100

260

290

270

240

-40 0 40 80 120

MAX503-5

4

-14
1 100 100k

GAIN vs. FREQUENCY

-12

MAX503-6

FREQUENCY (Hz)



GAIN (dB)

-8

-4

0

2

-2

-6

-10

1k 10k

REFIN = 4Vp-p

DUAL SUPPLIES (±5V)

__________________________________________Typical Operating Characteristics

(Single +5V supply, unity gain, code = all 1s, TA = +25°C, unless otherwise noted.)

-110

0

1 10 1k 100k

ANALOG FEEDTHROUGH vs.

FREQUENCY

-30

-70

MAX503-3

FREQUENCY (Hz)

ANALOG FEEDTHROUGH (dB)

100 10k 1M

-100

-90

-80

-60

-50

-40

-20

-10

REFIN = 2V

p-p

CODE = ALL 0s,
DUAL SUPPLIES (±5V)

2.055

2.045

-60 120

REFERENCE VOLTAGE vs.

TEMPERATURE

MAX503-4

TEMPERATURE (°C)

REFERENCE VOLTAGE (V)

60

2.050

-20 20 80

100400-40

140

80

0

10 1k 100k

AMPLIFIER SIGNAL-TO-NOISE RATIO

10

MAX503-7

FREQUENCY (Hz)



SIGNAL-TO-NOISE RATIO (dB)

20

40

60

30

50

70

10k100

REFIN = 4Vp-p

DUAL SUPPLIES (±5V)

200

-300
1

GAIN AND PHASE vs.

FREQUENCY

-100

100

FREQUENCY (kHz)

GAIN (dB)

10 100

0

-200

800

-180

0

180

GAIN

PHASE

(G = 2)
(G = 1)

PHASE SHIFT (Degrees)

MAX503-8

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

6 _______________________________________________________________________________________

____________________________Typical Operating Characteristics (continued)

(Single +5V supply, unity gain, code = all 1s, TA = +25°C, unless otherwise noted.)

DIGITAL FEEDTHROUGH

A

B

A: S0, S1, D0–D9 = 100kHz, 4Vp-p
B: VOUT, 10mV/div
LDAC = CS = HIGH 

2µs/div

A: DIGITAL INPUTS RISING EDGE,
B: VOUT

,

NO LOAD, 1V/div
DUAL SUPPLY (±5V)
LDAC = LOW
BIPOLAR CONFIGURATION
V

REFIN

= 2V

A

B

SETTLING TIME (RISING)

5µs/div


2.0480

2.0450
0 5.0

REFERENCE OUTPUT VOLTAGE

vs. REFERENCE LOAD CURRENT

2.0455

2.0475

MAX503-10

REFERENCE LOAD CURRENT (mA)

REFERENCE OUTPUT (V)

3.0

2.0465

2.0460

1.0 2.0 4.0

2.0470

0.5 1.5 2.5 3.5 4.5

A: DIGITAL INPUTS FALLING EDGE, 5V/div
B: VOUT, NO LOAD, 1V/div
DUAL SUPPLY (±5V)
LDAC = LOW
BIPOLAR CONFIGURATION
V

REFIN

= 2V

A

SETTLING TIME (FALLING)

B

5µs/div

0

0 500

SUPPLY CURRENT vs. REFIN

50

250

REFIN (mV)

SUPPLY CURRENT (µA)

300

150

100

100 200 400

200

50 150 250 350 450

EXTERNAL REFERENCE

REFGND = AGND

REFGND = V

DD

MAX503-9

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

_______________________________________________________________________________________ 7

PIN FUNCTION

1 D7 input when A0 = A1 = 1, or S1 input when A0 = 0 and A1 = 1. Always set S1 to 0.*
2 D8 input when A0 = A1 = 1, or D0 input when A0 = 0 and A1 = 1.*
3 D9 input when A0 = A1 = 1, or D1 input when A0 = 0 and A1 = 1.*
4 D2 Input Data, or tie to S0 and multiplex when A0 = 1 and A1 = 0.*

______________________________________________________________Pin Description

NAME

D7/S1
D8/D0
D9/D1

D2
5 D3 D3 Input Data, or tie to S1 and multiplex when A0 = 1 and A1 = 0.*
6 D4 D4 Input Data, or tie to D0 and multiplex when A0 = 1 and A1 = 0.*
7 D5 D5 Input Data, or tie to D1 and multiplex when A0 = 1 and A1 = 0.*

8 A0

Address Line A0. With A1, used to multiplex 4 of 12 data lines to load low (NBL), middle (NBM),
and high (NBH) 4-bit nibbles. (12 bits can also be loaded as 8+4.)

9 A1

Address Line A1. Set A0 = A1 = 0 for NBL and NBM, A0 = 0 and A1 = 1 for NBL, A0 = 1 and A1 =

0 for NBM, or A0 = A1 = 1 for NBH. See Table 2 for complete input latch addressing.
10 WR Write Input (active low). Used with CS to load data into the input latch selected by A0 and A1.
11 CS Chip Select (active low). Enables addressing and writing to this chip from common bus lines.
12 DGND Digital Ground

13 REFIN

Reference Input. Input for the R-2R DAC. Connect an external reference to this pin or a jumper to

REFOUT (pin 18) to use the internal 2.048V reference.
14 AGND Analog Ground
15 CLR Clear (active low). A low on CLR resets the DAC latches to all 0s.

16 LDAC

Load DAC Input (active low). Driving this asynchronous input low transfers the contents of the input

latch to the DAC latch and updates VOUT.

17 REFGND

Reference Ground must be connected to AGND when using the internal reference. Connect to V

DD

to disable the internal reference and save power.
18 REFOUT Reference Output. Output of the internal 2.048V reference. Tie to REFIN to drive the R-2R DAC.
19 V

SS

Negative Power Supply. Usually ground for single-supply or -5V for dual-supply operation.
20 VOUT Voltage Output. Op-amp buffered DAC output.
21 RFB Feedback Pin. Op-amp feedback resistor. Always connect to VOUT.
22 ROFS Offset Resistor Pin. Connect to VOUT for G = 1, to AGND for G = 2, or to REFIN for bipolar output.
23 V

DD

Positive Power Supply (+5V)
24 D6/S0 D6 input when A0 = A1 = 1, or S0 input when A0 = 0 and A1 = 1. Always set S0 to 0.*

* This applies to 4 + 4 + 4 input loading mode. See Table 2 for 8 + 4 input loading mode.

MAX503

________________Detailed Description

The MAX503 consists of a parallel-input logic interface, a
10-bit R-2R ladder, a reference, and an op amp. The

Functional Diagram

shows the control lines and signal
flow through the input data latch to the DAC latch, as well
as the 2.048V reference and output op amp. Total supply
current is typically 250µA with a single +5V supply. This
circuit is ideal for battery-powered, microprocessor-con­trolled applications where high accuracy, no adjustments,
and minimum component count are key requirements.

R-2R Ladder

The MAX503 uses an “inverted” R-2R ladder network with
a BiCMOS op amp to convert 10-bit digital data to analog
voltage levels. Figure 1 shows a simplified diagram of the
R-2R DAC and op amp. Unlike a standard DAC, the
MAX503 uses an “inverted” ladder network. Normally, the
REFIN pin is the current output of a standard DAC and
would be connected to the summing junction, or virtual
ground, of an op amp. In this standard DAC configura­tion, however, the output voltage would be the inverse of

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

8 _______________________________________________________________________________________

2R2R 2R 2R 2R

RRR

MSB

OUTPUT
BUFFER

VOUT

RFB

ROFS

MAX503



2R
2R

REFIN
AGND

DAC LATCH

R = 80kΩ

LSB

NBL
INPUT
LATCH

NBH

INPUT

LATCH

NBM
INPUT
LATCH

D6/S0

D7/S1

D8/D0

D2

D9/D1

D4

D3

D5

2.048V

REFOUT

REFGND

*SHOWN FOR ALL 1s

*

LSB

MSB

CLR

Figure 1. Simplified MAX503 DAC Circuit

the reference voltage. The MAX503’s topology makes the
ladder output voltage the same polarity as the reference
input, making the device suitable for single-supply oper­ation. The BiCMOS op amp is then used to buffer, invert,
or amplify the ladder signal.

Ladder resistors are nominally 80kΩ to conserve power
and are laser trimmed for gain and linearity. The input
impedance at REFIN is code dependent. When the DAC
register is all 0s, all rungs of the ladder are grounded
and REFIN is open or no load. Maximum loading (mini-

mum REFIN impedance) occurs at code 010101....

Minimum reference input impedance at this code is guar­anteed to be not less than 40kΩ .

The REFIN and REFOUT pins allow the user to choose
between driving the R-2R ladder with the on-chip refer­ence or an external reference. REFIN may be below ana­log ground when using dual supplies. See the

External

Reference

and

Four-Quadrant Multiplication

sections for

more information.

Internal Reference

The on-chip reference is laser trimmed to generate

2.048V at REFOUT. The output stage can source and
sink current so REFOUT can settle to the correct volt­age quickly in response to code-dependent loading
changes. Typically, source current is 5mA and sink
current is 100µA.

REFOUT connects the internal reference to the R-2R
DAC ladder at REFIN. The R-2R ladder draws 50µA
maximum load current. If any other connection is made
to REFOUT, ensure that the total load current is less
than 100µA to avoid gain errors.

A separate REFGND pin is provided to isolate refer­ence currents from other analog and digital ground
currents. To achieve specified noise performance, con­nect a 33µF capacitor from REFOUT to REFGND (see
Figure 2). Using smaller capacitance values increases
noise, and values less than 3.3µF may compromise the
reference’s stability. For applications requiring the low­est noise, insert a buffered RC filter between REFOUT
and REFIN. When using the internal reference,
REFGND must be connected to AGND. In applications
not requiring the internal reference, connect REFGND
to V

DD

, which shuts down the reference. This saves

typically 100µA of V

DD

supply current and eliminates

the need for C

REFOUT

.

Output Buffer

The output amplifier uses a folded cascode input stage
and a type AB output stage. Large output devices with
low series resistance allow the output to swing to
ground in single-supply operation. The output buffer is
unity-gain stable. Input offset voltage and supply cur­rent are laser trimmed. Settling time is 25µs to 0.01% of
final value. The output is short-circuit protected and
can drive a 2kΩ load with more than 100pF of load
capacitance. The op amp may be placed in unity-gain
(G = 1), in a gain of two (G = 2), or in a bipolar-output
mode by using the ROFS and RFB pins. These pins are
used to define a DAC output voltage range of 0V to
+2.048V, 0V to +4.096V or ±2.048V, by connecting
ROFS to VOUT, GND, or REFIN. RFB is always con­nected to VOUT. Table 1 summarizes ROFS usage.

External Reference

An external reference in the range (VSS+ 2V) to
(VDD- 2V) may be used with the MAX503 in dual-sup­ply, unity-gain operation. In single-supply, unity-gain
operation, the reference must be positive and may not
exceed (VDD- 2V). The reference voltage determines
the DAC’s full-scale output.

If an upgrade to the internal reference is required, the

2.5V MAX873A is ideal: ±15mV initial accuracy,
7ppm/°C (max) temperature coefficient.

Power-On Reset

An internal power-on reset (POR) circuit forces the
DAC register to reset to all 0s when VDDis first applied.
The POR pulse is typically 1.3µs; however, it may take
2ms for the internal reference to charge its large filter
capacitor and settle to its trimmed value.

In addition to POR, a clear (CLR) pin, when held low,
sets the DAC register to all 0s. CLR operates asynchro­nously and independently from chip select (CS). With
the DAC input at all 0s, the op-amp output is at zero for
unity-gain and G = 2 configurations, but it is at -V

REF

for the bipolar configuration.

Shutdown Mode

The MAX503 is designed for low power consumption.
Understanding the circuit allows power consumption
management for maximum efficiency. In single-supply
mode (VDD= +5V, VSS= GND) the initial supply cur­rent is typically only 160µA, including the reference, op
amp, and DAC. This low current occurs when the
power-on reset circuit clears the DAC to all 0s and
forces the op-amp output to zero (unipolar mode only).
See the Supply Current vs. REFIN graph in the

Typical

Operating Characteristics

. Under this condition, there
is no internal load on the reference (DAC = all 0s,
REFIN is open circuit) and the op amp operates at its
minimum quiescent current. The CLR signal resets the
MAX503 to these same conditions and can be used to
control a power-saving mode when the DAC is not
being used by the system.

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

_______________________________________________________________________________________ 9

ROFS

CONNECTED TO:

DAC OUTPUT

RANGE

OP-AMP

GAIN

VOUT 0V to 2.048V G = 1
AGND 0V to 4.096V G = 2
REFIN -2.048V to +2.048V Bipolar

Note: Assumes RFB = VOUT and REFIN = REFOUT = 2.048V

Table 1. ROFS Usage

Figure 2. Reference Noise vs. Frequency

300

50

1 10 100

100

MAX503-FIG02

FREQUENCY (kHz)

REFERENCE NOISE (µV

RMS

)

150

200

250

0

0.1

1000

TOTAL
REFERENCE
NOISE

R

S

REFOUT

C

REFOUT

C

S

TEK 7A22

C

REFOUT

= 3.3µF

C

REFOUT

= 47µF

SINGLE POLE ROLLOFF

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

REFERENCE NOISE (mVp-p)

An additional 110µA of supply current can be saved
when the internal reference is not used by connecting
REFGND to VDD. A low on-resistance N-channel FET,
such as the 2N7002, can be used to turn off the internal
reference to create a shutdown mode with minimum
current drain (Figure 3). When CLR is high, the transis­tor pulls REFGND to AGND and the reference and DAC
operate normally. When CLR goes low, REFGND is
pulled up to VDDand the reference is shut down. At the
same time, CLR resets the DAC register to all 0s, and
the op-amp output goes to 0V for unity-gain and
G = 2 modes. This reduces the total single-supply
operating current from 250µA (400µA max) to typically
40µA in shutdown mode.

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

10 ______________________________________________________________________________________

MAX503

MAX503



10-BIT DAC LATCH

NBL

INPUT

LATCH

NBH

INPUT

LATCH

NBM

INPUT

LATCH

D6/S0

D7/S1

D8/D0

D2

D9/D1

D4

D3

D5

POWER-ON

RESET

CONTROL

LOGIC

DAC

A0
A1
CS

WR

LDAC

CLR

33µF

2.048V

REFERENCE

REFOUT REFIN ROFS

RFB

V

OUT

+5V

V

SS

DGND

2N7002

REFGND

AGND

V

DD

CLR

Figure 3. Low-Current Shutdown Mode

CLR CS WR LDAC

A0 A1 DATA UPDATED

L X X X X X Reset DAC latches
H H X H X X No operation
H X H H X X No operation
H L L H H H NBH (D6–D9)
H L L H H L NBM (D2–D5)

H L L H L H

NBL (S0 = 0, S1 = 0,
D0, D1)

H H H L X X Update DAC only

H L L X L L

NBL and NBM (S0, S1,
D0–D5), DAC not
updated

H L L L H H NBH and update DAC

Table 2. Input Latch Addressing

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

______________________________________________________________________________________ 11

V

IH

V

IL

DATA BITS

(8-BIT BYTE

OR 4-BIT NIBBLE)

A0–A1

V

IL

V

IH

ADDRESS BUS VALID

t

AWH

t

CWS

t

WR

t

CWH

t

AWS

t

DS

t

DH

DATA BUS

VALID

NOTE: TIMING MEASUREMENT REFERENCE LEVEL IS

V

IH + VIL

2

t

CLR

CS

WR

CLR

LDAC

t

LDAC

Figure 4. MAX503 Write-Cycle Timing Diagram

A small error voltage is added to the reference output
by the reference current flowing through the N-channel
pull-down transistor. The switch’s on resistance should
be less than 5Ω. A typical reference current of 100µA
would add 0.5mV to REFOUT. Since the reference cur­rent and on resistance increase with temperature, the
overall temperature coefficient will degrade slightly.

As data is loaded into the DAC and the output moves
above GND, the op-amp quiescent current increases to
its nominal value and the total operating current aver­ages 250µA. Using dual supplies (±5V), the op amp is
fully biased continuously, and the VDDsupply current is
more constant at 250µA. The V

SS

current is typically

150µA.
The MAX503 logic inputs are compatible with TTL and

CMOS logic levels. However, to achieve the lowest
power dissipation, drive the digital inputs with rail-to-rail
CMOS logic. With TTL logic levels, the power require­ment increases by a factor of approximately 2.

Parallel Logic Interface

In order to provide hardware and software compatibility
with the 12-bit MAX530, the MAX503 employs a 12-bit
digital interface. As shown in Figure 3, there is actually
a 12-bit input latch, and therefore 12 bits of data should
be written. The two least significant bits (S1 and S0) are
sub-LSB, and must always be 0s. Designed to interface
with 4-bit, 8-bit, and 16-bit microprocessors (µPs), the
MAX503 uses 8 data pins and double-buffered logic
inputs to load data as 4 + 4 + 4 or 8 + 4. The 12-bit
DAC latch is updated simultaneously through the con­trol signal LDAC. Signals A0, A1, WR, and CS select
which input latches to update. The 12-bit data is bro­ken down into nibbles (NB); NBL is the enable signal
for the lowest 4 bits (S0, S1, D0, D1), NBM is the
enable for the middle 4 bits, and NBH is the enable for
the highest and most significant 4 bits. Table 2 lists the
address decoding scheme.

Refer to Figure 4 for the MAX503 write-cycle timing
diagram.

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

12 ______________________________________________________________________________________

A0 = 1, A1 = 1

NBH

NBM

NBL

CS

WR

LDAC

A0 = 1, A1 = 0

A0 = 0, A1 = 1

DAC UPDATE

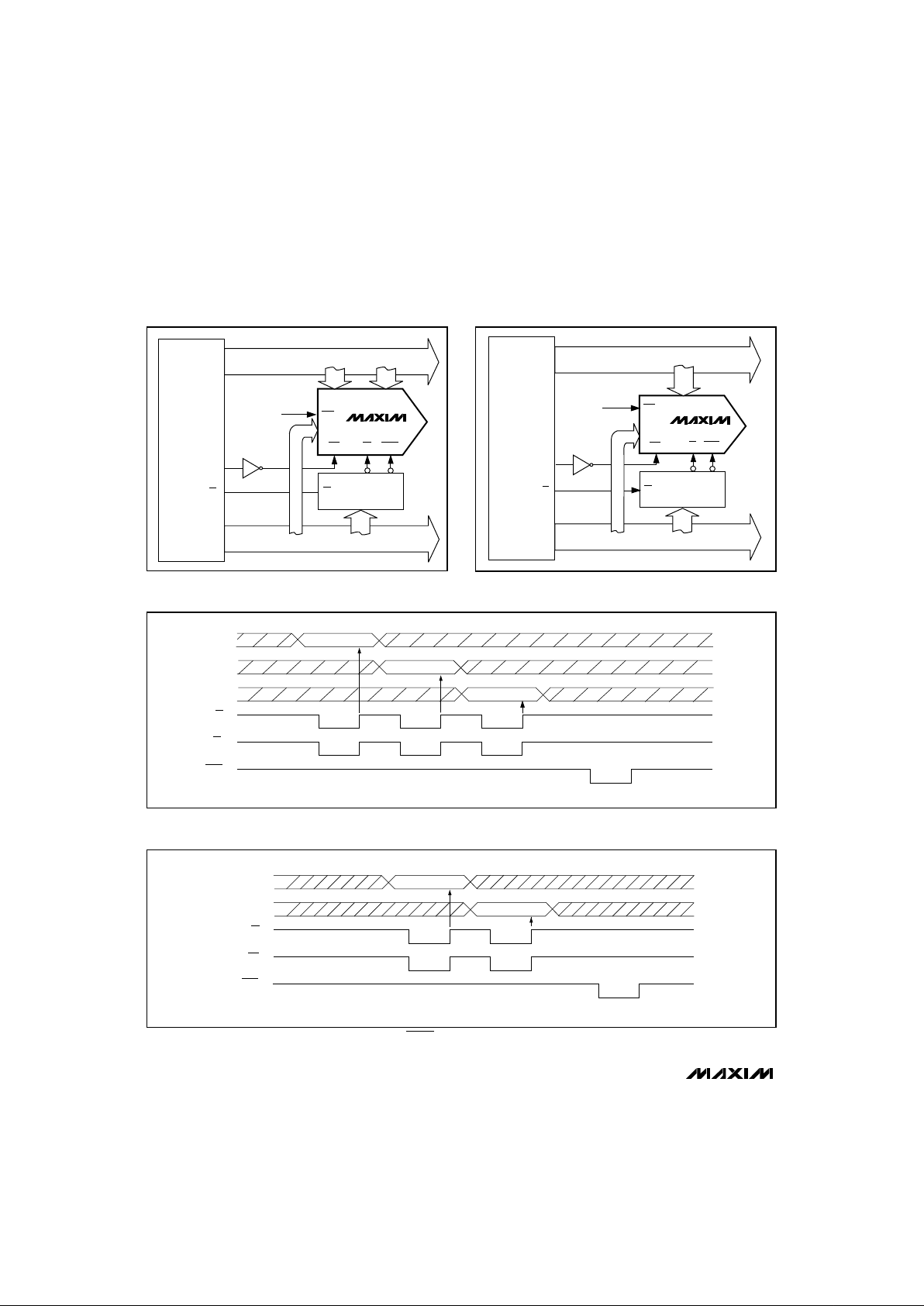

Figure 6. 4-Bit µP Timing Sequence

A0 = A1 = 1

A0 = A1 = 0

DAC UPDATE

NBH

NBL & NBM

CS

WR

LDAC

Figure 8a. 8-Bit and 16-Bit µP Timing Sequence Using LDAC

Figure 5. 4-Bit µP Interface

DATA BUS

D0–D3

D0–D3

S0, S1, D0, D1

D2–D5

MC6800

FROM

SYSTEM

RESET



∅2

R/W

CLR

WR CS

LDAC

EN

DECODER

A0–A15

A13–A15

ADDRESS BUS A0, A1

A0, A1

D0–D3

MAX503

Figure 7. 8-Bit and 16-Bit µP Interface

D0–D7

DATA BUS

D0–D7

S0, S1, D0–D5

MC6809

FROM

SYSTEM

RESET

CLR

A0–A1

WR

CS LDAC

E

R/W

A0–A15

A13–A15

A0

ADDRESS BUS

EN

DECODER

MAX503

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

______________________________________________________________________________________ 13

A0 = A1 = 0

A0 = A1 = 1

DAC UPDATE

NBH

NBL & NBM

CS

WR

LDAC = 0 (DAC LATCH IS TRANSPARENT)

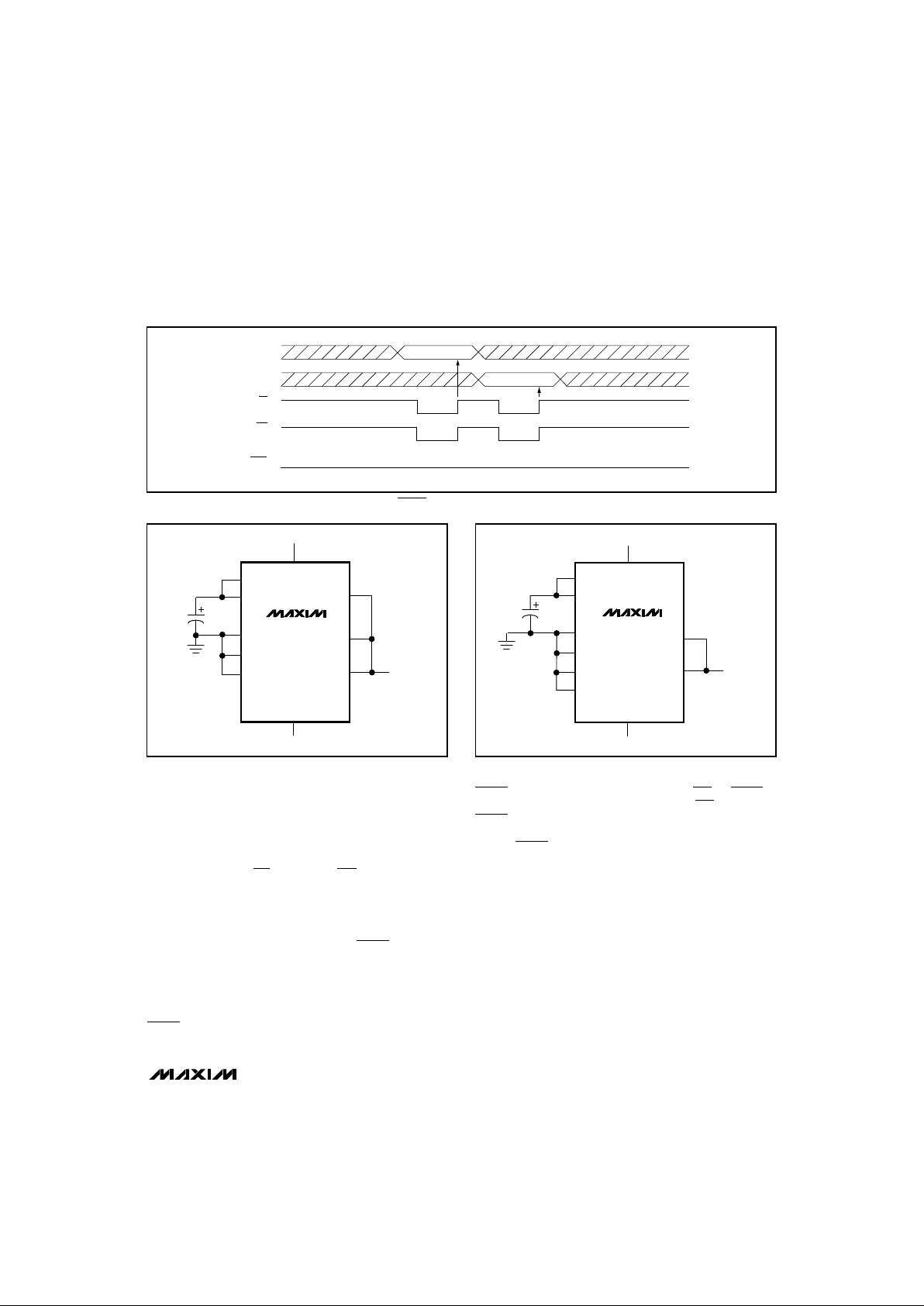

Figure 8b. 8-Bit and 16-Bit µP Timing Sequence with LDAC = 0

Figure 5 shows the circuit configuration for a 4-bit µP
application. Figure 6 shows the corresponding timing
sequence. The 4 low bits (S0, S1, D0, D1) are connect­ed in parallel to the other 4 bits (D2–D5) and then to the
µP bus. Address lines A0 and A1 enable the input data
latches for the high, middle, or low data nibbles. The µP
sends chip select (CS) and write (WR) signals to latch
in each of three nibbles in three cycles when the data is
valid.

Figure 7 shows a typical interface to an 8-bit or a 16-bit
µP. Connect 8 data bits from the data bus to pins S0,
S1, and D0–D5 on the MAX503. With LDAC held high,
the user can load NBH or NBL + NBM in any order.
Figure 8a shows the corresponding timing sequence.
For fastest throughput, use Figure 8b’s sequence.
Address lines A0 and A1 are tied together and the DAC
is loaded in 2 cycles as 8 + 4. In this scheme, with
LDAC held low, the DAC latch is transparent. Always
load NBL and NBM first, followed by NBH.

LDAC is asynchronous with respect to WR. If LDAC is
brought low before or at the same time WR goes high,
LDAC must remain low for at least 50ns to ensure the
correct data is latched. Data is latched into DAC regis­ters on LDAC’s rising edge.

Unipolar Configuration

The MAX503 is configured for a 0V to V

REFIN

unipolar
output range by connecting ROFS and RFB to VOUT
(Figure 9). The converter operates from either single or
dual supplies in this configuration. See Table 3 for the
DAC-latch contents (input) vs. the analog VOUT (output).
In this range, 1LSB = V

REFIN

(2

-10

).

A 0V to 2V

REFIN

unipolar output range is set up by con­necting ROFS to AGND and RFB to VOUT (Figure 10).
Table 4 shows the DAC-latch contents vs. VOUT. The
MAX503 operates from either single or dual supplies in
this mode. In this range, 1LSB = (2)(V

REFIN

)(2

-10

) =

(V

REFIN

)(2-9).

33µF

REFIN
REFOUT

AGND
DGND
REFGND

V

DD

V

SS

ROFS

RFB

VOUT

V

OUT

0V TO -5V

+5V

G = 1

MAX503

33µF

REFIN
REFOUT

AGND
DGND
REFGND

V

DD

V

SS

ROFS

RFB

VOUT

V

OUT

0V TO -5V

+5V

G = 2

MAX503

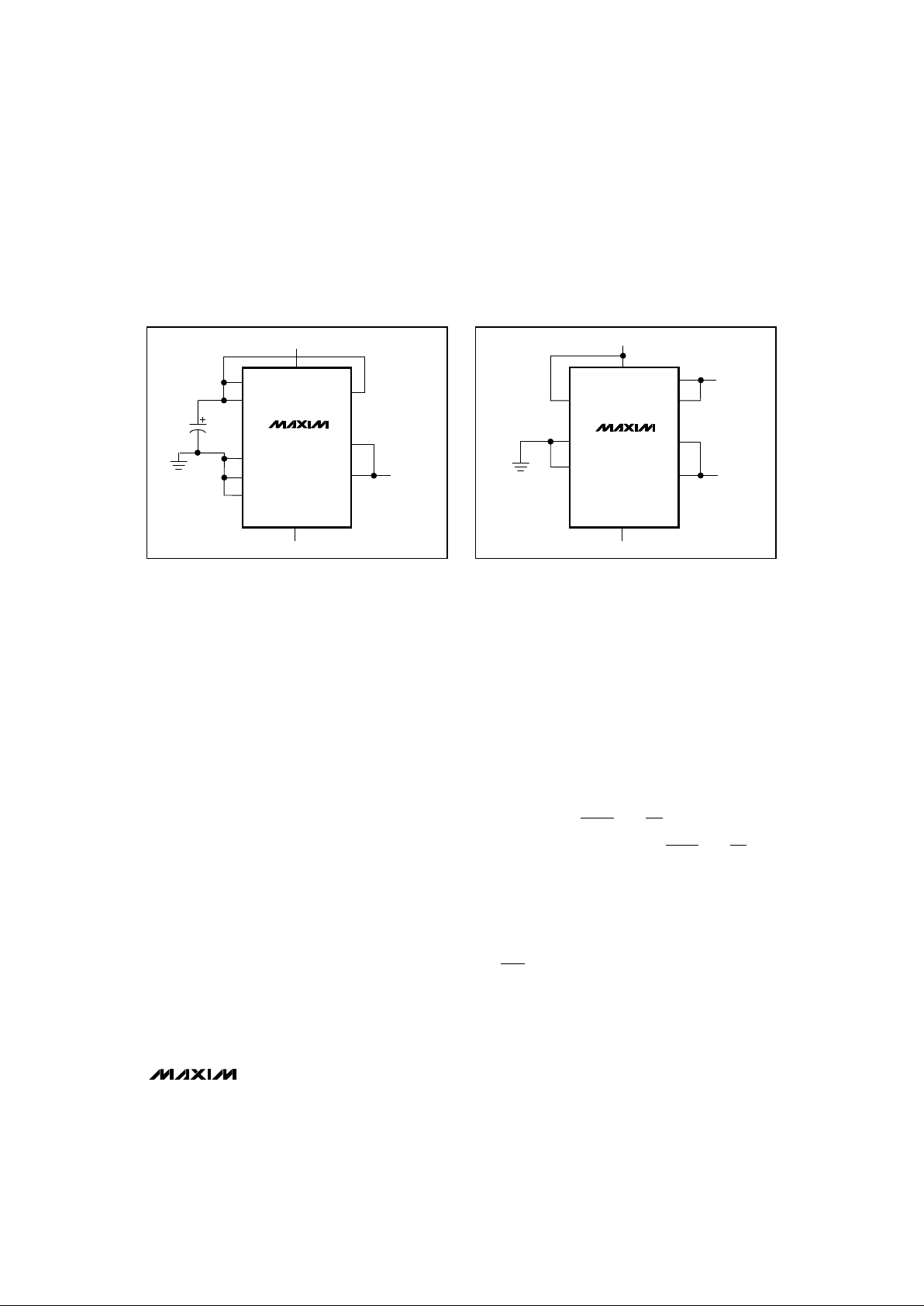

Figure 9. Unipolar Configuration (0V to +2.048V Output) Figure 10. Unipolar Configuration (0V to +4.096V Output)

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

14 ______________________________________________________________________________________

INPUT*

OUTPUT

1111 1111

11(00)

1000 0000

01(00)

1000 0000

00(00)

0111 1111

11(00)

0000 0000

01(00)

0000 0000

00(00)

(V

REFIN

)

1023
1024

(V

REFIN

)

513

1024

(V

REFIN

)

512

1024

(V

REFIN

)

511

1024

(V

REFIN

)

1

1024

OV



= +V

REFIN

/2

Table 3. Unipolar Binary Code Table
(0V to V

REFIN

Output), Gain = 1

INPUT*

OUTPUT

1111 1111

11(00)

1000 0000

01(00)

1000 0000

00(00)

0111 1111

11(00)

0000 0000

01(00)

0000 0000

00(00)

+2 (V

REFIN

)

1023
1024

+2 (V

REFIN

)

513

1024

+2 (V

REFIN

)

512

1024

+2 (V

REFIN

)

511

1024

+2 (V

REFIN

)

1

1024

OV

= +V

REFIN

Table 4. Unipolar Binary Code Table
(0V to 2V

REFIN

Output), Gain = 2

INPUT*

OUTPUT

1111 1111

11(00)

1000 0000

01(00)

1000 0000

00(00)

0111 1111

11(00)

0000 0000

01(00)

0000 0000

00(00)

(+V

REFIN

)

511
512

(+V

REFIN

)

1

512

(-V

REFIN

)

1

512

(-V

REFIN

)

511
512



0V

(-V

REFIN

)

512
512

= -V

REFIN

Table 5. Bipolar (Offset Binary) Code
Table (-V

REFIN

to +V

REFIN

Output)

Bipolar Configuration

A -V

REFIN

to +V

REFIN

bipolar range is set up by con­necting ROFS to REFIN and RFB to VOUT, and operat­ing from dual (±5V) supplies (Figure 11). Table 5
shows the DAC-latch contents (input) vs. VOUT (out­put). In this range, 1LSB = V

REFIN

(2 -9).

Four-Quadrant Multiplication

The MAX503 can be used as a four-quadrant multiplier
by connecting ROFS to REFIN and RFB to VOUT, and
using (1) an offset binary digital code, (2) bipolar
power supplies, and (3) a bipolar analog input at
REFIN within the range VSS+ 2V to VDD- 2V, as shown
in Figure 12.

In general, a 10-bit DAC’s output is D(V

REFIN

)(G),
where “G” is the gain (1 or 2) and “D” is the binary rep­resentation of the digital input divided by 210or 1,024.
This formula is precise for unipolar operation. However,
for bipolar, offset binary operation, the MSB is really a
polarity bit. No resolution is lost because the number of
steps is the same. The output voltage, however, has
been shifted from a range of, for example, 0V to

4.096V (G = 2) to a range of -2.048V to +2.048V.
Keep in mind that when using the DAC as a four-quad-

rant multiplier, the scale is skewed. The negative full
scale is -V

REFIN

, while the positive full scale is

+V

REFIN

- 1LSB.

* Write 10-bit data words with two sub-LSB 0s because the

DAC input latch is 12 bits wide.

* Write 10-bit data words with two sub-LSB 0s because the

DAC input latch is 12 bits wide.

* Write 10-bit data words with two sub-LSB 0s because the

DAC input latch is 12 bits wide.

MAX503

5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

______________________________________________________________________________________ 15

33µF

REFIN
REFOUT

AGND
DGND
REFGND

ROFS

RFB

VOUT

V

OUT

-5V

+5V

MAX503

Figure 11. Bipolar Configuration (-2.048V to +2.048V Output) Figure 12. Four-Quadrant Multiplying Circuit

REFGND

AGND

DGND

REFIN

V

DD

V

SS

ROFS

RFB

VOUT

V

OUT

-5V

+5V

REFIN

MAX503

__________Applications Information

Single-Supply Linearity

As with any amplifier, the MAX503’s output op amp off­set can be positive or negative. When the offset is posi­tive, it is easily accounted for. However, when the offset
is negative, the output cannot follow linearly when there
is no negative supply. In that case, the amplifier output
(VOUT) remains at ground until the DAC voltage is suffi­cient to overcome the offset and the output becomes
positive. The resulting transfer function is shown in
Figure 13.

Normally, linearity is measured after allowing for zero
error and gain error. Since, in single-supply operation,
the actual value of a negative offset is unknown, it can­not be accounted for during test. In the MAX503, linear­ity and gain error are measured from code 3 to code
1023 (see Note 2 under

Electrical Characteristics

). The
output amplifier offset does not affect monotonicity, and
these DACs are guaranteed monotonic starting with
code zero. In dual-supply operation, linearity and gain
error are measured from code 0 to 1023.

Power-Supply Bypassing

and Ground Management

Best system performance is obtained with printed cir­cuit boards that use separate analog and digital ground
planes. Wire-wrap boards are not recommended. The
two ground planes should be connected together at the
low-impedance power-supply source.

AGND and REFGND should be connected together,
and then to DGND at the chip. For single-supply appli­cations, connect VSSto AGND at the chip. The best

ground connection may be achieved by connecting
the AGND, REFGND, and DGND pins together and
connecting that point to the system analog ground
plane. If DGND is connected to the system digital
ground, digital noise may get through to the DAC’s ana­log portion.

Bypass V

DD

(and VSSin dual-supply mode) with a

0.1µF ceramic capacitor connected between VDDand
AGND (and between VSSand AGND). Mount the
capacitors with short leads close to the device.

AC Considerations

Digital Feedthrough

High-speed data at any of the digital input pins may
couple through the DAC package and cause internal
stray capacitance to appear as noise at the DAC out­put, even though LDAC and CS are held high (see

Typical Operating Characteristics

). This digital
feedthrough is tested by holding LDAC and CS high
and toggling the data inputs from all 1s to all 0s.

Analog Feedthrough

Because of internal stray capacitance, higher-frequen­cy analog input signals at REFIN may couple to the
output, even when the input digital code is all 0s, as
shown in the

Typical Operating Characteristics

graph
Analog Feedthrough vs. Frequency. It is tested by set­ting CLR to low (which sets the DAC latches to all 0s)
and sweeping REFIN.

MAX503

5V, Low-Power, Parallel-Input,
Voltage-Output, 10-Bit DAC

1

2

3

4

5

12345

0

POSITIVE OFFSET

NEGATIVE OFFSET

DAC CODE (LSBs)

OUTPUT (LSBs)

Figure 13. Single-Supply DAC Transfer Function

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

16

__________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 [phone]

© 1994 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
