General Description

The MAX391/MAX392/MAX393 are precision, quad,
single-pole/single-throw (SPST) analog switches
designed to operate at +3V, +5V, or ±5V. The MAX391
has four normally closed (NC) switches, and the
MAX392 has four normally open (NO) switches. The
MAX393 has two NO and two NC switches. All three
devices offer low leakage (100pA max) and fast switch­ing speeds (tON≤ 130ns, t

OFF

≤ 75ns). Power con­sumption is just 1µW—ideal for battery-operated equip­ment. All devices operate from a single +3V to +15V
supply or from dual ±3.0V to ±8V supplies.

With ±5V supplies, the MAX391/MAX392/MAX393 offer
guaranteed 2Ω max channel-to-channel matching, 30Ω
max on-resistance (RON), and 4Ω max RONflatness
over the specified range.

These switches are also fully specified for single +5V
operation, with 2Ω max RONmatch, 60Ω max R

ON, and

6Ω max flatness.

These low-voltage switches also offer 5pC max charge
injection, and ESD protection is greater than 2000V, per
method 3015.7.

________________________Applications

Battery-Operated Systems Sample-and-Hold Circuits

Heads-Up Displays Guidance and Control Systems

Audio and Video Switching Military Radios

Test Equipment Communications Systems

±5V DACs and ADCs PBX, PABX

Features

♦ Low On-Resistance, 20Ω Typical

♦ Guaranteed On-Resistance Match Between

Channels, <2Ω

♦ Guaranteed On-Resistance Flatness Over Signal

Range, 4Ω Max

♦ Guaranteed Charge Injection, <5pC

♦ Improved Leakage Over Temperature,

<2.5nA at +85°C

♦ Electrostatic Discharge >2000V per Method

3015.7

♦ Single-Supply Operation (+3V to +15V)

Bipolar-Supply Operation (±3V to ±8V)

♦ Low Power Consumption, <1µW

♦ TTL/CMOS-Logic Compatible

Ordering Information

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

________________________________________________________________ Maxim Integrated Products 1

SWITCHES SHOWN FOR LOGIC "0" INPUT

DIP/SO/TSSOP

MAX392

LOGIC SWITCH

0
1

OFF

ON

TOP VIEW

DIP/SO/TSSOP

MAX391

LOGIC SWITCH

0
1

ON

OFF

DIP/SO/TSSOP

MAX393

LOGIC

SWITCHES

1, 4

0
1

OFF
ON

SWITCHES

2, 3

ON

OFF

16

15

14

13

12

11

10

9

1

2

3

4

5

6

7

8

IN2

COM2

NC2

V+

V-

NO1

COM1

IN1

MAX393

N.C.

NC3

COM3

IN3

IN4

COM4

NO4

GND

16

15

14

13

12

11

10

9

1

2

3

4

5

6

7

8

IN2

COM2

NC2

V+

V-

NC1

COM1

IN1

MAX391

N.C.

NC3

COM3

IN3

IN4

COM4

NC4

GND

16

15

14

13

12

11

10

9

1

2

3

4

5

6

7

8

IN2

COM2

NO2

V+

V-

NO1

COM1

IN1

MAX392

N.C.

NO3

COM3

IN3

IN4

COM4

NO4

GND

N.C. = NO CONNECT

_____________________Pin Configurations/Functional Diagrams/Truth Tables

For free samples & the latest literature: http://www.maxim-ic.com, or phone [phone].
For small orders, phone [phone].

19-0236; Rev 1; 6/99

Ordering Information continued at end of data sheet.

* Contact factory for dice specifications.
** Contact factory for availability and processing to MIL-STD-883.

16 TSSOP-40°C to +85°CMAX391EUE

16 Narrow SO-40°C to +85°CMAX391ESE

16 Plastic DIP-40°C to +85°CMAX391EPE

16 Narrow SO0°C to +70°CMAX391CSE

16 Plastic DIP0°C to +70°C

MAX391CPE

PIN-PACKAGETEMP. RANGEPART

16 TSSOP0°C to +70°CMAX391CUE
Dice*0°C to +70°CMAX391C/D

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

2 _______________________________________________________________________________________

Voltage Referenced to V-

V+ .......................................................................-0.3V to +17V

GND....................................................................-0.3V to +17V

GND..........................................................-0.3V to (V+ + 0.3V)

V

IN

, V

COM

, VNC, VNO(Note 1) ........................................V- to V+

Current (any terminal) .........................................................30mA

Peak Current, COM, NO, NC

(pulsed at 1ms, 10% duty cycle max) ..........................100mA

ESD per Method 3015.7 ..................................................>2000V

Continuous Power Dissipation (T

A

= +70°C)

Plastic DIP (derate 10.53mW/°C above+70°C) ...........842mW

Narrow SO (derate 8.70mW/°C above +70°C) ............696mW

TSSOP (derate 6.7mW/°C above +70°C) ....................457mW

CERDIP (derate 10.00mW/°C above +70°C)...............800mW

Operating Temperature Ranges

MAX39_C_ _ .......................................................0°C to +70°C

MAX39_E_ _.....................................................-40°C to +85°C

MAX39_M_ _..................................................-55°C to +125°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

ELECTRICAL CHARACTERISTICS—Dual Supplies

(V+ = +5V ±10%, V- = -5V ±10%, GND = 0V, V

INH

= 2.4V, V

INL

= 0.8V, TA= T

MIN

to T

MAX

, unless otherwise noted.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

Note 1: Signals on NC, NO, COM, or IN exceeding V+ or V- are clamped by internal diodes. Limit forward diode current to maxi-

mum current rating.

ABSOLUTE MAXIMUM RATINGS

±

±

-5.0 5.0

-20 20

COM On Leakage Current
(Note 6)

nA

PARAMETER SYMBOL

MIN TYP MAX

(Note 2)

UNITS

On-Resistance R

ON

45

Ω

20 35

0.3 2

Ω

On-Resistance Match Between
Channels (Note 4)

∆R

ON

Analog Signal Range

V

COM

,

VNO,

V

NC

V- V+ V

On-Resistance Flatness
(Note 5)

R

FLAT(ON)

14

Ω

-0.1 0.01 0.1

NO or NC Off Leakage Current
(Note 6)

I

NO(OFF)

or

I

NC(OFF)

nA

-2.5 2.5

COM Off Leakage Current
(Note 6)

-2.5 2.5

nAI

COM(OFF)

I

COM(ON)

CONDITIONS

V+ = 5V, V- = -5V,
I

COM

= -10mA,

V

NO

or VNC= ±3V

V+ = 4.5V,
V- = -4.5V,
I

COM

= -10mA,

VNOor VNC= ±3.5V

V+ = 5V, V- = -5V,
I

COM

= -10mA,

VNOor VNC= ±3V

V+ = 5.5V,
V- = -5.5V,
V

COM

= ±4.5V,

V

NO

or VNC= 4.5V

(Note 3)

V+ = 5.5V,
V- = -5.5V,
V

COM

= ±4.5V,

VNOor VNC= 4.5V

V+ = 5.5V,
V- = -5.5V,
V

COM

= ±4.5V,

VNOor VNC= ±4.5V

TA= +25°C

TA= +25°C

TA= +25°C

TA= T

MIN

to T

MAX

TA= +25°C

TA= T

MIN

to T

MAX

TA= +25°C

TA= T

MIN

to T

MAX

TA=
+25°C

TA= T

MIN

to T

MAX

C, E

C, E

C, E

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

M

M

M

4

6

-0.1 0.01 0.1

-5 5

-5 5

-0.2 0.01 0.2

C, E

M 20 30

ANALOG SWITCH

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS—Dual Supplies (continued)

(V+ = +5V ±10%, V- = -5V ±10%, GND = 0V, V

INH

= 2.4V, V

INL

= 0.8V, TA= T

MIN

to T

MAX

, unless otherwise noted.)

PARAMETER SYMBOL

MIN TYP MAX

(Note 2)

UNITS

Input Current with Input
Voltage High

I

INH

-0.5 0.005 0.5 µA

CONDITIONS

IN = 2.4V, all others = 0.8V

Input Current with Input
Voltage Low

I

INL

-0.5 0.005 0.5 µAIN = 0.8V, all others = 2.4V

Turn-On Time t

ON

65 130

ns

Charge Injection
(Note 3)

Q 25pC

CL= 1.0nF, V

GEN

= 0V,

R

GEN

= 0Ω, Figure 4

TA= +25°C

TA= T

MIN

to T

MAX

175

V

COM

= ±3V, Figure 2

TA= +25°C

TA= T

MIN

to T

MAX

100

V

COM

= ±3V, Figure 2Turn-Off Time t

OFF

35 75

ns

MAX393 only, RL= 300Ω, CL= 35pF, Figure 3

Break-Before-Make
Time Delay (Note 3)

t

D

510 ns

TA= +25°C

TA= +25°C

RL= 50Ω, CL= 5pF,
f = 1MHz, Figure 5

Off Isolation (Note 7) OIRR 72 dB

TA= +25°C

RL= 50Ω, CL= 5pF,
f = 1MHz, Figure 6

Crosstalk (Note 8) 85 dB

TA= +25°Cf = 1MHz, Figure 7NC or NO Capacitance C

(OFF)

9 pF

TA= +25°Cf = 1MHz, Figure 7COM Off Capacitance C

COM(OFF)

9 pF

TA= +25°Cf = 1MHz, Figure 8COM On Capacitance C

COM(ON)

pF22

Power-Supply Range -8.0 +8.0 V

Positive Supply Current I+

V+ = 5.5V, V- = -5.5V,
VIN= 0V or V+,
All channels on or off

TA= T

MIN

to T

MAX

-1 1 µA

Negative Supply
Current

I-

V+ = 5.5V, V- = -5.5V,
VIN= 0V or V+,
All channels on or off

TA= T

MIN

to T

MAX

-1 1 µA

LOGIC INPUT

SUPPLY

DYNAMIC

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS—Single +5V Supply

(V+ = +5V ±10%, V- = 0V ±10%, GND = 0V, V

INH

= 2.4V, V

INL

= 0.8V, TA= T

MIN

to T

MAX

, unless otherwise noted.)

PARAMETER SYMBOL

MIN TYP MAX

(Note 2)

UNITS

Analog Signal Range

V

COM,

V

NO,

V

NC

0V+V

CONDITIONS

(Note 3)

On-Resistance R

ON

30 60

Ω

V+ = 4.5V,
I

COM

= -10mA,

V

NO

or VNC= 3.5V

Turn-On Time t

ON

85 170

nsVNOor V

NC

= 3V

Break-Before-Make Time
Delay (Note 3)

t

D

10 nsMAX393 only, RL= 300Ω, CL= 35pF

Turn-Off Time t

OFF

25 50

nsVNOor V

NC

= 3V

Negative Supply Current I- -1 1 µA

Positive Supply Current I+ -1 1 µA

Charge Injection
(Note 3)

Q 15pC

CL= 1.0nF, V

GEN

= 0V,

R

GEN

= 0Ω, Figure 4

On-Resistance Match
Between Channels (Note 4)

∆R

ON

0.8 2

Ω

V+ = 5V,
I

COM

= -1.0mA,

V

NO

or VNC= 3V

On-Resistance Flatness
(Notes 3, 5)

R

FLAT(ON)

26

Ω

V+ = 5V,
I

COM

= -1.0mA,

VNOor VNC= 1V, 3V

NO or NC Off Leakage
Current (Note 9)

I

NO(OFF)

or

I

NC(OFF)

-0.25 0.01 0.25
nA

V+ = 5.5V,
V

COM

= 0V,

V

NO

or VNC= 4.5V

COM Off Leakage Current
(Note 9)

I

COM(OFF)

-0.1 0.1
nA

V+ = 5.5V,
V

COM

= 0V,

VNOor VNC= 4.5V

COM On Leakage Current
(Note 9)

I

COM(ON)

-0.2 0.2
nA

V+ = 5.5V,
V

COM

= 5V,

VNOor VNC= 4.5V

TA= +25°C

TA= +25°C

TA= +25°C

TA= +25°C

TA= +25°C

TA= +25°C

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

75

4

8

-0.1 0.1

-2.5 2.5

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

C, E
M

C, E
M

C, E
M

-5.0 5.0

-2.5 2.5

-20 20

-5.0 5.0

TA= +25°C

TA= +25°C

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

240

100

TA= +25°C

V+ = 5.5V, VIN= 0V or V+, all channels on or off

V+ = 5.5V, VIN= 0V or V+, all channels on or off

ANALOG SWITCH

DYNAMIC

SUPPLY

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS—Single +3.3V Supply

(V+ = +3.0V to +3.6V, GND = 0V, V

INH

= 2.4V, V

INL

= 0.8V, TA= T

MIN

to T

MAX

, unless otherwise noted.)

Note 2: The algebraic convention, where the most negative value is a minimum and the most positive value a maximum, is used in

this data sheet.

Note 3: Guaranteed by design.
Note 4: ∆R

ON

= ∆RONmax - ∆RONmin.

Note 5: Flatness is defined as the difference between the maximum and minimum value of on-resistance as measured over the

specified analog signal range.

Note 6: Leakage parameters are 100% tested at maximum rated hot temperature and guaranteed by correlation at +25°C.
Note 7: Off Isolation = 20log

10

[ V

COM

⁄ (V

NC or VNO

)

], V

COM

= output, V

NC or VNO

= input to off switch.

Note 8: Between any two switches.
Note 9: Leakage testing at single supply is guaranteed by testing with dual singles.

PARAMETER SYMBOL

MIN TYP MAX

(Note 2)

UNITS

Analog Signal Range

V

COM,

V

NO,

V

NC

0V+V

CONDITIONS

(Note 3)

Channel On-Resistance R

ON

83 175

Ω

V+ = 3V,
I

COM

= -1.0mA,

V

NO

or VNC= 1.5V

Turn-On Time (Note 3) t

ON

160 400

nsVNOor VNC= 1.5V

Break-Before-Make Time
Delay (Note 3)

t

D

20 ns

MAX393 only,
R

L

= 300Ω, CL= 35pF

Turn-Off Time (Note 3) t

OFF

40 125

nsVNOor VNC= 1.5V

Negative Supply Current I- -1 1 µA

Positive Supply Current I+ -1 1 µA

Charge Injection (Note 3) Q 15pC

CL= 1.0nF,
V

GEN

= 0V, R

GEN

= 0V

V+ = 3.6V, VIN= 0V or V+, all channels on or off

V+ = 3.6V, VIN= 0V or V+, all channels on or off

TA= +25°C

TA= +25°C

TA= +25°C

TA= +25°C

TA= +25°C

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

TA= T

MIN

to T

MAX

275

500

175

ANALOG SWITCH

DYNAMIC

SUPPLY

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

6 _______________________________________________________________________________________

__________________________________________Typical Operating Characteristics

(TA= +25°C, unless otherwise noted.)

10

-5.0 -2.5 2.5

RON vs. V

COM

(DUAL SUPPLIES)

35

MAX391-01

V

COM

(V)

R

ON

(Ω)

0 5.0

25

15

30

20

40

A: V+ = 3V, V- = -3V
B: V+ = 5V, V- = -5V

A

B

10

-5.0 -2.5 2.5

RON vs. V

COM

AND

TEMPERATURE (DUAL SUPPLIES)

35

MAX391-02

V

COM

(V)

R

ON

(Ω)

0 5.0

25

15

30

20

40

V+ = +5V,
V- = -5V

A: TA = +125°C
B: T

A

= +85°C

C: T

A

= +25°C

D: T

A

= -55°C

A
B

C

D

0

048

RON vs. V

COM

(SINGLE SUPPLY)

100

MAX391-03

V

COM

(V)

R

ON

(Ω)

610

60

20

80

40

120

V- = 0V

12

2

V+ = 3V

V+ = 5V

V+ = 12V

0

01 3

RON vs. V

COM

AND

TEMPERATURE (SINGLE SUPPLY)

100

MAX391-04

V

COM

(V)

R

ON

(Ω)

24

60

20

80

40

120

5

A: TA = +125°C
B: T

A

= +85°C

C: T

A

= +25°C

D: T

A

= -55°C

A

B

C

D

V+ = 5V
V- = 0V

-30

-5.0

CHARGE INJECTION vs. V

COM

20

MAX391-07

V

COM

(V)

Q (pC)

0 5.0

0

-20

10

-10

30

-2.5 2.5

V+ = 5V, V- = -5V

V+ = 5V

V- = 0V

0.0001

-75

OFF LEAKAGE CURRENT vs.

TEMPERATURE

10

MAX351-05

TEMPERATURE (°C)

OFF LEAKAGE (nA)

+25 +125

0.1

0.001

1

0.01

100

V+ = 5.5V, V- = -5.5V
V

COM

= ±4.5V

V

NC

OR VNO = ±4.5V

-25 +75

0.0001

-75

ON LEAKAGE CURRENT vs.

TEMPERATURE

10

MAX391-06

TEMPERATURE (°C)

ON LEAKAGE (nA)

+25 +125

0.1

0.001

1

0.01

100

V+ = 5.5V, V- = -5.5V
V

COM

= ±4.5V

-25 +75

0.0001

-75

SUPPLY CURRENT vs. TEMPERATURE

10

MAX391-08

TEMPERATURE (°C)

I+, I-, (µA)

+25 +125

0.1

0.001

1

0.01

100

I- at V- = -5.5V

I+ at V+ = 5.5V

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

_______________________________________________________________________________________ 7

__________Applications Information

Overvoltage Protection

Proper power-supply sequencing is recommended for
all CMOS devices. Do not exceed the absolute maxi­mum ratings, because stresses beyond the listed rat­ings may cause permanent damage to the devices.
Always sequence V+ on first, followed by V-, and then
logic inputs. If power-supply sequencing is not possi­ble, add two small signal diodes in series with supply
pins for overvoltage protection (Figure 1). Adding
diodes reduces the analog signal range to 1V below V+
and 1V below V-, but low switch resistance and low
leakage characteristics are unaffected. Device opera­tion is unchanged, and the difference between V+ and
V- should not exceed 17V.

______________________________________________________________Pin Description

POSITIVE SUPPLY

COM

NEGATIVE SUPPLY

NO

V

g

V+

V-

Figure 1. Overvoltage Protection Using Two External Blocking
Diodes

Positive Supply-Voltage Input—connected to substrate

V+13

No Connect—not internally connectedN.C.12

GroundGND5

Negative Supply-Voltage InputV-4

PIN

Switch Inputs

NO1–NO4

or

NC1–NC4

3, 14, 11, 6

Analog Switch Common TerminalCOM1–COM42, 15, 10, 7

InputsIN1–IN41, 16, 9, 8

FUNCTIONNAME

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

8 _______________________________________________________________________________________

V

GEN

GND

NC or

NO

C

L

V

OUT

-5V

V-

V+

V

OUT

IN

OFF

ON

OFF

∆V

OUT

Q = (∆V

OUT

)(CL)

COM

IN DEPENDS ON SWITCH CONFIGURATION;
INPUT POLARITY DETERMINED BY SENSE OF SWITCH.

OFF

ON

OFF

IN

V

IN

= +3V

+5V

R

GEN

IN

MAX391
MAX392
MAX393

Figure 4. Charge Injection

tr < 20ns
tf < 20ns

50%

0V

LOGIC

INPUT

V-

-5V

R

L

300Ω

NO

or NC

GND

C

L

INCLUDES FIXTURE AND STRAY CAPACITANCE.

V

OUT

= V

COM (

RL

)

RL + RON

SWITCH

INPUT

IN

+3V

t

OFF

0V

COM

SWITCH
OUTPUT

0.9 x V

0UT

0.9 x V

OUT

t

ON

V

OUT

SWITCH
OUTPUT

LOGIC
INPUT

LOGIC INPUT WAVEFORMS INVERTED FOR SWITCHES
THAT HAVE THE OPPOSITE LOGIC SENSE.

V+

C

L

35pF

+5V

V

OUT

V

COM

0V

MAX391
MAX392
MAX393

50%

0.9 x V

0UT1

+3V

0V

0V

LOGIC
INPUT

SWITCH
OUTPUT 2
(V

OUT2

)

0V

0.9 x V

OUT2

t

D

t

D

LOGIC

INPUT

V-

-5V

R

L2

GND

C

L

INCLUDES FIXTURE AND STRAY CAPACITANCE.

COM2

IN

COM1

V

OUT2

V+

+5V

C

L2

V

COM1

= +3V

R

L1

V

OUT1

C

L1

RL = 300Ω
C

L

= 35pF

NO

NC

SWITCH
OUTPUT 1
(V

OUT1

)

MAX393

V

COM2

= +3V

Figure 2. Switching Time

Figure 3. Break-Before-Make Interval (MAX393 only)

______________________________________________Test Circuits/Timing Diagrams

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

_______________________________________________________________________________________ 9

Figure 6. Crosstalk

IN

0V or

2.4V

SIGNAL
GENERATOR 0dBm

+5V

10nF

ANALYZER

NC
or NO

R

L

GND

COM

10nF

-5V

V-

COM

V+

MAX391
MAX392
MAX393

SIGNAL
GENERATOR 0dBm

+5V

10nF

ANALYZER

N02

R

L

GND

COM1

10nF

V-

-5V

0V or 2.4V

IN1

N01

50Ω

COM2

IN2

0V or 2.4V

NC

V+

MAX391
MAX392
MAX393

Figure 5. Isolation

_________________________________Test Circuits/Timing Diagrams (continued)

CAPACITANCE

METER

NC
or NO

COM

GND

10nF

V-

-5V

IN

0V or

2.4V

10nF

+5V

f = 1MHz

V+

MAX391
MAX392
MAX393

Figure 8. Channel-On Capacitance

CAPACITANCE

METER

NC
or NO

COM

GND

10nF

V-

-5V

IN

0V or

2.4V

10nF

+5V

f = 1MHz

V+

MAX391
MAX392
MAX393

Figure 7. Channel-Off Capacitance

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

10 ______________________________________________________________________________________

__Ordering Information (continued) ___________________Chip Topography

COM3

0.102"

(2.59mm)

0.067"

(1.70mm)

V-

IN4

IN3

V+

COM1 IN1 IN2

COM2

"A" "D"

"C"

"B"

GND

COM4

* Contact factory for dice specifications.
** Contact factory for availability and processing to MIL-STD-883B.

TRANSISTOR COUNT: 76

SUBSTRATE CONNECTED TO V+

A

B

C

D

A

B

C

D

A

B

C

D

MAX391 MAX392 MAX393

PIN NAME

NAME NAMEPIN PIN

NC1

NC4

NC3

NC2

NO1

NO4

NO3

NO2

NO1

NO4

NC3

NC2

16 CERDIP**-55°C to +125°CMAX392MJE

16 TSSOP-40°C to +85°CMAX392EUE

16 Narrow SO-40°C to +85°CMAX392ESE

16 Plastic DIP-40°C to +85°CMAX392EPE

Dice*0°C to +70°CMAX392C/D

16 Narrow SO0°C to +70°CMAX392CSE

PIN-PACKAGETEMP. RANGEPART

MAX393CPE

0°C to +70°C 16 Plastic DIP

MAX393CSE 0°C to +70°C 16 Narrow SO

MAX393C/D 0°C to +70°C Dice*
MAX393EPE -40°C to +85°C 16 Plastic DIP
MAX393ESE -40°C to +85°C 16 Narrow SO

MAX393EJE -40°C to +85°C 16 CERDIP
MAX393MJE -55°C to +125°C 16 CERDIP**

16 Plastic DIP0°C to +70°C

MAX392CPE

16 CERDIP-40°C to +85°CMAX391EJE

16 TSSOP0°C to +70°CMAX392CUE

16 CERDIP-40°C to +85°CMAX392EJE

MAX393CUE 0°C to +70°C 16 TSSOP

16 CERDIP**-55°C to +125°CMAX391MJE

MAX393EUE -40°C to +85°C 16 TSSOP

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

______________________________________________________________________________________ 11

________________________________________________________Package Information

TSSOP.EPS

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

12 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 1999 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

MAX391/MAX392/MAX393

Precision, Quad, SPST Analog Switches

___________________________________________Package Information (continued)

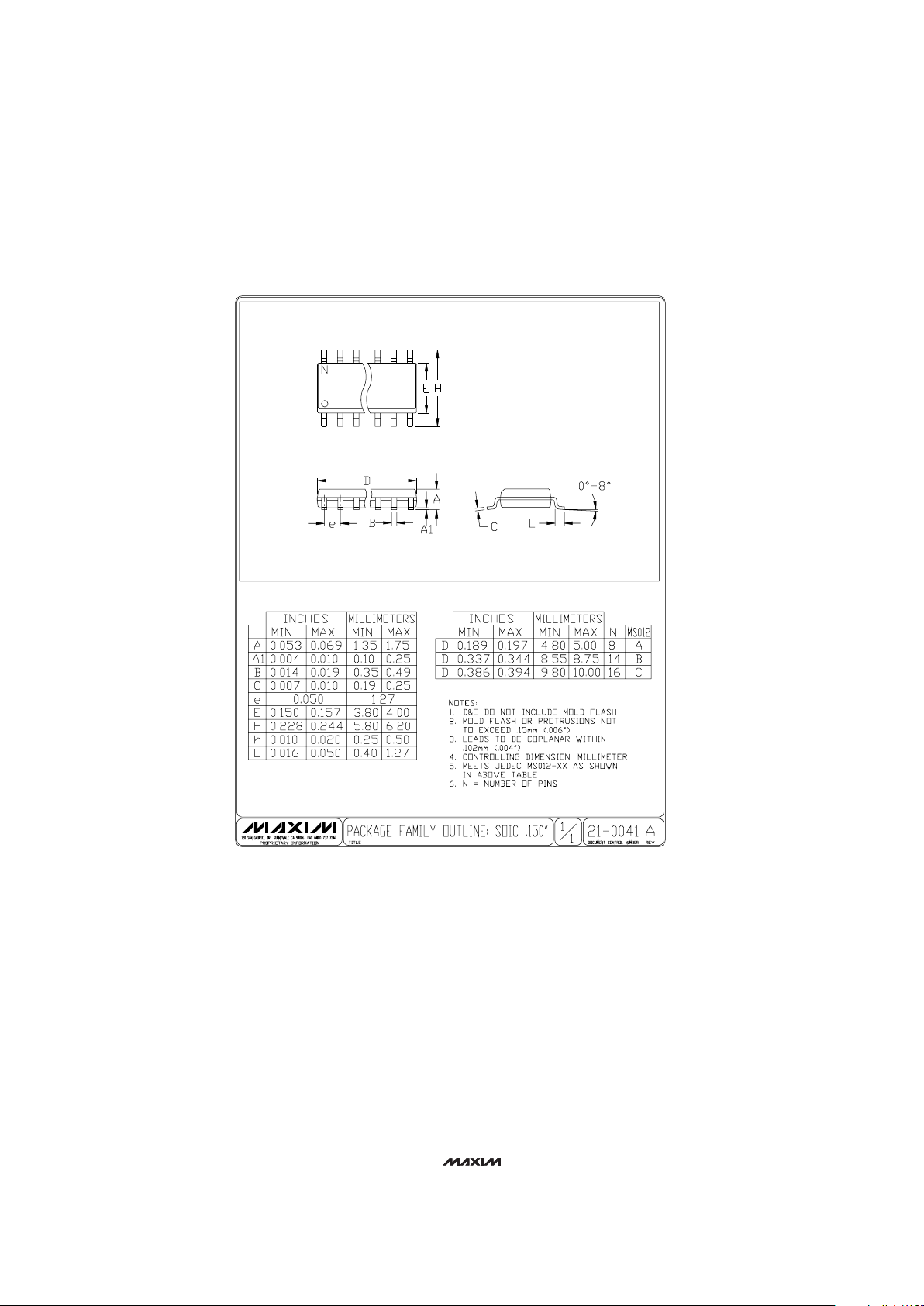

SOICN.EPS
