Maxim MAX3676EHJ, MAX3676E-D Datasheet

___________________________________________________ Typical Operating Circuit

_____________________ General Description

The MAX3676 is a complete clock-recovery and data­retiming IC incorporating a limiting amplifier. It is intend­ed for 622Mbps SDH/SONET applications and operates
from a single +3.3V supply.

The MAX3676 is designed for both section-regenerator
and terminal-receiver applications in OC12/STM-4 trans­mission systems. Its jitter performance exceeds all
SONET/SDH specifications.

The MAX3676 has two differential input amplifiers: one
accepts positive-referenced emitter-coupled logic
(PECL) levels, while the other accepts small-signal ana­log levels. The analog inputs access the limiting amplifi­er stage, which provides both a received-signal-strength
indicator (RSSI) and a programmable-threshold loss-of­power (LOP) monitor. Selecting the PECL amplifier dis­ables the limiting amplifier, conserving power. A
loss-of-lock (LOL) monitor is also incorporated as part of
the fully integrated phase-locked loop (PLL).

________________________Applications

SDH/SONET Receivers and Regenerators
SDH/SONET Access Nodes
Add/Drop Multiplexers
ATM Switches
Digital Cross-Connects

____________________________Features

♦ Single +3.3V or +5.0V Power Supply
♦ Exceeds ITU/Bellcore SDH/SONET Regenerator

Specifications

♦ Low Power: 237mW at +3.3V
♦ Selectable Data Inputs, Differential PECL or

Analog

♦ Received-Signal-Strength Indicator
♦ Loss-of-Power and Loss-of-Lock Monitors
♦ Differential PECL Clock and Data Outputs
♦ No External Reference Clock Required

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

________________________________________________________________

Maxim Integrated Products

1

19-1537; Rev 0; 7/99

PART TEMP. RANGE PIN-PACKAGE

_________________Ordering Information

Pin Configuration appears at end of data sheet.

*Contact factory for availability. Dice are designed to operate

over a -40°C to +140°C junction temperature (T

j

) range, but are

tested and guaranteed at Tj= +45°C.

For free samples & the latest literature: http://www.maxim-ic.com, or phone [phone].
For small orders, phone [phone].

MAX3676EHJ

-40°C to +85°C 5mm 32 TQFP

MAX3676E/D -40°C to +85°C Dice*

+3.3V

130Ω 130Ω

82Ω

130Ω 130Ω

82Ω

82Ω

+3.3V

82Ω

100pF

PHOTO-

DIODE

FILT

INREF

IN

GND

MAX3664

+3.3V

V

CC

OUT+

OUT-

COMP

220pF

0.01µF

ZO = 50Ω

ZO = 50Ω

100Ω

+3.3V

C

IN

0.01µF

C

IN

0.01µF

C

47nF

0.1µF

F

+3.3V

PHADJ+ PHADJ-

INSEL

DDI+

DDI-

ADI+

ADI-

V

CC

CFILT OLC+ OLC-

C

OLC

33nF

FIL+

MAX3676

GND

RSSI INV VTH LOP

2.2µF

R1
20k

C

LOL

0.01µF

LOL

FIL-

SDO+

SDO-

SCLKO+

SCLKO-

R2

ZO = 50Ω

ZO = 50Ω

ZO = 50Ω

ZO = 50Ω

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

DC ELECTRICAL CHARACTERISTICS

(VCC= +3.0V to +5.5V, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 1, 2)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

Supply Voltage, VCC..............................................-0.5V to +6.5V

Input Voltage Levels,

DDI+, DDI-, ADI+, ADI-...........................-0.5V to (V

CC

+ 0.5V)

Input Differential Voltage (ADI+) - (ADI-)...............................±3V

PECL Output Currents, SDO+, SDO-, SCLKO+, SCLKO-...100mA

LOL, LOP, INSEL, PHADJ+, PHADJ-.........-0.5V to (V

CC

+ 0.5V)

FIL+, FIL-, OLC+, OLC-, RSSI, VTH...........-0.5V to (V

CC

+ 0.5V)

(OLC+) - (OLC-).....................................................................±3V

(FIL+) - (FIL-) ..................................................................±700mV

CFILT...............................................(V

CC

- 2.5V) to (VCC+ 0.5V)

INV.........................................................................-0.5V to +2.0V

Continuous Power Dissipation (T

A

= +85°C)

TQFP (derate 11.1mW/°C above +85°C).....................721mW

Operating Junction Temperature Range...........-40°C to +150°C

Storage Temperature Range .............................-65°C to +150°C

Processing Temperature (die) .........................................+400°C

Lead Temperature (soldering, 10sec) .............................+300°C

MAX3676EHJ,
PECL outputs
unterminated

TA= 0°C to +85°C

TA= 0°C to +85°C

CONDITIONS

VVCC- 1.16 VCC- 0.88V

IH

PECL Input Voltage High

51 81

72 111

V0.1 0.4V

OL

LOP, LOL Voltage Low

V2.4V

OH

LOP, LOL Voltage High

VCC- 1.81 VCC- 1.620

VVCC- 1.81 VCC- 1.48V

IL

PECL Input Voltage Low

µA-10 10I

IH

PECL Input Current High

µA-10 10I

IL

PECL Input Current Low

VCC- 1.025 VCC- 0.88

UNITSMIN TYP MAXSYMBOLPARAMETER

INSEL = V

CC

INSEL = GND

Note 1: Dice are tested at Tj= +45°C, VCC= +4.25V.
Note 2: At T

A

= -40°C, DC characteristics are guaranteed by design and characterization.

mAI

CC

Supply Current

TA= -40°C

V

VCC- 1.085 VCC- 0.88

V

OH

PECL Output Voltage High

TA= -40°C

V

VCC- 1.83 VCC- 1.555

V

OL

PECL Output Voltage Low

4kΩ between INV and VTH V1.10 1.23 1.30INV Input Bias Voltage

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

_______________________________________________________________________________________ 3

AC ELECTRICAL CHARACTERISTICS

(VCC= +3.0V to +5.5V, TA= -40°C to +85°C, unless otherwise noted. Typical values are at VCC= +3.3V and TA= +25°C.)
(Notes 3, 4)

Note 3: AC parameters are guaranteed by design and characterization.
Note 4: The MAX3676 is characterized with a PRBS of 2

23

- 1 maintaining a BER of ≤ 10

-10

having a confidence level of 99.9%.

Note 5: A lower minimum input voltage of 2mVp-p is achievable; however, the LOP hysteresis is not guaranteed below 3.6mVp-p.
Note 6: Hysteresis = 20log(V

RELEASE

/ V

ASSERT

).

Note 7: R

1

= 20kΩ, R

2 =

3.0kΩ, resulting in V

RELEASE

≈ 3.6mVp-p.

Note 8: Small-signal bandwidth cannot be measured directly.
Note 9: RSSI slope = [V

RSSI2

- V

RSSI1

] / [20log (V

ID2

/ V

ID1

)].

Note 10: 1UI = 1 unit interval = (622.08MHz)

-1

= 1.608ns.

Note 11: At jitter frequencies <10kHz, the jitter tolerance characteristics exceed the ITU/Bellcore specifications. The low-frequency

jitter tolerance outperforms the instrument’s measurement capability.

Note 12: See

Typical Operating Characteristics

for worst-case distribution.

PARAMETER SYMBOL MIN TYP MAX UNITS

RSSI Output Voltage

1.40

Limiting Amplifier Small­Signal Bandwidth

BW

650

MHz

Power-Detect Hysteresis

36

dB

Input-Referred Noise V

N

80

µV

RMS

Threshold Voltage V

TH

1.41

V

Differential Input Voltage
Range

V

ID

0.003 1.2000

Vp-p

CONDITIONS

(ADI+) - (ADI-) = 2mVp-p

(Note 8)

(Notes 6, 7)

ADI inputs

(Note 7)

BER < 10

-10

, ADI inputs (Note 5)

1.93

V

(ADI+) - (ADI-) = 20mVp-p

Jitter-Transfer Peaking

0.03 0.08

dB

Maximum Consecutive Input
Run Length (1 or 0)

1200

Bits

CF= 2.2µF

8.9

CF= 2.2µF

(Note 12) 3.64

Jitter Tolerance (Note 11)

0.55 0.77

0.45 0.69

CF= 2.2µFLoop Bandwidth

250 500

kHz

26

RSSI Linearity

±0.7

%(ADI+) - (ADI-) = 2mVp-p to 50mVp-p

RSSI Slope mV/dB

(ADI+) - (ADI-) = 2mVp-p to 50mVp-p
(Note 9)

UI

f =10kHz
f =25kHz
f = 250kHz
f =1MHz

CF= 2.2µFJitter Generation (Note 10)

2.0 2.6

mUI

LOP Threshold Accuracy

-2 +2

dB(Note 7)

Clock Transition Time tr, tf

205 245

ps20% to 80%

Data Transition Time tr, tf

180 230

ps20% to 80%

Serial Clock-to-Q Delay t

CLK-Q

140 275 400

ps

Serial Clock Frequency f

SCLK

622.08

MHz

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

4 _______________________________________________________________________________________

Typical Operating Characteristics

(VCC= +3.3V, TA = +25°C, unless otherwise noted.)

400ps/div

CLOCK

DATA

RECOVERED DATA AND
CLOCK (SINGLE ENDED)

MAX3676 toc01

2

23

-1 PATTERN

20ps/div

RECOVERED CLOCK JITTER

MAX3676 toc02

2

23

-1 PATTERN

WIDEBAND RMS
JITTER = 5.84ps

10

-2

10

-3

10

-4

10

-5

10

-6

10

-7

10

-8

10

-9

10

-10

10

-11

10

-12

600µ500µ400µ 800µ700µ 900µ 1m 1.1m 1.2m

BIT ERROR RATE

vs. ADI INPUT VOLTAGE

MAX3676 toc03

INPUT VOLTAGE (V)

BIT ERROR RATE

2

23

-1 PATTERN

10

0.1
10k 100k 1M 10M

JITTER TOLERANCE

MAX3676 toc04

JITTER FREQUENCY (Hz)

INPUT JITTER (UIp-p)

1

2

23

-1 PATTERN

BELLCORE
MASK

0.2
0

-0.2

-0.4

-0.6

-0.8

-1.0

-1.2

-1.4

-1.6

-1.8

-2.0

-2.2

-2.4

-2.6

-2.8

-3.0
2k 10k 100k 700k

JITTER TRANSFER

MAX3676 toc05

JITTER FREQUENCY (Hz)

JITTER TRANSFER (dB)

2

23

- 1 PRBS

BELLCORE
MASK

0

10

5

20

15

25

30

1.5

2.4

2.0

2.2

3.02.6

2.8

3.5

DISTRIBUTION OF JITTER TOLERANCE

(WORST-CASE CONDITIONS)

MAX3676 toc06

JITTER TOLERANCE (UI

p-p

)

PERCENT OF UNITS (%)

f

JITTER

= 25kHz

V

CC

= +3.0V

T

A

= +85°C

MEAN = 2.42UI
σ = 0.227UI

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

_______________________________________________________________________________________ 5

Typical Operating Characteristics (continued)

(VCC= +3.3V, TA = +25°C, unless otherwise noted.)

2.0

3.0

2.5

3.5

4.0

4.5

5.0

-40 0-20 20 40 60 80 100

LOSS-OF-POWER

HYSTERESIS vs. TEMPERATURE

MAS3676 toc07

AMBIENT TEMPERATURE (°C)

HYSTERESIS (dB)

2

23

-1 PATTERN

V

CC

= +3.3V OR +5.0V

RECEIVED-SIGNAL-STRENGTH INDICATOR

vs. INPUT VOLTAGE

2.7

1.1

0.1 10 1001.0 1000

1.3

1.5

MAX3676 toc08

INPUT VOLTAGE (mVp-p)

RSSI (V)

1.7

1.9

2.1

2.3

2.5

2

23

-1 PATTERN

1010 PATTERN

100

1

1.31.2 2.42.32.22.12.01.91.81.71.61.51.4

LOSS-OF-POWER

ASSERT AND RELEASE LEVEL

vs. DETECTOR THRESHOLD VOLTAGE

MAX3676 toc09

DETECTOR THRESHOLD VOLTAGE, VTH (V)

ANALOG VOLTAGE (mVp-p)

10

LOP RELEASE

LOP ASSERT

2

23

-1 PATTERN

2.7

1.1

0.1 10 1001.0 1000

RECEIVED-SIGNAL-STRENGTH INDICATOR

vs. INPUT VOLTAGE

1.3

1.5

MAX3676 toc10

INPUT VOLTAGE (mVp-p)

RSSI (V)

1.7

1.9

2.1

2.3

2.5

2

23

-1 PATTERN

V

CC

= +3.3V OR +5.0V

30

50

40

70

60

80

90

100

-40 0 20-20 40 60 80 100

SUPPLY CURRENT
vs. TEMPERATURE

MAX3676 toc11

TEMPERATURE (°C)

SUPPLY CURRENT (mA)

V

CC

= +5.0V

V

CC

= +3.3V

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

6 _______________________________________________________________________________________

Pin Description

32 CFILT RSSI Filter Capacitor Input

30 ADI+ Positive Analog Data Input, 622.08Mbps serial-data stream

29 ADI- Negative Analog Data Input, 622.08Mbps serial-data stream

28 INSEL Input Select. Connect to GND to select digital data inputs or VCCfor analog data inputs.

27 DDI- Negative Digital Data Input, PECL, 622.08Mbps serial-data stream

26 DDI+ Positive Digital Data Input, PECL, 622.08Mbps serial-data stream

23 FIL+ Positive Filter Input. PLL loop filter connection.

22 FIL- Negative Filter Input. PLL loop filter connection.

20 PHADJ+ Positive Phase-Adjust Input. Used to optimally align internal PLL phase. Attach to VCCif not used.

19 PHADJ- Negative Phase-Adjust Input. Used to optimally align internal PLL phase. Attach to VCCif not used.

NAME FUNCTION

1 OLC+ Positive Offset-Correction Loop Capacitor Input

2 OLC- Negative Offset-Correction Loop Capacitor Input

PIN

3 RSSI Received-Signal-Strength Indicator Output

4, 8, 16,

24, 25

GND Supply Ground

9, 12, 15,

18, 21, 31

V

CC

Positive Supply Voltage

7 LOP

Loss-of-Power Output, TTL. Limiting amplifier loss-of-power monitor. Asserts high when input signal
is below threshold set by VTH.

6 VTH

Voltage Threshold Input. Threshold voltage for loss-of-power monitor. Attach to VCCif LOP function
is not used.

5 INV Op Amp Inverting Input. Attach to ground if op amp is not used.

17

LOL

Loss-of-Lock Output, TTL. PLL loss-of-lock monitor, active low (see

Design Procedure

).

14 SDO+ Positive Serial-Data Output, PECL, 622.08Mbps

13 SDO- Negative Serial-Data Output, PECL, 622.08Mbps

11 SCLKO+ Positive Serial-Clock Output, PECL, 622.08MHz. SDO+ is clocked out on the rising edge of SCLKO+.

10 SCLKO- Negative Serial-Clock Output, PECL, 622.08MHz. SDO- is clocked out on the falling edge of SCLKO-.

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

_______________________________________________________________________________________ 7

_______________Detailed Description

The block diagram in Figure 1 shows the MAX3676’s
architecture. It consists of a limiting-amplifier input
stage followed by a fully integrated clock/data-recovery
(CDR) block implemented with a PLL. The input stage
is selectable between a limiting amplifier or a simple
PECL input buffer. The limiting amplifier provides an
LOP monitor and an RSSI output. The PLL consists of a
phase/frequency detector (PFD), a loop filter amplifier,
and a voltage-controlled oscillator (VCO).

Limiting Amplifier

The MAX3676’s on-chip limiting amplifier accepts an
input signal level from 3.0mVp-p to 1.2Vp-p. The ampli­fier consists of a cascade of gain stages that include
full-wave logarithmic detectors. The combined small­signal gain is approximately 42dB, and the -3dB band­width is 650MHz. Input-referred noise is typically

80µV

RMS

, providing excellent sensitivity for small-ampli-

tude data streams.
In addition to driving the CDR, the limiting amplifier pro-

vides both an RSSI output and an LOP monitor that
allow the user to program the threshold voltage. The
RSSI circuitry provides an output voltage that is linearly
proportional to the input power (in decibels) detected
between the ADI+ and ADI- input pins and is sensitive
enough to reliably detect signals as small as 2mVp-p
(see

Typical Operating Characteristics

).

Input DC offset reduces the accuracy of the power
detector; therefore, an integrated feedback loop is
included that automatically nulls the input offset of the
gain stage. The addition of this offset-correction loop
requires that the input signal be AC-coupled when
using the ADI+ and ADI- inputs.

Finally, for applications that do not require the limiting
amplifier, selecting the digital inputs conserves power
by turning off the postamplifier block.

Figure 1. Functional Diagram

PHADJ-

LOL

V

CC

FIL+ FIL-PHADJ+

DDI+

DDI-

INSEL

ADI-

ADI+

PECL

LIMITER

42dB

CORRECTION

OLC+ OLC-

OFFSET

6k

PHASE/FREQ

DETECTOR

1.23V

BIAS

POWER
DETECT

CFILT RSSI INV VTH LOP

Σ

FILTER

PECL

PECL

SDO+

SDO-

SCLKO+

SCLKO-

DQ

I

VCO

622.08MHz

V

CC

6k

Q

MAX3676

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

8 _______________________________________________________________________________________

Phase Detector

The phase detector produces a voltage proportional to
the phase difference between the incoming data and
the internal clock. Because of its feedback nature, the
PLL drives the error voltage to zero, aligning the recov­ered clock to the incoming data. The external phase
adjustment pins (PHADJ+, PHADJ-) allow the user to
vary the internal phase alignment.

Frequency Detector

The frequency detector incorporated into the PLL uses
the input data stream edges to sample the quadrature
components of the VCO clock. This generates a differ­ence frequency that aids acquisition during start-up.
Depending on the polarity of the difference frequency,
the PFD drives the VCO so that the difference frequen­cy is reduced to zero. Once frequency acquisition is
obtained, the frequency detector returns to a neutral
state.

Loop Filter and VCO

The VCO is fully integrated, while the loop filter requires
an external R-C network. This filter network determines
the bandwidth and peaking of the second-order PLL.

__________________Design Procedure

Received-Signal-Strength Indicator

The RSSI output voltage is insensitive to temperature
and supply fluctuations. The power detector functions
as a broadband power meter that detects the total RMS
power of all signals within the detector bandwidth
(including input signal noise). The RSSI voltage varies
linearly (in decibels) for inputs of 2mVp-p to 50mVp-p.
The slope over this input range is approximately
26mV/dB.

The high-speed RSSI signal is filtered to an RMS level
with one external capacitor tied from CFILT to VCC. The
impedance looking into CFILT is about 500Ω to VCC. As
a result, the lower -3dB cutoff frequency is set by the
following simple relationship:

For 622Mbps applications, Maxim recommends a cut­off frequency of 6.8kHz, which requires CF= 47nF. The
RSSI output is designed to drive a minimum load resis­tance of 100kΩ to ground and a maximum of 20pF.
Loads greater than 20pF must be buffered by a series
resistance of 100kΩ (i.e., voltmeter).

Input Offset Correction

The on-chip limiting amplifier provides more than 42dB
of gain. A low-frequency feedback loop is integrated

into the MAX3676 to remove the input offset. DC-cou­pling to the ADI+ and ADI- inputs is not allowed, as this
would prevent the proper functioning of the DC offset­correction circuitry.

The differential input impedance (Z

IN

) is approximately

2.5kΩ. The impedance between OLC+ and OLC- (Z

OLC

)

is approximately 120kΩ. Take care when setting the
combined low-frequency cutoff (f

CUTOFF

), due to the
input DC-blocking capacitor (CIN) and the offset correc­tion loop capacitor (C

OLC

). See Table 1 for selecting the

values of CINand C

OLC

.

These values ensure that the poles associated with C

IN

and C

OLC

work together to provide a flat response at the

lower -3dB corner frequency (no gain peaking).
CINmust be a low-TC, high-quality capacitor of type X7R

or better in order to minimize f

CUTOFF

deviations. C

OLC

must be a capacitor of type Z5U or better.

Loss-of-Power Monitor

An LOP monitor with a user-programmable threshold
and a hysteresis comparator is also included with the
limiting amplifier circuitry. Internally, one comparator
input is tied to the RSSI output signal, and the other is
tied to the threshold voltage (VTH), which is set exter­nally and provides a trip point for the LOP indication. A
low-voltage, low-drift op amp, referenced to an internal
bandgap voltage (1.23V), is supplied for programming
a supply independent threshold voltage. This op amp
requires two external resistors to program the LOP trip
point. VTHis programmable from 1.23V to 2.6V using
the equation:

The op amp can source only 100µA of current.
Therefore, an R1 value of 20kΩ is recommended for
proper operation. The input bias current of the op amp
at the INV pin is less than ±100nA.

C

OLC

COMBINED LOW

f

CUTOFF

(kHz)

2200pF 0.015µF 29
1000pF 0.01µF 68

C

IN

470pF 3300pF 135
330pF 2200pF 190
220pF 1500pF 290

Table 1. Setting the Low-Frequency Cutoff

4700pF 0.033µF 13.5

6800pF 0.082µF 10

0.010µF 0.1µF 6.8

0.022µF 0.15µF 3.0

f = 1 / 2 500

FILT

π

()

[]

C

F

V = 1.23 1 + R2 / R1

TH

()

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

_______________________________________________________________________________________ 9

The comparator is configured with an active-high LOP
output. An on-chip, 6kΩ pull-up resistor is provided to
reduce the external part count.

Setting the Loop Filter

The MAX3676 is designed for both regenerator and
receiver applications. Its fully integrated PLL is a classic
second-order feedback system, with a loop bandwidth
(fL) fixed at 250kHz. The external capacitor, CF, can be
adjusted to set the loop damping. Figures 2 and 3 show
the open-loop and closed-loop transfer functions. The
PLL zero frequency, fZ, is a function of external capaci­tor CF, and can be approximated according to:

For an overdamped system (fZ/fL) <0.25, the jitter peak­ing (MP) of a second-order system can be approximat­ed by:

For example, using CF= 0.22µF results in a jitter peak­ing of 0.27dB. Reducing CFbelow 0.22µF may result in
PLL instability. The recommended value for CFis 2.2µF
to guarantee a maximum jitter peaking of less than

0.1dB.
The MAX3676 is optimally designed to acquire lock and

to provide a bit-error rate (BER) of less than 10

-1 0

for
long strings of consecutive zeros and ones. Measured
results show that the MAX3676 can tolerate 1200 con­secutive ones or zeros. Decreasing CFreduces the
number of tolerated consecutive identical zeros and
ones. CFmust be a low-TC, high-quality capacitor of
type X7R or better.

Lock Detect

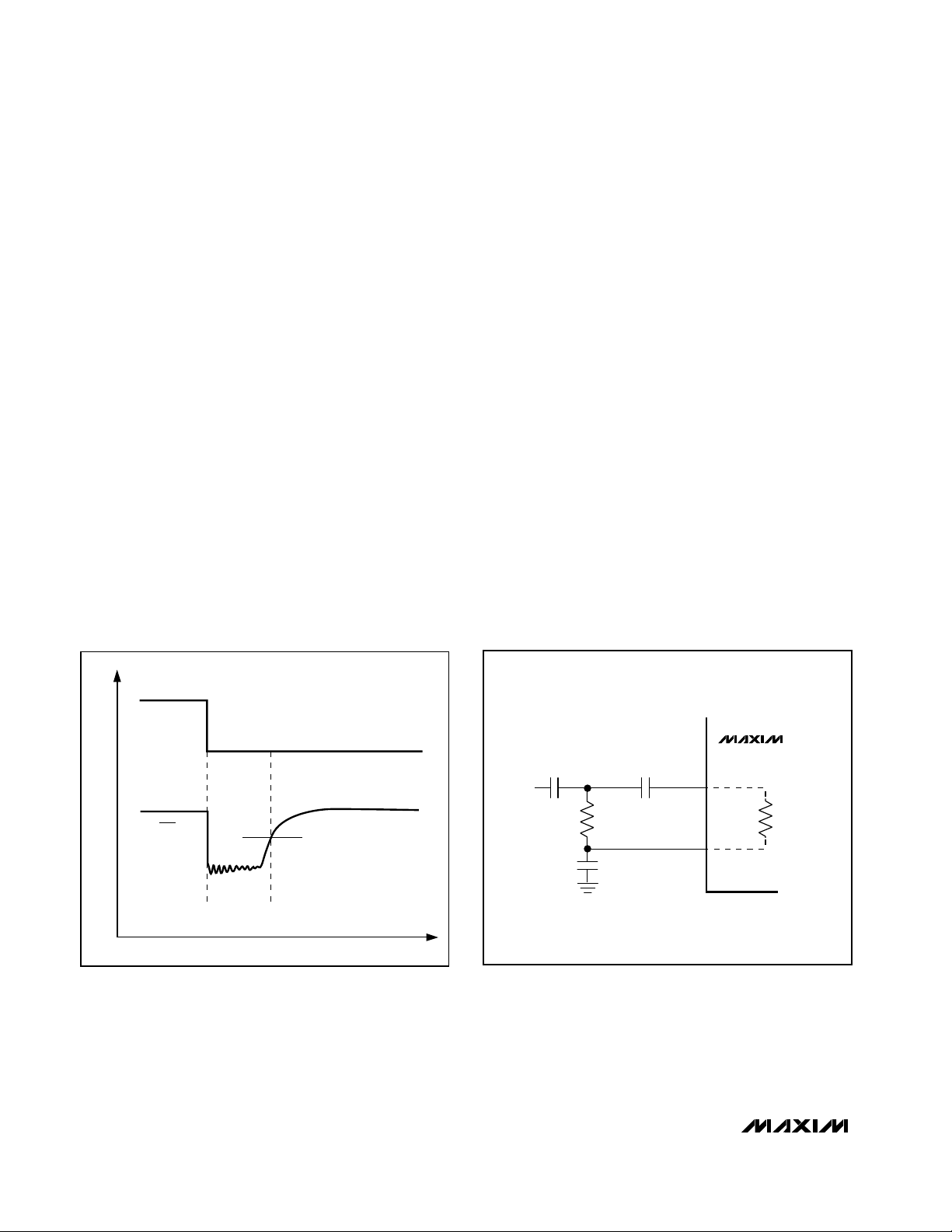

The MAX3676’s LOL monitor indicates when the PLL is
locked. Under normal operation, the loop is locked and
the LOL output signal is high. When the MAX3676 loses
lock, a fast negative-edge transition occurs on LOL.
The output level remains at a low level (held by C

LOL

)

until the loop reacquires lock (Figure 4).

Figure 2. Open-Loop Transfer Function

Figure 3. Closed-Loop Transfer Function

f =

Z

2

π() 90 C

1

F

M = 0log 1+

P



2






f

Z



f



L

C

= 2.2µF

F

OPEN-LOOP GAIN

f

= 804Hz

Z

100 1k 10k 100k

H(J2πf) (dB)

0

-3

CLOSED-LOOP GAIN

100 1k 10k 100k

C

= 0.22µF

F

= 8.04kHz

f

Z

C

C

= 2.2µF

F

= 0.22µF

F

f (Hz)

1M 10M

f (kHz)

1M 10M

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

10 ______________________________________________________________________________________

Note that the LOL monitor is only valid when a data
stream is present on the inputs to the MAX3676. As a
result, LOL does not detect a loss-of-power condition
resulting from a loss of the incoming signal. See the

Loss-of-Power Monitor

section for this type of indicator.

Input and Output Terminations

The MAX3676 digital data and clock I/Os (DDI+, DDI-,
SDO+, SDO-, SCLK+, and SCLK-) are designed to
interface with PECL signal levels. It is important to bias
these ports appropriately. A circuit that provides a
Thevenin equivalent of 50Ω to VCC- 2V should be used
with fixed-impedance transmission lines for proper ter­mination. Make sure that the differential outputs have
balanced loads.

The digital data input signals (DDI+ and DDI-) are dif­ferential inputs to an emitter-coupled pair. As a result,
the MAX3676 can accept differential input signals as
low as 250mV. These inputs can also be driven single­ended by externally biasing DDI- to the center of the
voltage swing.

The MAX3676’s performance can be greatly affected
by circuit board layout and design. Use good high-fre-

quency design techniques, including minimizing
ground inductance and using fixed-impedance trans­mission lines on the data and clock signals. Power-sup­ply decoupling should be placed as close to V

CC

as
possible. Take care to isolate the input from the output
signals to reduce feedthrough.

__________Applications Information

Driving the Limiting Amplifier

Single-Ended

There are three important requirements for driving the
limiting amplifier from a single-ended source (Figure 5):

1) There must be no DC-coupling to the ADI+ and ADI-

inputs. DC levels at these inputs disrupt the offset­correction loop.

2) The terminating resistor RT(50Ω) must be referenced

to the ADI- input to minimize common-mode coupling
problems.

3) The low-frequency cutoff for the limiting amplifier

is determined by either CINand the 2.5kΩ input
impedance or Cb/2 together with RT. With Cb= 0.22µF
and RT= 50Ω, the low-frequency cutoff is 29kHz.

Figure 4. Loss-of-Lock Output

Figure 5. Single-Ended Input Termination

LOP

C

b

0.22µF

OUTPUT LEVEL

LOL

ACQUIRENO DATA

LOCKED

TIME

R

T

50Ω

C

b

0.22µF

C

5.6nF

IN

ADI+

ADI-

MAX3676

2.5k

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

______________________________________________________________________________________ 11

Reduced Power Consumption

Without the Limiting Amplifier

The limiting amplifier is biased independently from the
clock recovery circuitry. Grounding INSEL turns off the
limiting amplifier and selects the PECL DDI inputs.

Converting Average Optical Power

to Signal Amplitude

Many of the MAX3676’s specifications relate to input­signal amplitude. When working with fiber optic
receivers, the input is usually expressed in terms of
average optical power and extinction ratio. The rela­tions given in Table 2 and Figure 6 are helpful for con­verting optical power to input signal when designing
with the MAX3676.

In an optical receiver, the input voltage to the limiting
amplifier can be found by multiplying the relationship in
Table 2 by the photodiode responsivity and transim­pedance amplifier gain.

Optical Hysteresis

Power and hysteresis are often expressed in decibels.
By definition, decibels are always 10log (power). At the
inputs to the MAX3676 limiting amplifier, the power is
V

IN

2

/R. If a receiver’s optical input power (x) increases
by a factor of two, and the preamplifier is linear, then the
voltage at the input to the MAX3676 also increases by a
factor of two.

The optical power increase is:

10log(2x /x) = 10log(2) = +3dB

At the MAX3676, the voltage increase is:

In an optical receiver, the decibel change at the
MAX3676 always equals 2x the optical decibel change.

The MAX3676’s typical voltage hysteresis is 3.0dB. This
provides an optical hysteresis of 1.5dB.

Jitter in Optical Receivers

Timing jitter, edge speeds, aberrations, optical disper­sion, and attenuation all impact the performance of
high-speed clock recovery for SDH/SONET receivers
(Figure 7). These effects decrease the time available
for error-free data recovery by reducing the received
“eye opening” of nonreturn-to-zero (NRZ) transmitted
signals.

10 10 2 20 2 6

2

2

2

log log( ) log( )

2V / R

V/ R

IN

IN

()

===+dB

Figure 6. Optical Power Relations

Table 2. Optical-Power Relations*

*Assuming a 50% average input-data duty cycle

SYMBOL RELATION

Average
Power

P

AVG

Extinction
Ratio

r

e

PARAMETER

Optical Power
of a “1”

P1

Optical Power
of a “0”

P0

Signal
Amplitude

P

IN

Figure 7. Eye Diagram With and Without Timing Jitter

P1

P

AVE

P0

TIME

P = P0 + P1 / 2

AVG

()

r = 1 / P0

P

e

PP

121=

AVG

P0 2P / r 1

=+

AVG e

PPPP

=−=

102

IN AVG

r

e

+

r

e

()

r

−

1

()

e

r

+

1

e

AMPLITUDE

EYE DIAGRAM WITH NO TIMING JITTER

AMPLITUDE

EFFECTS OF TIMING JITTER ON EYE DIAGRAM TIME

MIDPOINT

TIME

MIDPOINT

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

12 ______________________________________________________________________________________

Optical receivers, incorporating transimpedance
preamplifiers and limiting postamplifiers, can signifi­cantly clean up the effects of dispersion and attenua­tion. In addition, these amplifiers can provide fast
transitions with minimal aberrations to the subsequent
CDR blocks. However, these stages also add distor­tions to the midpoint crossing, contributing to timing jit­ter. Timing jitter is one of the most critical technical
issues to consider when developing optical receivers
and CDR circuits.

A better understanding of the different sources of jitter
helps in the design and application of optical receiver
modules and integrated CDR solutions. SDH/SONET
specifications are well defined regarding the amount of
jitter tolerance allowed at the inputs of optical receivers,
as well as jitter peaking requirements, but they do little
to define the different sources of jitter. The jitter that
must be tolerated at an optical receiver input involves
three significant sources, all of which are present in
varying degrees in typical receiver systems:

1) Random jitter (RJ)

2) Pattern-dependent jitter (PDJ)

3) Pulse-width distortion (PWD)

Random Jitter

RJ is caused by random noise present during edge
transitions (Figure 8). This random noise results in ran­dom midpoint crossings. All electrical systems gener­ate some random noise; however, the faster the speed

of the transitions, the lower the effect of noise on ran­dom jitter. The following equation is a simple worst­case estimation of random jitter:

RJ (rms) = (rms noise) / (slew rate)

Pattern-Dependent Jitter

PDJ results from wide variations in the number of con­secutive bits contained in NRZ data streams working
against the bandwidth requirements of the receiver
(Figure 9). The location of the lower -3dB cutoff fre­quency is important, and must be set to pass the low
frequencies associated with long consecutive bit
streams. AC-coupling is common in optical receiver
design.

When using a preamplifier with a highpass frequency
response, select the input AC-coupling capacitor, CIN,
to provide a low-frequency cutoff (fC) one decade lower
than the preamplifier low-frequency cutoff. As a result,
the PDJ is dominated by the low-frequency cutoff of
the preamplifier.

When using a preamplifier without a highpass response
with the MAX3676, the following equation provides a
good starting point for choosing CIN:

where t

L

= duration of the longest run of consecutive

bits of the same value (seconds); PDJ = maximum

Figure 8. Random Jitter on Edge Transition

Figure 9. Pattern-Dependent Jitter Due to Low-Frequency
Cutoff

C

≥

IN

1.25k In

()

Ω .1

-t

L



PDJ BW

()()



−





05







DESIRED
MIDPOINT
CROSSING

MIDPOINT

ACTUAL

MIDPOINT

CROSSING

RANDOM

JITTER

0–1
TRANSITION
WITH RANDOM
NOISE

MIDPOINT

TIME

AMPLITUDE

LONG
CONSECUTIVE
BIT STREAM

AMPLITUDE

LF DROOP

0-1-0 BIT STREAM

LF PDJ

MIDPOINT

TIME

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

______________________________________________________________________________________ 13

allowable pattern-dependent jitter, peak-to-peak
(seconds); and BW = typical system bandwidth, nor­mally 0.6 to 1.0 times the data rate (Hertz). If the PDJ is
still larger than desired, continue increasing the value of
CIN. Note that to maintain stability when using the
MAX3676 analog inputs (ADI+, ADI-), it is important to
keep the low-frequency cutoff associated with C

OLC

below the corner frequency associated with CIN(fC)
(Table 1).

PDJ can also be present due to insufficient high-fre­quency bandwidth (Figure 10). If the amplifiers are not
fast enough to allow for complete transitions during sin­gle-bit patterns, or if the amplifier does not allow ade­quate settling time, high-frequency PDJ can result.

Pulse-Width Distortion

Finally, PWD occurs when the midpoint crossing of a
0–1 transition and a 1–0 transition does not occur at the

same level (Figure 11). DC offsets and nonsymmetrical
rising and falling edge speeds both contribute to PWD.
For a 1–0 bit stream, calculate PWD as follows:

PWD = [(width of wider pulse) -

(width of narrower pulse)] / 2

Phase Adjust

The internal clock and data alignment in the MAX3676
is well maintained close to the center of the data eye.
Although not required, this sampling point can be shift­ed using the PHADJ inputs to optimize BER perfor­mance. The PHADJ inputs operate with differential
input signals to approximately ±1V. A simple resistor
divider with a bypass capacitor is sufficient to set up
these levels. When the PHADJ inputs are not used, they
should be tied directly to VCC.

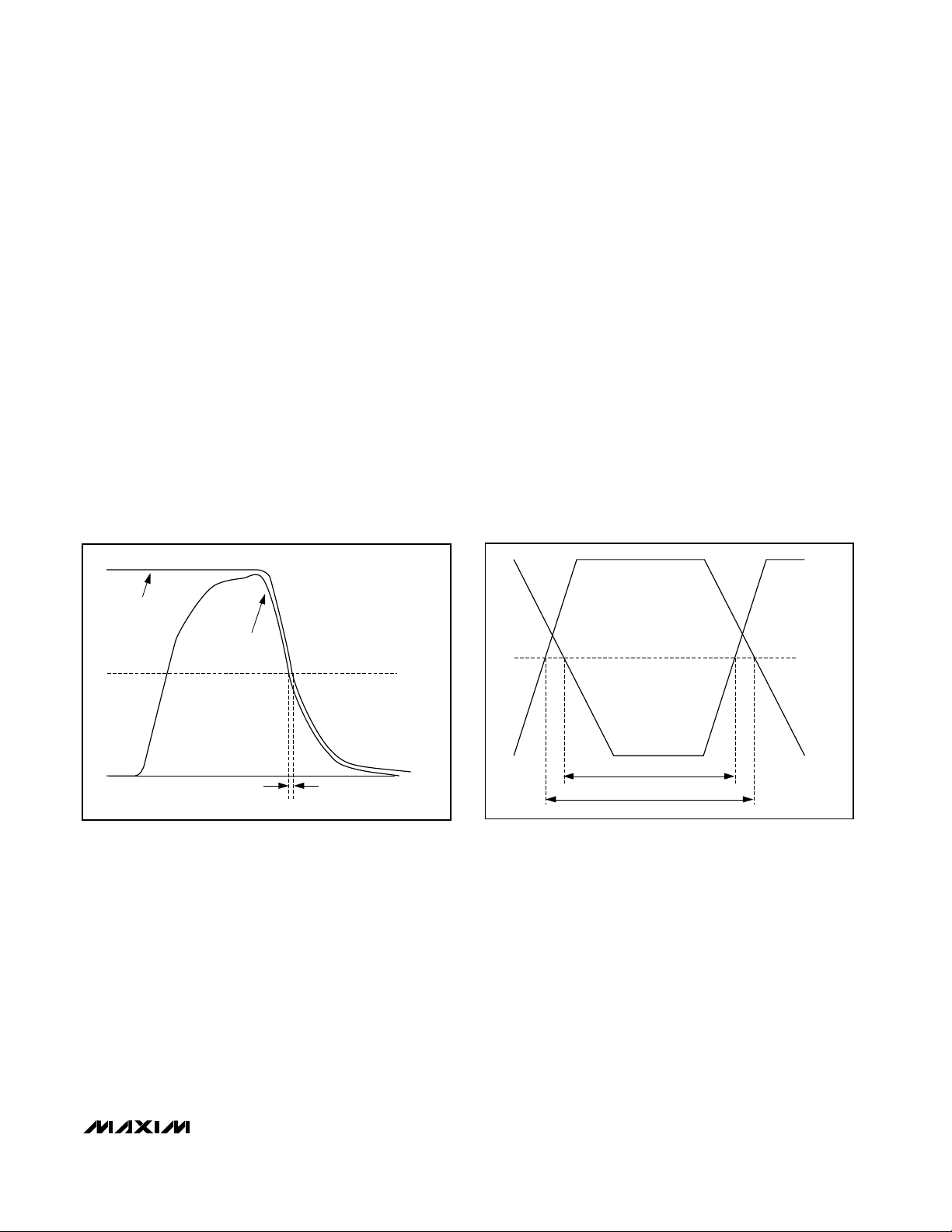

Figure 10. Pattern-Dependent Jitter Due to High-Frequency
Rolloff

Figure 11. Pulse-Width Distortion

LONG
CONSECUTIVE
BIT STREAM

AMPLITUDE

0-1-0 BIT STREAM

MIDPOINT

PWD RESULTS WHEN THE WIDTH

OF A ZERO DOES NOT EQUAL

THE WIDTH OF A ONE.

MIDPOINT

AMPLITUDE

t

FALL

≠ t

RISE

HF PDJ

TIME

WIDTH OF A ZERO

WIDTH OF A ONE

TIME

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

14 ______________________________________________________________________________________

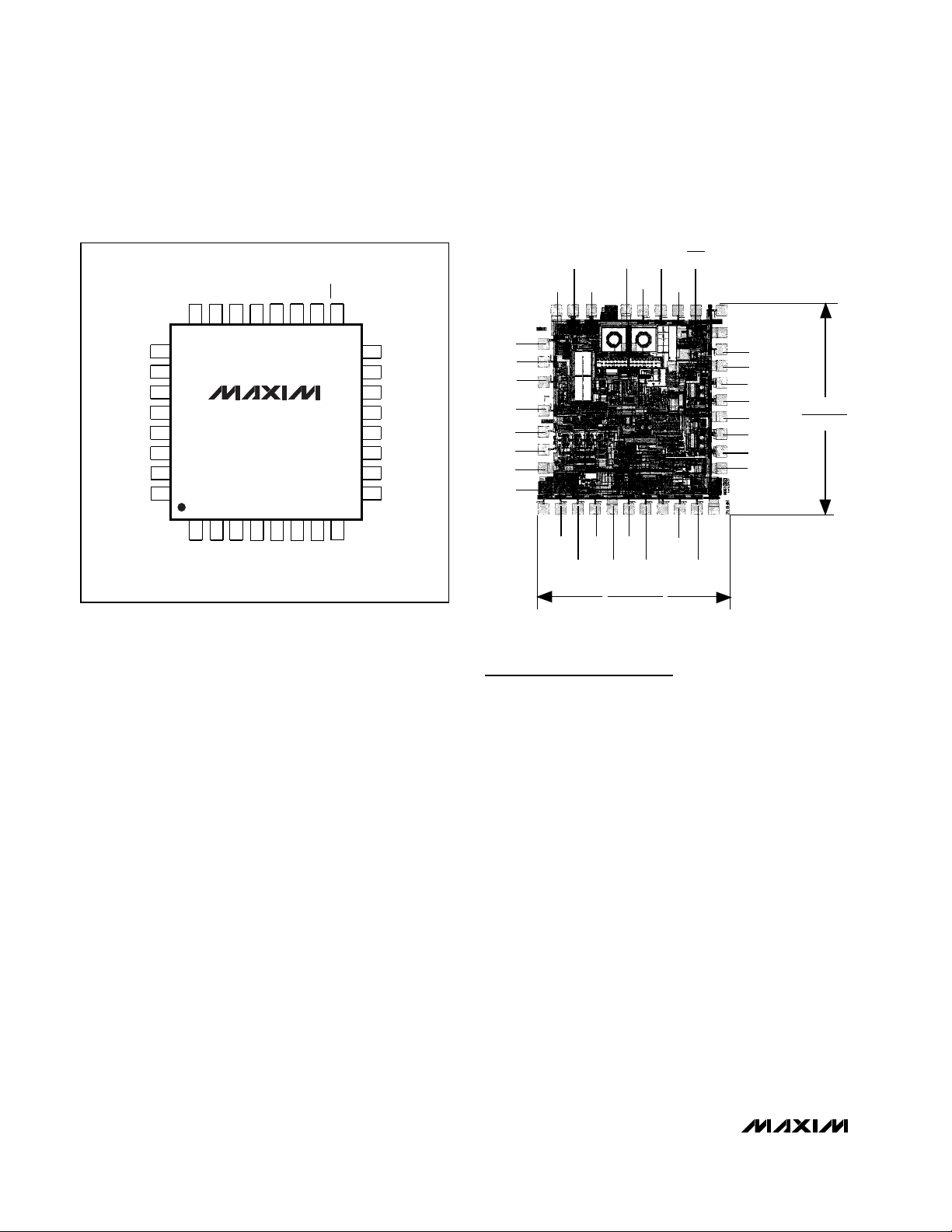

__________________Pin Configuration

___________________Chip Topography

Chip Information

TRANSISTOR COUNT: 2528

TOP VIEW

PHADJ+

5

INV

CC

PHADJ-

V

191817

6

7

VTH

LOP

LOL

16

15

14

13

12

11

10

9

8

GND

25

GND

DDI+

DDI-

INSEL

ADI-

ADI+

V

CFILT

26

27

28

29

30

31

CC

32

CC

FIL+

GND

FIL-

V

2423222120

MAX3676

1

2

3

4

GND

RSSI

OLC-

OLC+

TQFP

GND

V

CC

SDO+

SDO-

V

CC

SCLKO+

SCLKO-

V

CC

GND

DDI+

DDI-

INSEL

ADI-

ADI+

V

CFILT

FIL+ V

GND FIL- V

CC

OLC+ RSSI INV

OLC- GND VTH GND

CC

PHADJ+

0.076"

(1.930mm)

PHADJ-

LOP

LOL

CC

GND
V

CC

SDO+
SDO-

V

SCLKO+
SCLKO-

V

CC

CC

0.083"

(2.108mm)

MAX3676

622Mbps, 3.3V Clock-Recovery and

Data-Retiming IC with Limiting Amplifier

______________________________________________________________________________________ 15

________________________________________________________Package Information

32L/48L,TQFP.EPS

MAX3676

622Mbps, 3.3V Clock-Recovery and
Data-Retiming IC with Limiting Amplifier

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

16

____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 1999 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

NOTES
