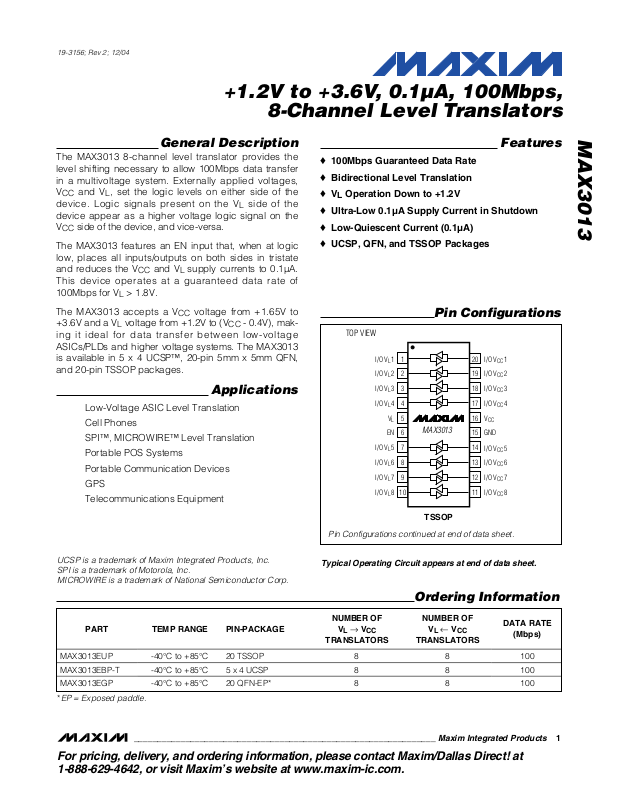

MAXIM MAX3013 User Manual

General Description

The MAX3013 8-channel level translator provides the
level shifting necessary to allow 100Mbps data transfer
in a multivoltage system. Externally applied voltages,
VCCand VL, set the logic levels on either side of the
device. Logic signals present on the V

L

side of the
device appear as a higher voltage logic signal on the
VCCside of the device, and vice-versa.

The MAX3013 features an EN input that, when at logic
low, places all inputs/outputs on both sides in tristate
and reduces the V

CC

and VL supply currents to 0.1µA.
This device operates at a guaranteed data rate of
100Mbps for VL> 1.8V.

The MAX3013 accepts a V

CC

voltage from +1.65V to
+3.6V and a VLvoltage from +1.2V to (VCC- 0.4V), mak­ing it ideal for data transfer between low-voltage
ASICs/PLDs and higher voltage systems. The MAX3013
is available in 5 x 4 UCSP™, 20-pin 5mm x 5mm QFN,
and 20-pin TSSOP packages.

Applications

Low-Voltage ASIC Level Translation

Cell Phones

SPI™, MICROWIRE™ Level Translation

Portable POS Systems

Portable Communication Devices

GPS

Telecommunications Equipment

Features

♦ 100Mbps Guaranteed Data Rate

♦ Bidirectional Level Translation

♦ V

L

Operation Down to +1.2V

♦ Ultra-Low 0.1µA Supply Current in Shutdown

♦ Low-Quiescent Current (0.1µA)

♦ UCSP, QFN, and TSSOP Packages

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-3156; Rev 2; 12/04

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

Pin Configurations continued at end of data sheet.

Typical Operating Circuit appears at end of data sheet.

Pin Configurations

*EP = Exposed paddle.

UCSP is a trademark of Maxim Integrated Products, Inc.
SPI is a trademark of Motorola, Inc.
MICROWIRE is a trademark of National Semiconductor Corp.

TOP VIEW

I/O V

I/O V

I/O V

I/O V

I/O V

1

1

L

2

2

L

3

3

L

4

V

5

L

EN

5

L

7

L

MAX3013

6

7

8

9

10

TSSOP

20

19

18

17

16

15

14

13

12

11

I/O V

CC

I/O V

CC

I/O V

CC

I/O V

CC

V

CC

GND

I/O VCC5

I/O V

CC

I/O VCC7

I/O V

CC

1

2

3

4I/O VL4

6I/O VL6

8I/O VL8

N U M B ER O F

PART TEMP RANGE PIN-PACKAGE

MAX3013EUP -40°C to +85°C 20 TSSOP 8 8 100

MAX3013EBP-T -40°C to +85°C 5 x 4 UCSP 8 8 100

MAX3013EGP -40°C to +85°C 20 QFN-EP* 8 8 100

VL → V

T R A N SL A T O R S

C C

NUMBER OF

V

← V

L

TRANSLATORS

CC

DATA RATE

(Mbps)

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VCC= +1.65V to +3.6V, VL= +1.2V to (VCC- 0.4V) (Note 1), EN = VL, C

IOVL

≤

15pF, C

IOVCC

≤

40pF, TA= T

MIN

to T

MAX

. Typical val-

ues are at V

CC

= +3.3V, VL= +1.8V, TA= +25°C.) (Note 2)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

(All voltages referenced to GND.)

VCC...........................................................................-0.3V to +4V

V

L

..............................................................................-0.3V to +4V

I/O VCC.......................................................-0.3V to (VCC+ 0.3V)

I/O VL.............................................................-0.3V to (VL+ 0.3V)

EN .................................................................-0.3V to (VL+ 0.3V)

Short-Circuit Duration I/O VL, I/O VCCto GND...........Continuous

Continuous Power Dissipation (T

A

= +70°C)

20-Pin TSSOP (derate 11mW/°C above +70°C) ..........879mW

5 x 4 UCSP (derate 10mW/°C above +70°C) ..............800mW

20-Pin QFN (derate 20.0mW/°C above +70°C) .............1.60W

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

POWER SUPPLIES

VL Supply Range V

VCC Supply Range V

Supply Current from V

Supply Current from V

V

Tristate Output Mode Supply

CC

Current

V

Tristate Output Mode Supply

L

Current

I/O Tristate Output Mode
Leakage Current

LOGIC-LEVEL THRESHOLDS

I/O VL_ Input-Voltage High V

I/O VL_ Input-Voltage Low V

I/O V

CC_

I/O V

CC_

EN Input-Voltage High V

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

L

CC

CC

I

QVCC

I/O V
I/O V

= 0, I/O V L _ = 0 or I/O V CC_ = VCC,

CC_

_ = V

L

I/O V CC_ = 0, I/O V L _ = 0 or I/O V CC_ = VCC,

_ = V

I/O V

L

I

QVL

I

TS-VCCTA

I

TS-VL

L

I/O V CC_ = 0, I/O V L _ = 0 or I/O V CC_ = VCC,

_ = VL, VL < VCC - 0.2V

I/O V

L

= +25°C, EN = 0 0.03 1 µA

TA = +25°C, EN = 0 0.1 0.2

TA = +25°C, EN = 0, VL = VCC - 0.2V 1 2

TA = +25°C, EN = 0, 0.15

= +25°C, EN = 0, VL = VCC - 0.2V 30

T

A

IHL

ILL

Input-Voltage High V

Input-Voltage Low V

IHC

ILC

IH

TA = +25°C

1.2

1.65 3.6 V

L

L

0.1 1 µA

0.1 4

0.1 100

2/3 x

V

L

2/3 x

V

CC

2/3 x

V

L

V

-

CC

0.4

1/3 x

V

L

1/3 x

V

CC

V

µA

µA

µA

V

V

V

V

V

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VCC= +1.65V to +3.6V, VL= +1.2V to (VCC- 0.4V) (Note 1), EN = VL, C

IOVL

≤

15pF, C

IOVCC

≤

40pF, TA= T

MIN

to T

MAX

. Typical val-

ues are at V

CC

= +3.3V, VL= +1.8V, TA= +25°C.) (Note 2)

TIMING CHARACTERISTICS

(VCC= +1.65V to +3.6V, VL= +1.2V to (VCC- 0.4V) (Note 1), EN = VL, C

IOVL

≤

15pF, C

IOVCC

≤

40pF, T

A

= T

MIN

to T

MAX

. Typical val-

ues are at V

CC

= +3.3V, VL= +1.8V, TA= +25°C.) (Note 2)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

EN Input-Voltage Low V

IL

TA = +25°C

1/3 x

V

L

V

EN Input Current TA = +25°C±5µA

I/O VL_ Output-Voltage High V

I/O VL_ Output-Voltage Low V

I/O V

I/O V

Output-Voltage High V

CC_

Output-Voltage Low V

CC_

OHL

OLL

OHC

OLC

I/O VL_ source current = 20µA

I/O VL_ sink current = 20µA

I/O V

I/O V

source current = 20µA

CC_

sink current = 20µA

CC_

2/3 x

V

L

2/3 x

V

CC

1/3 x

V

L

1/3 x

V

CC

V

V

V

V

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

C

= 15p F, Fi g ur e 1 2.5

IOV C C

I/O V

I/O V

I/O VL_ Rise Time t

I/O VL_ Fall Time t

Rise Time t

CC_

Fall Time t

CC_

One-Shot Output

CC_

RVCC

FVCC

RVL

FVL

C

= 20p F, Fi g ur e 1 3

IOV C C

C

= 40p F, Fi g ur e 1 4

IOV C C

C

= 15p F, Fi g ur e 1 2.5

IOV C C

C

= 20p F, Fi g ur e 1 3I/O V

IOV C C

C

= 40p F, Fi g ur e 1 4

IOV C C

C

= 15pF, Figure 2 2.5 ns

IOVL

C

= 15pF, Figure 2 2.5 ns

IOVL

I/O VL_ One-Shot Output
Impedance

Propagation Delay (Driving I/O
V

)

L_

I/O

VL-VCCC IOV C C

= 15p F, Fi g ur e 1 6.5 ns

ns

ns

18.5 Ω

12.5 Ω

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

4 _______________________________________________________________________________________

Note 1: VLmust be less than or equal to VCC- 0.4V during normal operation. However, VLcan be greater than VCC- 0.4V during

starting up and shutting down conditions.

Note 2: All units are 100% production tested at T

A

= +25°C. Limits over the operating temperature range are guaranteed by design

and not production tested.

Note 3: Not production tested. Guaranteed by design.

TIMING CHARACTERISTICS (continued)

(VCC= +1.65V to +3.6V, VL= +1.2V to (VCC- 0.4V) (Note 1), EN = VL, C

IOVL

≤

15pF, C

IOVCC

≤

40pF, TA= T

MIN

to T

MAX

. Typical val-

ues are at V

CC

= +3.3V, VL= +1.8V, TA= +25°C.) (Note 2)

Typical Operating Characteristics

(Data rate = 100Mbps, VCC= 3.3V, VL= 1.8V, TA= +25°C, unless otherwise noted.)

0

0.2

0.1

0.4

0.3

0.5

0.6

VL SUPPLY CURRENT

vs. SUPPLY VOLTAGE

MAX3013 toc02

VCC SUPPLY VOLTAGE (V)

V

L

SUPPLY CURRENT (mA)

1.5 3.02.52.0 3.5 4.0

DRIVING I/O V

L

VL = 1.25V
C

IOVCC

= 15pF

0

0.2

0.6

0.4

0.8

1.0

VL SUPPLY CURRENT

vs. SUPPLY VOLTAGE

MAX3013 toc01

VCC SUPPLY VOLTAGE (V)

V

L

SUPPLY CURRENT (mA)

2.0 3.02.5 3.5 4.0

DRIVING I/O V

L

VL = 1.8V
C

IOVCC

= 15pF

0

5

15

10

20

25

VCC SUPPLY CURRENT

vs. SUPPLY VOLTAGE

MAX3013 toc03

VCC SUPPLY VOLTAGE (V)

V

CC

SUPPLY CURRENT (mA)

2.0 3.02.5 3.5 4.0

DRIVING I/O V

L

VL = 1.8V
C

IOVCC

= 15pF

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

Propagation Delay (Driving I/O
V

)

CC_

Part-to-Part Skew t

Propagation Delay from I/O VL_ to

CC_

after EN

I/O V

Propagation Delay from I/O V
to I/O VL_ after EN

Maximum Data Rate

CC_

I/O

VCC-VLC IOVL

C

PPSKEW

t

EN-VCCC IOV C C

t

EN-VL

IOV C C

= 1.8V ( N ote 3)

V

L

C

IOVL

C

IOV C C

C

IOV C C

= 15p F, Fi g ur e 2 6 ns

= 15p F, C

IOVL

= 15p F, V

C C

= 2.5V ,

= 15p F, Fi g ur e 3 1000 ns

= 15p F, Fi g ur e 4 1000 ns

= 15p F, C

= 15p F, C

= 15p F, V L > 1.8V 100

IOVL

= 15p F, V L > 1.2V 80

IOVL

4ns

Mbps

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

_______________________________________________________________________________________ 5

Typical Operating Characteristics (continued)

(Data rate = 100Mbps, VCC= 3.3V, VL= 1.8V, TA= +25°C, unless otherwise noted.)

0

5

15

10

20

25

VCC SUPPLY CURRENT

vs. SUPPLY VOLTAGE

MAX3013 toc04

VCC SUPPLY VOLTAGE (V)

V

CC

SUPPLY CURRENT (mA)

1.5 3.02.52.0 3.5 4.0

DRIVING I/O V

L

VL = 1.25V
C

IOVCC

= 15pF

2.0

2.4

3.2

2.8

3.6

4.0

VL SUPPLY CURRENT

vs. TEMPERATURE

MAX3013 toc05

TEMPERATURE (°C)

V

L

SUPPLY CURRENT (mA)

-40 3510-15 60 85

DRIVING I/O V

CC

C

IOVL

= 15pF

16

15

14

13

12

-40 10-15 35 60 85

VCC SUPPLY CURRENT

vs. TEMPERATURE

MAX3013 toc06

TEMPERATURE (°C)

V

CC

SUPPLY CURRENT (mA)

DRIVING I/O V

CC

C

IOVL

= 15pF

0

0.2

0.6

0.4

0.8

1.0

VL SUPPLY CURRENT

vs. CAPACITIVE LOAD ON I/O V

CC

MAX3013toc07

CAPACITIVE LOAD (pF)

V

L

SUPPLY CURRENT (mA)

02010 30 40

DRIVING I/O V

L

10

13

19

16

22

25

VCC SUPPLY CURRENT

vs. CAPACITIVE LOAD ON I/O V

CC

MAX3013 toc08

CAPACITIVE LOAD (pF)

V

CC

SUPPLY CURRENT (mA)

02010 30 40

DRIVING I/O V

L

0

0.3

0.9

0.6

1.2

1.5

RISE/FALL TIME

vs. CAPACITIVE LOAD ON I/O V

CC

MAX3013 toc09

CAPACITIVE LOAD (pF)

RISE/FALL TIME (ns)

02010 30 40

DRIVING I/O V

L

t

FALL

t

RISE

Typical Operating Characteristics (continued)

(Data rate = 100Mbps, VCC= 3.3V, VL= 1.8V, TA= +25°C, unless otherwise noted.)

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

6 _______________________________________________________________________________________

RISE/FALL TIME

vs. CAPACITIVE LOAD ON I/O V

1.0

0.8

0.6

0.4

RISE/FALL TIME (ns)

0.2

0

01051520

t

RISE

CAPACITIVE LOAD (pF)

TYPICAL I/O VCC DRIVING

t

FALL

DRIVING I/O V

PROPAGATION DELAY

L

MAX3013 toc10

CC

MAX3013 toc13

I/O V

CC

1V/div

I/O V

L

1V/div

vs. CAPACITIVE LOAD ON I/O V

5

4

3

2

PROPAGATION DELAY (ns)

1

0

02010 30 40

200

190

180

(ns)

EN-VCC

t

170

160

t

PLH

CAPACITIVE LOAD (pF)

t

vs. TEMPERATURE

EN-VCC

(C

IOVCC

t

PHL

DRIVING I/O V

= 15pF)

CC

MAX3013 toc11

L

MAX3013 toc14

5

4

3

2

PROPAGATION DELAY (ns)

1

0

100

80

60

(ns)

EN-VL

t

40

20

PROPAGATION DELAY

vs. CAPACITIVE LOAD ON I/O V

t

PLH

t

PHL

DRIVING I/O V

01051520

CAPACITIVE LOAD (pF)

t

vs. TEMPERATURE

EN-VL

= 15pF)

(C

IOVL

L

MAX3013 toc12

CC

MAX3013 toc15

4ns/div

150

-40 3510-15 60 85
TEMPERATURE (°C)

0

-40 3510-15 60 85
TEMPERATURE (°C)

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

_______________________________________________________________________________________ 7

Pin Description

PIN BUMP

TSSOP QFN UCSP

1 18 B1 I/O VL1 Input/Output 1, Referenced to V

2 19 A1 I/O VL2 Input/Output 2, Referenced to V

3 20 B2 I/O VL3 Input/Output 3, Referenced to V

4 1 A2 I/O VL4 Input/Output 4, Referenced to V

5 2 A3 V

6 3 A4 EN

7 4 B3 I/O VL5 Input/Output 5, Referenced to V

8 5 A5 I/O VL6 Input/Output 6, Referenced to V

9 6 B4 I/O VL7 Input/Output 7, Referenced to V

10 7 B5 I/O VL8 Input/Output 7, Referenced to V

11 8 C5 I/O VCC8 Input/Output 8, Referenced to V

12 9 C4 I/O VCC7 Input/Output 7, Referenced to V

13 10 D5 I/O VCC6 Input/Output 6, Referenced to V

14 11 C3 I/O VCC5 Input/Output 5, Referenced to V

15 12 D4 GND Ground

16 13 D3 V

17 14 D2 I/O VCC4 Input/Output 4, Referenced to V

18 15 C2 I/O VCC3 Input/Output 3, Referenced to V

19 16 D1 I/O VCC2 Input/Output 2, Referenced to V

20 17 C1 I/O VCC1 Input/Output 1, Referenced to V

NAME FUNCTION

VL Input Voltage, +1.2V ≤ VL ≤ (VCC - 0.4V). Bypass VL to GND with a 0.1µF capacitor.

L

Enable Input. If EN is pulled low, all inputs/outputs are in tristate. Drive EN high (VL) for
normal operation.

VCC Input Voltage, +1.65V ≤ V

CC

L

L

L

L

L

L

L

L

CC

CC

CC

CC

≤ +3.6V. Bypass VCC to GND with a 0.1µF capacitor.

CC

CC

CC

CC

CC

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

8 _______________________________________________________________________________________

Test Circuits/Timing Diagrams

Figure 1. Driving I/O VLTest Circuit and Timing

I/O V

I/O V

I/O V

VL-VCC

V

CC

CC

C

IOVCC

t

RVCC

V

L

EN

I/O V

L

SOURCE

L

90%

50%

10%

I/O

VL-VCC

CC

90%

50%

10%

t

RISE/FALL

t

MAX3013

≤ 3ns

I/O

FVCC

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

_______________________________________________________________________________________ 9

Figure 2. Driving I/O VCCTest Circuit and Timing

Test Circuits/Timing Diagrams (continued)

I/O V

I/O V

I/O V

VCC-VL

V

CC

CC

SOURCE

V

L

EN

I/O V

L

C

IOVL

CC

90%

50%

10%

I/O

VCC-VL

L

90%

50%

t

RISE/FALL

MAX3013

≤ 3ns

I/O

10%

t

FVL

t

RVL

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

10 ______________________________________________________________________________________

Figure 3. Propagation Delay from I/O VLto I/O VCCafter EN

Figure 4. Propagation Delay from I/O VCCto I/O VLafter EN

Test Circuits/Timing Diagrams (continued)

EN

SOURCE

SOURCE

I/O V

L

V

L

EN

I/O V

L

MAX3013

MAX3013

C

I/O V

I/O V

IOVCC

CC

C

IOVCC

CC

I/O V

I/O V

I/O V

I/O V

V

L

t'

EN

L

EN-VCC

0V

V

L

0V

V

0V

V

0V

V

CC

L

L

VCC/2

CC

t"

EN-VCC

EN

L

0V

V

CC

VCC/2

CC

0V

t

IS WHICHEVER IS LARGER BETWEEN t'

EN-VCC

EN

SOURCE

SOURCE

I/O V

L

C

IOVL

EN

I/O V

L

C

IOVL

MAX3013

MAX3013

t

IS WHICHEVER IS LARGER BETWEEN t'

EN-VCC

I/O V

I/O V

EN-VCC

AND t"

EN-VCC

.

V

L

EN

t'

EN-VL

I/O V

CC

CC

V

CC

I/O V

VL/2

L

0V

V

0V

V

0V

V

CC

L

L

EN

t"

EN-VL

I/O V

CC

CC

VL/2

L

.

EN-VCC

AND t"

I/O V

EN-VCC

0V

V

0V

0V

CC

V

L

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

______________________________________________________________________________________ 11

Detailed Description

The MAX3013 logic-level translator provides the level
shifting necessary to allow 100Mbps data transfer in a
multivoltage system. Externally applied voltages, V

CC

and VL, set the logic levels on either side of the device.
Logic signals present on the V

L

side of the device

appear as a higher voltage logic signal on the V

CC

side
of the device, and vice-versa. The MAX3013 bidirection­al level translator allows data translation in either direc­tion (VL↔ VCC) on any single data line. The MAX3013
accepts V

L

from +1.2V to (VCC- 0.4V) and operate with
VCCfrom +1.65V to +3.6V, making it ideal for data trans­fer between low-voltage ASICs/PLDs and higher voltage
systems.

The MAX3013 features an input enable mode (EN) that
reduces VCCand VLsupply currents to 0.1µA, when in
tristate mode. This device operates at a guaranteed
data rate of 100Mbps for V

L

> +1.8V.

Level Translation

For proper operation, ensure that +1.65V ≤ VCC≤ +3.6V,
+1.2V ≤ V

L

≤ (VCC- 0.4V). During power-up sequencing,
VL≥ VCCdoes not damage the device. During power­supply sequencing, when VCCis floating and VLis pow­ering up, up to 40mA current can be sourced to each
load on the V

L

side, yet the device does not latch up.
The maximum data rate depends heavily on the load
capacitance (see the Typical Operating Characteristics,
Rise/Fall Times), output impedance of the driver, and the
operating voltage range (see the Timing Characteristics).

Input Driver Requirements

The MAX3013 architecture is based on a one-shot
accelerator output stage (see Figure 5). Accelerator
output stages are always in tristate mode except when
there is a transition on any of the translators on the
input side, either I/O VLor I/O VCC. Then, a short pulse
is generated during which the accelerator output
stages become active and charge/discharge the
capacitances at the I/Os. Due to its bidirectional nature,
both input stages become active during the one-shot
pulse. This can lead to some current feeding into the
external source that is driving the translator. However,
this behavior helps to speed up the transition on the
driven side.

For proper operation, the external driver must meet the
following conditions: <25Ω output impedance and
>20mA output current. Figure 6 shows a graph of
Typical Input Current vs. Input Voltage.

Output Load Requirements

The MAX3013 I/O was designed to drive CMOS inputs.
Do not load the I/O lines with a resistive load less than
25kΩ. Also, do not place an RC circuit at the input of
the MAX3013 to slow down the edges. If a slower data
rate is required, please see the MAX3000E/MAX3001E
logic-level translator.

For I2C level translation, please refer to the MAX3372E–
MAX3379E/MAX3390E–MAX3393E data sheet.

OV

CC

V

L

IV

L

V

CC

P

ONE-SHOT

N

ONE-SHOT

TYPICAL DRIVING ONE-CHANNEL ON V

L

SIDE

150Ω

4kΩ

IV

CC

V

L

OV

L

V

CC

TYPICAL DRIVING ONE-CHANNEL ON VCC SIDE

4kΩ

150Ω

N

ONE-SHOT

P

ONE-SHOT

Figure 5. MAX3013 Simplified Diagram (1 I/O line)

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

12 ______________________________________________________________________________________

Enable Input (EN)

The MAX3013 features an EN input. Pull EN low to set
the MAX3013 I/O on both sides in tristate output mode.
Drive EN to logic high (VL) for normal operation.

Applications Information

Power-Supply Decoupling

To reduce ripple and the chance of introducing data
errors, bypass V

L

and VCCto ground with a 0.1µF
ceramic capacitor. Place the bypass capacitors as
close to the power-supply input pins as possible.

8-Bit Bus Translation

The MAX3013 level-shifts the data present on the I/O
line between +1.2V to +3.6V, making it ideal for level
translation between a low-voltage ASIC and a higher
voltage system. The Typical Operating Circuit shows
the MAX3013 bidirectional translator in an 8-bit bus
level translation from a 1.8V system to a 3.3V system
and vice versa.

Unidirectional vs. Bidirectional Level

Translator

The MAX3013 bidirectional translator can operate as a
unidirectional device to translate signals without inver­sion. This device provides the smallest solution (UCSP
package) for unidirectional level translation without inver­sion.

Figure 6. Typical IINvs. V

IN

MAX3013

+1.8V

+3.3V

+1.8V

SYSTEM

CONTROLLER

+3.3V

SYSTEM

GND

V

L

V

CC

EN

BIT 1

BIT 2

BIT 0

BIT 3

BIT 4

BIT 5

BIT 6

BIT 7

BIT 1

BIT 2

BIT 0

BIT 3

BIT 4

BIT 5

BIT 6

BIT 7

I/O VCC1

I/O V

CC

2

I/O V

CC

3

I/O V

CC

4I/O VL4

I/O V

L

3

I/O V

L

2

I/O V

L

1

0.1µF0.1µF

I/O VCC5

I/O V

CC

6I/O VL6

I/O V

L

5

I/O VCC7

I/O V

CC

8I/O VL8

I/O V

L

7

Typical Operating Circuit

I

IN

V

*

TH_IN/RIN

0V

-(V

- V

)/RIN*

S

TH_IN

*RIN = 4kΩ WHEN DRIVING VL SIDE.

= 150Ω WHEN DRIVING VCC SIDE.

R

IN

V

TH_IN

WHERE VS = VCC OR VL.

V

IN

V

S

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

______________________________________________________________________________________ 13

Chip Information

TRANSISTOR COUNT: 1447

PROCESS: BiCMOS

20

19

18

17

16

I/O V

L

3

I/O V

L

2

I/O V

L

1

I/O V

CC

1

I/O V

CC

2

6

7

8

9

10

I/O V

L

7

I/O V

L

8

I/O V

CC

8

I/O V

CC

7

I/O V

CC

6

11

12

13

14

15

I/O V

CC

5

GND

V

CC

I/O V

CC

4

I/O V

CC

3

5

4

3

2

1

I/O V

L

6

I/O V

L

5

EN

**EXPOSED PADDLE

V

L

I/O VL4

MAX3013

5mm x 5mm QFN

TOP VIEW

MAX3013

20 UCSP

(BOTTOM VIEW)

I/O VCC4I/O VCC2 V

CC

GND

I/O V

CC

3I/O VCC1 I/O VCC5 I/O VCC7

I/O VL3I/O VL1 I/O VL5 I/O VL7

I/O VL4I/O VL2V

L

EN

I/O VCC6

I/O V

CC

8

I/O VL8

I/O VL6

1

B

A

C

D

2345

Pin Configurations (continued)

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

14 ______________________________________________________________________________________

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

TSSOP4.40mm.EPS

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

______________________________________________________________________________________ 15

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

5x4 UCSP.EPS

PACKAGE OUTLINE, 5x4 UCSP

21-0095

1

I

1

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,
8-Channel Level Translators

16 ______________________________________________________________________________________

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

32L QFN.EPS

MAX3013

+1.2V to +3.6V, 0.1µA, 100Mbps,

8-Channel Level Translators

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________ 17

© 2004 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products, Inc.

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)
