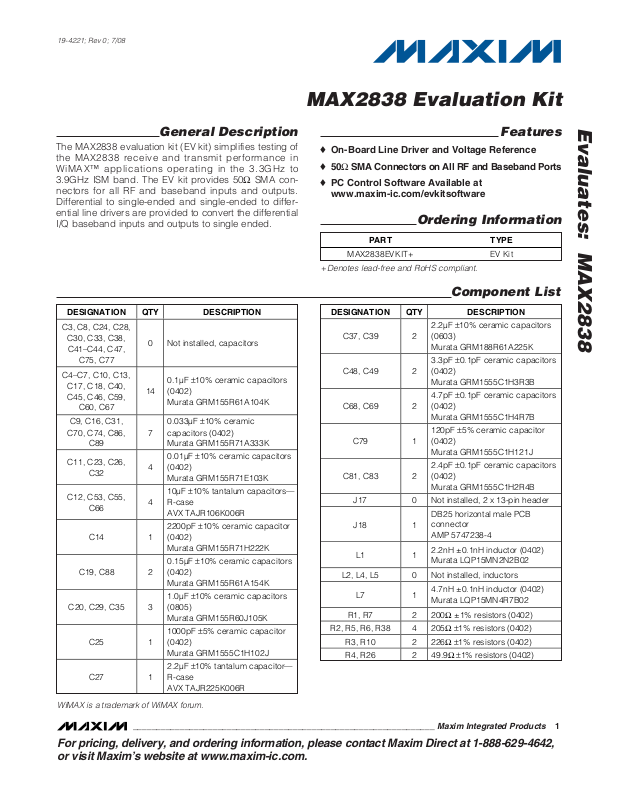

General Description
The MAX2838 evaluation kit (EV kit) simplifies testing of
the MAX2838 receive and transmit performance in
WiMAX™ applications operating in the 3.3GHz to
3.9GHz ISM band. The EV kit provides 50Ω SMA connectors for all RF and baseband inputs and outputs.
Differential to single-ended and single-ended to differential line drivers are provided to convert the differential
I/Q baseband inputs and outputs to single ended.
Features
o On-Board Line Driver and Voltage Reference
o 50Ω SMA Connectors on All RF and Baseband Ports
o PC Control Software Available at
www.maxim-ic.com/evkitsoftware
Evaluates: MAX2838
MAX2838 Evaluation Kit
________________________________________________________________
Maxim Integrated Products
1
19-4221; Rev 0; 7/08
Component List
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
Ordering Information
+
Denotes lead-free and RoHS compliant.
WiMAX is a trademark of WiMAX forum.
DESIGNATION QTY DESCRIPTION
C3, C8, C24, C28,
C30, C33, C38,
C41–C44, C47,
C75, C77
C4–C7, C10, C13,
C17, C18, C40,
C45, C46, C59,
C60, C67
C9, C16, C31,
C70, C74, C86,
C89
C11, C23, C26,
C32
C12, C53, C55,
C66
C14 1
C19, C88 2
C20, C29, C35 3
C25 1
C27 1
0 Not installed, capacitors
0.1µF ±10% ceramic capacitors
14
(0402)
Murata GRM155R61A104K
0.033µF ±10% ceramic
7
capacitors (0402)
Murata GRM155R71A333K
0.01µF ±10% ceramic capacitors
4
(0402)
Murata GRM155R71E103K
10µF ±10% tantalum capacitors—
4
R-case
AVX TAJR106K006R
2200pF ±10% ceramic capacitor
(0402)
Murata GRM155R71H222K
0.15µF ±10% ceramic capacitors
(0402)
Murata GRM155R61A154K
1.0µF ±10% ceramic capacitors
(0805)
Murata GRM155R60J105K
1000pF ±5% ceramic capacitor
(0402)
Murata GRM1555C1H102J
2.2µF ±10% tantalum capacitor—
R-case
AVX TAJR225K006R
PART TYPE
MAX283 8EVKIT+ EV Kit
DESIGNATION QTY DESCRIPTION
C37, C39 2
C48, C49 2
C68, C69 2
C79 1
C81, C83 2
J17 0 Not installed, 2 x 13-pin header
J18 1
L1 1
L2, L4, L5 0 Not installed, inductors
L7 1
R1, R7 2 200Ω ±1% resistors (0402)
R2, R5, R6, R38 4 205Ω ±1% resistors (0402)
R3, R10 2 226Ω ±1% resistors (0402)
R4, R26 2 49.9Ω ±1% resistors (0402)
2.2µF ±10% ceramic capacitors
(0603)
Murata GRM188R61A225K
3.3pF ±0.1pF ceramic capacitors
(0402)
Murata GRM1555C1H3R3B
4.7pF ±0.1pF ceramic capacitors
(0402)
Murata GRM1555C1H4R7B
120pF ±5% ceramic capacitor
(0402)
Murata GRM1555C1H121J
2.4pF ±0.1pF ceramic capacitors
(0402)
Murata GRM1555C1H2R4B
DB25 horizontal male PCB
connector
AMP 5747238-4
2.2nH ±0.1nH inductor (0402)
Murata LQP15MN2N2B02
4.7nH ±0.1nH inductor (0402)
Murata LQP15MN4R7B02
Page 2
Evaluates: MAX2838
MAX2838 Evaluation Kit
2 _______________________________________________________________________________________
Component List (continued)
DESIGNATION QTY DESCRIPTION
R8, R11, R15, R19,
R23, R24, R25,
R27, R28, R30,
R35, R39, R41,
R43, R45–R50,
R52–R64, R66
R12, R31, R40,
R42, R65, R67
R20, R51 2 750Ω ±5% resistors (0402)
R21, R22 2 61.9Ω ±1% resistors (0402)
R33, R36 2
R34 1 620Ω ±5% resistor (0402)
R37 1 301Ω ±1% resistor (0402)
R44 1 10Ω ±5% resistor (0402)
R68 1 0Ω ±5% resistor (0402)
T1, T2 2
T3 1
U1, U3 2
U2, U6 2
U4 1
U7 1
U8, U9 2
U10 1
U11 1
U13 1
U14 0 Not installed, ultra-low-noise LDO
0 Not installed, resistors
0 Not installed, resistors
1kΩ trimmer potentiometers
Bourns 3296W-1-102LF
3.6GHz RF baluns
Murata LDB213G6010C-001
4.5GHz RF balun
Murata LDB184G5010C-110
Low-noise differential ADC drivers
ADI AD8139ARDZ
Maxim MAX4444ESE+
(16 narrow SO)
Maxim MAX2838ETM+
(48 Thin QFN-EP,
6mm x 6mm x 0.8mm)
Low-dropout linear regulator
Maxim MAX8887EZK29+
(5 SOT23)
SN74LVTH244ADB
Texas Instruments
SN74LVTH244ADBR
Low-dropout voltage reference
Maxim MAX6062AEUR+
(3 SOT23)
40MHz TCXO
Kyocera
KT3225N40000ECV28ZAA
Ultra-low-noise LDO
Maxim MAX8510EXK29+
(5 SC70)
DESIGNATION QTY DESCRIPTION
B1–B7, CSB, DIN,
DOUT, ENABLE,
PABIAS, RXHP,
TXENOUT/RSSI,
C LKC O U T, RX BBI,
RX BBQ , RX RF,
TX BBI, TX BBQ ,
JPRXHP, JPRXTX,
VC CCP , V CCD B,
VC CDIG, VCC LNA,
VC CLO, V CCP AD,
VCCREF, VCCRXFL,
V C C V C O, JPRXBBI+,
JPTXBBI+, JPTXBBI-,
JPTXBBQ-, TUNE
+5V, -5V, VBAT,
RXTX, SCLK,
TPCLKOUT,
TPSPIDOUT,
VCM
TX RF, V C OIO
FREF 0
GND1, GND2 2
JPB1–JPB7,
JPSHDNB,
RXBBBUF
JP2CSB,
JPENABLE,
JPSHDNB,
JPSPICLK,
JPSPIDIN
V C C RX M X ,
V C C RX V GA,
V C C TC X O,
V C C TX M X ,
JPRXBBI-,
JPRXBBQ+,
JPRXBBQ-,
JPTXBBQ+,
VCCAUX
—8
— 1 MAX2838 EV Kit+ PCB
Test points, PCB mini-red
19
Keystone 5000
SMA edge-mount connectors,
8
round
Johnson 142-0701-801
Not installed, SMA edge-mount
connector
Test points, PCB black
Keystone 5011
1 x 3-pin headers
9
Sullins PEC36SAAN
0 Not installed, 1 x 3-pin headers
0 Not installed, 1 x 2-pin headers
Test points, PCB red
4
Keystone 5010
Shunts (JPB1–JPB7, RXBBBUF)
Sullins SSC02SYAN
Page 3
Evaluates: MAX2838
MAX2838 Evaluation Kit
_______________________________________________________________________________________ 3
Component Suppliers
Note: Indicate that you are using the MAX2838 when contacting these component suppliers.
Quick Start
Recommended Test Equipment
This section lists the recommended test equipment to
verify the operation of the MAX2838. It is intended as a
guide only and substitutions may be possible:
• DC supply capable of delivering +5V and 250mA of
continuous current
• DC supply capable of delivering -5V and 250mA of
continuous current
• DC supply capable of delivering +3.3V and 250mA
of continuous current
• One HP 8648 or equivalent signal source capable of
generating 0dBm up to 3.9GHz
• Two HP or equivalent arbitrary waveform generators
• One HP 8561E or equivalent RF spectrum analyzer
with a minimum 100kHz to 3GHz frequency range
• One TDS3012 or equivalent oscilloscope with
200MHz bandwidth
• One HP 437B power meter and power head
• A user-supplied Windows® 95/98/2000/XP (or later)
PC with an available parallel port
• One female-to-male 25-pin parallel straight-through
cable
Connections and Setup
The MAX2838 EV kit is fully assembled and factory tested. Follow the instructions below to test the devices.
This section provides step-by-step instructions for getting the EV kit up and running in all modes:
1) Install and run the MAX2838 control software.
Select MAX2838 for MAXIM IC type under Options.
2) To control the EV kit through the 4-wire interface,
connect the female-to-male 25-pin parallel straightthrough cable between the PC and the EV kit.
3) With the power supply turned off, connect the +3.3V
power supply to VBAT and VCCAUX. Connect the
power-supply ground to the header labeled GND.
4) With the power supply turned off, connect the +5V
power supply to the +5V pin and the -5V power
supply to the -5V pin. Connect the power-supply
ground to the header labeled GND. Connect all the
power-supply grounds together.
5) Set the RXBBBUF jumper across pins 1-2 to enable
the Rx baseband buffers.
6) Turn on the +3.3V power supply, and the +5V and
-5V power supplies.
7) In the Enables panel of the software, check the
EN_SPI box to enable the 3-wire interface.
8) Adjust the Tx common-mode potentiometer (R36)
until measuring 0.9V common-mode voltage at the
VCM test point.
9) In the Registers panel of the software, set ENABLE
to 0 and RXTX to 1 to put the IC into standby mode.
10) In the Synth panel of the software, set the LO frequency to 3600MHz.
Receive Mode
1) Use the power meter to calibrate the RF signal generator to deliver -98dBm at 3601MHz. After calibration, turn the RF signal generator off, disconnect it
from the power meter, and connect it to the RXRF
port of the MAX2838 EV kit.
2) Connect either the I or the Q baseband output to a
spectrum analyzer. Set the center frequency to be
1MHz and the span to be 1MHz.
3) In the Registers panel of the software, enter the recommended register setting shown in Figure 1 for
operating the MAX2838 in steady-state receive
mode bench measurement. This setup fixes the
VGA highpass corner at 1kHz.
Windows is a registered trademark of Microsoft Corp.
SUPPLIER PHONE WEBSITE
Analog Device 800-262-5643 www.analog.com
Digi-Key Corp. 800-344-4539 www.digikey.com
Keystone Electronics Corp. 800-221-5510 www.keyelco.com
Murata Mfg. Co., Ltd. 770-436-1300 www.murata-northamerica.com
Page 4
Evaluates: MAX2838
4) Press the SEND ALL button.
5) In the Registers panel of the software, set ENABLE
and RXTX to be 1 to activate the receive path.
6) In the RX panel of the software, toggle the LNA gain
enable and the baseband VGA enable both to be
SPI. Set both of the gain controls to be max.
7) Turn on the RF signal source. The output CW tone
at 1MHz should be approximately 0dBm.
Transmit Mode
1) Connect the spectrum analyzer to the TXRF port.
Set the center frequency to be 3600MHz and the
span to be 5MHz.
2) Connect a 1MHz I/Q signal to pins TXBBI and
TXBBQ, respectively. Set the input amplitude of
each channel to 90mV
RMS
with 90 degrees phase
shift.
3) In the Registers panel of the software, set ENABLE to
be 1 and RXTX to be 0 to activate the transmit path.
4) In the Registers panel of the software, enter the recommended register setting shown in Figure 2.
5) Press the Send All button.
6) Enable the output of the baseband signal sources.
The desired tone, LO leakage, and the sideband
appear at 3601MHz, 3600MHz, and 3599MHz,
MAX2838 Evaluation Kit
4 _______________________________________________________________________________________
Figure 1. Receive Mode Register Setting
Page 5
respectively. In the TX panel of the software, toggle
TXVGA to be SPI. Set the Tx VGA gain to be 3dB
back from the max gain. The power level of the
desired tone is approximately -1.5dBm in the spectrum analyzer marker reading, assuming that the
balun on board contributes a 1dB loss.
Layout Considerations
The MAX2838 EV kit can serve as a guide for board
layout. Keep PCB trace lengths as short as possible to
minimize parasitic inductance. Also, keep decoupling
capacitors as close to the IC as possible with a direct
connection to the ground plane.
Power-Supply Layout
To minimize coupling between different sections of the
IC, use a “star” power-supply routing configuration with
a large decoupling capacitor at a central V
CC
node.
The V
CC
traces branch out from this node, each going
to a separate VCCnode in the circuit. Place a bypass
capacitor as close to each supply pin as possible. This
arrangement provides local decoupling at each V
CC
pin. Use at least one via per bypass capacitor for a lowinductance ground connection. Do not share the
capacitor ground vias with any other branch.
Evaluates: MAX2838
MAX2838 Evaluation Kit
_______________________________________________________________________________________ 5
Figure 2. Transmit Mode Register Setting
Page 6
Evaluates: MAX2838
MAX2838 Evaluation Kit
6 _______________________________________________________________________________________
Figure 3a. MAX2838 EV Kit Schematic (Sheet 1 of 2)
Page 7
Evaluates: MAX2838
MAX2838 Evaluation Kit
_______________________________________________________________________________________ 7
Figure 3b. MAX2838 EV Kit Schematic (Sheet 2 of 2)
Page 8
Evaluates: MAX2838
MAX2838 Evaluation Kit
8 _______________________________________________________________________________________
Figure 4. MAX2838 EV Kit PCB Layout—Top Silkscreen
Page 9
Evaluates: MAX2838
MAX2838 Evaluation Kit
_______________________________________________________________________________________ 9
Figure 5. MAX2838 EV Kit PCB Layout—Component Side
Page 10
Evaluates: MAX2838
MAX2838 Evaluation Kit
10 ______________________________________________________________________________________
Figure 6. MAX2838 EV Kit PCB Layout—Inner Layer 2, Ground Layer
Page 11
Evaluates: MAX2838
MAX2838 Evaluation Kit
______________________________________________________________________________________ 11
Figure 7. MAX2838 EV Kit PCB Layout—Inner Layer 3, Routes
Page 12
Evaluates: MAX2838
MAX2838 Evaluation Kit
12 ______________________________________________________________________________________
Figure 8. MAX2838 EV Kit PCB Layout—Solder Side
Page 13
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________
13
© 2008 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.
Evaluates: MAX2838
MAX2838 Evaluation Kit
Figure 9. MAX2838 EV Kit PCB Layout—Bottom Silkscreen
Loading...
