Maxim MAX12527 Specifications

General Description

The MAX12527 is a dual 3.3V, 12-bit analog-to-digital
converter (ADC) featuring fully differential wideband
track-and-hold (T/H) inputs, driving internal quantizers.
The MAX12527 is optimized for low power, small size,
and high dynamic performance in intermediate frequen­cy (IF) and baseband sampling applications. This dual
ADC operates from a single 3.3V supply, consuming
only 620mW while delivering a typical 69.8dB signal-to­noise ratio (SNR) performance at a 175MHz input fre­quency. The T/H input stages accept single-ended or
differential inputs up to 400MHz. In addition to low oper­ating power, the MAX12527 features a 166µW power­down mode to conserve power during idle periods.

A flexible reference structure allows the MAX12527 to
use the internal 2.048V bandgap reference or accept
an externally applied reference and allows the refer­ence to be shared between the two ADCs. The refer­ence structure allows the full-scale analog input range
to be adjusted from ±0.35V to ±1.15V. The MAX12527
provides a common-mode reference to simplify design
and reduce external component count in differential
analog input circuits.

The MAX12527 supports either a single-ended or differ­ential input clock. User-selectable divide-by-two (DIV2)
and divide-by-four (DIV4) modes allow for design flexibil­ity and help eliminate the negative effects of clock jitter.
Wide variations in the clock duty cycle are compensated
with the ADC’s internal duty-cycle equalizer (DCE).

The MAX12527 features two parallel, 12-bit-wide,
CMOS-compatible outputs. The digital output format is
pin-selectable to be either two’s complement or Gray
code. A separate power-supply input for the digital out­puts accepts a 1.7V to 3.6V voltage for flexible interfac­ing with various logic levels. The MAX12527 is available
in a 10mm x 10mm x 0.8mm, 68-pin thin QFN package
with exposed paddle (EP), and is specified for the
extended (-40°C to +85°C) temperature range.

For a 14-bit, pin-compatible version of this ADC, refer to
the MAX12557 data sheet.

Applications

IF and Baseband Communication Receivers

Cellular, LMDS, Point-to-Point Microwave,

MMDS, HFC, WLAN
I/Q Receivers
Ultrasound and Medical Imaging
Portable Instrumentation
Digital Set-Top Boxes
Low-Power Data Acquisition

Features

♦ Direct IF Sampling Up to 400MHz
♦ Excellent Dynamic Performance

70.4dB/69.8dB SNR at f

IN

= 70MHz/175MHz

84.4dBc/80.2dBc SFDR at fIN= 70MHz/175MHz

♦ 3.3V Low Power Operation

647mW (Differential Clock Mode)
620mW (Single-Ended Clock Mode)

♦ Fully Differential or Single-Ended Analog Input
♦ Adjustable Differential Analog Input Voltage
♦ 750MHz Input Bandwidth
♦ Adjustable, Internal or External, Shared Reference
♦ Differential or Single-Ended Clock
♦ Accepts 25% to 75% Clock Duty Cycle
♦ User-Selectable DIV2 and DIV4 Clock Modes
♦ Power-Down Mode
♦ CMOS Outputs in Two’s Complement or Gray

Code

♦ Out-of-Range and Data-Valid Indicators
♦ Small, 68-Pin Thin QFN Package
♦ 14-Bit Compatible Version Available (MAX12557)
♦ Evaluation Kit Available (Order MAX12527 EV Kit)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-3543; Rev 0; 2/05

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

EVALUATION KIT

AVAILABLE

PART

TEMP RANGE

PIN-PACKAGE

MAX12527ETK

68 Thin QFN-EP*

(10mm x 10mm x 0.8mm)

Pin Configuration appears at end of data sheet.

*EP = Exposed paddle.

PART

SAMPLING RATE

(Msps)

RESOLUTION

(Bits)

MAX12557 65 14
MAX12527 65 12

Selector Guide

-40°C to +85°C

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/

SECLK = OVDD, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDDto GND................................................................-0.3V to +3.6V

OV

DD

to GND............-0.3V to the lower of (VDD+ 0.3V) and +3.6V

INAP, INAN to GND ...-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

INBP, INBN to GND ...-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

CLKP, CLKN to

GND........................-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

REFIN, REFOUT

to GND ..................-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

REFAP, REFAN,

COMA to GND......-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

REFBP, REFBN,

COMB to GND......-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

DIFFCLK/SECLK, G/T, PD, SHREF, DIV2,

DIV4 to GND .........-0.3V to the lower of (VDD+ 0.3V) and +3.6V

D0A–D11A, D0B–D11B, DAV,

DORA, DORB to GND..............................-0.3V to (OV

DD

+ 0.3V)

Continuous Power Dissipation (T

A

= +70°C)
68-Pin Thin QFN 10mm x 10mm x 0.8mm

(derate 70mW/°C above +70°C) ....................................4000mW

Operating Temperature Range................................-40°C to +85°C

Junction Temperature...........................................................+150°C

Storage Temperature Range .................................-65°C to +150°C

Lead Temperature (soldering 10s).......................................+300°C

PARAMETER

CONDITIONS

UNITS

DC ACCURACY

Resolution 12 Bits
Integral Nonlinearity INL fIN = 3MHz

LSB

Differential Nonlinearity DNL fIN = 3MHz, no missing codes

LSB

Offset Error

%FSR

Gain Error

(Note 2)

%FSR

ANALOG INPUT (INAP, INAN, INBP, INBN)

Differential Input Voltage Range V

DIFF

Differential or single-ended inputs

V

Common-Mode Input Voltage

V

Analog Input Resistance R

IN

Each input (Figure 3) 3.4 kΩ

C

PAR

Fixed capacitance to ground,
each input (Figure 3)

2

Analog Input Capacitance

Switched capacitance,
each input (Figure 3)

4.5

pF

CONVERSION RATE

Maximum Clock Frequency f

CLK

65 MHz

Minimum Clock Frequency 5 MHz
Data Latency Figure 5 8

Clock

Cycles

DYNAMIC CHARACTERISTICS (differential inputs)
Small-Signal Noise Floor SSNF Input at -35dBFS (Note 2)

dBFS

fIN = 3MHz at -0.5dBFS
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Signal-to-Noise Ratio SNR

f

IN

= 175MHz at -0.5dBFS

dB

SYMBOL

MIN TYP MAX

±0.3 ±1.1
±0.3 ±0.65
±0.1 ±0.7
±0.5 ±5.7
±0.5 ±3.4

±1.024
V

/ 2

DD

C

SAMPLE

67.0 71.1

68.2 70.8

67.2 69.8

70.6

70.4

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/SECLK = OV

DD

, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

fIN = 3MHz at -0.5dBFS
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Signal-to-Noise Plus Distortion SINAD

f

IN

= 175MHz at -0.5dBFS

dB

fIN = 3MHz at -0.5dBFS (Note 2)

91
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Spurious-Free Dynamic Range SFDR

f

IN

= 175MHz at -0.5dBFS

dBc

fIN = 3MHz at -0.5dBFS (Note 2)
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Total Harmonic Distortion THD

f

IN

= 175MHz at -0.5dBFS

dBc

fIN = 3MHz at -0.5dBFS -98
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Second Harmonic HD2

f

IN

= 175MHz at -0.5dBFS

dBc

fIN = 3MHz at -0.5dBFS -97
fIN = 32.5MHz at -0.5dBFS
fIN = 70MHz at -0.5dBFS

Third Harmonic HD3

f

IN

= 175MHz at -0.5dBFS

dBc

f

IN1

= 68.5MHz at -7dBFS

f

IN2

= 71.5MHz at -7dBFS

-89

Two-Tone Intermodulation
Distortion (Note 3)

TTIMD

f

IN1

= 172.5MHz at -7dBFS

f

IN2

= 177.5MHz at -7dBFS

dBc

f

IN1

= 68.5MHz at -7dBFS

f

IN2

= 71.5MHz at -7dBFS

3rd-Order Intermodulation
Distortion

IM3

f

IN1

= 172.5MHz at -7dBFS

f

IN2

= 177.5MHz at -7dBFS

dBc

f

IN1

= 68.5MHz at -7dBFS

f

IN2

= 71.5MHz at -7dBFS

Two-Tone Spurious-Free
Dynamic Range

f

IN1

= 172.5MHz at -7dBFS

f

IN2

= 177.5MHz at -7dBFS

dBc

Full-Power Bandwidth FPBW Input at -0.2dBFS, -3dB rolloff

MHz

Aperture Delay t

AD

Figure 5 1.2 ns

Aperture Jitter t

AJ

Output Noise n

OUT

INAP = INAN = COMA
INBP = INBN = COMB

0.3

SYMBOL

SFDR

TT

MIN TYP MAX UNITS

68.1 70.7

70.4

70.2

65.9 69.3

81.9

86.3

84.4

71.1 80.2

-92.6 -82.9

-84.3

-83.7

-78.9 -69.8

-91.7

-94.5

-80.2

-86.3

-84.4

-85.6

-82.2

-92.2

-88.9

90.6

82.9
750

<0.15 ps

LSB

RMS

RMS

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/SECLK = OV

DD

, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

Overdrive Recovery Time ±10% beyond full-scale 1

Clock

cycle

INTERCHANNEL CHARACTERISTICS

f

INA

or f

INB

= 70MHz at -0.5dBFS 90

Crosstalk Rejection

f

INA

or f

INB

= 175MHz at -0.5dBFS 85

dB

Gain Matching

dB

Offset Matching

%FSR

INTERNAL REFERENCE (REFOUT)
REFOUT Output Voltage

V

REFOUT Load Regulation -1mA < I

REFOUT

< +1mA 35

mV/mA

REFOUT Temperature Coefficient

TC

REF

ppm/°C

Short to VDD—sinking

REFOUT Short-Circuit Current

Short to GND—sourcing 2.1

mA

BUFFERED REFERENCE MODE (REFIN is driven by REFOUT or an external 2.048V single-ended reference source;

V

REFAP

/V

REFAN/VCOMA

and V

REFBP

/V

REFBN/VCOMB

are generated internally)

REFIN Input Voltage V

REFIN

V

REFIN Input Resistance R

REFIN

MΩ

COM_ Output Voltage

V

COMA

V

COMB

VDD / 2

V

REF_P Output Voltage

V

REFAP

VDD / 2 + (V

REFIN

x 3/8)

V

REF_N Output Voltage

V

REFAN

VDD / 2 - (V

REFIN

x 3/8)

V

Differential Reference Voltage

V

REFA

V

REFB

V

REFA

= V

REFAP

- V

REFAN

V

REFB

= V

REFBP

- V

REFBN

V

Differential Reference
Temperature Coefficient

TC

REF

ppm/°C

UNBUFFERED EXTERNAL REFERENCE (REFIN = GND, V

REFAP/VREFAN/VCOMA

and V

REFBP/VREFBN/VCOMB

are applied

externally, V

COMA

= V

COMB

= VDD / 2)

REF_P Input Voltage

V

REFAP

V

REF_P

- V

COM

V

REF_N Input Voltage

V

REFAN

V

REF_N

- V

COM

V

COM_ Input Voltage V

COM

VDD / 2

V

Differential Reference Voltage

V

REFA

V

REFB

V

REF_

= V

REF_P

- V

REF_N

= V

REFIN

x 3/4

V

SYMBOL

MIN TYP MAX

±0.01 ±0.1
±0.01

V

REFOUT

2.000 2.048 2.080

V

REFBP

V

REFBN

V

REFBP

V

REFBN

1.60 1.65 1.70

1.440 1.536 1.590

+0.768

±50

0.24

2.048
>50

2.418

0.882

±25

-0.768

1.65

1.536

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/SECLK = OV

DD

, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

REF_P Sink Current

I

REFAP

I

REFBP

V

REF_P

= 2.418V 1.2 mA

REF_N Source Current

I

REFAN

I

REFBN

V

REF_N

= 0.882V

mA

COM_ Sink Current

I

COMA

I

COMB

V

COM_

= 1.65V

mA

REF_P, REF_N Capacitance

C

REF_P

,

13 pF

COM_ Capacitance C

COM_

6pF

CLOCK INPUTS (CLKP, CLKN)

Single-Ended Input High
Threshold

V

IH

DIFFCLK/SECLK = GND, CLKN = GND

0.8 x
V

Single-Ended Input Low
Threshold

V

IL

DIFFCLK/SECLK = GND, CLKN = GND

0.2 x
V

Minimum Differential Clock Input
Voltage Swing

DIFFCLK/SECLK = OV

DD

0.2 V

P-P

Differential Input Common-Mode
Voltage

DIFFCLK/SECLK = OV

DD

V

CLK_ Input Resistance R

CLK

Each input (Figure 4) 5 kΩ

CLK_ Input Capacitance C

CLK

Each input 2 pF

DIGITAL INPUTS (DIFFCLK/SECLK, G/T, PD, DIV2, DIV4)

Input High Threshold V

IH

0.8 x
V

Input Low Threshold V

IL

0.2 x
V

OVDD applied to input ±5

Input Leakage Current

Input connected to ground ±5

µA

Digital Input Capacitance C

DIN

5pF

DIGITAL OUTPUTS (D0A–D11A, D0B–D11B, DORA, DORB, DAV)

D0A–D11A, D0B–D11B, DORA, DORB:
I

SINK

= 200µA

0.2

Output-Voltage Low V

OL

DAV: I

SINK

= 600µA 0.2

V

D0A–D11A, D0B–D11B, DORA, DORB:
I

SOURCE

= 200µA

OV

DD

-

0.2

Output-Voltage High V

OH

DAV: I

SOURCE

= 600µA

OV

DD

-

0.2

V

OVDD applied to input ±5

Tri-State Leakage Current
(Note 4)

I

LEAK

Input connected to ground ±5

µA

SYMBOL

C

REF_N

MIN TYP MAX

0.85

0.85

V

DD

V

DD

V

/ 2

DD

OV

DD

OV

DD

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

6 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/SECLK = OV

DD

, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

D 0A–D 11A, D O RA,
D 0B–D 11B and D ORB Tr i - S tate
O utp ut C ap aci tance ( N ote 4)

C

OUT

3pF

DAV Tri-State Output
Capacitance (Note 4)

C

DAV

6pF

POWER REQUIREMENTS

Analog Supply Voltage V

DD

V

Digital Output Supply Voltage OV

DD

2.0

V

Normal operating mode
f

IN

= 175MHz at -0.5dBFS,
single-ended clock
(DIFFCLK/SECLK = GND)

Normal operating mode
f

IN

= 175MHz at -0.5dBFS
differential clock
(DIFFCLK/SECLK = OV

DD

)

Analog Supply Current I

VDD

Power-down mode (PD = OVDD)
clock idle

mA

Normal operating mode
f

IN

= 175MHz at -0.5dBFS
single-ended clock
(DIFFCLK/SECLK = GND)

Normal operating mode
f

IN

= 175MHz at -0.5dBFS
differential clock
(DIFFCLK/SECLK = OV

DD

)

Analog Power Dissipation P

VDD

Power-down mode (PD = OVDD)
clock idle

mW

Normal operating mode
f

IN

= 175MHz at -0.5dBFS

Digital Output Supply Current I

OVDD

Power-down mode (PD = OVDD)
clock idle

mA

SYMBOL

MIN TYP MAX

3.15 3.30 3.60

1.70

188

196 215

V

DD

0.05

620

647 710

0.165

19.7

0.001

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

_______________________________________________________________________________________ 7

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), CL≈ 10pF at digital outputs, VIN= -0.5dBFS (differen­tial), DIFFCLK/SECLK = OV

DD

, PD = GND, SHREF = GND, DIV2 = GND, DIV4 = GND, G/T = GND, f

CLK

= 65MHz, TA= -40°C to

+85°C, unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

TIMING CHARACTERISTICS (Figure 5)

Clock Pulse-Width High t

CH

7.7 ns

Clock Pulse-Width Low t

CL

7.7 ns

Data-Valid Delay t

DAV

5.4 ns

Data Setup Time Before Rising
Edge of DAV

t

SETUP

(Note 5) 7.0 ns

Data Hold Time After Rising Edge
of DAV

t

HOLD

(Note 5) 7.0 ns

Wake-Up Time from Power-Down

t

WAKE

V

REFIN

= 2.048V 10 ms

Note 1: Specifications ≥+25°C guaranteed by production test, <+25°C guaranteed by design and characterization.
Note 2: Specifications guaranteed by production test for ≥+25°C.
Note 3: Two-tone intermodulation distortion measured with respect to a single-carrier amplitude, and not the peak-to-average input

power of both input tones.

Note 4: During power-down, D0A–D11A, D0B–D11B, DORA, DORB, and DAV are high impedance.
Note 5: Guaranteed by design and characterization.

Typical Operating Characteristics

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference mode), CL≈ 5pF at digital outputs, VIN= -0.5dBFS,
DIFFCLK/SECLK = OV

DD

, PD = GND, G/T = GND, f

CLK

= 65MHz (50% duty cycle), TA= +25°C, unless otherwise noted.)

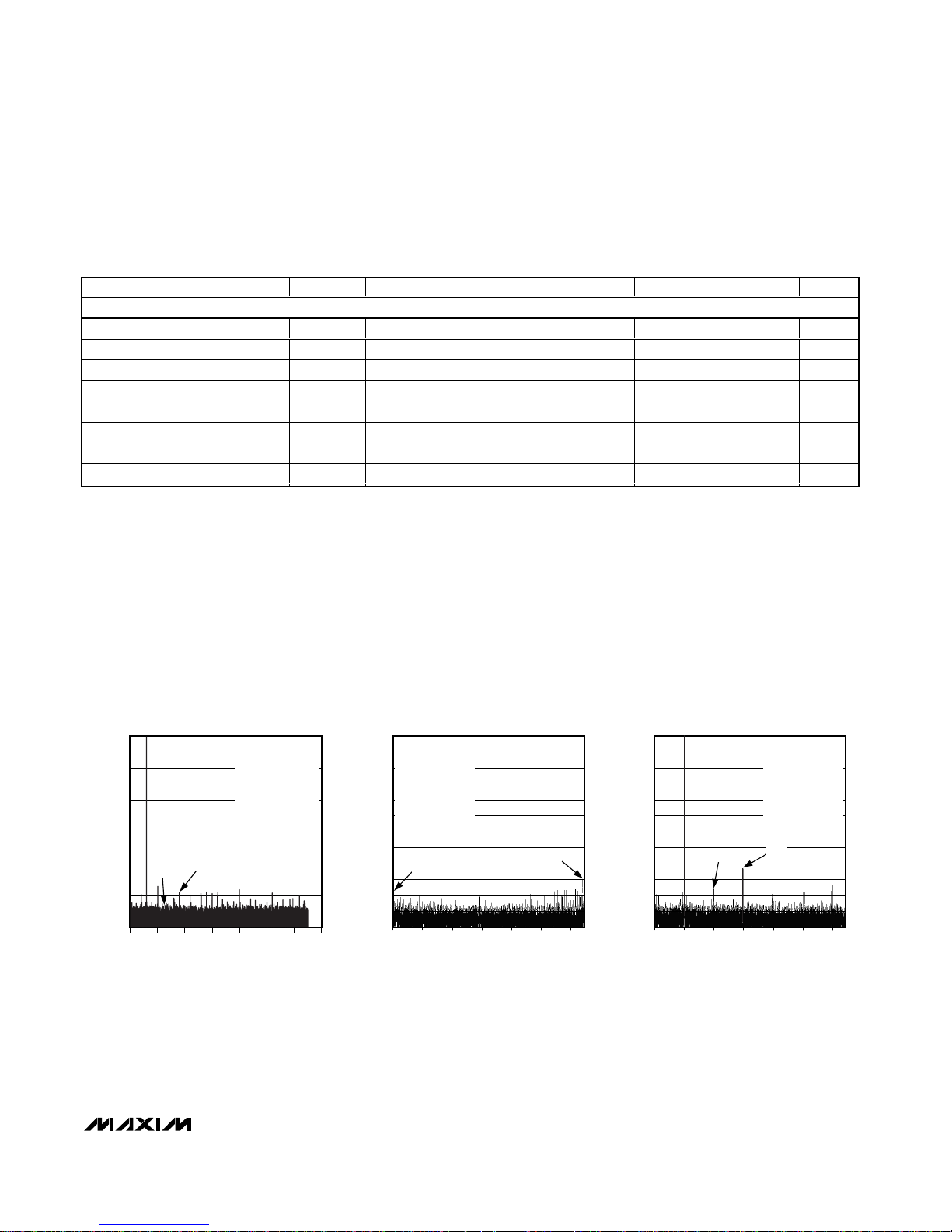

FFT PLOT (16,384-POINT DATA RECORD)

MAX12527 toc01

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

30252015105

-100

-80

-60

-40

-20

0

-120
035

f

CLK

= 65MHz

f

IN

= 3.00125MHz

A

IN

= -0.53dBFS
SNR = 71dB
SINAD = 70.9dB
THD = -94dBc
SFDR = 93.6dBc

HD2

HD3

FFT PLOT (32,768-POINT DATA RECORD)

MAX12527 toc02

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

302515 20105

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-120
0

f

CLK

= 65.00352MHz

f

IN

= 32.40059MHz

A

IN

= -0.506dBFS
SNR = 70.5dB
SINAD = 70.2dB
THD = -86.9dBc
SFDR = 88.7dBc

HD2

HD3

FFT PLOT (32,768-POINT DATA RECORD)

MAX12527 toc03

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

302515 20105

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-120
0

f

CLK

= 65.00352MHz

f

IN

= 70.00852MHz

A

IN

= -0.506dBFS
SNR = 70.1dB
SINAD = 69.8dB
THD = -82.1dBc
SFDR = 82.4dBc

HD2

HD3

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

8 _______________________________________________________________________________________

INTEGRAL NONLINEARITY

vs. DIGITAL OUTPUT CODE

MAX12527 toc07

DIGITAL OUTPUT CODE

INL (LSB)

360030001800 24001200600

-0.4

-0.3

-0.2

-0.1

0

0.1

0.2

0.3

0.4

0.5

-0.5
0 4200

f

CLK

= 65MHz

f

IN

= 3.00119MHz

DIFFERENTIAL NONLINEARITY

vs. DIGITAL OUTPUT CODE

MAX12527 toc08

DIGITAL OUTPUT CODE

DNL (LSB)

360030001800 24001200600

-0.4

-0.3

-0.2

-0.1

0

0.1

0.2

0.3

0.4

0.5

-0.5
0 4200

f

CLK

= 65MHz

f

IN

= 3.00119MHz

SNR, SINAD vs. ANALOG INPUT FREQUENCY

(f

CLK

= 65.00352MHz, AIN = -0.5dBFS)

MAX12527 toc09

fIN (MHz)

SNR, SINAD (dB)

350300200 250100 15050

52

54

56

58

60

62

64

66

68

70

72

50

0 400

SINAD

SNR

-THD, SFDR vs. ANALOG INPUT FREQUENCY
(f

CLK

= 65.00352MHz, AIN = -0.5dBFS)

MAX12527 toc10

fIN (MHz)

-THD, SFDR (dBc)

350300200 250100 15050

55

60

65

70

75

80

85

90

95

50

0 400

SFDR

-THD

SNR, SINAD vs. ANALOG INPUT AMPLITUDE

(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc11

AIN (dBFS)

SNR, SINAD (dB)

-5-10-15-20-25-30-35-40-45-50

25

35

45

55

65

75

15

-55 0

SNR

SINAD

-THD, SFDR vs. ANALOG INPUT AMPLITUDE
(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc12

AIN (dBFS)

-THD, SFDR (dBc)

-5-10-15-20-25-30-35-40-45-50

35

45

55

65

75

85

95

25

-55 0

SFDR

-THD

FFT PLOT (32,768-POINT DATA RECORD)

MAX12527 toc04

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

302515 20105

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-120
0

f

CLK

= 65.00352MHz

f

IN

= 174.90525MHz

A

IN

= -0.448dBFS
SNR = 69.4dB
SINAD = 68.9dB
THD = -78.6dBc
SFDR = 81.1dBc

HD2

HD3

TWO-TONE IMD PLOT

(16,384-POINT DATA RECORD)

MAX12527 toc05

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

30252015105

-100

-80

-60

-40

-20

0

-120
0

f

CLK

= 65.00352MHz

f

IN1

= 68.49889MHz

f

IN2

= 71.49832MHz

A

IN1

= -6.96dBFS

A

IN2

= -7.02dBFS
IM3 = -92.25dBc
IMD = -89.08dBc

f

IN1

f

IN2

2f

IN2

+ f

IN1

TWO-TONE IMD PLOT

(16,384-POINT DATA RECORD)

MAX12527 toc06

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dBFS)

30252015105

-100

-80

-60

-40

-20

0

-120
0

f

CLK

= 65.00352MHz

f

IN1

= 172.50293MHz

A

IN1

= -6.99dBFS

f

IN2

= 177.40198MHz

A

IN2

= -7.01dBFS
IM3 = -88.88dBc
IMD = -82.24dBc

f

IN1

f

IN2

f

IN1

+ f

IN2

f

IN2

- f

IN1

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference mode), CL≈ 5pF at digital outputs, VIN= -0.5dBFS,
DIFFCLK/SECLK = OV

DD

, PD = GND, G/T = GND, f

CLK

= 65MHz (50% duty cycle), TA= +25°C, unless otherwise noted.)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

_______________________________________________________________________________________ 9

SNR, SINAD vs. ANALOG INPUT AMPLITUDE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc13

AIN (dBFS)

SNR, SINAD (dB)

-5-10-15-20-25-30-35-40-45-50

25

35

45

55

65

75

15

-55 0

SNR

SINAD

-THD, SFDR vs. ANALOG INPUT AMPLITUDE
(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc14

AIN (dBFS)

-THD, SFDR (dBc)

-5-10-15-20-25-30-35-40-45-50

35

45

55

65

75

85

95

25

-55 0

SFDR

-THD

SNR, SINAD vs. CLOCK SPEED
(f

IN

= 70MHz, AIN = -0.5dBFS)

MAX12527 toc15

f

CLK

(MHz)

SNR, SINAD (dB)

6055504540353025

62

64

66

68

70

72

60

20 65

SNR

SINAD

-THD, SFDR vs. CLOCK SPEED
(f

IN

= 70MHz, AIN = -0.5dBFS)

MAX12527 toc16

f

CLK

(MHz)

-THD, SFDR (dBc)

6055504540353025

65

70

75

80

85

90

60

20 65

SFDR

-THD

SNR, SINAD vs. CLOCK SPEED

(f

IN

= 175MHz, AIN = -0.5dBFS)

MAX12527 toc17

f

CLK

(MHz)

SNR, SINAD (dB)

6055504540353025

62

64

66

68

70

72

60

20 65

SNR

SINAD

-THD, SFDR vs. CLOCK SPEED

(f

IN

= 175MHz, AIN = -0.5dBFS)

MAX12527 toc18

f

CLK

(MHz)

-THD, SFDR (dBc)

6055504540353025

65

70

75

80

85

90

60

20 65

SFDR

-THD

SNR, SINAD vs. ANALOG SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc19

VDD (V)

SNR, SINAD (dB)

3.53.43.33.23.1

62

64

66

68

70

72

60

3.0 3.6

SINAD

SNR

-THD, SFDR vs. ANALOG SUPPLY VOLTAGE
(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc20

VDD (V)

-THD, SFDR (dBc)

3.53.43.33.23.1

65

70

75

80

85

90

60

3.0 3.6

-THD

SFDR

SNR, SINAD vs. ANALOG SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc21

VDD (V)

SNR, SINAD (dB)

3.53.43.33.23.1

62

64

66

68

70

72

60

3.0 3.6

SINAD

SNR

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference mode), CL≈ 5pF at digital outputs, VIN= -0.5dBFS,
DIFFCLK/SECLK = OV

DD

, PD = GND, G/T = GND, f

CLK

= 65MHz (50% duty cycle), TA= +25°C, unless otherwise noted.)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

10 ______________________________________________________________________________________

-THD, SFDR vs. ANALOG SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc22

VDD (V)

-THD, SFDR (dBc)

3.53.43.33.23.1

65

70

75

80

85

90

60

3.0 3.6

-THD

SFDR

SNR, SINAD vs. DIGITAL SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc23

OVDD (V)

SNR, SINAD (dB)

3.33.02.72.42.11.8

62

64

66

68

70

72

60

1.5 3.6

SNR

SINAD

-THD, SFDR vs. DIGITAL SUPPLY VOLTAGE
(f

CLK

= 65.00352MHz, fIN = 70MHz)

MAX12527 toc24

OVDD (V)

-THD, SFDR (dBc)

3.33.02.72.42.11.8

65

70

75

80

85

90

60

1.5 3.6

-THD

SFDR

SNR, SINAD vs. DIGITAL SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc25

OVDD (V)

SNR, SINAD (dB)

3.33.02.72.42.11.8

62

64

66

68

70

72

60

1.5 3.6

SNR

SINAD

-THD, SFDR vs. DIGITAL SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc26

OVDD (V)

-THD, SFDR (dBc)

3.33.02.72.42.11.8

65

70

75

80

85

90

60

1.5 3.6

-THD

SFDR

P

DISS

, I

VDD

(ANALOG) vs. ANALOG SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc27

VDD (V)

P

DISS

, I

VDD

(mW, mA)

3.53.43.33.23.1

100

200

300

400

500

600

700

800

900

0

3.0 3.6

P

DISS

(ANALOG)

I

VDD

P

DISS

, I

OVDD

(DIGITAL) vs. DIGITAL SUPPLY VOLTAGE

(f

CLK

= 65.00352MHz, fIN = 175MHz)

MAX12527 toc28

OVDD (V)

P

DISS

, I

OVDD

(mW, mA)

3.33.01.8 2.1 2.4 2.7

10

20

30

40

50

60

70

80

0

1.5 3.6

P

DISS

(DIGITAL)

CL ≈ 5pF

I

OVDD

SNR, SINAD vs. CLOCK DUTY CYCLE

(f

IN

= 70MHz, AIN = -0.5dBFS)

MAX12527 toc29

CLOCK DUTY CYCLE (%)

SNR, SINAD (dB)

65554535

62

64

66

68

70

72

60

25 75

SNR

SINAD

SINGLE-ENDED CLOCK INPUT DRIVE

-THD, SFDR vs. CLOCK DUTY CYCLE
(f

IN

= 70MHz, AIN = -0.5dBFS)

MAX12527 toc30

CLOCK DUTY CYCLE (%)

-THD, SFDR (dBc)

65554535

65

70

75

80

85

90

60

25 75

-THD

SFDR

SINGLE-ENDED CLOCK INPUT DRIVE

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference mode), CL≈ 5pF at digital outputs, VIN= -0.5dBFS,
DIFFCLK/SECLK = OV

DD

, PD = GND, G/T = GND, f

CLK

= 65MHz (50% duty cycle), TA= +25°C, unless otherwise noted.)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 11

SNR, SINAD vs. TEMPERATURE
(f

IN

= 175MHz, AIN = -0.5dBFS)

MAX12527 toc31

TEMPERATURE (°C)

SNR, SINAD (dB)

603510-15

62

64

66

68

70

72

60

-40 85

SNR

SINAD

-THD, SFDR vs. TEMPERATURE
(f

IN

= 175MHz, AIN = -0.5dBFS)

MAX12527 toc32

TEMPERATURE (°C)

-THD, SFDR (dBc)

603510-15

65

70

75

80

85

90

60

-40 85

-THD

SFDR

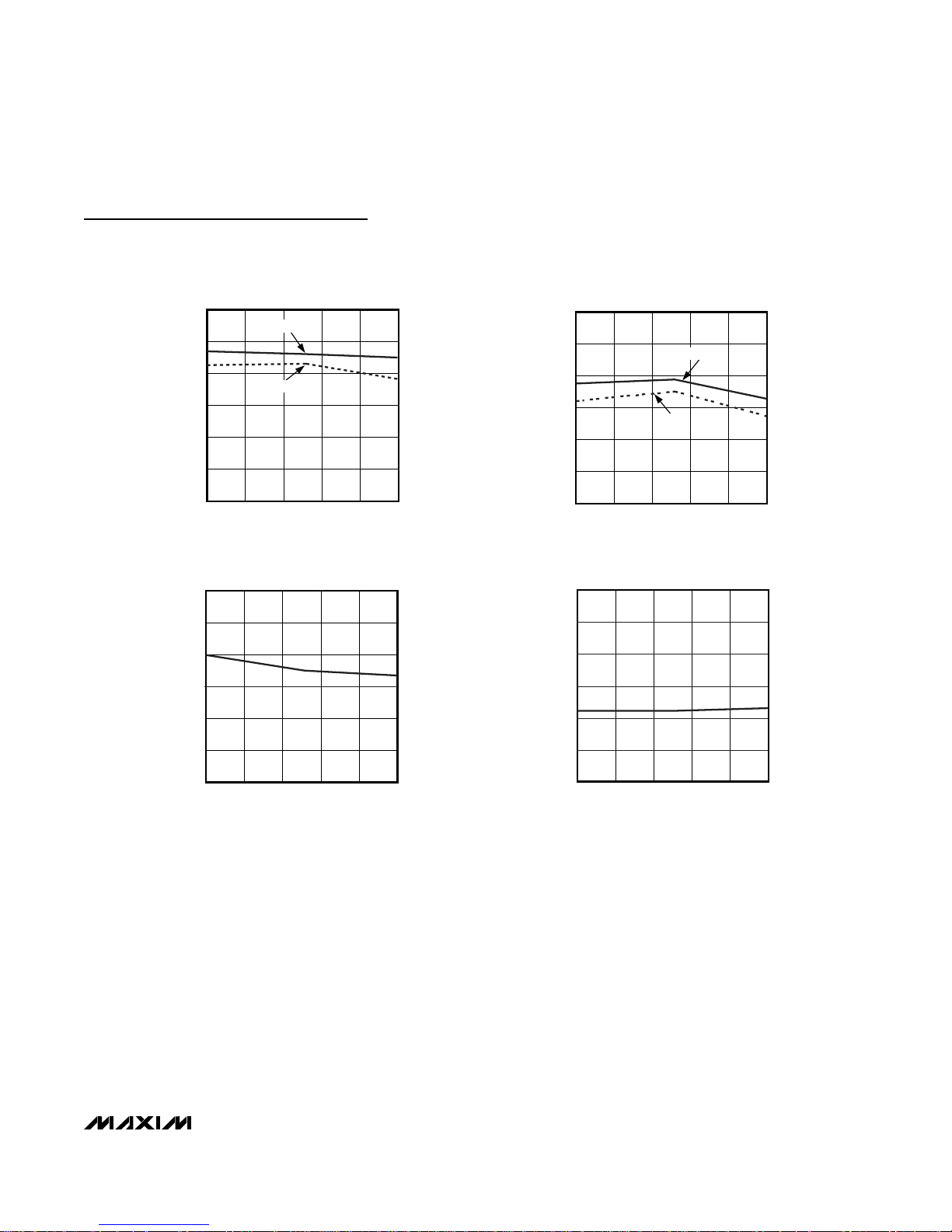

GAIN ERROR vs. TEMPERATURE

MAX12527 toc33

TEMPERATURE (°C)

GAIN ERROR (%FSR)

603510-15

-2

-1

0

1

2

3

-3

-40 85

OFFSET ERROR vs. TEMPERATURE

MAX12527 toc34

TEMPERATURE (°C)

OFFSET ERROR (% FSR)

6035-15 10

-0.2

-0.1

0

0.1

0.2

0.3

-0.3

-40 85

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference mode), CL≈ 5pF at digital outputs, VIN= -0.5dBFS,
DIFFCLK/SECLK = OV

DD

, PD = GND, G/T = GND, f

CLK

= 65MHz (50% duty cycle), TA= +25°C, unless otherwise noted.)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

12 ______________________________________________________________________________________

PIN NAME FUNCTION

1, 4, 5, 9,

13, 14, 17

GND Converter Ground. Connect all ground pins and the exposed paddle (EP) together.

2 INAP Channel A Positive Analog Input
3 INAN Channel A Negative Analog Input
6 COMA Channel A Common-Mode Voltage I/O. Bypass COMA to GND with a 0.1µF capacitor.

7 REFAP

Channel A Positive Reference I/O. Channel A conversion range is ±2/3 x (V

REFAP

- V

REFAN

). Bypass
REFAP with a 0.1µF capacitor to GND. Connect a 10µF and a 1µF bypass capacitor between REFAP
and REFAN. Place the 1µF REFAP-to-REFAN capacitor as close to the device as possible on the

same side of the PC board.

8 REFAN

Channel A Negative Reference I/O. Channel A conversion range is ±2/3 x (V

REFAP

- V

REFAN

). Bypass
REFAN with a 0.1µF capacitor to GND. Connect a 10µF and a 1µF bypass capacitor between REFAP
and REFAN. Place the 1µF REFAP-to-REFAN capacitor as close to the device as possible on the

same side of the PC board.

10 REFBN

Channel B Negative Reference I/O. Channel B conversion range is ±2/3 x (V

REFBP

- V

REFBN

). Bypass
REFBN with a 0.1µF capacitor to GND. Connect a 10µF and a 1µF bypass capacitor between REFBP
and REFBN. Place the 1µF REFBP-to-REFBN capacitor as close to the device as possible on the

same side of the PC board.

11 REFBP

Channel B Positive Reference I/O. Channel B conversion range is ±2/3 x (V

REFBP

- V

REFBN

). Bypass
REFBP with a 0.1µF capacitor to GND. Connect a 10µF and a 1µF bypass capacitor between REFBP
and REFBN. Place the 1µF REFBP-to-REFBN capacitor as close to the device as possible on the

same side of the PC board.

12 COMB Channel A Common-Mode Voltage I/O. Bypass COMB to GND with a 0.1µF capacitor.
15 INBN Channel B Negative Analog Input
16 INBP Channel B Positive Analog Input

18

SECLK

Differential/Single-Ended Input Clock Drive. This input selects between single-ended or differential clock
input drives.
DIFFCLK/SECLK = GND: Selects single-ended clock input drive.
DIFFCLK/SECLK = OV

DD

: Selects differential clock input drive.

19 CLKN

Negative Clock Input. In differential clock input mode (DIFFCLK/SECLK = OV

DD

), connect a differential
clock signal between CLKP and CLKN. In single-ended clock mode (DIFFCLK/SECLK = GND), apply the
clock signal to CLKP and connect CLKN to GND.

20 CLKP

Positive Clock Input. In differential clock input mode (DIFFCLK/SECLK = OV

DD

), connect a differential
clock signal between CLKP and CLKN. In single-ended clock mode (DIFFCLK/SECLK = GND), apply
the single-ended clock signal to CLKP and connect CLKN to GND.

21 DIV2 Divide-by-Two Clock-Divider Digital Control Input. See Table 2 for details.
22 DIV4 Divide-by-Four Clock-Divider Digital Control Input. See Table 2 for details.

23–26, 61,

62, 63

V

DD

Analog Power Input. Connect VDD to a 3.15V to 3.60V power supply. Bypass VDD to GND with a parallel
capacitor combination of ≥10µF and 0.1µF. Connect all V

DD

pins to the same potential.

27, 43, 60

OV

DD

Output-Driver Power Input. Connect OVDD to a 1.7V to VDD power supply. Bypass OVDD to GND with a
parallel capacitor combination of ≥10µF and 0.1µF.

28, 29, 45,

46

N.C. No Connection

Pin Description

DIFFCLK/

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 13

PIN NAME FUNCTION

30 D0B Channel B CMOS Digital Output, Bit 0 (LSB)
31 D1B Channel B CMOS Digital Output, Bit 1
32 D2B Channel B CMOS Digital Output, Bit 2
33 D3B Channel B CMOS Digital Output, Bit 3
34 D4B Channel B CMOS Digital Output, Bit 4
35 D5B Channel B CMOS Digital Output, Bit 5
36 D6B Channel B CMOS Digital Output, Bit 6
37 D7B Channel B CMOS Digital Output, Bit 7
38 D8B Channel B CMOS Digital Output, Bit 8
39 D9B Channel B CMOS Digital Output, Bit 9
40 D10B Channel B CMOS Digital Output, Bit 10
41 D11B Channel B CMOS Digital Output, Bit 11 (MSB)

42 DORB

Channel B Data Out-of-Range Indicator. The DORB digital output indicates when the channel B analog
input voltage is out of range.
DORB = 1: Digital outputs exceed full-scale range.
DORB = 0: Digital outputs are within full-scale range.

44 DAV

Data-Valid Digital Output. The rising edge of DAV indicates that data is present on the digital outputs.
The MAX12527 evaluation kit (MAX12557 EV kit) utilizes DAV to latch data into any external back-end
digital logic.

47 D0A Channel A CMOS Digital Output, Bit 0 (LSB)
48 D1A Channel A CMOS Digital Output, Bit 1
49 D2A Channel A CMOS Digital Output, Bit 2
50 D3A Channel A CMOS Digital Output, Bit 3
51 D4A Channel A CMOS Digital Output, Bit 4
52 D5A Channel A CMOS Digital Output, Bit 5
53 D6A Channel A CMOS Digital Output, Bit 6
54 D7A Channel A CMOS Digital Output, Bit 7
55 D8A Channel A CMOS Digital Output, Bit 8
56 D9A Channel A CMOS Digital Output, Bit 9
57 D10A Channel A CMOS Digital Output, Bit 10
58 D11A Channel A CMOS Digital Output, Bit 11 (MSB)

59 DORA

Channel A Data Out-of-Range Indicator. The DORA digital output indicates when the channel A analog
input voltage is out of range.
DORA = 1: Digital outputs exceed full-scale range.
DORA = 0: Digital outputs are within full-scale range.

64 G/T

Output Format Select Digital Input.
G/T = GND: Two’s-complement output format selected.
G/T = OV

DD

: Gray-code output format selected.

65 PD

Power-Down Digital Input.
PD = GND: ADCs are fully operational.
PD = OV

DD

: ADCs are powered down.

Pin Description (continued)

MAX12527

Detailed Description

The MAX12527 uses a 10-stage, fully differential,
pipelined architecture (Figure 1) that allows for high­speed conversion while minimizing power consump­tion. Samples taken at the inputs move progressively
through the pipeline stages every half clock cycle.
From input to output the total latency is 8 clock cycles.

Each pipeline converter stage converts its input voltage
to a digital output code. At every stage, except the last,
the error between the input voltage and the digital out­put code is multiplied and passed along to the next
pipeline stage. Digital error correction compensates for
ADC comparator offsets in each pipeline stage and

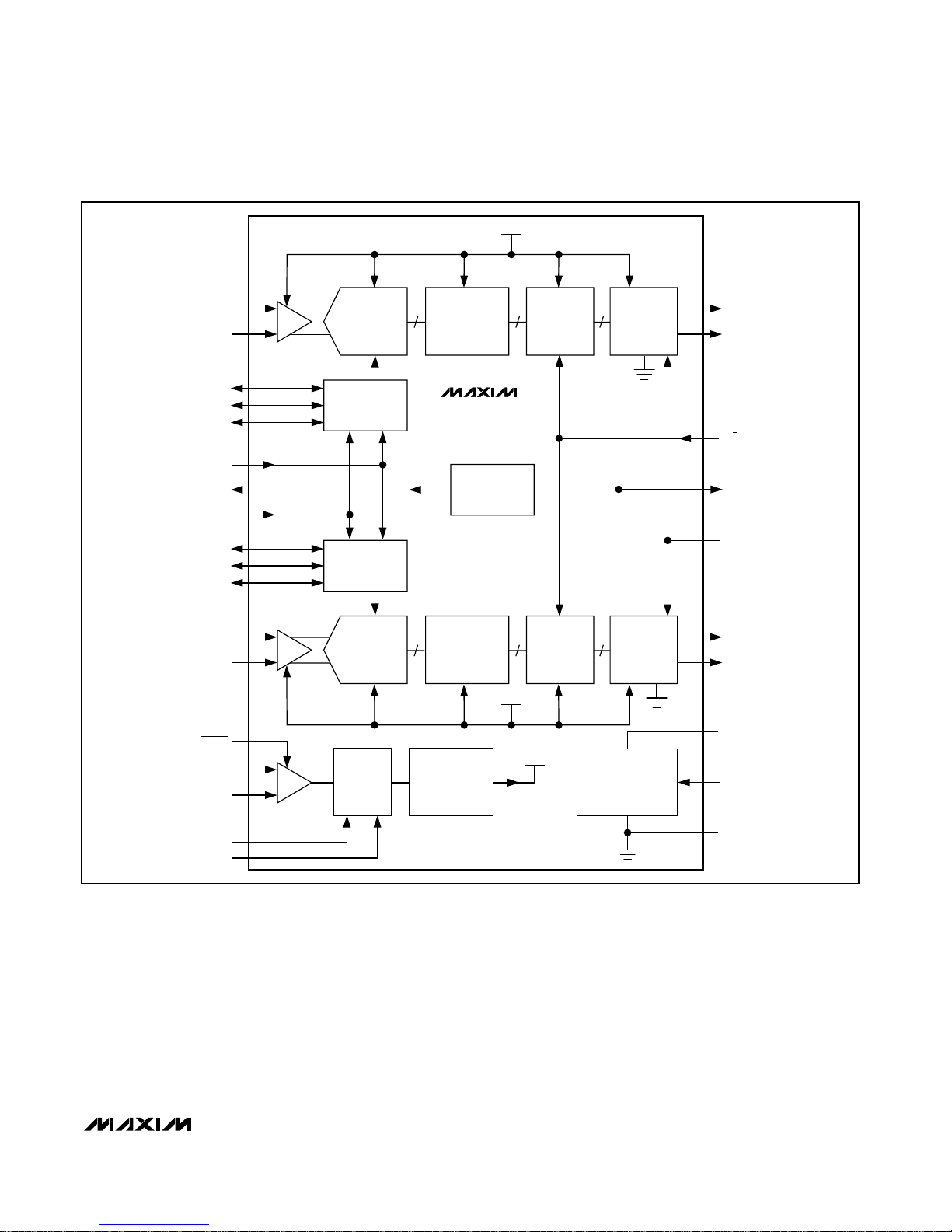

ensures no missing codes. Figure 2 shows the
MAX12527 functional diagram.

Dual, 65Msps, 12-Bit, IF/Baseband ADC

14 ______________________________________________________________________________________

PIN NAME FUNCTION

66 SHREF

Shared Reference Digital Input.
SHREF = V

DD

: Shared reference enabled.
SHREF = GND: Shared reference disabled.
When sharing the reference, externally connect REFAP and REFBP together to ensure that V

REFAP

equals V

REFBP

. Similarly, when sharing the reference, externally connect REFAN to REFBN together to

ensure that V

REFAN

= V

REFBN

.

67

Internal Reference Voltage Output. The REFOUT output voltage is 2.048V and REFOUT can deliver 1mA.

For internal reference operation, connect REFOUT directly to REFIN or use a resistive divider from
REFOUT to set the voltage at REFIN. Bypass REFOUT to GND with a ≥0.1µF capacitor.
For external reference operation, REFOUT is not required and must be bypassed to GND with a ≥0.1µF
capacitor.

68 REFIN

Single-Ended Reference Analog Input.
For internal reference and buffered external reference operation, apply a 0.7V to 2.3V DC reference
voltage to REFIN. Bypass REFIN to GND with a 4.7µF capacitor. Within its specified operating voltage,
REFIN has a >50MΩ input impedance, and the differential reference voltage (V

REF_P

- V

REF_N

) is

generated from REFIN. For unbuffered external reference operation, connect REFIN to GND. In this

mode REF_P, REF_N, and COM_ are high-impedance inputs that accept the external reference voltages.

—EP

Exposed Paddle. EP is internally connected to GND. Externally connect EP to GND to achieve specified
dynamic performance.

Pin Description (continued)

MAX12527

Σ

+

−

DIGITAL ERROR CORRECTION

FLASH

ADC

x2

DAC

STAGE 2

IN_P

IN_N

STAGE 1 STAGE 9

STAGE 10

END OF PIPELINE

D0_ THROUGH D11_

Figure 1. Pipeline Architecture—Stage Blocks

REFOUT

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 15

INBP

12-BIT

PIPELINE

ADC

DIGITAL

ERROR

CORRECTION

CHANNEL A
REFERENCE

SYSTEM

COMA

REFAN

REFAP

OV

DD

DAV

OUTPUT
DRIVERS

DORA

CLOCK

DIVIDER

DATA

FORMAT

12-BIT

PIPELINE

ADC

DIGITAL

ERROR

CORRECTION

OUTPUT
DRIVERS

DATA

FORMAT

DIV2
DIV4

INBN

D0B TO D11B

DORB

CHANNEL B
REFERENCE

SYSTEM

COMB

REFBN

REFBP

INAP

INAN

CLKP

CLKN

DUTY-CYCLE

EQUALIZER

CLOCK

CLOCK

POWER

CONTROL

AND

BIAS CIRCUITS

PD

V

DD

GND

CLOCK

REFIN

INTERNAL
REFERENCE
GENERATOR

REFOUT

SHREF

DIFFCLK/SECLK

D0A TO D11A

G/T

MAX12527

Figure 2. Functional Diagram

MAX12527

Analog Inputs and Input Track-and-Hold

(T/H) Amplifier

Figure 3 displays a simplified functional diagram of the
input T/H circuit. This input T/H circuit allows for high
analog input frequencies of 175MHz and beyond and
supports a VDD/ 2 common-mode input voltage.

The MAX12527 sampling clock controls the switched­capacitor input T/H architecture (Figure 3) allowing the
analog input signals to be stored as charge on the
sampling capacitors. These switches are closed (track
mode) when the sampling clock is high and open (hold
mode) when the sampling clock is low (Figure 4). The
analog input signal source must be able to provide the
dynamic currents necessary to charge and discharge
the sampling capacitors. To avoid signal degradation,
these capacitors must be charged to one-half LSB
accuracy within one-half of a clock cycle. The analog
input of the MAX12527 supports differential or single­ended input drive. For optimum performance with dif­ferential inputs, balance the input impedance of IN_P
and IN_N and set the common-mode voltage to mid­supply (V

DD

/ 2). The MAX12527 provides the optimum
common-mode voltage of VDD/ 2 through the COM
output when operating in internal reference mode and
buffered external reference mode. This COM output
voltage can be used to bias the input network as shown
in Figures 9, 10, and 11.

Reference Output

An internal bandgap reference is the basis for all the
internal voltages and bias currents used in the

MAX12527. The power-down logic input (PD) enables
and disables the reference circuit. REFOUT has approxi­mately 17kΩ to GND when the MAX12527 is powered
down. The reference circuit requires 10ms to power up
and settle to its final value when power is applied to the
MAX12527 or when PD transitions from high to low.

The internal bandgap reference produces a buffered
reference voltage of 2.048V ±1% at the REFOUT pin
with a ±50ppm/°C temperature coefficient. Connect an
external ≥0.1µF bypass capacitor from REFOUT to
GND for stability. REFOUT sources up to 1mA and
sinks up to 0.1mA for external circuits with a 35mV/mA
load regulation. Short-circuit protection limits I

REFOUT

to a 2.1mA source current when shorted to GND and a

0.24mA sink current when shorted to VDD. Similar to
REFOUT, REFIN should be bypassed with a 4.7µF
capacitor to GND.

Reference Configurations

The MAX12527 full-scale analog input range is ±2/3 x
V

REF

with a VDD/ 2 ±0.5V common-mode input range.

V

REF

is the voltage difference between REFAP (REFBP)
and REFAN (REFBN). The MAX12527 provides three
modes of reference operation. The voltage at REFIN
(V

REFIN

) selects the reference operation mode (Table 1).

Connect REFOUT to REFIN either with a direct short or
through a resistive divider to enter internal reference
mode. COM_, REF_P, and REF_N are low-impedance
outputs with V

COM_

= VDD/ 2, V

REFP

= VDD/ 2 + 3/8 x

V

REFIN

, and V

REF_N

= VDD/ 2 - 3/8 x V

REFIN

. Bypass
REF_P, REF_N, and COM_ each with a 0.1µF capacitor
to GND. Bypass REF_P to REF_N with a 10µF capacitor.

Dual, 65Msps, 12-Bit, IF/Baseband ADC

16 ______________________________________________________________________________________

V

REFIN

REFERENCE MODE

35% V

REFOUT

to 100%

V

REFOUT

Internal Reference Mode.
REFIN is driven by REFOUT either through a
direct short or a resistive divider.
V

COM_

= VDD / 2

V

REF_P

= VDD / 2 + 3/8 x V

REFIN

V

REF_N

= VDD / 2 - 3/8 x V

REFIN

0.7V to 2.3V

Buffered External Reference Mode.
An external 0.7V to 2.3V reference voltage is
applied to REFIN.
V

COM_

= VDD / 2

V

REF_P

= VDD / 2 + 3/8 x V

REFIN

V

REF_N

= VDD / 2 - 3/8 x V

REFIN

<0.5V

U nb uffer ed E xter nal Refer ence M od e.
RE F_P , RE F_N , and C O M _ ar e d r i ven b y
exter nal r efer ence sour ces. Th e ful l - scal e

anal og i np ut r ang e i s ± ( V

R E F _P

- V

R E F _N

) x 2/3.

Table 1. Reference Modes

MAX12527

C

PAR

2pF

V

DD

BOND WIRE

INDUCTANCE

1.5nH

IN_P

SAMPLING

CLOCK

*THE EFFECTIVE RESISTANCE OF THE
SWITCHED SAMPLING CAPACITORS IS:

*C

SAMPLE

4.5pF

C

PAR

2pF

V

DD

BOND WIRE

INDUCTANCE

1.5nH

IN_N

*C

SAMPLE

4.5pF

RIN =

1

f

CLK

x C

SAMPLE

Figure 3. Internal T/H Circuit

Bypass REFIN and REFOUT to GND with a 0.1µF capac­itor. The REFIN input impedance is very large (>50MΩ).
When driving REFIN through a resistive divider, use
resistances ≥10kΩ to avoid loading REFOUT.

Buffered external reference mode is virtually identical to
the internal reference mode except that the reference
source is derived from an external reference and not the
MAX12527’s internal bandgap reference. In buffered
external reference mode, apply a stable reference volt­age source between 0.7V to 2.3V at REFIN. Pins COM_,
REF_P, and REF_N are low-impedance outputs with
V

COM_

= VDD/ 2, V

REF_P

= VDD/ 2 + 3/8 x V

REFIN

, and

V

REF_N

= VDD/ 2 - 3/8 x V

REFIN

. Bypass REF_P, REF_N,
and COM_ each with a 0.1µF capacitor to GND. Bypass
REF_P to REF_N with a 10µF capacitor.

Connect REFIN to GND to enter unbuffered external ref­erence mode. Connecting REFIN to GND deactivates
the on-chip reference buffers for COM_, REF_P, and
REF_N. With their buffers deactivated, COM_, REF_P,
and REF_N become high-impedance inputs and must
be driven with separate, external reference sources.
Drive V

COM_

to VDD/ 2 ±5%, and drive REF_P and

REF_N so V

COM_

= (V

REF_P_

+ V

REF_N_

) / 2. The analog

input range is ±(V

REF_P_

- V

REF_N

) x 2/3. Bypass
REF_P, REF_N, and COM_ each with a 0.1µF capacitor
to GND. Bypass REF_P to REF_N with a 10µF capacitor.

For all reference modes, bypass REFOUT with a 0.1µF
and REFIN with a 4.7µF capacitor to GND.

The MAX12527 also features a shared reference mode,
in which the user can achieve better channel-to-chan­nel matching. When sharing the reference (SHREF =
V

DD

), externally connect REFAP and REFBP together to

ensure that V

REFAP

= V

REFBP

. Similarly, when sharing
the reference, externally connect REFAN to REFBN
together to ensure that V

REFAN

= V

REFBN

.

Connect SHREF to GND to disable the shared refer­ence mode of the MAX12527. In this independent refer­ence mode, a better channel-to-channel isolation is
achieved.

For detailed circuit suggestions and how to drive the
ADC in buffered/unbuffered external reference mode,
see the Applications Information section.

Clock Duty-Cycle Equalizer

The MAX12527 has an internal clock duty-cycle equaliz­er, which makes the converter insensitive to the duty
cycle of the signal applied to CLKP and CLKN. The con­verters allow clock duty-cycle variations from 25% to 75%
without negatively impacting the dynamic performance.

The clock duty-cycle equalizer uses a delay-locked
loop (DLL) to create internal timing signals that are

duty-cycle independent. Due to this DLL, the
MAX12527 requires approximately 100 clock cycles to
acquire and lock to new clock frequencies.

Clock Input and Clock Control Lines

The MAX12527 accepts both differential and single­ended clock inputs with a wide 25% to 75% input clock
duty cycle. For single-ended clock input operation,
connect DIFFCLK/SECLK and CLKN to GND. Apply an
external single-ended clock signal to CLKP. To reduce
clock jitter, the external single-ended clock must have
sharp falling edges. For differential clock input opera­tion, connect DIFFCLK/SECLK to OVDD. Apply an
external differential clock signal to CLKP and CLKN.
Consider the clock input as an analog input and route it
away from any other analog inputs and digital signal
lines. CLKP and CLKN enter high impedance when the
MAX12527 is powered down (Figure 4).

Low clock jitter is required for the specified SNR perfor­mance of the MAX12527. The analog inputs are sam­pled on the falling (rising) edge of CLKP (CLKN),
requiring this edge to have the lowest possible jitter.
Jitter limits the maximum SNR performance of any ADC
according to the following relationship:

where fINrepresents the analog input frequency and t

J

is the total system clock jitter. Clock jitter is especially
critical for undersampling applications. For instance,
assuming that clock jitter is the only noise source, to
obtain the specified 69.8dB of SNR with an input fre­quency of 175MHz the system must have less than

0.29ps of clock jitter. However, in reality there are other
noise sources such as thermal noise and quantization
noise that contribute to the system noise requiring the
clock jitter to be less than 0.14ps to obtain the speci­fied 69.8dB of SNR at 175MHz.

Clock-Divider Control Inputs (DIV2, DIV4)

The MAX12527 features three different modes of sam­pling/clock operation (see Table 2). Pulling both control
lines low, the clock-divider function is disabled and the
converters sample at full clock speed. Pulling DIV4 low
and DIV2 high enables the divide-by-two feature, which
sets the sampling speed to one-half the selected clock
frequency. In divide-by-four mode, the converter sam­pling speed is set to one-fourth the clock speed of the
MAX12527. Divide-by-four mode is achieved by applying
a high level to DIV4 and a low level to DIV2. The option to
select either one-half or one-fourth of the clock speed for

SNR

ft

IN J

log

=×

×× ×











20

1

2 π

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 17

MAX12527

sampling provides design flexibility, relaxes clock
requirements, and can minimize clock jitter.

System Timing Requirements

Figure 5 shows the timing relationship between the
clock, analog inputs, DAV indicator, DOR_ indicators,
and the resulting output data. The analog input is sam­pled on the falling (rising) edge of CLKP (CLKN) and
the resulting data appears at the digital outputs 8 clock
cycles later.

The DAV indicator is synchronized with the digital out­put and optimized for use in latching data into digital
back-end circuitry. Alternatively, digital back-end cir-

cuitry can be latched with the rising edge of the con­version clock (CLKP - CLKN).

Data-Valid Output

DAV is a single-ended version of the input clock that is
compensated to correct for any input clock duty-cycle
variations. The MAX12527 output data changes on the
falling edge of DAV, and DAV rises once the output
data is valid. The falling edge of DAV is synchronized
to have a 5.4ns delay from the falling edge of the input
clock. Output data at D0A/B–D11A/B and DORA/B are
valid from 7ns before the rising edge of DAV to 7ns
after the rising edge of DAV.

DAV enters high impedance when the MAX12527 is
powered down (PD = OVDD). DAV enters its high­impedance state 10ns after the rising edge of PD and
becomes active again 10ns after PD transitions low.

DAV is capable of sinking and sourcing 600µA and has
three times the driving capabilities of D0A/B–D11A/B
and DORA/B. DAV is typically used to latch the
MAX12527 output data into an external digital back-end
circuit. Keep the capacitive load on DAV as low as possi­ble (<15pF) to avoid large digital currents feeding back
into the analog portion of the MAX12527, thereby
degrading its dynamic performance. Buffering DAV

Dual, 65Msps, 12-Bit, IF/Baseband ADC

18 ______________________________________________________________________________________

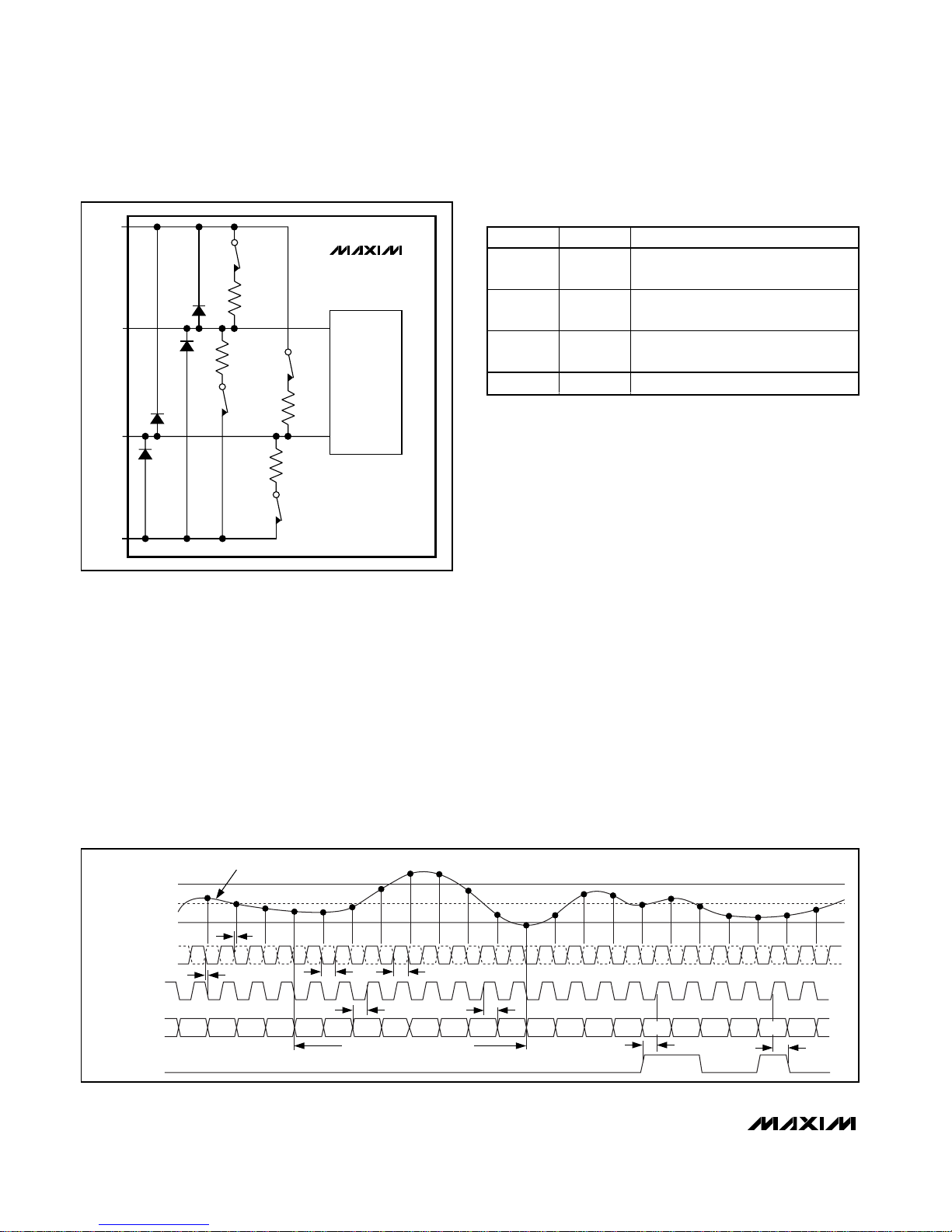

MAX12527

CLKP

CLKN

V

DD

GND

10kΩ

10kΩ

10kΩ

10kΩ

DUTY-CYCLE

EQUALIZER

S

1H

S

2H

S

2L

S

1L

SWITCHES S1_ AND S2_ ARE OPEN
DURING POWER-DOWN MAKING
CLKP AND CLKN HIGH IMPEDANCE.
SWITCHES S

2_

ARE OPEN IN

SINGLE-ENDED CLOCK MODE.

Figure 4. Siimplified Clock Input Circuit

DIV4 DIV2 FUNCTION

00

Clock Divider Disabled
f

SAMPLE

= f

CLK

01

Divide-by-Two Clock Divider
f

SAMPLE

= f

CLK

/ 2

10

Divide-by-Four Clock Divider
f

SAMPLE

= f

CLK

/ 4

11Not Allowed

Table 2. Clock-Divider Control Inputs

DAV

N

N + 1

N +2

N + 3

N + 4

N + 5

N + 6

N + 7

N + 8

N + 9

t

DAV

t

SETUP

t

AD

N - 1

N - 2

N - 3

t

HOLD

t

CL

t

CH

DIFFERENTIAL ANALOG INPUT (IN_P–IN_N)

CLKN

CLKP

(V

REF_P

- V

REF_N

) x 2/3

(V

REF_N

- V

REF_P

) x 2/3

N + 4

D0_–D11_

DOR

8.0 CLOCK-CYCLE DATA LATENCY

t

SETUP

t

HOLD

NN + 1 N + 2 N + 3 N + 5 N + 6 N + 7N - 1N - 2N - 3 N + 9N + 8

Figure 5. System Timing Diagram

externally isolates it from heavy capacitive loads. Refer
to the MAX12527 EV Kit schematic for recommendations
of how to drive the DAV signal through an external buffer.

Data Out-of-Range Indicator

The DORA and DORB digital outputs indicate when the
analog input voltage is out of range. When DOR_ is high,
the analog input is out of range. When DOR_ is low, the
analog input is within range. The valid differential input
range is from (V

REF_P

- V

REF_N

) x 2/3 to (V

REF_N

-

V

REF_P

) x 2/3. Signals outside of this valid differential

range cause DOR_ to assert high as shown in Table 1.
DOR is synchronized with DAV and transitions along

with the output data D11–D0. There is an 8 clock-cycle
latency in the DOR function as is with the output data
(Figure 5). DOR_ is high impedance when the
MAX12527 is in power-down (PD = high). DOR_ enters
a high-impedance state within 10ns after the rising edge
of PD and becomes active 10ns after PD’s falling edge.

Digital Output Data and Output Format Selection

The MAX12527 provides two 12-bit, parallel, tri-state
output buses. D0A/B–D11A/B and DORA/B update on

the falling edge of DAV and are valid on the rising edge
of DAV.

The MAX12527 output data format is either Gray code
or two’s complement depending on the logic input G/T.
With G/T high, the output data format is Gray code.
With G/T low, the output data format is set to two’s com-
plement. See Figure 8 for a binary-to-Gray and Gray-to­binary code conversion example.

The following equations, Table 3, Figure 6, and Figure 7
define the relationship between the digital output and
the analog input.

Gray Code (G/T = 1):

V

IN_P

- V

IN_N

= 2/3 x (V

REF_P

- V

REF_N

) x 2 x

(CODE10- 2048) / 4096

Two’s Complement (G/T = 0):

V

IN_P

- V

IN_N

= 2/3 x (V

REF_P

- V

REF_N

) x 2 x

CODE10/ 4096

where CODE10is the decimal equivalent of the digital
output code as shown in Table 3.

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 19

GRAY-CODE OUTPUT CODE

(G/T = 1)

TWO’S COMPLEMENT OUTPUT CODE

(G/T = 0)

BINARY
D11A–D0A
D11B–D0B

EQUIVALENT

OF

D11A–D0A

DECIMAL

EQUIVALENT

OF

(CODE10)

BINARY
D11A–D0A
D11B–D0B

EQUIVALENT

OF
D11A–D0A
D11B–D0B

DECIMAL

OF

V

IN_P

- V

IN_N

V

REF_P

= 2.418V

V

REF_N

= 0.882V

1000 0000 0000

0x800 +4095

0x7FF +2047

>+1.0235V

(DATA OUT OF

RANGE)

1000 0000 0000

0x800 +4095

0x7FF +2047 +1.0235V

1000 0000 0001

0x801 +4094

0x7FE +2046 +1.0230V

1100 0000 0011

0xC03 +2050

0x002 +2 +0.0010V

1100 0000 0001

0xC01 +2049

0x001 +1 +0.0005V

1100 0000 0000

0xC00 +2048

0x000 0 +0.0000V

0100 0000 0000

0x400 +2047

0xFFF -1 -0.0005V

0100 0000 0001

0x401 +2046

0xFFE -2 -0.0010V

0000 0000 0001

0x001 +1

0x801 -2047 -1.0235V

0000 0000 0000

0x000 0

0x800 -2048 -1.0240V

0000 0000 0000

0x000 0

0x800 -2048

<-1.0240V

(DATA OUT OF

RANGE)

Table 3. Output Codes vs. Input Voltage

H EXA D ECIM A L

DOR

D11B–D0B

1

0
0

0
0
0
0
0

0
0

1

D11A–D0A
D11B–D0B

0111 1111 1111 1

0111 1111 1111 0
0111 1111 1110 0

0000 0000 0010 0
0000 0000 0001 0
0000 0000 0000 0
1111 1111 1111 0
1111 1111 1110 0

1000 0000 0001 0
1000 0000 0000 0

1000 0000 0000 1

DOR

HEXADECIMAL

EQUIVALENT

D11A–D0A
D11B–D0B

(CODE

)

10

MAX12527

The digital outputs D0A/B–D11A/B are high impedance
when the MAX12527 is in power-down (PD = 1) mode.
D0A/B–D11A/B enter this state 10ns after the rising
edge of PD and become active again 10ns after PD
transitions low.

Keep the capacitive load on the MAX12527 digital out­puts D0A/B–D11A/B as low as possible (<15pF) to
avoid large digital currents feeding back into the ana­log portion of the MAX12527 and degrading its dynam­ic performance. Adding external digital buffers on the
digital outputs helps isolate the MAX12527 from heavy
capacitive loads. To improve the dynamic performance
of the MAX12527, add 220Ω resistors in series with the
digital outputs close to the MAX12527. See the
MAX12557 EV kit schematic for guidelines of how to
drive the digital outputs through 220Ω series resistors
and external digital output buffers.

Power-Down Input

The MAX12527 has two power modes that are con­trolled with a power-down digital input (PD). With PD
low, the MAX12527 is in its normal operating mode.
With PD high, the MAX12527 is in power-down mode.

The power-down mode allows the MAX12527 to effi­ciently use power by transitioning to a low-power state
when conversions are not required. Additionally, the
MAX12527 parallel output bus goes high-impedance in
power-down mode, allowing other devices on the bus
to be accessed.

In power-down mode all internal circuits are off, the
analog supply current reduces to less than 50µA, and
the digital supply current reduces to 1µA. The following
list shows the state of the analog inputs and digital out­puts in power-down mode.

1) INAP/B, INAN/B analog inputs are disconnected
from the internal input amplifier (Figure 3).

2) REFOUT has approximately 17kΩ to GND.

3) REFAP/B, COMA/B, REFAN/B enter a high-imped­ance state with respect to V

DD

and GND, but there
is an internal 4kΩ resistor between REFAP/B and
COMA/B as well as an internal 4kΩ resistor
between REFAN/B and COMA/B.

4) D0A–D11A, D0B–D11B, DORA, and DORB enter a
high-impedance state.

5) DAV enters a high-impedance state.

6) CLKP, CLKN clock inputs enter a high-impedance
state (Figure 4).

The wake-up time from power-down mode is dominated
by the time required to charge the capacitors at REF_P,
REF_N, and COM. In internal reference mode and
buffered external reference mode the wake-up time is
typically 10ms. When operating in the unbuffered exter­nal reference mode the wake-up time is dependent on
the external reference drivers.

Dual, 65Msps, 12-Bit, IF/Baseband ADC

20 ______________________________________________________________________________________

DIFFERENTIAL INPUT VOLTAGE (LSB)

TWO'S-COMPLEMENT OUTPUT CODE (LSB)

-2045 +2047+2045-1 0 +1-2047

0x800

0x801

0x802

0x803

0x7FF
0x7FE

0x7FD

0xFFF

0x000

0x001

2/3 x (V

REFP

- V

REFN

) 2/3 x (V

REFP

- V

REFN

)

1 LSB = 4/3 x (V

REFP

- V

REFN

) / 4096

Figure 6. Two’s-Complement Transfer Function (G/T= 0)

DIFFERENTIAL INPUT VOLTAGE (LSB)

GRAY OUTPUT CODE (LSB)

-2045 +2047+2045-1 0 +1-2047

0x000

0x001

0x003

0x002

0x800
0x801
0x803

0xC00

0xC00

0xC01

2/3 x (V

REFP

- V

REFN

) 2/3 x (V

REFP

- V

REFN

)

1 LSB = 4/3 x (V

REFP

- V

REFN

) / 4096

Figure 7. Gray-Code Transfer Function (G/T= 1)

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 21

BINARY-TO-GRAY CODE CONVERSION

1) THE MOST SIGNIFICANT GRAY-CODE BIT IS THE SAME
AS THE MOST SIGNIFICANT BINARY BIT.

0111 0100 1100 BINARY

GRAY CODE0

2) SUBSEQUENT GRAY-CODE BITS ARE FOUND ACCORDING
TO THE FOLLOWING EQUATION:

D11 D7 D3 D0

GRAYX = BINARYX +BINARY

X + 1

BIT POSITION

0111 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

GRAY

10

= BINARY10BINARY

11

GRAY10 = 1 0

GRAY

10

= 1

1

3) REPEAT STEP 2 UNTIL COMPLETE:

01 11 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

GRAY

9

= BINARY9BINARY

10

GRAY9 = 1 1

GRAY

9

= 0

10

4) THE FINAL GRAY-CODE CONVERSION IS:

0111 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

100 1101 1010

GRAY-TO-BINARY CODE CONVERSION

1) THE MOST SIGNIFICANT BINARY BIT IS THE SAME AS THE
MOST SIGNIFICANT GRAY-CODE BIT.

2) SUBSEQUENT BINARY BITS ARE FOUND ACCORDING TO
THE FOLLOWING EQUATION:

D11 D7 D3 D0

BINARYX = BINARY

X+1

BIT POSITION

BINARY

10

= BINARY11GRAY

10

BINARY10 = 0 1

BINARY

10

= 1

3) REPEAT STEP 2 UNTIL COMPLETE:

4) THE FINAL BINARY CONVERSION IS:

0100 1110 1010

BINARY

GRAY CODE

D11 D7 D3 D0

BIT POSITION

0 BINARY

GRAY CODE0100 11 011010

BINARY

9

= BINARY10GRAY

9

BINARY9 = 1 0

BINARY

9

= 1

GRAY

X

01001110 1010

BINARY

GRAY CODE

0

D11 D7 D3 D0

BIT POSITION

1

01 00 1110 1010

BINARY

GRAY CODE

0

D11 D7 D3 D0

BIT POSITION

11

0111 0100 1100

AB Y=AB

00
01
10
11

0
1
1
0

EXCLUSIVE OR TRUTH TABLE

WHERE IS THE EXCLUSIVE OR FUNCTION (SEE TRUTH
TABLE BELOW) AND X IS THE BIT POSITION:

+

WHERE IS THE EXCLUSIVE OR FUNCTION (SEE TRUTH
TABLE BELOW) AND X IS THE BIT POSITION:

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

FIGURE 8 SHOWS THE GRAY-TO-BINARY AND BINARY-TO-GRAY
CODE CONVERSION IN OFFSET BINARY FORMAT. THE OUTPUT
FORMAT OF THE MAX12527 IS TWO'S-COMPLEMENT BINARY,
HENCE EACH MSB OF THE TWO'S-COMPLEMENT OUTPUT CODE
MUST BE INSERTED TO REFLECT TRUE OFFSET BINARY FORMAT.

Figure 8. Binary-to-Gray and Gray-to-Binary Code Conversion

MAX12527

Applications Information

Using Transformer Coupling

In general, the MAX12527 provides better SFDR and
THD with fully differential input signals than single­ended input drive, especially for input frequencies
above 125MHz. In differential input mode, even-order
harmonics are lower as both inputs are balanced, and
each of the ADC inputs only requires half the signal
swing compared to single-ended input mode.

An RF transformer (Figure 9) provides an excellent
solution to convert a single-ended input source signal
to a fully differential signal, required by the MAX12527
for optimum performance. Connecting the center tap of
the transformer to COM provides a VDD/ 2 DC level
shift to the input. Although a 1:1 transformer is shown, a
step-up transformer can be selected to reduce the
drive requirements. A reduced signal swing from the
input driver, such as an op amp, can also improve the

overall distortion. The configuration of Figure 9 is good
for frequencies up to Nyquist (f

CLK

/ 2).

The circuit of Figure 10 converts a single-ended input
signal to fully differential just as Figure 9. However,
Figure 10 utilizes an additional transformer to improve
the common-mode rejection allowing high-frequency
signals beyond the Nyquist frequency. A set of 75Ω
and 113Ω termination resistors provide an equivalent
50Ω termination to the signal source. The second set of
termination resistors connects to COM_ providing the
correct input common-mode voltage. Two 0Ω resistors
in series with the analog inputs allow high IF input fre­quencies. These 0Ω resistors can be replaced with low­value resistors to limit the input bandwidth.

Single-Ended AC-Coupled Input Signal

Figure 11 shows an AC-coupled, single-ended input
application. The MAX4108 provides high speed, high
bandwidth, low noise, and low distortion to maintain the
input signal integrity.

Dual, 65Msps, 12-Bit, IF/Baseband ADC

22 ______________________________________________________________________________________

MAX12527

1

5

3

6

2

4

N.C.

V

IN

0.1µF

T1

MINICIRCUITS

TT1-6

OR

T1-1T

24.9Ω

24.9Ω

5.6pF

5.6pF

0.1µF

IN_P

COM_

IN_N

Figure 9. Transformer-Coupled Input Drive for Input Frequencies
Up to Nyquist

1

5

3

6

2

4

N.C.

V

IN

0.1µF

T1

MINICIRCUITS

ADT1-1WT

5.6pF

5.6pF

IN_P

COM_

IN_N

*0Ω RESISTORS CAN BE REPLACED WITH
LOW-VALUE RESISTORS TO LIMIT THE INPUT BANDWIDTH.

N.C.

1

5

3

6

2

4

N.C.

T2

MINICIRCUITS

ADT1-1WT

N.C.

75Ω
1%

75Ω
1%

113Ω

0.5%

113Ω

0.5%

0.1µF

0Ω*

0Ω*

MAX12527

Figure 10. Transformer-Coupled Input Drive for Input Frequencies beyond Nyquist

MAX12527

MAX4108

0.1µF

0.1µF

0Ω

5.6pF

IN_P

COM_

IN_N

100Ω

100Ω

V

IN

24.9Ω

24.9Ω

5.6pF

Figure 11. Single-Ended, AC-Coupled Input Drive

Buffered External Reference Drives

Multiple ADCs

The buffered external reference mode allows for more
control over the MAX12527 reference voltage and
allows multiple converters to use a common reference.
The REFIN input impedance is >50MΩ.

Figure 12 shows the MAX6029 precision 2.048V bandgap
reference used as a common reference for multiple con­verters. The 2.048V output of the MAX6029 passes
through a single-pole 10Hz LP filter to the MAX4230.

The MAX4230 buffers the 2.048V reference and pro­vides additional 10Hz LP filtering before its output is
applied to the REFIN input of the MAX12527.

Unbuffered External Reference Drives

Multiple ADCs

The unbuffered external reference mode allows for pre­cise control over the MAX12527 reference and allows
multiple converters to use a common reference.
Connecting REFIN to GND disables the internal refer-

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 23

MAX4230

0.1µF

1µF

5

2

3

4

1

1

5

2

REFIN

V

DD

GND

0.1µF

47Ω

3.3V

2.048V

16.2kΩ

REFOUT

0.1µF

REF_P

REF_N

COM_

0.1µF

0.1µF

0.1µF

2.2µF

0.1µF

3.3V

1.47kΩ

300µF
6V

NOTE: ONE FRONT-END REFERENCE CIRCUIT IS
CAPABLE OF SOURCING UP TO 15mA AND
SINKING UP TO 30mA OF OUTPUT CURRENT.

10µF

0.1µF

REFIN

V

DD

GND

REFOUT

0.1µF

REF_P

REF_N

COM_

0.1µF

0.1µF

0.1µF

2.2µF

0.1µF

10µF

0.1µF

MAX12527

MAX6029

(EUK21)

MAX12527

Figure 12. External Buffered (MAX4230) Reference Drive Using a MAX6029 Bandgap Reference

MAX12527

ence, allowing REF_P, REF_N, and COM_ to be driven
directly by a set of external reference sources.

Figure 13 uses a MAX6029 precision 3.000V bandgap
reference as a common reference for multiple convert­ers. A seven-component resistive divider chain follows
the MAX6029 voltage reference. The 0.47µF capacitor
along this chain creates a 10Hz LP filter. Three
MAX4230 amplifiers buffer taps along this resistor
chain providing 2.413V, 1.647V, and 0.880V to the
MAX12527 REF_P, REF_N, and COM_ reference
inputs. The feedback around the MAX4230 op amps
provides additional 10Hz LP filtering. Reference volt­ages 2.413V and 0.880V set the full-scale analog input

range for the converter to ±1.022V (±[V

REF_P

- V

REF_N

]

x 2/3).
Note that one single power supply for all active circuit

components removes any concern regarding power­supply sequencing when powering up or down.

Grounding, Bypassing, and

Board Layout

The MAX12527 requires high-speed board layout
design techniques. Refer to the MAX12557 EV kit data
sheet for a board layout reference. Locate all bypass
capacitors as close to the device as possible, prefer­ably on the same side as the ADC, using surface-

Dual, 65Msps, 12-Bit, IF/Baseband ADC

24 ______________________________________________________________________________________

MAX12527

MAX4230

MAX6029

(EUK30)

0.1µF

1

5

2

0.47µF

10µF

6V

47Ω

1.47kΩ

2.413V

3V

4

1

3

330µF
6V

MAX4230

10µF

6V

47Ω

1.47kΩ

1.647V

4

1

3

330µF
6V

MAX4230

10µF

6V

47Ω

1.47kΩ

0.880V

4

1

3

330µF
6V

REF_P

REF_N

COM_

V

DD

GND

REFIN

3.3V

3.3V

REFOUT

0.1µF

0.1µF

0.1µF

10µF

0.1µF

2.2µF

0.1µF

20kΩ
1%

20kΩ
1%

20kΩ
1%

20kΩ
1%

20kΩ
1%

52.3kΩ
1%

52.3kΩ
1%

0.1µF

MAX12527

REF_P

REF_N

COM_

V

DD

GND

REFIN

REFOUT

0.1µF

0.1µF

0.1µF

10µF

0.1µF

2.2µF

0.1µF

0.1µF

Figure 13. External Unbuffered Reference Driving Multiple ADCs

mount devices for minimum inductance. Bypass VDDto
GND with a 220µF ceramic capacitor in parallel with at
least one 10µF, one 4.7µF, and one 0.1µF ceramic
capacitor. Bypass OVDDto GND with a 220µF ceramic
capacitor in parallel with at least one 10µF, one 4.7µF,
and one 0.1µF ceramic capacitor. High-frequency
bypassing/decoupling capacitors should be located as
close as possible to the converter supply pins.

Multilayer boards with ample ground and power planes
produce the highest level of signal integrity. All grounds
and the exposed backside paddle of the MAX12527
must be connected to the same ground plane. The
MAX12527 relies on the exposed backside paddle con­nection for a low-inductance ground connection. Isolate
the ground plane from any noisy digital system ground
planes such as a DSP or output buffer ground.

Route high-speed digital signal traces away from the
sensitive analog traces. Keep all signal lines short and
free of 90° turns.

Ensure that the differential, analog input network layout
is symmetric and that all parasitic components are bal­anced equally. Refer to the MAX12557 EV kit data
sheet for an example of symmetric input layout.

Parameter Definitions

Integral Nonlinearity (INL)

INL is the deviation of the values on an actual transfer
function from a straight line. For the MAX12527, this
straight line is between the endpoints of the transfer
function, once offset and gain errors have been nulli­fied. INL deviations are measured at every step of the
transfer function and the worst-case deviation is report­ed in the Electrical Characteristics table.

Differential Nonlinearity (DNL)

DNL is the difference between an actual step width and
the ideal value of 1 LSB. A DNL error specification of
less than 1 LSB guarantees no missing codes and a
monotonic transfer function. For the MAX12527, DNL
deviations are measured at every step of the transfer
function and the worst-case deviation is reported in the
Electrical Characteristics table.

Offset Error

Offset error is a figure of merit that indicates how well
the actual transfer function matches the ideal transfer
function at a single point. Ideally, the midscale
MAX12527 transition occurs at 0.5 LSB above mid­scale. The offset error is the amount of deviation
between the measured midscale transition point and
the ideal midscale transition point.

Gain Error

Gain error is a figure of merit that indicates how well the
slope of the actual transfer function matches the slope of
the ideal transfer function. The slope of the actual trans­fer function is measured between two data points: posi­tive full scale and negative full scale. Ideally, the positive
full-scale MAX12527 transition occurs at 1.5 LSBs below
positive full scale, and the negative full-scale transition
occurs at 0.5 LSB above negative full scale. The gain
error is the difference of the measured transition points
minus the difference of the ideal transition points.

Small-Signal Noise Floor (SSNF)

SSNF is the integrated noise and distortion power in the
Nyquist band for small-signal inputs. The DC offset is
excluded from this noise calculation. For this converter,
a small signal is defined as a single tone with an ampli­tude of -35dBFS. This parameter captures the thermal
and quantization noise characteristics of the data con­verter and can be used to help calculate the overall
noise figure of a digital receiver signal path.

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of
the full-scale analog input (RMS value) to the RMS
quantization error (residual error). The ideal, theoretical
minimum analog-to-digital noise is caused by quantiza­tion error only and results directly from the ADC’s reso­lution (N bits):

SNR

[max]

= 6.02 × N + 1.76

In reality, there are other noise sources besides quanti­zation noise: thermal noise, reference noise, clock jitter,
etc. SNR is computed by taking the ratio of the RMS
signal to the RMS noise. RMS noise includes all spec­tral components to the Nyquist frequency excluding the
fundamental, the first six harmonics (HD2 through
HD7), and the DC offset.

SNR = 20 x log (SIGNAL

RMS

/ NOISE

RMS

)

Signal-to-Noise Plus Distortion (SINAD)

SINAD is computed by taking the ratio of the RMS sig­nal to the RMS noise plus distortion. RMS noise plus
distortion includes all spectral components to the
Nyquist frequency excluding the fundamental and the
DC offset.

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 25

MAX12527

Total Harmonic Distortion (THD)

THD is the ratio of the RMS sum of the first six harmon­ics of the input signal to the fundamental itself. This is
expressed as:

where V1is the fundamental amplitude, and V2through
V7are the amplitudes of the 2nd- through 7th-order
harmonics (HD2 through HD7).

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio expressed in decibels of the RMS
amplitude of the fundamental (maximum signal compo­nent) to the RMS value of the next largest spurious
component, excluding DC offset.

Intermodulation Distortion (IMD)

IMD is the total power of the IM2 to IM5 intermodulation
products to the Nyquist frequency relative to the total
input power of the two input tones f

IN1

and f

IN2

. The
individual input tone levels are at -7dBFS. The inter­modulation products are as follows:

2nd-Order Intermodulation products (IM2):

f

IN1

= f

IN2

, f

IN2

- f

IN1

3rd-Order Intermodulation products (IM3):

2 x f

IN1

- f

IN2

, 2 x f

IN2

- f

IN1

, 2 x f

IN1

+ f

IN2

,

2 x f

IN2

+ f

IN1

4th-Order Intermodulation products (IM4):

3 x f

IN1

- f

IN2

, 3 x f

IN2

- f

IN1

, 3 x f

IN1

+ f

IN2

,

3 x f

IN2

+ f

IN1

, 2 x f

IN1

- 2 x f

IN2

, 2 x f

IN1

+ 2 x f

IN2

,

2 x f

IN2

- 2 x f

IN1

5th-Order Intermodulation products (IM5):

3 x f

IN1

- 2 x f

IN2

, 3 x f

IN2

- 2 x f

IN1

, 3 x f

IN1

+ 2 x f

IN2

,

3 x f

IN2

+ 2 x f

IN1

, 4 x f

IN1

- f

IN2

, 4 x f

IN2

- f

IN1

,

4 x f

IN1

+ f

IN2

, 4 x f

IN2

+ f

IN1

Note that the two-tone intermodulation distortion is mea­sured with respect to a single-carrier amplitude and not
the peak-to-average input power of both input tones.

3rd-Order Intermodulation (IM3)

IM3 is the total power of the 3rd-order intermodulation
product to the Nyquist frequency relative to the total
input power of the two input tones f

IN1

and f

IN2

. The
individual input tone levels are at -7dBFS. The 3rd­order intermodulation products are 2 x f

IN1

- f

IN2

, 2 x

f

IN2

- f

IN1

, 2 x f

IN1

+ f

IN2

, 2 x f

IN2

+ f

IN1

.

Aperture Jitter

Figure 14 shows the aperture jitter (tAJ), which is the
sample-to-sample variation in the aperture delay.

Aperture Delay

Aperture delay (tAD) is the time defined between the
rising edge of the sampling clock and the instant when
an actual sample is taken (Figure 14).

Full-Power Bandwidth

A large -0.2dBFS analog input signal is applied to an
ADC and the input frequency is swept up to the point
where the amplitude of the digitized conversion result
has decreased by -3dB. This point is defined as full­power input bandwidth frequency.

Output Noise (n

OUT

)

The output noise (n

OUT

) parameter is similar to thermal
plus quantization noise and is an indication of the con­verter’s overall noise performance.

No fundamental input tone is used to test for n

OUT

.
IN_P, IN_N, and COM_ are connected together and
1024k data points are collected. n

OUT

is computed by
taking the RMS value of the collected data points after
the mean is removed.

Overdrive Recovery Time

Overdrive recovery time is the time required for the
ADC to recover from an input transient that exceeds the
full-scale limits. The MAX12527 specifies overdrive
recovery time using an input transient that exceeds the
full-scale limits by ±10%. The MAX12527 requires one
clock cycle to recover from the overdrive condition.

Crosstalk

Coupling onto one channel being driven by a
(-0.5dBFS) signal when the adjacent interfering channel
is driven by a full-scale signal. Measurement includes
all spurs resulting from both direct coupling and mixing
components.

THD

VVVVVV

V

log

=×

+++++















20

2

2

3

2

4

2

5

2

6

2

7

2

1

Dual, 65Msps, 12-Bit, IF/Baseband ADC

26 ______________________________________________________________________________________

t

AD

t

AJ

T/H

TRACKHOLD HOLD

CLKN

CLKP

ANALOG

INPUT

SAMPLED

DATA

Figure 14. T/H Aperture Timing

Gain Matching

Gain matching is a figure of merit that indicates how
well the gains between the two channels are matched
to each other. The same input signal is applied to both
channels and the maximum deviation in gain is report­ed (typically in dB) as gain matching.

Offset Matching

Like gain matching, offset matching is a figure of merit
that indicates how well the offsets between the two chan­nels are matched to each other. The same input signal is
applied to both channels and the maximum deviation in
offset is reported (typically in %FSR) as offset matching.

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

______________________________________________________________________________________ 27

5859606162 5455565763

38

39

40

41

42

43

44

45

46

47

REFBP

CLKN

V

DD

THIN QFN

TOP VIEW

VDDVDDOVDDDORA

D11A

D10A

D9A

D8A

D7A

5253

D6A

D5A

DIV2

CLKP

V

DD

DIV4

V

DDVDD

OV

DDVDD

N.C.

N.C.

D1B

D0B

D2B

D0A

N.C.

N.C.

DAV

OV

DD

DORB

D11B

D10B

D9B

D8B

35

36

37 D7B

D6B

D5B

EXPOSED PADDLE (GND)

REFBN

GND

REFAN

REFAP

COMA

INBP

INBN

GND

GND

COMB

GND

GND

INAN

INAP

48 D1A

GND

64

G/T

656667

REFOUT

SHREF

PD

68

REFIN

2322212019 2726252418 2928 323130

D3B

D4B

3433

49

50

D3A

D2A

51 D4A

11

10

9

8

7

6

5

4

3

2

16

15

14

13

12

1

GND 17

MAX12527

DIFFCLK/SECLK

Pin Configuration

MAX12527

Dual, 65Msps, 12-Bit, IF/Baseband ADC

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

28 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2005 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products, Inc.

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

68L QFN THIN.EPS

C

1

2

21-0142

PACKAGE OUTLINE
68L THIN QFN, 10x10x0.8mm

C

2

2

21-0142

PACKAGE OUTLINE
68L THIN QFN, 10x10x0.8mm
