MAXIM MAX1206 Technical data

General Description

The MAX1206 is a 3.3V, 12-bit analog-to-digital converter
(ADC) featuring a fully differential wideband track-and­hold (T/H) input, driving the internal quantizer. The
MAX1206 is optimized for low power, small size, and
high dynamic performance. This ADC operates from a
single 3.0V to 3.6V supply, consuming only 159mW,
while delivering a typical signal-to-noise ratio (SNR) per­formance of 68.6dB at a 20MHz input frequency. The
T/H-driven input stage accepts single-ended or differen­tial inputs. In addition to low operating power, the
MAX1206 features a 0.15mW power-down mode to con­serve power during idle periods.

A flexible reference structure allows the MAX1206 to
use its internal precision bandgap reference or accept
an externally applied reference. A common-mode refer­ence is provided to simplify design and reduce external
component count in differential analog input circuits.

The MAX1206 supports both a single-ended and differ­ential input clock drive. Wide variations in the clock
duty cycle are compensated with the ADC’s internal
duty-cycle equalizer.

The MAX1206 features parallel, CMOS-compatible out­puts. The digital output format is pin selectable to be
either two’s complement or Gray code. A data-valid indi­cator eliminates external components that are normally
required for reliable digital interfacing. A separate power
input for the digital outputs accepts a voltage from 1.7V
to 3.6V for flexible interfacing with various logic levels.
The MAX1206 is available in a 6mm x 6mm x 0.8mm, 40­pin thin QFN package with exposed paddle (EP), and is
specified for the extended industrial (-40°C to +85°C)
temperature range.

Refer to the MAX1209 and MAX1211 (see Pin-Compatible
Higher/Speed Versions table) for applications that require
high dynamic performance for IF input frequencies.

Applications

Communication Receivers

Cellular, LMDS, Point-to-Point Microwave,
MMDS, HFC, WLAN

Ultrasound and Medical Imaging

Portable Instrumentation

Low-Power Data Acquisition

Features

♦ Excellent Dynamic Performance

68.6dB SNR at fIN= 20MHz
90dBc SFDR at fIN= 20MHz

♦ Low-Power Operation

159mW at 3.0V (Single-Ended Clock)
181mW at 3.3V (Single-Ended Clock)
198mW at 3.3V (Differential Clock)

♦ Differential or Single-Ended Clock

♦ Accepts 20% to 80% Clock Duty Cycle

♦ Fully Differential or Single-Ended Analog Input

♦ Adjustable Full-Scale Analog Input Range

♦ Common-Mode Reference

♦ Power-Down Mode

♦ CMOS-Compatible Outputs in Two’s Complement

or Gray Code

♦ Data-Valid Indicator Simplifies Digital Design

♦ Out-of-Range and Data-Valid Indicators

♦ Miniature, 40-Pin Thin QFN Package with Exposed

Paddle

♦ Pin-Compatible, IF Sampling ADC Available

(MAX1211ETL)

♦ Evaluation Kit Available (Order MAX1211EVKIT)

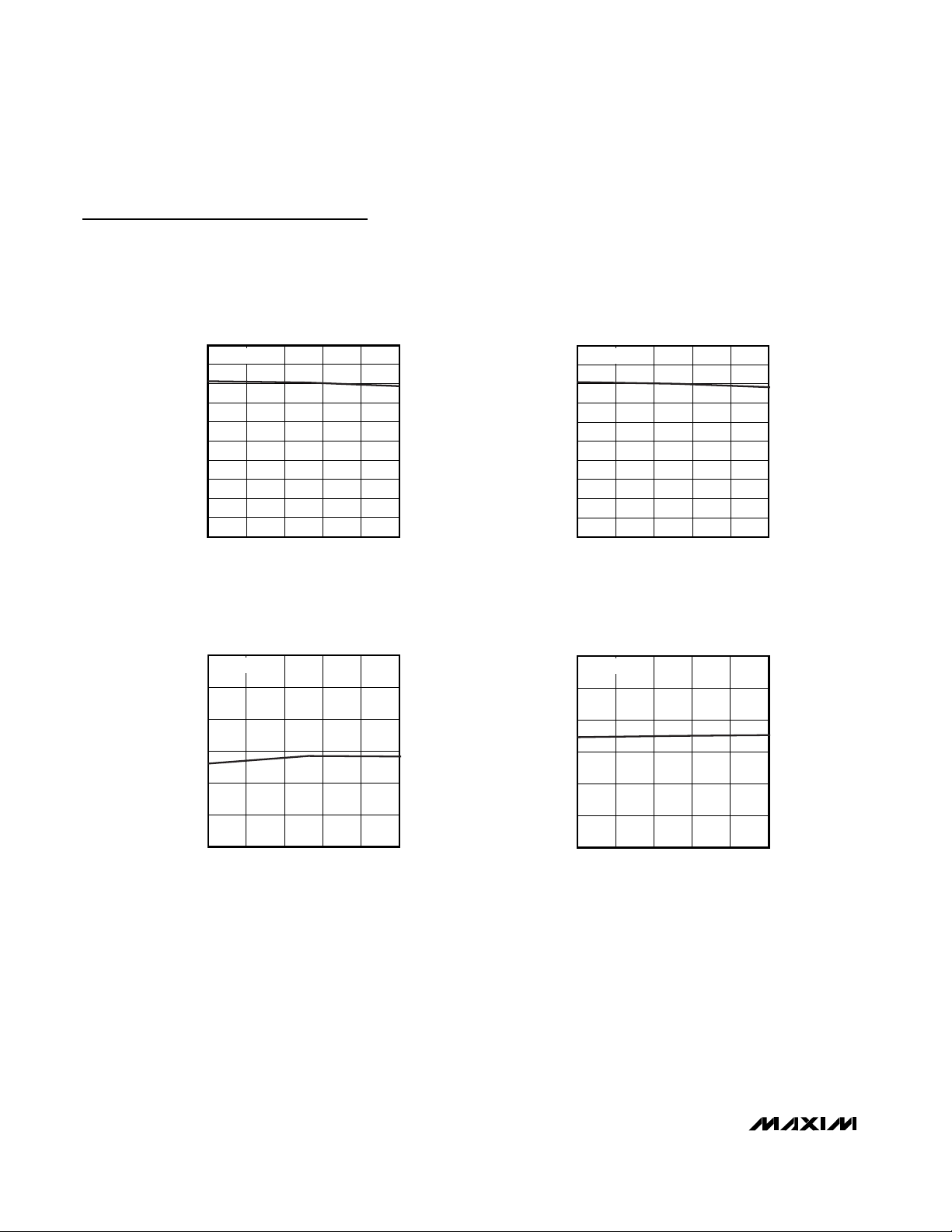

MAX1206

40Msps, 12-Bit ADC

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-3259; Rev 0; 5/04

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

EVALUATION KIT

AVAILABLE

PART

PIN-PACKAGE

MAX1206ETL

40 Thin QFN (6mm x 6mm)

Pin-Compatible Higher

Speed Versions

PART

SPEED GRADE

(Msps)

TARGET

APPLICATION

MAX1206 40 Baseband

MAX1207 65 Baseband

MAX1208 80 Baseband

MAX1211 65 IF

MAX1209 80 IF

Pin Configuration appears at end of data sheet.

TEMP RANGE

-40°C to +85°C

MAX1206

40Msps, 12-Bit ADC

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDDto GND...........................................................-0.3V to +3.6V

OV

DD

to GND........-0.3V to the lower of (VDD+ 0.3V) and +3.6V

INP, INN to GND ...-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

REFIN, REFOUT, REFP, REFN,

COM to GND.....-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

CLKP, CLKN, CLKTYP, G/

T, DCE,

PD to GND ........-0.3V to the lower of (V

DD

+ 0.3V) and +3.6V

D11–D0, I.C., DAV, DOR to GND ............-0.3V to (OV

DD

+ 0.3V)

Continuous Power Dissipation (TA= +70°C)

40-Pin Thin QFN 6mm x 6mm x 0.8mm

(derated 26.3mW/°C above +70°C)........................2105.3mW

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering 10s) ..................................+300°C

ELECTRICAL CHARACTERISTICS

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN=

-0.5dBFS, CLKTYP = high, DCE = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA= -40°C to +85°C, unless otherwise

noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

DC ACCURACY

Resolution 12 Bits

Integral Nonlinearity INL fIN = 20MHz (Note 2)

LSB

Differential Nonlinearity DNL

f

IN

= 20MHz, no missing codes over

temperature (Note 2)

LSB

Offset Error V

REFIN

= 2.048V

%FS

Gain Error V

REFIN

= 2.048V

%FS

ANALOG INPUT (INP, INN)

Differential Input Voltage Range V

DIFF

Differential or single-ended inputs

V

Common-Mode Input Voltage

V

Input Resistance R

IN

Switched capacitor load 24 kΩ

Input Capacitance C

IN

4pF

CONVERSION RATE

Maximum Clock Frequency f

CLK

40

MHz

Minimum Clock Frequency 5

MHz

Data Latency Figure 5 8.5

Clock

cycles

DYNAMIC CHARACTERISTICS (Differential inputs, 4096-point FFT)

fIN = 3MHz at -0.5dBFS

Signal-to-Noise Ratio SNR

f

IN

= 20MHz at -0.5dBFS (Note 2)

dB

fIN = 3MHz at -0.5dBFS

Signal-to-Noise and Distortion SINAD

f

IN

= 20MHz at -0.5dBFS (Note 2)

dB

fIN = 3MHz at -0.5dBFS

Single-Tone Spurious-Free
Dynamic Range

SFDR

f

IN

= 20MHz at -0.5dBFS (Note 2)

90

dBc

fIN = 3MHz at -0.5dBFS

Total Harmonic Distortion THD

f

IN

= 20MHz at -0.5dBFS (Note 2)

-81

dBc

±0.3 ±0.7

±0.3 ±0.7

±0.2 ±1.1

67.0 68.6

66.9 68.5

83.2

±0.3 ±4.8

±1.024

VDD / 2

68.4

68.3

89.5

-88.4

-88.4

MAX1206

40Msps, 12-Bit ADC

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN=

-0.5dBFS, CLKTYP = high, DCE = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA= -40°C to +85°C, unless otherwise

noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

fIN = 3MHz at -0.5dBFS

Second Harmonic HD2

f

IN

= 20MHz at -0.5dBFS (Note 3)

dBc

fIN = 3MHz at -0.5dBFS

Third Harmonic HD3

f

IN

= 20MHz at -0.5dBFS (Note 3)

dBc

Third-Order Intermodulation IM3

f

IN1

= 69MHz at -7dBFS,

f

IN2

= 71MHz at -7dBFS

-89 dBc

Two-Tone Spurious-Free
Dynamic Range

f

IN1

= 69MHz at -7dBFS,

f

IN2

= 71MHz at -7dBFS

88 dBc

Aperture Delay t

AD

Figure 14 0.9 ns

Aperture Jitter t

AJ

Figure 14

ps

RMS

Output Noise n

OUT

INP = INN = COM 0.5

LSB

RMS

Overdrive Recovery Time ±10% beyond full scale 1

Clock

cycles

INTERNAL REFERENCE (REFIN = REFOUT; V

REFP

, V

REFN

, and V

COM

are generated internally)

REFOUT Output Voltage

V

COM Output Voltage V

COM

V

DD

/ 2

V

Differential Reference Output
Voltage

V

REF

V

REF

= V

REFP

- V

REFN

V

REFOUT Load Regulation 35

mV/mA

REFOUT Temperature Coefficient

TC

REF

ppm/°C

Short to V

DD

REFOUT Short-Circuit Current

Short to GND 2.1

mA

B U F F ER ED EXT ER N A L R EF ER EN C E ( RE FIN d r i ven exter nal l y, V

R E F IN

= 2.048V , V

R E F P

, V

R E F N

, and V

C OM

ar e g ener ated i nter nal l y)

REFIN Input Voltage V

REFIN

V

REFP Output Voltage V

REFP

(V

DD

/ 2) + (V

REFIN

/ 4)

V

REFN Output Voltage V

REFN

(V

DD

/ 2) - (V

REFIN

/ 4)

V

COM Output Voltage V

COM

V

DD

/ 2

V

Differential Reference Output
Voltage

V

REF

V

REF

= V

REFP

- V

REFN

V

Differential Reference
Temperature Coefficient

ppm/°C

Source 0.4

Maximum REFP Current I

REFP

Sink 1.4

mA

Source 1.0

Maximum REFN Current I

REFN

Sink 1.0

mA

Source 1.0

Maximum COM Current I

COM

Sink 0.4

mA

REFIN Input Resistance

MΩ

SYMBOL

SFDR

TT

V

REFOUT

MIN TYP MAX

-92.5

-96.3 -84.9

-93.8

-92.1 -83.3

<0.2

1.988 2.048 2.080

1.65

1.024

+100

0.24

2.048

2.162

1.138

1.60 1.65 1.70

0.970 1.024 1.070

+12.5

>50

MAX1206

40Msps, 12-Bit ADC

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN=

-0.5dBFS, CLKTYP = high, DCE = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA= -40°C to +85°C, unless otherwise

noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

UNBUFFERED EXTERNAL REFERENCE (REFIN = GND, V

REFP

, V

REFN

, and V

COM

are applied externally)

COM Input Voltage V

COM

VDD / 2

V

REFP Input Voltage V

REFP

- V

COM

V

REFN Input Voltage V

REFN

- V

COM

V

Differential Reference Input
Voltage

V

REF

V

REF

= V

REFP

- V

REFN

V

REFP Sink Current I

REFP

V

REFP

= 2.162V 1.1 mA

REFN Source Current I

REFN

V

REFN

= 1.138V 1.1 mA

COM Sink Current I

COM

0.3 mA

REFP, REFN, Capacitance 13 pF

COM Capacitance 6pF

CLOCK INPUTS (CLKP, CLKN)

Single-Ended Input High
Threshold

V

IH

CLKTYP = GND, CLKN = GND

V

Single-Ended Input Low
Threshold

V

IL

CLKTYP = GND, CLKN = GND

V

Differential Input Voltage Swing CLKTYP = high 1.4

V

P-P

Differential Input Common-Mode
Voltage

CLKTYP = high

V

DCE = OV

DD

20

Minimum Clock Duty Cycle

DCE = GND 45

%

DCE = OV

DD

80

Maximum Clock Duty Cycle

DCE = GND 60

%

Input Resistance R

CLK

Figure 4 5 kΩ

Input Capacitance C

CLK

2pF

DIGITAL INPUTS (CLKTYP, G/T, PD)

Input High Threshold V

IH

0.8 x
V

Input Low Threshold V

IL

0.2 x
V

VIH = OV

DD

±5

Input Leakage Current

V

IL

= 0 ±5

µA

Input Capacitance C

DIN

5pF

SYMBOL

MIN TYP MAX

1.65

0.512

-0.512

1.024

0.8 x
V

DD

VDD / 2

0.2 x
V

DD

OV

DD

OV

DD

MAX1206

40Msps, 12-Bit ADC

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN=

-0.5dBFS, CLKTYP = high, DCE = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA= -40°C to +85°C, unless otherwise

noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

DIGITAL OUTPUTS (D0–D11, DAV, DOR)

D0–D11, DOR, I

SINK

= 200µA 0.2

Output-Voltage Low V

OL

DAV, I

SINK

= 600µA 0.2

V

D0–D11, DOR, I

SOURCE

= 200µA

Output-Voltage High V

OH

DAV, I

SOURCE

= 600µA

V

Tri-State Leakage Current I

LEAK

(Note 4) ±5 µA

D11–D0, DOR Tri-State Output
Capacitance

C

OUT

(Note 4) 3 pF

DAV Tri-State Output
Capacitance

C

DAV

(Note 4) 6 pF

POWER REQUIREMENTS

Analog Supply Voltage V

DD

3.0 3.3 3.6 V

Digital Output Supply Voltage OV

DD

1.7 2.0

V

Normal operating mode,
f

IN

= 20MHz at -0.5dBFS,

CLKTYP = GND, single-ended clock

Normal operating mode,
f

IN

= 20MHz at -0.5dBFS,

CLKTYP = OV

DD

, differential clock

66

Analog Supply Current I

VDD

Power-down mode; clock idle,
PD = OV

DD

mA

Normal operating mode,
f

IN

= 20MHz at -0.5dBFS,

CLKTYP = GND, single-ended clock

181

Normal operating mode,
f

IN

= 20MHz at -0.5dBFS,

CLKTYP = OV

DD

, differential clock

198 218

Analog Power Dissipation P

DISS

Power-down mode, clock idle,
PD = OV

DD

mW

OV

DD

- 0.2

OV

DD

- 0.2

V

+ 0.3V

54.7

DD

60.1

0.045

0.15

MAX1206

40Msps, 12-Bit ADC

6 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN=

-0.5dBFS, CLKTYP = high, DCE = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA= -40°C to +85°C, unless otherwise

noted. Typical values are at T

A

= +25°C.) (Note 1)

PARAMETER

CONDITIONS

UNITS

Normal operating mode,
f

IN

= 20MHz at -0.5dBFS,

OV

DD

= 2.0V, CL ≈ 5pF

6.1 mA

Digital Output Supply Current I

OVDD

Power-down mode; clock idle,
PD = OV

DD

6µA

TIMING CHARACTERISTICS (Figure 5)

Clock Pulse-Width High t

CH

ns

Clock Pulse-Width Low t

CL

ns

Data Valid Delay t

DAV

CL = 5pF (Note 5) 6.4 ns

Data Setup Time Before Rising
Edge of DAV

t

SETUP

CL = 5pF (Notes 3, 5)

ns

Data Hold Time After Rising Edge
of DAV

t

HOLD

CL = 5pF (Notes 3, 5)

ns

Wake-Up Time from Power-Down

t

WAKE

V

REFIN

= 2.048V 10 ms

Note 1: Specifications ≥+25°C guaranteed by production test, <+25°C guaranteed by design and characterization.
Note 2: Specifications guaranteed by design and characterization. Devices tested for performance during production test.
Note 3: Guaranteed by design and characterization.
Note 4: During power-down, D11–D0, DOR, and DAV are high impedance.
Note 5: Digital outputs settle to V

IH

or VIL.

SYMBOL

MIN TYP MAX

13.9

10.7

12.5

12.5

MAX1206

40Msps, 12-Bit ADC

_______________________________________________________________________________________ 7

Typical Operating Characteristics

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SINGLE-TONE FFT PLOT

(8192-POINT DATA RECORD)

MAX1206 toc01

FREQUENCY (MHz)

AMPLITUDE (dBFS)

161284

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-110
020

f

CLK

= 40.0004Msps

f

IN

= 9.8975MHz

A

IN

= -0.5dBFS
SNR = 68.72dBc
SINAD = 68.67dBc
THD = -88.4dBc
SFDR = 92.18dBc

HD5

HD3

HD2

SINGLE-TONE FFT PLOT

(8192-POINT DATA RECORD)

MAX1206 toc02

FREQUENCY (MHz)

AMPLITUDE (dBFS)

161284

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-110
020

f

CLK

= 40.0004Msps

f

IN

= 19.9074MHz

A

IN

= -0.5304dBFS
SNR = 68.71dBc
SINAD = 68.67dBc
THD = -89.7dBc
SFDR = 92.4dBc

HD2

HD3

SINGLE-TONE FFT PLOT

(8192-POINT DATA RECORD)

MAX1206 toc03

FREQUENCY (MHz)

AMPLITUDE (dBFS)

161284

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-110
020

f

CLK

= 40.0004Msps

f

IN

= 70.0837MHz

A

IN

= -0.48dBFS
SNR = 68.22dBc
SINAD = 68.16dBc
THD = -86.9dBc
SFDR = 90.1dBc

HD4

HD5

HD2

TWO-TONE FFT PLOT

(16,384-POINT DATA RECORD)

MAX1206 toc04

FREQUENCY (MHz)

AMPLITUDE (dBFS)

161284

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-110
020

f

CLK

= 40.0004Msps

f

IN1

= 44.0019MHz

A

IN1

= -7.0dBFS

f

IN2

= 46.0039MHz

A

IN2

= -7.0dBFS
SNR = 64.64dBc
SINAD = 64.63dBc
SFDR

TT

= 88.3dBc
IMD = -85.21dB
IM3 = -93.89dBc

f

IN1

f

IN2

TWO-TONE FFT PLOT

(16,384-POINT DATA RECORD)

MAX1206 toc05

FREQUENCY (MHz)

AMPLITUDE (dBFS)

161284

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-110
020

f

CLK

= 40.0004Msps

f

IN1

= 69.0022MHz

A

IN1

= -7.0dBFS

f

IN2

= 71.0041MHz

A

IN2

= -7.0dBFS
SNR = 64.01dBc
SINAD = 64.00dBc
SFDR

TT

= 88.44dBc
IMD = -85.56dB
IM3 = -88.65dBc

f

IN1

f

IN2

INTEGRAL NONLINEARITY

MAX1206 toc06

DIGITAL OUTPUT CODE

INL (LSB)

358430722048 25601024 1536512

-0.8

-0.6

-0.4

-0.2

0

0.2

0.4

0.6

0.8

1.0

-1.0
0 4096

DIFFERENTIAL NONLINEARITY

MAX1206 toc07

DIGITAL OUTPUT CODE

DNL (LSB)

358430722048 25601024 1536512

-0.4

-0.3

-0.2

-0.1

0

0.1

0.2

0.3

0.4

0.5

-0.5
04096

MAX1206

40Msps, 12-Bit ADC

8 _______________________________________________________________________________________

SIGNAL-TO-NOISE RATIO

vs. SAMPLING RATE

MAX1206 toc08

f

CLK

(MHz)

SNR (dB)

3530252015

61

62

63

64

65

66

67

68

69

70

60

10 40

fIN = 19.9MHz

SIGNAL-TO-NOISE + DISTORTION

vs. SAMPLING RATE

MAX1206 toc09

f

CLK

(MHz)

SINAD (dB)

3530252015

61

62

63

64

65

66

67

68

69

70

60

10 40

fIN = 19.9MHz

TOTAL HARMONIC DISTORTION

vs. SAMPLING RATE

MAX1206 toc10

f

CLK

(MHz)

THD (dBc)

3530252015

-95

-90

-85

-80

-75

-70

-65

-60

-100

10 40

fIN = 19.9MHz

SPURIOUS-FREE DYNAMIC RANGE

vs. SAMPLING RATE

MAX1206 toc11

f

CLK

(MHz)

SFDR (dBc)

3530252015

65

70

75

80

85

90

95

100

60

10 40

fIN = 19.9MHz

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

MAX1206

40Msps, 12-Bit ADC

_______________________________________________________________________________________ 9

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SIGNAL-TO-NOISE RATIO

vs. SAMPLING RATE

MAX1206 toc12

f

CLK

(MHz)

SNR (dB)

3530252015

61

62

63

64

65

66

67

68

69

70

60

10 40

fIN = 70.1MHz

SIGNAL-TO-NOISE + DISTORTION

vs. SAMPLING RATE

MAX1206 toc13

f

CLK

(MHz)

SINAD (dB)

3530252015

61

62

63

64

65

66

67

68

69

70

60

10 40

fIN = 70.1MHz

TOTAL HARMONIC DISTORTION

vs. SAMPLING RATE

MAX1206 toc14

f

CLK

(MHz)

THD (dBc)

3530252015

-95

-90

-85

-80

-75

-70

-65

-60

-100
10 40

fIN = 70.1MHz

SPURIOUS-FREE DYNAMIC RANGE

vs. SAMPLING RATE

MAX1206 toc15

f

CLK

(MHz)

SFDR (dBc)

3530252015

65

70

75

80

85

90

95

100

60

10 40

fIN = 70.1MHz

MAX1206

40Msps, 12-Bit ADC

10 ______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SIGNAL-TO-NOISE RATIO

vs. ANALOG INPUT FREQUENCY

MAX1206 toc16

ANALOG INPUT FREQUENCY (MHz)

SNR (dB)

100755025

61

62

63

64

65

66

67

68

69

70

60

0 125

SIGNAL-TO-NOISE + DISTORTION

vs. ANALOG INPUT FREQUENCY

MAX1206 toc17

ANALOG INPUT FREQUENCY (MHz)

SINAD (dB)

100755025

61

62

63

64

65

66

67

68

69

70

60

0125

TOTAL HARMONIC DISTORTION

vs. ANALOG INPUT FREQUENCY

MAX1206 toc18

ANALOG INPUT FREQUENCY (MHz)

THD (dBc)

100755025

-95

-90

-85

-80

-75

-70

-65

-60

-100

0125

SPURIOUS-FREE DYNAMIC RANGE

vs. ANALOG INPUT FREQUENCY

MAX1206 toc19

ANALOG INPUT FREQUENCY (MHz)

SFDR (dBc)

100755025

65

70

75

80

85

90

95

100

60

0125

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 11

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SIGNAL-TO-NOISE RATIO

vs. ANALOG INPUT POWER

MAX1206 toc20

ANALOG INPUT POWER (dBFS)

SNR (dB)

-5-10-25 -20 -15

40

45

50

55

60

65

70

75

35

-30 0

fIN = 19.900286MHz

SIGNAL-TO-NOISE + DISTORTION

vs. ANALOG INPUT POWER

MAX1206 toc21

ANALOG INPUT POWER (dBFS)

SINAD (dB)

-5-10-25 -20 -15

40

45

50

55

60

65

70

75

35

-30 0

fIN = 19.900286MHz

TOTAL HARMONIC DISTORTION

vs. ANALOG INPUT POWER

MAX1206 toc22

ANALOG INPUT POWER (dBFS)

THD (dBc)

-5-10-25 -20 -15

-90

-85

-80

-75

-70

-65

-60

-55

-95

-30 0

fIN = 19.900286MHz

SPURIOUS-FREE DYNAMIC RANGE

vs. ANALOG INPUT POWER

MAX1206 toc23

ANALOG INPUT POWER (dBFS)

SFDR (dBc)

-5-10-25 -20 -15

60

65

70

75

80

85

90

95

55

-30 0

fIN = 19.900286MHz

MAX1206

40Msps, 12-Bit ADC

12 ______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SIGNAL-TO-NOISE RATIO
vs. CLOCK DUTY CYCLE

MAX1206 toc24

CLOCK DUTY CYCLE (%)

SNR (dB)

7060504030

62

63

64

65

66

67

68

69

70

71

61

20 80

SINGLE-ENDED CLOCK
f

IN

= 19.9002858MHz

DCE = HIGH

DCE = LOW

SIGNAL-TO-NOISE + DISTORTION

vs. CLOCK DUTY CYCLE

MAX1206 toc25

CLOCK DUTY CYCLE (%)

SINAD (dB)

7060504030

62

63

64

65

66

67

68

69

70

71

61

20 80

SINGLE-ENDED CLOCK
f

IN

= 19.9002858MHz

DCE = HIGH

DCE = LOW

TOTAL HARMONIC DISTORTION

vs. CLOCK DUTY CYCLE

MAX1206 toc26

CLOCK DUTY CYCLE (%)

THD (dBc)

7060504030

-95

-90

-85

-80

-75

-70

-65

-100
20 80

SINGLE-ENDED CLOCK
f

IN

= 19.9002858MHz

DCE = HIGH

DCE = LOW

SPURIOUS-FREE DYNAMIC RANGE

vs. CLOCK DUTY CYCLE

MAX1206 toc27

CLOCK DUTY CYCLE (%)

SFDR (dBc)

7060504030

70

75

80

85

90

95

100

65

20 80

SINGLE-ENDED CLOCK
f

IN

= 19.9002858MHz

DCE = HIGH

DCE = LOW

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 13

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

SIGNAL-TO-NOISE RATIO

vs. ANALOG POWER-INPUT VOLTAGE

MAX1206 toc28

VDD (V)

SNR (dB)

3.33.0

61

62

63

64

65

66

67

68

69

70

60

2.7 3.6

fIN = 19.9MHz

SIGNAL-TO-NOISE + DISTORTION

vs. ANALOG POWER-INPUT VOLTAGE

MAX1206 toc29

VDD (V)

SINAD (dB)

3.33.0

61

62

63

64

65

66

67

68

69

70

60

2.7 3.6

fIN = 19.9MHz

TOTAL HARMONIC DISTORTION

vs. ANALOG POWER-INPUT VOLTAGE

MAX1206 toc30

VDD (V)

THD (dBc)

3.33.0

-95

-90

-85

-80

-75

-70

-65

-60

-100

2.7 3.6

fIN = 19.9MHz

SPURIOUS-FREE DYNAMIC RANGE

vs. ANALOG POWER-INPUT VOLTAGE

MAX1206 toc31a

VDD (V)

SFDR (dBc)

3.33.0

65

70

75

80

85

90

95

100

60

2.7 3.6

fIN = 19.9MHz

120

160

140

200

180

220

240

2.7 3.0 3.3 3.6

ANALOG POWER DISSIPATION

vs. ANALOG POWER-INPUT VOLTAGE

MAX1206 toc31b

VDD (V)

P

DISS

(mW)

DIFFERENTIAL CLOCK

fIN = 19.9MHz

SINGLE-ENDED CLOCK

MAX1206

40Msps, 12-Bit ADC

14 ______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

60

63

62

61

64

65

66

67

68

69

70

-40 10-15 35 60 85

SIGNAL-TO-NOISE RATIO

vs. TEMPERATURE

MAX1206 toc32

TEMPERATURE (°C)

SNR (dB)

fIN = 19.9MHz

60

63

62

61

64

65

66

67

68

69

70

-40 10-15 35 60 85

SIGNAL-TO-NOISE + DISTORTION

vs. TEMPERATURE

MAX1206 toc33

TEMPERATURE (°C)

SINAD (dB)

fIN = 19.9MHz

-100

-90

-95

-80

-85

-75

-70

-40 10-15 35 60 85

TOTAL HARMONIC DISTORTION

vs. TEMPERATURE

MAX1206 toc34

TEMPERATURE (°C)

THD (dBc)

fIN = 19.9MHz

70

80

75

90

85

95

100

-40 10-15 35 60 85

SPURIOUS-FREE DYNAMIC RANGE

vs. TEMPERATURE

MAX1206 toc35

TEMPERATURE (°C)

SFDR (dBc)

fIN = 19.9MHz

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 15

-0.28

-0.26

-0.24

-0.22

-0.20

-0.18

-0.16

-0.14

-0.12

-40 -15 10 35 60 85

OFFSET ERROR

vs. TEMPERATURE

MAX1206 toc36

TEMPERATURE (°C)

OFFSET ERROR (%FS)

V

REFIN

= 2.048V

0

0.3

0.2

0.1

0.4

0.5

0.6

0.7

0.8

0.9

1.0

-40 10-15 35 60 85

GAIN ERROR

vs. TEMPERATURE

MAX1206 toc37

TEMPERATURE (°C)

GAIN ERROR (%FR)

V

REFIN

= 2.048V

Pin Description

PIN NAME FUNCTION

1 REFP

Positive Reference I/O. Conversion range is ±(V

REFP

- V

REFN

). Bypass REFP to GND with a 0.1µF

capacitor. Connect a 1µF capacitor in parallel with a 10µF capacitor between REFP and REFN.

2 REFN

Negative Reference I/O. Conversion range is ±(V

REFP

- V

REFN

). Bypass REFN to GND with a 0.1µF

capacitor. Connect a 1µF capacitor in parallel with a 10µF capacitor between REFP and REFN.

3 COM

Common-Mode Voltage I/O. Bypass COM to GND with a ≥2.2µF capacitor in parallel with a 0.1µF
capacitor.

4, 7, 16, 35

GND Ground. Connect all ground pins and the EP together.

5 INP

Positive Analog Input. For single-ended input operation, connect signal source to INP and connect INN
to COM. For differential operation, connect the input signal between INP and INN.

6 INN

Negative Analog Input. For single-ended input operation, connect INN to COM. For differential operation,
connect the input signal between INP and INN.

8 DCE

Duty-Cycle Equalizer Input. Connect DCE low (GND) to disable the internal duty-cycle equalizer.
Connect DCE high (OV

DD

or DVDD) to enable the internal duty-cycle equalizer.

9 CLKN

Negative Clock Input. In differential clock input mode (CLKTYP = OV

DD

or VDD), connect the clock
signal between CLKP and CLKN. In single-ended clock mode (CLKTYP = GND), apply the clock signal
to CLKP and tie CLKN to GND.

10 CLKP

Positive Clock Input. In differential clock input mode (CLKTYP = OV

DD

or VDD), connect the differential
clock signal between CLKP and CLKN. In single-ended clock mode (CLKTYP = GND), apply the single­ended clock signal to CLKP and connect CLKN to GND.

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.0V, GND = 0, REFIN = REFOUT (internal reference), C

REFOUT

= 0.1µF, CL≈ 5pF at digital outputs, VIN= -0.5dBFS

differential input, DCE = high, CLKTYP = high, PD = low, G/T = low, f

CLK

= 40MHz (50% duty cycle), C

REFP

= C

REFN

= 0.1µF to GND, 1µF

in parallel with 10µF between REFP and REFN, C

COM

= 0.1µF in parallel with 2.2µF to GND, TA = +25°C, unless otherwise noted.)

MAX1206

40Msps, 12-Bit ADC

16 ______________________________________________________________________________________

Pin Description (continued)

PIN NAME FUNCTION

11

Clock Type Definition Input. Connect CLKTYP to GND to define the single-ended clock input. Connect
CLKTYP to OV

DD

or VDD to define the differential clock input.

12–15, 36

V

DD

Analog Power Input. Connect VDD to a 3.0V to 3.6V power supply. Bypass VDD to GND with a parallel
capacitor combination of ≥2.2µF and 0.1µF. Connect all V

DD

pins to the same potential.

17, 34 OV

DD

Output Driver Power Input. Connect OVDD to a 1.7V to VDD power supply. Bypass OVDD to GND with a
parallel capacitor combination of ≥2.2µF and 0.1µF.

18 DOR

Data Out-of-Range Indicator. The DOR digital output indicates when the analog input voltage is out of
range. When DOR is high, the analog input is beyond its full-scale range. When DOR is low, the analog
input is within its full-scale range.

19 D11 CMOS Digital Output, Bit 11 (MSB)

20 D10 CMOS Digital Output, Bit 10

21 D9 CMOS Digital Output, Bit 9

22 D8 CMOS Digital Output, Bit 8

23 D7 CMOS Digital Output, Bit 7

24 D6 CMOS Digital Output, Bit 6

25 D5 CMOS Digital Output, Bit 5

26 D4 CMOS Digital Output, Bit 4

27 D3 CMOS Digital Output, Bit 3

28 D2 CMOS Digital Output, Bit 2

29 D1 CMOS Digital Output, Bit 1

30 D0 CMOS Digital Output, Bit 0 (LSB)

31, 32 I.C. Internally Connected. Leave I.C. unconnected.

33 DAV

Data Valid Output. The DAV is a single-ended version of the input clock that is compensated to correct
for any input clock duty-cycle variations. The MAX1211 evaluation kit (MAX1211EVKIT) utilizes DAV to
latch data (D0–D11) into external back-end digital circuitry.

37 PD Power-Down Input. Force PD high for power-down mode. Force PD low for normal operation.

38

Internal Reference Voltage Output. For internal reference operation, connect REFOUT directly to REFIN
or use a resistive-divider from REFOUT to set the voltage at REFIN. Bypass REFOUT to GND with a
≥0.1µF capacitor.

39 REFIN Reference Input. V

REFIN

= 2 x (V

REFP

- V

REFN

). Bypass REFIN to GND with a ≥0.1µF capacitor.

40 G/T

Output Format Select Input. Connect G/T to GND for the two’s complement digital output format. Connect
G/T to OV

DD

or VDD for the Gray code digital output format.

— EP

Exposed Paddle. EP is internally connected to GND. Externally connect EP to GND to achieve specified
performance.

CLKTYP

REFOUT

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 17

Detailed Description

The MAX1206 uses a 10-stage, fully differential,
pipelined architecture (Figure 1) that allows for high­speed conversion while minimizing power consump­tion. Samples taken at the inputs move progressively
through the pipeline stages every half clock cycle.
From input to output, the total clock-cycle latency is 8.5
clock cycles.

Each pipeline converter stage converts its input voltage
into a digital output code. At every stage, except the
last, the error between the input voltage and the digital
output code is multiplied and passed along to the next
pipeline stage. Digital error correction compensates for
ADC comparator offsets in each pipeline stage and
ensures no missing codes. Figure 2 shows the
MAX1206 functional diagram.

Input Track-and-Hold (T/H) Circuit

Figure 3 displays a simplified functional diagram of the
input T/H circuits. In track mode, switches S1, S2a,
S2b, S4a, S4b, S5a, and S5b are closed. The fully dif­ferential circuits sample the input signals onto the two
capacitors (C2a and C2b) through switches S4a and
S4b. S2a and S2b set the common mode for the opera­tional transconductance amplifier (OTA), and open
simultaneously with S1, sampling the input waveform.
Switches S4a, S4b, S5a, and S5b are then opened
before switches S3a and S3b connect capacitors C1a
and C1b to the output of the amplifier and switch S4c is
closed. The resulting differential voltages are held on
capacitors C2a and C2b. The amplifiers charge capac­itors C1a and C1b to the same values originally held on

C2a and C2b. These values are then presented to the
first-stage quantizers and isolate the pipelines from the
fast-changing inputs. The wide input-bandwidth T/H
amplifier allows the MAX1206 to track and sample/hold
analog inputs of high frequencies well beyond Nyquist.
Analog input INP to INN can be driven either differen­tially or single ended. For differential inputs, balance
the input impedance of INP and INN and set the com­mon-mode voltage to midsupply (V

DD

/ 2) for optimum

performance.

CLOCK

GENERATOR

AND

DUTY-CYCLE

EQUALIZER

INP

INN

12-BIT

PIPELINE

ADC

DEC

REFERENCE

SYSTEM

COM

REFOUT

REFN

REFP

OV

DD

DAV

OUTPUT

DRIVERS

D0–D11

DOR

G/T

REFIN

POWER CONTROL

AND

BIAS CIRCUITS

CLKP

CLKN

CLKTYP

PD

V

DD

GND

T/H

DCE

MAX1206

Figure 2. Functional Diagram

S3b

S3a

CML

SWITCHES SHOWN IN TRACK MODE

S5b

S5a

V

DD

INP

INN

GND

S1

OUT

C2a

C2b

S4c

S4a

S4b

OUT

C1b

C1a

INTERNAL

BIAS

INTERNAL

BIAS

CML

S2a

S2b

OTA

MAX1206

Figure 3. Internal T/H Circuit

INP

INN

STAGE 1

GAIN OF 8

4 BITS 1.5 BITS 1.5 BITS

1.5 BITS

D0–D11

1 BIT

DIGITAL ERROR CORRECTION

T/H

T/H

FLASH

ADC

DAC

x2

+

-

∑

STAGE 2

GAIN OF 2

STAGE 10

END OF PIPE

STAGE 9

GAIN OF 2

Figure 1. Pipeline Architecture—Stage Blocks

MAX1206

40Msps, 12-Bit ADC

18 ______________________________________________________________________________________

Reference Output (REFOUT)

An internal bandgap reference is the basis for all the
internal voltages and bias currents used in the
MAX1206. The power-down logic input (PD) enables
and disables the reference circuit. REFOUT has
approximately 17kΩ to GND when the MAX1206 is in
power-down. The reference circuit requires 10ms to
power up and settle when power is applied to the
MAX1206 or when PD transitions from high to low.

The internal bandgap reference and buffer generate
REFOUT to be 2.048V with a +100ppm/°C temperature
coefficient. Connect an external ≥0.1µF bypass capaci-

tor from REFOUT to GND for stability. REFOUT sources
up to 1.4mA and sinks up to 100µA for external circuits
with a load regulation of 35mV/mA. Short-circuit protec­tion limits I

REFOUT

to a 2.1mA source current when
shorted to GND and a 240µA sink current when shorted
to V

DD

.

Analog Inputs and Reference

Configurations

The MAX1206 full-scale analog input range is ±V

REF

with a common-mode input range of V

DD

/ 2 ±0.8V.

V

REF

is the difference between V

REFP

and V

REFN

. The
MAX1206 provides three modes of reference operation.
The voltage at REFIN (V

REFIN

) sets the reference oper-

ation mode (Table 1).

To operate the MAX1206 with the internal reference, con­nect REFOUT to REFIN either with a direct short or
through a resistive-divider. In this mode, COM, REFP, and
REFN are low-impedance outputs with V

COM

= V

DD

/ 2,

V

REFP

= V

DD

/ 2 + V

REFIN

/ 4, and V

REFN

= V

DD

/ 2 -

V

REFIN

/ 4. The REFIN input impedance is very large

(>50MΩ). When driving REFIN through a resistive-divider,
use resistances ≥10kΩ to avoid loading REFOUT.

Buffered external reference mode is virtually identical to
internal reference mode except that the reference
source is derived from an external reference and not
the MAX1206 REFOUT. In buffered external reference
mode, apply a stable 0.7V to 2.3V source at REFIN.
COM, REFP, and REFN are low-impedance outputs

with V

COM

= V

DD

/ 2, V

REFP

= V

DD

/ 2 + V

REFIN

/ 4, and

V

REFN

= V

DD

/ 2 - V

REFIN

/ 4.

To operate the MAX1206 in unbuffered external refer­ence mode, connect REFIN to GND. Connecting REFIN
to GND deactivates the on-chip reference buffers for
COM, REFP, and REFN. With their buffers deactivated,
COM, REFP, and REFN inputs must be driven through
separate, external reference sources. Drive V

COM

to

V

DD

/ 2 ±5%, and drive REFP and REFN such that

V

COM

= (V

REFP

+ V

REFN

) / 2. The analog input range is

±(V

REFP

- V

REFN

).

All three modes of reference operation require the
same bypass capacitor combination. Bypass COM with
a 0.1µF capacitor in parallel with a ≥2.2µF capacitor to
GND. Bypass REFP and REFN each with a 0.1µF
capacitor to GND. Bypass REFP to REFN with a 1µF
capacitor in parallel with a 10µF capacitor. Place the
1µF capacitor as close to the device as possible.
Bypass REFIN and REFOUT to GND with a 0.1µF
capacitor.

For detailed circuit suggestions, see Figures 12 and 13.

Clock Input and Clock Control Lines

(CLKP, CLKN, CLKTYP, DCE)

The MAX1206 accepts both differential and single­ended clock inputs. For single-ended clock input opera­tion, connect CLKTYP to GND, CLKN to GND, and drive
CLKP with the external single-ended clock signal. For
differential clock input operation, connect CLKTYP to
OVDDor VDDand drive CLKP and CLKN with the exter­nal differential clock signal. To reduce clock jitter, the
external single-ended clock must have sharp falling
edges. Consider the clock input as an analog input and
route it away from any other analog inputs and digital
signal lines.

CLKP and CLKN are high impedance when the
MAX1206 is powered down (Figure 4).

Low clock jitter is required for the specified SNR perfor­mance of the MAX1206. Analog input sampling occurs
on the falling edge of the clock signal, requiring this

V

REFIN

REFERENCE MODE

35% V

REFOUT

to 100% V

REFOUT

In t e r n a l re f e r e n c e m o d e . RE FIN i s d r i ven b y RE FOU T ei ther thr oug h a d i r ect shor t or a r esi sti ve
d i vi d er . V

C OM

= V

D D

/ 2, V

RE F P

= V

D D

/ 2 + V

RE F IN

/ 4, and V

RE F N

= V

D D

/ 2 - V

RE F IN

/ 4.

0.7V to 2.3V

Buffered external reference mode. An external 0.7V to 2.3V reference voltage is applied
to REFIN. V

COM

= V

DD

/ 2, V

REFP

= V

DD

/ 2 + V

REFIN

/ 4, and V

REFN

= V

DD

/ 2 - V

REFIN

/ 4.

<0.5V

Unbuffered external reference mode. REFP, REFN, and COM are driven by external

reference sources. V

REF

is the difference between the externally applied V

REFP

and V

REFN

.

Table 1. Reference Modes

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 19

edge to have the lowest possible jitter. Jitter limits the
maximum SNR performance of any ADC according to
the following relationship:

where fINrepresents the analog input frequency and t

J

is the total system clock jitter. Clock jitter is especially
critical for undersampling applications. For example,
assuming that clock jitter is the only noise source, to
obtain the specified 68.5dB of SNR with an input fre­quency of 20MHz, the system must have less than 3ps
of clock jitter.

Clock Duty-Cycle Equalizer (DCE)

The MAX1206 clock duty-cycle equalizer allows for a wide
20% to 80% clock duty cycle when enabled (DCE =
OV

DD

or VDD). When disabled (DCE = GND), the

MAX1206 accepts a narrow 45% to 60% clock duty cycle.

The clock duty-cycle equalizer uses a delay-locked
loop to create internal timing signals that are duty-cycle
independent. Due to this delay-locked loop, the
MAX1206 requires approximately 100 clock cycles to
acquire and lock to new clock frequencies.

Disabling the clock duty-cycle equalizer reduces the
analog supply current by 1.5mA.

System Timing Requirements

Figure 5 shows the relationship between the clock, ana­log inputs, DAV indicator, DOR indicator, and the result­ing output data. The analog input is sampled on the
falling edge of the clock signal and the resulting data
appears at the digital outputs 8.5 clock cycles later.

The DAV indicator is synchronized with the digital out­put and optimized for use in latching data into digital
back-end circuitry. Alternatively, digital back-end cir­cuitry can be latched with the falling edge of the clock.

Data Valid Output (DAV)

DAV is a single-ended version of the input clock
(CLKP). The output data changes on the falling edge of
DAV, and DAV rises once the output data is valid.

The state of the duty-cycle equalizer input (DCE)
changes the waveform at DAV. With the duty-cycle
equalizer disabled (DCE low), the DAV signal is the
inverse of the signal at CLKP delayed by 6.4ns. With
the duty-cycle equalizer enabled (DCE high), the DAV
signal has a fixed pulse width that is independent of
CLKP. In either case, with DCE high or low, output data
at D0–D11 and DOR are valid from 13.9ns before the

rising edge of DAV to 10.7ns after the rising edge of
DAV, and the rising edge of DAV is synchronized to
have a 6.4ns delay from the falling edge of CLKP.

DAV is high impedance when the MAX1206 is in power­down (PD = high). DAV is capable of sinking and sourc­ing 600µA and has three times the drive strength of
D0–D11 and DOR. DAV is typically used to latch the
MAX1206 output data into an external back-end digital
circuit.

Keep the capacitive load on DAV as low as possible
(<25pF) to avoid large digital currents feeding back into
the analog portion of the MAX1206 and degrading its
dynamic performance. An external buffer on DAV iso­lates it from heavy capacitive loads. Refer to the
MAX1211 evaluation kit schematic for an example of
DAV driving back-end digital circuitry through an exter­nal buffer.

Data Out-of-Range Indicator (DOR)

The DOR digital output indicates when the analog input
voltage is out of range. When DOR is high, the analog
input is out of range. When DOR is low, the analog
input is within range. The valid differential input range is
from (V

REFP

- V

REFN

) to (V

REFN

- V

REFP

). Signals out­side this valid differential range cause DOR to assert
high as shown in Table 2.

SNR

ft

IN J

=×

×× ×











20

1

2

log

π

10k

Ω

10k

Ω

10k

Ω

10k

Ω

SWITCHES S

1_

AND S2_ ARE OPEN
DURING POWER-DOWN, MAKING
CLKP AND CLKN HIGH IMPEDANCE.
SWITCHES S

2_

ARE OPEN IN
SINGLE-ENDED CLOCK MODE.

V

DD

CLKP

CLKN

GND

S

1H

S

2H

S

1L

S

2L

DUTY­CYCLE

EQUALIZER

MAX1206

Figure 4. Simplified Clock Input Circuit

MAX1206

40Msps, 12-Bit ADC

20 ______________________________________________________________________________________

GRAY CODE

OUTPUT CODE

(G/TTTT = 1)

TWO’S COMPLEMENT

OUTPUT CODE

(G/TTTT = 0)

BINARY

D11  D0

OF

D11  D0

DECIMAL

OF

D11  D0

(CODE

10

)

BINARY

D11  D0

OF

D11  D0

DECIMAL

OF

D11  D0

(CODE

10

)

V

IN P

- V

IN N

V

REFP

= 2.162 V

V

REFN

= 1.138 V

1000 0000 0000

0x800 +4095

0x7FF +2047

>+1.0235V

(DATA OUT OF

RANGE)

1000 0000 0000

0x800 +4095

0x7FF +2047 +1.0235V

1000 0000 0001

0x801 +4094

0x7FE +2046 +1.0230V

1100 0000 0011

0xC03 +2050

0x002 +2 +0.0010V

1100 0000 0001

0xC01 +2049

0x001 +1 +0.0005V

1100 0000 0000

0xC00 +2048

0x000 0 +0.0000V

0100 0000 0000

0x400 +2047

0xFFF -1 -0.0005V

0100 0000 0001

0x401 +2046

0xFFE -2 -0.0010V

0000 0000 0001

0x001 +1

0x801 -2047 -1.0235V

0000 0000 0000

0x000 0

0x800 -2048 -1.0240V

0000 0000 0000

0x000 0

0x800 -2048

<-1.0240V

(DATA OUT OF

RANGE)

)

Table 2. Output Codes vs. Input Voltage

DAV

D0–D11

(V

REFP

- V

REFN

)

(V

REFN

- V

REFP

)

N + 4

N + 5

N + 6

N - 2

N - 3

DOR

8.5 CLOCK CYCLE DATA LATENCY

DIFFERENTIAL ANALOG INPUT (INP - INN)

CLKN

CLKP

t

AD

t

CL

t

CH

t

SETUP

t

SETUP

t

HOLD

t

HOLD

t

DAV

N N + 1 N + 2 N + 3 N + 5 N + 6 N + 7N - 1N - 2N - 3 N + 9N + 8N + 4

N

N + 1

N + 2

N + 3

N + 7

N + 8

N + 9

N - 1

Figure 5. System Timing Diagram

HEXADECIMAL

EQUIVALENT

DOR

EQUIVALENT

HEXADECIMAL

EQUIVALENT

DOR

(

EQUIVALENT

1

0

0

0

0

0

0

0

0

0

1

0111 1111 1111 1

0111 1111 1111 0

0111 1111 1110 0

0000 0000 0010 0

0000 0000 0001 0

0000 0000 0000 0

1111 1111 1111 0

1111 1111 1110 0

1000 0000 0001 0

1000 0000 0000 0

1000 0000 0000 1

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 21

DOR is synchronized with DAV and transitions along
with output data D0–D11. There is an 8.5 clock-cycle
latency in the DOR function just as with the output data
(Figure 5).

DOR is high impedance when the MAX1206 is in
power-down (PD = high). DOR enters a high-imped­ance state within 10ns of the rising edge of PD and
becomes active within 10ns of PD’s falling edge.

Digital Output Data (D0–D11), Output Format (G/T)

The MAX1206 provides a 12-bit, parallel, tri-state out­put bus. D0–D11 and DOR update on the falling edge
of DAV and are valid on the rising edge of DAV.

The MAX1206 output data format is either Gray code or
two’s complement, depending on the logic input G/T.
With G/T high, the output data format is Gray code.
With G/T low, the output data format is two’s comple­ment. See Figure 8 for a binary-to-Gray and Gray-to­binary code-conversion example.

The following equations, Table 2, Figure 6, and Figure 8
define the relationship between the digital output and
the analog input:

for Gray code (G/T = 1).

for two’s complement (G/T = 0).

where CODE10is the decimal equivalent of the digital
output code as shown in Table 2.

The digital outputs D0–D11 are high impedance when
the MAX1206 is in power-down (PD = high). D0–D11
go high impedance within 10ns of the rising edge of PD
and become active within 10ns of PD’s falling edge.

Keep the capacitive load on the MAX1206 digital out­puts D0–D11 as low as possible (<15pF) to avoid large
digital currents feeding back into the analog portion of
the MAX1206 and degrading its dynamic performance.
The addition of external digital buffers on the digital out­puts isolate the MAX1206 from heavy capacitive loads.
To improve the dynamic performance of the MAX1206,
add 220Ω resistors in series with the digital outputs
close to the MAX1206. Refer to the MAX1211 evaluation
kit schematic for an example of the digital outputs dri­ving a digital buffer through 220Ω series resistors.

Power-Down Input (PD)

The MAX1206 has two power modes that are controlled
with the power-down digital input (PD). With PD low, the

MAX1206 is in its normal operating mode. With PD
high, the MAX1206 is in power-down mode.

VV V V

CODE

INP INN REFP REFN

−= − ××()2

4096

10

VV V V

CODE

INP INN REFP REFN

−= − ××

−

()2

2048

4096

10

DIFFERENTIAL INPUT VOLTAGE (LSB)

-1-2045

4096

2 x V

REF

1 LSB =

V

REF

= V

REFP

- V

REFN

V

REF

V

REF

0+1-2047 +2047+2045

TWO'S COMPLEMENT OUTPUT CODE (LSB)

0x800

0x801

0x802

0x803

0x7FF
0x7FE

0x7FD

0xFFF

0x000

0x001

Figure 6. Two’s Complement Transfer Function (G/T= 0)

DIFFERENTIAL INPUT VOLTAGE (LSB)

-1-2045

4096

2 x V

REF

1 LSB =

V

REF

= V

REFP

- V

REFN

V

REF

V

REF

0+1-2047 +2047+2045

GRAY OUTPUT CODE (LSB)

0x000

0x001

0x003

0x002

0x800
0x801
0x803

0x400

0xC00

0xC01

Figure 7. Gray Code Transfer Function (G/T= 1)

MAX1206

40Msps, 12-Bit ADC

22 ______________________________________________________________________________________

BINARY-TO-GRAY CODE CONVERSION

1) THE MOST SIGNIFICANT GRAY-CODE BIT IS THE SAME
AS THE MOST SIGNIFICANT BINARY BIT.

0111 0100 1100 BINARY

GRAY CODE0

2) SUBSEQUENT GRAY-CODE BITS ARE FOUND ACCORDING
TO THE FOLLOWING EQUATION:

D11 D7 D3 D0

GRAYX = BINARYX +BINARY

X + 1

BIT POSITION

0 111 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

GRAY

10

= BINARY10BINARY

11

GRAY10 = 1 0

GRAY

10

= 1

1

3) REPEAT STEP 2 UNTIL COMPLETE

01 11 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

GRAY

9

= BINARY9BINARY

10

GRAY9 = 1 1

GRAY

9

= 0

10

4) THE FINAL GRAY CODE CONVERSTION IS:

0111 0100 1100 BINARY

GRAY CODE0

D11 D7 D3 D0

BIT POSITION

1001101 1010

GRAY-TO-BINARY CODE CONVERSION

1) THE MOST SIGNIFICANT BINARY BIT IS THE SAME AS THE
MOST SIGNIFICANT GRAY-CODE BIT.

2) SUBSEQUENT BINARY BITS ARE FOUND ACCORDING TO
THE FOLLOWING EQUATION:

D11 D7 D3 D0

BINARYX = BINARY

X+1

BIT POSITION

BINARY

10

= BINARY11GRAY

10

BINARY10 = 0 1

BINARY

10

= 1

3) REPEAT STEP 2 UNTIL COMPLETE

4) THE FINAL BINARY CONVERSTION IS:

0100 1110 1010

BINARY

GRAY CODE

D11 D7 D3 D0

BIT POSITION

0 BINARY

GRAY CODE0100 11 01 1010

BINARY

9

= BINARY10GRAY

9

BINARY9 = 1 0

BINARY

9

= 1

GRAY

X

0 100 1110 1010

BINARY

GRAY CODE

0

D11 D7 D3 D0

BIT POSITION

1

01 00 1110 1010

BINARY

GRAY CODE

0

D11 D7 D3 D0

BIT POSITION

11

0111 0100 1100

AB Y=AB

00
01
10
11

0
1
1
0

EXCULSIVE OR TRUTH TABLE

WHERE IS THE EXCLUSIVE OR FUNCTION (SEE TRUTH
TABLE BELOW) AND X IS THE BIT POSITION.

+

WHERE IS THE EXCLUSIVE OR FUNCTION (SEE TRUTH
TABLE BELOW) AND X IS THE BIT POSITION.

+

+

+

+

+

+

+

+

+

+

+

+

+

+

+

Figure 8. Binary-to-Gray and Gray-to-Binary Code Conversion

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 23

The power-down mode allows the MAX1206 to efficient­ly use power by transitioning to a low-power state when
conversions are not required. Additionally, the
MAX1206 parallel output bus goes high impedance in
power-down mode, allowing other devices on the bus
to be accessed.

In power-down mode, all internal circuits are off, the
analog supply current reduces to 0.045mA, and the
digital supply current reduces to 6µA. The following list
shows the state of the analog inputs and digital outputs
in power-down mode:

• INP, INN analog inputs are disconnected from the
internal input amplifier (Figure 3).

• REFOUT has approximately 17kΩ to GND.

• REFP, COM, REFN go high impedance with respect

to VDDand GND, but there is an internal 4kΩ resis-
tor between REFP and COM, as well as an internal
4kΩ resistor between REFN and COM.

• D0–D11, DOR, and DAV go high impedance.

• CLKP, CLKN clock inputs go high impedance

(Figure 4).

The wake-up time from power-down mode is dominated
by the time required to charge the capacitors at REFP,
REFN, and COM. In internal reference mode and
buffered external reference mode, the wake-up time is
typically 10ms. When operating in the unbuffered exter­nal reference mode, the wake-up time is dependent on
the external reference drivers.

Applications Information

Using Transformer Coupling

In general, the MAX1206 provides better SFDR and
THD with fully differential input signals than single­ended input drive. In differential input mode, even­order harmonics are lower as both inputs are balanced,
and each of the ADC inputs only requires half the signal
swing compared to single-ended input mode.

An RF transformer (Figure 9) provides an excellent
solution to convert a single-ended input source signal
to a fully differential signal, required by the MAX1206
for optimum performance. Connecting the center tap of
the transformer to COM provides a V

DD

/ 2 DC level
shift to the input. Although a 1:1 transformer is shown, a
step-up transformer can be selected to reduce the
drive requirements. A reduced signal swing from the
input driver, such as an op amp, can also improve the
overall distortion. The configuration of Figure 9 is good
for input frequencies up to Nyquist (f

CLK

/ 2).

The circuit of Figure 10 converts a single-ended input
signal to fully differential just as in Figure 9. However,

Figure 10 utilizes an additional transformer to improve
the common-mode rejection, allowing high-frequency
signals beyond the Nyquist frequency. The two sets of

49.9Ω termination resistors provide an equivalent 50Ω
termination to the signal source. The second set of ter­mination resistors connects to COM, providing the cor­rect input common-mode voltage. Two 0Ω resistors in
series with the analog inputs allow high IF input fre­quencies. These 0Ω resistors can be replaced with low­value resistors to limit the input bandwidth.

Single-Ended AC-Coupled Input Signal

Figure 11 shows an AC-coupled, single-ended input
application. The MAX4108 provides high speed, high
bandwidth, low noise, and low distortion to maintain the
input signal integrity.

Buffered External Reference Drives

Multiple ADCs

The buffered external reference mode allows for more
control over the MAX1206 reference voltage and allows
multiple converters to use a common reference. The
REFIN input impedance is >50MΩ.

Figure 12 shows the MAX6062 precision bandgap ref­erence used as a common reference for multiple con­verters. The 2.048V output of the MAX6062 passes
through a one-pole 10Hz lowpass filter to the MAX4250.
The MAX4250 buffers the 2.048V reference before its

MAX1206

T1

N.C.

V

IN

6

1

5

2

4

3

12pF

12pF

0.1µF

0.1µF

2.2µF

24.9

Ω

24.9

Ω

MINICIRCUITS

TT1-6

OR

T1-1T

INN

COM

INP

Figure 9. Transformer-Coupled Input Drive for Input
Frequencies Up to Nyquist

MAX1206

40Msps, 12-Bit ADC

24 ______________________________________________________________________________________

output is applied to the REFIN input of the MAX1206.
The MAX4250 provides a low offset voltage (for high
gain accuracy) and a low noise level.

Unbuffered External Reference Drives

Multiple ADCs

The unbuffered external reference mode allows for pre­cise control over the MAX1206 reference and allows
multiple converters to use a common reference.
Connecting REFIN to GND disables the internal refer­ence, allowing REFP, REFN, and COM to be driven
directly by a set of external reference sources.

Figure 13 shows the MAX6066 precision bandgap ref­erence used as a common reference for multiple con­verters. The 2.500V output of the MAX6066 is followed
by a 10Hz lowpass filter and precision voltage-divider.
The MAX4254 buffers the taps of this divider to provide
the +2.000V, +1.500V, and +1.000V sources to drive
REFP, REFN, and COM. The MAX4254 provides a low
offset voltage and low noise level. The individual volt­age followers are connected to 10Hz lowpass filters,
which filter both the reference voltage and amplifier
noise to a level of 3nV/√Hz. The 2.000V and 1.000V ref-
erence voltages set the differential full-scale range of
the associated ADCs at ±1.000V.

The common power supply for all active components
removes any concern regarding power-supply
sequencing when powering up or down.

With the outputs of the MAX4254 matching better than

0.1%, the buffers and subsequent lowpass support as
many as 8 ADCs.

Grounding, Bypassing, and Board Layout

The MAX1206 requires high-speed board layout design
techniques. Refer to the MAX1211 evaluation kit data
sheet for a board layout reference. Locate all bypass
capacitors as close to the device as possible, prefer-

ably on the same side as the ADC, using surface­mount devices for minimum inductance. Bypass VDDto
GND with a 0.1µF ceramic capacitor in parallel with a

2.2µF ceramic capacitor. Bypass OV

DD

to GND with a

0.1µF ceramic capacitor in parallel with a 2.2µF ceram­ic capacitor.

Multilayer boards with ample ground and power planes
produce the highest level of signal integrity. All
MAX1206 GNDs and the exposed backside paddle
must be connected to the same ground plane. The
MAX1206 relies on the exposed backside paddle con­nection for a low-inductance ground connection. Use
mulitple vias to connect the top-side ground to the bot­tom-side ground. Isolate the ground plane from any
noisy digital system ground planes such as a DSP or
output buffer ground.

MAX1206

0.1µF

100Ω

100Ω

12pF

12pF

INP

INN

COM

0.1µF

V

IN

MAX4108

24.9Ω

24.9Ω

2.2µF

Figure 11. Single-Ended, AC-Coupled Input Drive

MAX1206

T1

N.C.

V

IN

6

1

5

2

4

3

12pF

12pF

0.1µF

0Ω*

49.9Ω

0.5%

49.9Ω

0.5%

0Ω*

MINICIRCUITS

ADT1-1WT

T1

N.C. N.C.

6

1

5

2

4

3

MINICIRCUITS

ADT1-1WT

INP

COM

INN

*0Ω RESISTORS CAN BE REPLACED WITH
LOW-VALUE RESISTORS TO LIMIT THE
INPUT BANDWIDTH.

0.1µF 4.7µF

49.9Ω

0.5%

49.9Ω

0.5%

Figure 10. Transformer-Coupled Input Drive for Input Frequencies Beyond Nyquist

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 25

Route high-speed digital signal traces away from the
sensitive analog traces. Keep all signal lines short and
free of 90° turns.

Ensure that the differential analog input network layout
is symmetric and that all parasitics are balanced equal­ly. Refer to the MAX1211 evaluation kit data sheet for
an example of symmetric input layout.

Parameter Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from a straight line. This straight
line is either a best-straight-line fit or a line drawn
between the end points of the transfer function, once
offset and gain errors have been nullified. The static lin­earity parameters for the MAX1206 are guaranteed by
design using the best-straight-line fit method.

16.2kΩ
47Ω

+3.3V

2

2.048V

REFIN

REFP

REFN

COMREFOUT

GND

4

2

3

5

1

1

39

38

39

38

2

3

1

2

3

1

1µF

0.1µF

V

DD

NOTE: ONE FRONT-END REFERENCE CIRCUIT PROVIDES ±15mA OF OUTPUT DRIVE.

*PLACE AS CLOSE TO THE DEVICE AS POSSIBLE.

3

0.1µF

+3.3V

0.1µF

2.2µF

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

10µF

2.2µF

MAX6062

MAX1206

REFIN

REFP

REFN

COMREFOUT

GND

V

DD

0.1µF

2.2µF

0.1µF

0.1µF

*1µF

0.1µF

0.1µF

0.1µF

10µF

2.2µF

MAX1206

10µF
6V

47µF
6V

1.47kΩ

MAX4250

*1µF

Figure 12. External Buffered (MAX4250) Reference Drive Using a MAX6062 Bandgap Reference

MAX1206

40Msps, 12-Bit ADC

26 ______________________________________________________________________________________

21.5kΩ

1%

21.5kΩ

1%

21.5kΩ

1%

21.5kΩ

1%

21.5kΩ

1%

1MΩ

1MΩ

47Ω

1.47kΩ

+3.3V

2

REFP

REFN

COM

REFOUT

GND

2

3

1/4

MAX4254

2.000V

1

1

39

38

39

38

2

3

1

1µF

10µF

6V

0.1µF

V

DD

3

330µF

6V

+3.3V

UNCOMMITTED

NOTE: ONE FRONT-END REFERENCE CIRCUIT

SUPPORTS UP TO 8 MAX1206s.

+3.3V

0.1µF

2.2µF

0.1µF

*1µF

0.1µF

0.1µF

0.1µF

10µF

2.2µF

MAX1206

MAX6066

2.500V

REFIN

REFIN

REFP

REFN

COM

REFOUT

GND

V

DD

0.1µF

2.2µF

0.1µF

*1µF

0.1µF

0.1µF

0.1µF

10µF

2.2µF

MAX1206

47Ω

1.47kΩ

6

5

1/4

MAX4254

1.500V

7

10µF

6V

330µF

6V

47Ω

1.47kΩ

9

10

1/4

MAX4254

1.000V

8

10µF

6V

330µF

6V

11

12

13

4

14

0.1µF

MAX4254

1/4

1

2

3

*PLACE AS CLOSE TO THE DEVICE AS POSSIBLE.

Figure 13. External Unbuffered Reference Driving 8 ADCs with MAX4254 and MAX6066

MAX1206

40Msps, 12-Bit ADC

______________________________________________________________________________________ 27

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an
actual step width and the ideal value of 1 LSB. A DNL
error specification of less than 1 LSB guarantees no
missing codes and a monotonic transfer function.

Offset Error

Ideally, the midscale MAX1206 transition occurs at 0.5
LSB above midscale. The offset error is the amount of
deviation between the measured transition point and
the ideal transition point.

Gain Error

Ideally, the positive full-scale MAX1206 transition
occurs at 1.5 LSB below positive full scale, and the
negative full-scale transition occurs at 0.5 LSB above
negative full scale. The gain error is the difference of
the measured transition points minus the difference of
the ideal transition points.

Aperture Jitter

Figure 14 depicts the aperture jitter (tAJ), which is the
sample-to-sample variation in the aperture delay.

Aperture Delay

Aperture delay (tAD) is the time defined between the
rising edge of the sampling clock and the instant when
an actual sample is taken (Figure 14).

Overdrive Recovery Time

Overdrive recovery time is the time required for the
ADC to recover from an input transient that exceeds the
full-scale limits. The MAX1206 specifies overdrive
recovery time using an input transient that exceeds the
full-scale limits by ±10%.

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of
the full-scale analog input (RMS value) to the RMS
quantization error (residual error). The ideal, theoretical
minimum analog-to-digital noise is caused by quantiza­tion error only and results directly from the ADC’s reso­lution (N bits):

SNR

dB[max]

= 6.02dB× N + 1.76

dB

In reality, there are other noise sources besides quanti­zation noise: thermal noise, reference noise, clock jitter,
etc. SNR is computed by taking the ratio of the RMS
signal to the RMS noise. RMS noise includes all spec­tral components to the Nyquist frequency excluding the
fundamental, the first six harmonics (HD2–HD7), and
the DC offset.

Signal-to-Noise Plus Distortion (SINAD)

SINAD is computed by taking the ratio of the RMS sig­nal to the RMS noise plus distortion. RMS noise plus
distortion includes all spectral components to the
Nyquist frequency, excluding the fundamental and the
DC offset.

Effective Number of Bits (ENOB)

ENOB specifies the dynamic performance of an ADC at a
specific input frequency and sampling rate. An ideal
ADC’s error consists of quantization noise only. ENOB for
a full-scale sinusoidal input waveform is computed from:

Total Harmonic Distortion (THD)

THD is the ratio of the RMS sum of the first six harmon­ics of the input signal to the fundamental itself. This is
expressed as:

where V

1

is the fundamental amplitude, and V2through
V7are the amplitudes of the 2nd- through 7th-order
harmonics (HD2–HD7).

Single-Tone Spurious-Free

Dynamic Range (SFDR)

SFDR is the ratio expressed in decibels of the RMS
amplitude of the fundamental (maximum signal compo­nent) to the RMS amplitude of the next-largest spurious
component, excluding DC offset.

THD

VVVVVV

V

=×

+++++















20

22324252627

2

1

log

ENOB

SINAD=−











176

602..

t

AD

T/H TRACKHOLD HOLD

CLKN

CLKP

ANALOG

INPUT

SAMPLED

DATA

t

AJ

Figure 14. T/H Aperture Timing

MAX1206

40Msps, 12-Bit ADC

28 ______________________________________________________________________________________

Two-Tone Spurious-Free

Dynamic Range (SFDR

TT

)

SFDRTTrepresents the ratio, expressed in decibels,
of the RMS amplitude of either input tone to the RMS
amplitude of the next-largest spurious component in
the spectrum, excluding DC offset. This spurious
component can occur anywhere in the spectrum up
to Nyquist and is usually an intermodulation product
or a harmonic.

Intermodulation Distortion (IMD)

IMD is the ratio of the RMS sum of the intermodulation
products to the RMS sum of the two fundamental input
tones. This is expressed as:

The fundamental input tone amplitudes (V1and V2) are
at -7dBFS. Fourteen intermodulation products (V

IMP_

)
are used in the MAX1206 calculation. The intermodula­tion products are the amplitudes of the output spectrum
at the following frequencies:

• 2nd-order intermodulation products: f1 + f2, f2 - f1

• 3rd-order intermodulation products: 2 x f1 - f2, 2 x f2

- f1, 2 x f1 + f2, 2 x f2 + f1

• 4th-order intermodulation products: 3 x f1 - f2, 3 x f2

- f1, 3 x f1 + f2, 3 x f2 + f1

• 5th-order intermodulation products: 3 x f1 - 2 x f2, 3

x f2 - 2 x f1, 3 x f1 + 2 x f2, 3 x f2 + 2 x f1

3rd-Order Intermodulation (IM3)

IM3 is the total power of the 3rd-order intermodulation
products to the Nyquist frequency relative to the total
input power of the two input tones f1 and f2. The indi­vidual input tone levels are at -7dBFS. The 3rd-order

intermodulation products are 2 x f1 - f2, 2 x f2 - f1, 2 x
f1 + f2, 2 x f2 + f1.

Chip Information

TRANSISTOR COUNT: 18,700

PROCESS: CMOS

IMD x

VV V

VV

IMP IMP IMPn

=

+++

+















••••

20

1

2

2

22

1

22

2

log

D0
D1

EXPOSED PADDLE (GND)

D3
D4

D7

D8
D9

D5
D6

D2

COM

GND

INP

INN

GND

DCE
CLKN

CLKP

REFN

REFP

1

2

3

4

5

6

7

8

9

10

111213141516171819

20

403938373635343332

31

30

29

28

27

26

25

24

23

22

21

V

DD

GND

OV

DD

D11

D10

V

DDVDDVDD

CLKTYP

REFIN

REFOUTPDV

DD

GND

OVDDDAV

I.C.

I.C.

G/T

THIN QFN

6mm × 6mm × 0.8mm

MAX1206

DOR

TOP VIEW

Pin Configuration

MAX1206

40Msps, 12-Bit ADC

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________ 29

© 2004 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

Note: For the MAX1206 exposed pad variations, the package code is T4066-3.

QFN THIN 6x6x0.8.EPS

e e

LL

A1 A2

A

E/2

E

D/2

D

E2/2

E2

(NE-1) X e

(ND-1) X e

e

D2/2

D2

b

k

k

L

C

L

C

L

C

L

C

L

E

1

2

21-0141

PACKAGE OUTLINE
36, 40, 48L THIN QFN, 6x6x0.8mm

L1

L

e

8. COPLANARITY APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.

6. ND AND NE REFER TO THE NUMBER OF TERMINALS ON EACH D AND E SIDE RESPECTIVELY.

5. DIMENSION b APPLIES TO METALLIZED TERMINAL AND IS MEASURED BETWEEN 0.25 mm AND 0.30 mm
FROM TERMINAL TIP.

4. THE TERMINAL #1 IDENTIFIER AND TERMINAL NUMBERING CONVENTION SHALL CONFORM TO JESD 95-1
SPP-012. DETAILS OF TERMINAL #1 IDENTIFIER ARE OPTIONAL, BUT MUST BE LOCATED WITHIN THE
ZONE INDICATED. THE TERMINAL #1 IDENTIFIER MAY BE EITHER A MOLD OR MARKED FEATURE.

9. DRAWING CONFORMS TO JEDEC MO220, EXCEPT FOR 0.4mm LEAD PITCH PACKAGE T4866-1.

7. DEPOPULATION IS POSSIBLE IN A SYMMETRICAL FASHION.

3. N IS THE TOTAL NUMBER OF TERMINALS.

2. ALL DIMENSIONS ARE IN MILLIMETERS. ANGLES ARE IN DEGREES.

1. DIMENSIONING & TOLERANCING CONFORM TO ASME Y14.5M-1994.

NOTES:

10. WARPAGE SHALL NOT EXCEED 0.10 mm.

E

2

2

21-0141

PACKAGE OUTLINE
36, 40, 48L THIN QFN, 6x6x0.8mm
