General Description

The MAX1184 is a 3V, dual 10-bit analog-to-digital con­verter (ADC) featuring fully-differential wideband track­and-hold (T/H) inputs, driving two pipelined, 9-stage
ADCs. The MAX1184 is optimized for low-power, high­dynamic performance applications in imaging, instru­mentation, and digital communication applications. This
ADC operates from a single 2.7V to 3.6V supply, con­suming only 105mW while delivering a typical signal-to­noise ratio (SNR) of 59.5dB at an input frequency of

7.5MHz and a sampling rate of 20Msps. The T/H driven
input stages incorporate 400MHz (-3dB) input amplifiers.
The converters may also be operated with single-ended
inputs. In addition to low operating power, the MAX1184
features a 2.8mA sleep mode as well as a 1µA power­down mode to conserve power during idle periods.

An internal 2.048V precision bandgap reference sets
the full-scale range of the ADC. A flexible reference
structure allows the use of the internal or an externally
derived reference, if desired for applications requiring
increased accuracy or a different input voltage range.

The MAX1184 features parallel, CMOS-compatible
three-state outputs. The digital output format is set to
two’s complement or straight offset binary through a sin­gle control pin. The device provides for a separate out­put power supply of 1.7V to 3.6V for flexible interfacing.
The MAX1184 is available in a 7mm x 7mm, 48-pin
TQFP package, and is specified for the extended
industrial (-40°C to +85°C) temperature range.

Pin-compatible higher speed versions of the MAX1184
are also available. See Table 2 at end of data sheet for a
list of pin-compatible versions. Refer to the MAX1180
data sheet for 105Msps, the MAX1181 data sheet for
80Msps, the MAX1182 data sheet for 65Msps, and the
MAX1183 data sheet for 40Msps. In addition to these
speed grades, this family includes a 20Msps multi­plexed output version (MAX1185), for which digital data
is presented time-interleaved on a single, parallel 10-bit
output port.

Applications

High-Resolution Imaging

I/Q Channel Digitization

Multchannel IF Undersampling

Instrumentation

Video Application

Features

♦ Single 3V Operation
♦ Excellent Dynamic Performance:

59.5dB SNR at f

IN

= 7.5MHz

74dB SFDR at f

IN

= 7.5MHz

♦ Low Power:

35mA (Normal Operation)

2.8mA (Sleep Mode)
1µA (Shutdown Mode)

♦ 0.02dB Gain and 0.25° Phase Matching (typ)
♦ Wide ±1V

P-P

Differential Analog Input

Voltage Range

♦ 400MHz -3dB Input Bandwidth
♦ On-Chip 2.048V Precision Bandgap Reference
♦ User-Selectable Output Format—Two’s

Complement or Offset Binary

♦ 48-Pin TQFP Package with Exposed Paddle for

Improved Thermal Dissipation

♦ Evaluation Kit Available

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

________________________________________________________________ Maxim Integrated Products 1

Pin Configuration

19-2174; Rev 1; 7/06

Ordering Information

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

*EP = Exposed paddle.

+Denotes lead-free package.

NOTE: THE PIN 1 INDICATOR FOR LEAD-FREE PACKAGE IS REPLACED BY A “+” SIGN.

PART TEMP RANGE PIN-PACKAGE

MAX1184ECM -40°C to +85°C 48 TQFP-EP*
MAX1184ECM+ -40°C to +85°C 48 TQFP-EP*

REFN

REFP

REFIN

REFOUT

D9A

D8A

D7A

D6A

D5A

D4A

D3A

D2A

COM

V
GND
INA+
INA-

V
GND
INB­INB+
GND

V

CLK

4847464544434241403938

1

2

DD

3

4

5

6

DD

7

8

9

10

11

DD

12

EP

1314151617181920212223

DD

V

GND

MAX1184

DD

T/B

V

GND

48 TQFP-EP

SLEEP

OE

PD

D9B

D8B

D7B

37

24

D6B

36

D1A
D0A

35

OGND

34

OV

33

OV

32

OGND

31

D0B

30

D1B

29

D2B

28

D3B

27

D4B

26

D5B

25

DD

DD

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VDD= 3V, OVDD= 2.5V, 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 20MHz, TA= T

MIN

to T

MAX

,

unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 2)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDD, OVDD to GND...............................................-0.3V to +3.6V

OGND to GND.......................................................-0.3V to +0.3V

INA+, INA-, INB+, INB- to GND ...............................-0.3V to V

DD

REFIN, REFOUT, REFP, REFN, CLK,

COM to GND ..........................................-0.3V to (V

DD

+ 0.3V)

OE, PD, SLEEP, T/B, D9A–D0A,

D9B–D0B to OGND .............................-0.3V to (OV

DD

+ 0.3V)

Continuous Power Dissipation (T

A

= +70°C)
48-Pin TQFP-EP (derate 30.4mW/°C above

+70°C).......................................................................2430mW

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-60°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

DC ACCURACY

Resolution 10 Bits

Integral Nonlinearity INL fIN = 7.5MHz ±0.5 ±1.5 LSB

Differential Nonlinearity DNL fIN = 7.5MHz, no missing codes guaranteed ±0.25 ±1.0 LSB
Offset Error < ±1 ±1.8 % FS
Gain Error 0 ±2 % FS

ANALOG INPUT

Differential Input Voltage
Range

Common-Mode Input Voltage
Range

Input Resistance R

Input Capacitance C

CONVERSION RATE

Maximum Clock Frequency f

Data Latency 5

DYNAMIC CHARACTERISTICS

Signal-to-Noise Ratio
(Note 3)

Signal-to-Noise and Distortion
(Note 3)

Spurious-Free Dynamic Range
(Note 3)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

V

V

CLK

SNR

SINAD

SFDR

DIFF

Differential or single-ended inputs ±1.0 V

CM

Switched capacitor load 100 kΩ

IN

IN

f

f

f

f

f

f

= 7.5MHz, TA = +25°C 57.3 59.5

INA or B

= 12MHz 59.4

INA or B

= 7.5MHz, TA = +25°C 57 59.4

INA or B

= 12MHz 59.2

INA or B

= 7.5MHz, TA = +25°C 64 74

INA or B

= 12MHz 72

INA or B

VDD/2

± 0.5

5pF

20 MHz

V

Clock

Cycles

dB

dB

dBc

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3V, OVDD= 2.5V, 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 20MHz, TA= T

MIN

to T

MAX

,

unless otherwise noted. Typical values are at T

A

= +25°C.) (Note 2)

Third-Harmonic Distortion
(Note 3)

Total Harmonic Distortion
(First 4 harmonics) (Note 3)

Intermodulation Distortion IMD

Small-Signal Bandwidth Input at -20dBFS, differential inputs 500 MHz

Full-Power Bandwidth FPBW Input at -0.5dBFS, differential inputs 400 MHz

Aperture Delay t

Aperture Jitter t

Overdrive Recovery Time For 1.5 x full-scale input 2 ns
Differential Gain ±1%
Differential Phase ±0.25 d egr ees

Output Noise INA+ = INA- = INB+ = INB- = COM 0.2 LSB

INTERNAL REFERENCE

Reference Output Voltage REFOUT

Reference Temperature
Coefficient

Load Regulation 1.25 mV/mA

BUFFERED EXTERNAL REFERENCE (V

REFIN Input Voltage V

Positive Reference Output
Voltage

Negative Reference Output
Voltage

Differential Reference Output
Voltage Range

REFIN Resistance R

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

HD3

THD

TC

REFIN

V

REFP

V

REFN

∆V

REFIN

f

INA or B

f

INA or B

f

INA or B

f

INA or B

f

INA or B

f

I N A o r B

AD

AJ

REF

= 2.048V)

REFIN

∆V

REF

= 7.5MHz -74

= 12MHz -72

= 7.5MHz, TA = +25°C -72 -64

= 12MHz -71

= 11.985MHz at -6.5dBFS

= 12.893M H z at - 6.5d BFS ( N ote 4)

REF

= V

REFP

- V

REFN

-76 dBc

1ns

2ps

2.048

±3%

60 ppm/°C

2.048 V

2.012 V

0.988 V

0.95 1.024 1.10 V

>50 MΩ

dBc

dBc

RMS

RMS

V

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3V, OVDD= 2.5V, 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to. COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 20MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

Maximum REFP, COM Source
Current

Maximum REFP, COM Sink
Current

Maximum REFN Source Current I

Maximum REFN Sink Current I

UNBUFFERED EXTERNAL REFERENCE (V

REFP, REFN Input Resistance

Differential Reference Input
Voltage

COM Input Voltage V

REFP Input Voltage V

REFN Input Voltage V

DIGITAL INPUTS (CLK, PD, OE, SLEEP, T/B))

Input High Threshold V

Input Low Threshold V

Input Hysteresis V

Input Leakage

Input Capacitance C

DIGITAL OUTPUTS (D9A–D0A, D9B–D0B)

Output Voltage Low V

Output Voltage High V

Three-State Leakage Current I

Three-State Output Capacitance C

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

I

SOURCE

I

SINK

SOURCE

SINK

R

REFP

R

REFN

∆V

REF

COM

REFP

REFN

IH

IL

HYST

I

IH

I

IL

IN

OL

OH

LEAK

OUT

= AGND, reference voltage applied to REFP, REFN, and COM)

REFIN

,

Measured between REFP and COM, and
REFN and COM

∆V

REF

= V

REFP

- V

REFP

CLK 0.8 x V
PD, OE, SLEEP, T/B 0.8 x OV

CLK 0.2 x V
PD, OE, SLEEP, T/B 0.2 x OV

VIH = OV

DD

or V

(CLK) ±5

DD

VIL = 0V ±5

I

= 200µA 0.2 V

SINK

I

SOURCE

OE = OV
OE = OV

= 200µA OVDD - 0.2 V

DD

DD

5mA

-250 µA

250 µA

-5 mA

4kΩ

1.024
±10%

VDD/2

±10%

V

+

C OM

∆V

/ 2

RE F

V

-

C OM

∆V

/ 2

RE F

DD

DD

DD

DD

0.1 V

5pF

±10 µA

5pF

µA

V

V

V

V

V

V

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 5

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3V, OVDD= 2.5V, 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to. COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 20MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

Note 1: Equivalent dynamic performance is obtainable over full OVDDrange with reduced CL.
Note 2: Specifications at ≥ +25°C are guaranteed by production test and < +25°C are guaranteed by design and characterization.
Note 3: SNR, SINAD, THD, SFDR, and HD3 are based on an analog input voltage of -0.5dBFS referenced to a 1.024V full-scale

input voltage range.

Note 4: Intermodulation distortion is the total power of the intermodulation products relative to the individual carrier. This number is

6dB or better, if referenced to the two-tone envelope.

Note 5: Digital outputs settle to V

IH

, VIL. Parameter guaranteed by design.

Note 6: With REFIN driven externally, REFP, COM, and REFN are left floating while powered down.

POWER REQUIREMENTS

Analog Supply Voltage Range V

Output Supply Voltage Range OV

Analog Supply Current I

Output Supply Current I

Power Dissipation PDISS

Power-Supply Rejection Ratio PSRR

TIMING CHARACTERISTICS

CLK Rise to Output Data Valid t

Output Enable Time t

Output Disable Time t

CLK Pulse Width High t

CLK Pulse Width Low t

Wake-Up Time t

CHANNEL-TO-CHANNEL MATCHING

Crosstalk f

Gain Matching f

Phase Matching f

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

DD

DD

VDD

OVDD

DO

ENABLE

DISABLE

CH

CL

WAKE

Operating, f

Sleep mode 2.8
Shutdown, clock idle, PD = OE = OV

Operating, CL = 15pF, f

-0.5dBFS

Sleep mode 100
Shutdown, clock idle, PD = OE = OV

Operating, f

Sleep mode 8.4
Shutdown, clock idle, PD = OE = OV
Offset ±0.2 mV/V
Gain ±0.1 %/V

Figure 3 (Note 5) 5 8 ns

Figure 4 10 ns

Figure 4 1.5 ns

Figure 3, clock period: 50ns

Figure 3, clock period: 50ns

Wake up from sleep mode (Note 6) 0.51

Wake up from shutdown (Note 6) 1.5

= 7.5MHz at -0.5dBFS -70 dB

INA or B

= 7.5MHz at -0.5dBFS 0.02 ±0.2 dB

INA or B

= 7.5MHz at -0.5dBFS 0.25 d eg r ees

INA or B

= 7.5MHz at -0.5dBFS 35 50

INA or B

DD

= 7.5MHz at

INA or B

DD

= 7.5MHz at -0.5dBFS 105 150

INA or B

DD

2.7 3.0 3.6 V

1.7 2.5 3.6 V

115µA

3.8 mA

210

345µW

25 ± 7.5
25 ± 7.5

mA

mW

µA

ns

ns

µs

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

6 _______________________________________________________________________________________

Typical Operating Characteristics

(VDD= 3V, OVDD= 2.5V, V

REFIN

= 2.048V, differential input at -0.5dBFS, f

CLK

= 20MHz, CL≈ 10pF, TA= +25°C, unless otherwise noted.)

FFT PLOT CHA (DIFFERENTIAL INPUT,

8192-POINT DATA RECORD)

0

f

= 20.0006MHz

CLK

-10

= 5.9743MHz

f

INA

= 7.5344MHz

f

INB

-20

= -0.525dBFS

A

INA

-30

-40

-50

-60

HD3

AMPLITUDE (dB)

-70

-80

-90

-100
0 23415679810

ANALOG INPUT FREQUENCY (MHz)

FFT PLOT CHB (DIFFERENTIAL INPUT,

8192-POINT DATA RECORD)

0

f

= 20.0006MHz

CLK

-10

= 7.5344MHz

f

INA

= 11.9852MHz

f

INB

-20

= -0.471dBFS

A

INB

-30

-40

-50

-60

AMPLITUDE (dB)

-70

-80

-90

-100
0 2341 567 9810

HD3

HD2

ANALOG INPUT FREQUENCY (MHz)

HD2

CHA

CHB

MAX1184 toc01

MAX1184 toc04

FFT PLOT CHB (DIFFERENTIAL INPUT,

8192-POINT DATA RECORD)

0

f

= 20.0006MHz

CLK

-10

= 5.9743MHz

f

INA

= 7.5244MHz

f

INB

-20

= -0.462dBFS

A

INB

-30

-40

-50

-60

AMPLITUDE (dB)

HD3

-70

-80

-90

-100
0 2341 567 9810

HD2

ANALOG INPUT FREQUENCY (MHz)

TWO-TONE IMD PLOT DIFFERENTIAL

INPUT, 8192-POINT DATA RECORD

0

f

= 20.0006MHz

CLK

-10

= 11.9852MHz

f

IN1

= 12.8934MHz

f

IN2

-20

= A

= -6.5dBFS

A

IN1

-30

-40

-50

-60

AMPLITUDE (dB)

-70

-80

-90

-100

IN2

f

IN2

IM2

046821012141816 20

ANALOG INPUT FREQUENCY (MHz)

IM3

CHB

IM3

FFT PLOT CHA (DIFFERENTIAL INPUT,

8192-POINT DATA RECORD)

0

f

= 20.0006MHz

CLK

MAX1184 toc02

-10

= 7.5344MHz

f

INA

= 11.9852MHz

f

INB

-20

= -0.489dBFS

A

INA

-30

-40

-50

-60

AMPLITUDE (dB)

-100

HD3

-70

-80

-90

0 2341 567 9810

HD2

ANALOG INPUT FREQUENCY (MHz)

CHA

MAX1184 toc03

SIGNAL-TO-NOISE RATIO vs.
ANALOG INPUT FREQUENCY

61

MAX1184 toc05

f

IN1

60

CHB

59

SNR (dB)

58

57

56

CHA

0 1020304050

ANALOG INPUT FREQUENCY (MHz)

MAX1184 toc06

SIGNAL-TO-NOISE PLUS DISTORTION

vs. ANALOG INPUT FREQUENCY

61

60

59

SINAD (dB)

58

57

56

0 10203040 50

CHB

CHA

ANALOG INPUT FREQUENCY (MHz)

MAX1184 toc07

TOTAL HARMONIC DISTORTION vs.

ANALOG INPUT FREQUENCY

-63

-65

-67

-69

THD (dBc)

-71

-73

-75

-77
0 10203040 50

CHB

CHA

ANALOG INPUT FREQUENCY (MHz)

MAX1184 toc08

SPURIOUS-FREE DYNAMIC RANGE vs.

ANALOG INPUT FREQUENCY

80

76

72

SFDR (dBc)

68

64

60

CHB

01020304050

ANALOG INPUT FREQUENCY (MHz)

MAX1184 toc09

CHA

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 7

D

D

Typical Operating Characteristics (continued)

(VDD= 3V, OVDD= 2.5V, V

REFIN

= 2.048V, differential input at -0.5dBFS, f

CLK

= 20MHz, CL≈ 10pF, TA= +25°C, unless otherwise noted.)

FULL-POWER INPUT BANDWIDTH vs.

ANALOG INPUT FREQUENCY, SINGLE-ENDE

6

4

2

0

GAIN (dB)

-2

-4

-6

-8
1 10 100 1000

ANALOG INPUT FREQUENCY (MHz)

SIGNAL-TO-NOISE PLUS DISTORTION vs.

ANALOG INPUT POWER (f

65

60

55

50

SINAD (dB)

45

40

SMALL-SIGNAL INPUT BANDWIDTH vs.

ANALOG INPUT FREQUENCY, SINGLE-ENDE

6

4

2

0

GAIN (dB)

-2

-4

-6

-8
1 10 100 1000

ANALOG INPUT FREQUENCY (MHz)

TOTAL HARMONIC DISTORTION vs.

ANALOG INPUT POWER (f

-58

-62

-66

THD (dBc)

-70

-74

= 7.5344MHz)

IN

MAX1184 toc10

MAX1184 toc13

VIN = 100mV

SIGNAL-TO-NOISE RATIO vs.

ANALOG INPUT POWER (f

MAX1184 toc11

SNR (dB)

65

60

55

50

45

40

35

-20 0

-12-16 -8 -4

ANALOG INPUT POWER (dBFS)

P-P

= 7.5344MHz)

IN

SPURIOUS-FREE DYNAMIC RANGE vs.

= 7.5344MHz)

IN

MAX1184 toc14

SFDR (dBc)

ANALOG INPUT POWER (f

100

90

80

70

60

50

= 7.5344MHz)

IN

MAX1184 toc12

MAX1184 toc15

35

-20 0

-12-16 -8 -4

ANALOG INPUT POWER (dBFS)

INTEGRAL NONLINEARITY

0.3

0.2

0.1

0

INL (LSB)

-0.1

-0.2

-0.3
0 256128 384 512 640 768 896 1024

DIGITAL OUTPUT CODE

MAX1184 toc16

-78

-20 -12-16 -8 -4 0
ANALOG INPUT POWER (dBFS)

DIFFERENTIAL NONLINEARITY

0.3

0.2

0.1

0

DNL (LSB)

-0.1

-0.2

-0.3
0256128 384 512 640 768 896 1024

DIGITAL OUTPUT CODE

40

0.6

0.5

MAX1184 toc17

0.4

0.3

0.2

GAIN ERROR (%FS)

0.1

0

-0.1

-20 -12-16 -8 -4 0
ANALOG INPUT POWER (dBFS)

GAIN ERROR vs. TEMPERATURE

CHB

CHA

-40 85

10-15 35 60

TEMPERATURE (°C)

MAX1184 toc18

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

8 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= 3V, OVDD= 2.5V, V

REFIN

= 2.048V, differential input at -0.5dBFS, f

CLK

= 20MHz, CL≈ 10pF, TA= +25°C, unless otherwise noted.)

OFFSET ERROR vs. TEMPERATURE

0.1

ANALOG SUPPLY CURRENT vs.

ANALOG SUPPLY VOLTAGE

36

0

-0.1

-0.2

OFFSET ERROR (%FS)

-0.3

-0.4

-40 85

38

36

34

(mA)

VDD

I

32

30

28

-40 10-15 35 60 85

CHB

CHA

10-15 35 60

TEMPERATURE (°C)

ANALOG SUPPLY CURRENT vs.

TEMPERATURE

TEMPERATURE (°C)

MAX1184 toc19

MAX1184 toc21

35

34

(mA)

VDD

I

33

32

31

2.70 3.002.85 3.15 3.30 3.45 3.60
VDD (V)

ANALOG POWER-DOWN CURRENT

vs. ANALOG SUPPLY VOLTAGE

0.20

OE = PD = OV

0.16

0.12

(µA)

VDD

I

0.08

0.04

0

2.70 3.002.85 3.15 3.30 3.45 3.60

DD

VDD (V)

MAX1184 toc20

MAX1184 toc22

SNR/SINAD, -THD/SFDR vs.

CLOCK DUTY CYCLE

80

74

68

62

56

SNR/SINAD, -THD/SFDR (dB, dBc)

50

35 40 45 50 55 60 65

SFDR

CLOCK DUTY CYCLE (%)

SNR

f

INA/B

-THD

= 7.5344MHz

SINAD

MAX1184 toc23

(V)

REFOUT

V

2.0090

2.0080

2.0070

2.0060

2.0050

2.0040

INTERNAL REFERENCE VOLTAGE

vs. ANALOG SUPPLY VOLTAGE

2.70 3.002.85 3.15 3.30 3.45 3.60
VDD (V)

MAX1184 toc24

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 9

Typical Operating Characteristics (continued)

(VDD= 3V, OVDD= 2.5V, V

REFIN

= 2.048V, differential input at -0.5dBFS, f

CLK

= 20MHz, CL≈ 10pF, TA= +25°C, unless otherwise noted.)

Pin Description

INTERNAL REFERENCE VOLTAGE

2.015

2.010

2.005

(V)

REOUT

V

2.000

1.995

1.990

-40 85

PIN NAME FUNCTION

1 COM Common-Mode Voltage Input/Output. Bypass to GND with a ≥ 0.1µF capacitor.

2, 6, 11, 14, 15 V

3, 7, 10, 13, 16 GND Analog Ground

4 INA+ Channel A Positive Analog Input. For single-ended operation, connect signal source to INA+.

5 INA- Channel A Negative Analog Input. For single-ended operation, connect INA- to COM.

8 INB- Channel B Negative Analog Input. For single-ended operation, connect INB- to COM.

9 INB+ Channel B Positive Analog Input. For single-ended operation, connect signal source to INB+.

12 CLK Converter Clock Input

17 T/B

vs. TEMPERATURE

MAX1184 toc25

10-15 35 60

TEMPERATURE (°C)

DD

Analog Supply Voltage. Bypass each pin to GND with a 0.1µF capacitor. The analog supply
accepts an input range of 2.7V to 3.6V.

T/B selects the ADC digital output format.
High: Two’s complement.
Low: Straight offset binary.

OUTPUT NOISE HISTOGRAM (DC INPUT)

70,000

63,000

56,000

49,000

42,000

35,000

COUNTS

28,000

21,000

14,000

7,000

0

0

N-2

64,515

869

N-1

DIGITAL OUTPUT CODE

152

N

N+1

MAX1184 toc26

0

N+2

18 SLEEP

19 PD

20 OE

Sleep Mode Input.
High: Deactivates the two ADCs, but leaves the reference bias circuit active.
Low: Normal operation.

Power-Down Input.
High: Power-down mode
Low: Normal operation

Output Enable Input.
High: Digital outputs disabled
Low: Digital outputs enabled

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

10 ______________________________________________________________________________________

Pin Description (continued)

PIN NAME FUNCTION

21 D9B Three-State Digital Output, Bit 9 (MSB), Channel B

22 D8B Three-State Digital Output, Bit 8, Channel B

23 D7B Three-State Digital Output, Bit 7, Channel B

24 D6B Three-State Digital Output, Bit 6, Channel B

25 D5B Three-State Digital Output, Bit 5, Channel B

26 D4B Three-State Digital Output, Bit 4, Channel B

27 D3B Three-State Digital Output, Bit 3, Channel B

28 D2B Three-State Digital Output, Bit 2, Channel B

29 D1B Three-State Digital Output, Bit 1, Channel B

30 D0B Three-State Digital Output, Bit 0 (LSB), Channel B

31, 34 OGND Output Driver Ground

32, 33 OV

35 D0A Three-State Digital Output, Bit 0 (LSB), Channel A

36 D1A Three-State Digital Output, Bit 1, Channel A

37 D2A Three-State Digital Output, Bit 2, Channel A

38 D3A Three-State Digital Output, Bit 3, Channel A

39 D4A Three-State Digital Output, Bit 4, Channel A

40 D5A Three-State Digital Output, Bit 5, Channel A

41 D6A Three-State Digital Output, Bit 6, Channel A

42 D7A Three-State Digital Output, Bit 7, Channel A

43 D8A Three-State Digital Output, Bit 8, Channel A

44 D9A Three-State Digital Output, Bit 9 (MSB), Channel A

45 REFOUT

46 REFIN Reference Input. V

47 REFP

48 REFN

— EP Exposed Pad. Connect to analog ground.

DD

Output Driver Supply Voltage. Bypass each pin to OGND with a 0.1µF capacitor. The output
driver supply accepts an input range of 1.7V to 3.6V.

Internal Reference Voltage Output. May be connected to REFIN through a resistor or a resistor
divider.

= 2 x (V

REFIN

Positive Reference Input/Output. Conversion range is ± (V
> 0.1µF capacitor.

Negative Reference Input/Output. Conversion range is ± (V
a > 0.1µF capacitor.

REFP

- V

REFN

). Bypass to GND with a >1nF capacitor.

- V

REFP

REFP

). Bypass to GND with a

REFN

- V

). Bypass to GND with

REFN

Detailed Description

The MAX1184 uses a 9-stage, fully-differential
pipelined architecture (Figure 1) that allows for high­speed conversion while minimizing power consump­tion. Samples taken at the inputs move progressively
through the pipeline stages every half clock cycle.
Counting the delay through the output latch, the clock­cycle latency is five clock cycles.

1.5-bit (2-comparator) flash ADCs convert the held­input voltages into a digital code. The digital-to-analog

converters (DACs) convert the digitized results back
into analog voltages, which are then subtracted from
the original held input signals. The resulting error sig­nals are then multiplied by two and the residues are
passed along to the next pipeline stages, where the
process is repeated until the signals have been
processed by all nine stages. Digital error correction
compensates for ADC comparator offsets in each of
these pipeline stages and ensures no missing codes.

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

______________________________________________________________________________________ 11

Figure 1. Pipelined Architecture—Stage Blocks

V

OUT

x2

T/H

FLASH

ADC

1.5 BITS

STAGE 1 STAGE 2

Σ

DAC

2-BIT FLASH

STAGE 8 STAGE 9

ADC

V

IN

T/H

FLASH

ADC

1.5 BITS

STAGE 1 STAGE 2

Σ

DAC

V

OUT

x2

STAGE 8 STAGE 9

2-BIT FLASH

ADC

DIGITAL CORRECTION LOGIC

T/H

V

INB

10

D9B–D0B

V

= INPUT VOLTAGE BETWEEN INA+ AND INA- (DIFFERENTIAL OR SINGLE-ENDED)

INA

= INPUT VOLTAGE BETWEEN INB+ AND INB- (DIFFERENTIAL OR SINGLE-ENDED)

V

INB

DIGITAL CORRECTION LOGIC

T/H

V

INB

10

D9B–D0B

MAX1184

Input Track-and-Hold (T/H) Circuits

Figure 2 displays a simplified functional diagram of the
input track-and-hold (T/H) circuits in both track-and­hold mode. In track mode, switches S1, S2a, S2b, S4a,
S4b, S5a, and S5b are closed. The fully differential cir­cuits sample the input signals onto the two capacitors
(C2a and C2b) through switches S4a and S4b. S2a and

S2b set the common mode for the amplifier input, and
open simultaneously with S1, sampling the input wave­form. Switches S4a and S4b are then opened before
switches S3a and S3b, connect capacitors C1a and
C1b to the output of the amplifier, and switch S4c is
closed. The resulting differential voltages are held on
capacitors C2a and C2b. The amplifiers are used to
charge capacitors C1a and C1b to the same values
originally held on C2a and C2b. These values are then
presented to the first-stage quantizers and isolate the
pipelines from the fast-changing inputs. The wide input
bandwidth T/H amplifiers allow the MAX1184 to track­and-sample/hold analog inputs of high frequencies (>
Nyquist). The ADC inputs (INA+, INB+, INA-, and INB-)
can be driven either differentially or single-ended.
Match the impedance of INA+ and INA-, as well as
INB+ and INB- and set the common-mode voltage to
midsupply (V

DD

/2) for optimum performance.

Analog Inputs and Reference

Configurations

The full-scale range of the MAX1184 is determined by the
internally generated voltage difference between REFP
(VDD/2 + V

REFIN

/4) and REFN (VDD/2 - V

REFIN

/4). The
full-scale range for both on-chip ADCs is adjustable
through the REFIN pin, which is provided for this purpose.

REFOUT, REFP, COM (VDD/2), and REFN are internally
buffered low-impedance outputs.

The MAX1184 provides three modes of reference operation:

• Internal reference mode

• Buffered external reference mode

• Unbuffered external reference mode

In internal reference mode, connect the internal refer­ence output REFOUT to REFIN through a resistor (e.g.,
10kΩ) or resistor-divider, if an application requires a
reduced full-scale range. For stability and noise filtering
purposes, bypass REFIN with a >10nF capacitor to
GND. In internal reference mode, REFOUT, COM,
REFP, and REFN become low-impedance outputs.

In buffered external reference mode, adjust the refer­ence voltage levels externally by applying a stable and
accurate voltage at REFIN. In this mode, COM, REFP,
and REFN become outputs. REFOUT may be left open
or connected to REFIN through a >10kΩ resistor.

In unbuffered external reference mode, connect REFIN
to GND. This deactivates the on-chip reference buffers
for REFP, COM, and REFN. With their buffers shut
down, these nodes become high impedance and may
be driven through separate external reference sources.

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

12 ______________________________________________________________________________________

Figure 2. MAX1184 T/H Amplifiers

INTERNAL

BIAS

S2a

S4a

INA+

INA-

INB+

INB-

S4b

S4a

S4b

S4c

S4c

C2a

S1

C2b

S2b

INTERNAL

BIAS

INTERNAL

BIAS

S2a

C2a

S1

C2b

S2b

INTERNAL

BIAS

C1a

C1b

C1a

C1b

COM

COM

HOLD

COM

COM

S5a

S5b

S5a

S5b

S3a

S3b

TRACK

S3a

S3b

HOLD

OUT

OUT

TRACK

OUT

OUT

MAX1184

CLK

INTERNAL
NONOVERLAPPING
CLOCK SIGNALS

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

______________________________________________________________________________________ 13

Clock Input (CLK)

The MAX1184’s CLK input accepts CMOS-compatible
clock signals. Since the interstage conversion of the
device depends on the repeatability of the rising and
falling edges of the external clock, use a clock with low
jitter and fast rise and fall times (< 2ns). In particular,
sampling occurs on the rising edge of the clock signal,
requiring this edge to provide lowest possible jitter. Any
significant aperture jitter would limit the SNR perfor­mance of the on-chip ADCs as follows:

where f

IN

represents the analog input frequency and t

AJ

is the time of the aperture jitter.

Clock jitter is especially critical for undersampling
applications. The clock input should always be consid­ered as an analog input and routed away from any ana­log input or other digital signal lines.

The MAX1184 clock input operates with a voltage thresh­old set to V

DD

/2. Clock inputs with a duty cycle other than
50%, must meet the specifications for high and low peri­ods as stated in the Electrical Characteristics.

System Timing Requirements

Figure 3 depicts the relationship between the clock
input, analog input, and data output. The MAX1184
samples at the rising edge of the input clock. Output
data for channels A and B is valid on the next rising
edge of the input clock. The output data has an internal
latency of five clock cycles. Figure 4 also determines
the relationship between the input clock parameters
and the valid output data on channels A and B.

Digital Output Data, Output Data Format

Selection (T/B), Output Enable (

OE

)

All digital outputs, D0A–D9A (Channel A) and
D0B–D9B (Channel B), are TTL/CMOS logic-compati­ble. There is a five-clock-cycle latency between any
particular sample and its corresponding output data.

Figure 3. System Timing Diagram

SNR

=×

20

log

⎛
⎜

2

⎝

1

ft

×× ×

IN AJ

⎞
⎟

)π

⎠

N

N + 1

5-CLOCK-CYCLE LATENCY

N + 2

N + 3

N + 4

N + 5

N + 6

ANALOG INPUT

CLOCK INPUT

t

DO

DATA OUTPUT

D9A–D0A

DATA OUTPUT

D9B–D0B

t

CH

N - 6

N - 6 N - 5 N - 4 N - 3 N - 2 N - 1 N N + 1

N - 5

N - 4

N - 3

N - 2

t

CL

N - 1

N

N + 1

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

14 ______________________________________________________________________________________

Table 1. MAX1184 Output Codes For Differential Inputs

*V

REF

= V

REFP

- V

REFN

The output coding can be chosen to be either straight
offset binary or two’s complement (Table 1) controlled
by a single pin (T/B). Pull T/B low to select offset binary
and high to activate two’s complement output coding.
The capacitive load on the digital outputs D0A–D9A
and D0B–D9B should be kept as low as possible
(<15pF) to avoid large digital currents that could feed
back into the analog portion of the MAX1184, thereby
degrading its dynamic performance. Using buffers on
the digital outputs of the ADCs can further isolate the
digital outputs from heavy capacitive loads. To further
improve the dynamic performance of the MAX1184,
small-series resistors (e.g., 100Ω) may be added to the
digital output paths close to the MAX1184.

Figure 4 displays the timing relationship between out­put enable and data output valid as well as power­down/wake-up and data output valid.

Power-Down (PD) and

Sleep (SLEEP) Modes

The MAX1184 offers two power-save modes—sleep and
full power-down mode. In sleep mode (SLEEP = 1), only
the reference bias circuit is active (both ADCs are dis­abled), and current consumption is reduced to 2.8mA.

To enter full power-down mode, pull PD high. With OE
simultaneously low, all outputs are latched at the last
value prior to the power down. Pulling OE high forces
the digital outputs into a high-impedance state.

Applications Information

Figure 5 depicts a typical application circuit containing
two single-ended to differential converters. The internal
reference provides a VDD/2 output voltage for level-shift­ing purposes. The input is buffered and then split to a
voltage follower and inverter. One lowpass filter per ADC
suppresses some of the wideband noise associated with
high-speed op amps follows the amplifiers. The user may
select the R

ISO

and CINvalues to optimize the filter per­formance, to suit a particular application. For the applica­tion in Figure 5, a R

ISO

of 50Ω is placed before the

capacitive load to prevent ringing and oscillation. The
22pF C

IN

capacitor acts as a small bypassing capacitor.

Figure 4. Output Timing Diagram

DIFFERENTIAL INPUT

VOLTAGE*

V

x 511/512 +FULL SCALE - 1LSB 11 1111 1111 01 1111 1111

REF

V

x 1/512 + 1 LSB 10 0000 0001 00 0000 0001

REF

0 Bipolar Zero 10 0000 0000 00 0000 0000

- V

x 1/512 - 1 LSB 01 1111 1111 11 1111 1111

REF

-V

x 511/512 - FULL SCALE + 1 LSB 00 0000 0001 10 0000 0001

REF

-V

x 512/512 - FULL SCALE 00 0000 0000 10 0000 0000

REF

DIFFERENTIAL

INPUT

STRAIGHT OFFSET

BINARY

T/B = 0

TWO’S COMPLEMENT

T/B = 1

OE

t

DISABLE

VALID DATA

HIGH-ZHIGH-Z

OUTPUT

D9A–D0A

t

ENABLE

OUTPUT

D9B–D0B

VALID DATA

HIGH-ZHIGH-Z

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

______________________________________________________________________________________ 15

Figure 5. Typical Application for Single-Ended to Differential Conversion

INPUT

MAX4108

300Ω

+5V

-5V

300Ω

0.1µF

0.1µF

300Ω

300Ω

300Ω

300Ω

300Ω

300Ω

600Ω

600Ω

0.1µF

0.1µF

0.1µF

+5V

MAX4108

-5V

+5V

MAX4108

-5V

+5V

MAX4108

600Ω

600Ω

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

LOWPASS FILTER

R

IS0

50Ω

LOWPASS FILTER

R

IS0

50Ω

LOWPASS FILTER

R

IS0

50Ω

C
22pF

C
22pF

C
22pF

INA+

IN

COM

INA-

IN

MAX1184

INB+

IN

-5V

600Ω

+5V

MAX4108

-5V

600Ω

INPUT

MAX4108

300Ω

+5V

-5V

300Ω

0.1µF

0.1µF

300Ω

600Ω

0.1µF

600Ω

300Ω

300Ω

0.1µF

0.1µF

0.1µF

LOWPASS FILTER

R

IS0

50Ω

C
22pF

INB-

IN

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

16 ______________________________________________________________________________________

Figure 7: Using an Op Amp for Single-Ended, AC-Coupled
Input Drive

Using Transformer Coupling

A RF transformer (Figure 6) provides an excellent solu­tion to convert a single-ended source signal to a fully
differential signal, required by the MAX1184 for opti­mum performance. Connecting the center tap of the
transformer to COM provides a VDD/2 DC level shift to
the input. Although a 1:1 transformer is shown, a step­up transformer may be selected to reduce the drive
requirements. A reduced signal swing from the input
driver, such as an op amp, may also improve the over­all distortion.

In general, the MAX1184 provides better SFDR and
THD with fully-differential input signals than single-

ended drive, especially for very high input frequencies.
In differential input mode, even-order harmonics are
lower as both inputs (INA+, INA- and/or INB+, INB-) are
balanced, and each of the ADC inputs only requires half
the signal swing compared to a single-ended mode.

Single-Ended AC-Coupled Input Signal

Figure 7 shows an AC-coupled, single-ended applica­tion. Amplifiers like the MAX4108 provide high speed,
high bandwidth, low noise, and low distortion to main­tain the integrity of the input signal.

Figure 6. Transformer-Coupled Input Drive

0.1µF

1

2

MINICIRCUITS

1

2

N.C.

3

MINICIRCUITS

T1

TT1–6

T1

TT1–6

V

IN

N.C.

0.1µF

V

IN

25Ω

INA+

22pF

V

IN

6

MAX4108

5

2.2µF

43

6

5

2.2µF

4

0.1µF

25Ω

22pF

25Ω

22pF

0.1µF

25Ω

22pF

COM

INA-

INB+

INB-

MAX1184

V

IN

100Ω

100Ω

MAX4108

100Ω

100Ω

0.1µF

0.1µF

REFP

REFN

REFP

REFN

1kΩ

1kΩ

0.1µF

1kΩ

1kΩ

0.1µF

R

ISO

50Ω

R
50Ω

INA+

C

IN

22pF

COM

R

ISO

50Ω

C

IN

22pF

ISO

C

IN

22pF

R

ISO

50Ω

C

IN

22pF

INA-

MAX1184

INB+

INB-

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

______________________________________________________________________________________ 17

Typical QAM Demodulation Application

The most frequently used modulation technique for digi­tal communications applications is probably the quadra­ture amplitude modulation (QAM). Typically found in
spread-spectrum-based systems, a QAM signal repre­sents a carrier frequency modulated in both amplitude
and phase. At the transmitter, modulating the baseband
signal with quadrature outputs, a local oscillator followed
by subsequent up-conversion can generate the QAM
signal. The result is an in-phase (I) and a quadrature (Q)
carrier component, where the Q component is 90 degree
phase-shifted with respect to the in-phase component. At
the receiver, the QAM signal is divided down into it’s I
and Q components, essentially representing the modula­tion process reversed. Figure 8 displays the demodula­tion process performed in the analog domain, using the
dual matched 3V, 10-bit ADC (MAX1184), and the
MAX2451 quadrature demodulator to recover and digi­tize the I and Q baseband signals. Before being digitized
by the MAX1184, the mixed down-signal components
may be filtered by matched analog filters, such as
Nyquist or pulse-shaping filters, which remove any
unwanted images from the mixing process, thereby
enhancing the overall signal-to-noise (SNR) performance
and minimizing intersymbol interference.

Grounding, Bypassing, and

Board Layout

The MAX1184 requires high-speed board layout design
techniques. Locate all bypass capacitors as close to the
device as possible, preferably on the same side as the
ADC, using surface-mount devices for minimum induc­tance. Bypass VDD, REFP, REFN, and COM with two

parallel 0.1µF ceramic capacitors and a 2.2µF bipolar
capacitor to GND. Follow the same rules to bypass the
digital supply (OV

DD

) to OGND. Multilayer boards with
separated ground and power planes produce the high­est level of signal integrity. Consider the use of a split
ground plane arranged to match the physical location of
the analog ground (GND) and the digital output driver
ground (OGND) on the ADC’s package. The two ground
planes should be joined at a single point such that the
noisy digital ground currents do not interfere with the
analog ground plane. The ideal location of this connec­tion can be determined experimentally at a point along
the gap between the two ground planes, which pro­duces optimum results. Make this connection with a low­value, surface-mount resistor (1Ω to 5Ω), a ferrite bead,
or a direct short. Alternatively, all ground pins could
share the same ground plane, if the ground plane is suf­ficiently isolated from any noisy, digital systems ground
plane (e.g., downstream output buffer or DSP ground
plane). Route high-speed digital signal traces away
from the sensitive analog traces of either channel. Make
sure to isolate the analog input lines to each respective
converter to minimize channel-to-channel crosstalk.
Keep all signal lines short and free of 90 degree turns.

Static Parameter Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from a straight line. This straight
line can be either a best straight-line fit or a line drawn
between the endpoints of the transfer function, once
offset and gain errors have been nullified. The static lin­earity parameters for the MAX1184 are measured using
the best straight-line fit method.

0°

90°

÷

8

DOWNCONVERTER

MAX2451

INA+

MAX1184

INA-

INB+
INB-

DSP

POST

PROCESSING

Figure 8. Typical QAM Application, Using the MAX1184

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

18 ______________________________________________________________________________________

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an
actual step width and the ideal value of 1LSB. A DNL
error specification of less than 1LSB guarantees no
missing codes and a monotonic transfer function.

Dynamic Parameter Definitions

Aperture Jitter

Figure 9 depicts the aperture jitter (tAJ), which is the
sample-to-sample variation in the aperture delay.

Aperture Delay

Aperture delay (tAD) is the time defined between the
falling edge of the sampling clock and the instant when
an actual sample is taken (Figure 9).

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of the
full-scale analog input (RMS value) to the RMS quantiza­tion error (residual error). The ideal, theoretical minimum
analog-to-digital noise is caused by quantization error
only and results directly from the ADC’s resolution
(N-Bits):

SNR

dB[max]

= 6.02 x N + 1.76

In reality, there are other noise sources besides quanti­zation noise (e.g. thermal noise, reference noise, clock
jitter, etc.). SNR is computed by taking the ratio of the
RMS signal to the RMS noise, which includes all spec­tral components minus the fundamental, the first five
harmonics, and the DC offset.

Signal-to-Noise Plus Distortion (SINAD)

SINAD is computed by taking the ratio of the RMS sig­nal to all spectral components minus the fundamental
and the DC offset.

Total Harmonic Distortion (THD)

THD is typically the ratio of the RMS sum of the first four
harmonics of the input signal to the fundamental itself.
This is expressed as:

where V

1

is the fundamental amplitude, and V2through

V

5

are the amplitudes of the 2nd- through 5th-order

harmonics.

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio expressed in decibels of the RMS
amplitude of the fundamental (maximum signal compo­nent) to the RMS value of the next largest spurious
component, excluding DC offset.

Intermodulation Distortion (IMD)

The two-tone IMD is the ratio expressed in decibels of
either input tone to the worst 3rd-order (or higher) inter­modulation products. The individual input tone levels
backed off by 6.5dB from full scale.

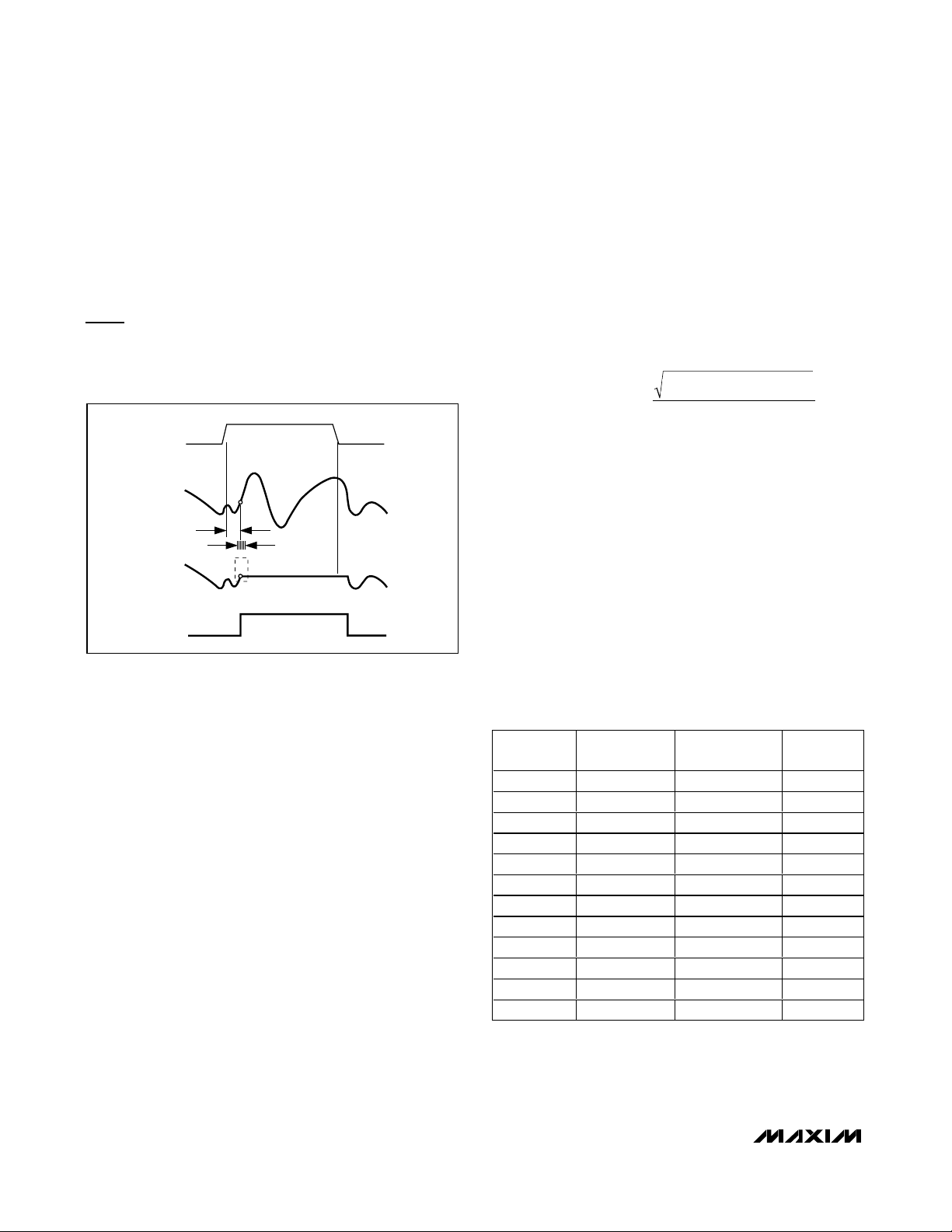

Figure 9. T/H Aperture Timing

Table 2. Pin-Compatible Versions

CLK

ANALOG

INPUT

t

AD

SAMPLED

DATA (T/H)

TRACK TRACK

T/H

t

AJ

HOLD

⎛

2

2

VVVV

+++

2

THD

=×

20

log

10

⎜
⎜

3

⎝

2

4

V

1

⎞

2

5

⎟
⎟
⎠

PART

MAX1190 10 120 Full-Duplex

MAX1180 10 105 Full-Duplex

MAX1181 10 80 Full-Duplex

MAX1182 10 65 Full-Duplex

MAX1183 10 40 Full-Duplex

MAX1186 10 40 Half-Duplex

MAX1184 10 20 Full-Duplex

MAX1185 10 20 Half-Duplex

MAX1198 8 100 Full-Duplex

MAX1197 8 60 Full-Duplex

MAX1196 8 40 Half-Duplex

MAX1195 8 40 Full-Duplex

RESOLUTION

(BITS)

SPEED GRADE

(Msps)

OUTPUT

BUS

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

MAX1184

GND

REFERENCE

OUTPUT

DRIVERS

CONTROL

T/H

T/H

PIPELINE

ADC

DEC

OUTPUT

DRIVERS

REFOUT

REFN

COM

REFP

REFIN

INA+

INA-

CLK

INB+

INB-

V

DD

DEC

PIPELINE

ADC

OGND
OV

DD

D9A–D0A

OE

D9B–D0B

T/B

PD
SLEEP

MAX1184

10

10

10

10

Functional Diagram

19 ______________________________________________________________________________________

MAX1184

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with
Internal Reference and Parallel Outputs

20 ______________________________________________________________________________________

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

PACKAGE OUTLINE,
48L TQFP, 7x7x1.0mm EP OPTION

21-0065

48L,TQFP.EPS

1

G

2

Dual 10-Bit, 20Msps, 3V, Low-Power ADC with

Internal Reference and Parallel Outputs

MAX1184

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

21 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2006 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Revision History

Pages changed at Rev 1: Title change—all pages, 1–21

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages

.)

PACKAGE OUTLINE,
48L TQFP, 7x7x1.0mm EP OPTION

21-0065

2

G

2
