MAXIM MAX1180 Technical data

General Description

The MAX1180 is a 3.3V, dual 10-bit, analog-to-digital
converter (ADC) featuring fully-differential wideband
track-and-hold (T/H) inputs, driving two pipelined, nine­stage ADCs. The MAX1180 is optimized for low-power,
high-dynamic performance applications in imaging,
instrumentation, and digital communication applica­tions. The MAX1180 operates from a single 2.7V to 3.6V
supply, consuming only 413mW, while delivering a typi­cal signal-to-noise ratio (SNR) of 58.5dB at an input fre­quency of 20MHz and a sampling rate of 105Msps. The
T/H driven input stages incorporate 400MHz (-3dB)
input amplifiers. The converters may also be operated
with single-ended inputs. In addition to low operating
power, the MAX1180 features a 2.8mA sleep mode, as
well as a 1µA power-down mode to conserve power
during idle periods.

An internal 2.048V precision bandgap reference sets
the full-scale range of the ADC. A flexible reference
structure allows the use of the internal or external
reference, if desired for applications requiring
increased accuracy or a different input voltage range.

The MAX1180 features parallel, CMOS-compatible
three-state outputs. The digital output format is set to
two’s complement or straight offset binary through a
single control pin. The device provides for a separate
output power supply of 1.7V to 3.6V for flexible interfac­ing. The MAX1180 is available in a 7mm ✕7mm, 48-pin
TQFP package, and is specified for the extended
industrial (-40°C to +85°C) temperature range.

Pin-compatible higher and lower speed versions of the
MAX1180 are also available. Please refer to the
MAX1181 data sheet for 80Msps, the MAX1182 data
sheet for 65Msps, the MAX1183 data sheet for 40Msps,
and the MAX1184 data sheet for 20Msps. In addition to
these speed grades, this family includes a 20Msps mul­tiplexed output version (MAX1185), for which digital
data is presented time-interleaved on a single, parallel
10-bit output port.

Applications

High Resolution Imaging

I/Q Channel Digitization

Multichannel IF Undersampling

Instrumentation

Video Application

Features

♦ Single 3.3V Operation

♦ Excellent Dynamic Performance

58.5dB SNR at fIN= 20MHz
72dB SFDR at fIN= 20MHz

♦ SNR Flat within 1dB for fIN= 20MHz to 100MHz

♦ Low Power

125mA (Normal Operation)

2.8mA (Sleep Mode)
1µA (Shutdown Mode)

♦ 0.02dB Gain and 0.25° Phase Matching (typ)

♦ Wide ±1V

P-P

Differential Analog Input Voltage

Range

♦ 400MHz, -3dB Input Bandwidth

♦ On-Chip 2.048V Precision Bandgap Reference

♦ User-Selectable Output Format—Two’s

Complement or Offset Binary

♦ 48-Pin TQFP Package with Exposed Pad for

Improved Thermal Dissipation

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

________________________________________________________________ Maxim Integrated Products 1

D1A
D0A
OGND
OV

DD

OV

DD

OGND
D0B
D1B
D2B
D3B
D4B
D5B

COM

V

DD

GND
INA+
INA-

V

DD

GND
INB­INB+
GND

V

DD

CLK

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

48 TQFP-EP

MAX1180

GND

V

DD

GND

V

DD

T/B

SLEEP

PD

OE

D9B

D8B

D7B

D6B

1314151617181920212223

24

4847464544434241403938

37

REFN

REFP

REFIN

REFOUT

D9A

D8A

D7A

D6A

D5A

D4A

D3A

D2A

EP

NOTE: THE PIN 1 INDICATOR FOR LEAD-FREE PACKAGES IS REPLACED
BY A "+" SIGN.

Pin Configuration

Ordering Information

19-2097; Rev 1; 2/07

EVALUATION KIT

AVAILABLE

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

PART TEMP RANGE PIN-PACKAGE

MAX1180ECM -40°C to +85°C 48 TQFP-EP*

MAX1180ECM+ -40°C to +85°C 48 TQFP-EP*

Functional Diagram appears at end of data sheet.

+Denotes a lead-free and RoHS-compliant package.

*EP = Exposed paddle.

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(VDD= 3.3V, OVDD= 2.5V; 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 105.263MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDD, OVDDto GND ...............................................-0.3V to +3.6V

OGND to GND.......................................................-0.3V to +0.3V

INA+, INA-, INB+, INB- to GND ...............................-0.3V to V

DD

REFIN, REFOUT, REFP, REFN, CLK,

COM to GND ............................................-0.3V to (V

DD

+ 0.3V)

OE, PD, SLEEP, T/B, D9A–D0A,

D9B–D0B to OGND ................................-0.3V to (OV

DD

+ 0.3V)

Continuous Power Dissipation (T

A

= +70°C)

48-Pin TQFP-EP (derate 30.4mW/°C above +70°C) ...2430mW

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-60°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

PARAMETER

CONDITIONS

UNITS

DC ACCURACY

Resolution 10 Bits

Integral Nonlinearity INL fIN = 7.47MHz

LSB

Differential Nonlinearity DNL

LSB

Offset Error

% FS

Gain Error 0 ±2

% FS

ANALOG INPUT

Differential Input Voltage Range V

DIFF

Differential or single-ended inputs

V

Common-Mode Input Voltage
Range

V

CM

V

DD

/

V

Input Resistance R

IN

Switched capacitor load 20 kΩ

Input Capacitance C

IN

5pF

CONVERSION RATE

Maximum Clock Frequency f

CLK

MHz

Data Latency 5

Clock

Cycles

DYNAMIC CHARACTERISTICS

f

INA or B

= 7.47MHz, TA = +25°C59

f

INA or B

= 20MHz, TA = +25°C55

Signal-to-Noise Ratio (Note 3) SNR

f

INA or B

= 50.078MHz 58

dB

f

INA or B

= 7.47MHz, TA = +25°C

f

INA or B

= 20MHz, TA = +25°C

Signal-to-Noise and Distortion
(Note 3)

f

INA or B

= 50.078MHz

dB

f

INA or B

= 7.47MHz, TA = +25°C72

f

INA or B

= 20MHz, TA = +25°C6072

Spurious-Free Dynamic
Range (Note 3)

SFDR

f

INA or B

= 50.078MHz 70

dBc

f

INA or B

= 7.47MHz, TA = +25°C -71

f

INA or B

= 20MHz, TA = +25°C -70 -59

Total Harmonic Distortion

(First Four Harmonics) (Note 3)

THD

f

INA or B

= 50.078MHz -69

dBc

SYMBOL

fIN = 7.47MHz, no missing codes guaranteed -1.0 ±0.4 +1.5

MIN TYP MAX

±0.75 ±2.5

-1.8 +1.8

SINAD

±1.0

2 ± 0.5

105

54.7 58.1

58.5

58.2

57.6

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.5V; 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 105.263MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

PARAMETER

CONDITIONS

UNITS

f

INA or B

= 7.47MHz -75

f

INA or B

= 20MHz -75

Third-Harmonic Distortion
(Note 3)

HD3

f

INA or B

= 50.078MHz -73

dBc

Intermodulation Distortion IMD

f

INA or B

= 38.055MHz at -6.5dBFS

f

INA or B

= 42.926MHz at -6.5dBFS

(Note 4)

-74 dBc

Small-Signal Bandwidth Input at -20dBFS, differential inputs 500 MHz

Full-Power Bandwidth

Input at -0.5dBFS, differential inputs 400 MHz

Aperture Delay t

AD

1ns

Aperture Jitter t

AJ

2

ps

RMS

Overdrive Recovery Time For 1.5 ✕ full-scale input 2 ns

Differential Gain ±1%

Differential Phase

degrees

Output Noise INA+ = INA- = INB+ = INB- = COM 0.2

LSB

RMS

INTERNAL REFERENCE

Reference Output Voltage

V

Reference Temperature
Coefficient

60

ppm/°C

Load Regulation

mV/mA

BUFFERED EXTERNAL REFERENCE (V

REFIN

= 2.048V)

REFIN Input Voltage

V

Positive Reference Output
Voltage

V

Negative Reference Output
Voltage

V

Differential Reference Output
Voltage Range

∆V

REF

= V

REFP

- V

REFN

V

REFIN Resistance

MΩ

Maximum REFP, COM Source
Current

5mA

Maximum REFP, COM Sink
Current

I

SINK

µA

Maximum REFN Source Current

250 µA

Maximum REFN Sink Current I

SINK

-5 mA

SYMBOL

FPBW

REFOUT

TC

REF

V

REFIN

V

REFP

V

REFN

MIN TYP MAX

±0.25

2.048

±3%

1.25

2.048

2.162

1.138

∆V

REF

R

REFIN

I

SOURCE

I

SOURCE

0.95 1.024 1.10

> 50

-250

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

4 _______________________________________________________________________________________

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

UNBUFFERED EXTERNAL REFERENCE (V

REFIN

= AGND, reference voltage applied to REFP, REFN, and COM )

REFP, REFN Input Resistance

R

REFP,

Measured between REFP and COM and
REFN and COM

4kΩ

Differential Reference Input
Voltage Range

∆V

REF

= V

REFP

- V

REFN

1.024
V

COM Input Voltage Range V

COM

V

DD

/ 2

V

REFP Input Voltage

V

COM

+

∆V

REF

/ 2

V

REFN Input Voltage

V

COM

-

∆V

REF

/ 2

V

DIGITAL INPUTS (CLK, PD, OE, SLEEP, T/B)

CLK

0.8 x

Input High Threshold V

IH

PD, OE, SLEEP, T/B

0.8 x

V

CLK

0.2 x

Input Low Threshold V

IL

PD, OE, SLEEP, T/B

0.2 x

V

Input Hysteresis

0.1 V

I

IH

VIH = OV

DD

or V

DD

(CLK) ±5

Input Leakage

I

IL

VIL = 0 ±5

µA

Input Capacitance C

IN

5pF

DIGITAL OUTPUTS (D9A–D0A, D9B–D0B)

Output-Voltage Low V

OL

I

SINK

= -200µA 0.2 V

Output-Voltage High V

OH

I

SOURCE

= 200µA

OV

DD

V

Three-State Leakage Current I

LEAK

OE = OV

DD

µA

Three-State Output Capacitance

C

OUT

OE = OV

DD

5pF

POWER REQUIREMENTS

Analog Supply Voltage Range V

DD

2.7 3.3 3.6 V

Output Supply Voltage Range OV

DD

1.7 2.5 3.6 V

Operating, f

INA or B

= 20MHz at -0.5dBFS

Sleep mode 2.8

mA

Analog Supply Current I

VDD

Shutdown, clock idle, PD = OE = OV

DD

115µA

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.5V; 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 105.263MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

R

REFN

∆V

REF

V

REFP

V

REFN

V

HYST

V

DD

OV

DD

±10%

±10%

V

DD

OV

DD

- 0.2

±10

125 156

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 5

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

-0.5dBFS

15 mA

Sleep mode

Output Supply Current

Shutdown, clock idle, PD = OE = OV

DD

210

µA

Operating, f

INA or B

= 20MHz at -0.5dBFS

mW

Sleep mode 9.2Power Dissipation
Shutdown, clock idle, PD = OE = OV

DD

350

µW

Offset

mV/V

Power-Supply Rejection Ratio PSRR

Gain

%/V

TIMING CHARACTERISTICS

CLK Rise to Output Data Valid t

DO

Figure 3 (Note 5) 5 8 ns

Output Enable Time

Figure 4 10 ns

Output Disable Time

Figure 4

1.5 ns

CLK Pulse-Width High t

CH

Figure 3, clock period: 9.5ns

4.75
ns

CLK Pulse-Width Low t

CL

Figure 3, clock period: 9.5ns

4.75
ns

Wakeup from sleep mode

Wake-Up Time (Note 6)

Wakeup from shutdown

1.5

µs

CHANNEL-TO-CHANNEL MATCHING

Crosstalk f

INA or B

= 20MHz at -0.5dBFS

-70 dB

Gain Matching f

INA or B

= 20MHz at -0.5dBFS

dB

Phase Matching f

INA or B

= 20MHz at -0.5dBFS

degrees

ELECTRICAL CHARACTERISTICS (continued)

(VDD= 3.3V, OVDD= 2.5V; 0.1µF and 1.0µF capacitors from REFP, REFN, and COM to GND; REFOUT connected to REFIN through a
10kΩ resistor, V

IN

= 2V

P-P

(differential with respect to COM), CL= 10pF at digital outputs (Note 1), f

CLK

= 105.263MHz, TA= T

MIN

to

T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.) (Note 2)

Note 1: Equivalent dynamic performance is obtainable over full OV

DD

range with reduced CL.

Note 2: Specifications at ≥ +25°C are guaranteed by production test and < +25°C are guaranteed by design and characterization.
Note 3: SNR, SINAD, THD, SFDR, and HD3 are based on an analog input voltage of -0.5dBFS, referenced to a 1.024V full-scale

input voltage range.

Note 4: Intermodulation distortion is the total power of the intermodulation products relative to the individual carrier. This number is

6dB or better, if referenced to the two-tone envelope.

Note 5: Digital outputs settle to V

IH

, VIL. Parameter guaranteed by design.

Note 6: With REFIN driven externally, REFP, COM, and REFN are left floating while powered down.

I

OVDD

PDISS

t

ENABLE

t

DISABLE

t

WAKE

Operating, CL = 15pF , f

INA or B

= 20MHz at

100

413 511

±0.2

±0.1

±1.5

±1.5

0.18

0.02 ±0.2

0.25

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

6 _______________________________________________________________________________________

Typical Operating Characteristics

(VDD= 3.3V, OVDD= 2.5V, internal reference, differential input at -0.5dBFS, f

CLK

= 105.0006MHz, CL≈ 10pF. TA= +25°C, unless

otherwise noted.)

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHA (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc01

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHA

f

INA

= 6.2421MHz

f

INB

= 7.52384MHz

f

CLK

= 105.0006MHz

A

INA

= -0.52dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHB (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc02

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHB

f

INA

= 6.2421MHz

f

INB

= 7.52384MHz

f

CLK

= 105.0006MHz

A

INB

= -0.48dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHA (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc03

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHA

f

INA

= 20.0849MHz

f

INB

= 25.0068MHz

f

CLK

= 105.0006MHz

A

INA

= -0.54dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHB (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc04

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHB

f

INA

= 20.0849MHz

f

INB

= 25.0068MHz

f

CLK

= 105.0006MHz

A

INA

= -0.54dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHA (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc05

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHA

f

INA

= 52.2326MHz

f

INB

= 57.0505MHz

f

CLK

= 105.0006MHz

A

INA

= -0.47dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

FFT PLOT CHB (8192-POINT RECORD,

DIFFERENTIAL INPUT)

MAX1180 toc06

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

CHB

f

INA

= 52.2326MHz

f

INB

= 57.0504MHz

f

CLK

= 105.0006MHz

A

INB

= -0.47dBFS

-100

-70

-80

-90

-60

-50

-40

-30

-20

-10

0

02010 30 40 50 60

TWO-TONE IMD PLOT (8192-POINT

RECORD, DIFFERENTIAL INPUT)

MAX1180 toc07

ANALOG INPUT FREQUENCY (MHz)

AMPLITUDE (dB)

f

IN1

f

INA

= 38.0552MHz

f

INB

= 41.9259MHz

f

CLK

= 105.0006MHz

A

IN1

= A

IN2

= -6.5dBFS

f

IN2

IM3

IM2

IM3

61

55

010203040 6070809050 100

SIGNAL-TO-NOISE RATIO

vs. ANALOG INPUT FREQUENCY

56

MAX1180 toc08

ANALOG INPUT FREQUENCY (MHz)

SNR (dB)

57

58

59

60

DIFFERENTIAL INPUT CONFIGURATION

CHA

CHB

62

54

020406080100

SIGNAL-TO-NOISE AND DISTORTION

vs. ANALOG INPUT FREQUENCY

56

MAX1180 toc09

ANALOG INPUT FREQUENCY (MHz)

SINAD (dB)

58

60

DIFFERENTIAL INPUT CONFIGURATION

CHA

CHB

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 7

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.5V, internal reference, differential input at -0.5dBFS, f

CLK

= 105.0006MHz, CL≈ 10pF. TA= +25°C, unless

otherwise noted.)

-65

-80
020406080100

TOTAL HARMONIC DISTORTION

vs. ANALOG INPUT FREQUENCY

-77

MAX1180 toc10

ANALOG INPUT FREQUENCY (MHz)

THD (dBc)

-74

-71

-68

DIFFERENTIAL INPUT CONFIGURATION

CHA

CHB

87

63

020406080100

SPURIOUS-FREE DYNAMIC RANGE

vs. ANALOG INPUT FREQUENCY

67

MAX1180 toc11

ANALOG INPUT FREQUENCY (MHz)

SFDR (dBc)

71

75

79

83

DIFFERENTIAL INPUT CONFIGURATION

CHB

CHA

6

-8
1 100 1000

FULL-POWER INPUT BANDWIDTH vs.

ANALOG INPUT FREQUENCY, SINGLE-ENDED

-4

-6

-2

0

2

4

MAX1180 toc12

ANALOG INPUT FREQUENCY (MHz)

GAIN (dB)

10

6

-8
1 100 1000

SMALL-SIGNAL INPUT BANDWIDTH vs.

ANALOG INPUT FREQUENCY, SINGLE-ENDED

-4

-6

-2

0

2

4

MAX1180 toc13

ANALOG INPUT FREQUENCY (MHz)

GAIN (dB)

10

VIN = 100mVp-p

-12-16-20 -4-8 0

SIGNAL-TO-NOISE RATIO vs.

ANALOG INPUT POWER (f

IN

= 20.084947MHz)

MAX1180 toc14

ANALOG INPUT POWER (dBFS)

SNR (dB)

40

45

50

35

60

65

55

-12-16-20 -4-8 0

SIGNAL-TO-NOISE AND DISTORTION vs.

ANALOG INPUT POWER (f

IN

= 20.084947MHz)

MAX1180 toc15

ANALOG INPUT POWER (dBFS)

SINAD (dB)

40

45

50

35

60

65

55

-16-20 -4-8-12 0

TOTAL HARMONIC DISTORTION vs.

ANALOG INPUT POWER (f

IN

= 20.0849474MHz)

MAX1180 toc16

ANALOG INPUT POWER (dBFS)

THD (dBc)

-75

-70

-80

-60

-55

-65

-20 -16 -12 -8 -4 0

SPURIOUS-FREE DYNAMIC RANGE vs.

ANALOG INPUT POWER (f

IN

= 20.0849474MHz)

MAX1180 toc17

ANALOG INPUT POWER (dBFS)

SFDR (dBc)

60

80

76

72

68

64

-1.0

-0.5

0

0.5

1.0

0 256 512 768128 384 640 896 1024

INTEGRAL NONLINEARITY

(BEST ENDPOINT FIT)

MAX1180 toc18

DIGITAL OUTPUT CODE

INL (LSB)

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

8 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.5V, internal reference, differential input at -0.5dBFS, f

CLK

= 105.0006MHz, CL≈ 10pF. TA= +25°C, unless

otherwise noted.)

-0.50

-0.25

0

0.25

0.50

0 256 512 768128 384 640 896 1024

DIFFERENTIAL NONLINEARITY

MAX1180 toc19

DIGITAL OUTPUT CODE

DNL (LSB)

1.0

0.5

0

-0.5

-1.0

-40 10-15 35 60 85

OFFSET ERROR vs. TEMPERATURE,

EXTERNAL REFERENCE (V

REFIN

= 2.048V)

MAX1180 toc20

TEMPERATURE (°C)

OFFSET ERROR (%FS)

CHB

CHA

-1.5

-1.0

0

-0.5

0.5

1.0

-40 10-15 35 60 85

GAIN ERROR vs. TEMPERATURE,

EXTERNAL REFERENCE (V

REFIN

= 2.048V)

MAX1180 toc21

TEMPERATURE (°C)

GAIN ERROR (%FS)

CHB

CHA

4440 565248 60

SNR/SINAD, -THD/SFDR

vs. CLOCK DUTY CYCLE

MAX1180 toc25

CLOCK DUTY CYCLE (%)

SNR/SINAD, -THD/SFDR (dB, dBc)

50

60

40

80

90

70

f

INA

= 20.0849MHz

f

INB

= 25.0069MHz

-THD

SNR

SFDR

SINAD

2.852.70 3.453.303.153.00 3.60

INTERNAL REFERENCE VOLTAGE

vs. ANALOG SUPPLY VOLTAGE

MAX1180 toc26

VDD (V)

V

REFOUT

(V)

2.034

2.038

2.030

2.046

2.050

2.042

2.852.70 3.453.303.153.00 3.60

ANALOG SUPPLY CURRENT

vs. ANALOG SUPPLY VOLTAGE

MAX1180 toc22

VDD (V)

I

VDD

(mA)

110

120

100

140

150

130

-15-40 603510 85

ANALOG SUPPLY CURRENT

vs. TEMPERATURE

MAX1180 toc23

TEMPERATURE (°C)

I

VDD

(mA)

110

120

100

140

150

130

2.852.70 3.453.303.153.00 3.60

ANALOG POWER-DOWN CURRENT

vs. ANALOG POWER SUPPLY

MAX1180 toc24

VDD (V)

I

VDD

(µA)

0.2

0.4

0

0.8

1.0

0.6

OE = PD = OV

DD

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

_______________________________________________________________________________________ 9

Typical Operating Characteristics (continued)

(VDD= 3.3V, OVDD= 2.5V, internal reference, differential input at -0.5dBFS, f

CLK

= 105.0006MHz, CL≈ 10pF. TA= +25°C, unless

otherwise noted.)

-15-40 603510 85

INTERNAL REFERENCE VOLTAGE

vs. TEMPERATURE

MAX1180 toc27

TEMPERATURE (°C)

V

REFOUT

(V)

2.025

2.035

2.015

2.055

2.065

2.045

NN - 1N - 2 N + 2N + 1

OUTPUT NOISE HISTOGRAM (DC INPUT)

MAX1180 toc28

DIGITAL OUTPUT NOISE

COUNTS

1000

2000

3000

4000

0

6000

7000

5000

64676

60700252

Pin Description

PIN NAME FUNCTION

1 COM Common-Mode Voltage Input/Output. Bypass to GND with a ≥ 0.1µF capacitor.

2, 6, 11, 14, 15

V

DD

Analog Supply Voltage. Bypass each supply pin to GND with a 0.1µF capacitor. The analog

supply accepts a 2.7V to 3.6V input range.

3, 7, 10, 13, 16

GND Analog Ground

4INA+ Channel A Positive Analog Input. For single-ended operation, connect signal source to INA+.

5INA- Channel A Negative Analog Input. For single-ended operation, connect INA- to COM.

8INB- Channel B Negative Analog Input. For single-ended operation, connect INB- to COM.

9INB+ Channel B Positive Analog Input. For single-ended operation, connect signal source to INB+.

12 CLK Converter Clock Input

17 T/B

T/B selects the ADC digital output format.
High: Two’s complement.
Low: Straight offset binary.

18 SLEEP

Sleep Mode Input.
High: Deactivates the two ADCs, but leaves the reference bias circuit active.
Low: Normal operation.

19 PD

Power-Down Input.
High: Power-down mode
Low: Normal operation

20 OE

Output Enable Input.
High: Digital outputs disabled
Low: Digital outputs enabled

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

10 ______________________________________________________________________________________

Pin Description (continued)

PIN NAME FUNCTION

21 D9B Three-State Digital Output, Bit 9 (MSB), Channel B

22 D8B Three-State Digital Output, Bit 8, Channel B

23 D7B Three-State Digital Output, Bit 7, Channel B

24 D6B Three-State Digital Output, Bit 6, Channel B

25 D5B Three-State Digital Output, Bit 5, Channel B

26 D4B Three-State Digital Output, Bit 4, Channel B

27 D3B Three-State Digital Output, Bit 3, Channel B

28 D2B Three-State Digital Output, Bit 2, Channel B

29 D1B Three-State Digital Output, Bit 1, Channel B

30 D0B Three-State Digital Output, Bit 0 (LSB), Channel B

31, 34 OGND Output Driver Ground

32, 33 OV

DD

Output Driver Supply Voltage. Bypass each supply pin to OGND with a 0.1µF capacitor. The

output driver supply accepts a 1.7V to 3.6V input range.

35 D0A Three-State Digital Output, Bit 0 (LSB), Channel A

36 D1A Three-State Digital Output, Bit 1, Channel A

37 D2A Three-State Digital Output, Bit 2, Channel A

38 D3A Three-State Digital Output, Bit 3, Channel A

39 D4A Three-State Digital Output, Bit 4, Channel A

40 D5A Three-State Digital Output, Bit 5, Channel A

41 D6A Three-State Digital Output, Bit 6, Channel A

42 D7A Three-State Digital Output, Bit 7, Channel A

43 D8A Three-State Digital Output, Bit 8, Channel A

44 D9A Three-State Digital Output, Bit 9 (MSB), Channel A

45

Internal Reference Voltage Output. May be connected to REFIN through a resistor or a resistor

divider.

46 REFIN

Reference Input. V

REFIN

= 2 ✕ (V

REFP

- V

REFN

).

Bypass to GND with a > 1nF capacitor.

47 REFP

Positive Reference Input/Output. Conversion range is ±(V

REFP

- V

REFN

).

Bypass to GND with a > 0.1µF capacitor.

48 REFN

Negative Reference Input/Output. Conversion range is ±(V

REFP

- V

REFN

).

Bypass to GND with a > 0.1µF capacitor.

—EPExposed Paddle. Connect to analog ground.

REFOUT

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

______________________________________________________________________________________ 11

Detailed Description

The MAX1180 uses a nine-stage, fully-differential
pipelined architecture (Figure 1), that allows for high­speed conversion while minimizing power consump­tion. Samples taken at the inputs move progressively
through the pipeline stages every half clock cycle.
Counting the delay through the output latch, the clock­cycle latency is five clock cycles.

1.5-bit (two-comparator) flash ADCs convert the held­input voltages into a digital code. The digital-to-analog
converters (DACs) convert the digitized results back
into analog voltages, which are then subtracted from
the original held-input signals. The resulting error sig­nals are then multiplied by two and the residues are
passed along to the next pipeline stages where the
process is repeated until the signals have been
processed by all nine stages. Digital error correction
compensates for ADC comparator offsets in each of
these pipeline stages and ensures no missing codes.

Input Track-and-Hold (T/H) Circuits

Figure 2 displays a simplified functional diagram of the
input track-and-hold (T/H) circuits in both track-and­hold mode. In track mode, switches S1, S2a, S2b, S4a,
S4b, S5a and S5b are closed. The fully-differential cir­cuits sample the input signals onto the two capacitors

(C2a and C2b) through switches S4a and S4b. S2a and
S2b set the common mode for the amplifier input, and
open simultaneously with S1, sampling the input wave­form. Switches S4a and S4b are then opened before
switches S3a and S3b, connect capacitors C1a and
C1b to the output of the amplifier, and switch S4c is
closed. The resulting differential voltages are held on
capacitors C2a and C2b. The amplifiers are used to
charge capacitors C1a and C1b to the same values
originally held on C2a and C2b. These values are then
presented to the first-stage quantizers and isolate the
pipelines from the fast-changing inputs. The wide input
bandwidth T/H amplifiers allow the MAX1180 to track­and-sample/hold analog inputs of high frequencies
(> Nyquist). Both ADC inputs (INA+, INB+, INA-, and
INB-) can be driven either differentially or single-ended.
Match the impedance of INA+ and INA-, as well as
INB+ and INB-, and set the common-mode voltage to
midsupply (V

DD

/ 2) for optimum performance.

Analog Inputs and Reference

Configurations

The full-scale range of the MAX1180 is determined
by the internally generated voltage difference
between REFP (V

DD

/ 2 + V

REFIN

/ 4) and REFN (V

DD

/ 2 -

V

REFIN

/ 4).The full-scale range for both on-chip

T/H

V

OUT

x2

Σ

FLASH

ADC

DAC

1.5 BITS

10

V

INA

V

IN

STAGE 1 STAGE 2

D9A–D0A

V

INA

= INPUT VOLTAGE BETWEEN INA+ AND INA- (DIFFERENTIAL OR SINGLE-ENDED)

V

INB

= INPUT VOLTAGE BETWEEN INB+ AND INB- (DIFFERENTIAL OR SINGLE-ENDED)

DIGITAL CORRECTION LOGIC

STAGE 8

STAGE 9

2-BIT FLASH

ADC

T/H

T/H

V

OUT

x2

Σ

FLASH

ADC

DAC

1.5 BITS

10

V

INB

V

IN

STAGE 1 STAGE 2

D9B–D0B

DIGITAL CORRECTION LOGIC

STAGE 8 STAGE 9

2-BIT FLASH

ADC

T/H

Figure 1. Pipelined Architecture—Stage Blocks

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

12 ______________________________________________________________________________________

ADCs is adjustable through the REFIN pin, which is
provided for this purpose.

REFOUT, REFP, COM (V

DD

/ 2), and REFN are internal-

ly buffered low-impedance outputs.

The MAX1180 provides three modes of reference
operation:

• Internal reference mode

• Buffered external reference mode

• Unbuffered external reference mode

In the internal reference mode, connect the internal ref­erence output REFOUT to REFIN through a resistor
(e.g., 10kΩ) or resistor divider, if an application requires

S3b

S3a

COM

S5b

S5a

INB+

INB-

S1

OUT

OUT

C2a

C2b

S4c

S4a

S4b

C1b

C1a

INTERNAL

BIAS

INTERNAL

BIAS

COM

HOLD

HOLD

CLK

INTERNAL
NONOVERLAPPING
CLOCK SIGNALS

TRACK

TRACK

S2a

S2b

S3b

S3a

COM

S5b

S5a

INA+

INA-

S1

OUT

OUT

C2a

C2b

S4c

S4a

S4b

C1b

C1a

INTERNAL

BIAS

INTERNAL

BIAS

COM

S2a

S2b

MAX1180

Figure 2. MAX1180 T/H Amplifiers

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

______________________________________________________________________________________ 13

a reduced full-scale range. For stability and noise filtering
purposes, bypass REFIN with a > 10nF capacitor to
GND. In internal reference mode, REFOUT, COM, REFP,
and REFN become low-impedance outputs.

In the buffered external reference mode, adjust the ref­erence voltage levels externally by applying a stable
and accurate voltage at REFIN. In this mode, COM,
REFP, and REFN become outputs. REFOUT may be left
open or connected to REFIN through a > 10kΩ resistor.

In the unbuffered external reference mode, connect
REFIN to GND. This deactivates the on-chip reference
buffers for REFP, COM, and REFN. With their buffers
shut down, these nodes become high impedance and

may be driven through separate external reference
sources.

Clock Input (CLK)

The MAX1180’s CLK input accepts CMOS-compatible
clock signals. Since the interstage conversion of the
device depends on the repeatability of the rising and
falling edges of the external clock, use a clock with low
jitter and fast rise and fall times (< 2ns). In particular,
sampling occurs on the rising edge of the clock signal,
requiring this edge to provide lowest possible jitter. Any
significant aperture jitter would limit the SNR perfor­mance of the on-chip ADCs as follows:

SNR = 20 ✕log10(1 / [2π x f

IN

✕

tAJ]),

DIFFERENTIAL INPUT

VOLTAGE*

DIFFERENTIAL INPUT

STRAIGHT OFFSET

BINARY

T/B = 0

TWO’S COMPLEMENT

T/B = 1

V

REF

✕ 511/512 +FULL SCALE - 1LSB 11 1111 1111 01 1111 1111

V

REF

✕ 1/512 + 1 LSB 10 0000 0001 00 0000 0001

0 Bipolar Zero 10 0000 0000 00 0000 0000

-V

REF

✕ 1/512 - 1 LSB 01 1111 1111 11 1111 1111

-V

REF

✕

511/512 -FULL SCALE + 1 LSB 00 0000 0001 10 0000 0001

-V

REF

✕ 512/512 -FULL SCALE 00 0000 0000 10 0000 0000

Table 1. MAX1180 Output Codes For Differential Inputs

N - 6

N

N - 5

N + 1

N - 4

N + 2

N - 3

N + 3

N - 2

N + 4

N - 1

N + 5

N

N + 6

N + 1

5 CLOCK-CYCLE LATENCY

ANALOG INPUT

CLOCK INPUT

DATA OUTPUT

D9A–D0A

t

D0

t

CH

t

CL

N - 6 N - 5 N - 4 N - 3 N - 2 N - 1 N N + 1

DATA OUTPUT

D9B–D0B

t

CLK

Figure 3. System Timing Diagram

*V

REF

= V

REFP

- V

REFN

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

14 ______________________________________________________________________________________

where fINrepresents the analog input frequency and
tAJis the time of the aperture jitter.

Clock jitter is especially critical for undersampling
applications. The clock input should always be consid­ered as an analog input and routed away from any ana­log input or other digital signal lines.

The MAX1180 clock input operates with a voltage thresh­old set to V

DD

/ 2. Clock inputs with a duty cycle other
than 50%, must meet the specifications for high and low
periods as stated in the Electrical Characteristics.

System Timing Requirements

Figure 3 depicts the relationship between the clock
input, analog input, and data output. The MAX1180
samples at the rising edge of the input clock. Output
data for channels A and B is valid on the next rising
edge of the input clock. The output data has an internal
latency of five clock cycles. Figure 4 also determines
the relationship between the input clock parameters
and the valid output data on channels A and B.

Digital Output Data, Output Data Format

Selection (T/B), Output Enable (

OE

)

All digital outputs, D0A–D9A (Channel A) and D0B–D9B
(Channel B), are TTL/CMOS logic-compatible. There is
a five clock cycle latency between any particular sam­ple and its corresponding output data. The output cod­ing can be chosen to be either straight offset binary or
two’s complement (Table 1) controlled by a single pin
(T/B). Pull T/B low to select offset binary and high to
activate two’s complement output coding. The capaci­tive load on the digital outputs D0A–D9A and D0B–D9B
should be kept as low as possible (< 15pF), to avoid
large digital currents that could feed back into the ana­log portion of the MAX1180, thereby degrading its
dynamic performance. Using buffers on the digital out­puts of the ADCs can further isolate the digital outputs
from heavy capacitive loads. To further improve the
dynamic performance of the MAX1180 small-series
resistors (e.g., 100Ω), add to the digital output paths,
close to the MAX1180.

Figure 4 displays the timing relationship between out­put enable and data output valid, as well as power­down/wake-up and data output valid.

Power-Down (PD) and Sleep (SLEEP)

Modes

The MAX1180 offers two power-save modes, sleep and
full power-down mode. In sleep mode (SLEEP = 1),
only the reference bias circuit is active (both ADCs are
disabled) and current consumption is reduced to

2.8mA.

To enter full power-down mode, pull PD high. With OE
simultaneously low, all outputs are latched at the last
value prior to the power-down. Pulling OE high, forces
the digital outputs into a high-impedance state.

Applications Information

Figure 5 depicts a typical application circuit containing
two single-ended to differential converters. The internal
reference provides a V

DD

/ 2 output voltage for level­shifting purposes. The input is buffered and then split to
a voltage follower and inverter. One lowpass filter per
ADC suppresses some of the wideband noise associat­ed with high-speed operational amplifiers. The user
may select the R

ISO

and CINvalues to optimize the filter
performance to suit a particular application. For the
application in Figure 5, a R

ISO

of 50Ω is placed before

the capacitive load to prevent ringing and oscillation.
The 22pF CINcapacitor acts as a small bypassing
capacitor.

Using Transformer Coupling

An RF transformer (Figure 6) provides an excellent
solution to convert a single-ended source signal to a
fully-differential signal, required by the MAX1180 for
optimum performance. Connecting the center tap of the
transformer to COM provides a V

DD

/ 2 DC level shift to
the input. Although a 1:1 transformer is shown, a step­up transformer may be selected to reduce the drive
requirements. A reduced signal swing from the input
driver, such as an op amp, may also improve the over­all distortion.

In general, the MAX1180 provides better SFDR and
THD with fully-differential input signals, than a single­ended drive, especially for high input frequencies. In
differential input mode, even-order harmonics are lower
as both inputs (INA+, INA- and/or INB+, INB-) are bal­anced, and each of the ADC inputs only require half the
signal swing compared to single-ended mode.

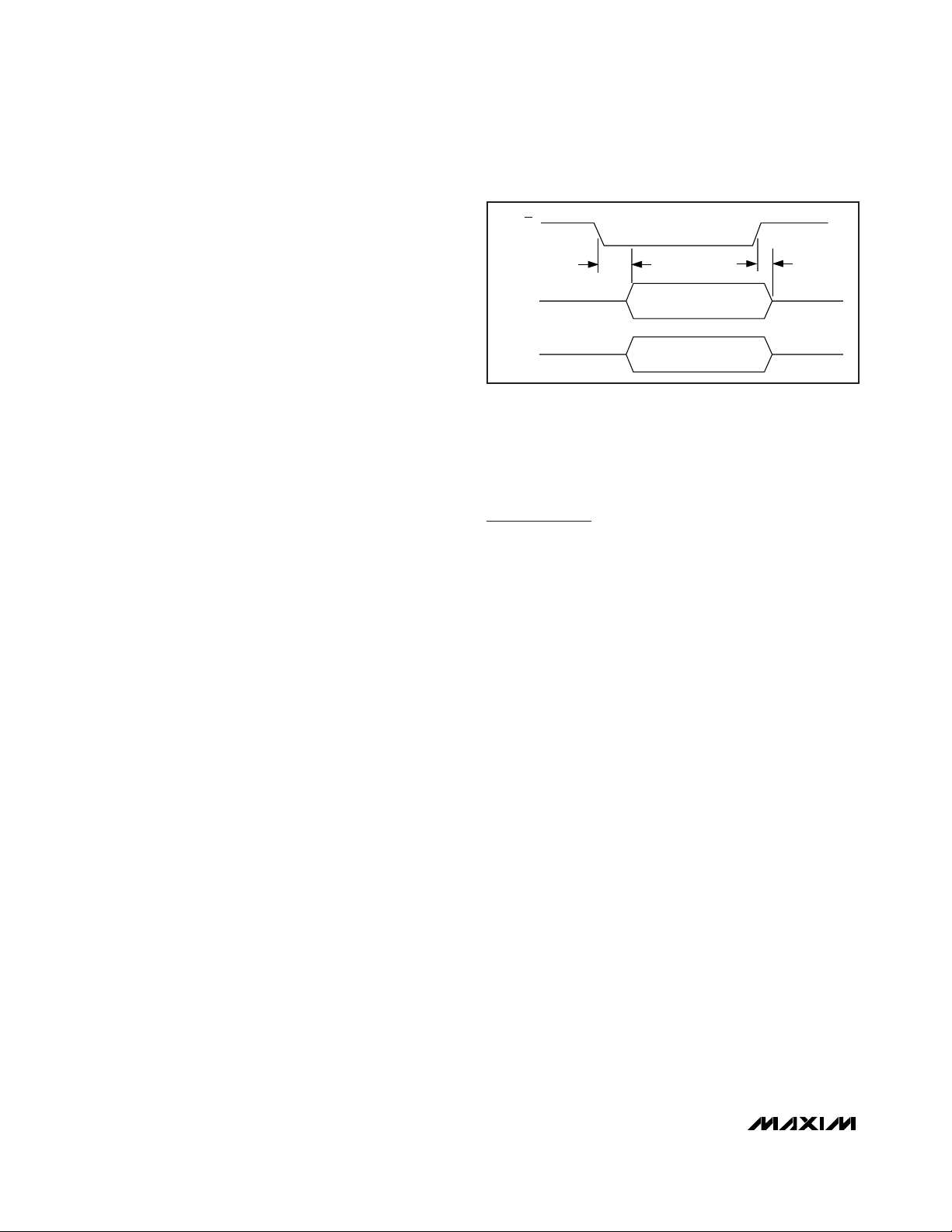

OUTPUT

D9A–D0A

OE

t

DISABLE

t

ENABLE

HIGH-ZHIGH-Z

VALID DATA

OUTPUT

D9B–D0B

HIGH-ZHIGH-Z

VALID DATA

Figure 4. Output Timing Diagram

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

______________________________________________________________________________________ 15

INPUT

300Ω

-5V

+5V

0.1µF

0.1µF

0.1µF

-5V

600Ω

300Ω

300Ω

INA+

INA-

LOWPASS FILTER

COM

600Ω

+5V

-5V

0.1µF

600Ω

300Ω

600Ω

300Ω

0.1µF

0.1µF

0.1µF

+5V

0.1µF

300Ω

MAX4108

MAX1180

INB+

INB-

MAX4108

MAX4108

LOWPASS FILTER

INPUT

300Ω

-5V

+5V

0.1µF

0.1µF

0.1µF

C

IN

22pF

-5V

600Ω

300Ω

300Ω

LOWPASS FILTER

600Ω

+5V

-5V

0.1µF

600Ω

300Ω

600Ω

300Ω

0.1µF

0.1µF

0.1µF

+5V

0.1µF

300Ω

MAX4108

MAX4108

MAX4108

LOWPASS FILTER

R

ISO

50Ω

C

IN

22pF

R

ISO

50Ω

C

IN

22pF

R

ISO

50Ω

C

IN

22pF

R

ISO

50Ω

Figure 5. Typical Application for Single-Ended-to-Differential Conversion

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

16 ______________________________________________________________________________________

Single-Ended AC-Coupled Input Signal

Figure 7 shows an AC-coupled, single-ended applica­tion. Amplifiers, like the MAX4108, provide high-speed,
high bandwidth, low-noise, and low distortion to main­tain the integrity of the input signal.

Typical QAM Demodulation Application

The most frequently used modulation technique for dig­ital communications application is the Quadrature
Amplitude Modulation (QAM). QAMs are typically found
in spread-spectrum based systems. A QAM signal rep­resents a carrier frequency modulated in both ampli­tude and phase. At the transmitter, modulating the
baseband signal with quadrature outputs, a local oscil­lator followed by subsequent up-conversion can gener­ate the QAM signal. The result is an in-phase (I) and a

quadrature (Q) carrier component, where the Q compo­nent is 90 degrees phase-shifted with respect to the in­phase component. At the receiver, the QAM signal is
divided down into its I and Q components, essentially
representing the modulation process reversed. Figure 8
displays the demodulation process performed in the
analog domain, using the dual-matched, 3V, 10-bit
ADCs, MAX1180 and the MAX2451 quadrature demod­ulators, to recover and digitize the I and Q baseband
signals. Before being digitized by the MAX1180, the
mixed-down signal components may be filtered by
matched analog filters, such as Nyquist or Pulse­Shaping filters which remove any unwanted images
from the mixing process, enhances the overall signal­to-noise (SNR) performance, and minimizes intersym­bol interference.

Grounding, Bypassing,

and Board Layout

The MAX1180 requires high-speed board layout design
techniques. Locate all bypass capacitors as close to
the device as possible, preferably on the same side as
the ADC, using surface-mount devices for minimum
inductance. Bypass VDD, REFP, REFN, and COM with
two parallel 0.1µF ceramic capacitors and a 2.2µF
bipolar capacitor to GND. Follow the same rules to
bypass the digital supply (OVDD) to OGND. Multilayer
boards with separate ground and power planes, pro­duce the highest level of signal integrity. Consider the
use of a split ground plane arranged to match the
physical location of the analog ground (GND) and the
digital output driver ground (OGND) on the ADCs pack­age. The two ground planes should be joined at a sin­gle point, such that the noisy digital ground currents do
not interfere with the analog ground plane. The ideal
location of this connection can be determined experi­mentally at a point along the gap between the two
ground planes, which produces optimum results. Make
this connection with a low-value, surface-mount resistor
(1Ω to 5Ω), a ferrite bead, or a direct short.
Alternatively, all ground pins could share the same
ground plane, if the ground plane is sufficiently isolated
from any noisy, digital systems ground plane (e.g.,
downstream output buffer or DSP ground plane). Route
high-speed digital signal traces away from the sensitive
analog traces of either channel. Make sure to isolate
the analog input lines to each respective converter to
minimize channel-to-channel crosstalk. Keep all signal
lines short and free of 90 degree turns.

MAX1180

T1

N.C.

V

IN

6

1

5

2

43

22pF

22pF

0.1µF

0.1µF

2.2µF

25

Ω

25

Ω

MINI-CIRCUITS

TT1–6

T1

N.C.

V

IN

6

1

5

2

43

22pF

22pF

0.1µF

0.1µF

2.2µF

25

Ω

25

Ω

MINI-CIRCUITS

TT1–6

INA-

INA+

INB-

INB+

COM

Figure 6. Transformer-Coupled Input Drive

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

______________________________________________________________________________________ 17

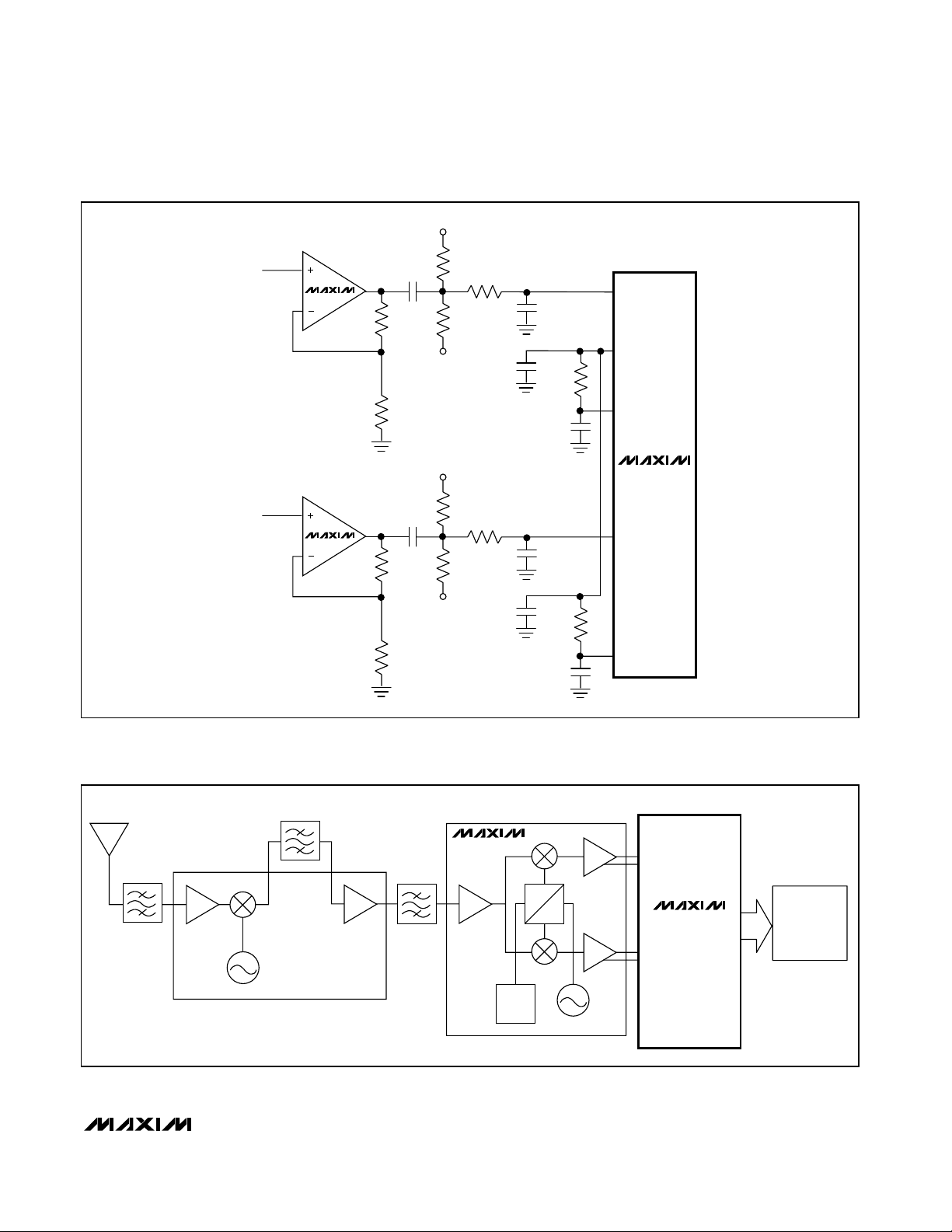

MAX1180

0.1µF

1k

Ω

1k

Ω

100

Ω

100

Ω

C

IN

22pF

C

IN

22pF

INB+

INB-

COM

INA+

INA-

0.1µF

R

ISO

50

Ω

R

ISO

50

Ω

REFP

REFN

V

IN

MAX4108

0.1µF

1k

Ω

1k

Ω

100

Ω

100

Ω

C

IN

22pF

C

IN

22pF

0.1µF

R

ISO

50

Ω

R

ISO

50

Ω

REFP

REFN

V

IN

MAX4108

Figure 7. Using an Op Amp for Single-Ended, AC-Coupled Input Drive

0

°

90

°

÷

8

DOWNCONVERTER

MAX2451

INA+

MAX1180

INA-

INB+
INB-

DSP POST

PROCESSING

Figure 8. Typical QAM Application, Using the MAX1180

Static Parameter Definitions

Integral Nonlinearity (INL)

Integral nonlinearity is the deviation of the values on an
actual transfer function from a straight line. This straight
line can be either a best straight-line fit or a line drawn
between the endpoints of the transfer function, once
offset and gain errors have been nullified. The static lin­earity parameters for the MAX1180 are measured using
the best straight-line fit method.

Differential Nonlinearity (DNL)

Differential nonlinearity is the difference between an
actual step-width and the ideal value of 1LSB. A DNL
error specification of less than 1LSB guarantees no
missing codes and a monotonic transfer function.

Dynamic Parameter Definitions

Aperture Jitter

Figure 9 depicts the aperture jitter (tAJ), which is the
sample-to-sample variation in the aperture delay.

Aperture Delay

Aperture delay (tAD) is the time defined between the
falling edge of the sampling clock and the instant when
an actual sample is taken (Figure 9).

Signal-to-Noise Ratio (SNR)

For a waveform perfectly reconstructed from digital
samples, the theoretical maximum SNR is the ratio of
the full-scale analog input (RMS value) to the RMS
quantization error (residual error).

The ideal, theoretical minimum analog-to-digital noise is
caused by quantization error only and results directly
from the ADCs resolution (N-Bits):

SNR

[max]

= 6.02 ✕N + 1.76

In reality, there are other noise sources besides quanti­zation noise; thermal noise, reference noise, clock jitter,
etc. SNR is computed by taking the ratio of the RMS
signal to the RMS noise, which includes all spectral
components minus the fundamental, the first five har­monics, and the DC offset.

Signal-to-Noise Plus Distortion (SINAD)

SINAD is computed by taking the ratio of the RMS sig­nal to all spectral components minus the fundamental
and the DC offset.

Effective Number of Bits (ENOB)

ENOB specifies the dynamic performance of an ADC at
a specific input frequency and sampling rate. An ideal
ADC’s error consists of quantization noise only. ENOB
is computed from:

Total Harmonic Distortion (THD)

THD is typically the ratio of the RMS sum of the first four
harmonics of the input signal to the fundamental itself.
This is expressed as:

where V1is the fundamental amplitude, and V2through
V5are the amplitudes of the 2nd- through 5th-order
harmonics.

Spurious-Free Dynamic Range (SFDR)

SFDR is the ratio expressed in decibels of the RMS
amplitude of the fundamental (maximum signal compo­nent) to the RMS value of the next largest spurious
component, excluding DC offset.

Intermodulation Distortion (IMD)

The two-tone IMD is the ratio expressed in decibels of
either input tone to the worst 3rd-order (or higher) inter­modulation products. The individual input tone levels
are at -6.5dB full scale.

THD

VVVV

V

=×

+++



















20

10

2222

1

2345

log

ENOB

SINAD

dB

=

−176

602..

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

18 ______________________________________________________________________________________

HOLD

ANALOG

INPUT

SAMPLED

DATA (T/H)

T/H

t

AD

t

AJ

TRACK TRACK

CLK

Figure 9. T/H Aperture Timing

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

______________________________________________________________________________________ 19

GND

REFERENCE

OUTPUT
DRIVERS

CONTROL

T/H

T/H

PIPELINE

ADC

DEC

OUTPUT
DRIVERS

REFOUT

REFN

COM

REFP

REFIN

INA+

INA-

CLK

INB+

INB-

V

DD

DEC

PIPELINE

ADC

OGND
OV

DD

D9A–D0A

OE

D9B–D0B

10

10

10

10

T/B

PD
SLEEP

MAX1180

Functional Diagram

48L,TQFP.EPS

G

1

2

21-0065

PACKAGE OUTLINE,
48L TQFP, 7x7x1.0mm EP OPTION

Package Information

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC
with Internal Reference and Parallel Outputs

20 ______________________________________________________________________________________

MAX1180

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC

with Internal Reference and Parallel Outputs

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________ 21

© 2007 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

G

2

2

21-0065

PACKAGE OUTLINE,
48L TQFP, 7x7x1.0mm EP OPTION

Revision History

Pages changed at Rev 1: 1–20

Package Information (continued)

(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages

.)
