Maxim MAX038CPP, MAX038EPP, MAX038CWP, MAX038C-D, MAX038EWP Datasheet

_______________General Description

The MAX038 is a high-frequency, precision function
generator producing accurate, high-frequency triangle,
sawtooth, sine, square, and pulse waveforms with a
minimum of external components. The output frequency
can be controlled over a frequency range of 0.1Hz to
20MHz by an internal 2.5V bandgap voltage
reference and an external resistor and capacitor. The
duty cycle can be varied over a wide range by applying
a ±2.3V control signal, facilitating pulse-width modula­tion and the generation of sawtooth waveforms.
Frequency modulation and frequency sweeping are
achieved in the same way. The duty cycle and
frequency controls are independent.

Sine, square, or triangle waveforms can be selected at
the output by setting the appropriate code at two
TTL-compatible select pins. The output signal for all
waveforms is a 2V

P-P

signal that is symmetrical around
ground. The low-impedance output can drive up
to ±20mA.

The TTL-compatible SYNC output from the internal
oscillator maintains a 50% duty cycle—regardless of
the duty cycle of the other waveforms—to synchronize
other devices in the system. The internal oscillator can
be synchronized to an external TTL clock connected
to PDI.

________________________Applications

Precision Function Generators
Voltage-Controlled Oscillators
Frequency Modulators
Pulse-Width Modulators
Phase-Locked Loops
Frequency Synthesizer
FSK Generator—Sine and Square Waves

____________________________Features

♦ 0.1Hz to 20MHz Operating Frequency Range
♦ Triangle, Sawtooth, Sine, Square, and Pulse

Waveforms

♦ Independent Frequency and Duty-Cycle

Adjustments

♦ 350 to 1 Frequency Sweep Range
♦ 15% to 85% Variable Duty Cycle
♦ Low-Impedance Output Buffer: 0.1Ω
♦ Low-Distortion Sine Wave: 0.75%
♦ Low 200ppm/°C Temperature Drift

______________Ordering Information

*

Contact factory for dice specifications.

MAX038

High-Frequency Waveform Generator

________________________________________________________________

Maxim Integrated Products

1

20
19
18
17
16
15
14
13
12
11

1
2
3
4
5
6
7
8
9

10

V­OUT
GND
V+

A1

A0

GND

REF

TOP VIEW

MAX038

DV+
DGND
SYNC

PDI

FADJ

DADJ

GND

COSC

PDO

GND

IIN

GND

DIP/SO

__________________Pin Configuration

19-0266; Rev 2a; 9/96

PART TEMP. RANGE PIN-PACKAGE

MAX038CPP 0°C to +70°C 20 Plastic DIP
MAX038CWP 0°C to +70°C 20 SO
MAX038C/D 0°C to +70°C Dice*
MAX038EPP -40°C to +85°C 20 Plastic DIP
MAX038EWP -40°C to +85°C 20 SO

EVALUATION KIT

AVAILABLE

For free samples & the latest literature: http://www.maxim-ic.com, or phone [phone].
For small orders, phone [phone] ext. 3468.

MAX038

High-Frequency Waveform Generator

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(Circuit of Figure 1, GND = DGND = 0V, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, CF= 100pF,

RIN= 25kΩ, RL= 1kΩ, CL= 20pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

PARAMETER SYMBOL MIN TYP MAX UNITS

Frequency Temperature
Coefficient

∆Fo/°C

200

ppm/°C

600

IIN Offset Voltage V

IN

±1.0 ±2.0 mV

Frequency Programming
Current

I

IN

1.25 375

µA

(∆Fo/Fo)

∆V+

±0.4 ±2.00

Frequency Power-Supply
Rejection

(∆Fo/Fo)

∆V-

±0.2 ±1.00

%/V

Output Peak-to-Peak Symmetry V

OUT

±4 mV

Maximum Operating Frequency F

o

20.0 40.0 MHz

2.50 750

Output Resistance R

OUT

0.1 0.2 Ω

Output Short-Circuit Current I

OUT

40 mA

Amplitude V

OUT

1.9 2.0 2.1 V

P-P

Rise Time t

R

12 ns

Fall Time t

F

12 ns

Duty Cycle dc 47 50 53 %

Amplitude V

OUT

1.9 2.0 2.1 V

P-P

Nonlinearity 0.5 %
Duty Cycle dc 47 50 53 %

CONDITIONS

V

FADJ

= -3V

V

FADJ

= 0V

V

FADJ

= -3V

V- = -5V, V+ = 4.75V to 5.25V

V+ = 5V, V- = -4.75V to -5.25V

Short circuit to GND

10% to 90%
90% to 10%
V

DADJ

= 0V, dc = tON/t x 100%

15pCF ≤ 15pF, IIN= 500µA
V

FADJ

= 0V

Fo= 100kHz, 5% to 95%
V

DADJ

= 0V (Note 1)

V+ to GND................................................................-0.3V to +6V

DV+ to DGND...........................................................-0.3V to +6V

V- to GND.................................................................+0.3V to -6V

Pin Voltages

IIN, FADJ, DADJ, PDO .....................(V- - 0.3V) to (V+ + 0.3V)

COSC .....................................................................+0.3V to V-

A0, A1, PDI, SYNC, REF.........................................-0.3V to V+

GND to DGND ................................................................±0.3V

Maximum Current into Any Pin.........................................±50mA

OUT, REF Short-Circuit Duration to GND, V+, V-...............30sec

Continuous Power Dissipation (T

A

= +70°C)

Plastic DIP (derate 11.11mW/°C above +70°C) ..........889mW

SO (derate 10.00mW/°C above +70°C).......................800mW

CERDIP (derate 11.11mW/°C above +70°C)...............889mW

Operating Temperature Ranges

MAX038C_ _ .......................................................0°C to +70°C

MAX038E_ _ ....................................................-40°C to +85°C

Maximum Junction Temperature .....................................+150°C

Storage Temperature Range.............................-65°C to +150°C

Lead Temperature (soldering, 10sec).............................+300°C

Amplitude

V

OUT

1.9 2.0 2.1 V

P-P

Duty cycle adjusted to 50% 0.75

Total Harmonic Distortion THD

Duty cycle unadjusted 1.50

%

Fo/°C

FREQUENCY CHARACTERISTICS

OUTPUT AMPLIFIER (applies to all waveforms)

SQUARE-WAVE OUTPUT (RL= 100Ω)

TRIANGLE-WAVE OUTPUT (RL= 100Ω)

SINE-WAVE OUTPUT (RL= 100Ω)

MAX038

High-Frequency Waveform Generator

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(Circuit of Figure 1, GND = DGND = 0V, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, CF= 100pF,

RIN= 25kΩ, RL= 1kΩ, CL= 20pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

Note 1: Guaranteed by duty-cycle test on square wave.
Note 2: V

REF

is independent of V-.

PARAMETER

DADJ Nonlinearity

SYMBOL MIN TYP MAX

dc/V

FADJ

2 4

UNITS

%

Duty Cycle dc

SYNC

50 %

Fall Time t

F

10 ns

Rise Time t

R

10 ns

Change in Output Frequency
with DADJ

DADJ Input Current I

DADJ

190 250 320 µA

DADJ Voltage Range V

DADJ

±2.3 V

Fo/V

DADJ

±2.5 ±8 %

Duty-Cycle Adjustment Range dc 15 85 %

Maximum DADJ Modulating
Frequency

F

DC

2 MHz

Output Low Voltage

FADJ Input Current I

FADJ

190 250 320 µA

FADJ Voltage Range V

FADJ

±2.4 V

Frequency Sweep Range

V

OL

0.3 0.4 V

F

o

±70 %

FM Nonlinearity with FADJ

Output High Voltage

Fo/V

FADJ

±0.2 %

V

OH

2.8 3.5 V

Change in Duty Cycle with FADJ dc/V

FADJ

±2 %

Output Voltage V

REF

2.48 2.50 2.52 V

CONDITIONS

-2V ≤ V

DADJ

≤ 2V

90% to 10%, RL= 3kΩ, CL= 15pF

10% to 90%, RL= 3kΩ, CL= 15pF

-2V ≤ V

DADJ

≤ 2V

-2.3V ≤ V

DADJ

≤ 2.3V

I

SINK

= 3.2mA

-2.4V ≤ V

FADJ

≤ 2.4V

-2V ≤ V

FADJ

≤ 2V

I

SOURCE

= 400µA

-2V ≤ V

FADJ

≤ 2V

I

REF

= 0

Temperature Coefficient V

REF

/°C 20 ppm/°C

0mA ≤ I

REF

≤ 4mA (source) 1 2

Load Regulation V

REF/IREF

-100µA ≤ I

REF

≤ 0µA (sink) 1 4

mV/mA

Line Regulation V

REF

/V+ 4.75V ≤ V+ ≤ 5.25V (Note 2) 1 2 mV/V

Input Low Voltage V

IL

0.8 V

Input High Voltage V

IH

2.4 V

Input Current (A0, A1) IIL, I

IH

VA0, VA1= VIL, V

IH

±5 µA

Input Current (PDI) IIL, I

IH

V

PDI

= VIL, V

IH

±25 µA

Positive Supply Voltage V+ 4.75 5.25 V
SYNC Supply Voltage DV+ 4.75 5.25 V
Negative Supply Voltage V- -4.75 -5.25 V
Positive Supply Current I+ 35 45 mA
SYNC Supply Current I

DV+

1 2 mA

Negative Supply Current I- 45 55 mA

Maximum FADJ Modulating
Frequency

F

F

2 MHz

SYNC OUTPUT

DUTY-CYCLE ADJUSTMENT (DADJ)

FREQUENCY ADJUSTMENT (FADJ)

VOLTAGE REFERENCE

LOGIC INPUTS (A0, A1, PDI)

POWER SUPPLY

MAX038

High-Frequency Waveform Generator

4 _______________________________________________________________________________________

__________________________________________Typical Operating Characteristics

(Circuit of Figure 1, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, RL= 1kΩ, CL= 20pF, TA = +25°C, unless

otherwise noted.)

0.1
1 100 1000

OUTPUT FREQUENCY

vs. IIN CURRENT

10

100

MAX038-08

IIN CURRENT (µA)

OUTPUT FREQUENCY (Hz)

10

1

1k

10k

100k

1M

10M

100M

100µF

47µF

10µF

3.3µF

1µF

100nF

33nF

3.3nF

330pF

100pF

33pF

1.0

0

-3 2

NORMALIZED OUTPUT FREQUENCY

vs. FADJ VOLTAGE

0.2

0.8

MAX038-09

V

FADJ

(V)

F

OUT

NORMALIZED

0

0.4

-2 -1 1

0.6

3

1.2

1.4

1.6

1.8

2.0
IIN = 100µA, COSC = 1000pF

0.85

NORMALIZED OUTPUT FREQUENCY

vs. DADJ VOLTAGE

0.90

1.10

MAX038-17

DADJ (V)

NORMALIZED OUTPUT FREQUENCY

1.00

0.95

1.05

IIN = 10µA

IIN = 25µA

IIN = 50µA

IIN = 100µA

IIN = 250µA

IIN = 500µA

2.0

-2.5

-2.0 -1.0 1.0 2.5

DUTY-CYCLE LINEARITY

vs. DADJ VOLTAGE

-2.0

1.0

MAX038-18

DADJ (V)

DUTY-CYCLE LINEARITY ERROR (%)

0 1.5

0

-1.0

-1.5

-0.5

0.5

1.5

IIN = 10µA

IIN = 25µA

IIN = 50µA

IIN = 100µA

IIN = 250µA

IIN = 500µA

60

0

-3 2

DUTY CYCLE vs. DADJ VOLTAGE

10

50

MAX038-16B

DADJ (V)

DUTY CYCLE (%)

0

30
20

-2 -1 1

40

70

80

90

100

3

IIN = 200µA

MAX038

High-Frequency Waveform Generator

_______________________________________________________________________________________

5

SINE-WAVE OUTPUT (50Hz)

TOP: OUTPUT 50Hz = F

o

BOTTOM: SYNC
I

IN

= 50µA

C

= 1µF

TRIANGLE-WAVE OUTPUT (50Hz)

TOP: OUTPUT 50Hz = F

o

BOTTOM: SYNC
I

IN

= 50µA

C

F

= 1µF

SQUARE-WAVE OUTPUT (50Hz)

TOP: OUTPUT 50Hz = F

o

BOTTOM: SYNC
I

IN

= 50µA

C

F

= 1µF

SINE-WAVE OUTPUT (20MHz)

IIN = 400µA
C

F

= 20pF

____________________________Typical Operating Characteristics (continued)

(Circuit of Figure 1, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, RL= 1kΩ, CL= 20pF, TA = +25°C, unless

otherwise noted.)

TRIANGLE-WAVE OUTPUT (20MHz)

IIN = 400µA
C

F

= 20pF

MAX038

High-Frequency Waveform Generator

6 _______________________________________________________________________________________

____________________________Typical Operating Characteristics (continued)

(Circuit of Figure 1, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, RL= 1kΩ, CL= 20pF, TA = +25°C, unless

otherwise noted.)

FREQUENCY MODULATION USING FADJ

TOP: OUTPUT
BOTTOM: FADJ

0.5V
0

-0.5V

FREQUENCY MODULATION USING I

IN

TOP: OUTPUT
BOTTOM: I

IN

FREQUENCY MODULATION USING I

IN

TOP: OUTPUT
BOTTOM: I

IN

PULSE-WIDTH MODULATION USING DADJ

TOP: SQUARE-WAVE OUT, 2V

P-P

BOTTOM: V

DADJ,

-2V to +2.3V

+1V
0V

-1V

+2V
0V

-2V

SQUARE-WAVE OUTPUT (20MHz)

IIN = 400µA
C

F

= 20pF

MAX038

High-Frequency Waveform Generator

_______________________________________________________________________________________ 7

______________________________________________________________Pin Description

*

The five GND pins are not internally connected. Connect all five GND pins to a quiet ground close to the device. A ground plane is

recommended (see Layout Considerations).

0

-100
0 20 60 100

OUTPUT SPECTRUM, SINE WAVE

(F

o

= 11.5MHz)

-80

-20

MAX038-12A

FREQUENCY (MHz)

ATTENUATION (dB)

40 80

-40

-60

-10

-30

-50

-70

-90

10 30 50 70 90

RIN = 15kΩ (VIN = 2.5V), CF = 20pF,
V

DADJ

= 40mV, V

FADJ

= -3V

0

-100

0 10 30 50

OUTPUT SPECTRUM, SINE WAVE

(F

o

= 5.9kHz)

-80

-20

MAX038 12B

FREQUENCY (kHz)

ATTENUATION (dB)

20 40

-40

-60

-10

-30

-50

-70

-90

5 15 25 35 45

RIN = 51kΩ (VIN = 2.5V), CF = 0.01µF,
V

DADJ

= 50mV, V

FADJ

= 0V

____________________________Typical Operating Characteristics (continued)

(Circuit of Figure 1, V+ = DV+ = 5V, V- = -5V, V

DADJ

= V

FADJ

= V

PDI

= V

PDO

= 0V, RL= 1kΩ, CL= 20pF, TA = +25°C, unless

otherwise noted.)

-5V supply input

V-20

Sine, square, or triangle outputOUT19

+5V supply inputV+17

Digital +5V supply input. Can be left open if SYNC is not used.DV+16

Digital groundDGND15

TTL/CMOS-compatible output, referenced between DGND and DV+. Permits the internal oscillator to be
synchronized with an external signal. Leave open if unused.

SYNC14

Current input for frequency controlIIN10
Phase detector output. Connect to GND if phase detector is not used.PDO12
Phase detector reference clock input. Connect to GND if phase detector is not used.PDI13

External capacitor connectionCOSC5
Duty-cycle adjust inputDADJ7
Frequency adjust inputFADJ8

Waveform selection input; TTL/CMOS compatibleA14

Waveform selection input; TTL/CMOS compatibleA03

PIN

Ground*GND

2, 6, 9,

11, 18

2.50V bandgap voltage reference outputREF1

FUNCTIONNAME

MAX038

_______________Detailed Description

The MAX038 is a high-frequency function generator
that produces low-distortion sine, triangle, sawtooth, or
square (pulse) waveforms at frequencies from less than
1Hz to 20MHz or more, using a minimum of external
components. Frequency and duty cycle can be inde­pendently controlled by programming the current, volt­age, or resistance. The desired output waveform is
selected under logic control by setting the appropriate
code at the A0 and A1 inputs. A SYNC output and
phase detector are included to simplify designs requir­ing tracking to an external signal source.

The MAX038 operates with ±5V ±5% power supplies.
The basic oscillator is a relaxation type that operates by
alternately charging and discharging a capacitor, CF,

with constant currents, simultaneously producing a tri­angle wave and a square wave (Figure 1). The charg­ing and discharging currents are controlled by the cur­rent flowing into IIN, and are modulated by the voltages
applied to FADJ and DADJ. The current into IIN can be
varied from 2µA to 750µA, producing more than two
decades of frequency for any value of CF. Applying
±2.4V to FADJ changes the nominal frequency (with
V

FADJ

= 0V) by ±70%; this procedure can be used for

fine control.
Duty cycle (the percentage of time that the output wave-

form is positive) can be controlled from 10% to 90% by
applying ±2.3V to DADJ. This voltage changes the C

F

charging and discharging current ratio while maintaining
nearly constant frequency.

High-Frequency Waveform Generator

8 _______________________________________________________________________________________

MAX038

OSCILLATOR

OSCILLATOR

CURRENT

GENERATOR

2.5V

VOLTAGE

REFERENCE

OSC B

OSC A

TRIANGLE

SINE

SHAPER

COMPARATOR

COMPARATOR

PHASE

DETECTOR

MUX

COSC

GND

5

6

C

F

8
7

10

FADJ
DADJ

IIN

REF

1

17

20

2, 9, 11, 18

V+
V-

GND

R

FRDRIN

+5V

-5V

-250µA

SINE

TRIANGLE

SQUARE

A0

A1

OUT

SYNC

PDO

PDI

19

14

12
13

R

L

C

L

3

4

DGND DV+

15

16

+5V

*

= SIGNAL DIRECTION, NOT POLARITY

= BYPASS CAPACITORS ARE 1µF CERAMIC OR 1µF ELECTROLYTIC IN PARALLEL WITH 1nF CERAMIC.

*

*

Figure 1. Block Diagram and Basic Operating Circuit

A stable 2.5V reference voltage, REF, allows simple
determination of IIN, FADJ, or DADJ with fixed resistors,
and permits adjustable operation when potentiometers
are connected from each of these inputs to REF. FADJ
and/or DADJ can be grounded, producing the nominal
frequency with a 50% duty cycle.

The output frequency is inversely proportional to
capacitor CF. CFvalues can be selected to produce
frequencies above 20MHz.

A sine-shaping circuit converts the oscillator triangle
wave into a low-distortion sine wave with constant
amplitude. The triangle, square, and sine waves are
input to a multiplexer. Two address lines, A0 and A1,
control which of the three waveforms is selected. The
output amplifier produces a constant 2V

P-P

amplitude

(±1V), regardless of wave shape or frequency.
The triangle wave is also sent to a comparator that pro-

duces a high-speed square-wave SYNC waveform that
can be used to synchronize other oscillators. The SYNC
circuit has separate power-supply leads and can be
disabled.

Two other phase-quadrature square waves are gener­ated in the basic oscillator and sent to one side of an
“exclusive-OR” phase detector. The other side of the
phase-detector input (PDI) can be connected to an
external oscillator. The phase-detector output (PDO) is
a current source that can be connected directly to
FADJ to synchronize the MAX038 with the external
oscillator.

Waveform Selection

The MAX038 can produce either sine, square, or trian­gle waveforms. The TTL/CMOS-logic address pins (A0
and A1) set the waveform, as shown below:

X = Don’t care

Waveform switching can be done at any time, without
regard to the phase of the output. Switching occurs
within 0.3µs, but there may be a small transient in the
output waveform that lasts 0.5µs.

Waveform Timing

Output Frequency

The output frequency is determined by the current
injected into the IIN pin, the COSC capacitance (to
ground), and the voltage on the FADJ pin. When

V

FADJ

= 0V, the fundamental output frequency (Fo) is

given by the formula:

Fo(MHz) = IIN(µA) ÷ CF(pF) [1]

The period (to) is:

to(µs) = CF(pF) ÷ IIN(µA) [2]

where:

IIN= current injected into IIN (between 2µA and
750µA)

CF= capacitance connected to COSC and GND
(20pF to >100µF).

For example:

0.5MHz = 100µA ÷ 200pF

and

2µs = 200pF ÷ 100µA

Optimum performance is achieved with IINbetween
10µA and 400µA, although linearity is good with I

IN

between 2µA and 750µA. Current levels outside of this
range are not recommended. For fixed-frequency oper­ation, set IINto approximately 100µA and select a suit­able capacitor value. This current produces the lowest
temperature coefficient, and produces the lowest fre­quency shift when varying the duty cycle.

The capacitance can range from 20pF to more than
100µF, but stray circuit capacitance must be minimized
by using short traces. Surround the COSC pin and the
trace leading to it with a ground plane to minimize cou­pling of extraneous signals to this node. Oscillation
above 20MHz is possible, but waveform distortion
increases under these conditions. The low frequency
limit is set by the leakage of the COSC capacitor and
by the required accuracy of the output frequency.
Lowest frequency operation with good accuracy is usu­ally achieved with 10µF or greater non-polarized
capacitors.

An internal closed-loop amplifier forces IIN to virtual
ground, with an input offset voltage less than ±2mV. IIN
may be driven with either a current source (IIN), or a
voltage (VIN) in series with a resistor (RIN). (A resistor
between REF and IIN provides a convenient method of
generating IIN: IIN= V

REF/RIN

.) When using a voltage
in series with a resistor, the formula for the oscillator fre­quency is:

Fo(MHz) = VIN÷ [RINx CF(pF)] [3]

and:

to(µs) = CF(pF) x RIN÷ V

IN

[4]

MAX038

High-Frequency Waveform Generator

_______________________________________________________________________________________ 9

A0 A1 WAVEFORM

X 1 Sine wave
0 0 Square wave
1 0 Triangle wave

MAX038

When the MAX038’s frequency is controlled by a volt­age source (VIN) in series with a fixed resistor (RIN), the
output frequency is a direct function of VINas shown in
the above equations. Varying VINmodulates the oscilla­tor frequency. For example, using a 10kΩ resistor for
RINand sweeping VINfrom 20mV to 7.5V produces
large frequency deviations (up to 375:1). Select RINso
that IINstays within the 2µA to 750µA range. The band­width of the IIN control amplifier, which limits the modu­lating signal’s highest frequency, is typically 2MHz.

IIN can be used as a summing point to add or subtract
currents from several sources. This allows the output
frequency to be a function of the sum of several vari­ables. As VINapproaches 0V, the IINerror increases
due to the offset voltage of IIN.

Output frequency will be offset 1% from its final value
for 10 seconds after power-up.

FADJ Input

The output frequency can be modulated by FADJ,
which is intended principally for fine frequency control,
usually inside phase-locked loops. Once the funda­mental, or center frequency (Fo) is set by IIN, it may be
changed further by setting FADJ to a voltage other than
0V. This voltage can vary from -2.4V to +2.4V, causing
the output frequency to vary from 1.7 to 0.30 times the
value when FADJ is 0V (Fo±70%). Voltages beyond
±2.4V can cause instability or cause the frequency
change to reverse slope.

The voltage on FADJ required to cause the output to
deviate from Foby Dx(expressed in %) is given by the
formula:

VFADJ = -0.0343 x D

x

[5]

where V

FADJ

, the voltage on FADJ, is between

-2.4V and +2.4V.

Note: While IINis directly proportional to the fundamen-
tal, or center frequency (Fo), V

FADJ

is linearly related to

% deviation from Fo. V

FADJ

goes to either side of 0V,

corresponding to plus and minus deviation.
The voltage on FADJ for any frequency is given by the

formula:

V

FADJ

= (Fo- Fx) ÷ (0.2915 x Fo) [6]

where:

Fx= output frequency
Fo= frequency when V

FADJ

= 0V.

Likewise, for period calculations:

V

FADJ

= 3.43 x (tx- to) ÷ t

x

[7]

where:

tx = output period

t

o

= period when V

FADJ

= 0V.

Conversely, if V

FADJ

is known, the frequency is given

by:

Fx= Fox (1 - [0.2915 x V

FADJ

]) [8]

and the period (tx) is:

tx= to÷ (1 - [0.2915 x V

FADJ

]) [9]

Programming FADJ

FADJ has a 250µA constant current sink to V- that must
be furnished by the voltage source. The source is usu­ally an op-amp output, and the temperature coefficient
of the current sink becomes unimportant. For manual
adjustment of the deviation, a variable resistor can be
used to set V

FADJ

, but then the 250µA current sink’s
temperature coefficient becomes significant. Since
external resistors cannot match the internal tempera­ture-coefficient curve, using external resistors to pro­gram V

FADJ

is intended only for manual operation,
when the operator can correct for any errors. This
restriction does not apply when V

FADJ

is a true voltage

source.
A variable resistor, RF, connected between REF (+2.5V)

and FADJ provides a convenient means of manually
setting the frequency deviation. The resistance value
(RF) is:

RF= (V

REF

- V

FADJ

) ÷ 250µA [10]

V

REF

and V

FADJ

are signed numbers, so use correct

algebraic convention. For example, if V

FADJ

is -2.0V

(+58.3% deviation), the formula becomes:

RF= (+2.5V - (-2.0V)) ÷ 250µA

= (4.5V) ÷ 250µA
= 18kΩ

Disabling FADJ

The FADJ circuit adds a small temperature coefficient
to the output frequency. For critical open-loop applica­tions, it can be turned off by connecting FADJ to GND
(not REF) through a 12kΩ resistor (R1 in Figure 2). The

-250µA current sink at FADJ causes -3V to be devel­oped across this resistor, producing two results. First,
the FADJ circuit remains in its linear region, but discon­nects itself from the main oscillator, improving tempera­ture stability. Second, the oscillator frequency doubles.
If FADJ is turned off in this manner, be sure to correct
equations 1-4 and 6-9 above, and 12 and 14 below by
doubling Foor halving to. Although this method doubles
the normal output frequency, it does not double the
upper frequency limit. Do not operate FADJ open cir­cuit or with voltages more negative than -3.5V. Doing
so may cause transistor saturation inside the IC, lead­ing to unwanted changes in frequency and duty cycle.

High-Frequency Waveform Generator

10 ______________________________________________________________________________________

With FADJ disabled, the output frequency can still be
changed by modulating IIN.

Swept Frequency Operation

The output frequency can be swept by applying a vary­ing signal to IIN or FADJ. IIN has a wider range, slightly
slower response, lower temperature coefficient, and
requires a single polarity current source. FADJ may be
used when the swept range is less than ±70% of the
center frequency, and it is suitable for phase-locked
loops and other low-deviation, high-accuracy closed­loop controls. It uses a sweeping voltage symmetrical
about ground.

Connecting a resistive network between REF, the volt­age source, and FADJ or IIN is a convenient means of
offsetting the sweep voltage.

Duty Cycle

The voltage on DADJ controls the waveform duty cycle
(defined as the percentage of time that the output
waveform is positive). Normally, V

DADJ

= 0V, and the
duty cycle is 50% (Figure 2). Varying this voltage from
+2.3V to -2.3V causes the output duty cycle to vary
from 15% to 85%, about -15% per volt. Voltages
beyond ±2.3V can shift the output frequency and/or
cause instability.

DADJ can be used to reduce the sine-wave distortion.
The unadjusted duty cycle (V

DADJ

= 0V) is 50% ±2%;
any deviation from exactly 50% causes even order har­monics to be generated. By applying a small
adjustable voltage (typically less than ±100mV) to
V

DADJ

, exact symmetry can be attained and the distor-

tion can be minimized (see Figure 2).
The voltage on DADJ needed to produce a specific

duty cycle is given by the formula:

V

DADJ

= (50% - dc) x 0.0575 [11]

or:

V

DADJ

= (0.5 - [tON÷ to]) x 5.75 [12]

where:

V

DADJ

= DADJ voltage (observe the polarity)
dc = duty cycle (in %)
tON= ON (positive) time
to= waveform period.

Conversely, if V

DADJ

is known, the duty cycle and ON

time are given by:

dc = 50% - (V

DADJ

x 17.4) [13]

tON= tox (0.5 - [V

DADJ

x 0.174]) [14]

MAX038

High-Frequency Waveform Generator

______________________________________________________________________________________ 11

MAX038

1µF

GND

COSC

12

AO

V-

1811926

GND GNDGND GND

5

8

10

7

1

13

14

15

16

N.C.

3

FADJ

IIN

DADJ

REF

OUT

DV+

DGND

SYNC

PDI

PDO

V+ A1

41720

–5V +5V

C2

1nF

C3

1µF

C1

12k

R1

20k

R

IN

FREQUENCY

50Ω

R2

N.C.

C

F

19

SINE-WAVE
OUTPUT

2 x 2.5V
R

IN

x C

F

Fo =

MAX038

100k

R5

5k

R6

100k

R7

100k

R3

100k

R4

DADJ

REF

+2.5V–2.5V

PRECISION DUTY-CYCLE ADJUSTMENT CIRCUIT

ADJUST R6 FOR MINIMUM SINE-WAVE DISTORTION

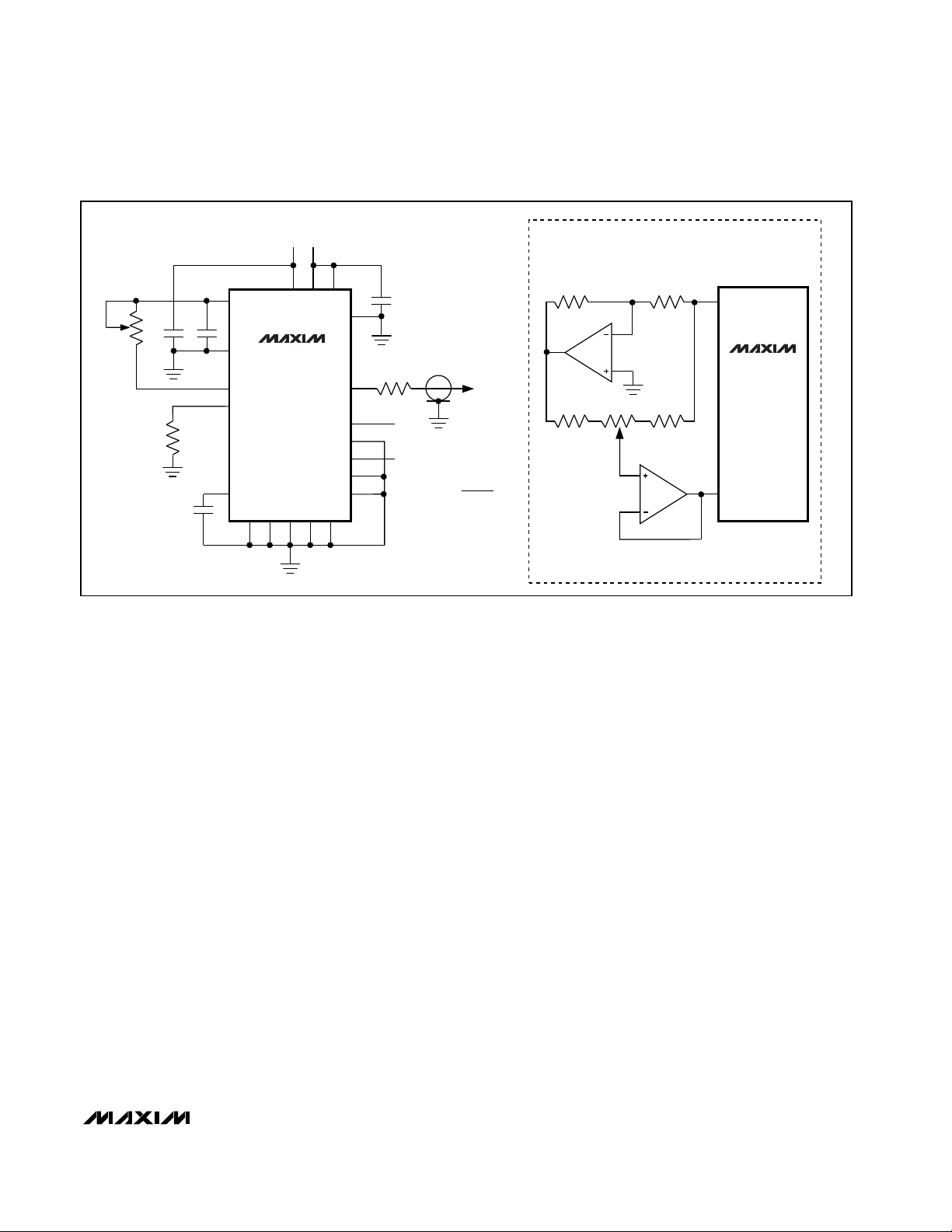

Figure 2. Operating Circuit with Sine-Wave Output and 50% Duty Cycle; SYNC and FADJ Disabled

MAX038

Programming DADJ

DADJ is similar to FADJ; it has a 250µA constant cur­rent sink to V- that must be furnished by the voltage
source. The source is usually an op-amp output, and
the temperature coefficient of the current sink becomes
unimportant. For manual adjustment of the duty cycle, a
variable resistor can be used to set V

DADJ

, but then the
250µA current sink’s temperature coefficient becomes
significant. Since external resistors cannot match the
internal temperature-coefficient curve, using external
resistors to program V

DADJ

is intended only for manual
operation, when the operator can correct for any errors.
This restriction does not apply when V

DADJ

is a true

voltage source.
A variable resistor, RD, connected between REF

(+2.5V) and DADJ provides a convenient means of
manually setting the duty cycle. The resistance value
(RD) is:

RD= (V

REF

- V

DADJ

) ÷ 250µA [15]

Note that both V

REF

and V

DADJ

are signed values, so
observe correct algebraic convention. For example, if
V

DADJ

is -1.5V (23% duty cycle), the formula becomes:

RD= (+2.5V - (-1.5V)) ÷ 250µA

= (4.0V) ÷ 250µA = 16kΩ

Varying the duty cycle in the range 15% to 85% has
minimal effect on the output frequency—typically less
than 2% when 25µA < IIN< 250µA. The DADJ circuit is
wideband, and can be modulated at up to 2MHz (see
photos,

Typical Operating Characteristics

).

Output

The output amplitude is fixed at 2V

P-P

, symmetrical
around ground, for all output waveforms. OUT has an
output resistance of under 0.1Ω, and can drive ±20mA
with up to a 50pF load. Isolate higher output capaci­tance from OUT with a resistor (typically 50Ω) or buffer
amplifier.

Reference Voltage

REF is a stable 2.50V bandgap voltage reference capa­ble of sourcing 4mA or sinking 100µA. It is principally
used to furnish a stable current to IIN or to bias DADJ
and FADJ. It can also be used for other applications
external to the MAX038. Bypass REF with 100nF to min­imize noise.

Selecting Resistors and Capacitors

The MAX038 produces a stable output frequency over
time and temperature, but the capacitor and resistors
that determine frequency can degrade performance if
they are not carefully chosen. Resistors should be
metal film, 1% or better. Capacitors should be chosen

for low temperature coefficient over the whole tempera­ture range. NPO ceramics are usually satisfactory.

The voltage on COSC is a triangle wave that varies
between 0V and -1V. Polarized capacitors are generally
not recommended (because of their outrageous tem­perature dependence and leakage currents), but if they
are used, the negative terminal should be connected to
COSC and the positive terminal to GND. Large-value
capacitors, necessary for very low frequencies, should
be chosen with care, since potentially large leakage
currents and high dielectric absorption can interfere
with the orderly charge and discharge of C

F

. If possi­ble, for a given frequency, use lower IIN currents to
reduce the size of the capacitor.

SYNC Output

SYNC is a TTL/CMOS-compatible output that can be
used to synchronize external circuits. The SYNC output
is a square wave whose rising edge coincides with the
output rising sine or triangle wave as it crosses through
0V. When the square wave is selected, the rising edge
of SYNC occurs in the middle of the positive half of the
output square wave, effectively 90° ahead of the output.
The SYNC duty cycle is fixed at 50% and is indepen­dent of the DADJ control.

Because SYNC is a very-high-speed TTL output, the
high-speed transient currents in DGND and DV+ can
radiate energy into the output circuit, causing a narrow
spike in the output waveform. (This spike is difficult to
see with oscilloscopes having less than 100MHz band­width). The inductance and capacitance of IC sockets
tend to amplify this effect, so sockets are not recom­mended when SYNC is on. SYNC is powered from sep­arate ground and supply pins (DGND and DV+), and it
can be turned off by making DV+ open circuit. If syn­chronization of external circuits is not used, turning off
SYNC by DV+ opening eliminates the spike.

Phase Detectors

Internal Phase Detector

The MAX038 contains a TTL/CMOS phase detector that
can be used in a phase-locked loop (PLL) to synchro­nize its output to an external signal (Figure 3). The
external source is connected to the phase-detector
input (PDI) and the phase-detector output is taken from
PDO. PDO is the output of an exclusive-OR gate, and
produces a rectangular current waveform at the
MAX038 output frequency, even with PDI grounded.
PDO is normally connected to FADJ and a resistor,
RPD, and a capacitor CPD, to GND. RPDsets the gain
of the phase detector, while the capacitor attenuates
high-frequency components and forms a pole in the
phase-locked loop filter.

High-Frequency Waveform Generator

12 ______________________________________________________________________________________

PDO is a rectangular current-pulse train, alternating
between 0µA and 500µA. It has a 50% duty cycle when
the MAX038 output and PDI are in phase-quadrature
(90° out of phase). The duty cycle approaches 100%
as the phase difference approaches 180° and con­versely, approaches 0% as the phase difference
approaches 0°. The gain of the phase detector (KD)
can be expressed as:

KD= 0.318 x RPD(volts/radian) [16]
where RPD= phase-detector gain-setting resistor.
When the loop is in lock, the input signals to the phase

detector are in approximate phase quadrature, the duty
cycle is 50%, and the average current at PDO is 250µA
(the current sink of FADJ). This current is divided
between FADJ and RPD; 250µA always goes into FADJ
and any difference current is developed across RPD,
creating V

FADJ

(both polarities). For example, as the
phase difference increases, PDO duty cycle increases,
the average current increases, and the voltage on R

PD

(and V

FADJ

) becomes more positive. This in turn
decreases the oscillator frequency, reducing the phase
difference, thus maintaining phase lock. The higher
RPDis, the greater V

FADJ

is for a given phase differ­ence; in other words, the greater the loop gain, the less
the capture range. The current from PDO must also

charge CPD, so the rate at which V

FADJ

changes (the

loop bandwidth) is inversely proportional to CPD.
The phase error (deviation from phase quadrature)

depends on the open-loop gain of the PLL and the ini­tial frequency deviation of the oscillator from the exter­nal signal source. The oscillator conversion gain (Ko) is:

KO= ∆ω

o ÷

∆VF

ADJ

[17]

which, from equation [6] is:

KO= 3.43 x ωo(radians/sec) [18]

The loop gain of the PLL system (KV) is:

KV= KDx K

O

[19]

where:

KD= detector gain
KO= oscillator gain.

With a loop filter having a response F(s), the open-loop
transfer function, T(s), is:

T(s) = KDx KOx F(s) ÷ s [20]

Using linear feedback analysis techniques, the closed­loop transfer characteristic, H(s), can be related to the
open-loop transfer function as follows:

H(s) = T(s) ÷ [1+ T(s)] [21]

The transient performance and the frequency response
of the PLL depends on the choice of the filter charac­teristic, F(s).

When the MAX038 internal phase detector is not used,
PDI and PDO should be connected to GND.

External Phase Detectors

External phase detectors may be used instead of the
internal phase detector. The external phase detector
shown in Figure 4 duplicates the action of the MAX038’s
internal phase detector, but the optional ÷N circuit can
be placed between the SYNC output and the phase
detector in applications requiring synchronizing to an
exact multiple of the external oscillator. The resistor net­work consisting of R4, R5, and R6 sets the sync range,
while capacitor C4 sets the capture range. Note that
this type of phase detector (with or without the ÷N cir­cuit) locks onto harmonics of the external oscillator as
well as the fundamental. With no external oscillator
input, this circuit can be unpredictable, depending on
the state of the external input DC level.

Figure 4 shows a frequency phase detector that locks
onto only the fundamental of the external oscillator.
With no external oscillator input, the output of the fre­quency phase detector is a positive DC voltage, and
the oscillations are at the lowest frequency as set by
R4, R5, and R6.

MAX038

High-Frequency Waveform Generator

______________________________________________________________________________________ 13

MAX038

GND

COSC

12

A0

V-

181192 6

GND GND15DGNDGNDGND

5

8

10

7

1

13

3

FADJ

IIN

DADJ

REF

R

D

OUT

PDI

PDO

V+ A1

417

DV+

16 20

+5V -5V

C2
1µF

C1
1µF

CENTER
FREQUENCY

50Ω

R

OUT

C

F

R

PD

C

PD

19

RF

OUTPUT

SYNC

14

EXTERNAL OSC INPUT

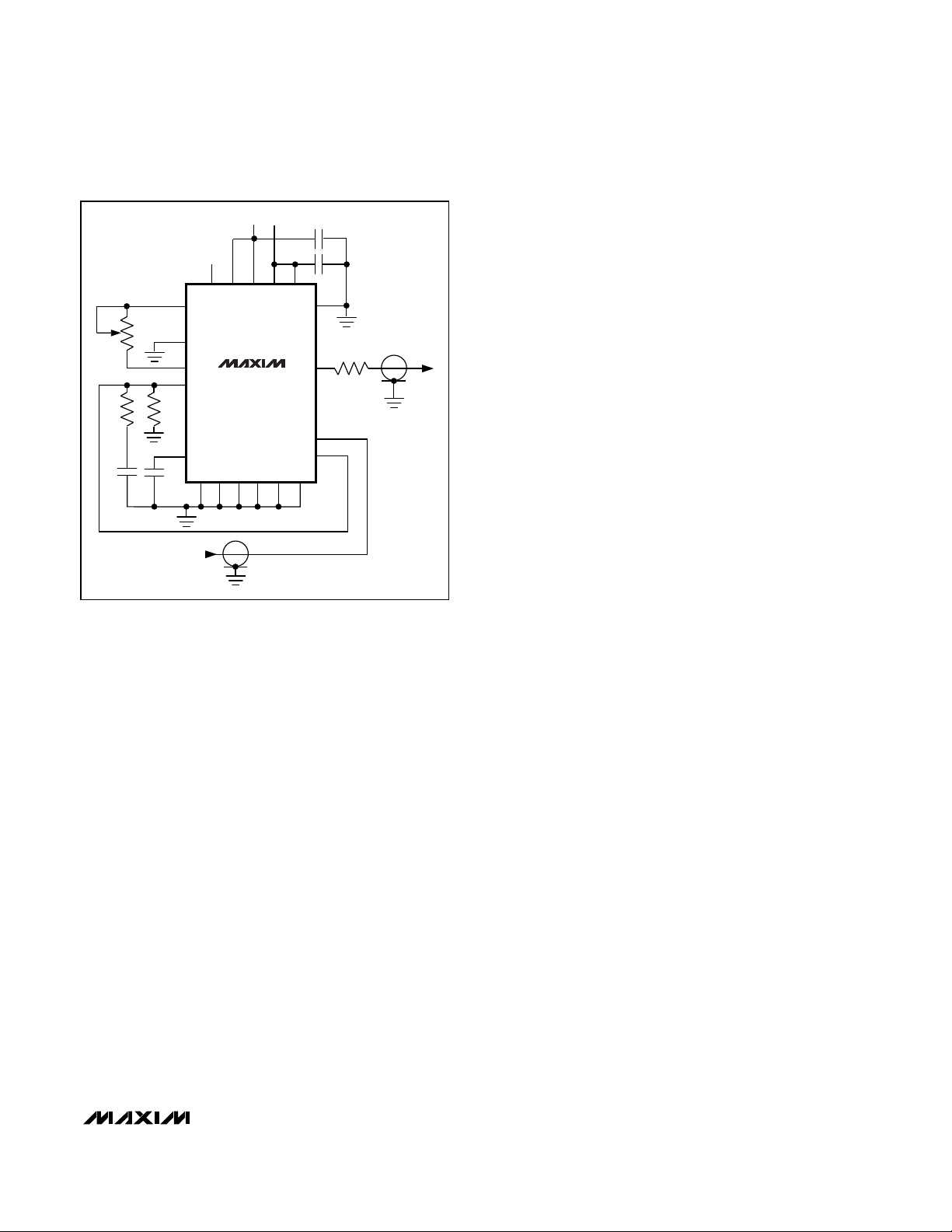

Figure 3. Phase-Locked Loop Using Internal Phase Detector

MAX038

High-Frequency Waveform Generator

14 ______________________________________________________________________________________

MAX038

GND

COSC

12

A0

V-

181192 6

GND GND15DGNDGND GND

5

8

10

7

1

13

3

FADJ

IIN

DADJ

REF

R2

C

W

R3

OUT

PDI

PDO

V+ A1

417

DV+

16 20

+5V

-5V

-5V

C2
1µF

C1
1µF

CENTER
FREQUENCY

50Ω

R1

R6
GAIN

R5

OFFSET

R4

PHASE DETECTOR

EXTERNAL

OSC INPUT

C4

CAPTURE

19

RF
OUTPUT

SYNC

14

÷N

C3

FREQUENCY

Figure 4. Phase-Locked Loop Using External Phase Detector

MAX038

GND

COSC

12

A0

V-

181192 6

GND GND15DGNDGND GND

5

8

10

7

1

13

3

FADJ

IIN

DADJ

REF

R2

C

W

R3

OUT

PDI

PDO

V+ A1

417

DV+

16 20

+5V

-5V

-5V

C2
1µF

C1
1µF

CENTER
FREQUENCY

50Ω

R1

R6
GAIN

R5

OFFSET

R4

C4

CAPTURE

19

RF

OUTPUT

SYNC

14

÷N

C3

FREQUENCY

EXTERNAL

OSC INPUT

FREQUENCY PHASE DETECTOR

Figure 5. Phase-Locked Loop Using External Frequency Phase Detector

MAX038

High-Frequency Waveform Generator

______________________________________________________________________________________ 15

N4

N3

N2

MC145151

N6

8.192MHz

MAX427

N5

OUT1
OUT2

RFB

VREF

VDD

GND1

MX7541

N7N8N9

T/R

N12

N13

N10

N11

OSC

OUT

OSCINLD

N

N1

N0

FV

PDV

PDR

RA2

RA1

RA0

PD1

OUT

V

DD

V

SS

F

IN

35pF

20pF

15

14

28 1

GND
BIT1
BIT2
BIT3
BIT4
BIT5
BIT6

BIT12
BIT11
BIT10

BIT9
BIT8

BIT7

MAX038

A0A1COSC

GND1

DADJ

FADJ

OUT

GND

V+

DV+

DGND

SYNC

PDI

PDO

VREF V-

GND1

IIN

GND1

3.3M

PDV

PDR

3.3M

33k

0.1

µF

0.1µF

33k

0.1µF

0.1µF

7.5k

10k

2

3

7

4

6

0.1µF

0.1µF

+2.5V

±2.5V

35

pF

10

11

0.1µF

0.1

µF

0.1µF

50.0

100

1

20

50Ω, 50MHz

LOWPASS FILTER

220nH

220nH

56pF

110pF

56pF

50Ω

SIGNAL

OUTPUT

SYNC

OUTPUT

+5V

-5V

9

10

1

18

3

2

1

0V TO 2.5V

2N3904

3.33k

2.7M

1k

1k

5

6

8

4

7

2N3906

1N914

2µA to

750µA

MAX412

MAX412

8.192MHz

4.096MHz

2.048MHz

1.024MHz

512kHz

256kHz

128kHz

64kHz

32kHz

16kHz

8kHz

4kHz

2kHz

1kHz

WAVEFORM

SELECT

FREQUENCY SYNTHESIZER 1kHz RESOLUTION; 8kHz TO 16.383MHz

Figure 6. Crystal-Controlled, Digitally Programmed Frequency Synthesizer—8kHz to 16MHz with 1kHz Resolution

MAX038

High-Frequency Waveform Generator

16 ______________________________________________________________________________________

Layout Considerations

Realizing the full performance of the MAX038 requires
careful attention to power-supply bypassing and board
layout. Use a low-impedance ground plane, and con­nect all five GND pins directly to it. Bypass V+ and V­directly to the ground plane with 1µF ceramic capaci­tors or 1µF tantalum capacitors in parallel with 1nF
ceramics. Keep capacitor leads short (especially with
the 1nF ceramics) to minimize series inductance.

If SYNC is used, DV+ must be connected to V+, DGND
must be connected to the ground plane, and a second
1nF ceramic should be connected as close as possible
between DV+ and DGND (pins 16 and 15). It is not
necessary to use a separate supply or run separate
traces to DV+. If SYNC is disabled, leave DV+ open.
Do not open DGND.

Minimize the trace area around COSC (and the ground
plane area under COSC) to reduce parasitic capaci­tance, and surround this trace with ground to prevent
coupling with other signals. Take similar precautions
with DADJ, FADJ, and IIN. Place CFso its connection
to the ground plane is close to pin 6 (GND).

__________Applications Information

Frequency Synthesizer

Figure 6 shows a frequency synthesizer that produces
accurate and stable sine, square, or triangle waves with
a frequency range of 8kHz to 16.383MHz in 1kHz incre­ments. A Motorola MC145151 provides the crystal-con­trolled oscillator, the ÷N circuit, and a high-speed phase
detector. The manual switches set the output frequency;
opening any switch increases the output frequency.
Each switch controls both the ÷N output and an
MX7541 12-bit DAC, whose output is converted to a cur­rent by using both halves of the MAX412 op amp. This
current goes to the MAX038 IIN pin, setting its coarse
frequency over a very wide range.

Fine frequency control (and phase lock) is achieved
from the MC145151 phase detector through the differ­ential amplifier and lowpass filter, U5. The phase detec-

tor compares the ÷N output with the MAX038 SYNC
output and sends differential phase information to U5.
U5’s single-ended output is summed with an offset into
the FADJ input. (Using the DAC and the IIN pin for
coarse frequency control allows the FADJ pin to have
very fine control with reasonably fast response to switch
changes.)

A 50MHz, 50Ω lowpass filter in the output allows pas­sage of 16MHz square waves and triangle waves with
reasonable fidelity, while stopping high-frequency noise
generated by the ÷N circuit.

V+

PDI

SYNC

AO

DADJ

PDO

FADJ

0.118"

(2.997mm)

0.106"

(2.692mm)

A1

COSC

GND

IINGND

GND

DGND

DV+

GND

GND REF

V-

OUT

TRANSISTOR COUNT: 855
SUBSTRATE CONNECTED TO GND

___________________Chip Topography
